Whistler HIGH SURGE POWER INVERTERS User manual

THE WHISTLER GROUP, INC.
CORPORATE HEADQUARTERS
3604 N.W. Frontage Rd.
Bentonville, AR 72712
TEL [phone] FX [phone]
www.whistlergroup.com
CUSTOMER RETURN CENTER
551 N. 13th St.
Rogers, AR 72756
Customer Service Tel [phone]
Email: [e-mail]
P/N 20562
REV 2 © 2009 The Whistler Group, Inc.

OWNER’S MANUAL
1200/2000/3000
WATT SERIES
HIGH SURGE POWER INVERTERS

If you have questions concerning the
operation of this Whistler product
please call customer service:
1-800-531-0004
Hours:
Monday - Friday
8:00 am - 5:00 pm CT
Please keep the receipt in a safe place.
You may register your product online at
www.whistlergroup.com. If the unit is
returned without a dated proof of
purchase, an out of warranty service
charge applies. Note: Your warranty
period begins at the time of purchase.
The warranty is validated only by your
receipt.
Now is the time to record the serial
number of the unit in the space provided
in the warranty section of the manual.

1
INTRODUCTION
Dear Whistler Owner,
For many of us, a vehicle is more than just transportation. It
can be a mobile office, communications or entertainment
center, or simply an expression of our personality. Whistler
products are designed to make the time you spend in your
vehicle more productive, more fulfilling, safer, or just simply
more fun. Our mission is to provide products that improve
your driving experience.
Whistler offers a complete line of DC to AC inverters ranging
in capacity from 100 Watts to 3000 Watts. These inverters
offer advanced technology, dependable operation and will
provide years of reliable service when used in accordance
with our operating instructions.
Your new Whistler power inverter allows you to run most AC
appliances right from your car, boat or RV. They’re great for
weekend use and life on the road. They’re also great for
power outages from 1200 thru 3000 watts. To fully acquaint
yourself with the operation of your Whistler power inverter
we recommend reading this entire manual.
Sincerely,
THE WHISTLER GROUP, INC.

Topic Page
Features Summary ..................................................................3-7
Important Information................................................................8
Inverter Information ............................................................9 - 11
•Getting Started
•Don’t Push It
Battery Information...........................................................11 - 13
•Selecting the Optimum Power Source
Cable Information.............................................................13 - 14
• WireCable Gauges
Operation ..........................................................................15 - 23
•Making the Connection
•Tips
•Recharging Equipment
•Power Source
•TV’s & Microwaves
Technical Operating Principles........................................23 - 25
Operation Summary .........................................................25 - 27
Troubleshooting ................................................................28 - 29
Specifications............................................................................30
Warranty Information ...............................................................31
TABLE OF CONTENTS
2

WHISTLER FEATURES
AWord About Whistler Power Inverters
Whistler inverters convert low voltage, direct current (DC) to 110
volt alternating household current (AC). The AC output is called
“modified sine wave”. See “Technical Operating Principles”
section for more information. Depending on the model and its
rated capacity, Whistler inverters draw power either from standard
12 volt automobile and marine batteries or from portable high
power 12 volt sources.
Inverter Feature
3

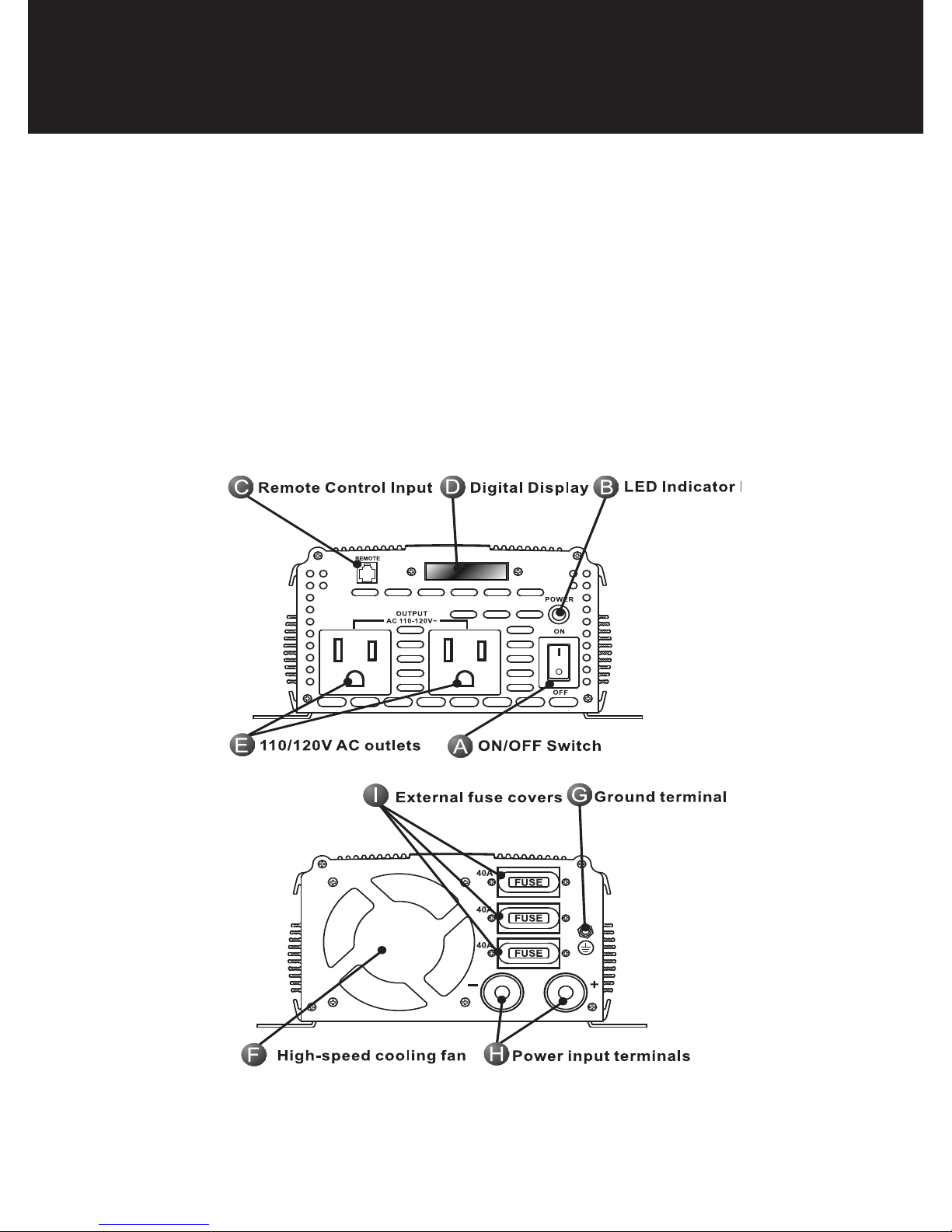

1200 watt series shown

FEATURES
4
2000 watt series shown

FEATURES
5

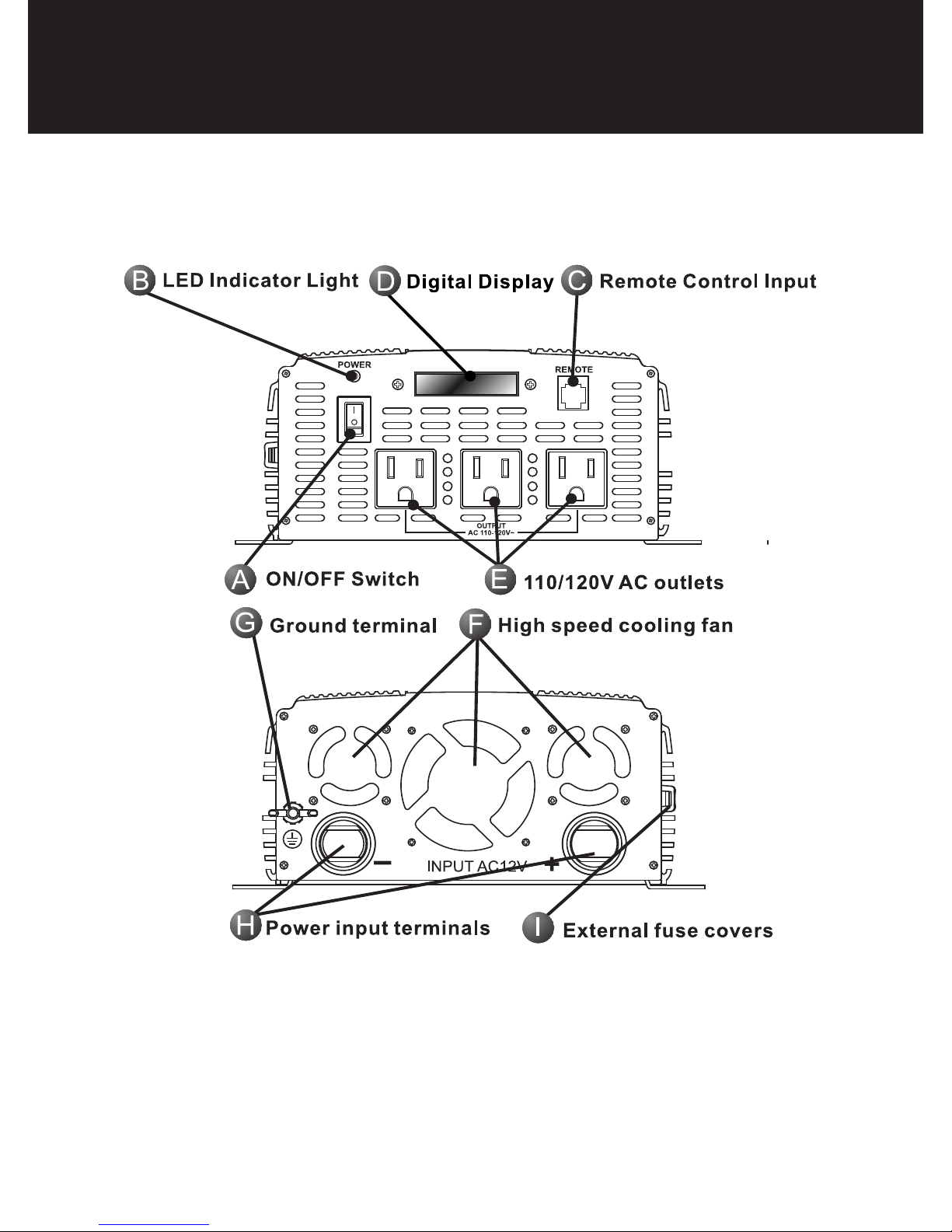

3000 watt series shown

a). ON/OFF Switch. This switch controls the flow of power from
the power source to the inverter. It does not control the power
running from the inverter to the equipment or appliance being
operated.
b). High Temperature LED Indicator Light. This light will turn
RED and the inverter will automatically shut down when the internal
temperature exceeds design parameters for safe operation.
When this occurs, turn the equipment or appliance off.
Overheating may result when the inverter is being operated at
levels exceeding its wattage rating or because it has been placed
in a location or in an manner which prevents proper heat
dissipation. After approximately 15 minutes, the High
Temperature Indicator light and the Cooling Fan will turn off and
the inverter will automatically restart indicating that the inverter
temperaturehas dropped to a safe operating level.
Over Load LED Indicator Light. This light will turn RED and the inverter
will automatically shut down when the continuous power draw
from the inverter exceeds the maximum
continuous power rating for the inverter. Turn the inverter OFF
(O), determine and resolve the cause of the overload prior to
resuming operation of the equipment or appliance. Turning the
inverter ON (I) will reset it.
c).Remote Operation Jack.
The inverter is designed to be operated from a remote location
via a WHISTLER Remote Control Switch (P/N 401010 wired or
401011 wireless) which plugs into this socket. This optional
accessoryis available through WHISTLER or your WHISTLER
dealer.
d). Wattage & Voltage
Wattage Indicator.This LCD Digital display monitors the DC
voltage, AC voltage and wattage at the inverter. When the
reading rises above the rated limits, the inverter may
automatically shut down. In this event, it is likely that the draw of
the equipment or appliance being operated is greater than the
batteryis capable of producing.
FEATURES
6

FEATURES
7
Voltage Indicator. This LCD display also monitors the voltage
being drawn from the battery by the inverter. The voltage is
measured at the Negative and Positive power input terminals on the
inverter. The voltage level reading may be lower than the battery
voltage due to the voltage "drop" that occurs as the battery
voltage runs through the terminal connections and cables.
The inverter is designed to operate with input voltages ranging
from 11 to 15 volts. When the voltage drops below 11 volts DC
an audible alarmwill sound. If the voltage drops below 11 volts
DC, the voltage indicator will go out and the inverter will
automatically shut down. The inverter also will shut down
automatically when the input voltage exceeds 15 volts DC.
Despite this "built in" protection, the inverter may be damaged
if the input voltage exceeds 15 volts DC and damage caused by
excess voltage input is not covered under the WHISTLER
warranty.
NNoottee::In the event of automatic shut down or continuous
audible alarm, turn the inverter OFF (O) until the source of the
related problem has been determined and resolved.
e). Standard North American 110 AC Outlets are provided.
f). Cooling Fan. This fan will turn on automatically when the unit
is turned on.
g). Chassis Ground Terminal Lug.
h). Power Input Terminals
Make note of the proper polarity.
i). External Fuse Cover
NNoottee::
The 3000 watt inverters incorporates all of the operating and
safety features of the 1200 and 2000 models.
