INTRODUCTION
Dear Whistler Owner,
For many of us, a vehicle is more than just transportation. It
can be a mobile office, communications or entertainment
center, or simply an expression of our personality. Whistler
products are designed to make the time you spend in your
vehicle more productive, more fulfilling, safer, or just simply
more fun. Our mission is to provide products that improve
your driving experience.
Whistler offers a complete line of DC to AC inverters ranging
from 100 Watts to 3000 Watts. These inverters offer advanced
technology, dependable operation and will provide years of
reliable service when used in accordance with our operating
instructions.
Your new Whistler power inverter allows you to run most AC
appliances right from your car, boat or RV. They’re great for
weekend use and life on the road. They’re also great for
power outages. To fully acquaint yourself with the operation
of this power inverter, we recommend reading this entire
manual.
Sincerely,
THE WHISTLER GROUP, INC.
pro1200to3000w.qxp 4/30/2010 8:54 AM Page 3

WHISTLER FEATURES
A Word About Whistler Power Inverters
Whistler inverters convert low voltage, direct current (DC) to 110
volt alternating household current (AC). The AC output is called
“modified sine wave”. See “Technical Operating Principles”
section for more information. Depending on the model and its
rated capacity, Whistler inverters draw power either from standard
12 volt automobile and marine batteries or from portable high
power 12 volt sources.
Inverter Features
3
Topic Page
Features Summary..................................................................3-5
Important Information................................................................6
Inverter Information ..............................................................7 - 9
• Getting Started
• Don’t Push It
Battery Information...........................................................10 - 11
• Selecting the Optimum Power Source
Cable Information.............................................................11 - 12
• Wire Cable Gauges
Operation ..........................................................................13 - 20
• Making the Connection
• The Power Source
• TV Fans and Audiophiles
• Microwaves
• Powerful Advice
• Technical Types
Technical Operating Principles........................................21 - 22
Operation Summary.........................................................22 - 23
Troubleshooting ................................................................24 - 25
Specifications ....................................................................26 - 27
Warranty Information........................................................28 - 30
TABLE OF CONTENTS
2

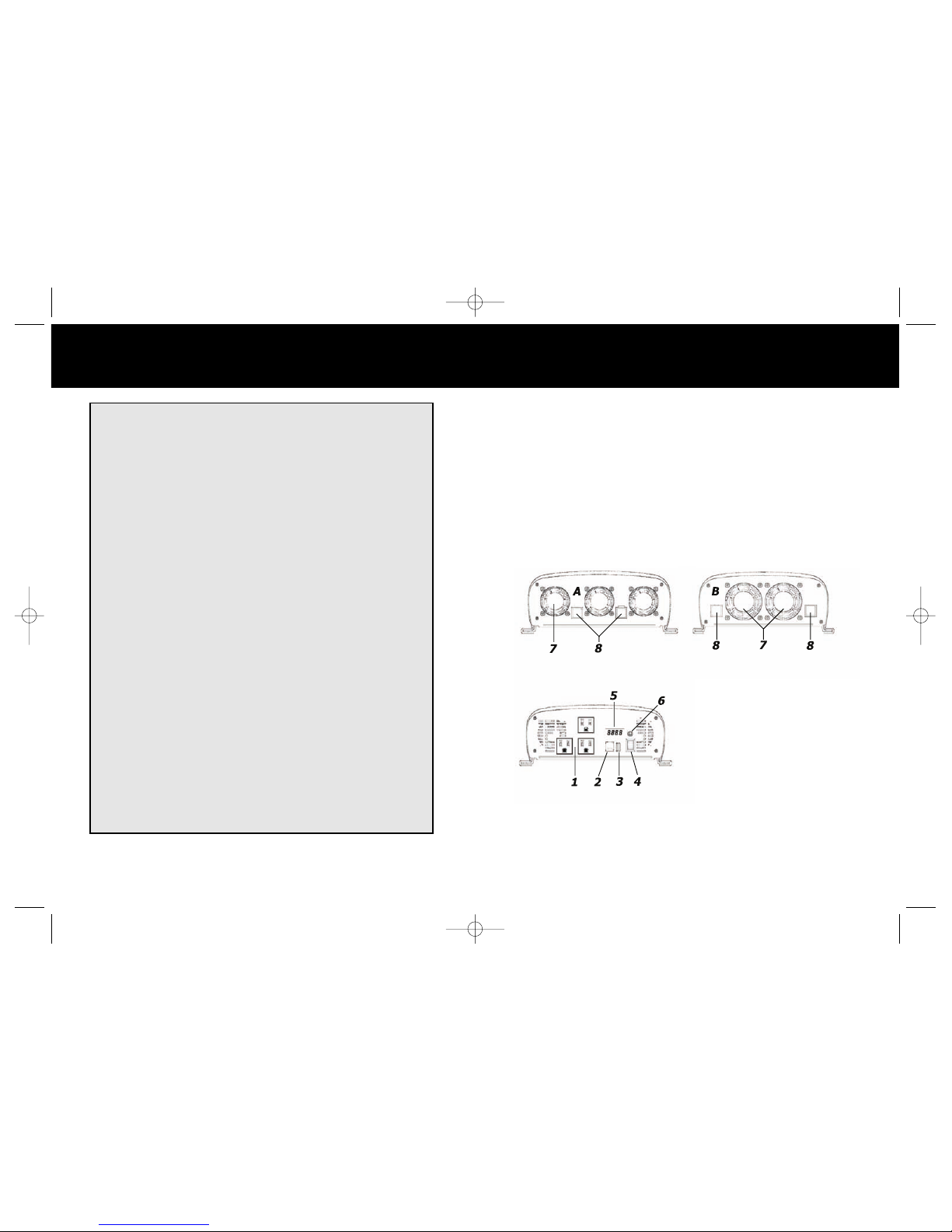

Note: Front panel layout and
controls are similar for models
1200 watt and up.
“A” = Pro-2000w & up models “B” = Pro-1200W & Pro-1600W
pro1200to3000w.qxp 4/30/2010 8:54 AM Page 5

FEATURES
1. Three 110 AC Outlets
2. Remote Operation Jack
The inverter is designed to be operated from a
remote location via a WHISTLER Remote Control
Switch (P/N Pro-RS01) which plugs into this socket.
This optional accessory is available through
WHISTLER or your WHISTLER dealer.
3. USB Power Port
This port is always on and independent of the
inverter’s on/off switch.
4. On/Off Switch
Turns the unit On/Off.
5. Digital Power Meter
6. On/Shutdown Indicator Light
The LED will illuminate GREEN when the inverter is
powered in normal conditions. This light will turn RED
and the inverter will automatically shut down (except
low voltage alarm) when any of the following
problems occur:
• Short Circuit Protection. The inverter will shut
down until the short is removed.
• Low Voltage Alarm. An alarm will sound when the
voltage from the battery discharges to 10.5+/-0.5
volts DC. This is an indication that the battery needs
to be recharged.
• Over Voltage Protection. The inverter will turn itself
off when the input exceeds 15.5+/-0.5 volts DC.
• Under Voltage Protection. The inverter will turn
itself off when the input is less than 10.0+/-0.5
volts DC.
5
FEATURES
4
• Overload Protection. The inverter will turn itself off
when the continuous draw or the surge draw of the
equipment being operated exceeds the maximum
power rating for the inverter.
• Thermal Protection. The inverter will turn itself off
when the internal temperature exceeds safe design
parameters.
7. Cooling Fans
8. Power Input Terminals
(Observe proper polarity)
Note:
In the event of an automatic shut down or continuous
audible alarm, turn the inverter OFF (O) until the source of the
related problem has been determined and resolved.
pro1200to3000w.qxp 4/30/2010 8:54 AM Page 7

INVERTER INFORMATION
Important Information About Your New Whistler Inverter.
This manual will provide you with directions for the safe
and efficient operation of your Whistle Power Inverter.
Read the manual carefully before using your new Whistler
inverter and keep the manual on file for future reference.
Important Note: Each of the following operating procedures
and safety features must be carefully reviewed and
thoroughly understood prior to using the inverter. Failure
to do so may result in damage to the inverter, equipment
or serious personal injury.
Notes:
Your Whistler inverter is designed to operate from a 12 volt
power source only. Never attempt to connect your
Whistler inverter to any other power source, including any
AC power source.
•110 volts can be lethal. Improper use of your Whistler
inverter may result in property damage, personal
injury or loss of life.
•Do not connect the inverter’s output to any other
power source.
•Not recommended for use with medical equipment.
Check with the appliance manufacturer for
compatibility with modified sine wave inverters.
Some appliances may not work well, not at all or be
damaged.
This is especially true for medical equipment.
For more information on compatibility issues, please visit
our inverter FAQ page at: www.whistlergroup.com
7
IMPORTANT INFORMATION
6
Getting Started
Power equipment and appliances which operate with motors
or tubes require an initial surge of power to get them up
and running. This power surge is referred to as the "starting
load" or "peak load." (By comparison, electrical devices such
as standard light bulbs do not require a large starting load.)
Once the equipment or appliance has been powered up, it
settles down to a slower pace and requires far less electrical power
to operate. This lower power requirement is referred to as
the "continuous load."
In order to ensure that the capacity of your Whistler inverter
is sufficient to meet the required start up load, you must first
determine the power consumption of the equipment or
appliance you plan to operate.
Power consumption is rated either in wattage or amperes,
and information regarding the required "watts" or "amps"
generally is stamped or printed on most appliances and
equipment. If this information is not indicated on the appliance
or equipment, check the owner’s manual. Contact the
appliance or equipment manufacturer to determine if
the device you are using (TV’s, battery charger, computer,
etc.) is compatible with a modified sine wave.
If the power consumption is rated in amps, multiply the number
of amps by 110 (AC voltage) to determine the comparable
wattage rating. Induction motors may require 2 to 6 times
their wattage rating to start up.
For further information on the fundamental operating
principles of Whistler inverters and related technical
data, see "Technical Operating Principles."
pro1200to3000w.qxp 4/30/2010 8:54 AM Page 9

power overload. Testing appliances and equipment with
start up load ratings comparable to your inverter wattage
rating will not damage it.
If a piece of equipment or an appliance will not operate,
first confirm that the inverter has been properly connected
to the 12 volt power source (See "Making The Connection").
If all connections have been properly made, turn the inverter
rocker switch ON (l), OFF (O) and ON (l) again in quick
succession. If this procedure is unsuccessful, it is likely that
the inverter does not have the required start up capacity or
your battery supply isn’t large enough to operate the
equipment or appliance in question.
Selecting the Optimum Power Source.
Operating the inverter for extended periods combined with
a high continuous load demand may result in excessive
power drain from the battery. Therefore, the reserve capacity
of the battery you select to power the inverter is an
important consideration.
The potential power drain can be estimated by calculating
the reserve power ("amp-hour"or Ah) of the battery and
the amps required by the inverter to meet the continuous
load demand of the equipment or appliance being
operated.
INVERTER INFORMATION
Don’t Push It.
Although your Whistler power inverter has the capacity to
provide power output (excess current) equal to approximately
two times its rated wattage capacity for a very brief period,
it is designed to operate equipment and appliances with
start up load wattage ratings no higher than its own maximum
continuous wattage rating.
For example, the Pro-1200W model has a maximum
continuous rating of 1200 watts. Although this model has
the capacity to briefly provide more than its continuous
power (that is, excess current), it is designed to operate
equipment and appliances with start up load requirements of
1200 watts or less.
Consequently, if the start up load rating of your equipment
or appliance is slightly higher than the maximum continuous
rating of the inverter, the inverter will attempt to start loads
above the continuous rating.
Some refrigerators, freezers, pumps and other similar
equipment and appliances require very high start up loads
to operate. Before attempting to power up this type of
equipment or appliance, make certain that all connections
have been properly made and that the power source is fully
charged.
To determine whether your inverter will operate a particular
piece of equipment or appliance, run a test. The inverter is
designed to shut down automatically in the event of a
9
INVERTER INFORMATION
8
pro1200to3000w.qxp 4/30/2010 8:54 AM Page 11

11
BATTERY/CABLE INFORMATION
•It may be advisable to operate the inverter from a bank
of batteries of the same type in a "parallel" configuration.
Two such batteries will generate twice the Ah of a
single battery; three batteries will generate three
times the Ah and so on. See “Making a Connection”
on page 13 for more information.
This multiple parallel battery option is especially
recommended for the Pro-2500W and Pro-3000W
inverters due to the high level of amps these models
require to produce up to 3000 watts of continuous
load. For more information regarding battery power
please visit our inverter faq page at:
www.whistlergroup.com.
Wire Cable Gauges
For safe and proper operation of the inverter, connect the
inverter to the power source with the proper gauge available
and in the shortest length practical.
Pro-1200W and Pro-1600W
When the inverter and the battery are set up within three feet
of each other, use a minimum of #4 gauge wire to make the
connections. Within four to six feet, use a minimum of #2 gauge
wire (Pro-1200W), #0 gauge for Pro-1600W. At distances
between six feet to ten feet, use #0 gauge wire (Pro-1200W),
#00 gauge for Pro-1600W.
BATTERY INFORMATION
10
1. To calculate the Ah of the battery, first determine its
"reserve minutes" rating. (Deep cycle marine batteries
generally have the highest reserve minute ratings). This
rating typically is marked on the battery along with the
"Cold Cranking Amps" (CCA) rating. Multiply the reserve
minutes rating of the battery by 0.3 to determine the
battery approximate Ah rating. A battery with a reserve
minutes rating of 166 has an Ah rating of 49.8.
2. To estimate the maximum battery current the inverter
will require to run a piece of equipment or appliance,
divide its continuous load wattage requirement by 10.
The Pro-1200W watt model utilizes 50 amps of battery
power to operate an appliance with a 500 watt continuous
load requirement. (500W divided by 10V = 50A).
3. Conclusion: The reserve power of the battery is sufficient
to satisfy the continuous load demand placed on the
inverter for a maximum of about one hour. (49.8 Ah
divided by 50A = 1 hour).
Note:
•When the inverter will be operating equipment or
appliances with high continuous load ratings for extended
periods, it is not advisable to power the inverter with the
same battery used to power your vehicle. If the car or truck
battery is utilized for an extended period, it is possible that
the battery voltage may be drained to the point where
the battery has insufficient reserve power to start the vehicle.
pro1200to3000w.qxp 4/30/2010 8:54 AM Page 13

Pro-2000W and Pro-2500W
When the inverter and the battery are set up within three
feet of each other, use a minimum of #2 gauge wire to make
the connections. Within four to six feet, use a #0 gauge wire
(Pro-2000W), #00 gauge for Pro-2500W. At distances
between six feet to ten feet, use #000 gauge wires (Pro-
2000W), #0000 for Pro-2500W connected in parallel to the
battery.
Pro-3000W
When the inverter and the battery are set up within three
feet of each other, use a minimum of #0 gauge wire to make
the connections. Within four to six feet, use a #000 gauge
wires. At distances between six feet to ten feet, use 2 sets of
#00 gauge wires connected in parallel to the battery.
Check Whistler’s online store for cable availability.
Cable options: For model Pro-2500 at 10 foot length, a
subsitute for the #0000 gauge can be using 2 sets of #0
gauge wires connected in parallel to the battery.
12
CABLE INFORMATION OPERATION
Making the Connection.
1. Make certain that the Power switch is in the OFF (O) position.
2. Connect the cables to the power input terminals at the
rear of the inverter and tighten the screws to make a
secure connection.
(To make these connections,install the wire
connectors flush with the metal backing plates and
fasten the nuts securely.
3. Connect the cable from the Negative (-) terminal on
the inverter to the Negative (-) terminal on the 12 volt
power source. Make certain the connection is secure.
4. Confirm that the cable you have just installed is
properly connected. Specifically, make certain that
the cable is connected to the Negative (-) terminals
on both the inverter and the 12 volt power source.
5. Connect the cable from the Positive (+) terminal on
the inverter to the Positive (+) terminal on the power
source.
13
pro1200to3000w.qxp 4/30/2010 8:54 AM Page 15

15
14
OPERATION OPERATION
7. Confirm that the equipment or appliance to be
operated is turned off. Plug the equipment or
appliance into one of the AC receptacles on the
front panel of the the inverter.
8. Turn the inverter to the ON (I) position. Turn on the
equipment or appliance.
9. Plug the USB powered device into the inverter’s
USB power port.
Note:
•The audible alarm may make a momentary “chirp”
when the inverter is turned OFF (O). The same alarm
may also sound when the inverter is being connected
to or disconnected from the 12 volt power source.
•The use of an extension cord from the inverter to
the appliance or equipment being operated will
decrease the power being delivered to the load.
For best operating results, the extension cord
should be no more than 50 feet long.
Note:
•Loose connections can result in a severe decrease in
voltage which may cause damage to the wires and insulation.
•Failure to make proper connection between the inverter
and the power source will result in reverse polarity.
Reverse polarity will blow the internal fuses in the inverter
and may cause permanent damage to the inverter.
Damage caused by reverse polarity is not covered
under the Whistler warranty.
•Making the connection between the Positive (+)
terminals may cause a spark as a result of current flowing
to the capacitors in the inverter. This is a normal
occurrence. Due to the potential for sparking, however,
it is extremely important that both the inverter and the
12 volt battery be well removed from any possible
source of flammable fumes or gases.Failure to heed
this warning could result in fire or explosion.
6. Run a ground from the Ground Lug Terminal at the
rear of the inverter to a proper grounding point using
the shortest practical length of 18 AWG wire. Selection
of the grounding point will depend on where you are
using the inverter. The ground wire may be connected
to the chassis of your vehicle or to the grounding
system in your boat or to the earth*if you are operating
the inverter in a remote location. Before connecting
the ground, make certain that the inverter is turned off.
Operating the inverter without properly
grounding it may result in electrical shock.
* This ground can’t be the same ground as the AC ground.
pro1200to3000w.qxp 4/30/2010 8:54 AM Page 17

OPERATIONOPERATION
16
•Check frequently to ensure that the input and
output connections are secure. Loose connections
may damage the inverter, the power source, or
may generate excessive heat.
To generate the maximum output, the Pro-3000W watt
model (for example) should be connected to a power
supply which has the capacity to produce up to 300
amps. The loads should be distributed between the
receptacles to ensure that each outlet is producing no
more than its maximum 1500 watt output.
If more than one piece of equipment or appliance is
to be operated at the same time, first turn on the
inverter and then turn on each piece of equipment or
appliance separately to enable the inverter to produce
the required start up loads.
Important Information on Battery Chargers
Using your inverter with battery chargers for power tools,
flashlights, video cameras and laptop computers may cause
damage to the inverter or the charging unit. Check with the
appliance manufacturer for compatibility with modified sine
wave inverters if you’re unsure.
Although we advise against it, if you attempt to use a
charging unit, monitor the temperature of the charging unit
for approximately 10 minutes. If the charging unit becomes
unusually warm, disconnect it from the inverter immediately.
The Power Source.
When the engine is off, most batteries will provide ample power
to the inverter for one to two hours. The actual length of time
is a function of several variables including the age and
condition of the battery, the number of batteries and the power
demand being placed on it by the equipment being operated
with the inverter. If you are using the inverter while the engine
is off, we recommend you start the engine every 30 to 60
minutes and let it run for at least 10 minutes to recharge the
battery. We also recommend that the device plugged into
the inverter be turned off before turning over the engine.
Although it is not necessary to turn off the inverter when turning
over the engine, the inverter may momentarily cease operation
as the battery voltage decreases. When the inverter is not
supplying power, and is turned on, it draws low amperage
from the battery (see specifications).
For You Television Fans & Audiophiles.
Although the inverter is shielded and filtered to minimize signal
interference, some interference with your television picture
may be unavoidable, especially with weak signals. However,
here are some suggestions that may improve the reception.
1. First, make certain that the television antenna produces
a clear signal under normal operating conditions (i.e.,
at home plugged into a standard 110 AC wall outlet).
Also, ensure that the antenna cable is properly shielded
and of good quality.
17
pro1200to3000w.qxp 4/30/2010 8:55 AM Page 19

1918
OPERATION OPERATION
Some Powerful Advice.
When driving with the inverter in operation, make certain that
neither the inverter nor the power cords will impede safe
operation of your vehicle. Keep the unit and all cords clear
of the steering wheel, gas, brake and clutch pedals and gear shift.
To maintain your inverter in proper working condition, note
the following important safety precautions:
•MOISTURE. Keep the inverter dry. Do not expose it
to moisture. Do not operate the inverter if you, the
inverter, the device being operated or any other surfaces
that may come in contact with any power sources are
wet. Water and many other liquids can conduct
electricity which may lead to serious injury or death.
•HEAT. For peak efficiency, the ambient air
temperatureshould be between 50° and 80° F. Avoid
placing the inverter on or near heating vents,
radiators or other sources of heat. Do not place the
inverter in direct sunlight.
•VENTILATION. In order to disperse the heat generated
while the inverter is in operation, keep it well ventilated.
While in use, maintain several inches of clearance around
the top and sides of the inverter.
•FUMES & GASES. Avoid using the inverter near
flammable materials. Do not place the inverter in
areas such as battery compartments, where fumes or
gases may accumulate.
2. Change the relative positions of the inverter, antenna
cables and television power cord.
3. Isolate the television, its power cord and antenna cables
from the 12 volt power source by running an extension
cord from the inverter to the television set.
4. Coil the television power cord and the input cables running
from the 12 volt power source to the inverter.
Note:
Inexpensive sound systems may emit a "buzzing" sound
when operated with the inverter. This is due to inadequate
filters in the sound system. There is no solution to his
problem short of purchasing a sound system with a higher
quality power supply.
For You Microwave Chefs.
The power rating commonly associated with microwave ovens
is the "cooking power" which is the power being "delivered"
to the item being microwaved. The actual operating power
requirement rating is higher than the cooking power rating
and typically is referenced on the back of the microwave. If
the operating power requirement does not appear on the
back of the microwave, check the owner’s manual or contact
the manufacturer.
pro1200to3000w.qxp 4/30/2010 8:55 AM Page 21

OPERATING PRINCIPALS
21
20
OPERATION
For You Technical Types.
1. Basic Operating Principles:
Whistler inverters work in two stages. During the first stage,
the DC to DC converter increases the DC input voltage from
the power source (e.g. a 12 volt battery) to 145 volts DC. In
the second stage, the high voltage DC is converted to 110
volts (60 Hz AC) using advanced power MOSFET transistors
in a full bridge configuration. The result is excellent overload
capability and the capacity to operate difficult reactive loads.
The output waveform resulting from these conversions is a
"quasi-sine wave" or a "modified sine wave" as shown on
below.
This stepped waveform is similar to the power generated by
utilities and has a broad range of applications.

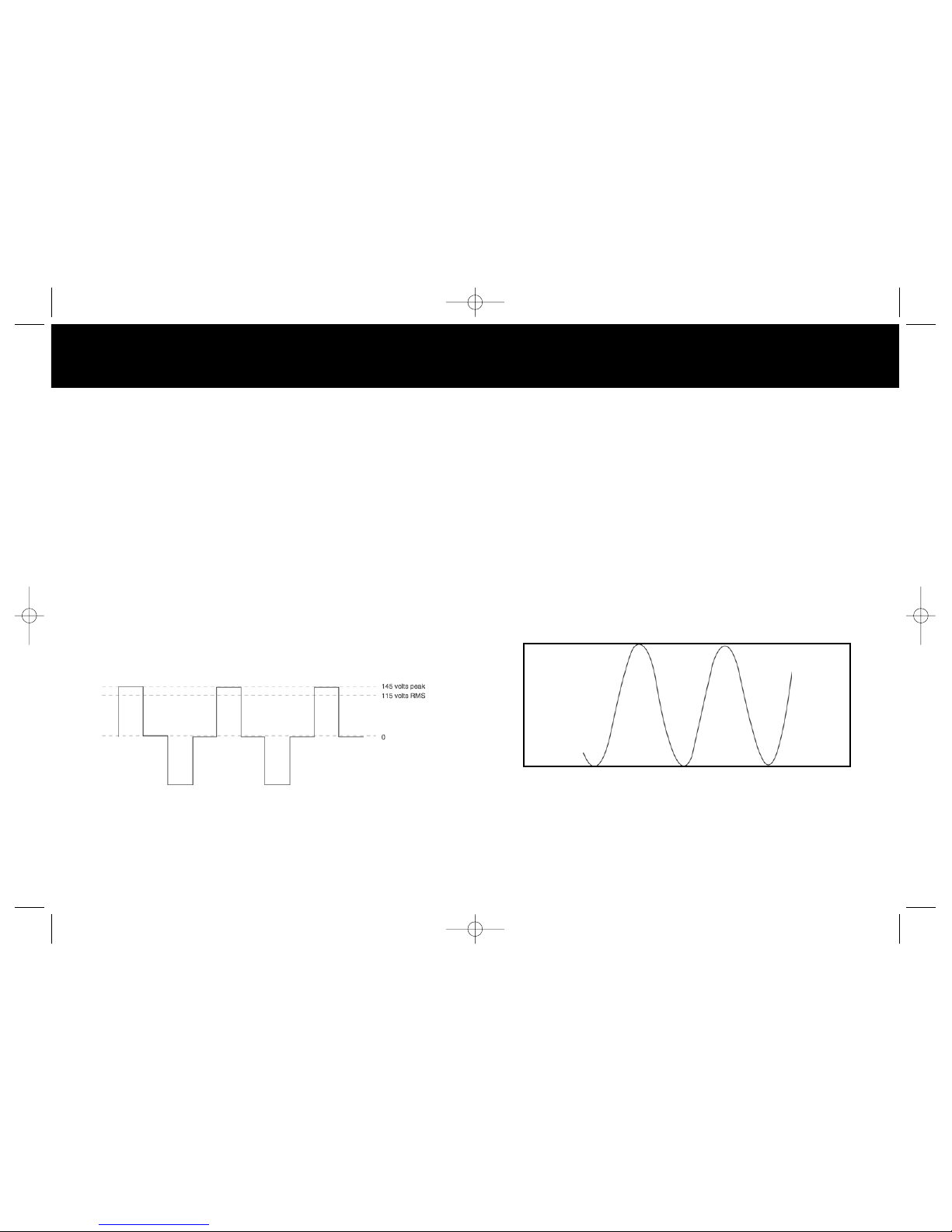

The modified sine wave produced by the Inverter
The modified sine wave produced by your Whistler inverter
has a root mean square (RMS) voltage of 110 volts. The majority
of AC voltmeters measure RMS voltage and assume that the
measured waveform will be a pure sine wave.
Consequently, these meters will not read the RMS modified
sine wave voltage correctly and, when measuring your Whistler
inverter output, the meters will read about 20 to 30 volts too
low. To accurately measure the output voltage of your inverter,
use a true RMS reading voltmeter such as a Fluke 87, Fluke
8060A, Beckman 4410, Triplett 4200 or any multimeter identified
as "True RMS."
For more information on inverters see our Inverter FAQ page
at www.whistlergroup.com
A true sine wave typical of home AC outlet.
pro1200to3000w.qxp 4/30/2010 8:55 AM Page 23

OPERATION SUMMARY
•In the event of automatic shut down, turn the inverter
OFF (O) immediately. Do not restart the inverter until the
source of the problem has been identified and corrected.
• To avoid battery drain, always disconnect the inverter
when the vehicle is not in use for long periods.
•Do not expose the inverter to moisture.
• Avoid placing the inverter near sources of heat or in
direct sunlight.
•When in use, make certain that the inverter is properly
ventilated.
•Do not use the inverter near flammable materials,
fumes, or gases.
•Always operate the inverter in accordance with the
instructions in this manual. Failure to do so may result
in property damage, personal injury, or loss of life.
•While connecting the inverter to the power source,
make certain that the inverter is well removed from
any potential source of flammable fumes or gases.
•In the event a continuous audible alarm or automatic
shut off, turn the inverter OFF immediately. Do not
restart the inverter until the source of the problem has
been identified and corrected.
23
OPERATING PRINCIPALS/SUMMARY
In Review.
•Never attempt to operate your Whistler inverter from
any power source other than a 12 volt battery or a
group of batteries that total 12 volts.
•Always make certain that the power cable terminal
connections Negative (-) to Negative (-) and Positive
(+) to Positive (+). Check these connections
frequently to ensure that they are secure.
•Make certain the rated power consumption of the
appliance or equipment you wish to operate is compatible
with the capacity of your inverter.
•If the rated power consumption of the equipment is in
the range of the maximum specified wattage of your
converter, test the inverter to ensure that it will operate
properly.
•Before attempting to use a battery charger see page 16.
•Before attempting to use medical equipment see page 6.
•Use the proper gauge cable (smaller the number, the
larger the cable) available to connect the inverter to
the power source.
•When operating the inverter with the engine off, start the
engine every 30 to 60 minutes and let it run for at least
10 minutes to recharge the battery.
22
pro1200to3000w.qxp 4/30/2010 8:55 AM Page 25

TROUBLESHOOTING
25
PROBLEM: TV Interference
Problem Solution
Electrical interference from Add a Ferrite data line
filter inverter.on to the TV power cord.
This filter is available at
electronic supply stores.
PROBLEM: Low or No Output Voltage
Problem Solution
Using incorrect type of Use true RMS reading meter
voltmeter to test output See "For You Technical
voltage. Types" Section of this
manual.
PROBLEM: Low Battery Alarm On All The Time
Problem Solution
Input voltage below Keep input voltage above
11 volts. 11 volts to maintain
regulation.
Poor or weak battery Replace battery.
condition.
Inadequate power being Use lower gauge wire. See
delivered to the inverter “Wire Cable Gauges”
or excessive voltage drop. section of this manual.
Keep wire length as short
as possible.
24
TROUBLESHOOTING
Overload LED on
Problem Solution
Equipment has a high Turn inverter power switch
start up surge. OFF (O) and then ON (l)
again until the inverter
powers your appliance.
Repeat as necessary
to get your appliance
"started".
Battery voltage below Recharge or replace
10 volts. battery.
Equipment being operated Use a higher capacity
draws too much power.inverter.
Inverter is too hot (thermal Allow inverter to cool.
shutdown mode). Check for adequate
ventilation. Reduce the
load on the inverter to
rated continuous power
output.
pro1200to3000w.qxp 4/30/2010 8:55 AM Page 27

SPECIFICATION
Pro-1200W WATT INVERTER SPECIFICATIONS
Maximum Continuous Power . . . . . . . . . . . . . . . . . . . .1200 Watts
Maximum Surge Capability (Peak Power) . . . . . . . . . .2400 Watts *
No Load Current Draw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<1.0A
Waveform. . . . . . . . . . . . . . . . . . . . . . . . . . . . .Modified Sine Wave
Operating Input Voltage Range . . . . . . . . . . .11-15+0.5 Volts DC
AC Receptacle . . . . . . . . . . . . . . .Three North American 3 Prong
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Volt 500mA Max
Approximate Dimensions . . . . . . . . . . . .8.9” L x 7.4” W x 3.54” H
Approximate Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.5 lbs
Pro-1600W WATT INVERTER SPECIFICATIONS
Maximum Continuous Power . . . . . . . . . . . . . . . . . . . .1600 Watts
Maximum Surge Capability (Peak Power) . . . . . . . . . .3200 Watts *
No Load Current Draw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<1.0A
Waveform. . . . . . . . . . . . . . . . . . . . . . . . . . . . .Modified Sine Wave
Operating Input Voltage Range . . . . . . . . . . .11-15+0.5 Volts DC
AC Receptacle . . . . . . . . . . . . . . .Three North American 3 Prong
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Volt 500mA Max
Approximate Dimensions . . . . . . . . . . . .8.9” L x 7.4” W x 3.54” H
Approximate Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.4 lbs
Pro-2000W WATT INVERTER SPECIFICATIONS
Maximum Continuous Power . . . . . . . . . . . . . . . . . . . .2000 Watts
Maximum Surge Capability (Peak Power) . . . . . . . . . .4000 Watts *
No Load Current Draw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<1.0A
Waveform. . . . . . . . . . . . . . . . . . . . . . . . . . . . .Modified Sine Wave
Operating Input Voltage Range . . . . . . . . . . .11-15+0.5 Volts DC
AC Receptacle . . . . . . . . . . . . . . .Three North American 3 Prong
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Volt 500mA Max
Approximate Dimensions . . . . . . . . . . . .12” Lx 8.9” W x 3.54” H
Approximate Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7.3 lbs
27
26
SPECIFICATION
Pro-2500W WATT INVERTER SPECIFICATIONS
Maximum Continuous Power . . . . . . . . . . . . . . . . . . . .2500 Watts
Maximum Surge Capability (Peak Power) . . . . . . . . . .5000 Watts *
No Load Current Draw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<1.2A
Waveform. . . . . . . . . . . . . . . . . . . . . . . . . . . . .Modified Sine Wave
Operating Input Voltage Range . . . . . . . . . . .11-15+0.5 Volts DC
AC Receptacle . . . . . . . . . . . . . . .Three North American 3 Prong
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Volt 500mA Max
Approximate Dimensions . . . . . . . . . . . .12” L x 8.9” W x 3.54” H
Approximate Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.7 lb
Pro-3000W WATT INVERTER SPECIFICATIONS
Maximum Continuous Power . . . . . . . . . . . . . . . . . . . .3000 Watts
Maximum Surge Capability (Peak Power) . . . . . . . . . .6000 Watts *
No Load Current Draw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<1.3A
Waveform. . . . . . . . . . . . . . . . . . . . . . . . . . . . .Modified Sine Wave
Operating Input Voltage Range . . . . . . . . . . .11-15+0.5 Volts DC
AC Receptacle . . . . . . . . . . . . . . .Three North American 3 Prong
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Volt 500mA Max
Approximate Dimensions . . . . . . . . . . .15.5” L x 8.9” W x 3.54” H
Approximate Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12.5 lb
* Under certain conditions your inverter may provide up to 2 times the
continuous rating for a brief period.
pro1200to3000w.qxp 4/30/2010 8:55 AM Page 29

WARRANTY
IMPORTANT:Whistler will not assume responsibility for loss
or damage incurred in shipping. Therefore, please ship your
inverter insured with return receipt requested.
2. Include the following clearly printed information:
• Your name and street address (for shipping via UPS), a
daytime telephone number, (No P.O. Box please) and
an e-mail address (if applicable).
• A detailed description of the problem, i.e. Unit powers
up but no AC output.
• A copy of your dated store receipt or bill of sale.
3. Be certain your inverter is returned with its serial number.
For reference, please write your unit’s serial number in
the following space: s/n __________________.
Inverters without serial numbers are not covered under warranty.
IMPORTANT: To validate that your inverter is within the
warranty period, make sure you keep a copy of your dated
store receipt! You may register your warranty online at
www.whistlergroup.com, however, for warranty verification
purposes, a copy of your dated store receipt must accompany
any unit sent in for warranty work.
Service Out Of Warranty
Inverters will be repaired at “out of warranty” service rates when:
•The unit’s original warranty has expired.
• A dated store receipt is not supplied.
• The unit has been returned without its serial number.
• The unit has been abused, modified, installed
improperly, or had its housing removed.
29
WARRANTY
Consumer Warranty
The Whistler Pro series inverters are warranted to the original
purchaser for a period of (2) two years from the date of
original purchase against all defects in materials and
workmanship. This limited warranty is void if the unit is
abused, modified, installed improperly, had its housing
removed, or has a missing serial number.There are no express
warranties covering this product other than those set forth in
this warranty. All express or implied warranties for this product are
limited to (2) two years. Whistler is not liable for damages
arising from the use, misuse, or operation of this product.
Service Under Warranty
During the warranty period, defective units will be repaired or
replaced (with the same or a comparable model), at Whistler’s
option, without charge to the purchaser when returned with
a dated store receipt to the address below. Inverters returned
without a dated store receipt will be handled as described in
section “Service Out Of Warranty.”
When returning a unit for service, please follow these
instructions:
1. Ship the inverter in the original carton or in a suitable sturdy
equivalent, fully insured, with return receipt requested, and
shipping charges prepaid to:
Whistler Repair Dept.
551 N. 13th St.
Rogers, AR. 72756
Please allow 3 weeks for return.
28
pro1200to3000w.qxp 4/30/2010 8:55 AM Page 31

MEMO
31
30
WARRANTY
The out of warranty service fee for the Pro Series inverters are
as follows:
Pro-1200W inverter is $75.00
Pro-1600W inverter is $95.00
Pro-2000W inverter is $125.00
Pro-2500W inverter is $155.00
Pro-3000W inverter is $185.00.
If you require out of warranty service, please return your
inverter as outlined in the section “Service Under Warranty”
along with a certified check or money order for the correct
amount. Payment may also be made by MasterCard, VISA
or American Express; personal checks are not accepted.
In the event repairs cannot be covered by the service fee,
you will be contacted by a Whistler
technical service specialist who will outline options available
to you. If you elect not to have your inverter repaired/replaced,
it will be returned to you along with your certified check or
money order.
IMPORTANT:When returning your inverter for service, be
certain to include a daytime telephone number and email
address (if applicable).
Customer Service
If you have questions concerning the operation of your Whistler
inverter, or require service during or after the warranty period,
please call Customer Service at 1-800-531-0004.
Representatives are available to answer your questions
Monday - Friday from 8:00 a.m. to 5:00 p.m. (CT).
pro1200to3000w.qxp 4/30/2010 8:55 AM Page 33
