White Mountain Hearth DVTL27FP90N-1 Quick start guide

Page 1
INSTALLATION INSTRUCTIONS
AND OWNER’S MANUAL
DIRECT VENT ZERO CLEARANCE GAS
FIREPLACE MODEL SERIES:
MULTIFUNCTION REMOTE (MF)
DVTL27FP90(N,P)-1
UL FILE NO. MH45034
This appliance may be installed in
an aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by state or local
codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certied kit is used.
WARNING
If not installed, operated and maintained in accordance
with the manufacturer’s instructions, this product could
expose you to substances in fuel or from fuel combus-
tion which can cause death or serious illness.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other am-
mable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
— Installation and service must be per-
formed by a qualied installer, service
agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
GAS-FIRED
HOT GLASS
DO NOT TOUCH
NEVER
WILL
CAUSE BURNS.
GLASS
UNTIL COOLED.
ALLOW CHILDREN
TO TOUCH GLASS.
WARNING
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals.

33740-9-1015 Page 333740-9-1015Page 2
BEFORE YOU START
1. Gas Supply see page 12.
2. Locating Fireplace see page 13.
3. Electrical Considerations see page 14.
4. Installation see pages 15-19.
5. VentSystemIdenticationseepage20.
6. Venting Fireplace see pages 21-27.
7. Framing and Finishing see pages 28-29.
8. InstallFiberPanelsseepage30.
9. Placing Glowing Embers see page 31
10. LogPlacementseepages32-41.
11. MultifunctionRemoteOperatinginstructionsseepages43-50.
12. Lighting Instructions see page 53.
13. Maintenance and Service see pages 56-59.
14. ReadtheImportantSafetyInformationseepages60-61.
15. Requirements for Massachusetts, please note the special requirements on page 62.
1
2
3
6
5
7
4

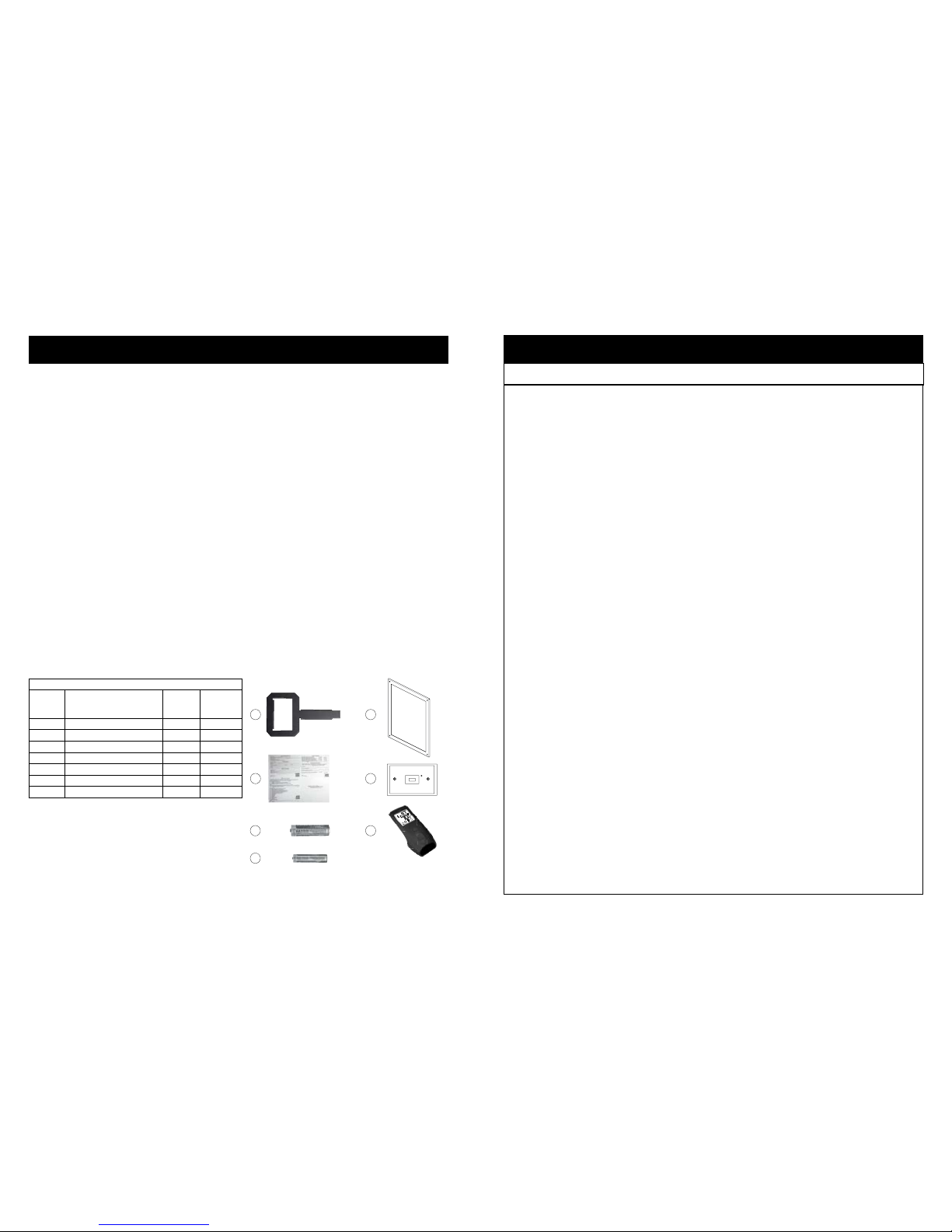

CARTON CONTENTS
INDEX
NUMBER DESCRIPTION PART NUMBER
QUANTITY
SUPPLIED
1Latch Tool 28932 1
2 Product Registration Card — 1
3 AA Battery R10592 4
4 AAA Battery R10600 3
5Wall Thimble Spacer 33331 1
6 Cover Plate, Battery Box R11783 1
7 Remote R11550 1
TABLE OF CONTENTS
INTRODUCTION .............................................................................................................................................................................. 4
SPECIFICATIONS ............................................................................................................................................................................ 5
ACCESSORIES................................................................................................................................................................................ 6
FIREPLACE DIMENSIONS .............................................................................................................................................................. 7
CLEARANCES............................................................................................................................................................................... 8-9
TERMINATION CLEARANCES ...................................................................................................................................................... 10
VENT TERMINAL CLEARANCES ...................................................................................................................................................11
GAS SUPPLY ............................................................................................................................................................................ 12-13
LOCATING FIREPLACE ................................................................................................................................................................. 13
ELECTRICAL CONSIDERATIONS................................................................................................................................................. 14
INSTALLATION.......................................................................................................................................................................... 15-19
VENT SYSTEM IDENTIFICATION ................................................................................................................................................. 20
VENTING FIREPLACE.............................................................................................................................................................. 20-22
TOP VENT - HORIZONTAL TERMINATION................................................................................................................................... 23
TOP VENT - VERTICAL TERMINATION ........................................................................................................................................ 24
VERTICAL TERMINATION ........................................................................................................................................................ 25-27
FRAMING AND FINISHING....................................................................................................................................................... 28-29
FIBER PANEL PLACEMENT.......................................................................................................................................................... 30
GLOWING EMBERS ...................................................................................................................................................................... 31
LOG PLACEMENT .................................................................................................................................................................... 32-41
COMPONENT WIRING DIAGRAM ................................................................................................................................................ 42
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS ................................................................................................... 43-50
CONTROL SYSTEM TROUBLESHOOTING............................................................................................................................. 51-52
LIGHTING INSTRUCTIONS........................................................................................................................................................... 53
FIREPLACE PARTS VIEW ............................................................................................................................................................. 54
FIREPLACE PARTS LIST............................................................................................................................................................... 55
MAINTENANCE AND SERVICE................................................................................................................................................ 56-59
IMPORTANT SAFETY INFORMATION .......................................................................................................................................... 60
SAFETY INFORMATION FOR USERS OF LP GAS ...................................................................................................................... 61
REQUIREMENTS FOR MASSACHUSETTS ................................................................................................................................. 62
MASTER PARTS DISTRIBUTOR LIST .......................................................................................................................................... 63
HOW TO ORDER REPAIR PARTS ................................................................................................................................................ 63
WARRANTY.................................................................................................................................................................................... 64
SECTION PAGE

33740-9-1015 Page 533740-9-1015Page 4
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installermusthaveownerlloutandmailwarrantycardsupplied
withthereplace.
3. Installer should show owner how to start and operate the
replace.
This direct vent gas replace is designed to operate with all
combustion air being siphoned from the outside of the building
and all exhaust gases expelled to the outside of the building. The
information contained in this manual pertains to all models and gas
control systems unless otherwise noted.
Appliance Certication
WARNING
This unit is not for use with solid fuels.
ThisreplaceisdesigncertiedinaccordancewithAmerican
NationalStandardANSIZ21.50andbyUnderwritersLaboratories
as a Direct Vent Gas Fireplace and shall be installed according to
these instructions.
Consult your local building code agency, prior to installation, to ensure
compliance with local codes-including permits and inspections.
The replace, when installed, must be electrically grounded in
accordance with local codes or, in absence of local codes, with
the National Electric Code ANSI/NFPA 70, if an external electrical
source is utilized.
These models may be installed in a bedroom or bed-sitting room
in the U.S.A..
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization equipment
or accessories and repair and servicing of equipment shall be
performedonlybyaqualiedagency.Theterm“qualiedagency”
meansanyindividual,rm,corporationorcompanywhicheitherin
person or through a representative is engaged in and is responsible for
(a) the installation or replacement of gas piping or (b) the connection,
installation, repair or servicing of equipment, who is experienced in
such work, familiar with all precautions required and has complied
with all the requirements of the authority having jurisdiction.
State of Massachusetts: The installation must be made
byalicensedplumberorgastterintheCommonwealthof
Massachusetts.
WARNING
ANY CHANGE TO THIS FIREPLACE OR ITS CONTROLS
CAN BE DANGEROUS.
Improperinstallationoruseofthereplacecancauseserious
injuryordeathfromre,burns,explosions,orcarbonmonoxide
poisoning.
WARNING
This appliance is equipped for natural gas or propane gas. Field
conversion is not permitted.
The installation must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code ANSI Z223.1/NFPA
54* Natural Gas and Propane Installation Code *Available from the
American National Standards Institute, Inc. 11 West 42nd St., New
York, N.Y. 10036.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
Important
All correspondence should refer to complete Model Number, Serial
Number and type of gas.
High Altitude
Wheninstalling this unitatanelevation above2000 feet (in the
United States) it may be necessary to decrease the input rating by
changingthe existing burnerorice to asmaller size. Generally,
inputshouldbereduced4percentforeach1000feetabovesea
level. However, if the heating value of the gas has been reduced,
this general rule may not apply. Check with Empire Comfort Systems
forproperoricesizeidentication.
Preparation
Thisdirectventgasreplaceandits componentsaretestedand
safe when installed in accordance with this Installation Manual.
Reporttoyourdealeranypartsdamagedinshipment,specically
check glass condition. Do not install unit with damaged, incomplete,
or substitute parts. Read all instructions before starting installation
and follow these instructions carefully during installation to insure
maximumbenetandsafety.Failuretofollowthemwillvoidyour
warrantyandmaypresentarehazard.
The warranty will be voided by, and the warranter disclaims any
responsibility for the following actions:
• Installationofanydamagedreplaceorventsystemcomponent.
• Modicationofthereplaceordirectventsystem.
• InstallationotherthanasinstructedbyEmpireComfortSystems
Inc.
• Improperpositioningoflogsorembers.
• Installationand/oruseofanycomponentpartnotmanufactured
or approved by manufacturer.
INTRODUCTION SPECIFICATIONS
DVTL27FP92N
(NAT)
DVTL27FP92P
(LP)
InputBTU/HrMaximum 36,000 36,000
InputBTU/HrMinimum 11,500 11,000
KWH (Maximum) 10.55 10.55
KWH (Minimum) 3.37 3.22
Orice(Front) 1.90mm #57
Orice(Back) #43 1.45mm
Air Shutter Opening (Front) 1/4” Full Open
Air Shutter Opening (Back) 3/16” Full Open
Height without standoff 47-3/8” 47-3/8”
Width 37-3/8” 37-3/8”
Depth 24-3/8” 24-3/8”
Gas Inlet Shutoff Valve (pipe) 1/2NPT 1/2NPT
NOTE: Airshutter settingsare factoryminimum settings.Some ventingcongurationsmay requireminor airshutter adjustmentsfor
optimum performance.
GAS SUPPLY PRESSURES
GAS TYPE MAXIMUM MINIMUM MANIFOLD
NAT 14.0” 4.5” 3.5”
LP 14.0” 10.8” 10.0”

33740-9-1015 Page 733740-9-1015Page 6
MODEL NUMBER DESCRIPTION
DF272NB Decorative Front - Beveled Window Frame, Brushed Nickel
DF274NB Decorative Front - Floating Front, Brushed Nickel
DF27CTBL DecorativeFront-“Cathedral”,HammeredBlackCopper
DF27PTBL DecorativeFront-“Portico”,HammeredBlack
DVFS27BL Fireplace Screen, Black
FBB12 Remote Operated, Variable Speed Blower Kit
DCA1ABL Decorative Forged Andirons
*
{
DVP27PKR PorcelainLiner,BlackReective
DVP27PMB Fiber Liner, Rustic Banded Brick
DVP27PWS Fiber Liner, Old World Stone
*A liner kit must be purchased and installed in order to operate the unit.
The following accessory parts can be obtained from your Empire Comfort Systems dealer. If you need additional information beyond what
yourdealercanfurnish,contactEmpireComfortSystemsInc.,918FreeburgAve.,Belleville,Illinois62220-2623.
ACCESSORIES FIREPLACE DIMENSIONS
C
G
P
E
I
R
K
N
O
BLM
J
F
K
Q
A
D

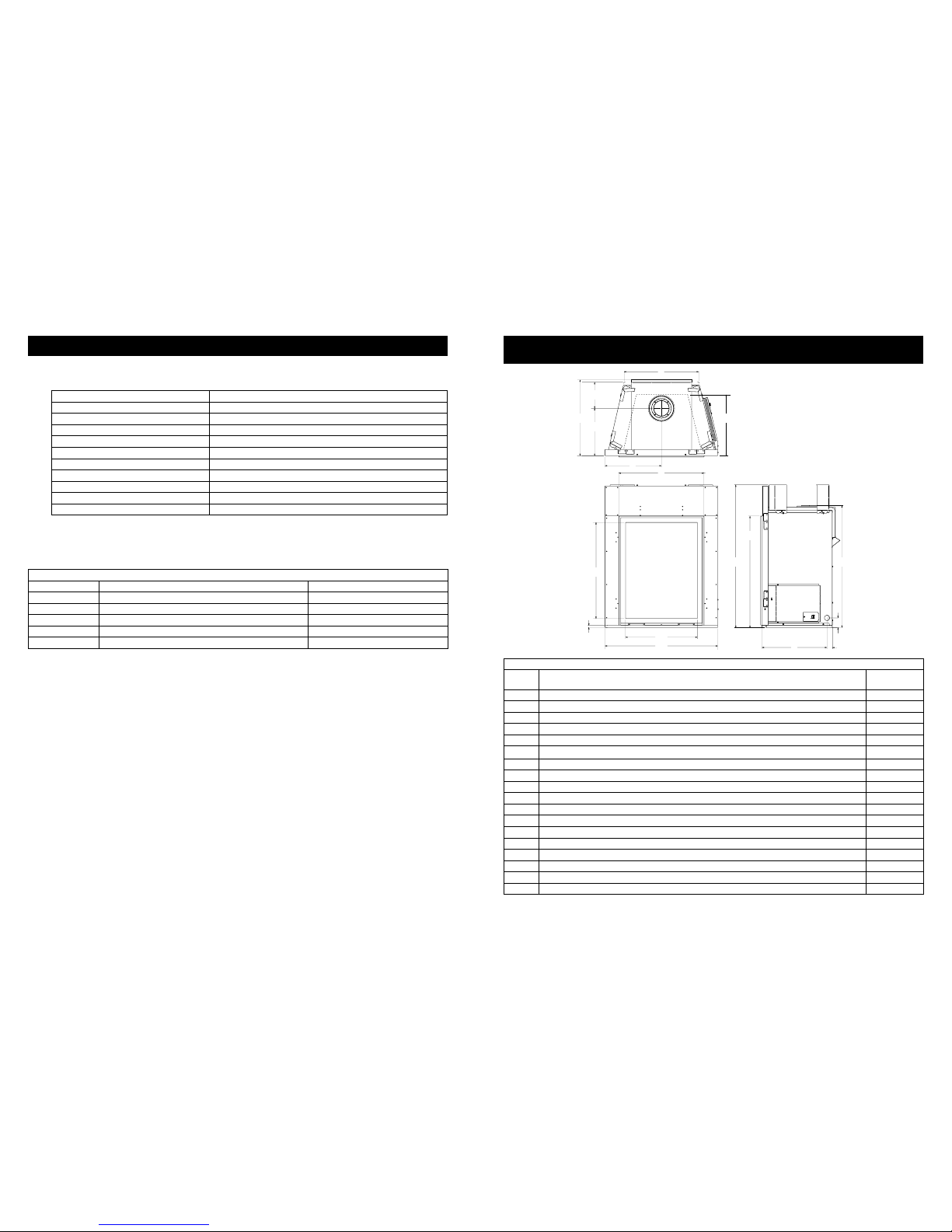

DIMENSIONS (in inches)
INDEX
LETTER DIMENSION DESCRIPTION DVTL27
AThemaximumheightofreboxface(excludingstandoffs) 47-3/8”
BThemaximumwidthofthereboxface(excludingnailinganges) 37-3/8”
CThemaximumdepthoftherebox 26”
DTheheightofthereboxopening 37”
EThewidthofthereboxopening 28-1/4”
FTheinteriordepthoftherebox 20-1/2”
GTherearexteriorwidthoftherebox 23-3/4”
HTheheighttothereboxstandoffs N/A
I Width from the left side of the box to the centerline of vent 18-11/16”
J Depth from back of box to centerline of top vent 8-11/16”
K Height from the bottom of the box to the gas line opening 3-1/4”
L Depth from the front of the box to gas line opening 22”
M Depth from rear of box to gas line opening 1-3/4”
N Glass frame opening height 31-7/8”
O Glass frame opening width 23-3/4”
P Depth from front of box to centerline of vent 15-3/4”
QDistancefromoortoreplaceopening 3/4”
RHeightfromoortoventcollar 40-1/4”
FIREPLACE BARRIER SCREENS
SCREEN MODEL DESCRIPTION FIREPLACE MODELS USED ON
DFQ272NB Beveled Window Frame with Barrier Screen DVTL27FP
DFQ274NB Floating Front Frame with Barrier Screen DVTL27FP
DFQ27BL Barrier Front DVTL27FP
DVFQ27CTBL Fireplace Screen DVTL27FP
DVFQ27PTBL Fireplace Screen DVTL27FP
Note:Arescreenisrequiredforoperationoftheappliance,butaresoldseparately.Followtheinstructionsthatcomewithyourrescreen
for proper installation.

33740-9-1015 Page 933740-9-1015Page 8
CLEARANCES
CLEARANCE TO COMBUSTIBLES
Back 2-3/4"
Side 2-3/4”
Floor 0"
Top Framing Edge 0"
NOTE A: See Figure 3 for maximum mantel depth and minimum
height above unit.
Figure 1
Television Considerations
Installingatelevisionabovea replacehasbecomeincreasingly
popular;however,theareaaboveanyreplacegetshotandmost
TV manufacturers recommend against placing their products near
a heat source.
Ifyouinstallatelevisionabovethisreplace,EmpireComfortSys-
tems accepts no responsibility for damage or injuries. Follow the
television manufacturer’s installation instructions, including any
recommendations regarding proximity to heat sources.
IfyouhaveaTVabove your replace, turnoffthereplaceand
let it cool completely before servicing or touching any buttons on
the TV.
6" FROM FACE OPENING
TO COMBUSTIBLES, BOTH SIDES
2-3/4”
3/4"
2-3/4"
6"
NON-COMBUSTIBLE FINISH MATERIAL
MUST COVER THE SURFACE OF THE
FIREPLACE FACE
FRAMING HEADER
DRYWALL
SURFACE OF FACE
COMBUSTIBLES
ALLOWED
COMBUSTIBLES
ALLOWED
COMBUSTIBLES
ALLOWED
26”
FROM SURFACE
OF FACE TO
COMBUSTIBLES
2-3/4”
Figure 2
Mantel Chart
MANTEL
COMBUSTIBLE TRIM
AND MANTELS
ALLOWED IN
SHADED AREA
OPENING OF
FIREPLACE
G
B
C
D
E
A
A
F
NON-
COMBUSTIBLE
FINISH
MATERIAL
MUST COVER
THE SURFACE
OF THE
FIREPLACE
FACE
INDEX
LETTER
DISTANCE FROM
FIREPLACE OPENING
DISTANCE FROM
FINISHED WALL
A28” 12”
B26-3/4” 8”
C24” 6”
D22” 4-1/2”
E19” 2-1/4”
F18” 1-1/2”
G16” 0”
Figure 3
Clearances
Clearancefromtopfrontedgeofreplacetoceilingis40inches.
Clearancefromsideofreplacetoadjacentsidewallis6inches.
CLEARANCES
Nogreetingcards,stockingsorornamentationofanytypeshouldbeplacedonorattachedtothereplace.Theowofheatoutofthe
appliance can ignite combustibles.
Figure 5
COMBUSTIBLE MATERIAL
▼
6”
TO FIREPLACE
OPENING
40”
TO FIREPLACE
OPENING
Figure 4

33740-9-1015 Page 1133740-9-1015Page10

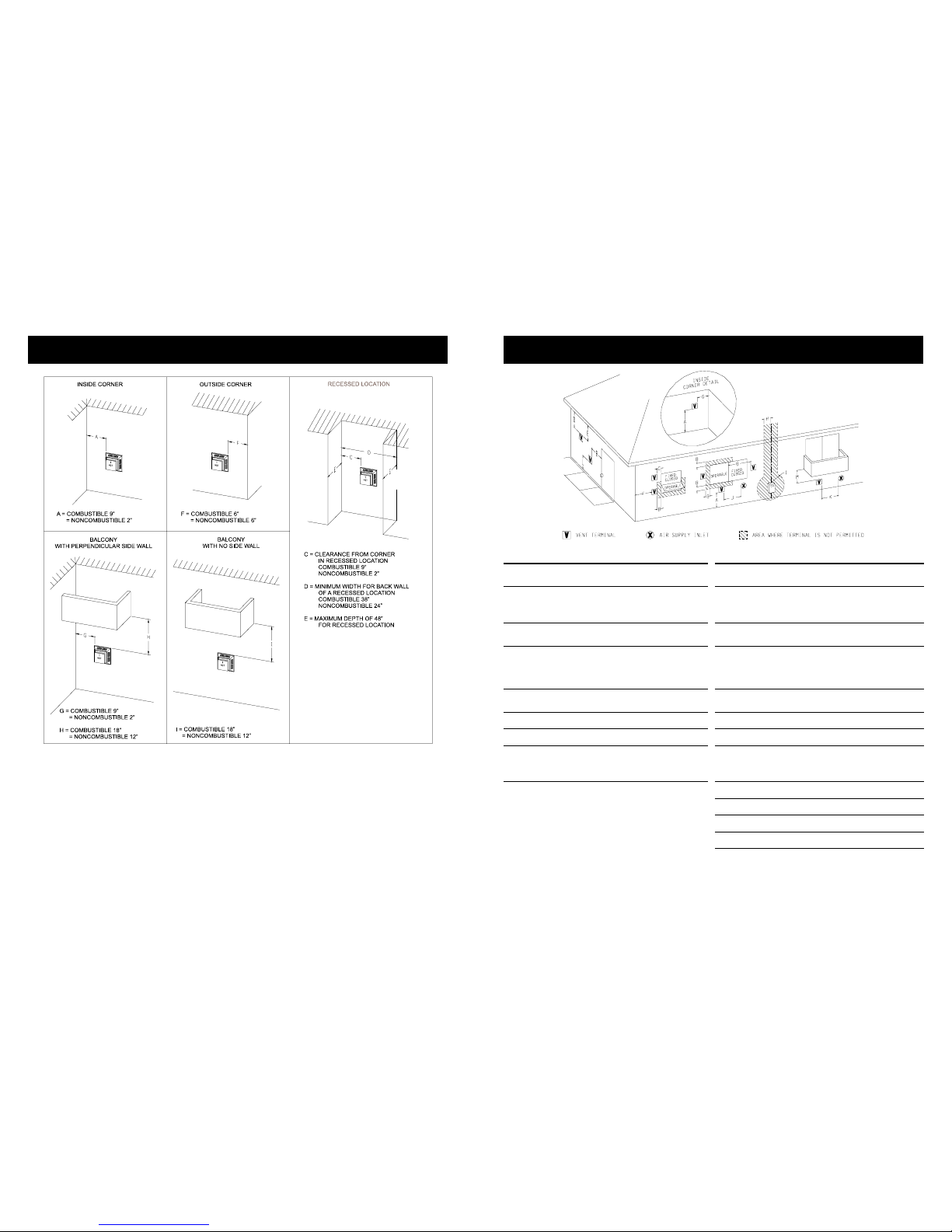

Termination clearance for buildings with combustible and noncombustible exteriors.
Vertical Sidewall Installations
Important! Minimum clearance between vent pipes and combustible
materials is 3 inch on top, and 1 inch (on bottom and sides).
Important! When vent termination exits through foundation less
than20 inches below siding outcrop, the ventpipe must extend
outwardsothatthehorizontalventterminationislocatedushto,
or beyond the outcrop siding.
Information on Various Venting Routes and Components
Important:Itisalwaysbesttolocatethereplaceinsuchaway
that minimizes the number of offsets and horizontal vent length.
Since it is very important that the venting system maintain its balance
betweenthecombustionairintakeandtheuegasexhaust,certain
limitations as to vent congurations apply and must be strictly
adhered to.
Figure 6
TERMINATION CLEARANCES

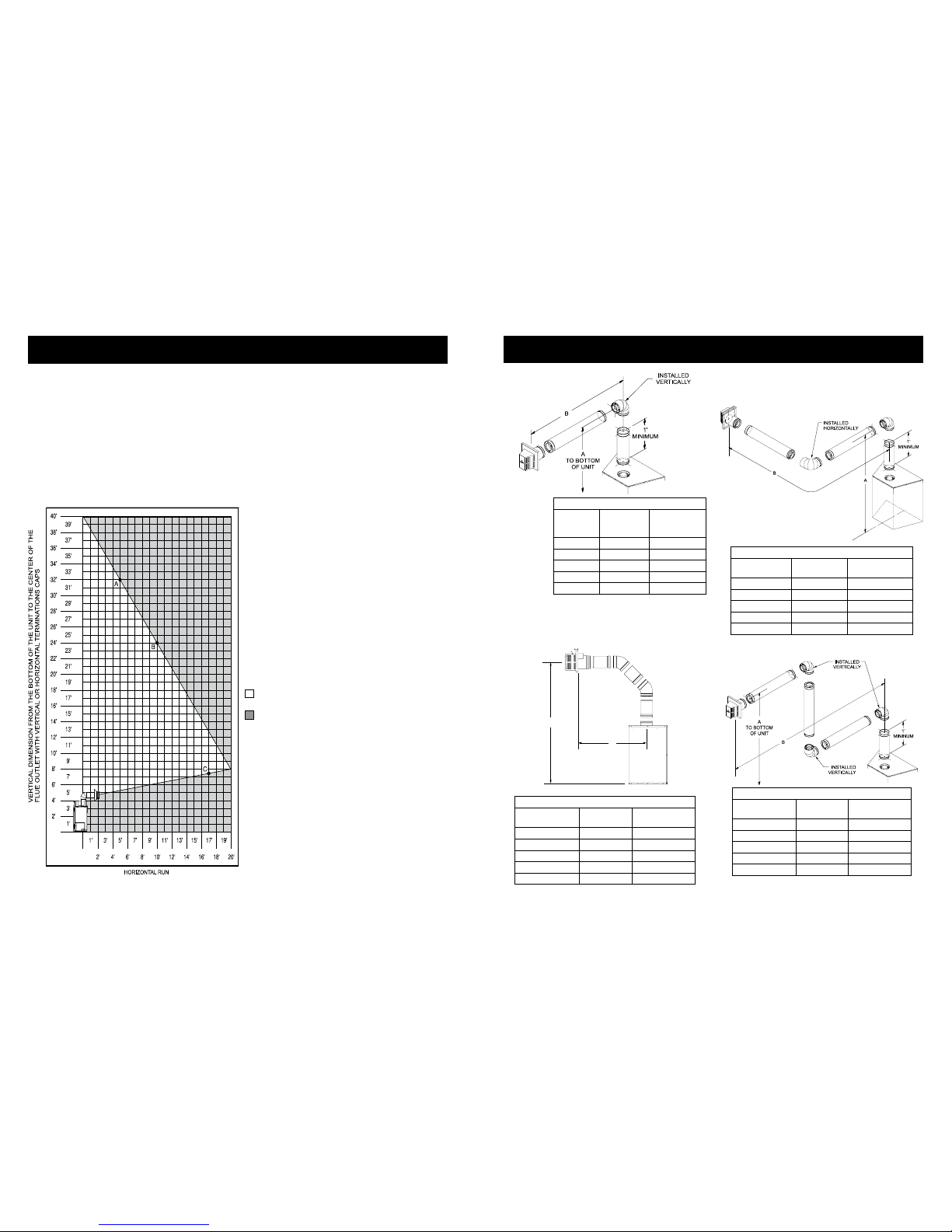

The graph showing the relationship between vertical and horizontal
side wall venting will help to determine the various vent lengths
allowable.
The horizontal vent run refers to the total length of vent pipe from
theuecollarofthereplacetothefaceoftheouterwall.
Venting termination shall not be recessed into wall or siding.
VENT TERMINATION CLEARANCES
Canadian Installations US Installations Canadian Installations US Installations
A= Clearance above grade,
veranda, porch, deck, or
balcony
12in(30cm)minimum 12in(30cm)minimum I= Clearance to service
regulator vent outlet 3 ft (91 cm) minimum 6 ft (183 cm) minimum
B= Clearance to window or
door that may be open
12in(30cm)minimum
forappliances>10,000
Btuh(3kW)and≤
100,000Btuh(30kW),
9 in (23 cm) minimum
forappliances>10,000
Btuh(3kW)and≤
50,000Btuh(15kW)
J= Clearance to nonme-
chanical air supply
inlet to building or the
combustion air inlet to
any other appliance
12in(30cm)minimumfor
appliances>10,000Btuh
(3kW)and≤100,000Btuh
(30kW)
9 in (23 cm) minimum
for appliances >
10,000Btuh(3kW)
and≤50,000Btuh
(15 kW)
C= Clearance to perma-
nently closed window 12in(30cm)minimum 12in(30cm)minimum K= Clearance to a mechani- cal air supply inlet 6 ft (1.83 m) minimum
3 ft (91 cm) minimum
aboveifwithin10ft
horizontally
D= Vertical clearance
ventilatedsoftlocated
above the terminal within
a horizontal distance of 2
feet (61 cm) from the cen-
ter line of the terminal
18 in (45 cm) minimum 18 in (45 cm) minimum
L= Clearance above paved
sidewalk or paved drive-
way located on public
property
7 ft (2.13 m) minimum † 7 ft (2.13 m) minimum
E= Clearance to unventi-
latedsoft 12in(30cm)minimum 12in(30cm)minimum
M= Clearance under
veranda, porch deck, or
balcony
12in(30cm)minimum‡ 12(30cm)inches
minimum
F= Clearance to outside
corner Seepage10 Seepage10 1In accordance with the current CSA B149.1, Natural Gas and Propane Instal- lation Code
G= Clearance inside corner Seepage10 Seepage10 2InAccordancewiththecurrentANSIZ223.1/NFPA54,NationalFuelGas
Code
H= Clearance to each side
of center line extended
abovemeter/regulator
assembly
3 ft (91 cm) minimum
within a height 15 ft
(4.5 m) above the
meter/regulator
assembly
3 ft (91 cm) minimum † A vent shall not terminate directly above a sidewalk or paved driveway that is
located between two single family dwellings and serves both dwellings
‡Permitted only if veranda,, porch, deck, or balcony is fully open on a minimum
oftwosidesbeneaththeoor.
*ForclearancesnotspeciedinANSIZ223.1/NFPA54orCSAB149.1,oneof
the following shall be indicated:
a) A minimum clearance value determined by testing in accordance with section
2.23.5, or;
b) Areferencetothefollowingfootnote:“Clearanceinaccordancewithlocal
installationcodesandtherequirementsofthegassupplier.”
Figure 7

33740-9-1015 Page 1333740-9-1015Page 12
GAS SUPPLY
The gas pipeline can be brought in through the right side of the
appliance only. Consult the current National Fuel Gas Code, ANSI
Z223.1 installation code.
RECOMMENDED GAS PIPE DIAMETER
PIPE
LENGTH
SCHEDULE40PIPE
INSIDE DIAMETER
TUBING, TYPE L
OUTSIDE DIAMETER
NAT LP NAT LP
0-10feet 1/2” 3/8” 1/2” 3/8”
10-40feet 1/2” 1/2” 5/8” 1/2”
40-100feet 1/2” 1/2” 3/4” 1/2”
100-150feet 3/4” 1/2” 7/8” 3/4”
NOTE:Neveruseplasticpipe.Checktoconrmwhetheryour
local codes allow copper tubing or galvanized.
NOTE: Since some municipalities have additional local codes, it
is always best to consult your local authority and installation code.
The use of the following gas connectors is recommended:
— ANSI Z21.24 Appliance Connectors of Corrugated MetalTubing
and Fittings.
— ANSI Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The state of Massachusetts requires that a
exibleapplianceconnectorcannotexceedthreefeetinlength.
Figure 8
Access to and positioning of the gas pipeline is shown in Figures
9,10,and11.
Figure 9
Figure 10
Figure 11
GAS SUPPLY PRESSURE (INCHES W.C.)
MINIMUM NORMAL MAXIMUM
Natural Gas 4.5" 7.0" 14.0"
LP (Propane) 10.8" 11.0" 14.0"
Manifold Pressure (inches w.c.)
Normal (HI)
Natural Gas 3.5"
LP (Propane) 10.0" Figure 12
NOTE: Island and room divider installation is possible as long as
thehorizontalportionoftheventsystemdoesnotexceed20feet
with a minimum vertical run of 8 feet (measured from bottom of
appliance). See details in Venting Section.
NOTE: When installing this appliance against exterior wall, insulate
to applicable insulation codes.
LOCATING FIREPLACE
When you install your Direct Vent Fireplace in room divider or Flat
on wall corner positions, a minimum of 6 inches clearance must
bemaintainedfromtheperpendicularwalltothereplaceopening.
GAS SUPPLY
Installing a New Main Gas Cock (Check Local Code)
Each appliance should have its own manual gas cock.
A manual main gas cock should be located in the vicinity of the unit.
Where none exists, or where its size or location is not adequate,
contact your local authorized installer for installation or relocation.
Compounds used on threaded joints of gas piping shall be resistant
totheactionofliqueedpetroleumgases.Thegaslinesmustbe
checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.
Never use an exposed ame to check for leaks. Appliance must
be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
appliance connected; control valve will sustain damage!
NOTE: Whenusingcopperorexconnectoruse,onlyapproved
ttings.
The appliance and its individual shut off valve must be disconnected
from supply piping system during any pressure testing of that system
attestpressuresinexcessof1/2psig(3.5kPa).
The appliance must be isolated from the gas supply piping system
by closing its individual manual shut off valve during any pressure
testing of the gas supply piping system at test pressures equal to
orlessthan1/2psig(3.5kPa).
CAUTION
Ifoneoftheproceduresresultsinpressuresinexcessof1/2psig
(14”w.c.)(3.5kPa)onthereplacegasvalve,itwillresultina
hazardous condition.
Checking Manifold Pressures
Both Propane and Natural gas valves have a built-in pressure
regulator in the gas valve. Natural gas models will have a manifold
pressureofapproximately3.5”w.c.(.871kPa)atthevalveoutlet
withthe inlet pressure to the valve froma minimumof 4.5” w.c.
(1.120kPa)forthepurposeofinputadjustmenttoamaximumof
14.0”w.c.(3.484kPa).Propanegasmodelswillhaveamanifold
pressure approximately 10.0” w.c. (2.49kPa) at the valve outlet
withtheinletpressuretothevalvefromaminimumof10.8”w.c.
(2.68 kPa) for the purpose of input adjustment to a maximum of
14.0”w.c.(3.484kPa).

33740-9-1015 Page 1533740-9-1015Page 14

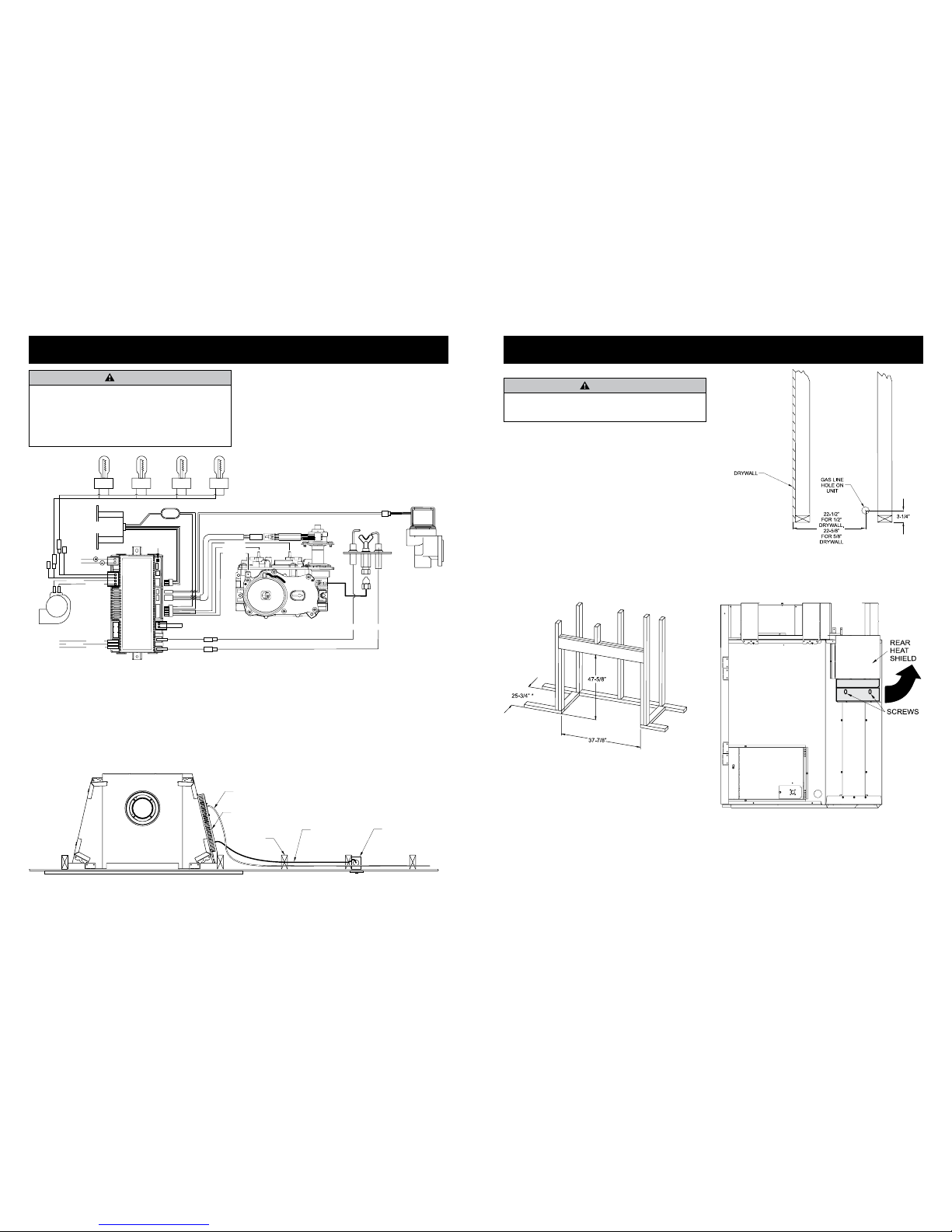

ELECTRICAL CONSIDERATIONS
CAUTION
Allwiringshouldbedonebyaqualiedelectricianandshallbe
in compliance with all local, city and state building codes. Before
making the electrical connection, make sure the main power
supply is disconnected. The appliance, when installed, must be
electrically grounded in accordance with local codes, or in the
absenceoflocalcodes,withtheNationalElectricalCodeANSI/
NFPA70(LatestEdition).
ORANGE
PILOT
GAS CONTROL VALVE
ORANGE
GREEN
YELLOW
WHITE
BLACK
WHITE
OPTIONAL
BLOWER
FUSE
BLACK L
N
G
WHITE GREEN
TO JUNCTION
BOX
AUX.
LOOP
RECEIVER
MODULE
SPLIT FLOW SOLENOID
SLEEVE
USER INTERFACE/
BATTERY HOLDER
LEARN
BUTTON
IGNITOR
FLAME SENSOR
3.15
AMP
Theuserinterface/batteryholdermustbemountedwithinadistance
allowed by the attached 12 foot harness. As shipped, this harness is
already fed through a strain relief on the bottom of the component
accessboxandisattachedtotheUserInterface/BatteryHolder.
NOTE: If an auxiliary device is to be used, its wiring may be fed
through the junction box strain relief. Auxiliary device amperage
limit is 5 amps.
NOTE: A one inch diameter hole should be use to pass wiring through
studs.
VERTICAL
FRAMING
MEMBER
USER INTERFACE
HARNESS
USER INTERFACE/
BATTERY HOLDER
MUST BE INSTALLED
INTO WALL
JUNCTION
BOX. (ORANGE LOW-
VOLTAGE BOX
RECOMMENDED.)
COMPONENT
ACCESS BOX
ELECTRICAL POWER TO UNIT
JUNCTION BOX / CONTROL MODULE
Figure 13
Figure 14
A factory installed junction box is located on the lower right side of
thereplace.Wiringmustbefedtothejunctionboxandattached
with wire nuts to the control module power leads already fed into
the junction box.
Attach black to black and white to white. The ground wire should
be attached to the green control module lead.
INSTALLATION
Framing and Finishing
CAUTION
MEASURE FIREPLACE DIMENSIONS AND VERIFY FRAMING
METHODS, AND WALL COVERING DETAILS BEFORE
FRAMING CONSTRUCTION BEGINS.
1. Choose unit location.
2. Frameinreplacewithaheaderacrossthetop.
NOTE:Fireplaceframingcanbebuiltbeforeorafterthereplace
is set in place. Framing should be positioned to accommodate
wallcoveringandreplacefacingmaterial.Thereplaceframing
should be constructed of 2 x 4 lumber. The framing headers
mayrestonthereplacestandoffs.RefertoFigures 15 and
16 for minimum framing dimensions.
NOTE: When installing this unit against exterior wall, insulate to
applicable insulation codes.
3. Remove two screws which are accessed through the clearance
holes in the rear heat shield. See Figure 17. Hand bend the
rear stand-off as shown in Figure 18 and Figure 19. Replace
the two screws previously removed to secure stand-off to unit.
3. Attachreplacetoframeusingnailingange.Presetdepthto
suitfacingmaterial(adjustableto1/2inchor5/8inchdepths).
See Figures 20 to 22.
*Adjustaccordinglyifchaseisnishedwithdrywallorothermaterial.
Figure 15
Figure 16
Figure 17

33740-9-1015 Page 1733740-9-1015Page 16
INSTALLATION
Figure 22
Vent Pipe Clearance
Note: Maintain all clearances to combustibles as shown in
Figures 1 and 2 on page 8.
For horizontal vent, maintain a minimum 1 inch clearance to
the bottom and sides of the vent, and 3 inches of clearance to
combustibles above the vent pipe. See Figure 24.
INSTALLATION (continued)
Figure 23
HORIZONTAL VENT CLEARANCES
Figure 24
Figure 18
Figure 19
Figure 20
Figure 21

33740-9-1015 Page 1933740-9-1015Page 18

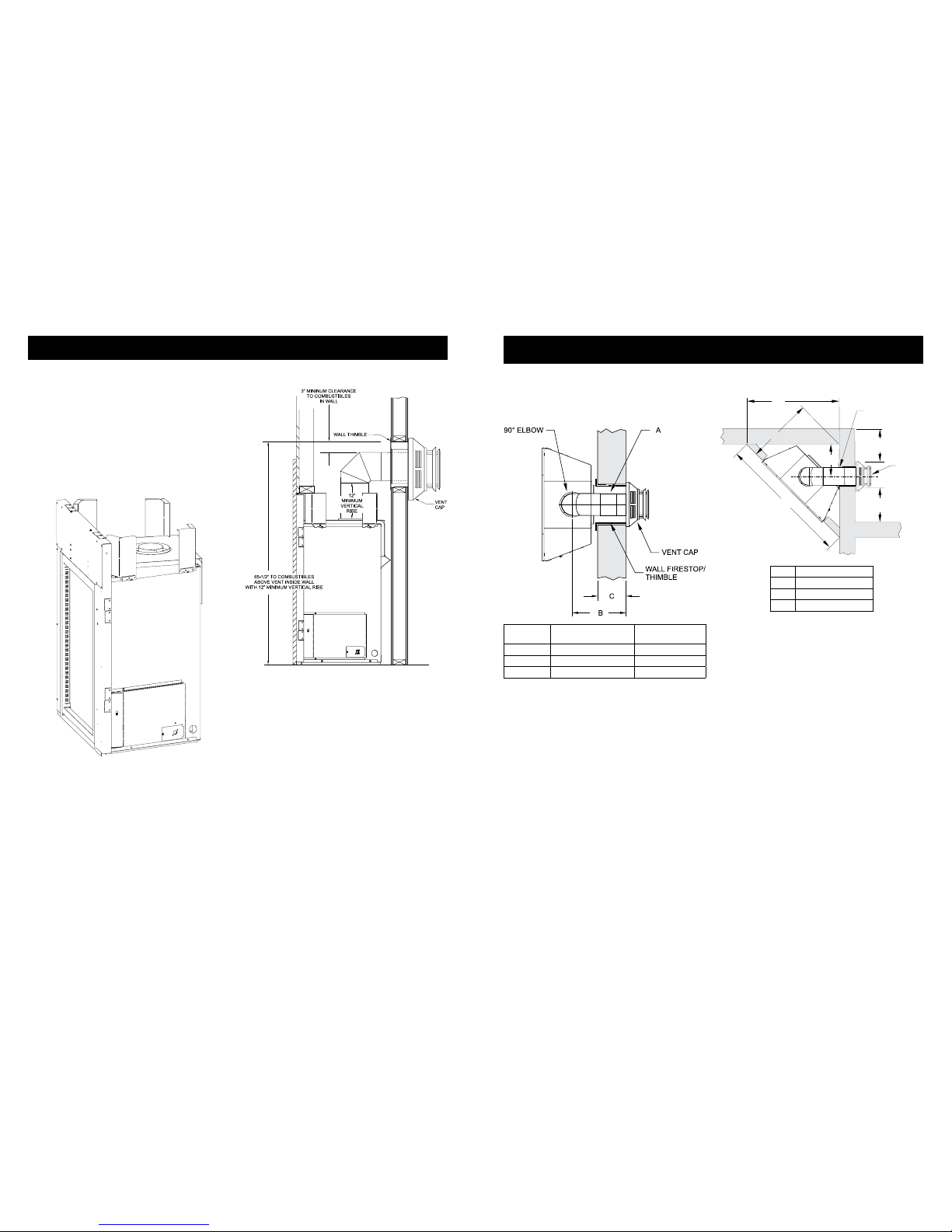

INSTALLATION (continued)
Vent Runs
Inplanningtheinstallationforthereplace,itisnecessarytoinstall
certain components before the appliance is completely positioned
and installed. These include the direct vent system, gas piping for
the appliance and the electrical wiring.
The appliance can be mounted on any of the following surfaces:
1. Aat,hardsurface
2. A raised wooden platform
3. Four corner supports (Example: Four concrete masonry blocks.)
These supports must be positioned adequate is made with
bottom standoffs). See local codes.
Note For Horizontal Vent Runs (Figure 25):
Aspecicwallthimble(seepartslistpage55)mustbeused
for horizontal vent installations through combustible wall.
Figure 25
VERTICAL, 90° ELBOW WITH HORIZONTAL TERMINATION
(12 inches minimum vertical rise shown)
Figure 26
INSTALLATION (continued)
VERTICAL, 90°ELBOW TO HORIZONTAL OUT THE WALL
(12 inches minimum rise before elbow)
NOTE: A“B”dimensiongreaterthan18incheswillrequirea
vertical rise before the elbow that is greater than 12 inches. See
Venting graph on page 22.
PIPE
LENGTH (A)
VENT TO EXTERIOR
WALL (B)
WALL
THICKNESS (C)
6” 15”to16-1/2” 4-3/4”to6-1/4”
9” 18”to19-1/2” 7-3/4”to9-1/4”
12” 21”to22-1/2” 10-3/4”to12-1/4”
Figure 27
CORNER INSTALLATION - VERTICAL, 90°ELBOW TO
HORIZONTAL OUT THE WALL
WALL FIRESTOP/
THIMBLE
VENT
CAP
6”
MINIMUM
9”
MINIMUM
D
B
A
C
A52-1/2”
B37-1/16”
C15-1/16”
D74-1/8”
Figure 28
Note: Ahorizontal vent with the minimum required vertical rise (using
a 12 inch section of vent before the elbow) will use a maximum 9
inch section of horizontal vent before the termination.

33740-9-1015 Page 2133740-9-1015Page20

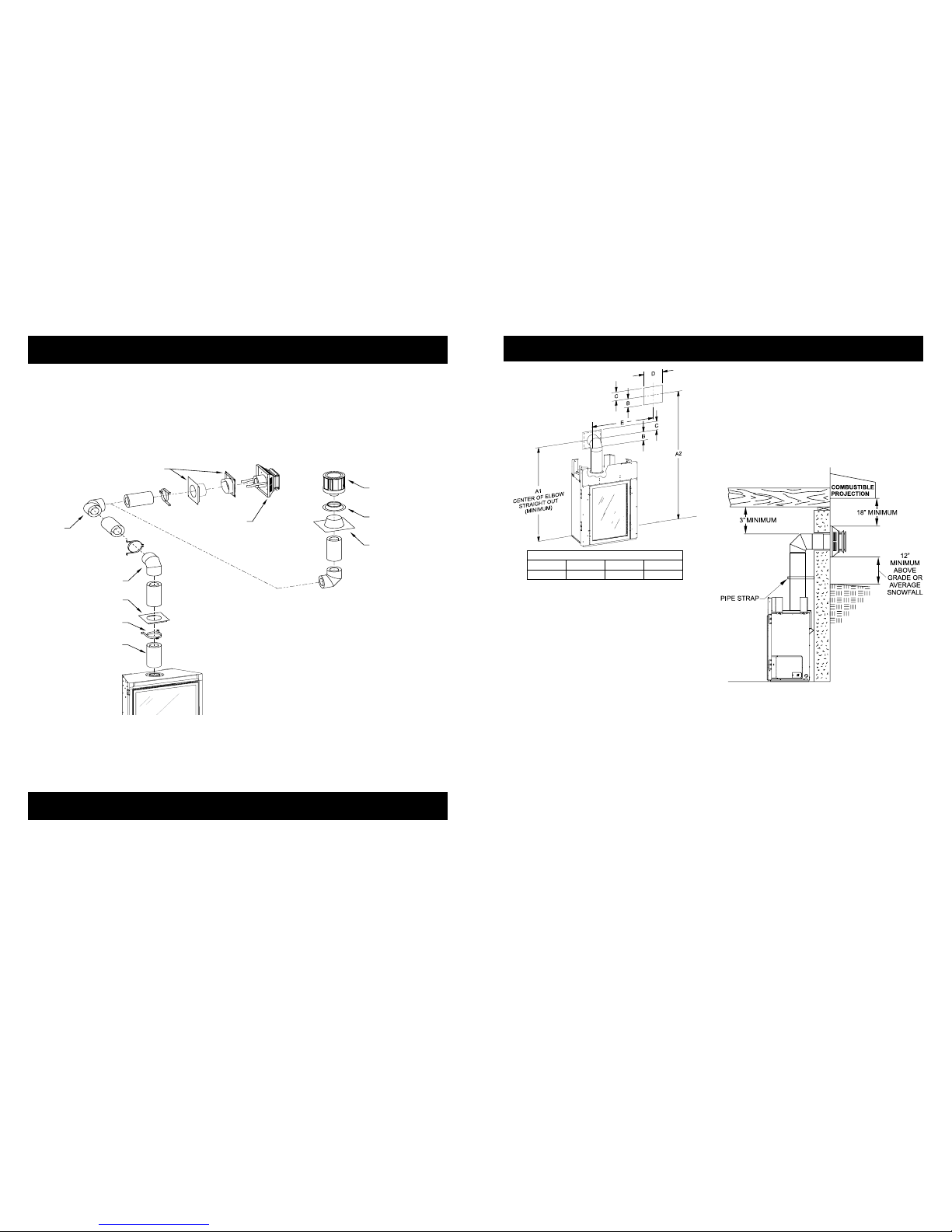

Begin the vent system installation by selecting the type of venting
to be installed and the path that it will take. Verify that clearances
are met throughout the path of the venting system.
Determine how the vent system will be terminated out the side of
the house or through the roof. Verify clearances for the termination.
Whenselectingaventsystemforusewiththereplace,refertothe
“VentFireplace”sectioninthismanualtodeterminewhatsystems
are acceptable. Check all clearances and venting components.
Identifyproblemsexistingintheventsystem,ifany.Usepages20
to 27 for venting to eliminate issues after installation. Check pipe
diameteronventsystemandreplacetoverifythesizeisthesame.
NOTICE: All outer connection joints must be sealed with
aluminum tape, screws or silicone sealant rated above
300°F/149°C. The inner ue joints do not require any sealant.
Figure 29
FLASHING
STORM
COLLAR
VERTICAL
TERMINATION
(THREE 90°
ELBOWS MAX)
WALL
THIMBLE
HORIZONTAL
TERMINATION
(THREE 90°
ELBOWS MAX)
90° ELBOW
OR
45° ELBOW
90° ELBOW
CEILING
FIRE STOP
WALL STRAP
PIPE LENGTH
VENT SYSTEM IDENTIFICATION
VENT SYSTEMS
The following vent systems are acceptable:
SimpsonDuravent®GS5”-8”
AmericanMetalProducts5”-8”
SelkirkDirect-Temp®5”-8”
SecuritySecureVent®5”-8”
ExcelDVVenting5”-8”
BDM5”-8”
VENTING FIREPLACE
HARD ELBOW DIMENSIONS
A1 B C D
57-1/2” 5-5/16” 7-5/16” 10-5/8”
Figure 30
NOTE: THE A1 HOLE LOCATION DIMENSION IS FOR THROUGH
THE WALL HORIZONTAL INSTALLATIONS WITH 90°ELBOW
AND 12 INCH RISE OFF TOP OF FIREPLACE
Allowable A2 and E dimensions to be determined by consult-
ing the venting graph and horizontal venting termination
examples on pages 22 and 23.
Positioning the Fireplace
Determine the exact position of the appliance so the direct vent
termination will be centered (if possible) between two studs. This
will avoid any extra framing. All vent kit pipes should be assembled
ontheunitaftertheunitismovedintothenalposition.
Cutting the Hole
Afterthereplacehasbeenpositionedinitspermanentlocation,
the hole through the exterior wall of the house can be cut. This hole
mustbe12-5/8incheshighx10-5/8incheswidewithitslocation
determined by the amount of vertical rise and horizontal run of the
termination. See Figure 30. When locating the hole it must be noted
that the bottom of the cap must be 12 inches minimum above the
ground level, or average snowfall, and top of the cap must be no
less than 18 inches below a combustible projection and no closer
than 9 inches to any wall running parallel to vent termination.
Below Grade Installation
When it is notpossible to meetthe required venttermination clearances
of 12 inches above grade level, a snorkel kit is recommended. It
allows installation depth down to 7 inches below grade level. The
7 inches is measured from the center of the horizontal vent pipe as
it penetrates through the wall.
Ensure the sidewall venting clearances are observed. If venting
system is installed below ground, we recommend a window
well with adequate and proper drainage to be installed around
the termination area.
TYPICAL BASEMENT INSTALLATION
Figure 31

33740-9-1015 Page 2333740-9-1015Page 22
To Use the Vent Graph
1. Determine the height of the center of the horizontal vent pipe.
Using this dimension on the Sidewall Vent Graph, locate the
point it intersects with the slanted graph line.
2. From the point of this intersection, draw a vertical line to the
bottom of the graph.
3. Select the indicated dimension, and position the unit in
accordance with same.
EXAMPLE A:
Ifthe vertical dimensionfrom the oor of theunit is 32feet, the
horizontalruntotheouterwallangemustnotexceed5feet.
EXAMPLE B:
Ifthe vertical dimensionfrom the oor of theunit is 24feet, the
horizontalruntotheouterwallangemustnotexceed10feet.
VENTING FIREPLACE
EXAMPLE C:
Ifthehorizontalruntotheouterwallangeis17feet,thevertical
dimensionfromtheooroftheunittothecenterofthetermination
must not be less than 7 feet 6 inches.
SPECIAL NOTE: For each 45° elbow installed in the horizontal run,
the length of the horizontal run MUST be reduced by 18 inches.
Reduce3feetforevery90°elbow.Thisdoesnotapplyifthe45°
elbows are installed on the vertical part of the vent system.
Example:According to the chart the maximum horizontal vent length
is20feetandiftwo45°elbowsarerequiredinthehorizontalvent
it must be reduced to 17 feet.
The maximum number of 45° elbows permitted per side wall
installation is two. These elbows can be installed in either the vertical
or horizontal run.
Themaximumnumberof90°elbowsinaventrunisthree.
Note:Onverticalventingtherstelbowdoesnotgetcounted.
Note: Ahorizontal vent with the minimum required vertical rise (using
a 12 inch section of vent before the elbow) will use a maximum of a
9 inch section of horizontal vent before the termination.
Acceptable vertical and horizontal vent run.
 (40'maximumverticaland20'maximumhorizontal)
Unacceptable vertical and horizontal vent run.
SeeFigure30forExamplesA,BandC.
VENTING GRAPH (Dimensions in Feet)
One Elbow
EXAMPLE VENT RUNS
INITIAL
PIPE
LENGTH
A (Vertical) B (Horizontal)
24” 5’-10” 7’-3”MAXIMUM
36” 6’-10” 13’ MAXIMUM
EXAMPLE C 4’-1” 7’-6” 17’ MAXIMUM
EXAMPLE B 20’-7” 24’ 10’MAXIMUM
EXAMPLE A 28’-7” 32’ 5’ MAXIMUM
Figure 33
Note: Pipe straps must be used every 2 feet to secure venting.
Two 45° Elbows
Installation requirements to replace the rst 90° elbow with two
45° elbows:
B
A
EXAMPLE VENT RUNS
INITIAL PIPE
LENGTH
A (Vertical) B (Horizontal)
24” 5’-10” 7’-3”MAXIMUM
36” 6’10” 13’ MAXIMUM
4’-7” 8’ 20’MAXIMUM
12’-7” 16’ 15’ MAXIMUM
24’-7” 28’ 7’-6”MAXIMUM
Figure 34
Two Elbows
Note: Subtract 3 feet from the total horizontal measurement for
each90°elbowinstalledhorizontally.Subtract1-1/2feetfromthe
total horizontal measurement for each 45° elbow installed hori-
zontally.
EXAMPLE VENT RUNS
INITIAL PIPE
LENGTH
A (Vertical) B (Horizontal)
36” 6’-10” 10’MAXIMUM
48” 7’-10” 15’-10”MAXIMUM
4’-7” 8’ 17’ MAXIMUM
12’-7” 16’ 12’ MAXIMUM
24’-7” 28’ 4’-6”MAXIMUM
Figure 35
Three Elbows
EXAMPLE VENT RUNS
INITIAL PIPE
LENGTH
A (Vertical) B (Horizontal)
1’ MINIMUM 6’-6” 12’ MAXIMUM
1’ MINIMUM 7’-6” 17’ MAXIMUM
1’ MINIMUM 8’ 20’MAXIMUM
1’ MINIMUM 16’ 15’ MAXIMUM
1’ MINIMUM 32’ 5’ MAXIMUM
Figure 36
TOP VENT - HORIZONTAL TERMINATION
Figure 32

33740-9-1015 Page 2533740-9-1015Page 24
TOP VENT - VERTICAL TERMINATION
No Elbows
DIMENSIONS
MINIMUM MAXIMUM
10’ 40’
Figure 37
Two Elbows
EXAMPLE VENT RUNS
INITIAL PIPE
LENGTH
A (Vertical) B (Horizontal)
4’-1” 7’-6” 17’ MAXIMUM
4’-7” 8’ 20’MAXIMUM”
12’-7” 16’ 15’ MAXIMUM
24’-7” 28’ 7’-6”MAXIMUM
28’-7” 32’ 5’ MAXIMUM
Figure 38
Three Elbows
Note: Subtract 3 feet from the total horizontal measurement for
each90°elbowinstalledhorizontally.Subtract1-1/2feetfromthe
total horizontal measurement for each 45° elbow installed hori-
zontally.
EXAMPLE VENT RUNS
INITIAL PIPE
LENGTH A (Vertical) B (Horizontal)
3’-7” 7’ 11’-6”MAXIMUM
4’-7” 8’ 17’ MAXIMUM
8’-7” 12’ 14’-6”MAXIMUM
12’-7” 16’ 12’ MAXIMUM
24’-7” 28’ 4’-6”MAXIMUM
Figure 39
VERTICAL TERMINATION
Locate and mark the center point of the vent pipe using a nail on
the underside of the roof. Drive the nail through the center point.
Mark the outline of the roof hole around this center point.
NOTE: Size of the roof hole dimensions depend on the pitch of
the roof. There must be a 1 inch clearance to the vertical
pipe sections. This clearance is to all combustible material.
Cover the opening of the vent pipe and cut and frame the roof hole.
Use framing lumber the same size as the roof rafters and install the
frame securely. Flashing anchored to frame must withstand high
winds. The storm collar is placed over this joint to make a water-tight
seal. Non-hardening sealant should be used to completely seal this
ashinginstallation.
Determining Minimum Vent Height Above the Roof
WARNING
MajorU.S.buildingcodesspecifyminimumchimneyand/orvent
height above the rooftop. These minimum heights are necessary
intheinterestofsafety.Thesespecicationsaresummarizedin
Figure 40.
ROOF PITCH H (Min.)
Flatto6/12 12"
6/12to7/12 15"
Over7/12to8/12 18"
Over8/12to16/12 24"
Over16/12to21/12 36"
Figure 40
Note that for steep roof pitches, the vent height must be increased.
In high wind conditions, nearby trees, adjoining roof lines, steep
pitched roofs, and other similar factors can result in poor draft, or
down-drafting. In these cases, increasing the vent height may solve
this problem.
General Maintenance
Inspect venting system semi-annually as follows:
1. Check for corrosion areas of the venting system exposed to
the elements. These will appear as rust spots or streaks and,
in extreme cases, holes. Replace damaged components should
immediately.
2. Removethecapandshineaashlightdownthevent.Remove
any bird nests or other foreign material.
3. Check for evidence of excessive condensate, such as water
droplets forming in the inner liner and subsequently dripping
out at joints. Condensate can cause corrosion of caps, pipe and
ttings.Itmaybecausedbyhavingexcessivelateralruns,too
many elbows and exterior portions of the system being exposed
to cold weather.
4. Inspectjointstoverifythatnopipesectionsorttingshavebeen
disturbed and, consequently, loosened. Also, check mechanical
supports, such as wall straps or plumbers’ tape for rigidity.
Venting termination shall not be recessed into a wall or siding.
A removable panel or other means must be provided in the enclosure
forvisualinspectionoftheueconnection.
NOTE: This also pertains to vertical vent systems installed on the
outside of the building.
Slide the vertical vent cap over the ends of the vent pipe and secure.
See Figure 41.
Figure 41
Installing the Vent System in a Chase
A chase is a vertical box-like structure built to enclose the gas
applianceand/oritsventsystem.Verticalventrunsontheoutsideof
a building may be, but are not required to be installed inside a chase.
CAUTION
Treatmentofrestopspacersandconstructionofthechasemay
vary with the type of building. These instructions are not substitutes
for the requirements of local building codes. Check local building
codes to determine the requirements for these steps.
NOTE: Build the chase large enough to the minimum clearance of
combustible materials (including insulation) to the vent system. When
installing the vent system in a chase, to insulate the chase as you
would the outside walls of your home. This is especially important
in cold climates. Upon completion of chase framing, install the vent
system by following the instructions in this manual.

33740-9-1015 Page 2733740-9-1015Page 26
Figure 42
Figure 43

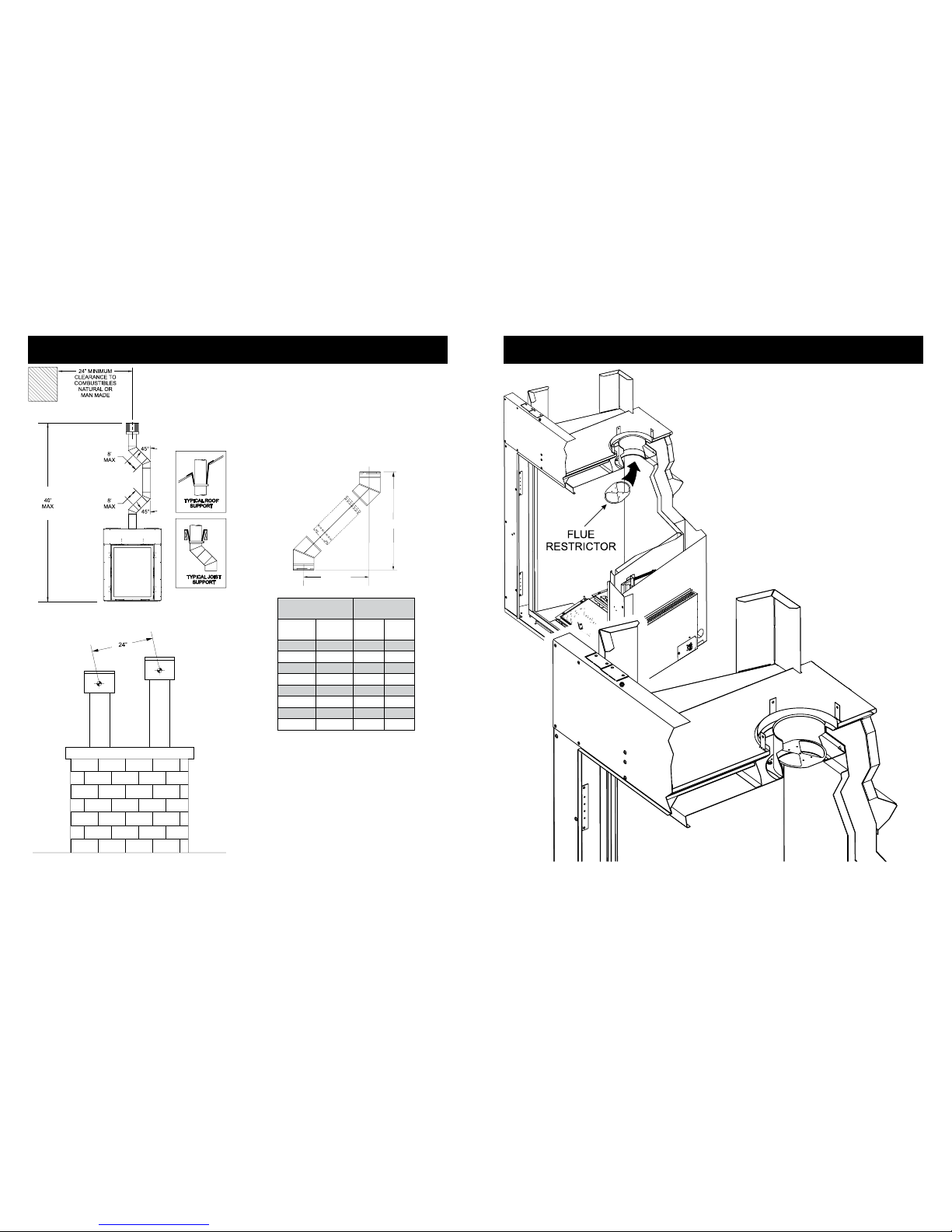

Theverticalterminationcapforthisreplacemustnotbeany
closer than 24-in. to any other vent termination or chimney of any
type.
Vertical Through the Roof Applications
Your Gas Fireplace has been approved for:
a) Verticalinstallationsupto40feetinheight.
b) Two sets of 45° elbow offsets within these vertical installations.
Aventpipefrom0toamaximumof8feetcanbeusedbetween
elbows.
c) Wall straps must be used to support offset pipe every 4 feet
Thisapplicationwillrequirethatyourstdeterminetheroofpitch
and use the appropriate venting components.
OFFSET CHART
RISE
OFFSET
SIZE 5” X 8”
ELBOW
DEGREES
CHIMNEY
SECTION
OFFSET
INCHES
RISE
INCHES
45° 0” 5-5/8” 15-3/8”
45° 6” 8-7/8” 18-3/8”
45° 9” 10-7/8” 20-5/8”
45° 12” 13” 22-5/8”
45° 24” 21-3/8” 31-1/8”
45° 36” 29-7/8” 39-3/8”
45° 36” 28-7/8” 39-3/8”
45° 48” 38-1/4” 47-7/8”
Figure 44
VERTICAL TERMINATION (continued) VERTICAL TERMINATION (continued)
Theincludeduerestrictordiscmaybeusedinverticalventruns
of10to40feetasmeasuredfromthebottomofthereplace.
Usetherestrictordiscwhenamoreyellowameisdesired.
Iftheuerestrictorisinstalledonanaturalgasreplace,therear
burner’sairshuttermustbeadjustedto1/8-in.open.

33740-9-1015 Page 2933740-9-1015Page 28
FRAMING AND FINISHING
Installing Support Brackets
Install a horizontal pipe support used for each 3 feet of horizontal run
to framing members. Allow 3 inches of clearance to combustibles
above 8 inch diameter pipe and elbows and 1 inches of clearance
on both sides and bottom.
Support vertical runs of this vent systems every 4 feet using wall
brackets attached to the vent pipe and secured with nails or screws
to structural framing.
Note: Maintain all clearances to combustibles as shown in Figures
1 and 2 on page 8.
Figure 45
Installing Firestops
Firestops are required for safety whenever the vent system passes
throughaninteriorwall,anexteriorwall,oraceiling.Theserestops
actasarebreakheatshieldandasameanstoinsurethatminimum
clearances are maintained to the vent system.
Horizontal Firestops
Horizontal runs in the vent system which pass through either interior
orexteriorwalls,requiretheuseofwallrestopsonbothsidesof
the wall through which the vent passes.
Positiontherestopsonbothsidesoftheframedhole,previously
cut. Refer to Figure 46 forsizinginformation.Securerestopwith
nailsorscrews.TheheatshieldsoftherestopsMUSTBEplaced
towardsthetopofthehole.Continuetheventrunthroughtherestops.
Figure 46
NOTE: SD58DVAWTEC Wall thimble is necessary to maintain
the required three inches of clearance to combustibles above
the vent. Framed hole dimensions shown above are for this wall
thimble.
FRAMING AND FINISHING (continued)
Vertical Firestops
Vertical runs of this system which pass through ceilings require
ONEceilingrestopattheholeineachceilingthroughwhichthe
vent passes.
Position a plumb bob directly over the center of the vertical vent
component and mark the ceiling to establish the center point of the
vent. Drill a hole or drive a nail through this center point and check
the oor above for any obstructions such as wiring or plumbing
runs. Reposition the appliance and vent system, if necessary, to
accommodateceilingjoistsand/orobstructions.
Cuta10-5/8inchx10-5/8inchholethroughtheceilingusingthe
center point previously marked. Frame the hole with framing lumber
the same size as the ceiling joists. See Figure 47. If the area
above the ceiling is NOT an attic, position and secure the ceiling
restopontheceilingsideofthepreviouslycutandframedhole.
See Figure 48. If the area above the ceiling is an attic, position
andsecuretherestopontopofthepreviouslyframedhole.See
Figure 49.
NOTE: Remove insulation from the framed area in the attic before
installingtherestopand/orventpipes.
Figure 47
Figure 48
Figure 49
Finishing
Finish the walls with the material of your choice. Figure 1 and 2 on
page 8 shows the minimum vertical and corresponding maximum
horizontal dimensions of mantels or other combustible projections
abovethetopfrontedgeofthereplace.
Only non-combustible materials may be used to cover the black
replacefront.
WARNING
When nishing the replace never obstruct or modify the gap
around the glass frame in any manner. Provide adequate
clearances around air openings into the combustion chamber.
CAUTION
Ifthejointsbetweenthenishedwallandthereplacesurround
(topandsides)aresealed,a 300°F minimum sealantmaterial
must be used. These joints are not required to be sealed. Only
non-combustible material (using 300°F minimum adhesive if
needed)canbeappliedasfacingtothereplacesurround.

33740-9-1015 Page 3133740-9-1015Page30
FIBER PANELS
PLACING THE REQUIRED FIBER PANELS AND FLOOR LINER INTO FIREPLACE:
1. LocatetheCenterFloorLiner,andplaceonthereplaceoorinfrontofthefrontburner.
2. LocatetheLeftandRightSideFloorLinerandplaceonthebottomleftandbottomrightofreplaceoor.
3. Shift the three Floor Liner sections as far forward as possible.
4. Locate Rear Panel and place tight against rear wall into rear bottom bracket.
5. LocateLeftPanelandplaceintopositionagainstleft-sidereboxwall.Secureusingfrontupperbracketandscrewprovided.
6. PlaceRightPanelintopositionagainstright-siderebox.Securewithfrontupperbracketandscrewprovided.
Figure 50
NOTE: Install liner before positioning the logs in place.
1.Applyasinglelayerofsmall“dime-sized”piecesofrockwool(glowingembers)intheshadedareasshownbelow.
NOTE:Piecesofglowingembersshouldbeuffeduppriortoplacementontotheburner.
NOTE: Replacement of loose material (glowing embers) must be purchased from Empire Comfort Systems, Inc. Application
of excess loose material (glowing embers) may adversely affect performance of the appliance.
WARNING
All previously applied loose material must be removed prior to reapplication.
TOP View - Ember Placement Shown in Shaded Area
Figure 51
GLOWING EMBERS

33740-9-1015 Page 3333740-9-1015Page 32
Before you begin: Do not, handle these logs with your bare hands! Always wear gloves to prevent skin irritation. After handling
logs, wash your hands gently with soap and water.
All Logs
The positioning of the logs is critical to the safe and clean operation of this appliance. Sooting and other problems may result
ifthelogsarenotproperlyandrmlypositionedintheappliance.
Refer to Figures 52 & 53 for the following warning.
WARNING
Failuretopositionthepartsinaccordancewiththisdiagram or failuretouseonlypartsspecicallyapprovedwiththis
appliance may result in property damage or personal injury.
A
B
C
D
E
F
G
Log Placement Figure 52
LOG PLACEMENT
Attention: Do not use Figure 52 to order replacement logs.
Refer to Page 31, Parts List and Parts View to order logs
for your appropriate model number
NOTE: Once the installation is complete with the glowing
embersandlogsetinplace,operatethereplacetoverify
ameappearance.Ifthereareamesdirectlyimpinging
alog,turnoffreplace,thenremovetheglowingember
materialdirectlybelowwheretheameimpingement
occurred. This should eliminate sooting on the log, and
provideamorepleasingameappearance.
Replacement of glowing embers must be purchased
from Empire Comfort Systems, Inc. Application of excess
glowing embers may adversely affect performance of the
appliance.
WARNING
All previously applied loose material must be removed
prior to reapplication.
FRONT VIEW - COMPLETED LOG SET INSTALLATION (WITHOUT EMBERS) Figure 53
Attention: When ordering parts, it is very important that part number and description of part coincide.
FRONT TOP
Part Number 31034 - Right Rear (A) Part Number 31034 - Right Rear (A)
Part Number 31033 Left Rear (B) Part Number 31033 Left Rear (B)
Part Number 31036 - Left Front (C) Part Number 31036 - Left Front (C)
Part Number 31037 - Right Front (D) Part Number 31037 - Right Front (D)
Part Number 31039 - Center Front(E) Part Number 31039 - Center Front(E)
Part Number 31038 - Right Corner (F) Part Number 31038 - Right Corner (F)
Part Number 31035 - Center Rear (G) Part Number 31035 - Center Rear (G)
USE ONLY MANUFACTURER’S REPLACEMENT PARTS. USE OF ANY OTHER PARTS COULD CAUSE INJURY OR DEATH.
LOG PLACEMENT

33740-9-1015 Page 3533740-9-1015Page 34
LOG PLACEMENT
1. Place Right Rear Log (A) onto the right-side pin on the rear burner.
TOP VIEW
2. Using right-hand, hold Right Rear Log (A) at approximately the angle shown.
FRONT VIEW
LOG PLACEMENT
3. Place Left Rear Log (B) on left-side pin on rear burner and attach the top of the Left Rear Log(B) to the pin on Right Rear
Log (A).
TOP VIEW
FRONT VIEW

33740-9-1015 Page 3733740-9-1015Page 36
4. Place Right Front Log (D) on the two pins on the right-hand side of the front burner.
TOP VIEW
FRONT VIEW
LOG PLACEMENT
5. Place Center Front Log (E) on tab in center of front burner. Orient as shown.
TOP VIEW
FRONT VIEW
LOG PLACEMENT

33740-9-1015 Page 3933740-9-1015Page 38

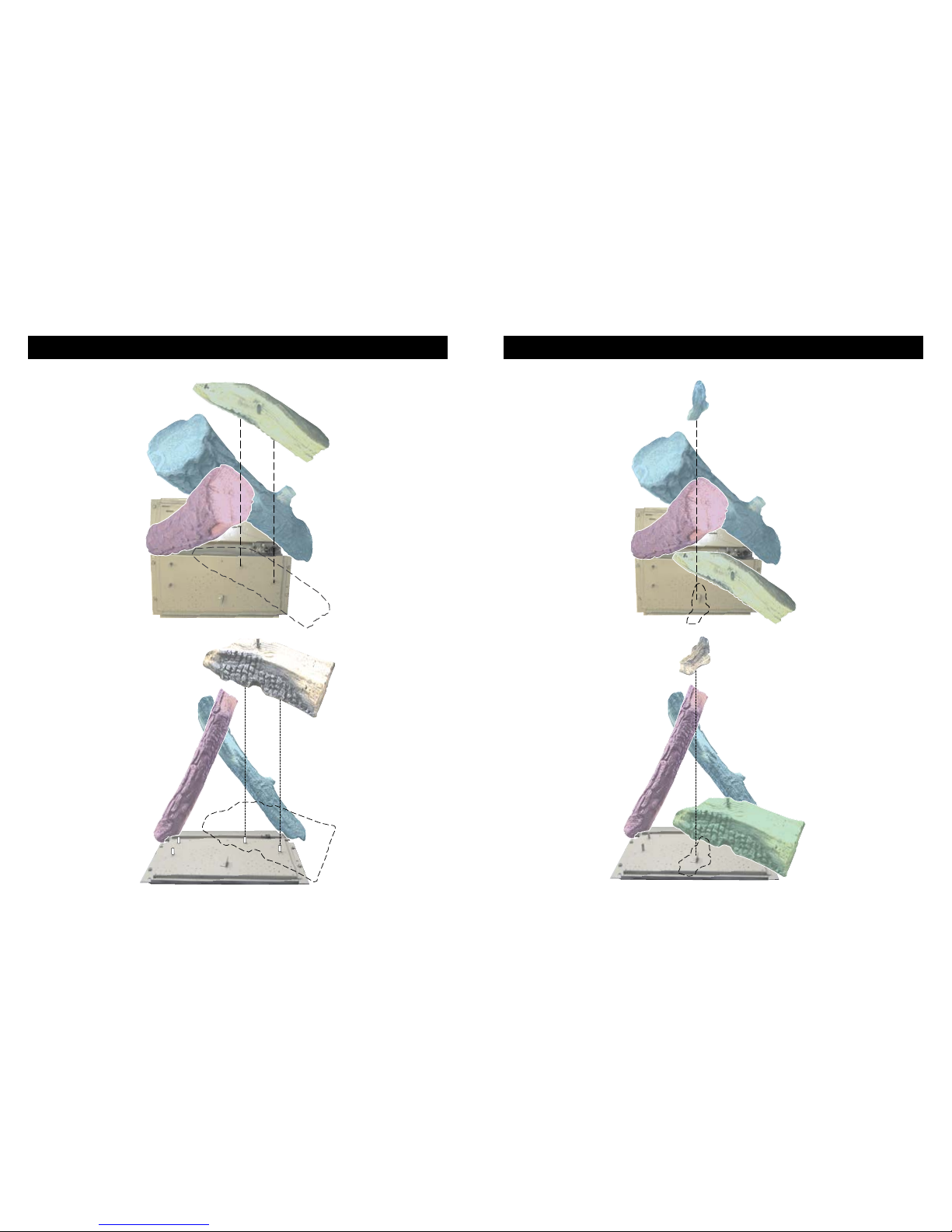

6. Place Left Front Log (C) onto the two pins on the left-hand side of the front burner.
TOP VIEW
FRONT VIEW
LOG PLACEMENT
7. Place Right Corner Log (F) onto pin on Right Front Log (D). Rest opposite end of Right Corner Log (F) in the right corner
oftherebox.
TOP VIEW
FRONT VIEW
LOG PLACEMENT
