White Mountain Hearth VFP24FP3 Series Quick start guide

INSTALLATION INSTRUCTIONS
AND
OWNER'S MANUAL
The Vail Vent-Free Gas Fireplaces
This appliance may be installed in an aftermarket,
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas in-
dicated on the rating plate. This appliance is not con-
vertible for use with other gases.
— Donotstoreorusegasolineorotherammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
 • Donottrytolightanyappliance.
 • Donottouchanyelectricalswitch;donotuse
any phone in your building.
 • Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
 • Ifyoucannotreachyourgassupplier,callthe
redepartment.
— Installation and service must be performed by a
qualiedinstaller,serviceagencyorthegassup-
plier.
WARNING: If the information in these instructions
are not followed exactly, a re or explosion may
result causing property damage, personal injury or
loss of life.
UNVENTED GAS FIREPLACE
HYDRAULIC THERMOSTAT
MODELS:
VFP24FP2(0,1,2,3)L(N,P)-1
MILLIVOLT MODELS:
VFP24FP3(0,1,2,3)L(N,P)-1
VFP24FP3(0,1,2,3)L10(N,P)-1 (10,000 BTU UNIT)
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
Thisisanunventedgas-redheater.Itusesair(oxy-
gen) from the room in which it is installed. Provisions
for adequate combustion and ventilation air must be
provided. Refer to page 6.
WATER VAPOR: A BY-PRODUCT OF UNVENTED
ROOM HEATERS
Water vapor is a by-product of gas combustion.
An unvented room heater produces approximately
one (1) ounce (30ml) of water for every 1,000 BTU's
(.3KW's) of gas input per hour. Refer to page 6.
WARNING: If not installed, operated and maintained
in accordance with the manufacturer's instructions,
this product could expose you to substances in fuel
or from fuel combustion which can cause death or
serious illness.
Page 1

25783-5-1011Page 2
SECTION PAGE
Important Safety Information .................................................................................................... 3
Safety Information for Users of LP Gas .................................................................................... 4
Introduction ............................................................................................................................... 5
Specications ............................................................................................................................ 6
Water Vapor: A By-Product of Unvented Room Heaters ........................................................... 6
Provisions for Adequate Combustion and Ventilation Air ....................................................... 6-7
Gas Supply ................................................................................................................................ 8
Clearances ................................................................................................................................ 9
Combustible Material ............................................................................................................... 9
Installation of Fireplace Into Mantel ........................................................................................ 10
Built-In Fireplace Installation ................................................................................................... 11
Placement of Glowing Embers (Rock Wool) ........................................................................... 12
Operation Instructions/Flame Appearance .............................................................................. 12
Millivolt Lighting Instructions ................................................................................................... 13
Hydraulic Thermostat Lighting Instructions ............................................................................. 14
Pilot Flame Characteristics ................................................................................................ 15-16
Main Burner and Thermostat Operation .................................................................................. 16
Wiring ...................................................................................................................................... 17
Troubleshooting ...................................................................................................................... 18
Parts List ................................................................................................................................. 19
Parts View ............................................................................................................................... 20
Optional Brick Liner Installation Instructions ........................................................................... 21
Optional Blower Installation Instructions ............................................................................ 22-25
Parts List and Parts View for Optional Trim Kits ..................................................................... 26
Master Parts Distributor List .................................................................................................... 27
How To Order Repair Parts ....................................................................................................... 27
TABLE OF CONTENTS

25783-5-1011 Page 3
When used without adequate combustion and ventilation
air, heater may give off CARBON MONOXIDE, an odorless,
poisonous gas.
Do not install heater until all necessary provisions
are made for combustion and ventilation air. Consult
the written instructions provided with the heater for
information concerning combustion and ventilation
air. In the absence of instructions, refer to the National
Fuel Gas Code, ANSI Z223.1, Section 5.3 or applicable
local codes.
This heater is equipped with a PILOT LIGHT SAFETY SYS-
TEM designed to turn off the heater if not enough fresh air
is available.
DO NOT TAMPER WITH PILOT LIGHT SAFETY SYS-
TEM!
If heater shuts off, do not relight until you provide fresh air.
If heater keeps shutting off, have it serviced. Keep burner and
control compartment clean.
CARBON MONOXIDE POISONING MAY LEAD TO
DEATH.
Earlysignsofcarbonmonoxidepoisoningresembletheu,with
headache, dizziness and/or nausea. If you have these signs,
heater may not be working properly. Get fresh air at once! Have
heater serviced.
Some people — pregnant women, persons with heart or lung
disease,anemia,thoseundertheinuenceofalcohol,thoseat
high altitudes — are more affected by carbon monoxide than
others.
The pilot light safety system senses the depletion of oxygen at
its location. If this heater is installed in a structure having a high
vertical dimension, the possibility exists that the oxygen supply
at the higher levels will be less than that at the heater. In this type
of application, a fan to circulate the structure air will minimize
this effect. The use of this fan will also improve the comfort level
in the structure. When a fan is used to circulate air, it should be
locatedsothattheairowisnotdirectedattheburner.
WARNING
DANGER: Indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING: Indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION: Indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE: Addresses practices not related to personal injury.
• An unvented room heater having an input  rating of
more than 6,000 Btu per hour shall not be installed in a
bathroom.
• Anunventedroomheaterhavinganinputratingofmore
than 10,000 Btu per hour shall not be installed in a bedroom
or bathroom.
• Duetohightemperatures,theapplianceshouldbelocated
outoftrafcandawayfromfurnitureanddraperies.
• Childrenandadultsshouldbealertedtothehazardof
high surface temperature and should stay away to avoid
burns or clothing ignition.
• Youngchildrenshouldbecarefullysupervisedwhenthey
are in the same room with the appliance.
• Donotplaceclothingorotherammablematerialonor
near the appliance.
• Installation and repair should be done by a QUALIFIED
SERVICE PERSON. This appliance should be inspected
before use and at least annually by a professional service
person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding materials, etc. It
is imperative that control compartments, burners and
circulating air passageways of the appliance be kept
clean.
• DONOTusethisreplaceifanyparthasbeenunderwater.
Immediatelycallaqualiedservicetechniciantoinspect
thereplaceandtoreplaceanypartofthecontrolsystem
and any gas control which has been under water.
• Youmustoperatereplacewithreplacescreenclosedin
place. Do not close glass doors while operating heater.
• Donotplacetrash,logsorotherarticlesonthelogset
during operation.
• Duringmanufacturing,fabricatingandshipping,various
components of this appliance are treated with certain oils,
lmsorbondingagents.Thesebondingagentsarenot
harmful but may produce annoying smoke and smells as
they are burned off during initial operation of the appliance.
This is a normal temporary occurrence. A window should
be opened during the initial bake out period.
• Correct installation of the logs, proper location of the
replace and annual cleaning are necessary to avoid
potential problems with sooting. Sooting, resulting
from improper installation or operation, can settle on
surfacesoutsidethereplace.Seeinstructionsforproper
installation.
• WARNING: Do not allow fans to blow directly into the
fireplace. Avoid any drafts that alter burner flame
patterns.
• WARNING: Do not use a blower insert, heat exchanger
insert or other accessory not approved for use with this
heater.
• WARNING!Thisreplaceneedsfreshairforventilation
tooperateproperly.ThisreplacehasanODS(oxygen
depletion sensor) which will shut off the replace if
adequate fresh air is not available.
• Keep appliance area clear and free from combustible
materials, gasoline and other ammable vapors and
liquids.
THIS IS A HEATING APPLIANCE
IMPORTANT SAFETY INFORMATION

25783-5-1011Page 4
Some people cannot smell well. Some people cannot smell the
odorofthechemicalputintothegas.Youmustndoutifyou
can smell the odorant in propane. Smoking can decrease your
ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors in
the area mask the gas odor. People may not smell the gas odor
or their minds are on something else. Thinking about smelling a
gas odor can make it easier to smell.
The odorant in LP-gas is colorless, and it can fade under some
circumstances. For example, if there is an underground leak, the
movement of the gas through soil can lter the odorant. Odorants
in LP-Gas also are subject to oxidation. This fading can occur if
there is rust inside the storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into walls,
masonry and other materials and fabrics in a room. That will take
some of the odorant out of the gas, reducing its odor intensity.
LP-Gas may stratify in a closed area, and the odor intensity could
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels. Always be sensitive to the slightest gas
odor. If you detect any odor, treat it as a serious leak. Immediately
go into action as instructed earlier.
Propane(LP-Gas)isaammablegaswhichcancauseres
and explosions. In its natural state, propane is odorless and
colorless. You may not know all the following safety precautions
which can protect both you and your family from an accident.
Read them carefully now, then review them point by point
with the members of your household. Someday when there
may not be a minute to lose, everyone's safety will depend
on knowing exactly what to do. If, after reading the following
information, you feel you still need more information, please
contact your gas supplier.
• Learn to recognize the odor of LP-gas. Your local LP-Gas
Dealer can give you a "Scratch and Sniff" pamphlet. Use it to
nd out what the propane odor smells like. If you suspect that
your LP-Gas has a weak or abnormal odor, call your LP-Gas
Dealer.
• If you are not qualied, do not light pilot lights, perform service,
or make adjustments to appliances on the LP-Gas system. If
you are qualied, consciously think about the odor of LP-Gas
prior to and while lighting pilot lights or performing service or
making adjustments.
• Sometimes a basement or a closed-up house has a musty
smell that can cover up the LP-Gas odor. Do not try to light
pilot lights, perform service, or make adjustments in an area
where the conditions are such that you may not detect the
odor if there has been a leak of LP-Gas.
• Odor fade, due to oxidation by rust or adsorption on walls of
new cylinders and tanks, is possible. Therefore, people should
be particularly alert and careful when new tanks or cylinders
are placed in service. Odor fade can occur in new tanks, or
reinstalled old tanks, if they are lled and allowed to set too
long before relling. Cylinders and tanks which have been
out of service for a time may develop internal rust which will
cause odor fade. If such conditions are suspected to exist,
a periodic sniff test of the gas is advisable. If you have any
question about the gas odor, call your LP-gas dealer. A
periodic sniff test of the LP-gas is a good safety measure
under any condition.
• If, at any time, you do not smell the LP-Gas odorant and you
think you should, assume you have a leak. Then take the same
immediate action recommended above for the occasion when
you do detect the odorized LP-Gas.
• If you experience a complete "gas out," (the container is un-
der no vapor pressure), turn the tank valve off immediately.
If the container valve is left on, the container may draw in
some air through openings such as pilot light orices. If this
occurs, some new internal rusting could occur. If the valve is
left open, then treat the container as a new tank. Always be
sure your container is under vapor pressure by turning it off
at the container before it goes completely empty or having it
relled before it is completely empty.
• Do not operate electric switches, light matches, use your
phone. Do not do anything that could ignite the gas.
• Get everyone out of the building, vehicle, trailer, or area. Do
that IMMEDIATELY.
• Close all gas tank or cylinder supply valves.
• LP-Gas is heavier than air and may settle in low areas such
as basements. When you have reason to suspect a gas leak,
keep out of basements and other low areas. Stay out until
reghters declare them to be safe.
• Use your neighbor's phone and call a trained LP-Gas service
person and the re department. Even though you may not
continue to smell gas, do not turn on the gas again. Do not
re-enter the building, vehicle, trailer, or area.
• Finally, let the service man and reghters check for escaped
gas. Have them air out the area before you return. Properly
trained LP-Gas service people should repair the leak, then
check and relight the gas appliance for you.
SOME POINTS TO REMEMBER
NO ODOR DETECTED - ODOR FADE
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.
That's your signal to go into immediate action!
SAFETY INFORMATION FOR USERS OF LP-GAS

25783-5-1011 Page 5
instructions.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
Important
All correspondence should refer to complete Model Number, Serial
Number and type of gas.
Attention: During initial use of log you will detect an odor as
the log is cured. Also, during the curing process the ceramic
logwillburnwithayellowame.
Notice: During initial ring of this unit, its paint will bake out, and
smoke will occur. To prevent triggering of smoke alarms, ventilate
the room in which the unit is installed.
Installation on Rugs and Tile
If this appliance is installed directly on carpeting, tile or other
combustible material other than wood ooring the appliance shall
be installed on a metal or wood panel extending the full width and
depth of the appliance.
The base referred to above does not mean the re-proof base as
used on wood stoves. The protection is for rugs that are extremely
thick and light colored tile.
Solid-fuels shall not be burned in a masonry or UL 127 factory-built
replace in which an unvented room heater is installed.
QualiedInstallingAgency
Installation and replacement of gas piping, gas utilization equip-
ment or accessories and repair and servicing of equipment shall
be performed only by a qualied agency. The term "qualied
agency" means any individual, rm, corporation or company which
either in person or through a representative is engaged in and is
responsible for (a) the installation or replacement of gas piping or
(b) the connection, installation, repair or servicing of equipment, who
is experienced in such work, familiar with all precautions required
and has complied with all the requirements of the authority having
jurisdiction.
State of Massachusetts: The installation must be made by a
licensed plumber or gas tter in the Commonwealth of Mas-
sachusetts.
Sellers of unvented propane or natural gas-red supplemental
room heaters shall provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
In the State of Massachusetts, unvented propane and natural
gas-red space heaters shall be prohibited in bedrooms and
bathrooms.
The installation must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code, ANSI Z223.1.*
*Available from theAmerican National Standards Institute, Inc. 1430
Broadway, New York, N.Y. 10018.
High Altitudes
For altitudes/elevations above 2,000 feet (610m), ratings should be
reduced at the rate of 4 percent for each 1,000 feet (305m) above
sea level. Contact the manufacturer or your gas company before
changing spud/orice size.
WARNING
Failure to keep the primary air opening(s) of the burner(s)
clean may result in sooting and property damage.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installer must have owner ll out and mail warranty card supplied
with unvented room heater.
3. Installer should show owner how to start and operate unvented
room heater.
Always consult your local Building Department regarding regula-
tions, codes or ordinances which apply to the installation of an
unvented room heater.
This appliance may be installed in an aftermarket* manufactured
(mobile) home, where not prohibited by state or local codes.
*Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
This appliance is only for use with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other
gases.
Well Head Gas Installations
Some natural gas utilities use "well head" gas. This may affect the
Btu output of the unit. Contact the gas company for the heating value.
Contact the manufacturer or your gas company before changing
spud/orice size.
WARNING
ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN
BE DANGEROUS.
Improper installation or use of the heater can cause seri-
ous injury or death from re, burns, explosion or carbon
monoxide poisoning.
Operation
This unvented replace requires no outside venting. This unvented
replace is designed for vent-free operation with ue damper closed.
State and local codes in some areas prohibit the use of unvented
replace.

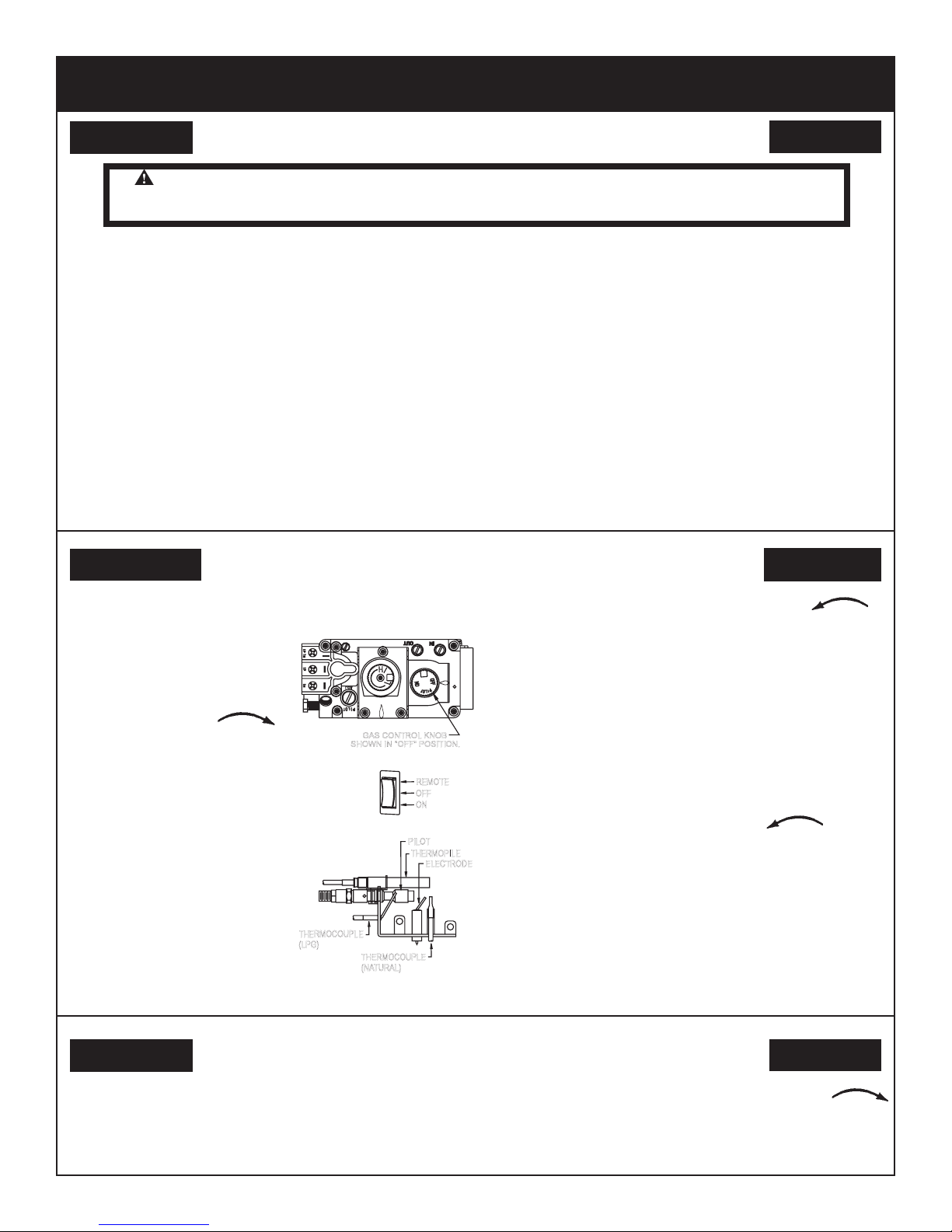

Millivolt controls
The valve regulator controls the burner pressure which should be
checked at the pressure test point. Turn captured screw counter
clockwise 2 or 3 turns and then place tubing to pressure gauge over
test point (Use test point “A” closest to control knob). After taking
pressure reading, be sure and turn captured screw clockwise rmly
to re-seal. Do not over torque. Check for gas leaks.
Millivolt System,
When you ignite the pilot, the thermocouple produces millivolts
(electrical current) which energizes the magnet in the gas valve.
After 30 seconds to 1 minute time period you can release the gas
control knob and the pilot will stay ON. Allow your pilot ame to
operate an additional one (1) to two (2) minutes before you turn the
gas control knob from the PILOT position to the ON position. This
time period allows the millivolts (electrical current) to build-up to a
sufcient level allowing the gas control to operate properly.
WARNING
This appliance is equipped for (natural gas or propane) gas. Field
conversion is not permitted.
General Information
This series is design certied in accordance with American National
Standard Z21.11.2 by the Canadian Standards Association as an
Unvented Room Heater and should be installed according to these
INTRODUCTION

25783-5-1011Page 6
Water vapor is a by-product of gas combustion. An unvented room
heater produces approximately one (1) ounce (30ml) of water for
every 1,000 BTU's (.3KW's) of gas input per hour. .
Unvented room heaters are recommended as supplemental heat (a
room) rather than a primary heat source (an entire house). In most
supplemental heat applications, the water vapor does not create a
problem. In most applications, the water vapor enhances the low
humidity atmosphere experienced during cold weather.
The following steps will help insure that water vapor does not
become a problem.
1. Be sure the heater is sized properly for the application, including
ample combustion air and circulation air.
2. If high humidity is experienced, a dehumidier may be used to
help lower the water vapor content of the air.
3. Do not use an unvented room heater as the primary heat
source.

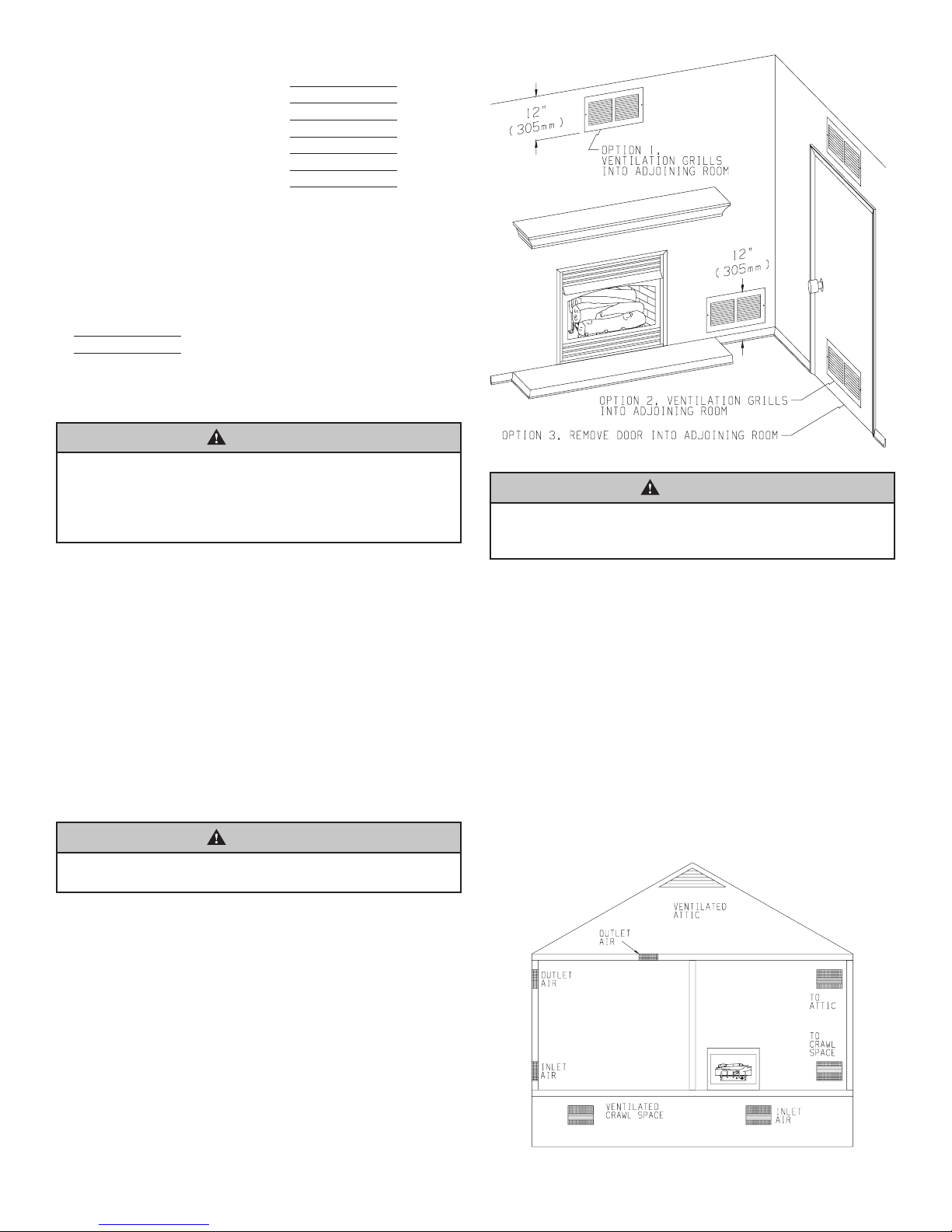

This heater shall not be installed in a conned space or unusu-
ally tight construction unless provisions are provided for adequate
combustion and ventilation air.
A conned space is an area with volume less than 50 cubic feet per
1,000 Btuh of the combined input rates of all appliances drawing
combustion air from that space. Small areas such as equipment
rooms are conned spaces. Furnaces installed in a conned space
which supply heated air to areas outside the space must draw return
air from outside the space through tightly sealed return air ducts. A
conned space must have 2 openings into the space for combus-
tion air. One opening must be within 12 inches of the ceiling and
the other must be within 12 inches of the oor. The required sizing
of these openings is determined by whether inside or outside air is
used to support combustion, the method by which the air is brought
to the space (vertical or horizontal duct) and by the total input rate
of all appliances in the space.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough
fresh air for combustion and ventilation. However, in buildings of
unusually tight construction, you must provide additional fresh air.
Unusually tight construction is dened as construction
where:
a. Walls and ceilings exposed to the outside atmosphere have
a continuous water vapor retarder with a rating of one perm
or less with openings gasketed or sealed, and
b. Weatherstripping has been added on openable windows and
doors, and
c. Caulking or sealants are applied to areas such as joints
around window and door frames, between sole plates and
oors, between wall-ceiling joints, between wall panels, at
penetrations for plumbing, electrical, and gas lines, and at
other openings.
If your home meets all of the three criteria above, you must provide
additional fresh air. See “VentilationAir From Outdoors,” page
7.
DeterminingifYouHaveaConnedorUnconnedSpace
Use this worksheet to determine if you have a conned or unconned
space.
Space: Includes the room in which you will install heater plus any
adjoining rooms with doorless passageways or ventilation grills
between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = cu. ft. (volume of
space)
Example: Space size 16 ft. (length) x 10 ft. (width) x 8 ft. (ceiling
height) = 1,280 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills
or openings, add the volume of these rooms to the total volume
of the space.
2. Divide the space volume by 50 cubic feet to determine the
maximum BTU/Hr the space can support.
(volume of space) ÷ 50 cu. ft. = (maximum
BTU/Hr the space can support)
Example: 1,280 cu. ft. (volume of space) ÷ 50 cu. ft. = 25.6 or
25,600 (maximum BTU/Hr the space can support)
PROVISIONS FOR ADEQUATE COMBUSTION & VENTILATION AIR
WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM HEATERS
SPECIFICATIONS
Model VFP24FP3*L VFP24FP2*L VFP24FP3*L10
Input Max. 20,000 20,000 10,000
Min. 14,000 10,000 10,000
Fireplace Dimensions
Height 26 3/8" 26 3/8" 26 3/8"
Depth 10 7/8" 10 7/8" 10 7/8"
Front Width 22 5/8" 22 5/8" 22 5/8"
Rear Width 17 1/4" 17 1/4" 17 1/4"
Gas Inlet 3/8" 3/8" 3/8"
* Indicates optional accessories that may be installed.
Accessories
FBB6 Automatic Blower
VPP1A-22 Aged Brick Liner
VFF24BR-1 Brass Trim Kit
VFF24SS-1 Stainless Steel Trim Kit
VFF24HP-1 Hammered Pewter Trim Kit
Accessories for Millivolt Models Only
FRBC Battery Operated Remote Control
FRBTC Battery Operated Remote Control w/Thermostat
FREC Electric Remote Control
FWS Wall Switch
TMV Wall Thermostat, Millivolt - Reed Switch
TRW Wireless Remote Wall Thermostat

25783-5-1011 Page 7
Figure 1
WARNING
Rework worksheet, adding the space of the adjoining
unconnedspace.Thecombinedspacesmusthaveenough
fresh air to supply all appliances in both spaces.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or ducts. You must
provide two permanent openings: one within 12" of the ceiling and
one with 12" of the oor. Connect these items directly to the outdoors
or spaces open to the outdoors. These spaces include attics and
crawl spaces. In most cases for direct communication with the
outdoors or direct communication through a vertical duct a free
area opening of one square inch per 4,000 BTU/HR of heater input
rating for each grill. If a horizontal duct is used, a grill free area or
duct opening shall have a free area opening of one square inch per
2,000 BTU/HR for each grill. Follow the National Fuel Code NFPA
54/ANSI Z223.1, Section 5.3 Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet or outlet air into attic
if attic has a thermostat-controlled power vent. Heated air entering
the attic will activate the power vent.
Figure 2
3. Add the BTU/Hr of all fuel burning appliances in the space.
Vent-free heater BTU/Hr
Gas water heater BTU/Hr
Gas furnace BTU/Hr
Vented gas heater BTU/Hr
Gas replace logs BTU/Hr
Other gas appliances* + BTU/Hr
Total = BTU/Hr
Example: Vented gas heater 20,000 BTU/Hr
Vent-free heater + 18,000 BTU/Hr
Total = 38,000 BTU/Hr
*Do not include direct-vent gas appliances. Direct vent draws
combustion air from the outdoors and vents to the outdoors.
4. Compare the maximum BTU/Hr the space can support with the
actual amount of BTU/Hr used.
BTU/Hr (maximum the space can support)
BTU/Hr (actual amount of BTU/Hr used)
Example:
25,600 BTU/Hr (maximum the space can support)
38,000 BTU/Hr (actual amount of BTU/Hr used)
WARNING
If the area in which the heater may be operated is smaller than that
dened as an unconned space or if the building is of unusually
tight construction, provide adequate combustion and ventilation air
by one of the methods described in the National Fuel Gas Code,
ANSI Z223.1, Section 5.3 or applicable local codes.
The space in the above example is a conned space because the
actual BTU/Hr used is more than the maximum BTU/HR the space
can support. You must provide additional fresh air. Your options
are as follows:
A. Rework worksheet, adding the space of an adjoining room. If
the extra space provides an unconned space, remove door
to adjoining room or add ventilation grills between rooms. See
Ventilation Air From Inside Building.
B. Vent room directly to the outdoors. See Ventilation Air From
Outdoors.
C. Install a lower BTU/Hr heater, if lower BTU/Hr size makes room
unconned.
If the actual BTU/Hr used is less than the maximum BTU/Hr the
space can support, the space is an unconned space. You will need
no additional fresh air ventilation.
WARNING
Youmustprovideadditionalventilationairinaconned
space.
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining unconned space. When
ventilating to an adjoining unconned space, you must provide two
permanent openings: one within 12" of the ceiling and one within
12" of the oor on the wall connecting the two spaces (see options
1 and 2, Figure 1). You can also remove door into adjoining room
(see option 3, Figure 1). Each ventilation grill or opening shall have
a minimum free area of one square inch per 1,000 BTU/HR of the
total input rating of the gas equipment in the conned space.

25783-5-1011Page 8
Check all local codes for requirements, especially for the size and
type of gas supply line required.
NOTICE: Never use plastic pipe. Check to conrm whether your
local codes allow copper tubing or galvanized.
NOTICE:Since some municipalities have additional local codes, it is
always best to consult your local authority and installation code.
Installing a New Main Gas Cock
Each appliance should have its own manual gas cock.
A manual main gas cock should be located in the vicinity of the unit.
Where none exists, or where its size or location is not adequate,
contact your local authorized installer for installation or relocation.
Compounds used on threaded joints of gas piping shall be resistant
to the action of liqueed petroleum gases. The gas lines must be
checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.
Neveruseanexposedametocheckforleaks.Appliancemust
be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
applianceconnected;controlvalvewillsustaindamage!
A gas valve and ground joint union should be installed in the gas
line upstream of the gas control to aid in servicing. It is required by
the National Fuel Gas Code that a drip line be installed near the gas
inlet. This should consist of a vertical length of pipe tee connected
into the gas line that is capped on the bottom in which condensation
and foreign particles may collect.
The use of the following gas connectors is recommended:
— ANS Z21.24Appliance Connectors of Corrugated Metal Tubing
and Fittings
— ANS Z21.45Assembled FlexibleAppliance Connectors of Other
Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The state of Massachusetts requires that a ex-
ible appliance connector cannot exceed three feet in length.
Pressure Testing of the Gas Supply System
1. To check the inlet pressure to the gas valve, a 1/8" (3mm) N.P.T.
plugged tapping, accessible for test gauge connection, must
be placed immediately upstream of the gas supply connection
to the appliance.
2. The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of
1/2 psig (3.5 kPa).
3. The appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa).
Figure 3
Attention! If one of the above procedures results in pressures in
excess of 1/2 psig (14" w.c.) (3.5 kPa) on the appliance gas valve,
it will result in a hazardous condition.
Checking Manifold Pressure
Millivolt Models Natural gas will have a manifold pressure of
approximately 3.5" w.c. (.871kPa) for maximum input or 1.7" w.c.
(.423kPa) for minimum input at the pressure regulator outlet with
the inlet pressure to the pressure regulator from a minimum of 5.0"
w.c. (1.120kPa) for the purpose of input adjustment to a maximum
of 10.5" w.c. (2.614kPa).
Hydraulic Thermostat Models Natural gas will have a manifold
pressure of approximately 6.0" w.c. (1.49kPa) at the pressure
regulator outlet with the inlet pressure to the pressure regulator
from a minimum of 7.0" w.c. (1.74kPa) for the purpose of input
adjustment to a maximum of 10.5" w.c. (2.615kPa).
Millivolt Models Propane gas will have a manifold pressure
approximately 10.0"w.c. (2.49kPa) for maximum input or 6.3"w.c.
(1.568kPa) for minimum input at the pressure regulator outlet with the
inlet pressure to the pressure regulator from a minimum of 11.0"w.c.
(2.739kPa) for the purpose of input adjustment to a maximum of
13.0"w.c. (3.237kPa).
Hydraulic Thermostat Models Propane gas will have a manifold
pressure approximately 10.0"w.c. (2.49kPa) at the pressure regulator
outlet with the inlet pressure to the pressure regulator from a minimum
of 11.0"w.c. (2.739kPa) for the purpose of input adjustment to a
maximum of 13.0"w.c. (3.237kPa).
GAS SUPPLY
Recommended Gas Pipe Diameter
Pipe Length Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Nat. L.P. Nat. L.P.
0-10 feet
0-3 meters
1/2”
12.7mm
3/8”
9.5mm
1/2”
12.7mm
3/8”
9.5mm
10-40 feet
4-12 meters
1/2”
12.7mm
1/2”
12.7mm
5/8”
15.9mm
1/2”
12.7mm
40-100 feet
13-30 meters
1/2”
12.7mm
1/2”
12.7mm
3/4”
19mm
1/2”
12.7mm
100-150 feet
31-46 meters
3/4”
19mm
1/2”
12.7mm
7/8”
22.2mm
3/4”
19mm

25783-5-1011 Page 9
Minimum Wall and Ceiling Clearances
Figure 4
This replace can be installed with zero (0") clearance to
combustible material.
When facing the front of the appliance the minimum clearances to
combustible construction (material) are the following:
1. Clearances from the right side or left side of the replace
opening to any combustible wall or material should not be
less than 4 inches.
2. Clearances from the top of the replace opening to the ceiling
should not be less than 30 inches.

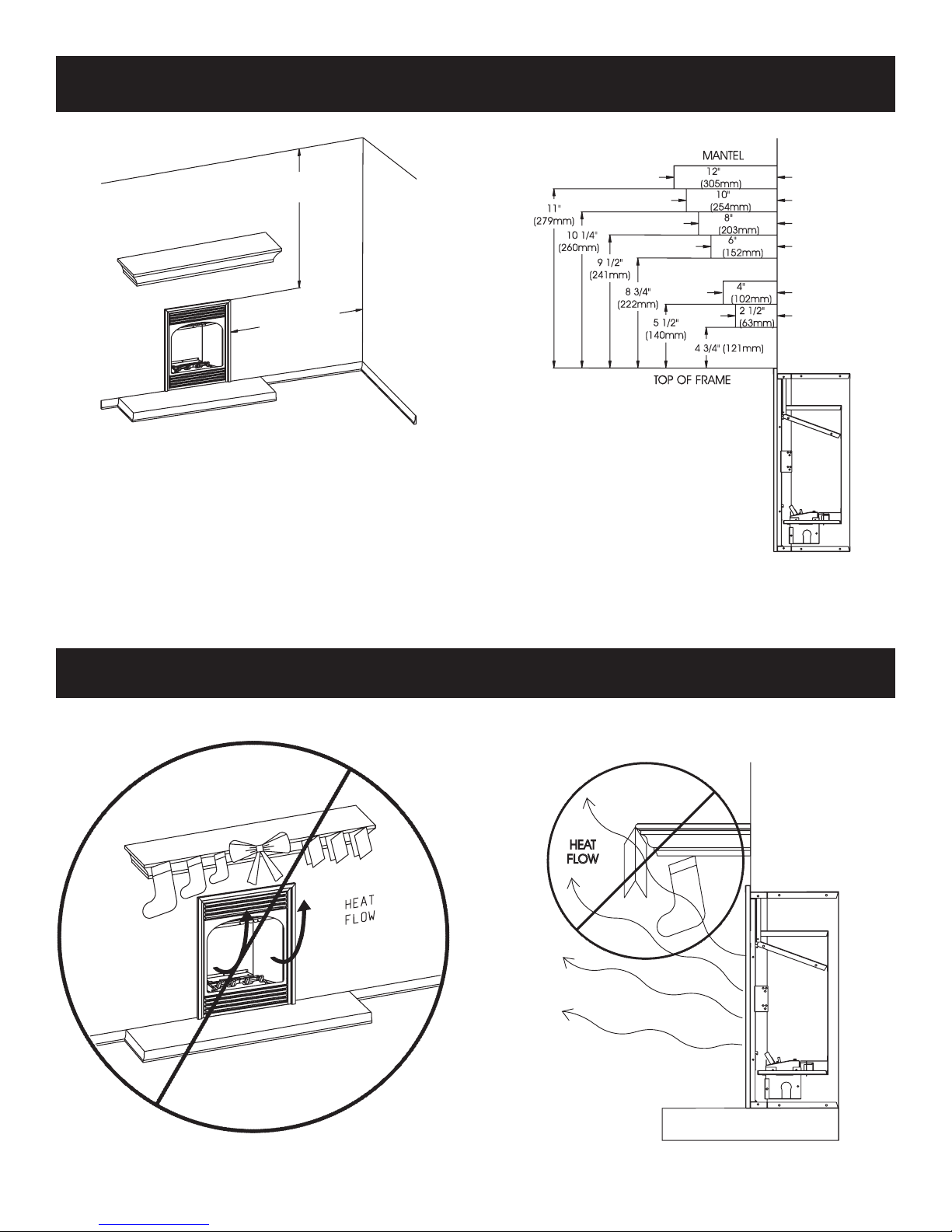

Mantel Clearances for Built-in Installation
Figure 5
Do not attach combustible material to the mantel of your replace.
This is a re hazard.
Figure 6
No greeting cards, stockings or ornamentation of any type should be
placed on or attached to the replace. This is a heating appliance.
The ow of heat can ignite combustibles.
Figure 7
CLEARANCES
COMBUSTIBLE MATERIAL
30”
(762mm)
4”
(101mm)

25783-5-1011Page 10
Installing Fireplace in Mantel
Figure 9
1. Position base approximately 5" from wall surface.
2. Attach nailing ange to replace top with two (2) 10 x 1/2"
screws.
3. Place replace on top of base.
4. Gas line connections must be made at this time. When facing
the replace the gas supply will enter on right-hand side. See
"Gas Supply" Page 8.
5. Placerightmantelsideagainstbase.Insertdowelsinbreastboard
into right mantel side. Breastboard will rest on replace
top and in front of nailing ange.
Attention: Placing the breastboard in front of nailing ange
will secure the replace.
6. Place left mantel side against base. Insert dowels in breastboard
into left mantel side.
7. Use four (4) pre-drilled screw holes on back of breastboard
to secure breastboard to mantel sides with four (4) Phillips
wood screws.
8. Place mantel top onto mantel.
9. Installation of replace into mantel is completed.
Installation of Trim
1. Lower bottom louver.
2. Remove screen from replace.
3. Remove top louver from replace [two (2) Phillips screws].
4. Attach right and lift trim to replace. Use two (2) Phillips screws
for each side.
5. Attach trim top to replace with two (2) Phillips screws.
6. Reattach top louver to replace using two (2) Phillips
screws.
7. Reattach screen to replace.
8. Raise bottom louver.
Figure 8
INSTALLATION OF FIREPLACE INTO MANTEL

25783-5-1011 Page 11
Built-In Fireplace Installation
Built-in installation of this replace involves installing replace into
a framed-in enclosure. This makes the front of replace ush with
wall. If installing a mantel above the replace, you must follow the
clearances shown in Figure 5, page 9. Follow the instructions below
to install the replace in this manner.
Frame in rough opening. Use dimensions shown in Figure 10 for a
conventional rough opening. Use dimensions shown in Figure 11
for corner rough opening. Be sure to provide gas line for replace
and electrical power for FBB6 optional blower assembly.
1. Attach two (2) nailing anges to rebox sides with two (2) 10
x 1/2" screws for each nailing ange.
2. Gas line connections must be made at this time. When facing
the appliance the gas supply will enter on right-hand side. See
"Gas Supply" Page 8.
3. Insert replace into enclosure.
4. Attach nailing anges to framing with a screw or nail.
5. Finished wall surface will be ush to the leading edge of
replace top and sides.
6. Installation of built-in replace is completed.
Installation of Trim
1. Lower bottom louver.
2. Remove screen from replace.
3. Remove top louver from replace [two (2) Phillips screws].
4. Attach right and lift trim to replace. Use two (2) Phillips screws
for each side.
5. Attach trim top to replace with two (2) Phillips screws.
6. Reattach top louver to replace using two (2) Phillips
screws.
7. Reattach screen to replace.
8. Raise bottom louver.
Rough Opening for Installing in Wall
Figure 10
Figure 12
Rough Opening for Installing in Corner
Figure 11
FLUSH
INSTALLATION
PROJECTED
INSTALLATION
1” TO 6” FROM BACK
25mm TO 152mm
ELECTRICAL
RECEPTACLE
26 3/4”
(680mm)
4” (102mm)
GAS SUPPLY
23 1/4” (591mm)
11 1/4”
(286mm)
BUILT-IN FIREPLACE INSTALLATION
23 "(584mm)
27 9/16" (700mm)
19 1/2"
(495mm)
39 "(991mm)

25783-5-1011Page 12
Provided with the log set is a small bag of glowing embers (rock
wool) to be placed between logs on the at metal surface of the
burner.
Placement of the embers (rock wool) is very individual and light
coverage of the areas indicated will provide your best effects. We
recommend separation of the rock wool by hand and make your
coverage as light and uffy as possible.
Place just enough embers (rock wool) on the burner to obtain the
glow and a gold yellow ame.
Do not place rock wool over large ports in rear portion of burner.
A thin layer of rock wool should be placed under open space
between the right and left middle logs.
Rock wool should not be placed in the area of the pilot assembly.
Replacement of loose material (glowing embers) must be purchased
from Empire Comfort Systems, Inc. Application of excess loose
material (glowing embers) may adversely affect performance of
the heater.
WARNING
All previously applied loose material must be removed prior to
reapplication.
Refer to Parts List, Page 19 to order loose material (rock wool).
Replacement Loose Material (Glowing Embers)
15998 Supplied Rock Wool
PE-20-1 Optional Platinum Bright Embers Kit
NOTICE: A single layer of embers is to be used when applying
Platinum Bright Embers (alone or in combination with production
embers) to the burner.
Flames from the pilot (rear right back side of the pan burner) as
well as the main ame should be visually checked as the log set
is installed.
In normal operation at full rate after 10 to 15 minutes, the ame
appearance should be sets of yellow ames.
NOTICE: all ames will be random by design, ame height will go
up and down.
Glowing embers (rock wool) can cover the pan burner in between
the front and middle logs, but very little is necessary to cover this
area. Excess ember material causes the yellow ame to become
orange and stringy. Apply just enough to obtain slow glow and a
gold, yellow ame.
Avoid any drafts that alter burner ame patterns. Do not allow fans to
blow directly into replace. Do not place a blower inside the burner
area of the rebox. Ceiling fans may create drafts that alter ame
patterns. Sooting and improper burning will result.
During manufacturing, fabricating and shipping, various components
of this appliance are treated with certain oils, lms or bonding agents.
These chemicals are not harmful, but may produce annoying smoke
and smells as they are burned off during the initial operation of the
appliance, possibly causing headaches or eye or lung irritation. This
is a normal and temporary occurrence.
The initial break-in operation should last 2-3 hours with the burner
at the highest setting. Provide maximum ventilation by opening
windows or doors to allow odors to dissipate. Any odors remaining
after this initial break-in will be slight and will disappear with
continued use.
This appliance must not be used with glass doors in the closed
position. This can lead to pilot outages and severe sooting outside
the replace.
PLACEMENT OF GLOWING EMBERS (ROCK WOOL)
OPERATION INSTRUCTIONS/FLAME APPEARANCE

25783-5-1011 Page 13
WARNING:Ifyoudonotfollowtheseinstructionsexactly,areorexplosionmay
result causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around the appliance area
forgas.Besuretosmellnexttotheoorbecausesome
gasisheavierthanairandwillsettleontheoor.
WHAT TO DO IF YOU SMELL GAS
• Donottrytolightanyappliance.
• Donottouchanyelectricalswitch;
do not use any phone in your building.
• Immediatelycallyourgassupplierfromaneighbor's
phone. Follow the gas supplier's instructions.
• Ifyoucannotreachyourgassupplier,callthere
department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turnbyhand,don'ttrytorepairit;callaqualiedservice
technician. Force or attempted repair may result in a
reorexplosion.
D. Do not use this appliance if any part has been under
water.Immediatelycallaqualiedservicetechnician
to inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
LIGHTING INSTRUCTIONS
1. Open bottom louver assembly (if applicable).
2. Set REMOTE/OFF/ON switch to OFF.
3. Turn off all electric power to the appliance if service is to be
performed (if applicable).
4. Push in gas control knob slightly and turn clockwise
to "OFF." Do not force.
5. Close bottom louver assembly (if applicable).
1. STOP! Read the safety information label.
2. Open bottom louver assembly.
3. Set REMOTE/OFF/ON switch to
"OFF."
4. Turn off all electric power to the
appliance (if applicable).
5. Push in gas control knob slightly
and turn clockwise to
"OFF." NOTE: Knob cannot be
turned from "PILOT" to "OFF" un-
less knob is pushed in slightly. Do not force.
6. Wait ten (10) minutes to clear out any gas.
Then smell for gas, including near the oor. If
you smell gas, STOP! Follow "B" in the safety
information above. If you do not
smell gas, go to the next step.
7. Find pilot - Follow metal tube from
gas control. The pilot is behind
the burner on the right side.
8. Turn gas control knob counterclockwise to
"PILOT."
9. Push in control knob all the way and hold in. Repeatedly push
the Piezo Ignitor Button until the pilot is lit. Continue to hold
the control knob in for about one (1) minute after the pilot is
lit. Release knob, and it will pop back up. Pilot should remain
lit. If it goes out, repeat steps 5 through 9.
• If knob does not pop up when released, STOP and IM-
MEDIATELY call a qualied service technician or gas
supplier.
• If the pilot will not stay lit after several tries, turn the gas
control knob to "OFF" and call your service technician or
gas supplier.
10. Turn gas control knob counterclockwise to "ON."
11. Set REMOTE/OFF/ON switch to desired setting.
12. Turn on all electric power to the appliance (if applicable).
13. Close bottom louver assembly.
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOPILE
REMOTE
OFF
ON
THERMOCOUPLE
(LPG)
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOPILE
REMOTE
OFF
ON
THERMOCOUPLE
(LPG)
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOPILE
REMOTE
OFF
ON
THERMOCOUPLE
(LPG)
MILLIVOLT CONTROLS LIGHTING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
TO TURN OFF GAS TO APPLIANCE

25783-5-1011Page 14
WARNING:Ifyoudonotfollowtheseinstructionsexactly,areorexplosion
may result causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around the appliance area
forgas.Besuretosmellnexttotheoorbecausesome
gasisheavierthanairandwillsettleontheoor.
WHAT TO DO IF YOU SMELL GAS
• Donottrytolightanyappliance.
• Donottouchanyelectricalswitch;
Do not use any phone in your building.
• Immediatelycallyourgassupplierfromaneighbor's
phone. Follow the gas supplier's instructions.
• Ifyoucannotreachyourgassupplier,callthere
department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in
orturnbyhand,don'ttrytorepairit;callaqualied
service technician. Force or attempted repair may
resultinareorexplosion.
D. Do not use this appliance if any part has been under
water.Immediatelycallaqualiedservicetechnician
to inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
3. Push in gas control knob slightly and turn clock-
wise to "OFF". Do not force.
1. Set thermostat (gas control knob) to lowest setting.
2. Turn off all electric power to appliance if service is to
be performed (if applicable).
1. STOP! Read the safety information above.
2. Set thermostat (gas control knob) to lowest setting.
3. Turn off all electric power to the appliance (if applicable).
4. Push in gas control knob slightly and turn clockwise
to "OFF." Do not force.
5. Wait ten (10) minutes to clear out any gas. Then smell for gas,
including near oor. If you smell gas, STOP! Follow "B" in the
safety information on other side. If you do not smell gas, Go
to the Next step.
6. Find pilot - the pilot is located in front of rear log.
7. Turn manual gas control knob counterclockwise to
"PILOT."
8. Push in manual gas control knob all the way and hold in.
Repeatedly push the piezo ignitor button until pilot is lit (or
use a match to light). Continue to hold the control knob in for
about one (1) minute after the pilot is lit. Release knob and it
will pop back up. Pilot should remain lit. If it goes out, repeat
steps 4 through 8.
• If knob does not pop up when released, stop and immedi-
ately call a qualied service technician or gas supplier.
• If the pilot will not stay lit after several tries, turn the gas
control knob to "OFF" and call a qualied service techni-
cian or gas supplier.
9. Attention! Gas control has an INTERLOCK latching device.
When the pilot is initially lit and the safety magnet is energized
(pilot stays "ON") the INTERLOCK latching device becomes
operative. If the gas control is turned to the "OFF" position or
gas ow to the appliance is shut off, the pilot cannot be re-
lighted until the safety magnet is de-energized (approximately
60 seconds). There will be an audible "click" when the safety
magnet in the gas control is de-energized. Pilot can now be
relighted. Repeat steps 4 through 8.
10. Turn the gas control knob counterclockwise to "HIGH
(5)."
11. Turn on all electric power to the appliance (if applicable).
12. Set the thermostat (gas control knob to desired setting from
"HIGH (5)" to "LOW (1)."
HYDRAULIC THERMOSTAT MODELS LIGHTING INSTRUCTIONS
PIEZO IGNITOR
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE

25783-5-1011 Page 15

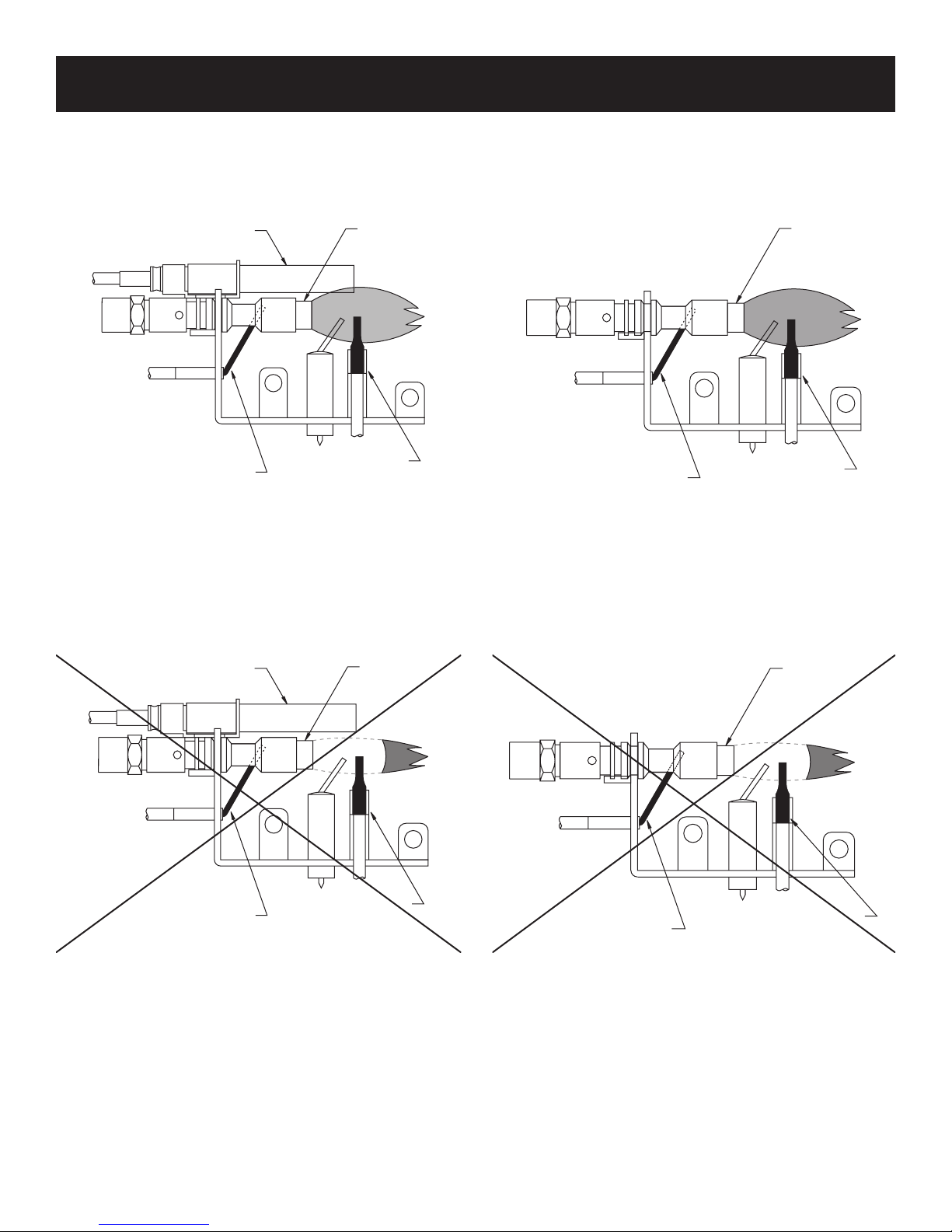

PILOT FLAME CHARACTERISTICS
Figures 13 and 15 show a correct pilot ame pattern. The correct ame will be blue and will extend beyond the thermocouple. The ame
will surround the thermocouple just below the tip. A slight yellow ame may occur where the pilot ame and main burner ame meet.
Figures 14 and 16 show an incorrect pilot ame pattern. The incorrect pilot ame is not touching the thermocouple. This will cause the
thermocouple to cool. When the thermocouple cools, the heater will shut down.
Correct Flame Pattern Correct Flame Pattern
THERMOCOUPLE
(LPG)
THERMOCOUPLE
(NATURAL)
THERMOPILE PILOT PILOT
THERMOCOUPLE
(NATURAL)
THERMOCOUPLE
(LPG)
Millivolt Pilot
Figure 13
Hydraulic Thermostat Pilot
Figure 15
Incorrect Flame Pattern Incorrect Flame Pattern
THERMOCOUPLE
(LPG)
THERMOCOUPLE
(NATURAL)
THERMOPILE PILOT PILOT
THERMOCOUPLE
(LPG)
THERMOCOUPLE
(NATURAL)
Millivolt Pilot
Figure 14
Hydraulic Thermostat Pilot
Figure 16
If pilot ame pattern is incorrect as shown in Figures 14 and 16:
• See Troubleshooting, Page 18

25783-5-1011Page 16
The VFP24FP2 Series gas control maximum and minimum
inputs are listed below.
OFF is the OFF position.
PILOT is the PILOT position.
VFP24FP2 Series
Max. 20,000 BTU/HR
Min. 10,000 BTU/HR
VFP24FP3 Series Main Burner Operation
The gas control modulates from a minimum input of 14,000 BTU/HR
(LO setting) to a maximum input of 20,000 BTU/HR (HI setting).
VFP24FP3 Series (with 10,000 BTU burner)
Fixed 10,000 BTU/HR
Cleaning and Maintenance / Main Burner
WARNING
Turn off heater and let cool before cleaning.
CAUTION
You must keep control areas, burner and circulating air
passageways of heater clean. Inspect these areas of heater
before each use. Have heater inspected yearly by a qualied
service person. Heater may need more frequent cleaning due to
excessive lint from carpeting, bedding materials, etc.
Logs
Be careful cleaning and handling logs so as not to damage them.
If logs break or fall apart in handling, spray the broken pieces and
bers with water, sweep up and discard.
MAIN BURNER AND THERMOSTAT OPERATION
Cleaning and Maintenance/Pilot
Oxygen Depletion Sensor Pilot (Figures 17 and 18)
When the pilot has a large yellow tip ame, clean the Oxygen
Depletion Sensor as follows:
1. Clean the ODS pilot by loosening nut B from the pilot tubing.
When this procedure is required, grasp nut A with an open end
wrench.
2. Blow air pressure through the holes indicated by the arrows.
This will blow out foreign materials such as dust, lint and spider
webs. Tighten nut B also by grasping nut A.
WARNING
Never use needles, wires, or similar cylindrical objects to
clean the pilot to avoid damaging the calibrated ruby that
controlsthegasow.
Millivolt Pilot
Figure 17
BA
Hydraulic Thermostat
Figure 18
BA
PILOT FLAME CHARACTERISTICS

25783-5-1011 Page 17
WIRING
Label all wires prior to disconnection when servicing controls. Wiring
errors can cause improper and dangerous operation. Verify proper
operation after servicing.
Millivolt thermopile is self powered, gas valve does not require 110
volts. Maximum length of 20 feet of 16 AWG to conductor wires is
to be used with all optional switches.
Use the two leads (Red and Green) to attach optional
components.
Check 750 Millivolt System Operation
Millivolt system and all individual components may be checked with
a millivolt meter 0-1000 MV range.
Remote Receiver
Use the following steps to place the remote receiver adjacent to
the gas valve.
Attention: The remote receiver bracket is not used in this
installation.
1. The remote receiver can not be placed behind the gas valve
and burner assembly.
2. When facing the appliance, the remote receiver must be placed
to the right of the gas valve.
Install remote control receiver behind bottom louver.
Refer to remote control installation and operating instructions for
more details on remote control.
REMOTE/OFF/ON SWITCH
A DISTANCE/FERME/OUVERT
INTERRUPTEUR
IF ANY OF THE ORIGINAL WIRE
AS SUPPLIED WITH THIS UNIT
MUST BE REPLACED, IT MUST BE
REPLACED WITH NUMBER 18, 150°C
WIRE OR ITS EQUIVALENT.
SI UN DES FILS ELECTRIQUES
ORIGINAUX, VENANT DU FABRICANT
AVEC CETTE UNITE, DOIT ETRE
REMPLACE, VOUS DEVEZ LE
REMPLACER AVEC UN FIL
ELECTRIQUE DE NUMERO 18,
150 °CDUL'EQUIVALENT.
THERMOPILE
GAS VALVE
THERMOCOUPLE
(NATURAL)
OFF
ON
REMOTE
(OPTIONAL) REMOTE CONTROL RECEIVER
(FACULTATIVE) CONTROLEEDISTANCE
DU RECEPTEUR
(OPTIONAL) WALL SWITCH
INTERRUPTEUR MURAL
(FACULTATIVE)
(OPTIONAL) THERMOSTAT
(FACULATIVE) THERMOSTAT
WIRING DIAGRAM
GAS VALVE
VALVEDE GAZ
REMOTE/OFF/ON SWITCH
A DISTANCE/OUVERT/
FERME INTERRUPTEUR
REMOTE CONTROL RECEIVER/
THERMOSTAT/ CONTROLE E
DISTANCE DU RECEPTEUR
H N
VEILLEUSE
PILOT
THERMOCOUPLE
(LPG)
Millivolt Models
Wiring Diagram
Figure 19

25783-5-1011Page 18
Ifthegasqualityisbad,yourpilotmaynotstaylit,theburnersmayproducesootandtheheatermaybackrewhenlit.Ifthe
gas quality or pressure is low, contact your local gas supplier immediately.
1. When ignitor button is pressed, there is no spark at ODS/
pilot.
a. Ignitor electrode positioned wrong - Replace pilot.
b. Ignitor electrode is broken - Replace pilot.
c. Ignitor electrode not connected to ignitor cable - Recon-
nect ignitor cable.
d. Ignitor cable pinched or wet. Keep ignitor cable dry - Free
ignitor cable if pinched by any metal or tubing.
e. Broken ignitor cable - Replace ignitor cable.
f. Bad piezo ignitor - Replace piezo ignitor.
2. Appliance produces unwanted odors.
a. Appliance burning vapors from paint, hair spray, glues,
etc. - Ventilate room. Stop using odor causing products
while heater is running.
b. Gas leak - Locate and correct all leaks.
3. Appliance shuts off during use. (Pilot and main burner
are off.)
a. Not enough fresh air is available for ODS/pilot to oper-
ate - Open window and/or door for ventilation.
b. Low line pressure - Contact local gas company.
c. ODS/pilot is partially clogged - Clean ODS/pilot.
d. Defective thermocouple - Replace pilot.
4. Appliance shuts off during use. (Pilot stays on.)
a. Low line pressure - Check line pressure to the valve.
b. Defective thermopile - Check pilot ame, check wire con-
nections, output should be a minimum of 325 millivolts
across. TH/TP and TP terminals with ON/OFF switch
off.
5. Gas odor even when control knob is in OFF position.
a. Gas leak - Locate and correct all leaks.
b. Control valve defective - Replace control valve.
6. When ignitor button is pressed, there is spark at ODS/
pilot, but no ignition.
a. Gas supply turned off or manual shutoff valve closed -
Turn on gas supply or open manual shutoff valve.
b. Control knob not in PILOT position - Turn control knob
to PILOT position.
c. Control knob not pressed in while in PILOT position -
Press in control knob while in PILOT position.
d. Air in gas lines when installed - Continue holding down
control knob. Repeat igniting operation until air is re-
moved.
e. ODS/pilot is clogged - Replace ODS/pilot assembly or
get it serviced.
f. Gas regulator setting is not correct - Replace gas regula-
tor.
7. ODS/pilotlightsbutamegoesoutwhencontrolknobis
released.
a. Control knob not fully pressed in - Press in control knob
fully.
b. Control knob not pressed in long enough - After ODS/
pilot lights, keep control knob pressed in 30 seconds.
c. Manual Shutoff valve not fully open - Fully open manual
shutoff valve.
d. Thermocouple connection loose at control valve - Hand
tighten until snug, then tighten 1/4 turn more.
e. Pilot ame not touching thermocouple, which allows
thermocouple to cool, causing pilot ame to go out. This
problem could be caused by either low gas pressure or
dirty or partially clogged ODS/pilot - Contact local gas
company.
f. Thermocouple damaged - Replace thermocouple.
g. Control valve damaged - Replace control valve.
8. Burner does not light after ODS/pilot is lit.
a. Burner orice clogged - Clean burner or replace main
burner orice.
b. Burner orice diameter is too small - Replace burner
orice.
c. Inlet gas pressure is too low - Contact qualied service
person.
9. Ifburningatmainburneroriceoccurs(aloud,roaring
blow torch noise).
a. You must turn off burner assembly and contact a qualied
service person.
b. Manifold pressure is too low - Contact local gas com-
pany.
c. Burner orice clogged - Clean burner or replace burner
orice.
10. Logs appear to smoke after initial operation.
a. Vapors from paint or curing process of logs - Problem
will stop after a few hours of operation. Run the heater
with the damper open if you have one, or open a window
for the rst few hours.
Log heater is intended to be smokeless. Turn OFF heater
and call qualied service person.
11. Heater produces a whistling noise when main burner is
lit.
a. Turning control knob to HIGH position when main burner
is cold - Turn control knob to LOW position and let warm
up for a minute.
b. Air in gas line - Operate burner until air is removed from
line. Have gas line checked by local gas company.
c. Dirty or partially clogged burner orice - Clean burner
or replace burner orice.
12. No gas to pilot.
a. LP-regulator shut down due to inlet pressure too high -
Verify LP tank regulator is installed and set at 11" to 13"
w.c. Replace regulator on heater.
Turn appliance OFF and allow to cool before servicing. Only a qualied service person should service and repair the heater.
TROUBLESHOOTING
SYMPTOMS, POSSIBLE CAUSES AND CORRECTIONS

25783-5-1011 Page 19
USE ONLY MANUFACTURER'S REPLACEMENT PARTS. USE OF ANY OTHER PARTS COULD CAUSE INJURY OR DEATH.
ATTENTION: When ordering parts, it is very important that part number and description of part coincide.
PARTS LIST
INDEX
NO.
PART
NO. DESCRIPTION
COMMON
1 25897 TRIM - TOP
2 25895 TRIM - LEFT
3 25896 TRIM - RIGHT
4 10554 NAILING FLANGE (2 REQUIRED)
5 21642 BRICK LINER BRACKET - UPPER (2
REQUIRED)*
6 R6498 BRICK PANEL - REAR*
7 R6497 BRICK PANEL SIDE - LEFT*
8 R6499 BRICK PANEL SIDE - RIGHT*
9 19401 BRICK LINER BRACKET -LOWER (2
REQUIRED)*
10 25774 LOUVER ASSEMBLY - UPPER
11 25777 SCREEN ASSEMBLY
(INCLUDES 12 & 13)
12 25779 BRACKET, SCREEN RETAINER
(2 REQUIRED)
13 R10364 SCREEN, CURTAIN
14 25775 LOUVER ASSEMBLY - LOWER
15 25781 REAR LOG SUPPORT
16 12348 BURNER ASSEMBLY - LPG
16 12347 BURNER ASSEMBLY - NAT
17 11833 PILOT SHIELD - NAT ONLY
19 R5675 AIR SHUTTER - LPG
19 R5676 AIR SHUTTER - NAT
20 P-182 ORIFICE - LPG (20,000 BTU)
21 P-253 ORIFICE FITTING - ANGLED
22 25785 VALVE / REGULATOR BRACKET
NOT
SHOWN R5668 IGNITOR WIRE
NOT
SHOWN 12389 CERAMIC MEDIA (REPAIR)
NOT
SHOWN 15998 ROCK WOOL
NOT
SHOWN P-251 COUPLING (NAT ONLY)
VFP24FP30L and VFP24FP30L10
18 R3623 PILOT ASSEMBLY - LPG
18 R3624 PILOT ASSEMBLY - NAT
20 P-214 ORIFICE - NAT (10,000 BTU)
20 P-181 ORIFICE - NAT (20,000 BTU)
20 P-193 ORIFICE - LPG (10,000 BTU)
23 R3626 VALVE - NAT (20,000 BTU)
23 R3625 VALVE - LPG (20,000 BTU)
23 R9368 VALVE - NAT (10,000 BTU)
23 R9369 VALVE - LPG (10,000 BTU)
24 R2423 MALE ADAPTOR
25 25787 TUBING (VALVE TO BURNER)
26 25805 TUBING (VALVE TO PILOT) - LPG
26 25788 TUBING (VALVE TO PILOT REGULA-
TOR) - NAT ONLY
27 R7063 PILOT REGULATOR - NAT ONLY
28 25789 TUBING (PILOT REGULATOR TO
PILOT) - NAT ONLY
29 P-263 NIPPLE 8"
32 25786 VALVE COVER PLATE
33 R2708 PIEZO IGNITOR
34 R3436 REMOTE/OFF/ON SWITCH
NOT
SHOWN R10947 SWITCH WIRE HARNESS
VFP24FP20L
18 R5170 PILOT ASSEMBLY - LPG
18 R5171 PILOT ASSEMBLY - NAT
20 P-265 ORIFICE - NAT (20,000 BTU)
23 26012 VALVE - NAT
23 24157 VALVE - LPG
25 24156 TUBING (VALVE TO BURNER)
26 24153 TUBING (VALVE TO PILOT, NAT)
26 24154 TUBING (VALVE TO PILOT, LPG)
29 P-264 NIPPLE 5"
30 R2480 INLET REGULATOR - LPG
30 R2479 INLET REGULATOR - NAT
31 24155 TUBING (REGULATOR TO VALVE)
32 25806 VALVE COVER PLATE
33 R2708 PIEZO IGNITOR
NOT
SHOWN R1720 PLASTIC CLIP
INDEX
NO.
PART
NO. DESCRIPTION
* Brick Panels are an optional accessory and not required for use
with replace.

25783-5-1011Page 20

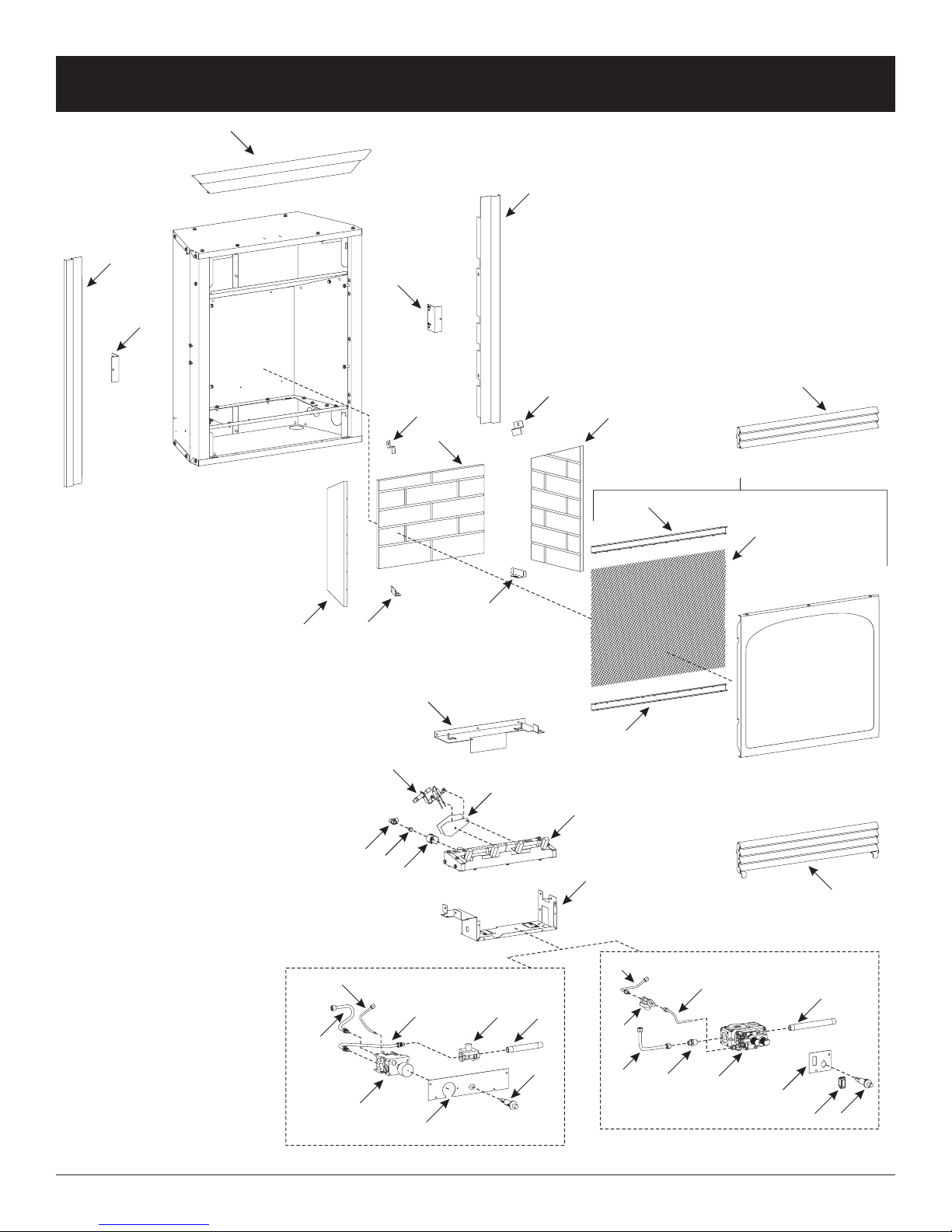

PARTS VIEW
1
3
2
4
4
5
6
7
8
9
9
10
11
14
15
18
16
17
21 20 19 22
5
12
13
12
23
26
25
31 30 29
33
32
23
24
25
29
32
34 33
26
27
28
VFP24FP2 Series
VFP24FP3 Series
