White Rodgers pmnACM/ACB User manual

With Media Filter
ACM1000
ACM1200TM
ACM1400
ACM1600
ACM2000
ACM2000U
ACM2000X
No Media Filter
ACB1000
ACB1400
ACB1600
ACB2000
Air Filter Compartment
Model Number
ACM/ACB
OWNER’S MANUAL
• Installation
• Operation
• Technical Repair Guide
• Repair and Upgrade Parts
PART NO. 37-6383C
Replaces 37-6383B
0446
Please read and familiarize yourself with the contents of this manual before
installing, operating or performing maintenance on the unit.
White-Rodgers is a division
of Emerson Electric Co.
www.white-rodgers.com

2
INTRODUCTION
The White-Rodgers Air Cleaner Compartment comes com-
plete with a 5”media furnace air filter. This filter must be
changed every three months to maintain efficiency of the filter
and furnace system. For maximum efficiency, the compart-
ment can be upgraded to a White-Rodgers Electronic Air
Cleaner.
Please read instructions before installing and using the Air
Filter Compartment.
Before installing or servicing, always
shut off electricity. This will prevent
any electrical shocks.
▲
!WARNING
▲
!WARNING
Do not attempt installation of this unit unless you
are familiar with the necessary tools, equipment,
and potential hazards.
Installation should be performed only by a qualified
service provider.
Failure to do so could result in reduced performance
of the unit, serious personal injury or death.
▲
!WARNING
Installation of this unit must comply with local
electric codes or other applicable codes.
Review and understand local codes prior to
installation.
White-Rodgers will not assume any responsibility for
component failures due to incorrect installation procedures.
TABLE OF CONTENTS
Rules for Safe Installation and Operation ............2
How the Air Filter Works ......................................3
Construction of the Air Filter Compartment .........3
Preinstallation ....................................................... 4
Installation ............................................................6
Maintenance ......................................................... 7
Repair and Upgrade Parts ...................................7
GUARANTEE
1. Read the Owners Manual and the Rules for Safe
Operation carefully. Failure to follow these rules and
instructions could cause a malfunction of filter or
unsatisfactory service.
RULES FOR SAFE INSTALLATION
AND OPERATION
2. Follow a regular service and maintenance schedule
for efficient operation.
▲
!CAUTION
The fiber filter used in this cabinet for air cleaning
must be replaced every 90 days. Your heating and
cooling efficiency will decrease due to insufficient
air flow when filter becomes dirty.
DID YOU GET THE RIGHT SIZE
AIR FILTER COMPARTMENT
Model ACB & ACM1000 are designed for heating or
cooling blowers delivering 600 to 1200 cubic feet of air per
minute (cfm.)
Model ACM1200TM is designed for heating or cooling
blowers delivering 1000 to 1600 cfm.
Model ACB & ACM1400 are designed for heating or
cooling blowers delivering 1000 to 1600 cfm.
Model ACB & ACM1600 are designed for heating or
cooling blowers delivering 1200 to 1800 cfm.
Model ACB, ACM2000 & ACM2000X are designed for
heating or cooling blowers delivering 1600 to 2200 cfm.
Model ACM2000U is designed for heating or cooling
blowers delivering 1600 to 2200 cfm. with insulation on
door and universal rail.
Before installing the filter, make sure you have selected
the proper size unit for your heating and cooling system
requirements. See specifications on page 4.
BASIC TOOLS REQUIRED
Tin Snip
Screwdriver
Rule or Tape Measure
Drill

3
AIR FILTER COMPARTMENT
5" FILTER
DOOR
FRONT
VIEW
IF RAILS AND CLIPS ARE
REQUIRED, CLIP RAILS
IN PLACE BEFORE
INSERTING FILTER
CLIPS
RAIL AND CLIPS
RAIL
DIRTY AIR IN
5" FILTER
FILTERED AIR OUT
HOW THE AIR FILTER WORKS
Dirty air flows through your return air ducts and enters the
compartment where particles (hair, lint, etc.) are removed
by the filter. See figure 1.
Filtered air re-enters to the supply duct system of your
building.
Not only is your air filter compartment easy to install, it is
also easy to maintain. Its basic components, and their
functions, are as follows: (See Figure 2)
Air Filter Compartment- mounts to existing duct work and
houses the filters or optional electronic air cleaner
cells.
NOTE: To upgrade your air filter compartment
with a high efficiency Electronic Air Cleaner, use
the ACR (Air Cleaner Retrofit) Kit for your model.
See page 7 for details.
5”Filter - collects dust, dirt and other particles.
Note ACM2000U Compartment: This unit has removable
rails (see figure 2A). This unit is installed with the rails to be
used with a 24.5”x 19.9”x 4.3”filter. Remove the rails and
a 5”filter may be used.
CONSTRUCTION OF THE AIR FILTER COMPARTMENT
Figure 1
Figure 2
Figure 2A

4
DC
B
E
A
F
AIR FLOW
NOT TO EXCEED 20
FURNACE
OPENING
FURNACE AIR CLEANER DUCTWORK
AIR FLOW
THIS CABINET
CAN ACCEPT
ELECTRONIC
AIR CLEANER
OPTION
(SEE PAGE 7)
AIR CLEANER
OPENING
TRANSITION SECTION (IF NEEDED)
Figure 3
Figure 4
LOCATING THE AIR FILTER
Your air filter must be mounted in the return air duct of a
central forced-air system, on the air entering side of your
furnace. (See Figure 3 for example.)
Select a location that meets the following:
1. The face of the filter will be at a right angle to the air
stream.
2. Allow 25”of clearance in front of the air filter compart-
ment door to permit removal of filters.
See figure 4 for complete compartment dimen-
sions.
3. The air filter is not to be placed in the discharge of
either the heating or cooling unit.
4. IMPORTANT: If atomizing spray type humidifier is
used, it must be installed downstream from the air
filter.
If furnace opening cannot be enlarged to required size, a
transition sheet metal section must be used. Transition
must be planned for each job. Reduction should not be
more than 4 inches per linear foot, approximately 20
angular degrees (Figure 3).
PREINSTALLATION
Model No. A B C D E F
ACB/ACM1000 20-1/4 12-5/8 13-9/16 16-7/16 19-1/16 6-7/8
ACB/ACM1400 26-1/4 23-5/8 13-9/16 16-7/16 19-1/16 6-7/8
ACB/ACM1600 20-1/4 12-5/8 17-3/4 20-5/8 23-3/8 6-7/8
ACB/ACM2000 26-1/4 23-5/8 17-3/4 20-5/8 23-3/8 6-7/8
ACM1200TM 24-5/8 21-29/32 13-1/2 16-15/32 12-13/32 4-15/16
ACM2000U 24-5/16 22-5/16 17-3/16 20-3/16 21-5/32 6-7/8
ACM2000X 24-5/16 22-5/16 17-3/16 20-3/16 21-5/32 6-7/8

5
AIR FLOW
AIR FLOW
Figure 10
LESS THAN
7 INCHES
FIGURE 9
OFFSET
AT LEAST
9 INCHES
AIR FLOW
Figure 7
AIR FLOW
Figure 6
AIR FLOW
Figure 5
HIGHBOY FURNACE
(Figure 8)
Installation beneath furnace.
Filter mounts horizontally,
where return air enters from
below. Raise furnace and in-
stall beneath base.
COUNTERFLOW
FURNACE (Figure 6)
Filter is mounted horizontally
in return duct or plenum, just
above furnace.
HIGHBOY FURNACE
(Figure 7)
Side installation. Filter is
mounted vertically, where
return air enters side inlet
of furnace.
OFFSET INSTALLATION
(Figure 9)
Typical use of duct offset to match air filter opening.
If duct connection to furnace allows less than nine
inches for mounting the air filter, shorten the lateral
trunk, or attach an offset fitting to the elbow.
HORIZONTAL FURNACE
(Figure 10)
Filter is mounted vertically in
the return duct near furnace.
BASEMENT FURNACE
(LOWBOY) (Figure 5)
Filter is mounted horizon-
tally in return plenum, just
above furnace.

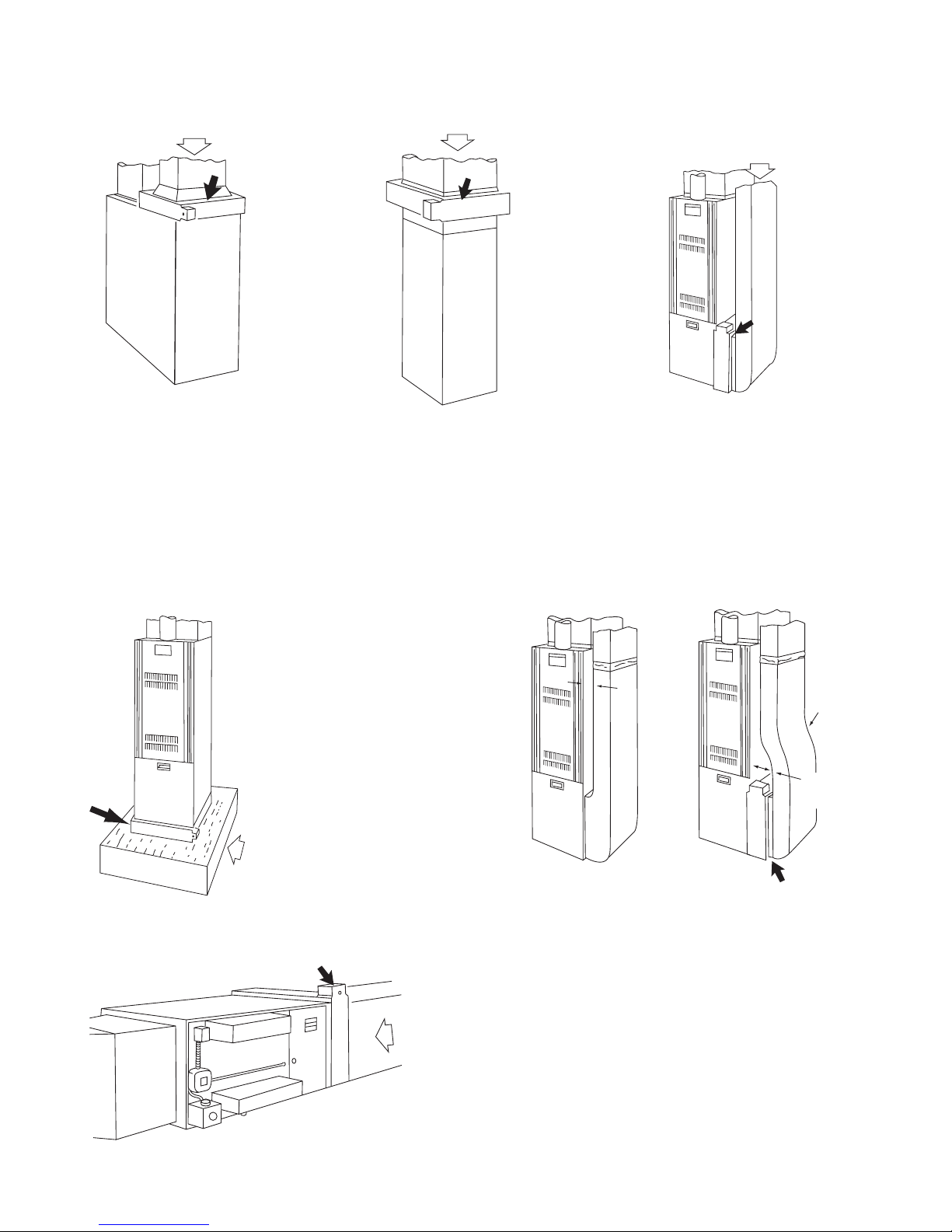

TYPICAL MOUNTING POSITIONS

6
REMOVE OLD FILTER AND DISCARD
(Figure 11)
NOTE: This filter may be mounted in the furnace compart-
ment.
CLEAN BLOWER COMPARTMENT
NOTE: The air filter cannot remove dirt from blower and
ducts.
INSTALLATION
The following is a typical installation of the air filter on a
“Highboy” furnace (Figure 7).
1. Place the air filter compartment on the floor. Stand it
upright with the door facing you (Figure 2). If a
horizontal installation is being planned, lay the com-
partment on its side, this will help you to visualize the
relative location of all parts.
2. Unscrew the knob, remove the door (by grasping top
and pulling door away from compartment) and set it
aside. Remove 5”filter. Set in a safe location until the
compartment is installed.
3. Set the compartment next to the furnace (if possible)
to match the opening in the compartment.
If the furnace opening cannot be enlarged, a transi-
tion fitting should be used. (Figure 3).
The compartment can be attached directly (Figure
12), or a starting collar can first be fitted to the furnace
inlet. A butt or slip joint can be used.
Securely attach the compartment to furnace inlet,
using at least two of the mounting holes on each side
of the compartment.
4. Using butt joint, attach duct work (normally an elbow)
to the upstream side of air filter compartment. (Note
the use of the sheet metal turning vanes inside the
elbow to improve air distribution.) (Figure 13)
NOTE: An optional method of attaching duct work to the
air filter cabinet is to modify the compartment (Figure 14)
by bending the tabs outward at a 90° angle and attaching
duct work to tabs.
Transition Fittings
If the air duct does not fit the compartment opening, a
transition fitting should be used. Gradual transitions are
preferred for greatest efficiency. Not more than four
inches per linear foot (approximately 20° angle) should be
allowed (Figure 3).
5. Connect the vertical duct section to the elbow. Wedge
a wood block between floor and elbow for support
(Figure 15).
6. Seal all joints in the return air system downstream
from the air filter with duct tape to prevent dust from
entering the air stream. Tape is usually applied on the
outside of ducts, but may also be applied on the
inside, or both.
INSTALLATION
7. With the air filter compartment installed, re-install 5”
filter and door. (Figure 2)
Figure 11
Air Flow Turning
Vanes
Figure 13
Optional method
(Bend tabs outward at 90˚ angle)
Figure 14

7
1
13
2
CONDUIT
FLOOR
DUCT
AIR CLEANER
MAINTENANCE
For maximum efficiency, your air filter should be in-
spected once a month and changed if dirt loading is
heavy. When changing is required, the following proce-
dure should be used:
▲
!CAUTION
The fiber filter used in this compartment for air
cleaning must be replaced every 90 days. Your
heating and cooling efficiency will decrease due
to insufficient air flow when filter becomes dirty.
1. Remove door from air filter compartment by unscrew-
ing the knob.
2. Remove 5”filter and throw away.
3. Replace 5”filter by sliding it into the compartment.
(Note direction of air flow.)
4. Replace door.
When ordering repair parts, always give the following
information as shown in this list.
1. The PART NUMBER
2. The PART DESCRIPTION
3. The MODEL NUMBER of the Air Filter Compart-
ment
Always order by “PART NUMBER” . . .
Not by “ITEM NUMBER”
PARTS LIST FOR
AIR FILTER COMPARTMENT
REPAIR and UPGRADE PARTS
Vertical
Section
Wood Block
Tape All
Joints
Part Number
Item ACB/ACM ACB/ACM ACB/ACM ACB/ACM ACM ACM ACM
No. Description 1000 1400 1600 2000 1200TM 2000U 2000X
1 Compartment & Door ACB1000 ACB1400 ACB1600 ACB2000 NONE NONE NONE
2 Filters 5”FR1000 FR1400 FR1600 FR2000 FR1200TM FR2000U FR2000X
3 Screw, Fastener F870-0026 F870-0026 F870-0026 F870-0026 F870-0026 F870-0026 F870-0026
Figure 15
Figure 16
ACB/ACM ACB/ACM ACB/ACM ACB/ACM ACM ACM ACM
Description 1000 1400 1600 2000 1200TM 2000U 2000X
Electronic Air Cleaner Retrofit Kit ACR1000 ACR1400 ACR1600 ACR2000 NONE NONE NONE
UPGRADE!
ELECTRONIC
AIR CLEANER KIT

NOTICE TO CONSUMERS
White-Rodgers
Electronic Air Cleaner
Dear Consumer;
White-Rodgers would like to thank you for purchasing a White-Rodgers Electronic Air
Cleaner or product containing a White-Rodgers Electronic Air Cleaner. Although White-
Rodgers does not extend a warranty directly to consumers, White-Rodgers does extend a
warranty to Wholesalers and Original Equipment Manufacturers who use White-Rodgers
Products. To obtain more information about how your Wholesaler or Original Equipment
Manufacturer’s warranty may benefit you, please contact your Wholesaler or Original
Equipment Manufacturer.
Sincerely,
White-Rodgers
The Emerson logo is a
trademark and service mark
of Emerson Electric Co.

Avec couche filtrante
ACM1000
ACM1200TM
ACM1400
ACM1600
ACM2000
ACM2000U
ACM2000X
Sans couche filtrante
ACB1000
ACB1400
ACB1600
ACB2000
Boîtier d’épurateur
Modèle
ACM/ACB
GUIDE DE L’UTILISATEUR
•Installation
•Exploitation
•Guide technique de réparation
•Pièces de rechange et de mise à niveau
PIÈCE No37-6383C
Remplace 37-6383B
0446
Prière de lire attentivement le manuel avant d’installer l’article, de l’utiliser ou d’en faire
l’entretien.
White-Rodgers est une division
d’Emerson Electric Co.
www.white-rodgers.com

2
INTRODUCTION
Le boîtier d’épurateur White-Rodgers est vendu avec un filtre
de125mmpouréquipementdechauffage.Ondoitchangerce
filtre aux trois mois afin d’assurer l’efficacité de l’épurateur et
del’installation.Pourobtenir l’efficacité maximale,leboîtierse
transforme en épurateur d’air électronique White-Rodgers à
l’aide d’un ensemble de mise à niveau.
Prièredelirelesdirectivesavantd’installeretd’utiliserleboîtier
d’épurateur.
Toujourscouperlecourantavantl’ins-
tallationoularévision. Celaéviterales
chocs électriques.
Ne pas tenter d’installer l’article avant de s’être fami-
liarisé complètement avec les exigences en matière
d’outils et d’équipements ainsi qu’avec les dangers
qui sont présents.
Pour l’installation, il est recommandé de faire appel à
un fournisseur de services agréé.
Si ces instructions n’étaient pas suivies, les perfor-
mances de l’article pourraient être réduites et des
blessuresgraves,voireundécès,pourraientsurvenir.
MISE EN
GARDE
L’installation doit respecter le code de l’électricité et
tout autre code en vigueur.
Avant de procéder à l’installation, prendre soin de
vérifier les codes en vigueur.
White-Rodgers se dégage de toute responsabilité pour le bris
de composants découlant d’une installation incorrecte.
TABLE DES MATIÈRES
Directives d’installation et d’exploitation sécuritaires ............. 2
Fonctionnement du filtre à air ................................................ 3
Construction de l’épurateur .................................................... 3
Installation préliminaire .......................................................... 4
Installation .............................................................................. 6
Entretien................................................................................. 7
Pièces de rechange et de mise à niveau ............................... 7
GARANTIE
1. Lire attentivement le guide de l’utilisateur ainsi que les
directives d’exploitation sécuritaire. Si ces directives
n’étaient pas suivies, l’épurateur risquerait de fonctionner
incorrectement ou pas du tout.
DIRECTIVES D’INSTALLATION ET
D’EXPLOITATION SÉCURITAIRES
2. Effectuer régulièrement les révisions et l’entretien afin
d’assurer un fonctionnement efficace.
Il est important de remplacer tous les 90 jours le filtre
à fibres installé dans le boîtier. Lorsque le filtre est
sale, les installations de chauffage et de climatisation
perdent de leur efficacité en raison du débit d’air
réduit.
AVEZ-VOUS LE BON BOÎTIER
D’ÉPURATEUR ?
Les modèles ACB et ACM1000 sont conçu pour les ventila-
teursdechauffageoudeclimatisationayantundébitd’airentre
283 et 566 L/s (600 et 1200 pi3/min).
Le modèle ACM1200TM est conçu pour les ventilateurs de
chauffage ou de climatisation dont le débit d’air se situe entre
472 et 755 L/s (1 000 et 1 600 pi
3/min).
Les modèles ACB et ACM1400 sont conçus pour les ventila-
teursdechauffageoudeclimatisationayantundébitd’airentre
472 et 755 L/s (1000 et 1600 pi3/min).
Les modèles ACB et ACM1600 sont conçu pour les ventila-
teursdechauffageoudeclimatisationayantundébitd’airentre
566 et 850 L/s (1200 et 1800 pi3/min).
Lesmodèles ACB,ACM2000etACM2000X sontconçuspour
lesventilateursdechauffageoude climatisation ayantun débit
d’air entre 755 et 1040 L/s (1600 et 2200 pi3/min).
Le modèle ACM2000U est conçu pour les ventilateurs de
chauffage ou de climatisation dont le débit d’air se situe entre
755 et 1040 L/s (1 600 et 2 200 pi3/min) et qui sont dotés
d’isolant sur la porte et d’un rail universel.
Avant d’installer l’épurateur, s’assurer que sa capacité répond
aux exigences des équipements de chauffage et de climatisa-
tion. Consulter la fiche technique, qui se trouve à la page 4.
▲
!ATTENTION
▲
!MISE EN GARDE
▲
!MISE EN GARDE
▲
!MISE EN GARDE
OUTILS DE BASE REQUIS
Cisailles de ferblantier
Tournevis
Règle ou ruban à mesurer
Perceuse
