Whitehall P-10-M User manual

6900-195-001_REV_B
Revised: 08-11-2020
User Manual
Mobile Models
Podiatry P-10-M, P-10-MH, P-10-MU, P-15-M, P-15-MH, P-15-MU, P-22-M
Extremity E-15-M, E-15-MH, E-15-MU, E-22-M, E-22-MU, E-27-M, E-45-M
Hi-Boy H-60-M, H-75-M, H-90-M, H-105-M
Lo-Boy L-75-M, L-90-M, L-105-M
Sports S-85-M, S-90-M, S-110-M
Slant Back SB-100-M
P.O. Box 3527  City of Industry, CA 91744-0527 U.S.A.
800-782-7706
 626-968-6681  www.whitehallmfg.com
H-105-M
P-10-M-SDP

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
2
The information in this manual is proprietary and confidential to Whitehall Manufacturing, a
division of Acorn Engineering and a member of Morris Group International. Any
reproduction, dissemination or distribution of this document in whole or in part without prior
written authorization of Whitehall Manufacturing is strictly prohibited. While every effort has
been made to ensure the accuracy of information provided in this document, please note
the information is subject to change without notice.

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
3
Contents
Symbols................................................................................................................................................ 4
Warnings .............................................................................................................................................. 5
Intended Use ........................................................................................................................................ 7
Contraindications ................................................................................................................................. 7
User Skills ............................................................................................................................................ 7
Device Description ............................................................................................................................... 8
Options and Accessories ...................................................................................................................... 9
Facility Requirements ........................................................................................................................ 11
Instructions ......................................................................................................................................... 12
Assembly Instructions .................................................................................................................... 12
Operating Instructions .................................................................................................................... 12
Draining Instructions ..................................................................................................................... 13
Moving your Whirlpool ................................................................................................................. 13
Thermometer Calibration Instructions ........................................................................................... 14
Disinfecting and Cleaning Instructions .......................................................................................... 15
Turbine Maintenance ......................................................................................................................... 16
Troubleshooting ................................................................................................................................. 16
Classification...................................................................................................................................... 18
Specifications ..................................................................................................................................... 18

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
4
WARNING
READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE OPERATING THE WHIRLPOOL
Failure to follow the instructions in this manual could result in Whirlpool damage and/or bodily injury
Symbols
Waste Electrical and Electronic Equipment (WEEE)
Indicates that the product must not be disposed of with regular waste. It is the customer’s responsibility to
dispose of waste equipment according to local laws. For information about where to drop off the waste
equipment for recycling, contact your local waste collection authority.
General Warning or Caution
Indicates personal injury or damage to the equipment is possible
Electric Shock
Indicates a hazard arising from dangerous voltage. Any mishandling could result in irreparable damage to
the equipment and/or personal injury or death.
Refer To Manual (Instructions for Use)
Indicates that user manual shall be referred to before performing any installation, operation or maintenance
Alternating Current
Indicates alternating current is present
Manufacturer
Indicates manufacturer of device
Manufacture Date
Indicates manufacture date of device
Authorized representative in the European Community
Indicates the authorized representative in the European Community

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
5
Warnings
Treatments:
 Whirlpools are intended for use by a medical professional only, e.g., Physiotherapist,
Physical Therapist, Rehabilitation Therapist, Athletic Trainer, Podiatrist.
 During treatment, the medical professional must stay with patient at all times.
 For Whirlpools that support that the entire mass of the patient, the maximum allowable
patient mass is 135 kg (298 lbs).
 Ensure water in tub is no greater than 43.3ºC (110ºF). Higher temperatures may result
in injury to patient.
 Treatment should terminate if the patient experiences dizziness, light-headedness,
shortness of breath, or nausea.
 To avoid patient cross-infection, drain and clean hydrotherapy equipment after each
patient’s use, and disinfect equipment surfaces and components by using an EPA-
registered product in accordance with the manufacturer’s instructions.
Operation:
 Use of this equipment adjacent to or stacked with other equipment should be avoided
because it could result in improper operation. If such use is necessary, this equipment
and the other equipment should be observed to verify that they are operating normally.
 Use of accessories and cables other than those specified or provided by the
manufacturer of this equipment could result in increased electromagnetic emissions or
decreased electromagnetic immunity of this equipment and result in improper
operation.
 Use only Whitehall-approved items on the Whirlpool.
 Portable RF communications equipment (including peripherals such as antenna cables
and external antennas) should be used no closer than 30 cm (12 inches) to any part of
the Whirlpool, including cables specified by the manufacturer. Otherwise, degradation
of the performance of this equipment could result.
 If there is visible damage to the Whirlpool or packaging upon receipt, report this
damage to shipping company and Whitehall. Do not use the Whirlpool if damage to it
is suspected.
 Operate with the bottom of the turbine submerged in at least 15.2 cm (6 inches) of
water.
 Keep hair and loose items (gown straps, gauze, etc.) out of the tub. These items can
be pulled into the pump and cause injury or damage to the turbine.
 Use the Whirlpool only for the purpose described in this manual.
 Position the Whirlpool so that the power cord is easily accessible.

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
6
 To avoid damage to the thermometer, do not drop the thermometer or expose it to
temperatures above 60°C (140°F).
 No parts shall be serviced or maintained while in use with a patient.
 The turbine is top-heavy. Follow transport instructions in this manual.
 To avoid the risk of electric shock, this equipment must only be connected to a supply
mains with protective earth.
 Connect the power cord to a Ground Fault Circuit Interrupter (GFCI) medical grade
receptacle.
 No parts of the Whirlpool, including the power supply cord, are repairable or
replaceable by service personnel.
 No modification of the Whirlpool is allowed.
 To protect stainless steel surfaces, use soft water (i.e., water with low concentrations of
ions and in particular low in ions of calcium and magnesium) in the tub.
 For models with a separate drain pump (-SDP, see Figure 2):
o Only plug the turbine into the receptacle on the Whirlpool. Do not connect a
multiple-socket outlet, extension cord, or any other electrical equipment to the
receptacle.
o Do not operate the turbine and drain pump simultaneously. This will cause
increased current load and may result in the turbine running dry, causing damage to
the turbine.

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
7
Intended Use
Whitehall Whirlpools are intended to facilitate hydrotherapy. Tub size, water temperature,
and water circulation requirements are determined by the medical professional treating the
patient.
Whirlpools are intended for use in professional healthcare and supervised athletic training
facilities only.
Muscle or joint pain are the typical indications for hydrotherapy, and Whirlpools can be
used for any part of the body below the neck. Suitability of treatment is determined by the
medical professional treating the patient.
Contraindications
Patient Groups in which hydrotherapy is contraindicated:
ꞏ Active infection anywhere in the body
ꞏ Open wounds
ꞏ Loss of temperature sensation
ꞏ Hydrophobia
ꞏ Heat or cold intolerance
ꞏ Poor balance
ꞏ Kidney failure
Safety & Effectiveness has not been established in patients:
ꞏ With Cancer: Caution is advised when treating patients with cancer. It is best to
work with the consent of a physician.
ꞏ Who Hemorrhage: Caution is advised when treating a patient who has a tendency
to hemorrhage. Applications of heat and cold which cause vasodilation, which
increases the possibility of hemorrhage.
ꞏ Who are Pregnant: Caution is advised when treating someone who is pregnant.
Consult the patient’s healthcare provider with any questions or concerns you may
have.
User Skills
The medical professional using the Whirlpool must have the following skills:
 The ability to assist the patient
 Knowledge of hydrotherapy protocols
 To have read and understood this manual

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
8
 To have become familiar with the Whirlpool before using it with a patient
Device Description
The Whirlpool consists of a welded stainless steel tub for holding water and a turbine
assembly mounted to the side of the tub. The turbine assembly is a motor-operated
centrifugal pump that circulates the water. The pump position can be adjusted up or down
and rotated to change the position of the water outlet, then locked with a handle.
Depending on the model and options, water can be drained either by diverting the water
from the pump to a drain hose mounted at the top of the turbine, by an optional drain
pump located below the tub, or by opening up the drain valve at the bottom of the tub.
Four casters, all of which are lockable to prevent tub movement, are mounted to the
bottom of the tub to assist in moving an empty tub between treatments. The interior of the
tub and tub rim are considered Type B Applied Parts, since they are likely to be touched
by the patient.
Water temperature may be adjusted by the operator depending on the desired treatment.
A thermometer mounted to the side of the tube is included with the Whirlpool. The
Whirlpool does not control water temperature.
For smaller Whirlpools, the patient sits comfortably next to the tub and places their
extremity (hand, foot, arm or leg) in the tub. For larger Whirlpools, the patient can enter
the tub and sit inside.

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
9
Options and Accessories
The following options are incorporated into the Whirlpool device and are not detachable.
# Description Used on Models
SDP Separate Drain Pump All except Slant Back
GFI In-line Ground Fault Circuit
Interruption Cable
All
EGXX, where XX
indicates the color of
the powder coat
Powder Coat Paint All except Slant Back
LOGO Logo selected by customer All except Slant Back
The following accessories are available:

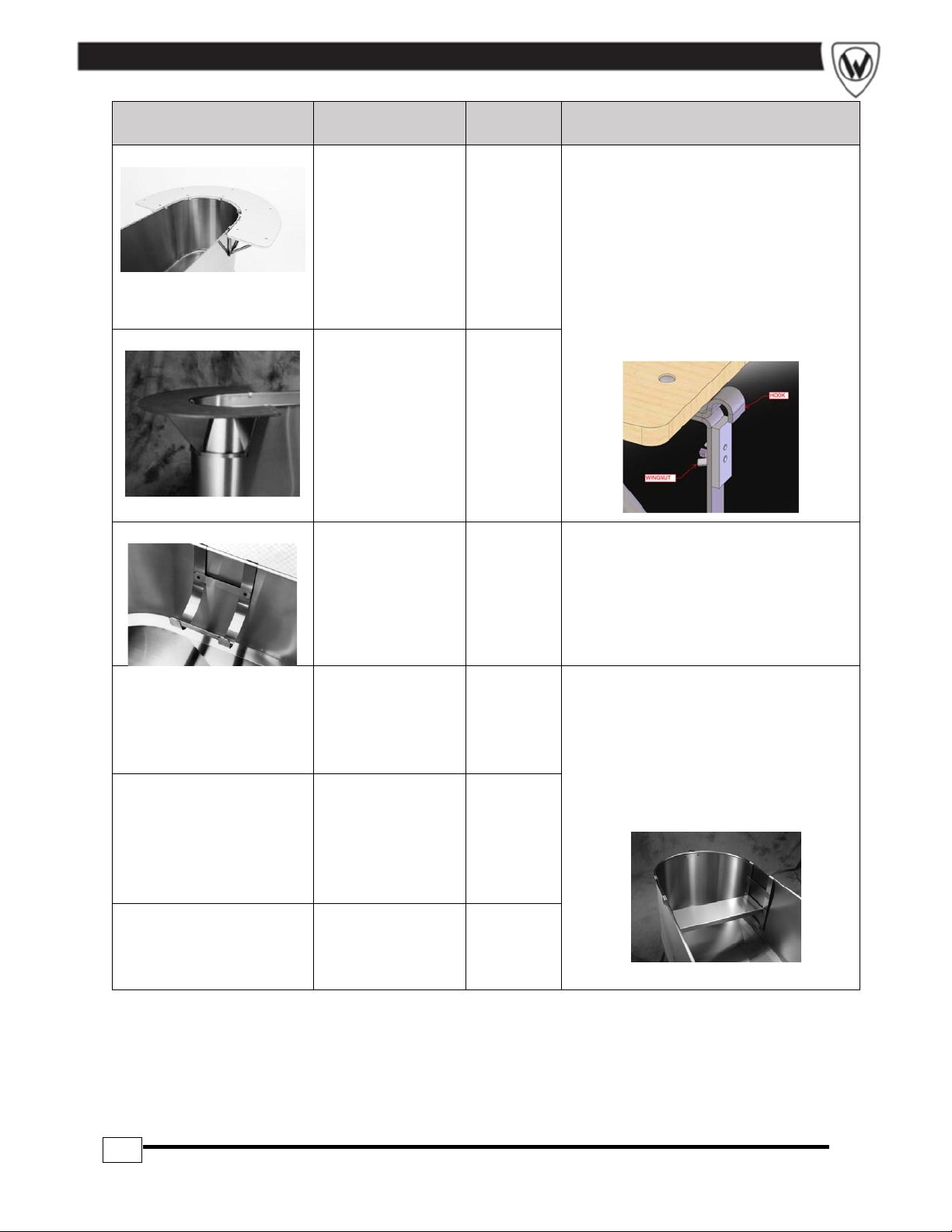

# Description Used on
Models
Instructions
HL-10-M Hydrolift for
37.8 L (10 US
gallons)
Whirlpool
P-10-M Refer to
instructions
provided with
Hydrolift
HL-15-M Hydrolift for
56.8 (15 US
gallons)
Whirlpool
P-15-M
HL-22-M Hydrolift for
83.3 L (22 US
gallons)
Whirlpool
P-22-M
RS Reclining Seat L-75-M
L-90-M
L-105-M
Hang seat on back edge of tub as
shown. Bottom of seat rests on
bottom of tub. For maintenance,
see the Disinfecting and Cleaning
Instructions section.

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
10
# Description Used on
Models
Instructions
TTS1 Tank Top Seat
for 508 mm (20
inch) wide tubs
H-60-M
H-75-M
H-90-M
S-85-M
1. Loosen wing nuts on the lower
mounting clip assemblies
2. Position tank top seat assembly
over radius of tank and align hooks
with tank rim
3. Push up on the lower mounting clip
assemblies and tighten wing nuts
to clamp seat to the Whirlpool rim
4. For maintenance, see the
Disinfecting and Cleaning
Instructions section.
TTS2 Tank Top Seat
for 610 mm (24
inch) wide tubs
H-105-M
S-90-M
S-110-M
L-75-M
L-90-M
L-105-M
ARS Arm Rest
Support
All Hang support on edge of tank as
shown. For maintenance, see the
Disinfecting and Cleaning
Instructions section.
AS1 Adjustable
Suspension
Seat for 508
mm (20 inch)
wide tubs
H-60-M
H-75-M
H-90-M
S-85-M
Hang seat supports on sides of
tub. Hang seat on seat supports.
Adjust height of seat as desired.
For maintenance, see the
Disinfecting and Cleaning
Instructions section.
AS2 Adjustable
Suspension
Seat for 610
mm (24 inch)
wide tubs,
except Lo-Bo
y
H-105-M
S-90-M
S-110-M
AS3 Adjustable
Suspension
Seat for Lo-Boy
tubs
L-75-M
L-90-M
L-105-M

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
11
Facility Requirements
The following are needed prior to using your Whirlpool:
 Clean water source for filling tub
 A sink or floor drain
 Medical-grade GFCI receptacle, installed by licensed electrician
 Environmental conditions within those specified in the Specification section of this
manual
NOTE: The emissions characteristics of this equipment make it suitable for use in
industrial areas and hospitals (CISPR 11 class A). If it is used in a residential environment
(for which CISPR 11 class B is normally required) this equipment might not offer adequate
protection to radio-frequency communication services. The user might need to take
mitigation measures, such as relocating or re-orienting the equipment.

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
12
Instructions
Assembly Instructions
IMPORTANT:
1. The turbine assembly can weigh as much as 22 kg (48 lbs).
It is recommended that 2 people mount the turbine assembly
onto the tub.
2. Do not rest the turbine on the impeller housing (12). This
can damage the turbine.
To install thermometer, insert sensing rod (7) through upper
bracket (8) and into lower bracket (9), then tighten screw (10).
To install turbine (1) onto tub,
1. Lock tub wheels.
2. Loosen handle (4) then lower turbine support rod (3) into
turbine support tube (2) of tub. Tighten handle (4) when
turbine is at desired height.
3. Place discharge nozzle (5) into storage socket (6). For –
SDP only (Figure 2): water will flow through hose if
discharge nozzle (5) is lower than water level.
4. Turn the pressure control valve handle (11) fully
clockwise, then fully counterclockwise to completely
lubricate the plunger assembly.
5. For Whirlpools with –SDP (Figure 2): Insert electrical
cord twist-lock plug (15) into socket (16) and turn
clockwise a quarter turn to lock in place.
6. Turn the turbine power switch (13) off.
7. Plug Whirlpool power cord into medical-grade GFCI
outlet.
Operating Instructions
Refer to warnings on page 5 before operating the Whirlpool.
1. If required, move tub to ensure there is enough room to
access the drain (15) or a sink (depending on the
model), since tub cannot be moved with water in the
tub. See instructions for moving your Whirlpool below.
2. Lock tub wheels and ensure Whirlpool power cord is
plugged into medical-grade GFCI outlet.
3. Fill tub with water so that the bottom of turbine is at least 15.2 cm (6 inches) below
surface of water.
F
igure 1: Whirlpool without -SDP option
F
igure 2: Whirlpool with -SDP option

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
13
4. Turn the pressure control valve handle (11) fully clockwise. This will generate
maximum water circulation.
5. Turn the turbine power switch (13) on.
6. Adjust position of turbine by slowly pushing down on and rotating the top of the motor
support casting (14) until the bottom of the turbine (12) is at the desired location.
Tighten handle (4) to lock in place.
7. Adjust pressure control valve handle (11) to change level of water circulation.
8. Turn the turbine power switch (13) off to stop water circulation.
9. To electrically isolate the Whirlpool from supply mains, simply unplug the Whirlpool at
the wall outlet.
Draining Instructions
Turn the turbine power switch (13) off to stop water circulation.
Whirlpools without separate drain pump (Figure 1):
1. If using a floor drain, connect hose to drain valve (15) and open the drain valve.
2. If using a sink:
a. Rotate pressure control valve (11) counterclockwise.
b. Lower the pump (12) to the bottom of the tub.
c. Place discharge nozzle (5) into the sink.
d. Turn the turbine power switch (13) on.
e. When water stops discharging from the nozzle, turn off the switch.
f. Drain remaining water using drain valve (15) or by using a dry sponge.
Whirlpools with separate drain pump (Figure 2)
1. Place discharge nozzle (5) into floor drain or sink.
2. Turn the drain pump switch (18) on. When water stops discharging from the nozzle,
turn the drain pump switch off.
3. Some residual water will remain in the drain pump. To remove this water, lower the
discharge nozzle (5) to the floor and clean with a towel or sponge.
4. Any residual water in the tub may be removed by sponge drying.
5. Place discharge nozzle (5) into socket (6). Note: water will flow through hose if
discharge nozzle (5) is lower than water level.
Moving your Whirlpool
Drain all water from the tub, lower the turbine assembly to its lowest position and lock the
turbine assembly. Ensure that wheels are unlocked. Carefully push the Whirlpool to its
desired location. Before filling the tub with water in preparation for treatment, ensure the
tub is close enough to a floor drain or sink to allow for draining and make sure drain valve
is closed. Lock wheels. Do not move the Whirlpool with water in the tub.

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
14
Thermometer Calibration Instructions
1. Fill the tub so that the bottom of the thermometer tip is
immersed in at least 10.2 cm (4 inches) of water.
2. Place the stem tip of a calibrated thermometer next to the tip of
the Whirlpool thermometer.
3. Turn on the turbine assembly.
4. If the reading on the Whirlpool thermometer is not the same as
that of the calibrated thermometer, turn the external adjustment
screw (a) so that the Whirlpool thermometer reading is identical
to the calibrated thermometer.
5. Re-calibration shall be performed at least every 12 months or
as needed.

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
15
Disinfecting and Cleaning Instructions
Important:
1. Do not use abrasive compounds or applicators such as metal brushes – they can
damage the whirlpool's appearance. Do not allow steel wool to come in contact with
stainless steel. Steel particles can embed into the stainless steel surface and create
rust.
2. Avoid cleaning or disinfecting products that contain strong acids or contain chlorine,
fluorine, bromine, or iodine, as these products can damage the protective chromium
oxide layer, resulting in corrosion and leaks. If such products are used on stainless
steel, keep the exposure brief (less than 15 minutes) and thoroughly rinse stainless
steel surfaces of all residue.
Recommended cleaning materials:
a. Sponge (natural or artificial)
b. Soft-bristle brush
c. Soft cloth (e.g. microfiber cloth)
The tub, thermometer, and turbine shall be disinfected and cleaned after each patient.
Disinfecting and Cleaning the Tub and Thermometer
1. Drain the tub following the draining instructions above.
2. Verify that the turbine is off.
3. Remove any loose objects or debris that may be present in the Whirlpool tub.
To disinfect, use a stainless steel hard surface disinfectant per the manufacturer’s
instructions with one of the recommended cleaning materials above.
To clean, use a mild soap solution with one of the recommended cleaning materials
above.
Rinse thoroughly prior to use.
Disinfecting and Cleaning the Turbine
1. Drain the tub following the draining instructions above.
2. For tubs greater than 75.7 L (20 US gallons), raise turbine, place a large clean bucket
in the tub and lower the bottom of the turbine into the empty bucket.
3. Fill the bucket or tub with water so the bottom of the turbine is at least 15.2 cm (6
inches) below the surface of the water.
4. Add a disinfectant solution to the water per manufacturer’s instructions.
5. Ensure the pressure control valve is in the open position.
6. Turn on the turbine for 5 seconds and turn it off. Wait 10 minutes.

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
16
7. Spray or wipe all exposed surfaces with a mixture of suitable disinfectant solution per
manufacturer’s instructions. Exposed surfaces shall remain wet for at least 10 minutes.
8. Drain the turbine bucket into the tub and open drain.
9. Rinse all exposed surfaces with warm or hot water.
10. Fill the bucket with clean water and run turbine for five seconds to rinse impeller cavity.
Turbine Maintenance
Motors are equipped with sealed greased ball bearings that do not require lubrication so
are maintenance-free. Clean vent holes in the motor cover shell periodically to allow free
air flow and prevent overheating.
Troubleshooting
Symptom Possible Cause Remedy
Loss in
pressure
Foreign material caught
in pump inlet holes
1. Turn off and unplug turbine assembly
2. Remove foreign materials from bottom of
pump
Turbine pump is not
submerged fully in
water
Ensure that water level is at least 6” above
bottom of turbine assembly
Water does
not circulate
No power to turbine Check the power source
Reset the GFCI(s) if tripped
Replace the fuses (see instructions below)
Contact Whitehall
Shaft has seized Contact Whitehall
Turbine
stops
operation
Motor is overloaded Check for blocked motor ventilation holes
Check for excessive current load
NOTE: The motor is equipped with a thermal
overload protector. In an overheated condition,
the motor will automatically shut off until it has
returned to a normal operating temperature,
then resume operation.
Fuse Replacement Procedure:
1. Turn off and unplug the turbine
2. Push down and turn each of the round black fuse covers counter-clockwise on top
of the turbine and set aside
3. Remove the fuses and discard

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
17
4. Replace the fuses with 6525-608-000 for the 125V~ turbine and 6525-612-000 for
the 230V~ turbine (or equivalent)
5. Replace the fuse covers by pushing down and turning clockwise
6. Plug in the turbine

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
18
Classification
Electric Shock Protection Class I
Applied Parts None
Ingress Protection IP24
Mode of Operation Continuous
Specifications
Mechanical
Mass, kg (lbs)
The –SDP option
adds approximately
4.5 kg (10.0 lbs) to
the mass of the
Whirlpool
P-10-M P-10-MH P-10-MU P-15-M P-15-MH P-15-MU P-22-M
15
(33)
16
(35)
18
(39)
18
(40)
19
(42)
22
(47)
19
(41)
HYL-10-M HYL-15-M HYL-22-M S-85-M S-90-M S-110-M SB-100-M
38
(83)
41
(90)
46
(101)
44
(98)
44
(96)
50
(110)
79
(175)
E-15-M E-15-MH E-15-MU E-22-M E-22-MU E-27-M E-45-M
18
(38)
19
(41)
21
(46)
21
(47)
23
(51)
26
(57)
27
(63)
H-60-M H-75-M H-90-M L-75-M L-90-M L-105-M
36
(80)
41
(90)
44
(98)
43
(95)
44
(98)
49
(108)
Water capacity
Liters (US Gallons)
P-10 P-15 P-22 S-85 S-90 S-110 SB-100
54.1
(14.3)
78.7
(20.8)
120.8
(31.9)
379
(100.1)
419.4
(110.8)
518.2
(136.9)
515.6
(136.2)
E-15 E-22 E-27 E-45 H-60 H-75 H-90
78.7
(20.8)
119.6
(31.6)
140.4
(37.1)
190.0
(50.2)
312.7
(82.6)
367.6
(97.1)
425.5
(112.4)
L-75 L-90 L-105
344.9
(91.1)
398.6
(105.3)
445.9
(117.8)
Water flow rate 0-56.8 L/min (0-15 US gallons/min)
Electrical
Input voltage 115/230 V~
230 V~ models are for export only
Line Frequency 50/60 Hz
Rated Current 6.9/3.5 A
Electromagnetic
Compatibility
All Whirlpool models comply with the latest international electromagnetic
compatibility standard (IEC 60601-1-2), as shown below:
Description Standard Specifications
RadiatedEmissions CISPR11 30MHz–1GHz,ClassA
ConductedEmissions,ACMains CISPR11 150kHz–30MHz,ClassA
HarmonicEmissions IEC61000‐3‐2 10min,ClassD(nolimitsfor<75W)
Flicker IEC61000‐3‐3 120min(nolimitsfor<75W)
Electro‐StaticDischarge(ESD) IEC61000‐4‐2 Contact:±2kV,±4kV,±8kV;Air:±2kV,±4kV,±8kV±15kV
RadiatedRFEMfields IEC61000‐4‐3 3V/m,80%AMat1kHz,80MHz–2.7GHz
ElectricalFastTransient(EFT) IEC61000‐4‐4 PowerSupplyLines,±2kV,100kHzPRF
Surge IEC61000‐4‐5 Linetoline±0.5kV,±1kV
RFConductedImmunity IEC61000‐4‐6

PowerSupplyLines:3Vrms,0.15‐80MHz;ISMBands
Input/OutputLines:3Vrms,0.15‐80MHz;6Vrms,ISMbands,80%AMat1kHz
MagneticField IEC61000‐4‐8 30A
rms
/m,50Hzor60Hz
ShortInterruption IEC61000‐4‐11 0%U
T
:250/300cycles,0°,90°,270°
Environmental Conditions
Operational 10 - 33C (50 - 90F)

WHITEHALL MANUFACTURING  P.O. BOX 3527  City of Industry, CA 91744-0527 U.S.A.
Phone [phone]  [phone]  Fax [phone]  www.whitehallmfg.com
19
Transportation and
Storage
0 - 60C (32 - 140F)
Relative humidity 5 - 95%, non-condensing
Atmospheric Pressure 70 – 106 kPa
Thermomete
r

Range Dual scale: 5-60C and 40-140F
Accuracy ± 1.1°C (2°F)

Mailing Address:
P.O. Box 3527 • City of Industry, CA 91744-0527 U.S.A
Physical Address:
15125 Proctor Avenue • City of Industry, CA 91746 U.S.A
Phone [phone] • 626-968-6681
Fax [phone]
Web: www.whitehallmfg.com
E-mail: [email protected]
ARAZY GROUP [IRELAND] LIMITED
1st Floor, 9 Exchange Place. I.F.S.C.,
Dublin 1, D0l X8h2, Ireland
ireland
@
araz
yg
roup.com
MANUFACTURER’S WARRANTY
Go to www.whitehallmfg.com to fill out eWarranty Registration, keyword search: WARRANTY.
Whitehall Manufacturing Company warrants that its products are free from defects in material or
workmanship under normal use and service for a period of one year from date of shipment. Whitehall's
liability under this warranty shall be discharged solely by replacement or repair of defective material,
provided Whitehall is notified in writing within one year from date of shipment, F.O.B. City of Industry,
California.
This warranty does not cover installation or labor charges, and does not apply to materials which
have been damaged by other causes such as mishandling or improper care or abnormal use. The
repair or replacement of the defective materials shall constitute the sole remedy of the Buyer and the sole
remedy of Whitehall under this warranty. Whitehall shall not be liable under any circumstances for incidental,
consequential or direct charges caused by defects in the materials, or any delay in the repair or replacement
thereof. This warranty is in lieu of all other warranties expressed or implied. Product maintenance
instructions are issued with each fixture, and disregard or noncompliance with these instructions will
constitute an abnormal use condition and void the warranty. Stainless steel must be properly maintained
after water has been introduced into the fixture, or Whitehall's limited warranty is void. If you have any
questions or require technical assistance, please call 800-743-8219.
NOTICE TO KEEP ORIGINAL PACKAGING - Regarding warranty claims: customer must retain original
packaging for one year upon receipt of product. If packaging is discarded, it is the customer's responsibility
to provide adequate packaging. Any shipping claims that are a direct result of customer-provided packaging
materials will be handled by the shipper.
