Whyte WT91-10 User manual

Series 9 Tap & Splitter
INSTRUCTION MANUAL
WT91-10 | WS92-05
www.whytetechnologies.com
In the interest of connuous improvement,
all specicaons of products within this brochure are
subject to change without noce.

CONTENTS
Safety
Precauons
Guarantee
General Descripon
Technical Descripon
Example Conguraon
Specicaons
3
3
3
4
5
6
7
2

3
SAFETY
The Mulswitches are intended for indoor use only.
Do not install the Mulswitch in damp, humid, hot or dusty areas.
Switch o and remove the power supply when making connecons to the
Mulswitch to avoid damaging the unit.
Always earth bond the Mulswitch using the Earth Bonding Lug and/or the
Earth Terminal Bars to a suitable earth bonding point using minimum 4mm²
diameter earth cable.
PRECAUTIONS
To ensure trouble free operaon:
Do not remove the cover of the Mulswitch or disassemble it as this will
invalidate the guarantee.
The female F connectors on this unit were designed for use with '100' type
coaxial cable with a centre core diameter of 1mm². When using larger CT125
or CT167 cables, you must ensure that suitable F connectors with reducing
pins are used otherwise damage to the unit will occur which will invalidate the
guarantee.
Do not over ghten the F connectors (nger ght only).
GUARANTEE
All Whyte products are guaranteed for a period of 4 years from the date of
purchase against defects. Within this guarantee period, Whyte Technologies
will repair or replace the faulty product. In the unlikely event, please return
any faulty products to your dealer.
The Guarantee will be deemed as void if the serial number on the product
is removed, damaged or illegible. The Guarantee excludes defects caused by
incorrect use, accidental damage, disassembly, water/re/lightning damage or
lack of venlaon.

GENERAL DESCRIPTION
WT91-10
Whyte Series 9 Taps are part of the range of 9 wire passive devices that
distribute IF and Terrestrial Signals.
The Trunk inputs are on the top of the unit. The Tap outputs are located on
the boom of unit as indicated on the device label. The Trunk output is on the
le hand side. The connector spacing directly interfaces with other Whyte
Series 9 products.
Each Whyte Series 9 Tap comes complete with 9 F-Type couplers to enable
quick interconnecon with Whyte Series 9 products. To achieve a compact
design, the SAT/TERR inputs and outputs are in a close zig-zag formaon.
WS92-05
The Whyte Series 9 Splier is a passive device designed to be used
with the Whyte Series 9 IRS Mulswitch Range. The WS92-05 Splier
comes with 9 F-type Couplers for quick & easy inseron in to a cascade
of Series 9 Mulswitches.
4

TECHNICAL DESCRIPTION
WT91-10
Whyte Series 9 Taps are DC passing on all IF Trunk Lines. The HL and HH
Tap Lines are DC passing while the VL, VH and Terrestrial Tap Lines are
isolated. An 18V DC input is provided to inject DC on the HL and HH Trunk
and Tap lines upwards and downwards.
A Green LED indicates the presence of power on the HL and HH trunk lines.
Whyte Series 9 Taps, Spliers and Mulswitches can be used to congure small
to large 9 wire Integrated Recepon Systems (IRS) to suit your applicaon.
WS92-05
The Whyte™ Series 9 Splier is DC passing through all SAT Inputs and Outputs.
Whilst the WS92-05 Splier does not require power to funcon (passive
device), it has an Auxiliary 18V Input, which enables a Whyte™ Power Supply
Unit to be connected thus serving as a convenient DC injector.
The Auxiliary Input injects 18V DC on to the HH and HL trunk lines upwards
and downwards.
A Green LED indicates the presence of power on the HL and HH Trunk Lines.
The Whyte™ Series 9 range is compact due to the zig-zag layout of the Input
and Output Terminals.
Therefore, an F Connector Tool (F Connector Screwdriver) should be used to
connect the input and output cables. Do not over ghten the F connectors
(nger ght only).
Each Series 9 Splier comes complete with 9 F Type Couplers to enable quick
and easy interconnecon to Series 9 Mulswitches and Ampliers.
5

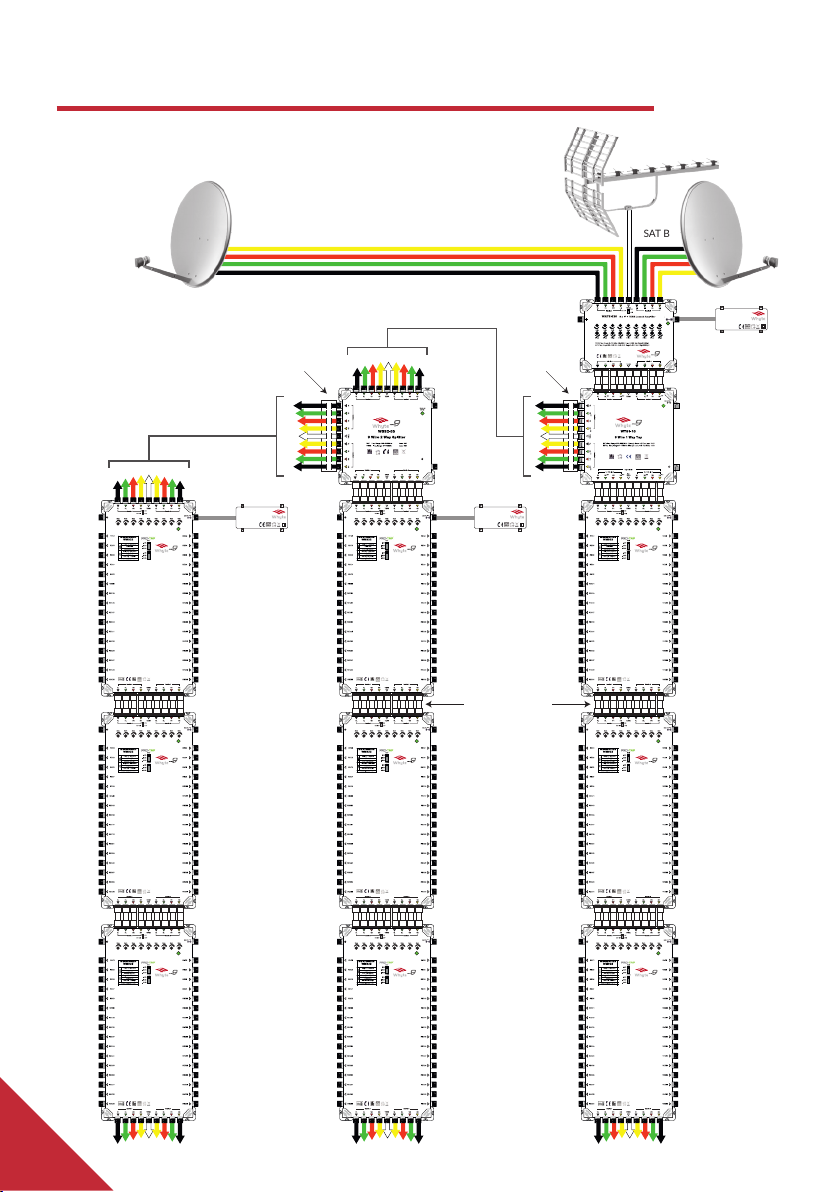

EXAMPLE CONFIGURATION
2.5A Power Supply Unit
ShortCircuit & Overload Prorection
Model:WPSU-2.5A
Input:11 0-240VAC50/60Hz
Output:18V 2.5A
WPSU-2.5A
2.5A Power Supply Unit
ShortCircuit & Overload Prorection
Model:WPSU-2.5A
Input:11 0-240VAC50/60Hz
Output:18V 2.5A
WPSU-2.5A
WS92-05
DC Block
WM932
WM932
WM932
WM932
WM932
WM932
2.5A Power Supply Unit
ShortCircuit & Overload Prorection
Model:WPSU-2.5A
Input:11 0-240VAC50/60Hz
Output:18V 2.5A
WPSU-2.5A
WT92-10
WATS-930
SAT ASAT B
WM932
WM932
WM932
Quick Fit Couplers
DC Block
6

950-2150MHz
87-790MHz
8 SAT + 1 TERR
2x 8 SAT + 2x TERR
SAT Trunk HL + HH
YES
NO
YES
NO
2dB±1dB
2dB±1dB
10dB
10dB
4dB
>30dB
2A
LED
175 x 175 x 43
514g
950-2150MHz
87-790MHz
8 SAT + 1 TERR
2x 8 SAT + 2x TERR
SAT Trunk HL + HH
YES
NO
~
~
~
~
4dB±1dB
4dB±1dB
4dB
>30db
2A
LED
175 x 175 x 43
600g
SAT
TERR
SAT
TERR
SAT
TERR
SAT
TERR
SAT
TERR
Frequency
Inputs (F-Type Connector)
Outputs (F-Type Connector)
DC Input (Injecon of DC applied to)
DC Pass Trunk to Tap
DC Pass Trunk to Trunk
Trunk Through Loss
Tap Loss
Fixed Slope Tap (SAT)
Isolaon
Max Current Pass
(Trunk/Trunk Trunk/Tap)
Power Indicaon
Dimensions W x L x H (mm)
Weight
MODEL WT91-10 WS92-05
4 Years Warranty
8 SAT + 1 TERR Inputs
2 x 8 SAT + 1 TERR Outputs
LTE Filter rejects 4G interference
18V Auxiliary Input injects power to the HL & HH trunk lines
Green LED indicates DC power present
Compact size
Colour coded inputs & outputs
 Comeswith9F-Typecouplersforeasyconneconto
all Series 9 products
TheWhyteSeries9SplierWS92-05isapassivedevicedesigned
tobeusedwiththeWhyteSeries9IRSMulswitchRange.
TheWT91-1010dbTapenablesfurtherexiblityforyoursystem
design.
The WS92-05 Splier and WT91-10 Tap comes with 9 F-type
Couplers for quick & easy inseron in to a cascade of Series 9
Mulswitches.
Series 9 Tap & Splier
WT91-10 | WS92-05
Whyte Technologies - Unit 1 Watermill Business Centre, Edison Road, Eneld, EN3 7XF | Tel: [phone] | www.whytetechnologies.com
7

Copyright © Whyte Technologies August 2021
Unit 1, Watermill Business Centre. Edison Road, Eneld. EN3 7XF
Tel: [phone] | [email protected] | www.whytetechnologies.com
