WI-PMS310GF-Alien QSG Page 1 of 16
Managed, Auto PoE Switch
WI-PMS310GF-Alien
8GE + 2 SFP
Layer 2 Managed Auto PoE Switch Quick Start Guide
V2108
WI-PMS310GF-Alien QSG Page 2 of 16
Table of Contents
1.
Introduction......................................................................................... 3
2.
Package Contents.............................................................................. 3
3.
System Requirements........................................................................ 3
4.
LEDs................................................................................................... 4
4.1
System LEDs............................................................................................ 4
4.2
RJ45 LEDs ............................................................................................... 4
4.3
SFP LEDs................................................................................................. 4
5.
Front Panel......................................................................................... 5
6.
Configuration ...................................................................................... 6
6.1
Accessing the Configuration Interface...................................................... 6
6.1.1.
Graphical User Interface .................................................................................. 6
6.1.2.
Command Line Interface.................................................................................. 7
6.2
Saving Current Configuration ................................................................... 8
6.3
DHCP IP Address..................................................................................... 9
6.4
Network Time Client Setup..................................................................... 10
6.5
AAA ........................................................................................................ 11
6.5.1.
TACACS+ ...................................................................................................... 11
6.5.2.
802.1x (EAP).................................................................................................. 13
6.6
SNMP and MIBs..................................................................................... 14
7.
Firmware Update.............................................................................. 16
7.1
Update using GUI................................................................................... 16
7.2
Update using TFTP ................................................................................ 16
WI-PMS310GF-Alien QSG Page 3 of 16
1. Introduction
The WI-PMS310GF-Alien is an Auto-PoE, Managed, Layer 2 (L2), POE (24
& 48V) IP Switch, with Gigabit Ethernet (GbE), Small Form-factor Pluggable
(SFP), and serial Console interfaces.
This document supplements the Wi-TeK Managed Industrial PoE
Switch User Manual, available for download from:
http://www.wireless-tek.com/Uploads/download/1583371174.pdf

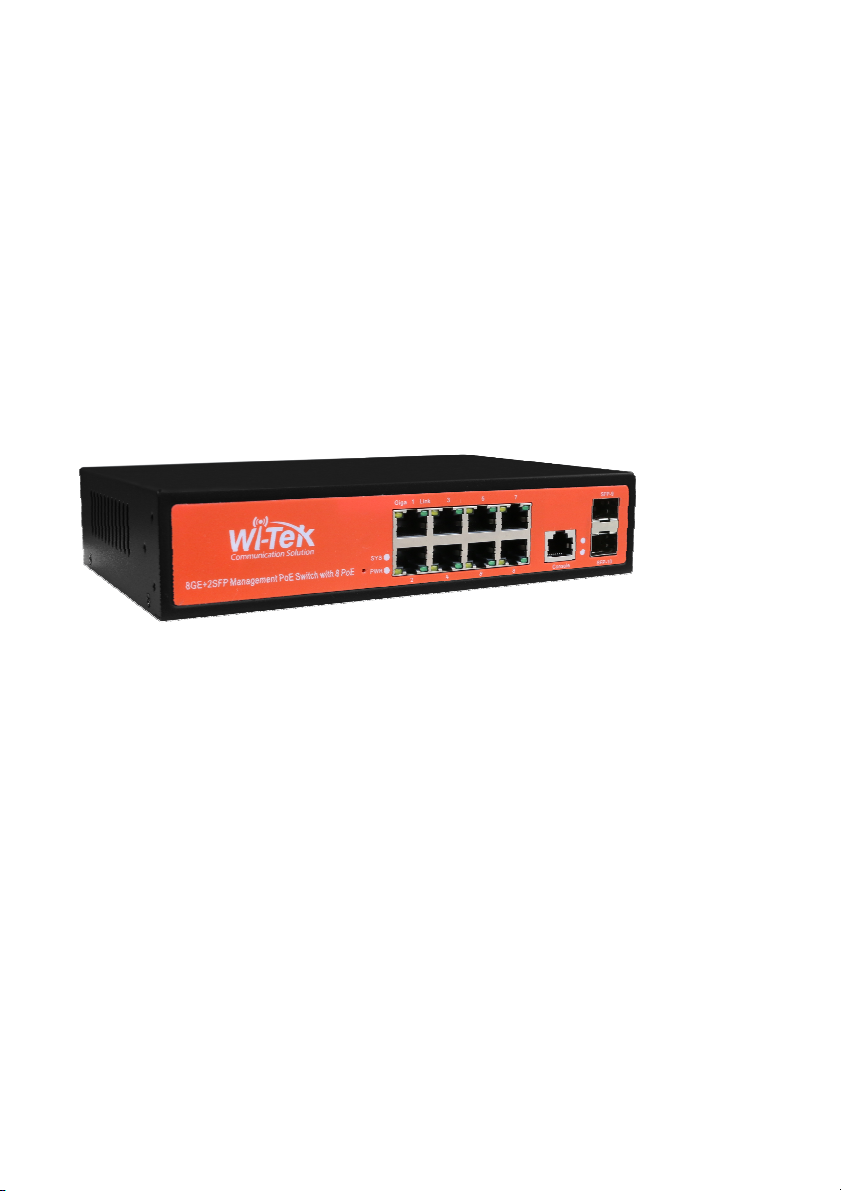

2. Package Contents
WI-PMS310GF-Alien
3. System Requirements
Web Browser: e.g. Mozilla Firefox, Google Chrome, Safari, Microsoft
Edge, or Microsoft Internet Explorer.
WI-PMS310GF-Alien QSG Page 4 of 16
4. LEDs
4.1 System LEDs
LED State Status
Blinking
(slow)
Normal OperationSYS
Flashing
(Fast)
Initializing (boot up)
PWR On Steady on if power applied
4.2 RJ45 LEDs
LED State Status
Off No Power applied
Green 48 V PoE applied
PoE
Orange 24 V PoE applied
Green 10/100/1000 Mbps connection.
Flashes with activity.
Link
Off No Ethernet connection
4.3 SFP LEDs
LED State Status
Off No link9
10 Green Link established at 1000 Mbps (1 Gbps)
Flashing Indicates Activity
WI-PMS310GF-Alien QSG Page 5 of 16
5. Front Panel
Port Description
Note Active PoE means that PoE voltage is applied only if a device is
connected.
RJ45 1-8 LAN: 10/100/1000 bps Ethernet connection
PoE Out. 2-Pair, Pins: 48V=1,2(+) 3,6 (-), 24V=4,5(+) 7,8 (-)
Software selectable:
•Off
•24 V Active
•48 V Active 802.3af 15 W max
•48 V Active 803.3at 30 W max
•Auto Active, Auto selection Off/24/48V PoE
•24V Forced On
•48V Forced On
SFP 9-10 Hot-swappable Small Form-factor Pluggable (SFP) ports
supporting 1 Gbps connections.
Console This port is compatible with Cisco part number 72-3383-01
(Console Cable). The serial settings are:
Baud rate: 38400
Data bits: 8
Stop bits: 1
Parity: None
Flow control: None
RESET Button to the left of the PWR LED.
To reset the Switch to factory defaults:
The Switch should be running after bootup is complete and the
SYS LED is blinking. Press and hold the Reset button until the
SYS LED starts flashing rapidly. Release the Reset button.
WI-PMS310GF-Alien QSG Page 6 of 16
6. Configuration
This section covers some tasks that are not fully covered in the User Manual
(see section Introduction, page 3).
6.1 Accessing the Configuration Interface
There are two configuration options:
1. Graphical User Interface (GUI), using an Ethernet connection.
2. Command Line Interface (CLI), using a console cable.
6.1.1. Graphical User Interface
For full details, download this document:
http://www.wireless-tek.com/Uploads/download/1583371174.pdf
When in Factory Reset state, the Switch is set to use the default IP address
of 192.168.0.1.
1. Make sure that your host system is connected via Ethernet
to the Switch.
2. Configure the Ethernet adapter on your host system with a
static IP address in the 192.168.0.x subnet.
e.g. 192.168.0.10
3. Launch your web browser and type http://192.168.0.1
in the address field. Press enter (PC) or return (Mac).
WI-PMS310GF-Alien QSG Page 7 of 16
4. Enter the login credentials.
The default credentials are:
Username: admin
Password: admin
6.1.2. Command Line Interface
For full details, download these documents:
•https://ubwh.com.au/documents/WI-TEK_CLI.pdf
•https://ubwh.com.au/documents/WI-TEK_CLI_POE.pdf
(additional CLI commands for POE switches)
See an example session below, with many lines deleted for clarity.
Username:admin
Password:admin
Switch>?
Exec commands:
show Show running system information
Switch>show ?
ip Internet Protocol (IP)
Switch>show ip ?
interface IP interface status and configuration
Switch>show ip interface brief
Interface IP-Address Status Protocol
ge1/1 unassigned up down
WI-PMS310GF-Alien QSG Page 8 of 16

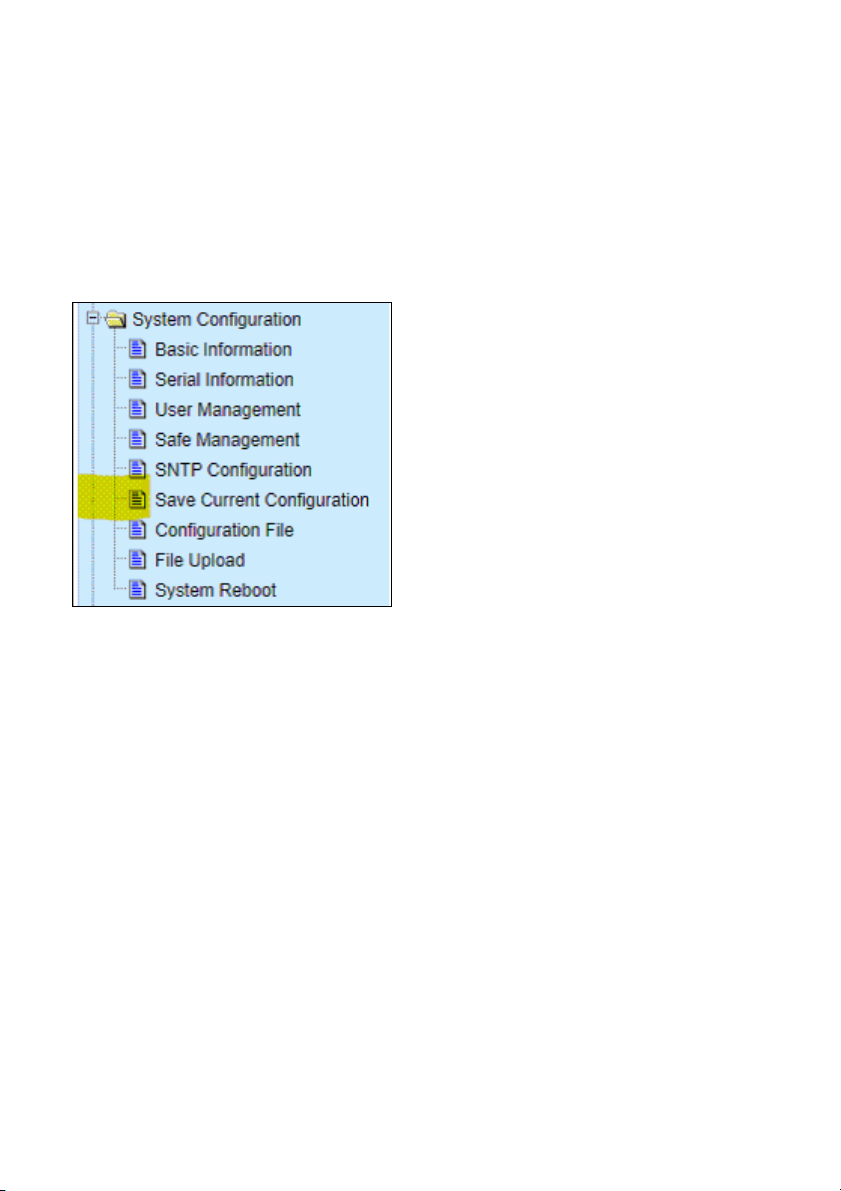

6.2 Saving Current Configuration
Configuration changes are not permanent, unless saved.
To preserve a configuration change to be used on the next boot-up, save the
current configuration using the System Configuration / Save Current
Configuration menu option.
WI-PMS310GF-Alien QSG Page 9 of 16
6.3 DHCP IP Address
These instructions are to configure the device to obtain its network
configuration (IP address, subnet mask, gateway address) from a DHCP
server on the same LAN.
After this has been done, consult the DHCP server’s list of leases to learn the
IP address of the device.
1. Select the IP Basic Configuration / IP Address Configuration
menu selection.
2. Set Line Item to 1
Set DHCP Client to Enable
Click Set IP Address/DHCP Client
3. The Switch will now query the LAN DHCP server and move to a new
IP address. Consult the DHCP server’s list of leases to learn the new
IP address of the Switch.
WI-PMS310GF-Alien QSG Page 10 of 16
6.4 Network Time Client Setup
By default the Simple Network Time Protocol (SNTP) client is disabled. To
enable:
1. Select the System Configuration / SNMP Configuration menu
selection.
2. Set Enable Status to Enable,
Set the Time Zone
Enter one or more of the Server IP addresses shown below.
Click Apply
WI-PMS310GF-Alien QSG Page 11 of 16
3. Select the System Configuration / Basic Information menu option
You should see the correct time.
If the time is incorrect, that indicates the Switch is unable to connect to
the Internet. Start by checking the IP Basic Configuration settings to
check the IP address, subnet mask, and default gateway are set
correctly.
6.5 AAA
Authentication, Authorization and Accounting (AAA) features in the switch
can be used as follows:
•
TACACS+: External authentication for switch management
logins.
•
802.1x: External authentication for user network access.
6.5.1. TACACS+
The default behaviour is that switch management interface logins are
authenticated against the internal switch database, as configured in System
Configuration / User Management.
Alternatively, these logins can be authenticated against an external
TACACS+ server.
WARNING:
When you enable & apply TACACS+ authentication,
management login to the switch will ONLY use
TACACS+. Only save the configuration after confirming
you can still login.
WI-PMS310GF-Alien QSG Page 12 of 16
1. Setup a TACACS+ server accessible by the switch. Shown below is
a simple TACACS+ configuration file that will authenticate switch
management logins with Username/Password credentials of
admin/admin.
# See man(5) tac_plus.conf for more details
# Define where to log accounting data, this is the default.
accounting file = /var/log/tac_plus.acct
# This is the key that clients have to use to access Tacacs+
key = testing123
# We also can define local users and specify a file where data
is stored.
# That file may be filled using tac_pwd
group = admins {
cmd = enable { permit .* }
cmd = show { permit .* }
cmd = ping { permit .* }
}
user = admin {
member = admins
pap = des tColoimj9QXZc
chap = cleartext admin
enable = des tColoimj9QXZc
}

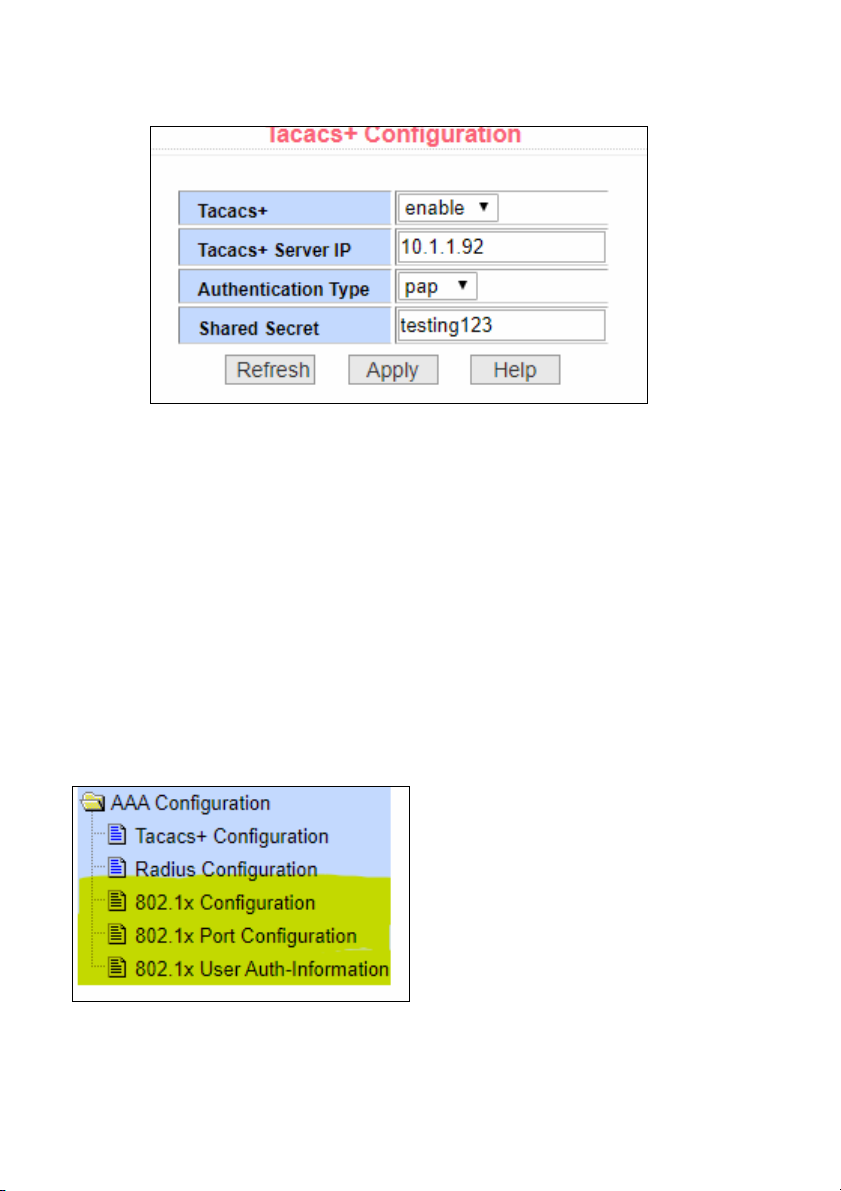

2. Select the AAA Configuration / Tacacs+ Configuration menu
option and setup similar to as below and click Apply.
WI-PMS310GF-Alien QSG Page 13 of 16
3. In a new browser window, go to the URL of your switch and confirm
you can still login.
If OK: Then select the System Configuration / Save Current
Configuration menu option and click Save.
Otherwise: Resolve the TACACS+ problem.
6.5.2. 802.1x (EAP)
The default switch behaviour can be changed such that devices (e.g. PCs)
plugged into specified ports have no network connectivity until authorized.
WI-PMS310GF-Alien QSG Page 14 of 16
6.6 SNMP and MIBs
The Switch supports the Simple Network Management Protocol (SNMP). The
Management Information Base (MIB) definition files are available from:
https://ubwh.com.au/documents/WiTek-MIBs.zip
In addition, the Switch can send alerts to a TRAP server.
Shown below are some example screen captures from a Windows program
called PowerSNMP Free Manager available from
https://www.dart.com/pages/powersnmp-free-manager
Figure 1 - Basic SNMP queries
WI-PMS310GF-Alien QSG Page 15 of 16

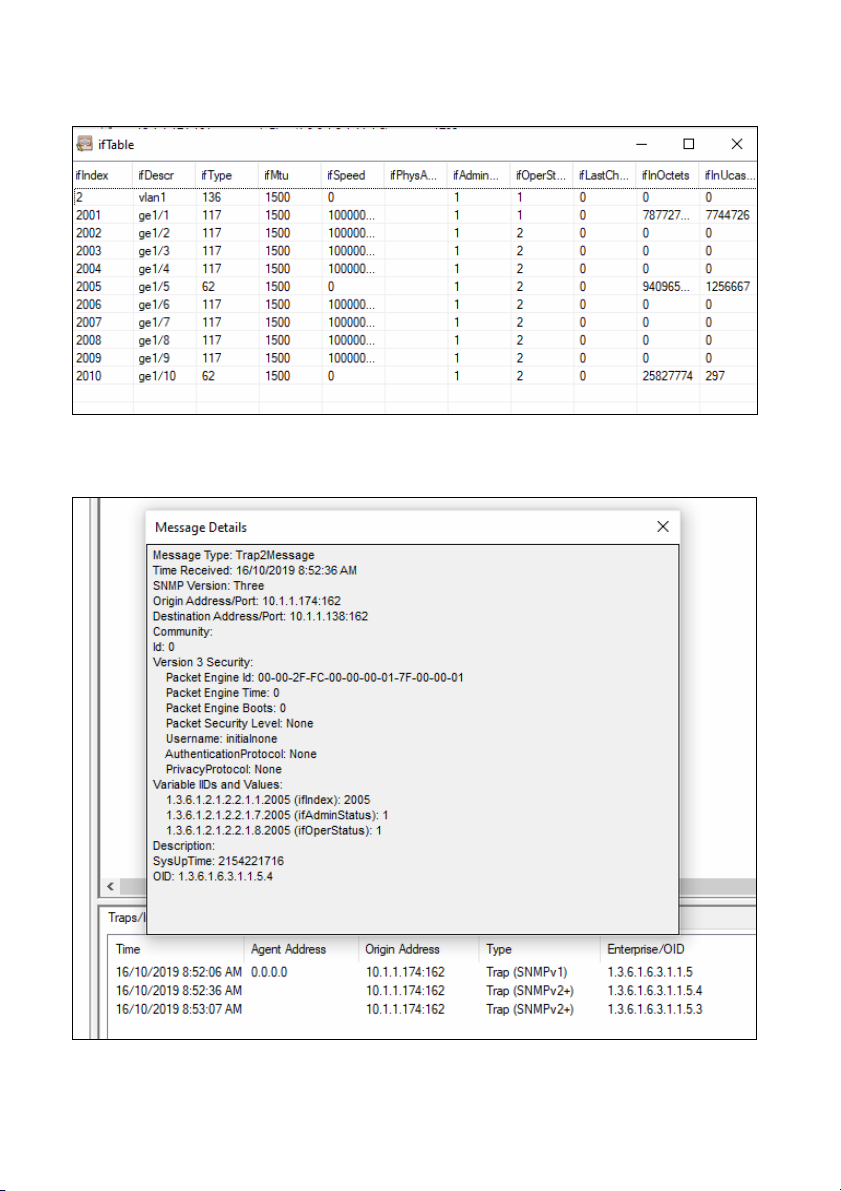

Figure 2 Interface Table Query
Figure 3 Example Received TRAP messages
WI-PMS310GF-Alien QSG Page 16 of 16
7. Firmware Update
Firmware updates are available from:
http://www.wireless-tek.com/Support/download
If there is no firmware there for your product, that means there have been no
firmware updates.
7.1 Update using GUI

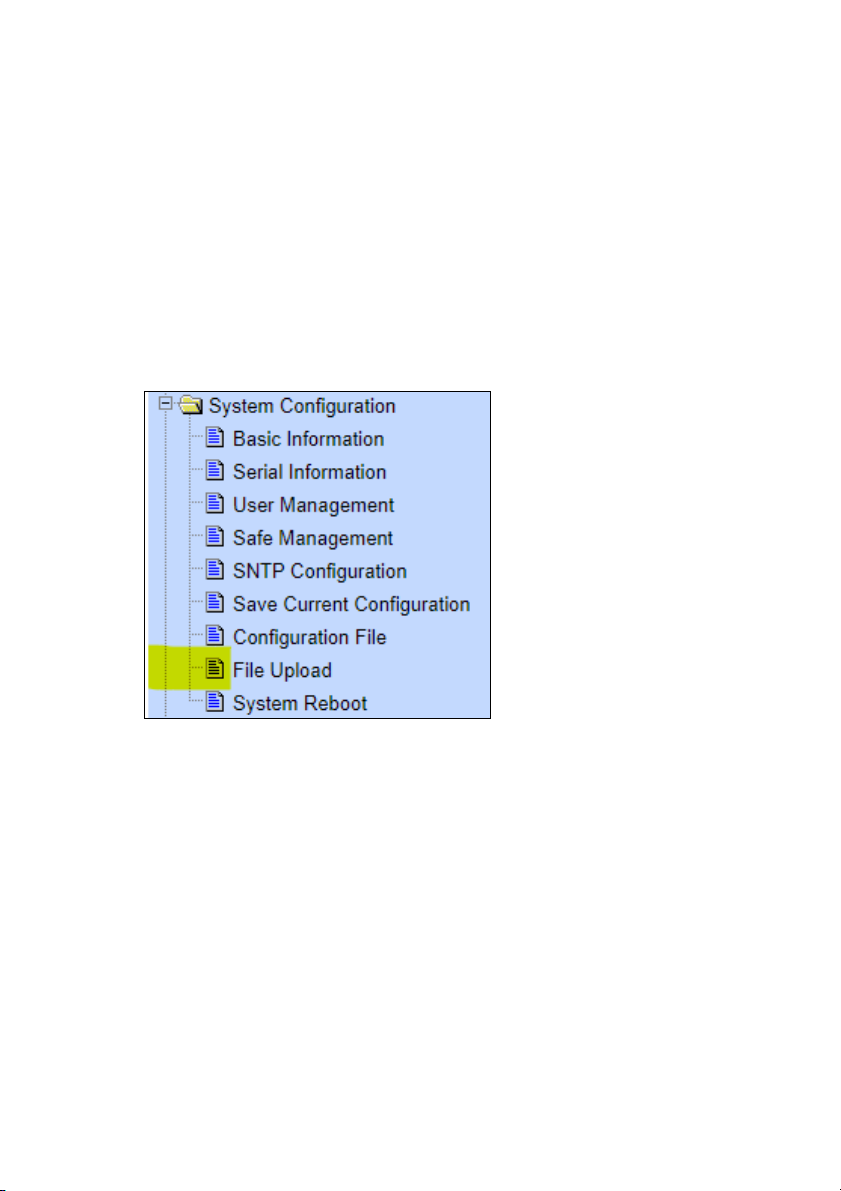

1. Select the IP Basic Configuration / File Upload menu selection.
2. Click Choose file and select the xx.img file downloaded in section 7.
3. Click Upload.
4. Wait until you see:
File uploaded successfully, please reset switch.
5. Select the IP Basic Configuration / System Reboot menu selection
6. Click Reboot
7.2 Update using TFTP
See https://ubwh.com.au/documents/WI-TEK_CLI.pdf
