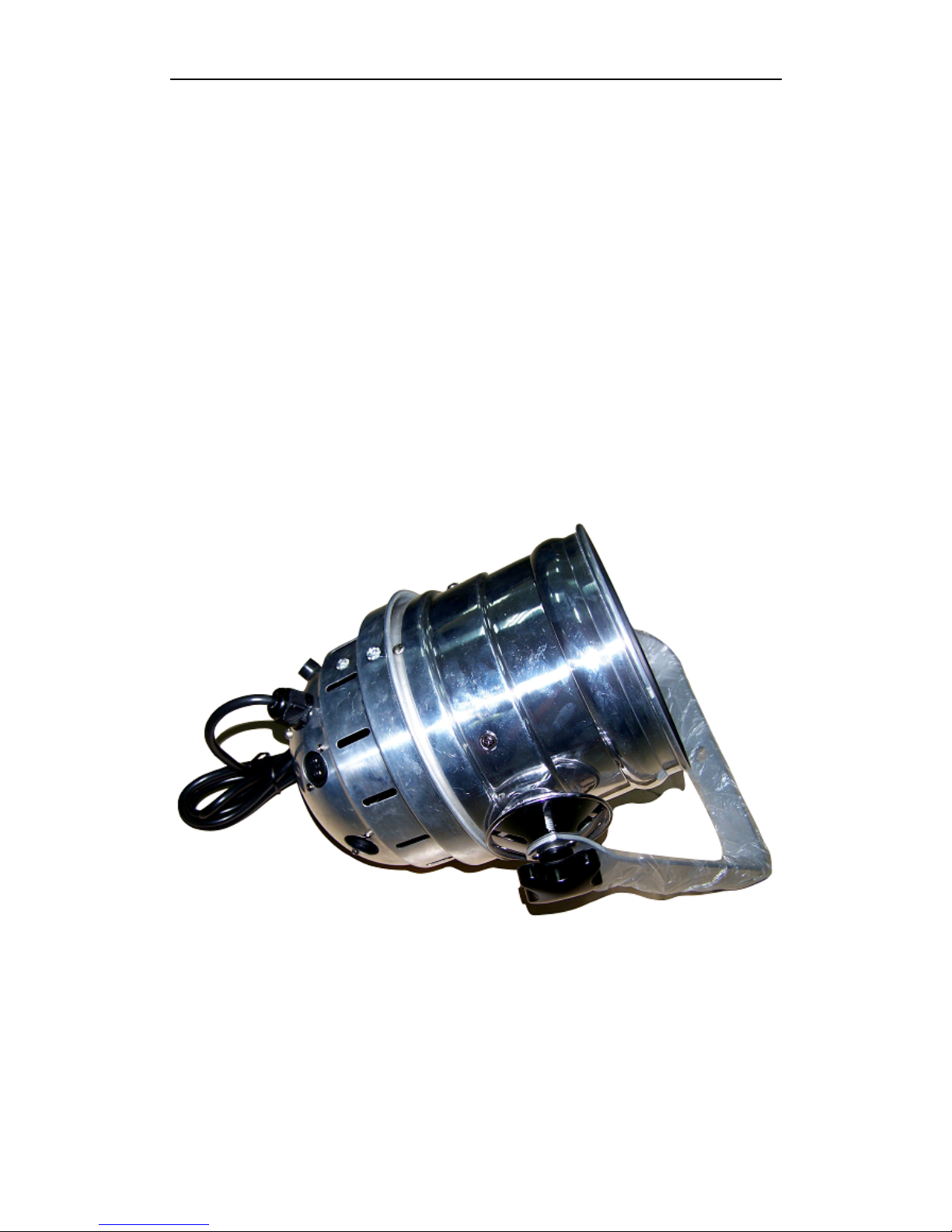

PART I GENERAL INFORMATION
1.1 Introduction
Thank you very much for purchasing the SRL-6043S, our 5-channel LED Par Lamp series
product that can work in AUTO, AUDIO and DMX mode. To assure reliable performance it
designed to, please read the instructions in this manual thoroughly and carefully before
application.
1.2 Safety Information
The following definitions of identifying the severity of the hazards associated with the
products are used:
“DANGER” Imminently hazardous situation which, if not avoided, will cause death or
serious injury.
“WARNING” Potentially hazardous situation which, if not avoided, could cause death or
serious injury.
“CAUTION” Potentially hazardous situation which, if not avoided, may cause minor or
moderate injury or property damage. In addition, it uses to alert against
unsafe practice.
IGNORING A HAZARD WILL VOID ANY WARRANTY.
DANGER: Ensure that the fixture is disconnected from the main power before
performing any type of service or any cleaning procedure.
WARNNING: No serviceable parts inside the fixture, do not attempt to open it.
WARNNING: The Installation must be performed by qualified professional in
accordance with related local codes.
WARNNING: Do not attempt to operate the fixture before read and understand the
installation instructions and safety labels.
CAUTION: Do not modify, alter, or attempt to service the SRL-6043S.
CAUTION: Always ground (earth) the fixture electrically.
CAUTION: Refer all service to a qualified technician.
CAUTION: When suspending the fixture above ground level or place it on the
ground, verify that the structure or surface can hold at least 10 times
the weight of all installed devices.
3

SRL-6043S Par Lamp
1.3. Unpacking
The SRL-6043S has been thoroughly tested and shipped in perfect operating condition.
Check the shipping carton carefully for damage that may have occurred during shipping. If
the carton appears to be damaged, carefully inspect your fixture for damage and be sure
all accessories necessary to operate the fixture have arrived intact. In case damage has
been found or parts are missing, please contact the sales person for further instructions.
You can find the following components inside the box:
① . A set of SRL-6043S
② . A 3-pin DMX XLR cable
③ . This User Manual
④ . A 3-wire IEC power cable
1.4. Specifications:
zPower Supply: AC240V/50Hz
zLED Configuration: 174PCS(R=80PCS 0.044w,G=66PCS 0.064w,B=54PCS 0.064w)
zPower Consumption: 19W
zDimension (mm): φ225x340
zWeight: 2.3 kg
1.5. Features:
zLow power consumption
zMaintenance free operation
z100,000 hours rated LED lifespan
z174 PCS of LED generates 16.7 million additive RGB colors
zDMX or stand-alone mode with Master/Slave function
z18 built-in programs accessed via DMX-controller or manually
zSound-activated via built-in microphone of adjustable sensitivity
zBrilliant light output

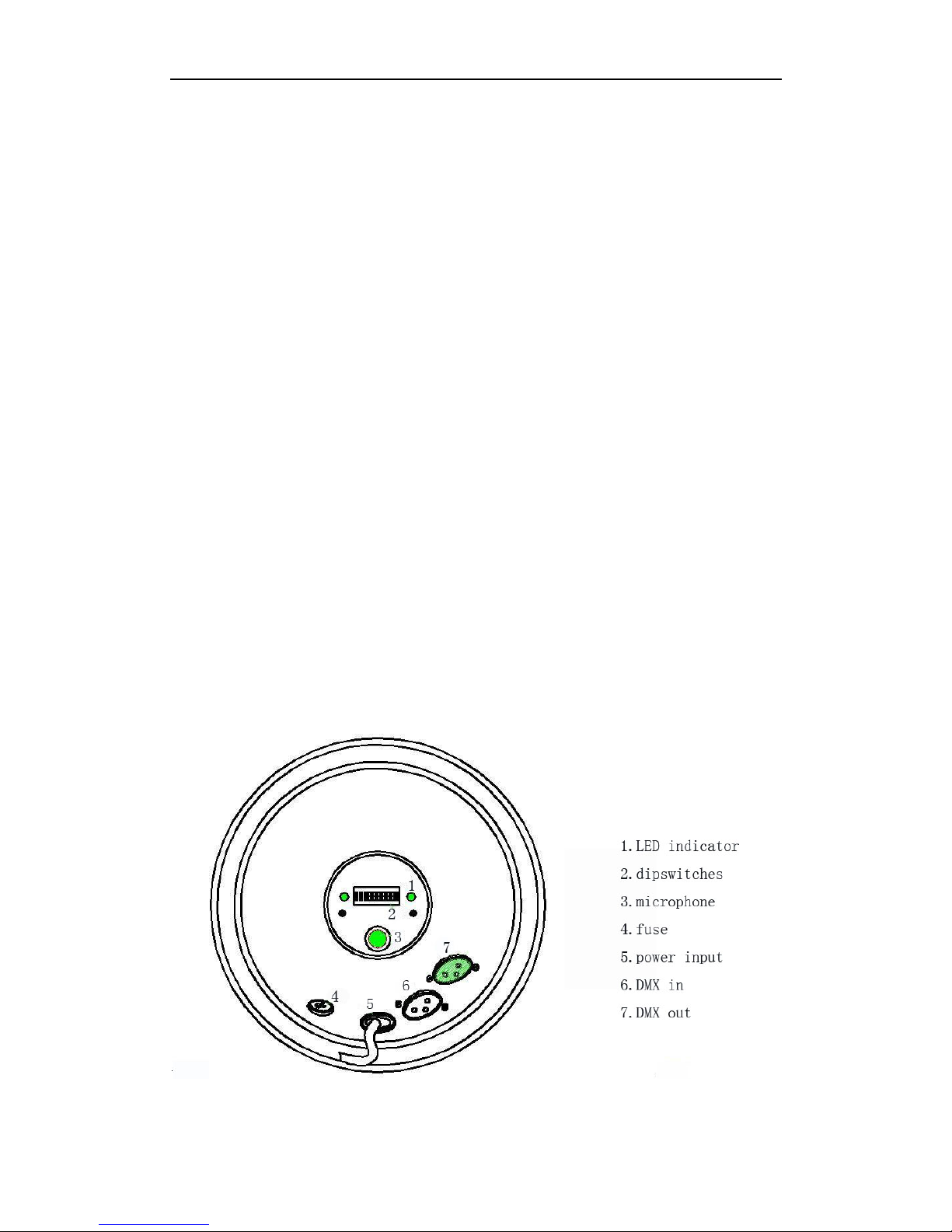

1.6.panel review
4

SRL-6043S Par Lamp
PART II Installation and Operation
2.1 Mounting
The fixture can be mounted overhead by a clamp or against a flat surface by the bracket it
has.

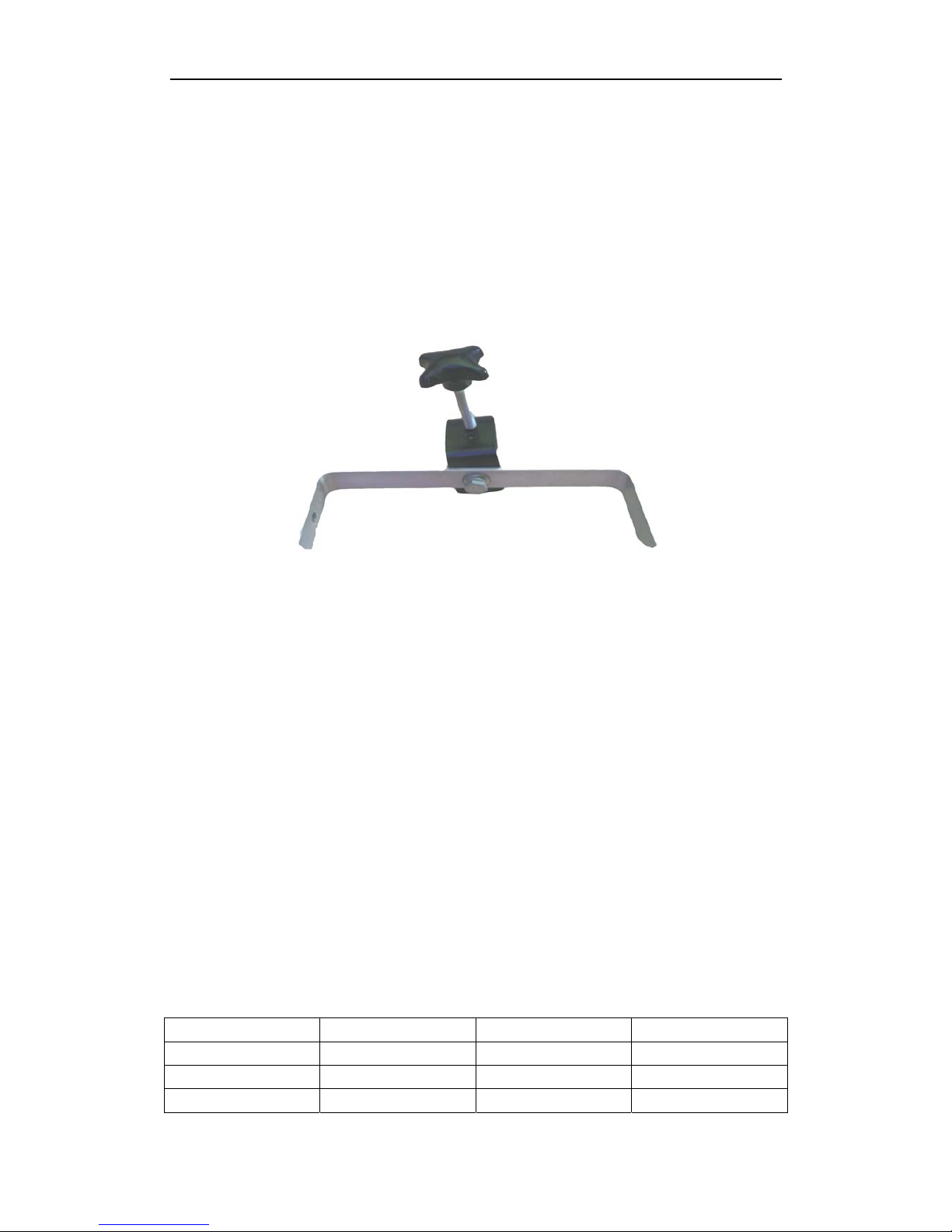

When you mount overhead, you can connect its bracket with the clamp through the center
hole.
Verify the structure can hold 10 times the weight of all installed fixtures.
Always use a safety cable or chain as a assistant attachment. The safety cable or chain
must hold 10 times the weight of all installed fixtures.
2.2 AC power
The fixture’s mains lead may require a grounding-type cord cap that fits your power
distribution cable or outlet. Consult a qualified electrician if you have any doubts about
proper installation.
WARNNING: For protection from dangerous electric shock, the fixture must be
grounded (earthed). The AC mains power supply shall have overload
and ground-fault protection.
CAUTION: Verify that the feed cables are undamaged and rated for the current
requirements of all connected devices before use.
Following the cord cap manufacturer's instructions, connect the yellow and green wire to
ground (earth), the brown wire to live, and the blue wire to neutral. The table below details
some pin identification schemes.
Wire Pin Marking Screw color
Brown Live “L” Yellow or brass
Blue Neutral "N” Silver
Yellow or green Ground 〨Green
5

SRL-6043S Par Lamp
2.3 Understanding DMX
A. About DMX
DMX is the abbreviation of Digital Multiplex. It’s a universal protocol used by most audio,
lighting and controller manufactures as a form of communication between fixtures and
controllers. ADMX controller sends out DMX data instructions to the fixtures via 5-pin XLR
cables. The data travels through the DMX chain as a serial data.
DMX is a kind of "common language" allowing all products of different manufactures to be
linked together and operate from a single controller, as long as all fixtures and the
controller are DMX compatible. To ensure proper DMX data transmission, when using
several DMX fixtures try to use the shortest cable path possible.
B. DMX Cable Requirements:
Your fixture, SRL-6043S uses 3-pin XLR cable as connection media. We provide each
fixture with a 3-pin XLR cable for you to chain the fixtures.
C. Connection of DMX
Connect the provided DMX XLR cable to the female 3-pin XLR output of your controller
and the other side to the male 3-pin XLR input of the fixture (please refer to the figure
PART II Installation and Operation

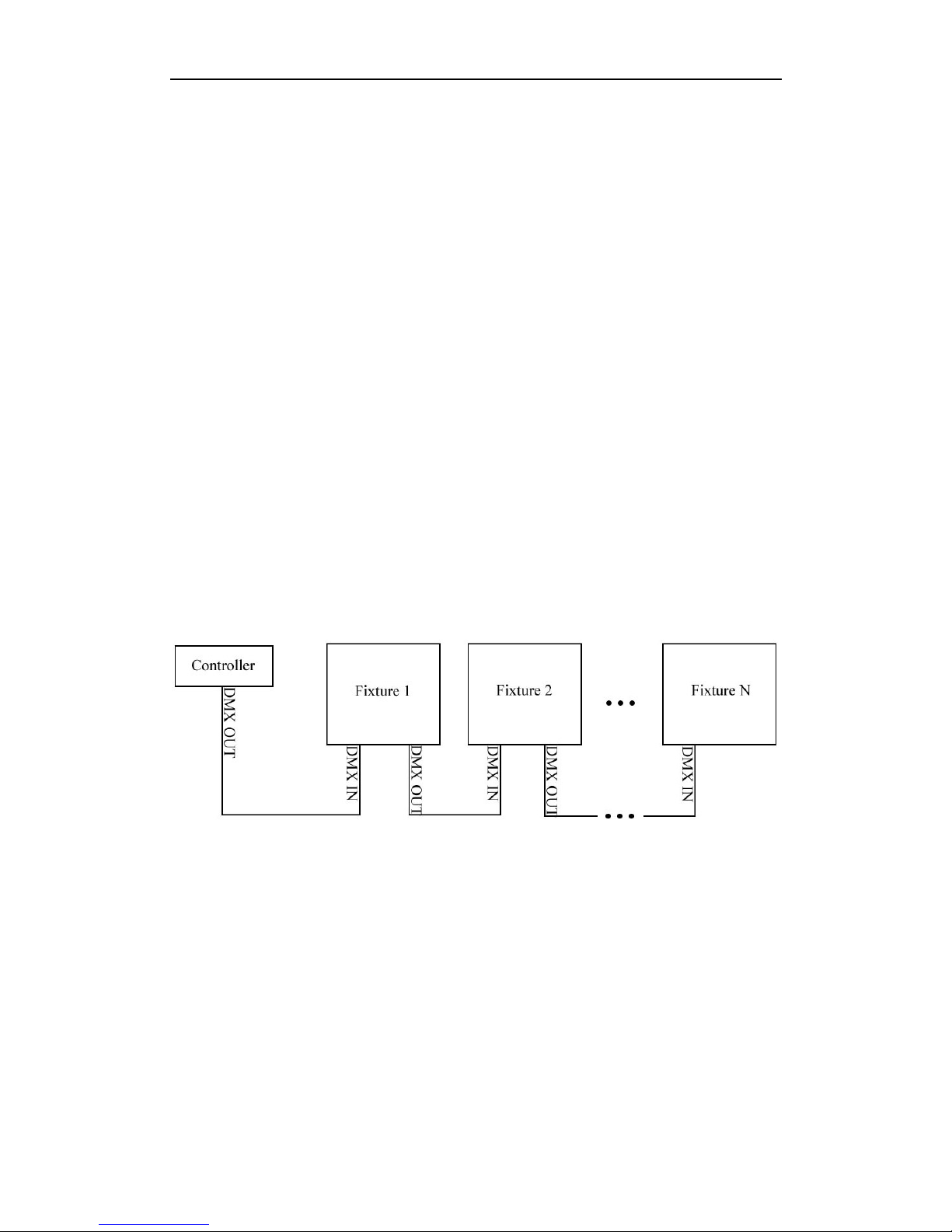

below). You must chain multiple fixtures together through serial linking, never split your
DMX connections unless you are using our splitter/signal amplifier such as SRL-144.
D. DMX addressing
All fixtures should be given a DMX starting address when using a DMX controller, so the
correct fixture responds to the correct control signal. This digital starting address is the
channel number from which the fixture starts to "listen" to the digital control information
sent out from the DMX controller. The allocation of this starting DMX address is achieved
by various combining the dipswitches.

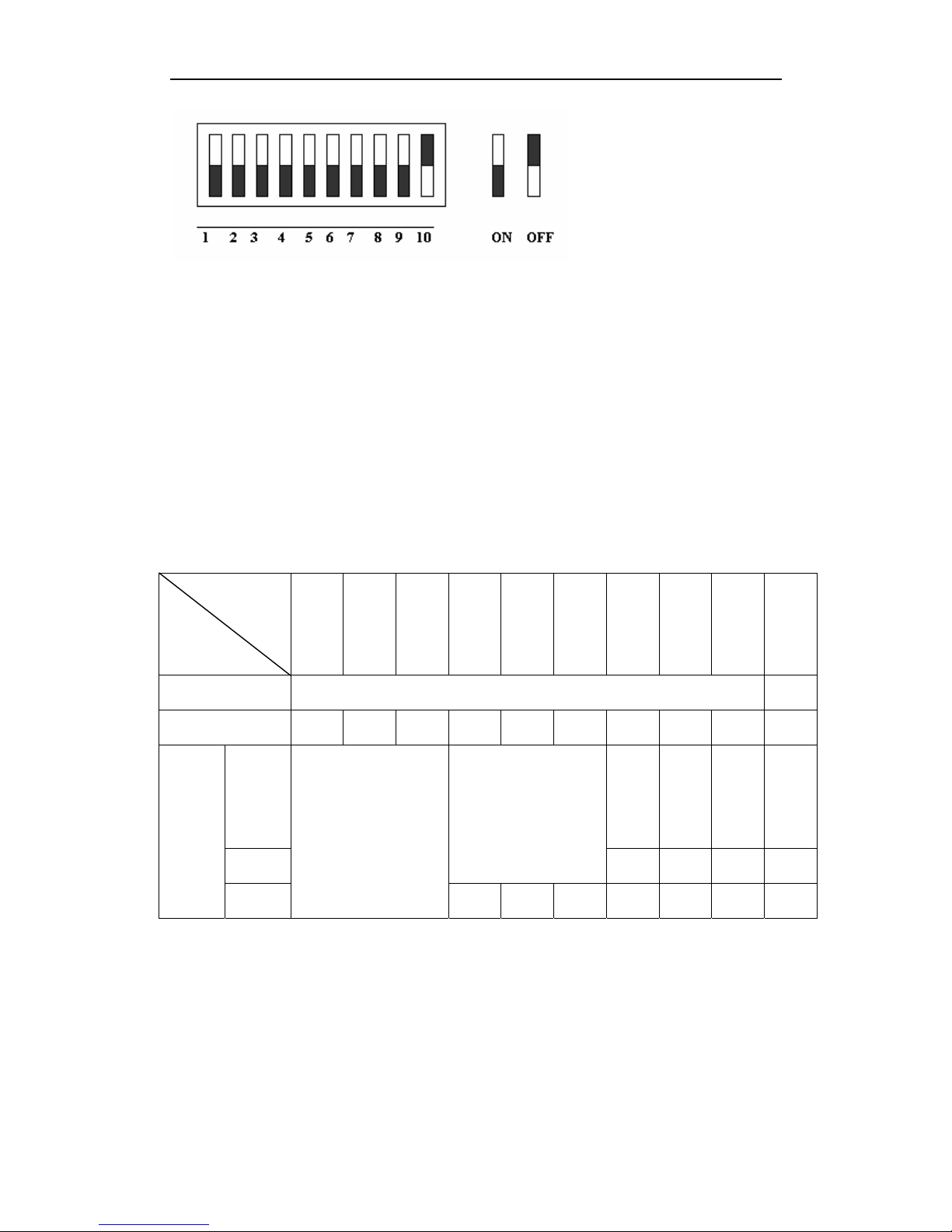

This fixture employs 10 dipswitches to access its functions. Normally the dipswitches from
#1 to #9 are used for encoding DMX address, the dipswitch #10 for enable DMX mode.
6

SRL-6043S Par Lamp
Dipswitch 1 address equals to 1
Dipswitch 2 address equals to 2
Dipswitch 3 address equals to 4
Dipswitch 4 address equals to 8
Dipswitch 5 address equals to 16
Dipswitch 6 address equals to 32
Dipswitch 7 address equals to 64
Dipswitch 8 address equals to 128
Dipswitch 9 address equals to 256
DMX address=Dipswitch 1+Dipswitch 2+…+Dipswitch 9.
2.4 Operation Instructions
Brief function chart
Switch
Function #1 #2 #3 #4 #5 #6 #7 #8 #9 #10
DXM Set DMX address (see DMX address chart in details) 1
Slave X X X X X X X X X 1
Fade
and
Auto
1 X 0 0
Auto
Choose speed via
switch4~6 （See
ed choose chart
in details）
spe
0 X 0 0
Master
Sound
Choose program via
switch1~3(See
program choose
chart in details)
X X X X X 1 0
Notes! Important
1. In sound active mode: No fade; Run to sound; Choose different programs via
switch1~3
2. Connect DMX controller with the fixture through 3-pin XLR signal cord.
3. In master/slave mode, fixtures can run at the same time by setting one of
fixtures as auto mode, the left DMX mode.
4. In DMX mode, please pay attention to such points: set DMX channel address
via switch1~9 ranging from 1~512.
7

SRL-6043S Par Lamp
Mode choose
A. Auto mode
When dipswitches #9 &#10 are both set at OFF, the fixture works in Auto mode. The
detailed setting you can check in following table:
Combination of Dipswitch #1, #2 and #3 to select different PROGRAM:
Dip #1 Dip #2 Dip #3 PROGRAM selected
OFF OFF OFF PROGRAM 1（red twinkle ）
ON OFF OFF
PROGRAM 2（Green twinkle）
OFF ON OFF PROGRAM 3（Blue twinkle）
ON ON OFF PROGRAM 4（Red and Green twinkle）
OFF OFF ON PROGRAM 5（Red &Blue twinkle）
ON OFF ON PROGRAM 6（Green &Blue twinkle）
OFF ON ON PROGRAM 7（Red, Green &Blue twinkle）
ON ON ON PROGRAM 8（7-color twinkle）
Dipswitch #4, #5 and #6 specify the speed of the running PROGRAM with 8 levels of
different speed adjustable.
Dipswitch #7 is for FADE selection. OFF turns FADE off while ON turns FADE on.
B. Sound Active mode
When dipswitch #9 is ON and dipswitch #10 is OFF the fixture works in Sound active
mode.
Various combining of dipswitch #1, #2 and #3 forms different PROGRAM
DIP #1 DIP #2 DIP #3 PROGRAM selected
OFF OFF OFF PROGRAM 1（red twinkling ）
ON OFF OFF
PROGRAM 2（Green twinkling）
OFF ON OFF PROGRAM 3（Blue twinkling）
ON ON OFF PROGRAM 4（Red and Green twinkling）
OFF OFF ON PROGRAM 5（Red &Blue twinkling）
ON OFF ON PROGRAM 6（Green &Blue twinkling）
OFF ON ON PROGRAM 7（Red, Green &Blue twinkling）
ON ON ON PROGRAM 8（7-color twinkling）
In this mode step is triggered by the rhythm of sound.
C. DMX mode
When dipswitch #10 is set at ON, the fixture works in DMX mode. By various
combining the Dipswitches #1 to #9 you can set the address ranging from 1 to 512.
At this moment, the fixtures can be controlled by DMX controller or another fixture
that has been designated as Auto or Sound Active mode with 5 channels receiving
the data controlling the Red, Green, Blue, brightness and strobe rate output of the
fixture respectively.
Note: the address encoded by combining dipswitches #1 to #9 function as initial
channel address.
8

SRL-6043S Par Lamp
DMX channel and function chart
Channel Value Function
CH1 0~255 Adjust CH1 value 0~255 and brightness of red LED is 0~100%
CH2 0~255
Adjust CH2 value 0~255 and brightness of green LED is
0~100%
CH3 0~255 Adjust CH3 value 0~255 and brightness of blue LED is 0~100%
CH4 0~255 Adjust CH4 value 0~255 and brightness of all LEDS is 0~100%
0~10 No strobe
CH5 11~255 Adjust CH5 value 11~255 and all LEDS strobe.
Strobe speed is from slowest to fastest.
D. MASTER/SLAVE MODE
Set switch 10 of slaves ON and switch 10 of master OFF, it is in MASTER/SLAVE mode
and they can run at the same time. Master mode has three working ways: auto with fade,
auto without fade and sound. You can choose program via switch 1~3 and choose auto
speed via switch 4~6 in auto mode .
PART III MAINTENACE AND CLEANING
Please refer to the following points during the normal inspection:
A. Be sure all screws and fasteners are securely tightened at all times. Lose screws
may cause unexpected damage or injury.
B. Electric power supply cables must not show any damage or frayed spot.
CAUTION:
Make sure that the power cord of the unit is disconnected from the
mains before performing the following operation to avoid shock
hazard!
We recommend, if possible, frequent cleaning of the device, which will ensure its long
lifespan and bright light output. While performing the cleaning, please always make sure
that the power cord is disconnected from the mains and use a moist, lint-free cloth.
Avoid using any alcohol or solvents, as they are harmful to the fixture.
9

SRL-6043S Par Lamp
APPENDIX
DMX address chart
#9 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
#8 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1
#7 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1
SWITHC SET
0 = OFF
1 = ON #6 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1
#1 #2 #3 #4 #5
0 0 0 0 0 32 64 96 128 160 192 224 256 288 320 352 384 416 448 480
1 0 0 0 0 1 33 65 97 129 161 193 225 257 289 321 353 385 417 449 481
0 1 0 0 0 2 34 66 98 130 162 194 226 258 290 322 354 386 418 450 482
1 1 0 0 0 3 35 67 99 131 163 195 227 259 291 323 355 387 419 451 483
0 0 1 0 0 4 36 68 100 132 164 196 228 260 292 324 356 388 420 452 484
1 0 1 0 0 5 37 69 101 133 165 197 229 261 293 325 357 389 421 453 485
0 1 1 0 0 6 38 70 102 134 166 198 230 262 294 326 358 390 422 454 486
1 1 1 0 0 7 39 71 103 135 167 199 231 263 295 327 359 391 423 455 487
0 0 0 1 0 8 40 72 104 136 168 200 232 264 296 328 360 392 424 456 488
1 0 0 1 0 9 41 73 105 137 169 201 233 265 297 329 361 393 425 457 489
0 1 0 1 0 10 42 74 106 138 170 202 234 266 298 330 362 394 426 458 490
1 1 0 1 0 11 43 75 107 139 171 203 235 267 299 331 363 395 427 459 491
0 0 1 1 0 12 44 76 108 140 172 204 236 268 300 332 364 396 428 460 492
1 0 1 1 0 13 45 77 109 141 173 205 237 269 301 333 365 397 429 461 493
0 1 1 1 0 14 46 78 110 142 174 206 238 270 302 334 366 398 430 462 494
1 1 1 1 0 15 47 79 111 143 175 207 239 271 303 335 367 399 431 463 495
0 0 0 0 1 16 48 80 112 144 176 208 240 272 304 336 368 400 432 464 496
1 0 0 0 1 17 49 81 113 145 177 209 241 273 305 337 369 401 433 465 497
0 1 0 0 1 18 50 82 114 146 178 210 242 274 306 338 370 402 434 466 498
1 1 0 0 1 19 51 83 115 147 179 211 243 275 307 339 371 403 435 467 499
0 0 1 0 1 20 52 84 116 148 180 212 244 276 308 340 372 404 436 468 500
1 0 1 0 1 21 53 85 117 149 181 213 245 277 309 341 373 405 437 469 501
0 1 1 0 1 22 54 86 118 150 182 214 246 278 310 342 374 406 438 470 502
1 1 1 0 1 23 55 87 119 151 183 215 247 279 311 343 375 407 439 471 503
0 0 0 1 1 24 56 88 120 152 184 216 248 280 312 344 376 408 440 472 504
1 0 0 1 1 25 57 89 121 153 185 217 249 281 313 345 377 409 441 473 505
0 1 0 1 1 26 58 90 122 154 186 218 250 282 314 346 378 410 442 474 506
1 1 0 1 1 27 59 91 123 155 187 219 251 283 315 347 379 411 443 475 507
0 0 1 1 1 28 60 92 124 156 188 220 252 284 316 348 380 412 444 476 508
1 0 1 1 1 29 61 93 125 157 189 221 253 285 317 349 381 413 445 477 509
0 1 1 1 1 30 62 94 126 158 190 222 254 286 318 350 382 414 446 478 510
1 1 1 1 1 31 63 95 127 159 191 223 255 287 319 351 383 415 447 479 511
10
