wiking Luma 1 User manual
01.08.2021 / 53-1082
Installation- and User’s Manual
made by
WIKING
LUMA 6
WIKING
LUMA 4
WIKING
LUMA 5
WIKING
LUMA 3
WIKING
LUMA 2
WIKING
LUMA 1
EN
Contents
Drawings ............................................................................................................3-7
For UK - The Clean Air Act 1993 and Smoke Control Areas................................ 8
Installation ............................................................................................................. 9
Firing manual - wood........................................................................................... 15
Firing in general .................................................................................................. 18
Maintenance........................................................................................................ 19
Declaration of Performance................................................................................ 21
Product informaiton EcoDesign .......................................................................... 22
Trouble Shooting ................................................................................................. 23
......................................................................................... 24
Page 3 of 24 pages
A1 A2
B1
Page 4 of 24 pages
B2
Page 5 of 24 pages
E1
E2
C
Page 6 of 24 pages
DF
Page 7 of 24 pages
G
Page 8 of 24 pages
Under the Clean Air Act local authorities may declare the whole or part of the district of the
-
smoke control area).
-
cordance with changes made to sections 20 and 21 of the Clean Air Act 1993 by section 15 of
-
Welsh Ministers.
gov.uk/smoke-control-area-rules. Your local authority is responsible for implementing the
Clean Air Act 1993 including designation and supervision of smoke control areas and you can
The HWAM Luma stoves detailed below have been recommended as suitable for use in smo-
-
condary air control to prevent closure of the air inlet below 33 %.
• Luma 1, Luma 1 on pedestal
• Luma 2, Luma 2 on pedestal
• Luma 3
• Luma 4, Luma 4 with natural stone cladding, Luma 4 with tile cladding
• Luma 5
• Luma 6, Luma 6 with natural stone cladding, Luma 6 with tile cladding
Refuelling on to a low re bed
embers and ash that the new fuel charge will ignite in a reasonable period. If there are too few
Fuel overloading
Operation with door left open
Dampers left open
-
directed in the instructions.
Page 9 of 24 pages
In general
Congratulations on your new WIKING woodburning stove. We are pleased that you have cho-
optimum operation and safety, we recommend that the installation should be carried out by an
Safety
The installation of your WIKING woodburning stove must always comply with all European,
national and local building regulations. The installation must be carried out in accordance with
authorities. Upon installation, the chimney sweep must approve the installation before you can
start using the woodburning stove. All WIKING woodburning stove packaging material must be
handled in accordance with local waste management regulations.
Room requirements
Always ensure a supply of fresh combustion air to the room where the stove is to be installed.
9-20 m3 of air per hour. A window that can be opened
valve/grate. In newly built/airtight dwellings, we recommend that a fresh air system should be
bought separately.
withstand the weight of the stove and the chimney. The weight of the chimney should be cal-
culated according to its dimensions and height.
Technical measures and data
Test results from nominal test EN 13240
7.0 kW
Flue gas temperature EN 13240 measurement point 286ºC
Flue gas temperature measured in the outlet socket 343ºC
5.2 g/s
81 %
71 %
PM 5 mg/m3
OGC 67 mg/m3
NO2101 mg/m3
CO at 13% O21187 mg/m3
CO at 13% O20.0949 %
107
A+
Test result based on NS 3058
Particle emissions 2.46 g/kg
Page 10 of 24 pages
Norsk
Model Weight Height Width Dept
Luma 1 117 kg 80.1 cm 53.0 cm 46.0 cm
Luma 1 on pedestal 136 kg 112.1 c m 53,6 cm 45.8 cm
Luma 2 114 kg 80.1 cm 53.0 cm 46.0 cm
Luma 2 on pedestall 133 kg 112.1 c m 53.6 cm 45.8 cm
Luma 3 120 kg 108.4 cm 53.0 cm 45.4 cm
Luma 4 117 kg 108.4 cm 53.0 cm 45.4 cm
Luma 4 with natural stone cladding 212 kg 111.8 cm 57.3 cm 46.0 cm
Luma 4 with tile cladding 145 kg 111.8 c m 57.3 c m 46.0 cm
Luma 5 129 kg 132.4 cm 53.0 cm 45.4 cm
Luma 6 126 kg 132.4 cm 53.0 cm 45.4 cm
Luma 6 with natural stone cladding 241 kg 135.8 cm 57.3 c m 46,0 cm
Luma 6 with tile cladding 165 kg 135.8 cm 57.3 cm 46.0 cm
Heat storage stones, Luma 5+6 45 kg
Floor plate
European, national and local regulations must be observed in terms of the size and thickness
your WIKING retailer for assistance. The combustion chamber opening is 35,7 cm wide.
Distance to combustible materials
Min. distances
- uninsulated ue gas pipe:
Luma 1
Luma 3
Luma 5
Luma 2
Luma 4
Luma 6
Luma 4 med
stone-/ tile cladding
Luma 6 med
stone-/ tile cladding
Recommended for brick wall, back 10 cm 10 cm 10 cm
Recommended for brick wall, side 20 cm 10 cm 10 cm
For combustible wall, back 12.5 cm 15 cm 15 cm
For combustible wall, side 60 cm 40 cm 40 cm
To combustible wall,
corner installation, 45º
31.5 cm 7.5 cm 7.5 cm
28.3* cm 28.3* cm
Distance to furnishings in front 105 cm 115 cm 115 cm
Page 11 of 24 pages
Min. distances
- insulated ue gas pipe:
Luma 1
Luma 3
Luma 5
Luma 2
Luma 4
Luma 6
Luma 4 with
stone-/ tile cladding
Luma 6 with
stone-/ tile cladding
Recommended for brick wall, back 10 cm 10 cm 10 cm
Recommended for brick wall, side 20 cm 10 cm 10 cm
For combustible wall, back 5 cm 5 cm 5 cm
For combustible wall, side 60 cm 45 cm 45 cm
To combustible wall,
corner installation, 45º
31.5 cm 5 cm 5 cm
28,3* cm 28,3* cm
Distance to furnishings in front 105 cm 115 c m 115 cm
IMPORTA NT:
• If WIKING Luma 1/WIKING Luma 2 are to be mounted on a wall, there must be a
distance of 28.3 cm to a ammable oor (measured from the bottom plate of the
wood-burning stove) whether or not a oor plate has been laid on the oor.
• Do not install WIKING Luma 1 without a pedestal / WIKING Luma 2 without a pede-
stal on a ammable oor. A ammable oor is still considered ammable even if a
non-ammable oor plate has been laid on the oor for the purpose of capturing
any embers from the wood-burning stove..
• If WIKING Luma 1 without a pedestal / WIKING Luma 2 without a pedestal are pla-
ced directly on the oor, a non-ammable construction of minimum 42.5 cm is
required in front of the stove.
Remember to pay attention to the applicable regulations concerning the required distance
between the wall and smoke pipe.
Please be aware that not all glass parts are heat-resistant. For this reason, a glass wall should
sometimes be treated as a combustible wall, in which case we ask you to contact your local
chimney sweep or glass producer to hear at what distance the stove should be kept from glass.
Requirements for chimney and smoke pipe
As a general rule, satisfactory draught conditions are achieved if the chimney is 4 m above
the stove and at least 80 cm above the ridge. If the chimney is placed at side walls, the top of
the chimney should always be higher than the ridge or the tallest point of the roof. Always be
aware of any national and/or local regulations applying to thatched roofs and the location of
the chimneys.r.
-
18-20 Pa.
The chimney must have a minimum clearing of Ø 150 mm. The chimney must be provided with
Page 12 of 24 pages
brand label. Ask your WIKING retailer for further information.
Changing the Smoke Outlet from Top Outlet to Back Outlet
(WIKING Luma 1 - Luma 4)
6. Install the cover plate on top of the stove with the three screws.
7. Place the smoke ring in the smoke outlet hole in the back of the stove and secure it with the
three screws.
8. Place the rear plate on the stove again.
9. Replace the top plate on stove.
A top cover can be bought as an accessory to cover the hole in the top plate of the stove
if the stove is connected to a back smoke outlet.
Changing the Smoke Outlet from Top Outlet to Back Outlet
(WIKING Luma 5 - Luma 6) (drawing F)
compartment. Remove the smoke ring.
wire- cutter.
6. Remove the cover plate at the rear of the stove by loosening and removing the three
7. Mount the cover plate over the smoke outlet in the bottom of the heat storage compart
ment, using the three screws.
8. Place the smoke ring in the smoke outlet hole in the back of the stove and secure it with
the three screws.
10. Place the rear plate on the stove again.
11. Place the top plate on the stove again.
A top cover can be bought as an accessory to cover the hole in the top plate of the stove if the
stove is connected to a back smoke outlet.
Page 13 of 24 pages
Connection to chimney
All the stoves have both back and top smoke outlet that can be connected to an approved steel
chimney on top or directly out at the rear to a chimney.
Make sure that the chimney is tight and that no false draft is caused around neither the cover
plate, in connection with a covered smoke outlet, nor the cleanout door and pipe connections.
3. Vermiculite corner plates.
4. Vermiculite rear plate.
5. Vermiculite side plates.
6. Vermiculite side bottom piece.
7. Protection during transportation
reached, and they must therefore remain inside in the wood-burning stove.
their warmth within the stove and the surrounding area. In this way you get more warmth from
the wood you add to the stove, as the warm smoke is not simply sent out through the chimney.
Fitting the loose parts
that all insulation plates of the combustion chamber have been properly placed, i.e. that the
bottom plate is horizontal and that the side plates are vertical and reach all the way up to the
steel sides of the combustion chamber and down to the bottom plate.
1.
as protection during transportation. Remember to remove the two pins before you start
using the stove.
2.
3. The rear plate must be pushed all the way back in the combustion chamber.
Chimney
stove. The chimney draft provides a partial vacuum in the stove. This vacuum removes the
smoke from the stove, sucks air through the dampers for the so-called glass pane rinse which
keeps the glass free of soot, and sucks in air through both primary and secondary dampers
for the combustion.
Page 14 of 24 pages
The higher the temperature within the chimney, the greater the draft. It is crucial, therefore, that
the chimney is warmed up properly before closing the damper and limiting the combustion in the
On days where the wea-
If the stove has not been used for a longer period, it is important to check that the chimney pipe
is not blocked.
check the applicable rules.
Chimney sweeping
have the chimney checked by the chimney sweeper.
The type badge and the serial number (Drawing C)
On WIKING Luma 3/Luma 4/Luma 5/Luma 6 the type badge and the serial number are placed
on the inside of the door below the combustion chamber.
Page 15 of 24 pages
Norsk
Your first heating session
should be opened very carefully as there will otherwise be a risk that the gaskets will stick to
that the room is well ventilated.
Warning:
Tips about fuel
Approved fuel types
The wood burning stove is EN approved for combustion of wood only. It is recommended to
Recommended wood types
All types of wood, for instance birch, beech, oak, elm, ash, conifers, and fruit trees can be used
types per cubic metre.3of wood than common spruce, for instance.
similar to that of beech. Heavy types of wood such as ash, beech, oak and elm are generally not
wood such as birch, maple, spruce and pine are more easy to light up. They burn faster and give
the heavier types of wood to ensure a longer burning time..
Banned fuel types
The reason that you should not apply any of the above is that during combustion they develop
substances that are health hazardous and harmful to the environment. These substances
could also damage your wood burning stove and chimney, rendering the product warranty
void.
Storage of wood
A moisture content of 12-18% is achieved by storing recently felled wood outdoors under a
lean-to for at least one year, preferably 2 years. Wood stored indoors has a tendency to be-
Split the wood and measure the mois-
ture content of the split surfaces.
Recommended dimensions
The dimensions of the fuel are important to good combustion. The dimensions should be as
Page 16 of 24 pages

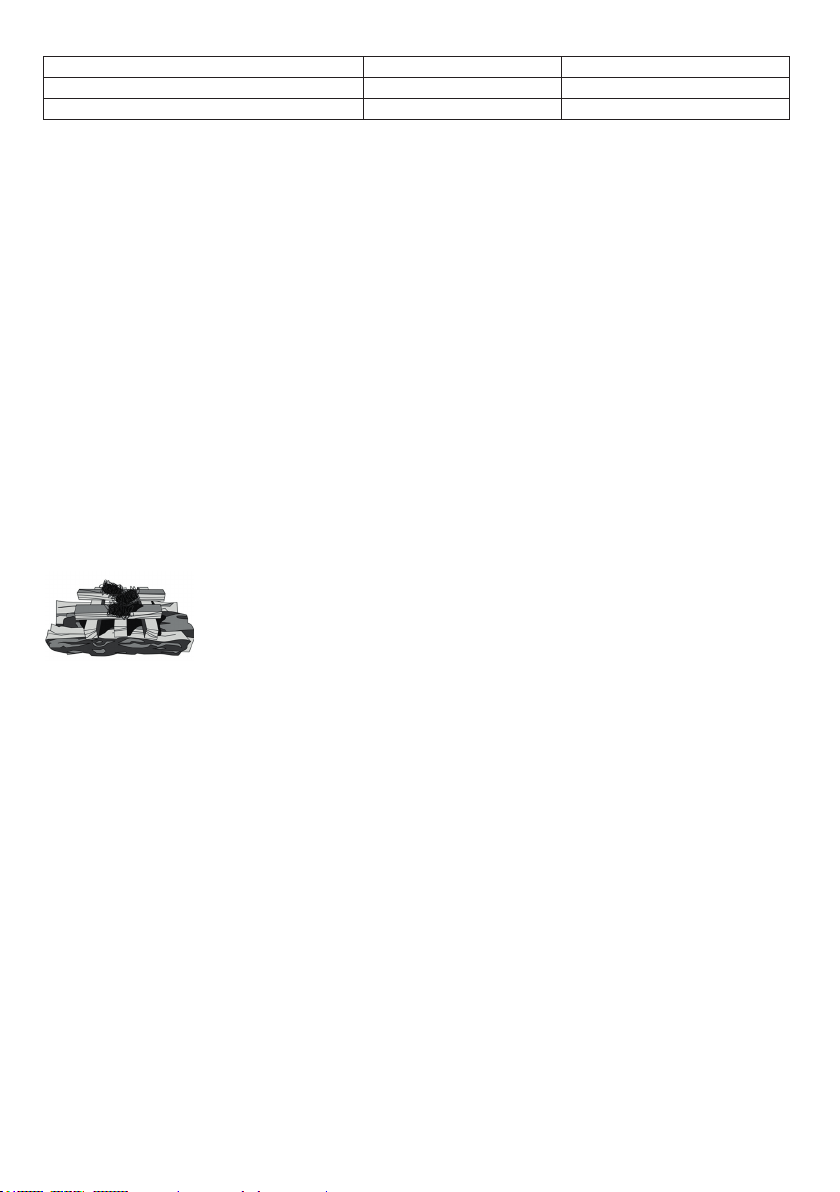

Fuel type Length in cm Diameter in cm
20-30 2-5
Chopped wood 20-30 7-10
Using the Air Damper
located under the stove door; see drawing D.
When lighting a cold stove and when fuellingwith new wood, the regulating lever must be pu-
air supply can be gradually reduced by moving the regulating lever to the right.
stove has been allowed to go out completely in connection with cleaning, for instance.
Special re lighting guide for stoves with stone and tile cladding
Stone are natural products which need to adjust to temperature changes. We recommend
1. First stoking
If condensation forms on the glass, keep the door ajar for a little while and
gradually reduced by moving the air control lever to the right until uniform,
while the stove cools to room temperature.
2. Second stoking
-
stove door. If condensation forms on the glass, keep the door ajar for a little while and close
again. The layer of embers is suitable when the pieces of wood begin to disintegrate and the
air supply can be gradually reduced by moving the air control lever to the right until uniform,
before stoking again.
3. Third stoking
Page 17 of 24 pages
Restoking
Lighting the stove
-
the stove door. If condensation forms on the glass, keep the door ajar
gradually reduced by moving the air control lever to the right until uniform, steady combustion
is achieved.
Important! The ash pan must not be opened during the lighting stage and must always be
kept closed when the stove is lit or the WIKING®Automatic™ might be damaged. Only open
the door when lighting the stove, refuelling it and cleaning it. Never leave a stove before there
Stoking
The layer of embers is suitable when the pieces of wood begin to disintegrate and the bottom
of the stove is covered by embers. Carefully open the door to prevent smoke and embers from
the air control lever to the right until uniform, steady combustion is achieved. The further to
combustion.
During combustion, the outer surfaces of the stove will become hot, and due care must
therefore be shown.
When burning is complete
When the stove is not in use, turn the air control lever all the way to the left.
Cleaning the glass
Fuelling with coal or pet coke
The stove is not approved to use coal or pet coke as a fuel.
Page 18 of 24 pages
Rapid or erce heat
Maximum amounts of fuel:
The stove has been approved for intermittent use.
Typical re-ring interval
Prolonged burning time
You will obtain the longest burning time if you reduce the air supply to an absolute minimum
How to achieve the best combustion
• Use clean and dry wood
heat will dry the wood, not heat up the room.
• The re should only be stoked with a little wood at a time
you achieve a good combustion.
• Make sure there is the right amount of air
You should also make sure that there is plenty of air – especially in the beginning - so the
• Don’t savour the re during night time
an attempt to still have some embers left in the morning. If you do so, large amounts of
Page 19 of 24 pages
Cleaning
Any maintenance of the stove should only be carried out when it is cold. Daily maintenance is
Once a year, the stove should be thoroughly serviced. The combustion chamber should be
-
onto the hinge leaf.
Service inspection
• Thorough cleaning of the stove.
• Checking the spring in the WIKING®Automatic™. Replace if necessary.
• Checking gaskets. Replace gaskets if they are not intact or are no longer soft.
• Checking and/or replacing insulation material.
• Checking the combustion chamber base.
• Use copper grease for hinges and locking hooks
Inside cleaning
position to prevent soot and ash from entering the WIKING®Automatic™. Unless the safety
First remove ash and soot from the combustion chamber. In drawing
E1/E2 you can see which plates are found inside the combustion chamber. Carefully remove
WIKING Luma 1+3+5
After cleaning, carefully put the vermiculite plates back in place in the reverse order starting
with the rear plate.
Ashes
It is easiest to empty the ash pan by pulling a plastic bag over it, turning it upside down and
then carefully removing it from the bag. Ashes are disposed of via the domestic waste col-
lection.
Please note that there may be embers in the ashes for up to 24 hours after the re has
gone out!
WIKING Luma 2+4+6
Page 20 of 24 pages
Insulation
-
plate can cause secondary air to become incorrectly distributed in the combustion chamber,
and it should therefore be replaced. However, it should be replaced, if there are actual holes
than half its original thickness.
WIKING®Automatic™
The spring in the automatism should be controlled at least once every second year.
(Drawing G):On a cold stove, the
starting point of the feeler is controlled. The starting point on a cold stove is about 100 above
horizontal. It should feel easy going and bouncy when you push it, no matter if the stove is cold
or hot. Mount the rear plate and the top plate again.
Door/glass
A sooty glass door can easily be cleaned with a piece of moist kitchen roll dipped in ash. Go
should also ensure that air gaps in the door frame are free of ash and soot particles.
Seals
this, they should be replaced. Use original seals only.
Surface
Usually, it is not necessary to any treatment to the painted surfaces of the wood-burning stove.
Any damage to the paint may, however, be remedied with spray paint, which can be bought
from your stove retailer.
Guarantee
Other manuals for Luma 1
1
This manual suits for next models
5
Table of contents
Other wiking Wood Stove manuals
Popular Wood Stove manuals by other brands
Country Hearth
Country Hearth 2000 Owner's operation and instruction manual
HWAM
HWAM 4620 user manual
Ambiance Fireplaces
Ambiance Fireplaces Outlander-19 Installation and operation manual
Invicta
Invicta pharos quick start guide
United States Stove Company
United States Stove Company 5040 owner's manual
Firenzo Woodfires
Firenzo Woodfires NAPIER AG Installation and operation guide
MrHeater
MrHeater Grand Teton N60WTS Operating instructions and owner's manual
Heat & Glo
Heat & Glo RADIUS-300 owner's manual
Haas+Sohn
Haas+Sohn Kuopio II 265.17-ST Assembly instructions
Austro Flamm
Austro Flamm PI manual
Austro Flamm
Austro Flamm VOGUE manual
Ecosy+
Ecosy+ Ottawa 12kw Installation and operating instructions
