WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08
1
PT 7722
PULL-TYPE
ROW CROP CULTIVATOR
OPERATOR'S MANUAL
WIL-RICH
POBox1030
Wahpeton,ND 58074
PH(701)642-2621
Fax[phone]
PartsFax(701) 642-3819
Printed in USA (74279) 2/08 WJS
ASSEMBLY & OPERATING

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08 2
WARRANTY
The only warranty Wil-Rich gives and the only warranty the dealer is authorized to give is as
follows:
We warrant products sold by us to be in accordance with our published specifications or those
specifications agreed to by us in writing at time of sale. Our obligation and liability under this
warranty is expressly limited to repairing, or replacing, at our option, within 12 months after date of
retail delivery, any product not meeting the specifications. We make no other warranty, express
or implied and make no warranty of merchantability or of fitness for any particular purpose.
Our obligation under the warranty shall not include any transportation charges or costs or installa-
tionor any liabilityfor direct, indirector consequential damageor delay. Ifrequested by us,products
or parts for which a warranty claim is made are to be returned transportation prepaid to our factory.
Any improper use, operation beyond rated capacity, substitution of parts not approved by us, or any
alteration or repair by others in such manner as in our judgment affects the product materially and
adversely shall void this warranty. No employee or representative is authorized to change this
warranty in any way or grant any other warranty.
Wil-Rich reserves the right to make improvement changes on any of our products without notice.
When warranty limited or not applicable: Warranty on hoses, cylinders, hubs, spindles, engines,
valves, pumps or other trade accessories are limited to the warranties made by the respective
manufactures of these components. Rubber tires and tubes are warranted directly by the respec-
tive tire manufacturer only, and not by Wil-Rich.
Warranty does not apply to any machine or part which has been repaired or altered in any way so
as in the our judgment to affect its reliability, or which has been subject to misuse, negligence or
accident.
A Warranty Validation and Delivery Report Form must be filled out and received by Wil-Rich
to initiate the warranty coverage.
WARRANTY CLAIMS PROCEDURE
1. The warranty form must be returned toWil-Rich within fifteen (15) working days from the repair
date.
2. Parts returned to Wil-Rich without authorization will be refused. The parts must be retained at
the dealership for ninety (90) days after the claim has been filed. If the Service Department would
liketo inspectthe parts, apacking slip willbe mailed tothe dealer.The packing slipmust bereturned
with the parts. The parts must be returned prepaid within thirty (30) days of receiving authorization.
After the parts are inspected and warranty is verified, credit for the return freight will be issued to
the dealer.
3. Parts that will be scrapped at the dealership will be inspected by a Wil-Rich Sales Representa-
tive, District Sales Manager or Service Representative within the ninety (90) day retaining period.

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08
3
CONTENTS
MODIFICAMODIFICA
MODIFICAMODIFICA
MODIFICATIONSTIONS
TIONSTIONS
TIONS
It is the policy of Wil-Rich to improve its products
whenever possible and practical to do so. We reserve
the right to make changes, improvements and modifi-
cationsatanytime without incurringobligationtomake
such changes, improvements on any equipment sold
previously.
TRADEMARKSTRADEMARKS
TRADEMARKSTRADEMARKS
TRADEMARKS
Other product and company names mentioned herein
may be trademarks of their respective owners. The
use of these names are for reference only, Wil-Rich
uses the names only to aid in distinguishing different
setups of the Cultivator Bar.
Warranty ................................................ 2
To The Owner ........................................ 3
Assembly Information
24 Row - 22" Gang Placement........... 4-6
Components layout ........................... 8-9
Frame...........................................10-11
Lift Hydraulics ..................................... 12
Wing Fold Hydraulics ......................... 13
Lift Station ...................................... 14-15
Cultivator Gang Assembly ................. 16
Rolling Shields & Clean Out ......... 17-20
Safety Lights ....................................... 21
2-1/2" Hub & Spindle w/Tire ............... 22
Operation
General Information ............................ 23
Safety ..................................... 24-29
Safety Decal Locations ................. 30-31
Tire Pressure ...................................... 32
Row Crop Preparation ........................ 32
Tractor Preparation............................. 32
Leveling
Toolbar............................................ 32-33
Gang Adjustments .............................. 34
Shank Adjustment .............................. 34
Rolling Shields .................................... 35
Row Guide Clean Out ......................... 35
Hydraulics
Wing Fold Circuitry............................. 36
Lift Control Circuitry ........................... 37
Center Cylinder Operation ............ 38-39
Folding Procedure
Wing Fold Procedure .................... 40-41
Wing Unfold Procedure ................. 42-43
Lubrication ............................. 44-45
Itisthe responsibility of the usertoreadtheOperator's
Manual and comply with the safe and correct oper-
ating procedures as pertains to the operation, lubri-
cation and maintenance of the product according to
the information outlined in the Operator's Manual.
If this machine is used by an employee or is loaned
or rented, make certain that the operator(s), prior to
operating, is instructed in safe and proper use and
reviews and understands the Operator's Manual.
Theuser is responsibleforinspecting his/her machine
and for having parts repaired or replaced when con-
tinued use of this product would cause damage or
excessive wear to the other parts. The word NOTE
is used to convey information that is out of context
with the manual text; special information such as
specifications, techniques, reference information of
supplementary nature.
When in need of parts, always specify the model and
serial number. Write this number in the space pro-
vided. The serial number plate is on the left main
toolbar located on the left side of the lower 7x7.
TO THE OWNER

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08 4

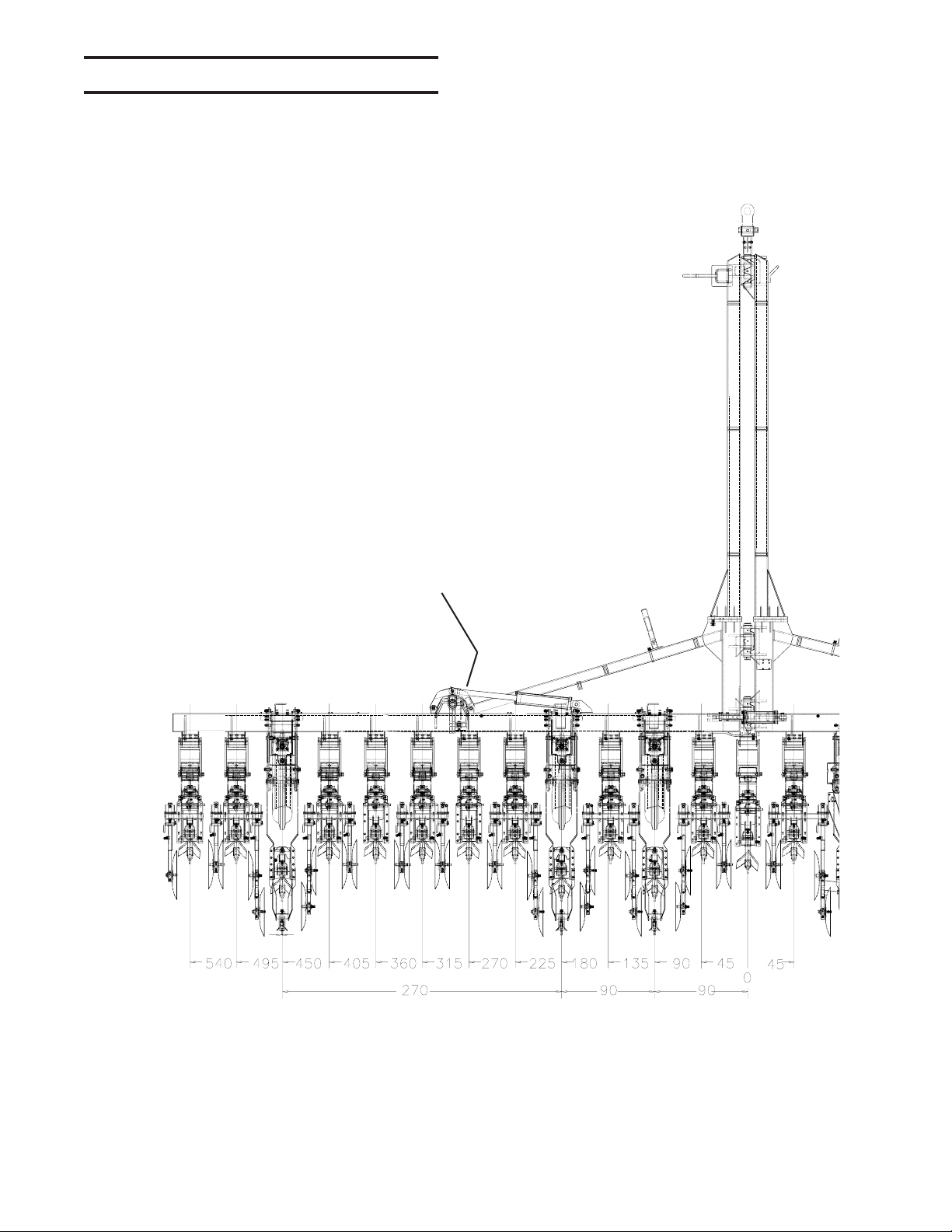

ASSEMBLY INFORMATION
24ROW24ROW
24ROW24ROW
24ROW-45cm SP-45cm SP
-45cm SP-45cm SP
-45cm SPACINGACING
ACINGACING
ACING
Note: 2 bar fold linkage must be
unpinned to install the 5/8 gang
mounting u-bolt, at this location
dimensions are in centimetersdimensions are in centimeters
dimensions are in centimetersdimensions are in centimeters
dimensions are in centimeters
(cm)(cm)
(cm)(cm)
(cm)
Gang PlacementGang Placement
Gang PlacementGang Placement
Gang Placement
(Left side shown, right(Left side shown, right
(Left side shown, right(Left side shown, right
(Left side shown, right
side same)side same)
side same)side same)
side same)

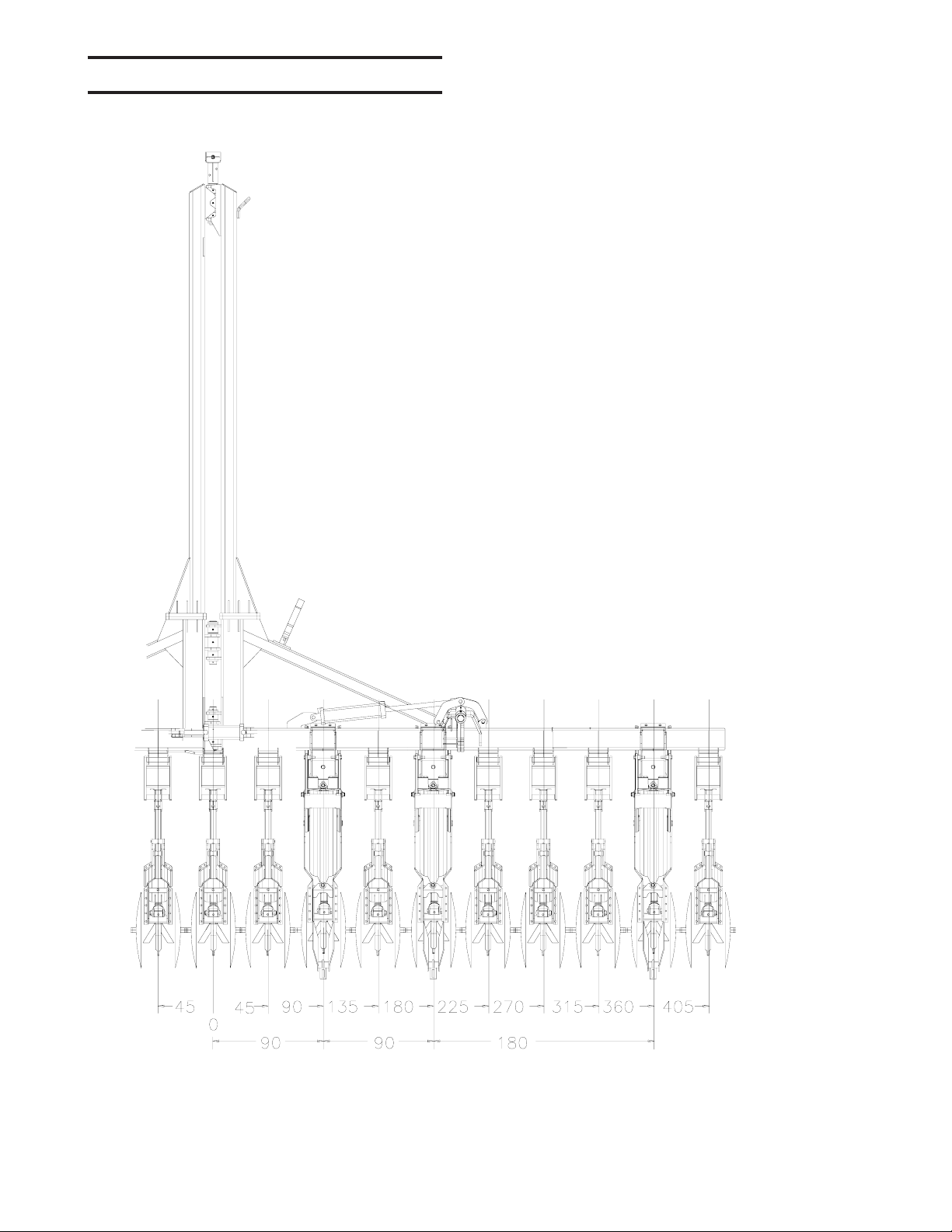

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08
5
24ROW24ROW
24ROW24ROW
24ROW-22" SP-22" SP
-22" SP-22" SP
-22" SPACINGACING
ACINGACING
ACING
dimensions are indimensions are in
dimensions are indimensions are in
dimensions are in
inches (")(in)inches (")(in)
inches (")(in)inches (")(in)
inches (")(in)
Note: 2 bar fold linkage must be
unpinned to install the 5/8 gang
mounting u-bolt, at this location
StandardAxleLocation
Alternate:
MonosemAxleLocation
(Right side shown, left(Right side shown, left
(Right side shown, left(Right side shown, left
(Right side shown, left
side same)side same)
side same)side same)
side same)

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08 6
dimensions are in centimeters (cm)dimensions are in centimeters (cm)
dimensions are in centimeters (cm)dimensions are in centimeters (cm)
dimensions are in centimeters (cm)
18ROW18ROW
18ROW18ROW
18ROW-45cm SP-45cm SP
-45cm SP-45cm SP
-45cm SPACINGACING
ACINGACING
ACING
ASSEMBLY INFORMATION
Gang PlacementGang Placement
Gang PlacementGang Placement
Gang Placement

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08
7

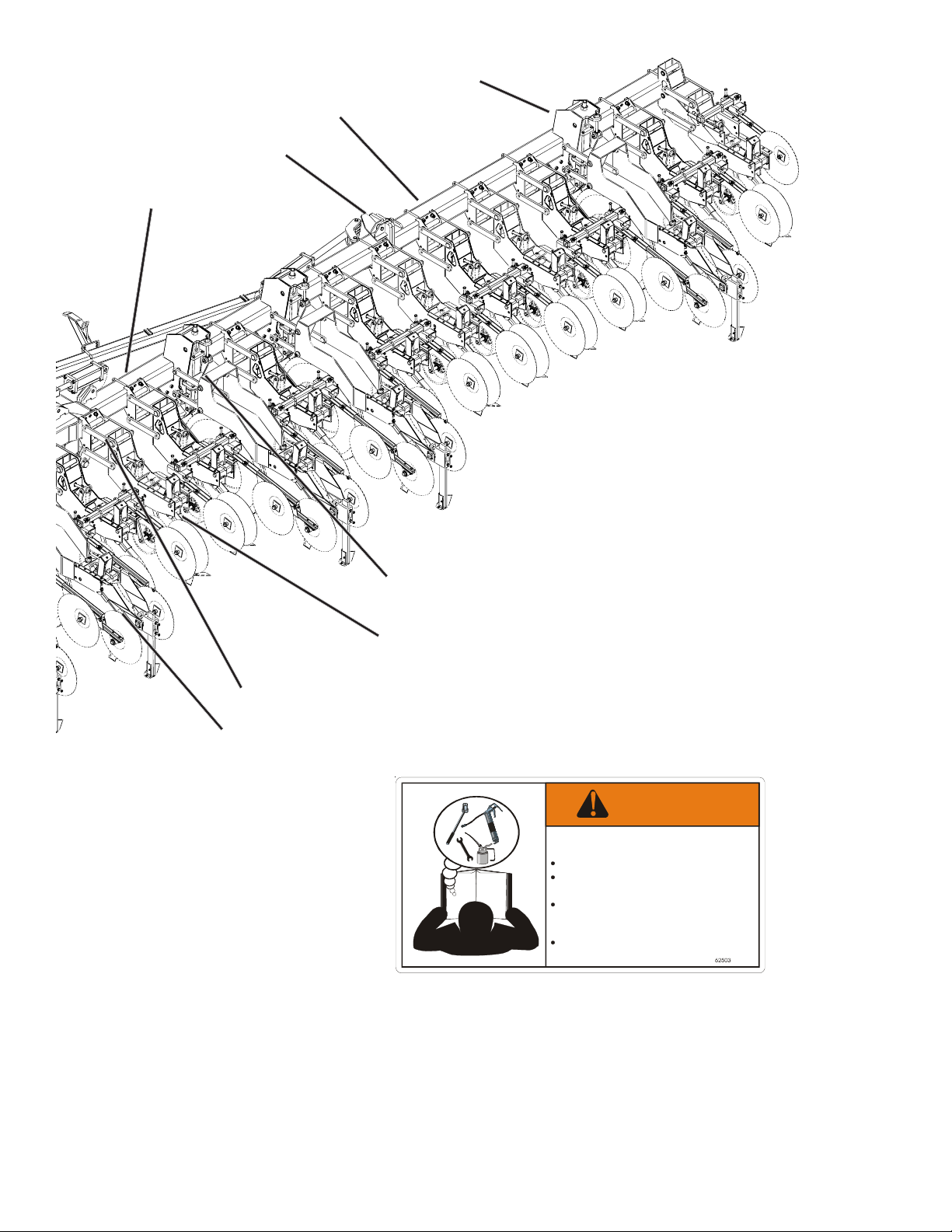

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08 8
RIGHTHITCHWELDMENT
LEFTHITCHWELDMENT
LIFTASSEMBLY(6)
LEFTWING
3-1/2x8LIFTCYLINDER
4x8TIEROD
CYLINDER
WINGREST
SAFETYCHAIN
FRONTTOOLBARPINASSY
HITCHASSEMBLY
CENTER
CYLINDER
LINK
SINGLEFOLDLINKAGE
DOUBLEFOLDLINKAGE
TOOLBAR
PINASSY
LEFT SIDE
4x16TIERODCYLINDER
ASSEMBLY INFORMATION
LEFTMAINTOOLBAR
POLEJACK
COMPONENT LACOMPONENT LA
COMPONENT LACOMPONENT LA
COMPONENT LAYY
YY
YOUTOUT
OUTOUT
OUT
BOLT-ONLIFT
STATION
LOCATION
PAGE14

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08
9
3-1/4x8LIFT
CYLINDER(BYPASS)
3-1/2x8LIFTCYLINDER(BYPASS)
RIGHTWING
RIGHT SIDE
WINGPINWELDMENT
7.5x20SLTIREASSEMBLY
2-1/2"HUB&SPINDLEASSY(12-5/8)
79160
RIGHTMAINTOOLBAR
WARNING
THINK!
Safety
First.
A
void unsafe operation or maintenance.
Make sure tractor engine is turned off
before performing maintenance.
Do not operate or work on this machine
without reading and understanding the
operator's manual.
If manual is lost, contact your nearest
dealer for a new manual.
To avoid Injury, Death or Machine
Damage:
GANGASSEMBLY
BOLT-ONLIFT
STATION
LOCATION
PAGE14

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08 10
ASSY HDWRASSY HDWR
ASSY HDWRASSY HDWR
ASSY HDWR
74279-374279-3
74279-374279-3
74279-3
88145
5/8NCx4x5-1/4U-BOLT
20KSAFETYCHAIN
67855
2-1/4x19FRONTPIN
89273
5/8NFLKNUT
222618
HITCHASSEMBLY
18236
CASTDUALHITCH
JACK
88145
5/8NCx5-1/4U-BOLT
88771
3/8x3ROLLPIN
69610
WINGREST
88430
1-1/4NCLKNUT
88447
1NCx3-1/2GR5
67853
2-1/4x13-1/4PIN
88349
1-1/4NCx6-1/2GR5
88857
5/8NFx4GR8
24157
1x3-15/16HITCHPIN
24212
1/4x2LYNCHPIN
239792
CENTERCYLINDER
ANCHOR(BLACK)
FRAME ASFRAME AS
FRAME ASFRAME AS
FRAME ASSEMBLSEMBL
SEMBLSEMBL
SEMBLYY
YY
Y
221714
1X4PIN
236172
HITCHDONUT

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08
11
88684
1-1/4NCHEAVYNUT 241044
3/4X3
FLATWASHER
67863
1x5-5/8
BOTTOMPIN
222689
1-1/4x5-5/8PIN
88771
3/8x3ROLLPIN
69006
2-1/4x19WINGPIN
221714
1x4PIN
241043
1-1/4NCx7
EYEBOLT
222692
2BARLINKAGE 222695
SINGLEBARLINKAGE
88371
7/8NCx9-1/2GR5
88774
5/8NCJAM NUT
42484
1/4x2-1/4
ROLLPIN
42472
1x2-3/8
CYLINDERPIN
239114
BOLT-ON
LIFT
STATION
88977
5/8NCx1-1/2SQ
HDSETSCREW
ASSY HDWRASSY HDWR
ASSY HDWRASSY HDWR
ASSY HDWR
74279-3B74279-3B
74279-3B74279-3B
74279-3B

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08 12
LIFT HYDRAULICSLIFT HYDRAULICS
LIFT HYDRAULICSLIFT HYDRAULICS
LIFT HYDRAULICS
14850
3/8x18HOSEFF
69082
1/4NPTx1/2NPTSTREETELBOW
222855
3/4ORB(M)x1/2NPT(F)
ADAPTER
69686
1/2NPTPILOTCHECK
VALVE
3/8x21HOSEFF (4)
237264
1/2x234HOSEFF
233689
3/8x180HOSEFF(22")
235386
3/8x137HOSEFF(22"MONOSEM)
235386
3/8x137HOSEFF(24R45CM)
235388
3/8x102HOSEFF(18R45CM)
56534
3/4JICx3/4ORBx3/4JICTEE
#237253
3-1/2x8ASAE
CYLINDER
#25659
3-1/4x8SEQ.CYLINDER
#25654
3-1/2x8SEQ.CYLINDER
69092
4x8TIERODCYLINDER
15910
3/4JICCROSS
24024
3/4ORBx3/4JIC
ADAPTER
(TYPICAL)
25602
3/8x65HOSEFF(24R22)
13265
3/8X56HOSEFF(24R45CM)
24004
3/4ORB(M)x3/4JIC
SWIVEL(F)
222120
BALLVALVE
24024
3/4ORB(M)X3/4JIC(M)
ADAPTER
13234
1/2NPTx3/4JIC
ADAPTER
60640
QUICK
DISCONNECT
54902
MAINUPDECAL
54903
MAINDOWN
DECAL
3/8x180 HOSE FF(22")
3/8x156HOSEFF(45CM)
13483
3/8x120HOSEFF(22")
235388
3/8x102HOSEFF(45CM)
88997
1/4NCX1-3/4HEXBOLT
B112492
COVERPLATE
B112479
1/2"HALF CLAMP
B112498
TWINNUTPLATE
221443
NUTPLATE
220645
3/8TWIN
HALFCLAMP
221445
COVERPLATE
88479
5/16NCX1-1/2HEXBOLT 88498
5/16NCX
2-3/4U-BOLT
13261
3/8x30HOSEFF
234939
3/8x220HOSEFF(22")
233689
3/8x180HOSEFF(22"MONOSEM)
235387
3/8x168HOSEFF(24R45CM)
235386
3/8x137HOSEFF(18R45CM)
#223924
3-1/4x8SEQ.CYLINDER
#223925
3-1/2x8SEQ.CYLINDER
#237254
3-1/2x8ASAE
CYLINDER
13234
3/4JICx1/2NPTADAPTER
ASSY HDWRASSY HDWR
ASSY HDWRASSY HDWR
ASSY HDWR
74279-674279-6
74279-674279-6
74279-6

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08
13
25580
3/4JICx9/16JIC(M)
ELBOW
237263
1/4X234HOSEFF
64346
9/16JICTEE
3/4ORBx3/4JIC
RESTRICTOR
(.025DIAMETER)
51200
4X16HYDRAULIC
CYLINDER
58690
1/2NPTx9/16JICADAPTER
60640
QUICKDISCONNECT
54901
WINGUPDECAL
54900
WINGDOWNDECAL
235395
1/4x116HOSEFF(24R22)
63791
1/4x96HOSFF(24R45CM)
58536
1/4x60HOSEFF(18R45CM)
40215
3/4ORBx
9/16JIC(M)ELBOW
88479
5/16NCX1-1/2
HEXBOLT
221445
COVERPLATE
221444
1/4TWIN HALF
CLAMP
221443
NUTPLATE 88479
5/16NCX1-1/2HEXBOLT
221445
COVERPLATE
221444
1/4TWIN HALF
CLAMP
221443
NUTPLATE
WING FOLD HYDRAULICSWING FOLD HYDRAULICS
WING FOLD HYDRAULICSWING FOLD HYDRAULICS
WING FOLD HYDRAULICS
ASSY HDWRASSY HDWR
ASSY HDWRASSY HDWR
ASSY HDWR
74279-574279-5
74279-574279-5
74279-5

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08 14
ASSY HDWR 74279-4ASSY HDWR 74279-4 ASSY HDWR 74279-4ASSY HDWR 74279-4

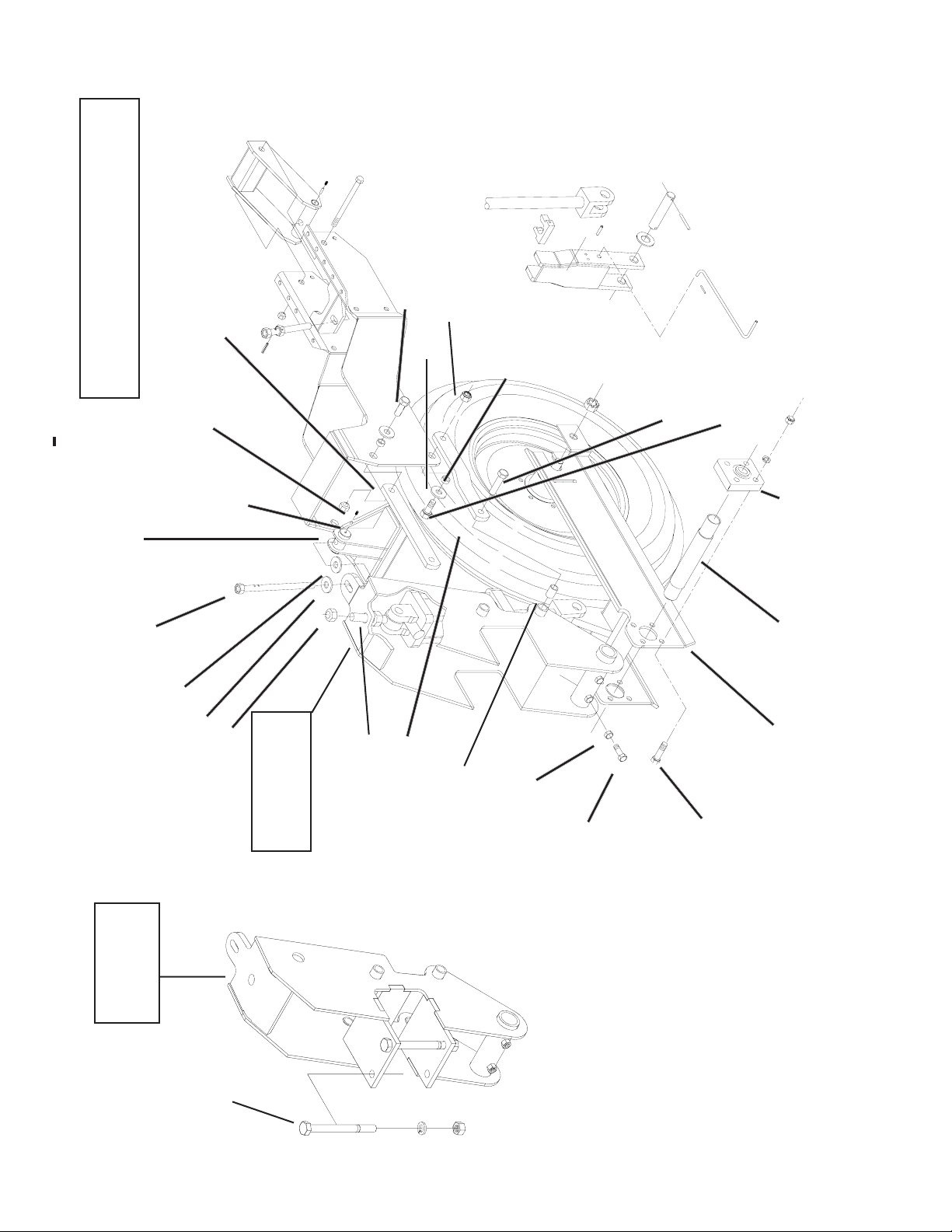

ASSY HDWR 74279-4
64021 TRUNNION-INNER
69550 H-LINK WELDMENT
234594 AXLE SPINDLE
239104OFFSETBAR
234546 STRUT WELDMENT
79161
223955 4HOLE BEARING 1-1/2DIA
88291 3/4NCx3GR5 BOLT
88604 3/4NCx2GR5 BOLT
886043/4NCx2GR5BOLT
220460 BUSHING (.760x1x.5)
885483/4 SAEFLATWASHER
886221-1/4NCJAMNUT
64085 SHORT PLASTIC ROD
88706 5/16NCSET SCREW
881313/4 FLATWASHER
88774 5/8NCJAM NUT
88977 5/8NCSQHD SETSCREW
88294 5/8NCX2 HEXBOLT
64025 BOLTWLDMT(10.6)
220459 BUSHING (.760x1x1.44)
881313/4 FLATWASHER
88611 3/4NCNYLOCKNUT
WINGFRAME
BOLT-ON
LIFTSTATION
89094 7/8NCx9-1/2GR5 BOLT
CENTERFRAME WELD-ON LIFTSTATION
LIFLIF
LIFLIF
LIFT STT ST
T STT ST
T STAA
AA
ATIONTION
TIONTION
TION
69567CYLADJROD

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08
15
2-1/2"HUB&SPINDLEASSY (SEEPAGE22)
7.50x20SINGLERIB(12PLY)TIRE
222335 PLASTICSNAP
LIFLIF
LIFLIF
LIFT STT ST
T STT ST
T STAA
AA
ATIONTION
TIONTION
TION
79161
42484 1/4x2-1/4ROLLPIN
222338 1X4-7/8PIN
89018 1/8X 1 ROLLPIN
234633PULLROD3/8X15
222332 RCCTRANSPORTLOCK
64018 PIVOT BRACKET
234311 BOLTWELDMENT(6.84)
235496 RCCSOLIDMOUNTWELDMENT
88611 3/4NCLOCKNUT
NOTE: DO NOT USE ROLL PINS IN THIS LOCATION, SHANK MUST BE ABLE TO LIFT.
88648 1/4x1-1/4ROLLPIN
64084 LONGPLASTICROD
88706 5/16NCSETSCREW
88478 3/4NCx8-1/2GR5BOLT
(NOTE: INITIALLY SET IN THE CENTER OF THE THREAD AD- JUSTMENT. LOCK SETTING WITH 1-1/4NC JAM NUTS)
NOTE: RCC TRANS- PORT LOCK MUST REST ON THIS TUBE WHEN COMPLETELY DISENGAGED.
64085 3/4ACME NUT
89078 3/16X1-3/4 ROLLPIN
88196 1FLATWASHER
ASSY HDWR 74279-2ASSY HDWR 74279-2 ASSY HDWR 74279-2ASSY HDWR 74279-2
ASSY HDWR 74279-2
ASSY HDWR 74279-4ASSY HDWR 74279-4 ASSY HDWR 74279-4ASSY HDWR 74279-4
ASSY HDWR 74279-4

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08 16
CULCUL
CULCUL
CULTIVTIV
TIVTIV
TIVAA
AA
ATOR GANG ASTOR GANG AS
TOR GANG ASTOR GANG AS
TOR GANG ASSEMBLSEMBL
SEMBLSEMBL
SEMBLYY
YY
Y
89351
5/8NCx7x8-1/2U-BOLT
(2 PERGANG) 885425/8x1-1/4OD
MACHBSHG
(QTY4ONCTRGANG
ONLY)
237185
MOUNTING
BRACKET
64007
"H"WELD
BRACKET
64086
3/4NCx9-3/4
CARRIAGE
BOLT
64088
3/4FLANGED
BUSHING
883563/4NC
LOCKNUT
64021
INNER
TRUNION
234662
3/4x7ACMEBOLT
237184
GANGFRAME
88611
3/4NC NYLON
LOCKNUT
3/4NCx8GR5
88126
5/8NCNUT
88553
3/8NCx1-1/2
GR5
242505
GAUGEARM-LH
234249
3/4ACMENUT
88295
5/8NCx6GR5
237074
3/4x6ACMEBOLT
W/ FLATWASHER
88277
5/8FLAT
WASHER
242509
DUSTCAP
242504
GAUGEARM-RH
88129
5/8LOCKWASHER
23093
SUPPORT
WASHER
64217
GAUGEWHEEL
6x12
242512
HUB
ASSY
64081
1ODx2.44SPACER
88477
5/8NCx10GR5
64083
CROSSBRACE
64019
TRUNION
64081
1ODx2.44
SPACER
89078
3/16x1-3/4
ROLLPIN
1.06ODx1.69SPACER
882945/8NCx2BOLT
(QTY4ONCTRGANGONLY)
5/8BORE
BALL BEARING
240941
1ODx1.44
BUSHING
88706
5/16NC
SETSCREW
64084
3/16x2-1/4
PLASTICROD
88706
5/16NC
SETSCREW
64085
3/16x3/4
PLASTICROD
234656
SHANKPIVOT
BRACKET
242509
DUSTCAP
3/4ACMENUT
89078
3/16x1-3/4
ROLLPIN
3-1/4"
REF
ASSY HDWRASSY HDWR
ASSY HDWRASSY HDWR
ASSY HDWR
74279-174279-1
74279-174279-1
74279-1

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08
17
88507
1/2NCx3-1/2
PIVOT
BRACKET
1/2NC
LOCK
NUT
23039
.14x2.69
HAIRPIN
88595
1/2NCx4
64351
ROLLING
SHIELDPIN
88475
1/2NCx1-1/2
88561
1/2NCJAM NUT
64119
UPPERTUBE
66942
LOWERTUBE
88581
3/8NCx2-1/4
67102
24"ROLLING
SHIELD
64082
1ODx.64ID
x3/4LGSPACER
5/8LOCKWASHER
88126
5/8NCNUT
3/8NCNUT
3/8LOCKWASHER
66947
BEARINGASSEMBLY
88633
5/8NCx5-1/2
64114
SUPPORTPLATE
NOTE: 5/8 BOLT MUST BE
ASSEMBLED FROM THIS
SIDE TO PREVENT NUT
FROM LOOSENING.
ROLLING SHIELD - SHORTROLLING SHIELD - SHORT
ROLLING SHIELD - SHORTROLLING SHIELD - SHORT
ROLLING SHIELD - SHORT
64082
1ODx.64ID
x3/4LGSPACER
ROLLING SHIELD - SHORTROLLING SHIELD - SHORT
ROLLING SHIELD - SHORTROLLING SHIELD - SHORT
ROLLING SHIELD - SHORT
ASSY HDWRASSY HDWR
ASSY HDWRASSY HDWR
ASSY HDWR
74279-774279-7
74279-774279-7
74279-7

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08 18
88507
1/2NCx3-1/2
64027
PIVOT
BRACKET
88363
1/2NCLOCKNUT
.14x2.69
HAIRPIN
88595
1/2NCx4
64351
ROLLING
SHIELDPIN
1/2NCx1-1/2
1/2NCJAM NUT
64119
UPPERTUBE
88581
3/8NCx2-1/4
67102
24"ROLLING
SHIELD
64082
1ODx.64IDx3/4LG
SPACER
5/8LOCKWASHER
5/8NCNUT
3/8NCNUT
3/8LOCKWASHER
66947
BEARINGASSEMBLY
88381
5/8NCx4-1/2 236010
WALKINGWELDMENT
64114
SUPPORTPLATE

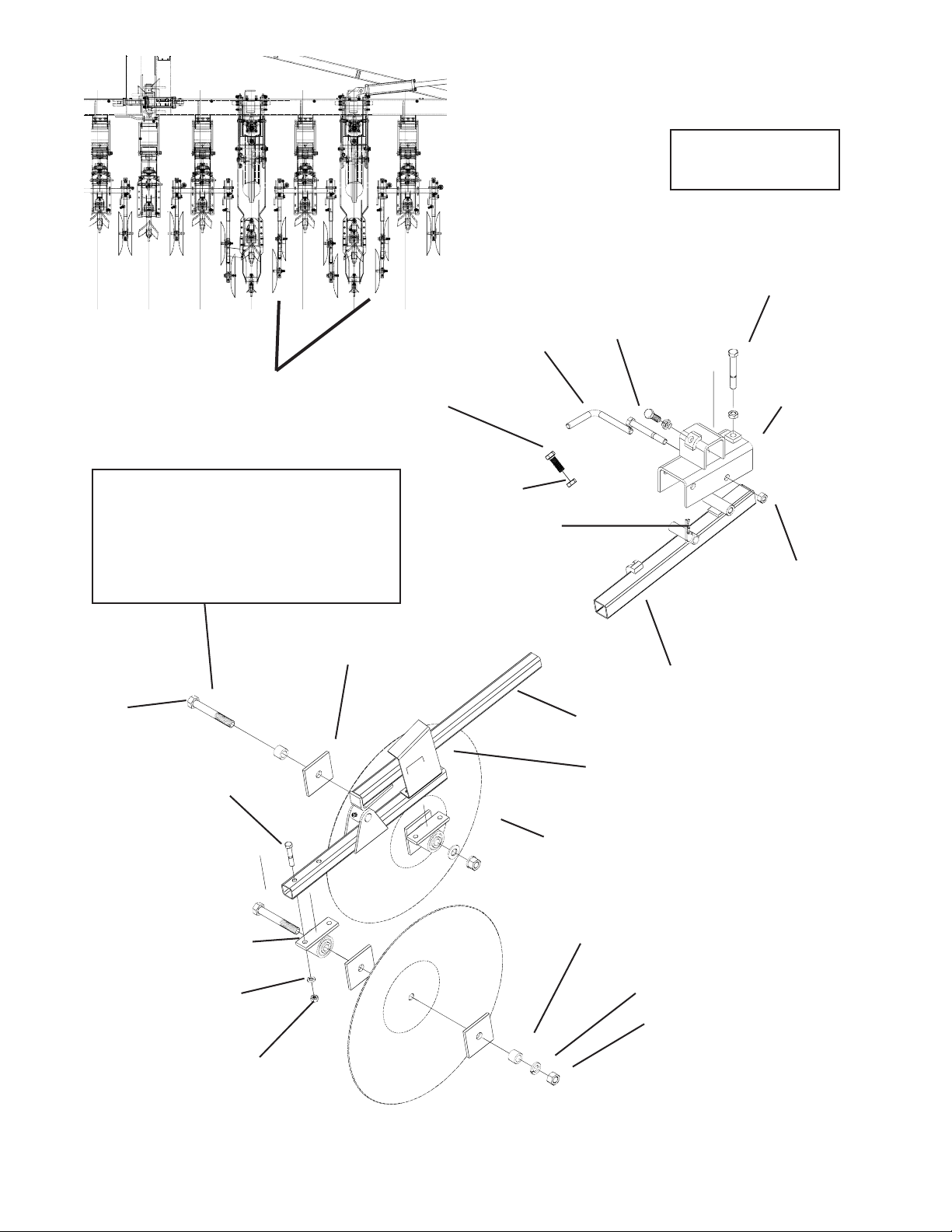

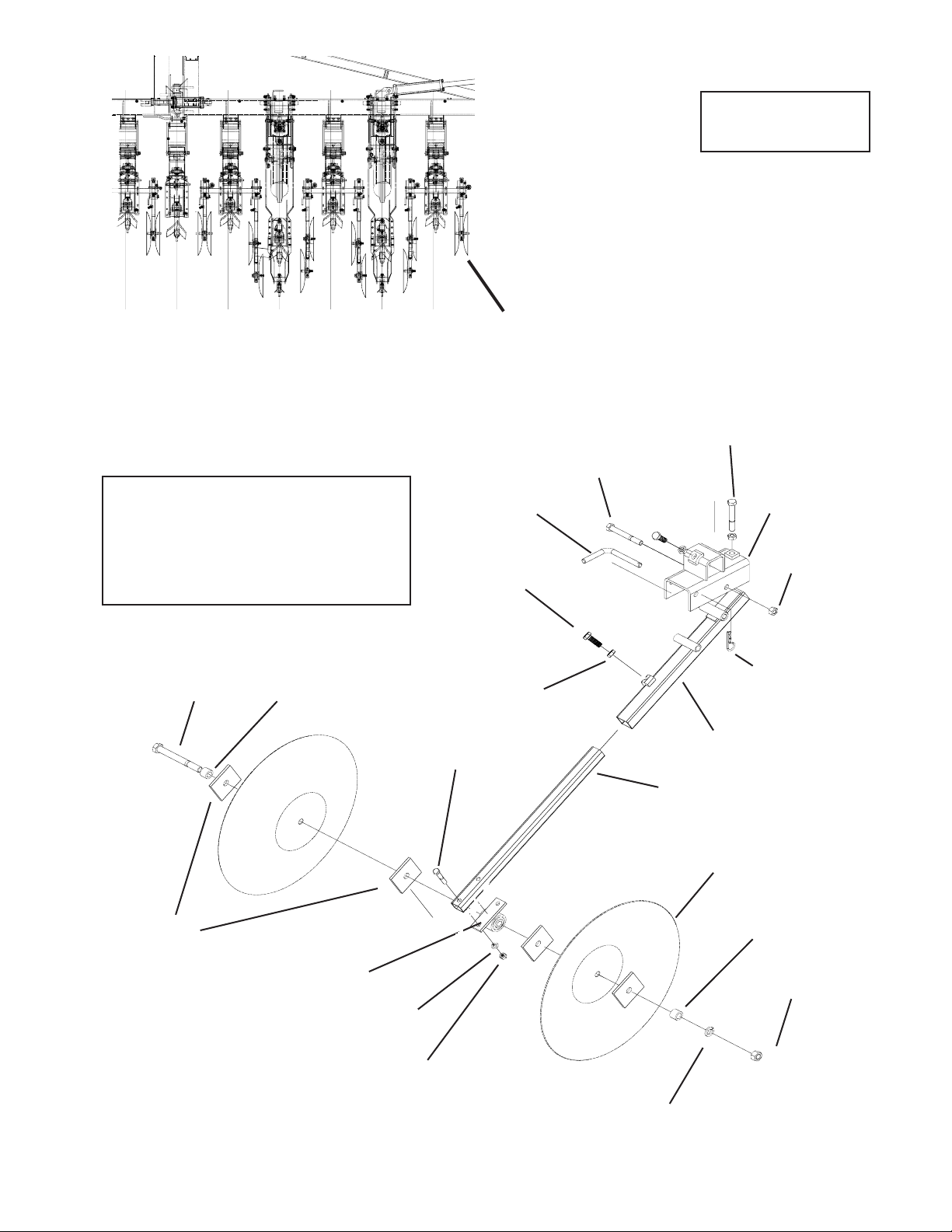

ROLLING SHIELD -ROLLING SHIELD -
ROLLING SHIELD -ROLLING SHIELD -
ROLLING SHIELD -
LL
LL
LONG RIGHTONG RIGHT
ONG RIGHTONG RIGHT
ONG RIGHT
239103
WALKERSTOP
NOTE: 5/8 BOLT MUST BE
ASSEMBLED FROM THIS
SIDE TO PREVENT NUT
FROM LOOSENING.
ROLLING SHIELD -ROLLING SHIELD -
ROLLING SHIELD -ROLLING SHIELD -
ROLLING SHIELD -
LL
LL
L
ONG RIGHTONG RIGHT
ONG RIGHTONG RIGHT
ONG RIGHT
ASSY HDWRASSY HDWR
ASSY HDWRASSY HDWR
ASSY HDWR
74279-874279-8
74279-874279-8
74279-8

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08
19
88507
1/2NCx3-1/2
64027
PIVOT
BRACKET
88363
1/2NC
LOCK
NUT
23039
.14x2.69
HAIRPIN
88595
1/2NCx4
64351
ROLLING
SHIELDPIN
88475
1/2NCx1-1/2
88561
1/2NCJAM NUT
64119
UPPERTUBE
88581
3/8NCx2-1/4
67102
24"ROLLING
SHIELD
64082
1ODx.64ID
x3/4LGSPACER
88277
5/8FLAT
WASHER 5/8LOCK
WASHER
5/8NCNUT
3/8NCNUT
3/8LOCKWASHER
66947
BEARINGASSEMBLY
88381
5/8NCx4-1/2
239010WALKINGWELDMENT
64114
SUPPORTPLATE
ROLLING SHIELD -ROLLING SHIELD -
ROLLING SHIELD -ROLLING SHIELD -
ROLLING SHIELD -
LL
LL
LONG LEFONG LEF
ONG LEFONG LEF
ONG LEFTT
TT
T
239103
WALKERSTOP
NOTE: 5/8 BOLT MUST BE
ASSEMBLED FROM THIS
SIDE TO PREVENT NUT
FROM LOOSENING.
ROLLING SHIELD -ROLLING SHIELD -
ROLLING SHIELD -ROLLING SHIELD -
ROLLING SHIELD -
LL
LL
LONG LEFONG LEF
ONG LEFONG LEF
ONG LEFTT
TT
T
ASSY HDWRASSY HDWR
ASSY HDWRASSY HDWR
ASSY HDWR
74279-974279-9
74279-974279-9
74279-9

WIL-RICH ASSEMBLY/OPERATOR'S MANUAL 74279 2/08 20

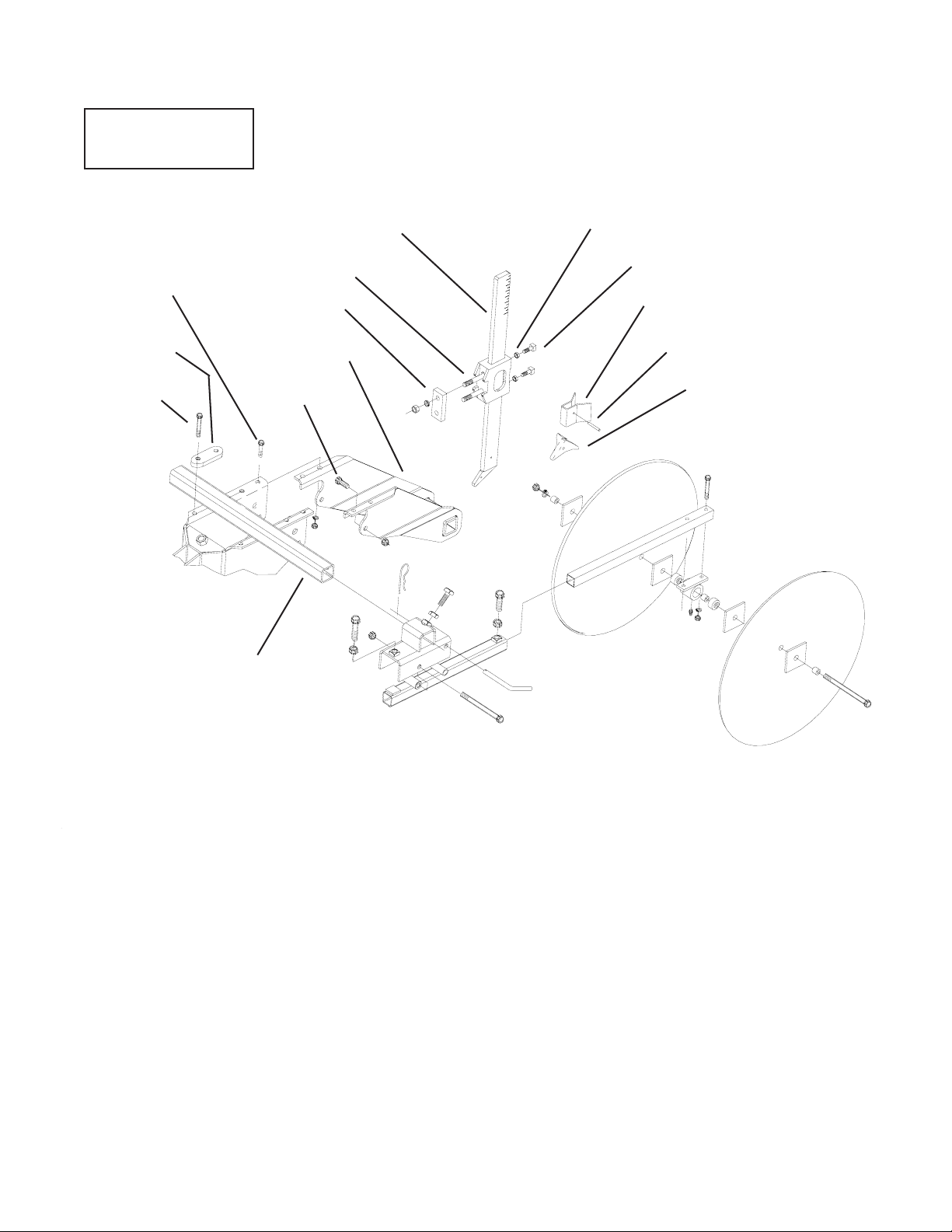

ROLLING SHIELD & CLEAN OUT MOUNTROLLING SHIELD & CLEAN OUT MOUNT
ROLLING SHIELD & CLEAN OUT MOUNTROLLING SHIELD & CLEAN OUT MOUNT
ROLLING SHIELD & CLEAN OUT MOUNT
CLEANOUTSHANKWELDMENT
1/4DIAx1-1/4ROLLPIN
1/2NCx1-1/2SQHDBOLT
1/2NCJAM NUT
1/2NCx3-1/2BOLT
CROSSTUBE
1/2NCx1GR5BOLT
3/8NCx1GR5BOLT
STRAP
5/8NCx4GR5BOLT
CASTCLAMPGREY
DROPDOWN
BRACKET
CLEANOUTWING
DUTCHHOE
2HOLEPLATE
3/8NCx1GR5BOLT
ASSY HDWRASSY HDWR
ASSY HDWRASSY HDWR
ASSY HDWR
74279-1074279-10
74279-1074279-10
74279-10
