WIL-RICH 456654 User manual

Printed in USA (74258) 12/05
DISK CULTIVATOR
OPERATOR'S MANUAL
WIL-RICH
PO Box 1030
Wahpeton, ND 58074
PH [phone]
Fax [phone]
WWW.WIL-RICH.COM
Serial # 456654 and up

WARRANTY
The only warranty Wil-Rich gives and the only warranty the dealer is authorized to give is
as follows:
We warrant products sold by us to be in accordance with our published specifications or
those specifications agreed to by us in writing at time of sale. Our obligation and liability
under this warranty is expressly limited to repairing, or replacing, at our option, within 12
months after date of retail delivery, any product not meeting the specifications. We make
no other warranty, express or implied and make no warranty of merchantability or
of fitness for any particular purpose. Ourobligationunderthewarrantyshallnotinclude
any transportation charges or costs or installation or any liability for direct, indirect or
consequential damage or delay. If requested by us, products or parts for which a warranty
claim is made are to be returned transportation prepaid to our factory.Any improper use,
operationbeyondratedcapacity,substitutionofpartsnotapprovedbyus,oranyalteration
or repair by others in such manner as in our judgment affects the product materially and
adversely shall void this warranty. No employee or representative is authorized to
change this warranty in any way or grant any other warranty.
Wil-Rich reserves the right to make improvement changes on any of our products without
notice.
When warranty limited or not applicable:Warranty on hoses, cylinders, hubs, spindles,
engines, valves, pumps or other trade accessories are limited to the warranties made by
the respective manufactures of these components. Rubber tires and tubes are warranted
directly by the respective tire manufacturer only, and not by Wil-Rich.
Warranty does not apply to any machine or part which has been repaired or altered in any
way so as in the our judgment to affect its reliability, or which has been subject to misuse,
negligence or accident.
A Warranty Validation and Delivery Report Form must be filled out and received by
Wil-Rich to initiate the warranty coverage.
WARRANTYCLAIMS PROCEDURE
1. The warranty form must be returned to Wil-Rich within fifteen (15) working days from
the repair date.
2. Parts returned to Wil-Rich without authorization will be refused. The parts must be
retained at the dealership for ninety (90) days after the claim has been filed. If the Service
Department would like to inspect the parts, a packing slip will be mailed to the dealer.The
packing slip must be returned with the parts. The parts must be returned prepaid within
thirty (30) days of receiving authorization. After the parts are inspected and warranty is
verified, credit for the return freight will be issued to the dealer.
3. Parts that will be scrapped at the dealership will be inspected by a Wil-Rich Sales
Representative, District Sales Manager or Service Representative within the ninety (90)
day retaining period.

DEPTH CONTROL CIRCUITRY ...... 20-26
PRELIMINARYSETTINGS ................. 20
MAIN FRAME LEVELING
FRONT TO REAR .......................... 20-21
WING LEVELING
Front to Rear & Side to Side ........ 21-22
Single Point Depth Control .......... 22-23
FIELD SETTINGS .......................... 23-24
DEPTH GAUGE .................................. 25
SHANK SPRING ADJUSTMENT ... 25-26
MAINTENANCE ............................... 26-28
CYLINDER SHAFTS ...................... 26-27
AXLE CAPS ........................................ 27
HUB AND SPINDLE ASSEMBLIES .... 27
WALKING TANDEM ASSEMBLIES .... 27
HYDRAULICS ..................................... 27
GANG BEARINGS.............................. 27
DISK BLADE....................................... 28
STORAGE........................................... 28
OPTIONALATTACHMENTS............. 29
SHOVELS ........................................... 29
SHOVEL EXTENSION....................... 29
GENERAL........................................ 30-31
DECALS.............................................. 30
TROUBLE SHOOTING .............................31
CONTENTS
TO THE OWNER ................................ 4
SERIAL NUMBER BREAK ................... 4
MODIFICATIONS .................................. 4
PREPARATION ..................................... 4
GENERALINFORMATION ................. 5
FASTENERS ......................................... 5
TIRE INFLATION................................... 5
WHEEL BOLTS ..................................... 5
LUBRICATION ...................................... 5
HYDRAULICS ....................................... 5
TRACTOR REQUIREMENTS ............. 6
WHEELS AND TIRES ........................... 6
METERING VALVES ............................. 6
FRONT BALLAST ................................ 6
TRANSPORTING .................................. 6
BEARINGASSEMBLIES ...................... 6
SAFETY ........................................... 7-13
PERSONAL SAFETY............................ 7
INFORMATION...................................... 8
GENERAL SAFETY INFORMATION .... 8
HYDRAULIC SAFETY .......................... 9
STORAGE SAFETY.............................. 9
TIRE SAFETY ....................................... 9
TRANSPORT SAFETY ....................... 10
SMV..................................................... 10
SAFETY CHAINS................................ 11
SAFETY DECALS............................... 11
SAFETY DECAL PLACEMENT ..... 12-13
SIGN-OFF FORM.............................. 14
4’ WING REST .................................. 15
7’ WING REST .................................. 16
10’ WING REST ................................ 17
MF DEPTH ADJUSTMENTS ............ 18
WING DEPTH ADJUSTMENTS........ 19

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05 4
TO THE OWNER
THIS SYMBOL USED TO CALL YOUR
ATTENTION TO INSTRUCTIONS
CONCERNING YOUR PERSONAL SAFETY.
BE SURE TO OBSERVE AND FOLLOW
THESE INSTRUCTIONS
It is the responsibility of the user to read the
Operator's Manual and comply with the safe
andcorrect operatingprocedures as pertains
tothe operation,lubrication andmaintenance
of the product according to the information
outlined in the Operator's Manual.
If this machine is used by an employee or is
loaned or rented, make certain that the
operator(s), prior to operating, is instructed
in safe and proper use and reviews and
understands the Operator's Manual.
Theuser is responsible forinspecting his/her
machine and for having parts repaired or
replaced when continued use of this product
would cause damage or excessive wear to
the other parts. The word NOTE is used to
convey information that is out of context with
the manual text; special information such as
specifications, techniques, reference
information of supplementary nature.
SERIAL NUMBER BREAK
Everyimplement hasa serialnumberlocated
on the forward left corner of the main frame.
These serial numbers are consecutively
assigned to the implements as they are
manufactured. To aid in part ordering, we
reference the serial number at the point the
change occurred to provide an accurate
means of determining the proper parts.
When in need of parts, always specifiy the
model and serial number. Write this number
in the space provided.
MODIFICATIONS
It is the policy of WIL-RICH to improve its
products whenever possible and practical to
doso. Wereservethe rightto makechanges,
improvements and modifications at any time
without incurring obligation to make such
changes, improvements on any equipment
sold previously.
PREPARATION
Before operating the WIL-RICH Disk
Cultivator, a careful inspection must become
routine. A check must be made to ensure
that all hardware and fasteners are securely
tightened and moving parts properly
lubricated.
Remove all wires and/or banding material.
The parts have been conveniently arranged
on the pallet for ease of assembly.
NOTE: Always wear safety glasses or
goggles and be careful when cutting wires
and steel bands as they are under tension
and will spring back when cut.
Wherever the terms "left" and "right" are
used, it must be understood to mean from a
position behind and facing the machine.
Lubricate all bearings and moving parts as
youproceed and make suretheywork freely.
FASTENERS
Loosely install all bolts connecting mating

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05
5
49165.EPS
GENERAL INFORMATION
Before lowering the wings
for the first time, make sure
the entire system has been
charged with oil.
With wings down always
install hydraulic cylinder
channel lock(s) for
transporting.
Just before and during
operation be sure no one is
on or around the
implement.
Before activating the
hydraulic system, check
hoses for proper
connections.
FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT
IN PERSONAL INJURY AND/OR
EQUIPMENT DAMAGE.
CAUTION
49165
GRADE 2 GRADE 5 GRADE 8
TORQUE IN FOOT POUNDS
BOLT DIA 3/8 1/2 5/8 3/4 7/8 1
HEX HEAD 9/16 3/4 15/16 1-1/8 1-5/16 1-1/2
UNC GR2 18 45 89 160 252 320
UNC GR5 30 68 140 240 360 544
UNC GR8 40 100 196 340 528 792
UNF GR2 21 51 102 178 272 368
UNF GR5 32 70 168 264 392 572
UNF GR8 48 112 216 368 792 840
TORQUE.EPS
WHEEL BOLTS
It is recommended that all wheel bolts be
checkedfor tightness beforeusing and again
after one day of use. Check periodically to
be sure the wheel bolts are tight.
LUBRICATION
Make sure the disk cultivator is properly
lubricated.
HYDRAULICS
Check wing lift and depth control cylinders
for proper alignment and operation. On any
machine,checkthat thehydraulic systemhas
been properly charged and purged.
When tightening bolts, they must be torqued
to the proper number of foot-pounds as
indicated in the table unless specified. It is
important that all bolts be kept tight.
On new machines, all nuts and bolts must
be rechecked after a few hours of operation.
When replacing a bolt, use only a bolt of the
same grade or higher. Except in shear bolt
applications, where you must use the same
grade bolt.
Bolts with no markings are grade 2
Grade5 boltsfurnished with the machineare
identified by three radial lines on the head.
Grade8 boltsfurnished with the machineare
identified by six radial lines on the head.
All U-bolts are grade 5.
TIRE INFLATION
The use of proper air pressure is the most
important factor in satisfactory performance
and maintenance of implement tire.
Underinflation will damage the cord body of
thetire andcause aseries ofdiagonalbreaks
in the fabric sidewall area.
Ifthe tirebuckles or wrinkles,the air pressure
must be increased to the point where the
sidwall remains smooth while operating.
Check the air pressure every two or three
weeks and do not allow the pressure to drop
to a point where buckling or wrinkling of the
tire may be possible.
Note: Do not inflate tires beyond the
specified tire pressure.
parts before final tightening.

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05 6
TRACTOR REQUIREMENTS
TRANSPORTING
ASMV (Slow Moving Vehicle) emblem must
be used at all times while traveling on public
roads.
The implement must always be placed in
transport position and the cylinder channel
locks used when traveling on public roads.
Never depend on your tractor’s hydraulic
systemto carrythe weight whiletransporting.
Note: Use extreme caution when
working around overhead power
transmission lines.
Note: Always install lock channels
in the main lift cylinders for road
transport.
Reduce speed when cornering and when
traveling over rough and/or uneven ground.
Drive at a reasonable speed to maintain
complete control of the machine at all times.
Comply with your state and local laws
governing highway safety when moving
machinery on a highway.
BEARING ASSEMBLIES
IMPORTANT: The spindle nuts on
the wheel assemblies are preset at
the factory.
Roadtransport and field workingwill seat the
bearings and will require additional
adjustment. After 20 hours of machine
operation remove the grease cap and check
the bearing tightness.
Removethecotterpin androtatethetirewhile
tightening the spindle nut. Tighten until the
drag on the tire stops the rotation. Locate
the cotter pin hole in the spindle and loosen
the spindle nut just enough to allow insertion
of the cotter pin. Replace cotter pin and
grease cap.
The WIL-RICH Disk Cultivator requires
approximately 10 to 12 horsepower per foot.
Three remote cylinder outlets and controls
are required. Best results will be achieved
whenoperatingspeed of6 to8 milesper hour
is maintained.
WHEELS AND TIRES
Dual tractor rear wheels are recommended
for use with the Disk Cultivator. See your
tractors operator’s manual for tire inflation
and instructions for wheel ballast where
required.
METERING VALVES
The metering valve may be set to provide
varying amounts of hydraulic oil flow to the
cylinders (see your tractor operator’s
manual.)
It is recommended the wing lift cylinders run
as slow as possible to prevent damage to
the implement, persons and property. Turn
wing lift hydraulics metering values to slow
position.
FRONT BALLAST
Tractorfrontend stabilityis necessaryforsafe
and efficient operation. Therefore, it is
important that the proper amount of weight
be installed on the front of the tractor as
recommended in your tractor operator’s
manual.
Note: Ballast recommendations
provide for adequate transport
stability at recommended speeds.
Additional front ballast may be
required for satisfactory field
operation due to sudden or extreme
forces on the Disk Cultivator. These
forces may occur when removing
the Disk Cultivator from the ground
and turning at rows end, or during
field transport over very rough
ground.
!
!

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05
7
ALL PERSONNEL INVOLVED WITH THE ASSEMBLY AND/OR OPERATION
OF THIS EQUIPMENT MUST BE INFORMED OF PROPER SAFETY
PROCEDURES. OPERATOR’S/ASSEMBLY MANUALS PROVIDE THE
NECESSARY INFORMATION. IF THE MANUAL IS LOST FOR A PARTICULAR
IMPLEMENT, ORDER A REPLACEMENT AT ONCE. OPERATOR’S AND
ASSEMBLY MANUALS ARE AVAILABLE AT NO CHARGE UPON REQUEST.
PERSONAL SAFETY IS IMPORTANT!
ADDRESS INQUIRIES TO:
WIL-RICH
PO BOX 1030
WAHPETON, ND 58074
PH [phone] FAX [phone]
This Safety Alert symbol
means ATTENTION!
BECOME ALERT YOUR
SAFETY IS INVOLVED!
The Safety Alert symbol
identifies important safety
messages on the Wil-Rich
Disk Cultivator and in this
manual. When you see this
symbol, be alert to the
possibilityofpersonal injuryor
death. Followthe instructions
in the safety message.
Why is SAFETY important to you?
3 Big Reasons Accidents Disable and Kill
Accidents Cost
Accidents Can Be Avoided
SIGNAL WORDS:
Note the use of the signal
words DANGER, WARNING
andCAUTION withthe safety
messages. The appropriate
signalwordforeachmessage
has been selected using the
followingguidelines:
DANGER
An immediate and
specific hazard which
WILL result in severe
personal injury or death
if the proper precautions
are not taken.
WARNING
A specific hazard or
unsafe practice which
COULD result in severe
personal injury or death
if the proper precautions
are not taken
CAUTION
Unsafe practices which
COULD result in
personal injury if proper
practices are not taken,
or as a reminder of good
safety practices.

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05 8
SAFETY An untrained operator exposes themselves
and bystanders to possible serious injury or
death.
Do not modify the equipment in any way.
Unauthorized modifications may impair the
function and/or safety and could affect the
life of the equipment.
Think SAFETY! Work SAFELY!
GENERAL SAFETY BEFORE
OPERATING
Read and understand the operator's manual
and all safety signs before operating,
maintaining or adjusting the Disk Cultivator.
Reviewsafety relateditems withall operators
annually.
Useextremecarewhenmakingadjustments.
When working under or around the machine,
always lower the Disk Cultivator to the
ground.
After sevicing, install and properly secure all
shields and guards before operating.
Remove all tools, parts, and sevice
equipment from the machine.
Have a first-aid kit available for use should
the need arise and know how to use it.
Have a fire extinguisher available for use
should the need arise and know how to use
it.
Clear the area of people and remove foreign
objects from the machine before starting and
operating.
Always wear relatively tight and belted
clothing to avoid entanglement in moving
parts. Wear sturdy, rough-soled work shoes
and protective equipment for eyes, hair,
hands, and head. Wear suitable ear
protection for prolonged exposure to
excessive noise.
INFORMATION
YOUare responsiblefor SAFEoperation and
maintenanceofyourWil-Rich Disk Cultivator.
YOU must ensure that anyone who is going
to operate, maintain or work around the Disk
Cultivator be familiar with the operating and
maintenance procedures and related safety
information contained in this manual. This
manual will take you step by step through
yourworking day,alertsyou toall goodsafety
practices that should be adhered to while
operating this equipment.
Remember,YOU arethe keytosafety. Good
safety practices not only protect you but also
thepeoplearound you. Makethesepractices
a working part of your safety program. Be
certain that EVERYONE operating this
equipment is familiar with the recommended
operating and maintenance procedures and
followsallsafety precautions. Mostaccidents
canbe prevented. Do not risk injury or death
by ignoring good safety practices.
Disk Cultivator owners must give operating
instructions to operators and employees
before allowing them to operate the Disk
Cultivator,andatleast annuallythereafterper
OSHA regulation 1928.57.
The most important safety device on this
equipment is a safe operator. It is the
operator's responsibility to read and
understand ALL Safety and Operating
instructionsin themanual and tofollow them.
All accidents can be avoided.
A person who has not read and understood
all operating and safety instructions is not
qualified to operate the machine.
!

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05
9
Do not attempt any makeshift repairs to the
hydrauliclines,fittingsorhosesbyusingtape,
clamps or cements. The hydraulic system
operates under extremely high-pressure.
Such repairs will fail suddenly and create a
hazardous and unsafe condition.
Wear proper hand and eye protection when
searching for high pressure leaks. Use a
piece of cardboard as a backstop instead of
hands to isolate and identify a leak.
If injured by a concentrated high-pressure
stream of hydraulic fluid, seek medical
attention immediately. Serious infection or
toxicreactioncan developfromhydraulicfluid
piercing the skin surface.
STORAGE SAFETY
Store unit in an area away from human
activity.
Do not permit children to play around the
stored unit.
Store in a dry, level area. Support the base
with planks if required.
TIRE SAFETY
Failure to follow proper procedures when
mountingatire ona wheelor rimcan produce
an explosion which may result in serious
injury or death.
Do not attempt to mount a tire unless you
have the proper equipment and experience
to do the job.
Have a qualified tire dealer or repair service
perform required tire maintenance.
Stop tractor engine, place all controls in
neutral, set park brake, remove ignition key
and wait for all moving parts to stop before
servicing, adjusting, repairing or unplugging.
Do not attempt to remove any obstruction
while machine is in motion.
HYDRAULIC SAFETY
Always place all tractor hydraulic controls in
neutral before dismounting.
Make sure that all components in the
hydraulic system are kept in good condition
and are clean.
Relievepressure beforeworking onhydraulic
system.
Replace any worn, cut, abraded, flattened or
crimped hoses and metal lines.
Beforeapplyingpressuretothesystem,make
sure all components are tight and that lines,
hoses and couplings are not damaged.
WARNING
HIGH PRESSURE FLUID HAZARD
To prevent serious injury or death:
Relieve pressure on system before
repairing or adjusting or disconnecting.
Wear proper hand and eye protection
when searching for leaks. Use wood or
cardboard instead of hands.
Keep all components in good repair.
60711

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05 10
SMV
The SMV emblem is to be secured as near
to the rear and centered, or as near to the
left center of the implement as possible.
The bracket provided is designed to mount
to numerous frame sizes and can be
orientated in numerous positions to avoid
interference with implement componenets.
Emblem is to be 2 to 6 feet above the ground
measured from the bottom edge of the
emblem.
Keep safety decals clean. Replace any
safety decals that are damaged, destroyed,
missing, painted over or can no longer be
read. Replacement safety decals are
available through your dealer.
TRANSPORT SAFETY
Read and understandALL the information in
theOperator'sManualregardingprocedures
and SAFETY when moving the Disk
Cultivator in the field, yard or on the road.
Check with local authorities regarding
transportation on public roads. Obey all
applicable laws and regulations.
Alwaystravelat asafe speed. Reducespeed
and use caution when making corners or
meeting traffic.
Make sure SMV (Slow Moving Vehicle)
emblem and all lights and reflectors that are
required by the local highway and transport
authorities are in place, are clean and can
be seen clearly by all overtaking and
oncoming traffic
Use a drawbar pin with provisions for a
mechanical retainer.
Attach a safety chain before moving (see
safety chain information.)
Keeptotherightandyieldtheright-of-wayto
allow faster traffic to pass. Drive on the road
shoulder, if permitted by law.
Always use hazard warning flashers on
tractor when transporting unless prohibited
by law.
Do not allow riders.
Do not exceed 20 m.p.h. during transport.
3/16NCx5/8 BOLT
SMV EMBLEM
SMV MOUNTING
BRACKET
NYLON TIE
WRAP

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05
11

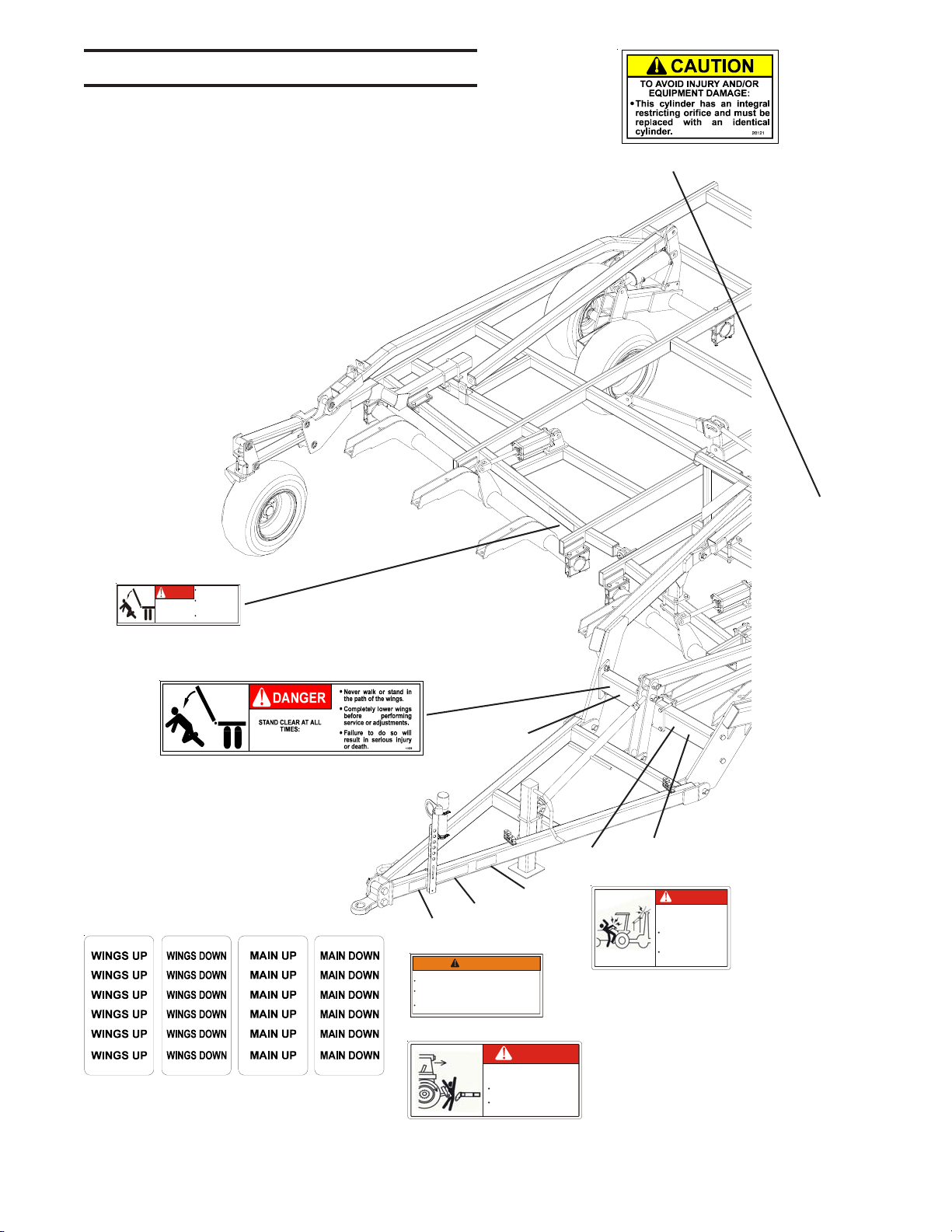

SAFETY DECALS
Safety decals appear at various locations on
your machine. These decals are provided
for your safety, your family’s safety and your
employee’s safety. Replace any decal that
becomes worn, damaged, painted over or
difficult to read.
Keep safety decals and signs clean and
legible at all times.
Replace safety decals and signs that are
missing or have become illegible.
Replaced parts that displayed a safety sign
should also display the current sign.
Safetydecalsor signsare availablefrom your
dealer parts department.
How to install Safety Decals:
Besure that the installationarea is cleanand
dry.
Decide on the exact position before you
remove the backing paper.
Remove the smallest portion of the split
backing paper.
Align the decal over the specified area and
carefully press the small portion with the
exposed sticky backing in place.
Slowly peel back the remaining paper and
carefully smooth the remaining portion of the
decal in place.
Small air pockets can be pierced with a pin
and smoothed out using the piece of decal
backing paper.
SAFETY CHAINS
The purpose of the safety chain is to provide
an auxiliary attaching system to retain the
connection between towing and towed
machine in the event of separation of the
primary attaching system.
The safety chain should be hooked long
enough to permit full turns. Unnecessary
slack should be taken up.
Theintermediatesupport istobe usedifthere
ismorethan6” ofunsupportedchainoneither
side of the primary attaching point.
The intermediate support must not be
mounted more than 6” from the primary
attaching point (see illustration above.)
SAFETY
CHAIN
CLEVIS END TO
TRACTOR
SAFETY CHAIN
MOUNT
PRIMARY
ATTACHING POINT
INTERMEDIATE
SUPPORT

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05 12
SAFETY DECAL PLACEMENT
54900 WINGS UP DECAL
54901 WINGS DOWN DECAL
54902 MAIN UP DECAL
54903 MAIN DOWN DECAL
222800 DANGER DECAL
20121 INTEGRAL RESTRICTOR DECAL
49163 WING LOCK DANGER DECAL
Never walk or stand in the path
ofthewings.
Completely lowerwingsbefore
performing service or
adjustments.
Failure to do so will result in
serious injury or death.
222800
STAND CLEAR AT
ALL TIMES
DANGER
23325
2422749165 222802
222801 60711
TO AVOID INJURY OR MACHI NE DAMAGE:
BEFORE OPERATING; Study Operators Manual, safety messages and safe
operatingp rocedures, read safety signs on this machine.
Transport on public roads - Observe Federal, State and Local regulations;
display SMVemblem: Attach propers trength implement safetychain; and limit
maximum s peed to 20mph (32 km/h).
Lower or block all elevated components before servicing or leveling this
machine.
24227
WARNING
24227 WARNING DECAL-OPERATING
DANGER
CRUSHING HAZARD
Topreventserious injuryordeath:
Do not stand between implement
andmovingtractor.
Stop tractor engine and set park
brakebefore installingpins.
222802 CRUSHING DECAL
DANGER
ELECTROCUTION HAZARD
Topreventserious injury ordeath:
Stay away from power lines when
transporting, extending or folding
implement.
Electrocution can occur without
contacting power lines.
222801
222801 ELECTROCUTION DECAL

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05
13
WARNING
HIGH PRESSURE FLUID HAZARD
To prevent serious injury or death:
Relieve pressure on system before
repairing or adjusting or disconnecting.
Wear proper hand and eye protection
when searching for leaks. Use wood or
cardboard instead of hands.
Keep all components in good repair.
60711
41345 SMV KIT
41508 WING LOCK DANGER DECAL
53334 CAUTION DECAL
20121 INTEGRAL RESTRICTOR
DECAL
239474 CLEARANCE LIGHT PACKAGE-19 & 22ft.
223178 CLEARANCE LIGHT PACKAGE-25,28,31,34 & 37ft.
222800 DANGER DECAL
60711 HIGH PRESSURE
FLUID HAZARD
Never walk or stand in the path
ofthewings.
Completely lowerwingsbefore
performing service or
adjustments.
Failure to do so will result in
serious injury or death.
222800
STAND CLEAR AT
ALL TIMES
DANGER
Refer to Operator's Manual for safety instructions.
Do not stand or climb on machine when operating.
Use clean hazard flashers and SMV sign when
transporting.
Observe highway traffic regulations.
TO AVOID INJURY AND/OR MACHINE DAMAGE:
CAUTION
23325
23325 CAUTIONDECAL-READ
49165 CAUTIONDECAL
20121
22371
22371 RED DEFLECTOR
22372 AMBER DEFLECTOR
22372

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05 14
SIGN-OFF FORM
DATE EMPLOYEE’S SIGNATURE EMPLOYER’S SIGNATURE
Make periodic reviews of SAFETY and
OPERATION a standard practice for all your
equipment. We feel that an untrained
operator is unqualified to operate this
machine.
A sign-off sheet is provided for all personnel
whowillbeworking withequipmenthave read
and understood the information in the
operators manual and have been instructed
in the operation of the equipment.
WIL-RICH follows the general standard
specified by the American Society of
Agricultural Engineers (ASAE) and the
Occupational Safety and Health
Administration (OSHA). Anyone who will be
operating and/or maintaining the Disk
Cultivator must read and understand ALL
Safety, Operation, and Maintenance
information presented in this manual.
Do not operate or allow anyone else to
operatethis equipment until suchinformation
is reviewed. Annually review this information
before the season start-up.

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05
15

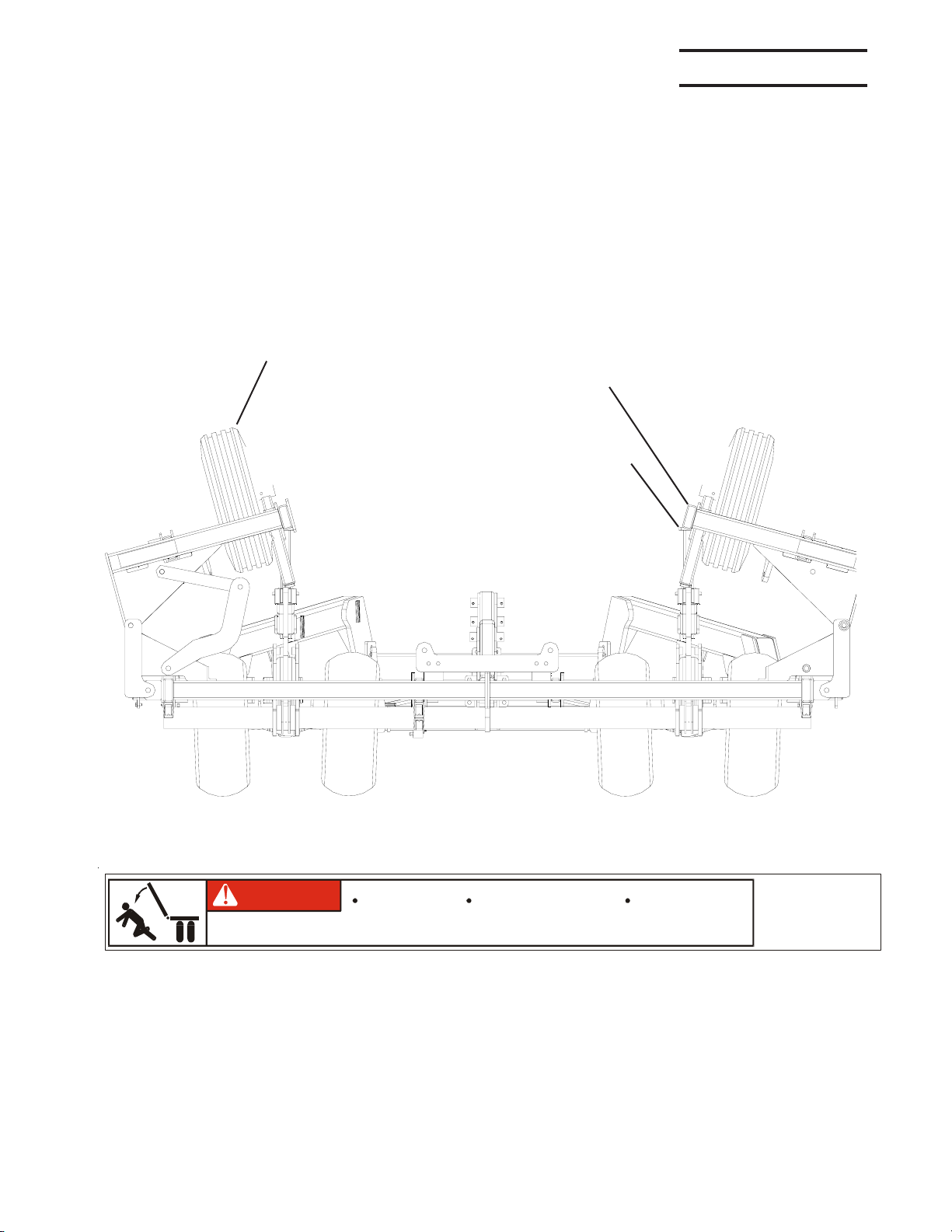

4’ WING REST
Note: Before and during operation
be sure no one is on or around
implement. Serious injury can result
from improper use.
WING TUBE MUST
CONTACT WING REST
WING REST
WING MUST GO OVER
CENTER
Note: Assemble so decal is read
from the implement rear.
Fig. 1 Wing Rest
STAND CLEAR AT ALL
TIMES:
DANGER
41508
Never walk or
stand in the path
of the wings.
Completely lower the
wings before performing
service or adjustments.
Failure to do so will
result in serious
injury or death.
ASSEMBLE SO
DECAL IS READ
FROM THE
IMPLEMENT REAR.
Note: Do not fold or unfold the main
wings while unit is moving. Stop the
unit on a level part of the field when
folding and unfolding any wings.

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05 16
7’ WING REST
Note: Before and during operation
be sure no one is on or around
implement. Serious injury can result
from improper use.
WING TUBE MUST
CONTACT WING REST
WING REST
WING MUST GO OVER
CENTER
Note: Assemble so decal is read
from the implement rear.
Fig. 1 Wing Rest
STAND CLEAR AT ALL
TIMES:
DANGER
41508
Never walk or
stand in the path
of the wings.
Completely lower the
wings before performing
service or adjustments.
Failure to do so will
result in serious
injury or death.
ASSEMBLE SO
DECAL IS READ
FROM THE
IMPLEMENT REAR.
Note: Do not fold or unfold the main
wings while unit is moving. Stop the
unit on a level part of the field when
folding and unfolding any wings.

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05
17
10’ WING REST
Note: Before and during operation
be sure no one is on or around
implement. Serious injury can result
from improper use.
WING TUBE MUST
CONTACT WING REST
WING REST
WING MUST GO OVER
CENTER
Note: Assemble so decal is read
from the implement rear.
Fig. 1 Wing Rest
STAND CLEAR AT ALL
TIMES:
DANGER
41508
Never walk or
stand in the path
of the wings.
Completely lower the
wings before performing
service or adjustments.
Failure to do so will
result in serious
injury or death.
ASSEMBLE SO
DECAL IS READ
FROM THE
IMPLEMENT REAR.
Note: Do not fold or unfold the main
wings while unit is moving. Stop the
unit on a level part of the field when
folding and unfolding any wings.

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05 18
Themain frame depthon the WIL-RICHdisk
cultivator is controlled by a pair of 12.56”
strokebypasscylinders.These cylindersare
locatedatthe rearof theunit, abovethe main
frame lift axles. The cylinders are tied to the
main axle and to the main axle mast. The
mainaxle mastis non-adjustableand pinned
to the front of the main frame through the
main axle tie tube. See Fig 1.
The main frame depth is mechanically set by
turningthe screw collar “DOWN” the cylinder
rod to decrease the working depth or “UP”
thecylinderrodtoincreasetheworkingdepth.
An add-on stop collar is provided for
situations where the screw stop collar does
not allow a shallow enough setting.
NOTE: Proper field operation is
dependent upon the screw collars
of the main frame lift cylinders being
first to contact the mechanical
stops. If a wing cylinder screw stop
collars contacts first the leveling
function of the system will not
operate correctly.
NOTE: The cylinder screw stop
collars on the main frame depth
control cylinders must be set equally
– failure to do so can twist the main
axle and cause axle failure. Measure
the collar locations or count the
number of turns each screw collar
is rotated to ensure they are set the
same.
Note: The main and wing lift
cylinders need to be positioned with
the rod end of the cylinder attached
to the axle as shown.
The top bypass cylinders have adjustable
mechanical screw collars. These screw
collarsare rotatedon thecylinder rod to vary
theretracted length ofthe cylinder,providing
themeans to adjust the working depth of the
unit.
4x12.56TOP BYPASS
CYLINDER
CHANNEL LOCK MAIN AXLE MAST
SCREW STOP COLLAR
MAIN AXLE TIE TUBE
STOP COLLAR

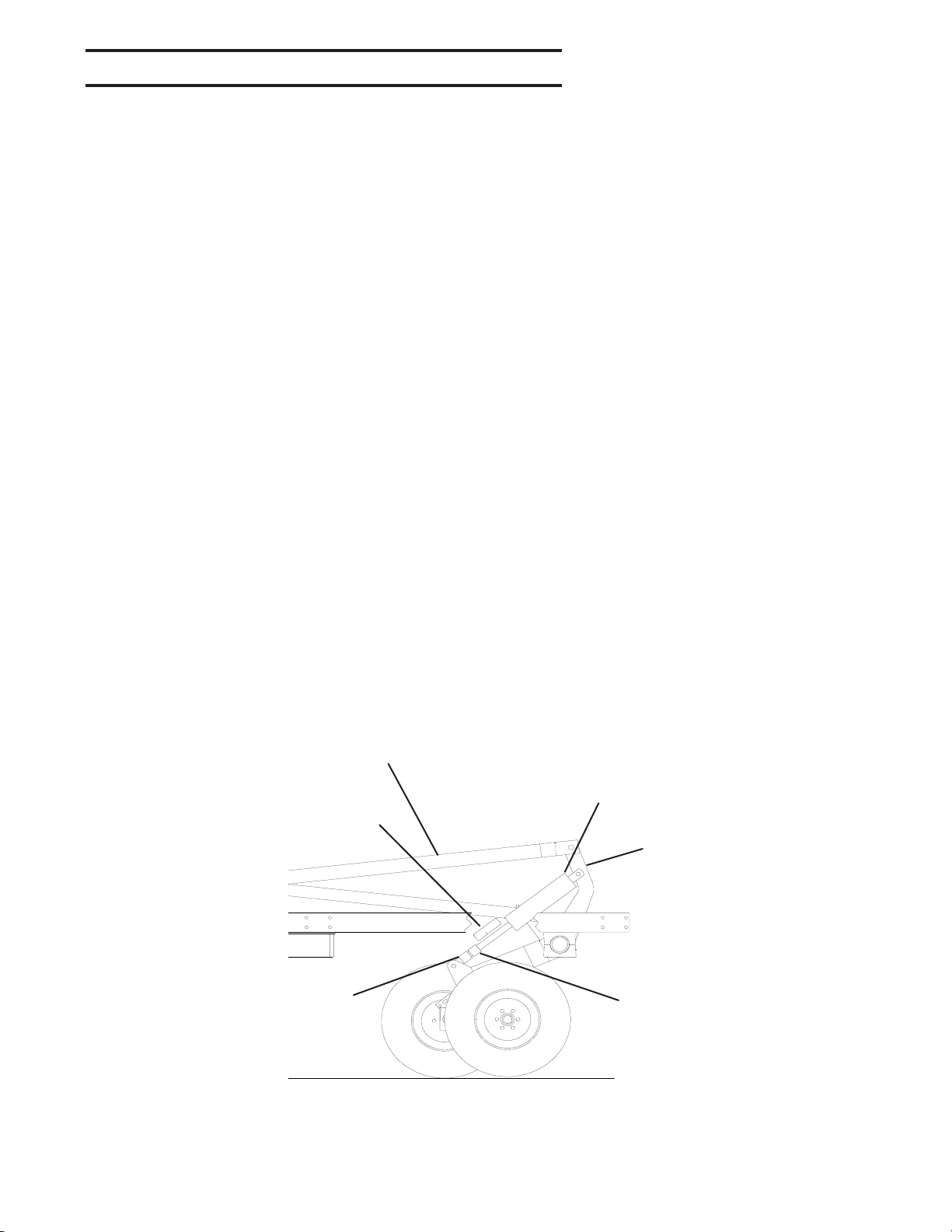

MAIN FRAME DEPTH ADJUSTMENT
FIG. 1.

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05
19
The operational depth of the wing is
controlled by use of a 10.8” stroke slave
cylinder located above the wing axle. These
cylinders are connected in series with the
main frame lift cylinders. The cylinders are
attached to the wing axle mast, through the
wingaxle tie tube andto the front ofthewing.
See Fig. 2.
NOTE: The screw collars and stop
collars are used to set the depth of
the wing. Adjustments to level the
wing relative to the main frame are
made at the front of the unit.
Byadjustment ofthewing adjustmentrodthe
wing can be adjusted to the main frame. To
setthe wingaxle, the wingadjust rod ismade
shorterorlonger.Lengtheningthe adjustment
rod (counter clockwise rotation as viewed
from the front of the machine) will lower the
wingandadjusting therod (clockwiserotation
as viewed from the rear of the machine) to a
shorter position will raise the wing. To
maintain the front to rear level of the wing
the front gauge wheel will also need to be
adjusted. Refer to the preliminary and field
settings for additional setting information.
WING ADJUSTMENT ROD
1-1/4 JAMB NUT
WING AXLE TIE TUBE
SCREW STOP COLLAR
STOP COLLAR
4x10.8 TOP BYPASS
CYLINDER
WING
AXLE
79116-2
FIG. 2.
WING DEPTH ADJUSTMENT

DCIII DISK CULTIVATOR OPERATOR’S MANUAL (74258) 12/05 20
LEVELING
Theoperational leveling of the field cultivator
mustbe done ina level area ofthe field. Final
front to rear and side to side leveling is done
at working depth. Preliminary setting can be
completed in the yard to speed up the field
setting operation.
The front to rear level of the main frame is
controlled by the main axle lift wheels and
the setting of the main hitch. The front to
rearlevel ofthe wing iscontrolled by thewing
axle lift wheels and the hydraulic front gage
wheel. Both the main frame and the wings
will need to be adjusted correctly for proper
operation.
PRELIMINARY SETTINGS
Proper preliminary and field settings will
require use of a measuring device. Once the
unit has been properly assembled and
hitchedto the tractorthat will beused for field
operation,make certainthe hydraulicsystem
has been properly charged. Position the unit
on a level area of ground and unfold the
wings, checking to ensure there are no
people or obstructions in the path of the
wings.
NOTE: Cycle the main lift hydraulics
a number of times to remove air in
the system. Holding the hydraulic
lever in the “RAISE” position will
remove the unwanted air from the
circuit.
Lower the unit to the ground so that the front
row of shanks on the main frame are 1”-2”
above the ground.
Measure the main frame height from the
ground to the top of the outer frame tube and
compare to the distance measured from the
ground to the top of this outer frame tube at
the rear of the machine. See fig 4.
The depth control cylinders are hooked in
series. Eachcylinder isa topbypass cylinder
and when fully extended will pass oil by the
piston into the next cylinder charging the
system.
Topbypasscylinderswill bypassoil whenthe
cylinder is fully extended. This bypass
condition will exist when the implement is
raisedto maximumgroundclearance. At this
timeoil will passthrough a 1/16" diahole and
go on to the next cylinder. See Fig. 3.
Note: This system requires periodic
raising of the unit and holding of the
tractor valve to expel air or
contaminants. 3/8" HOLE
1/16" BYPASS HOLE
TOP BYPASS CYLINDER

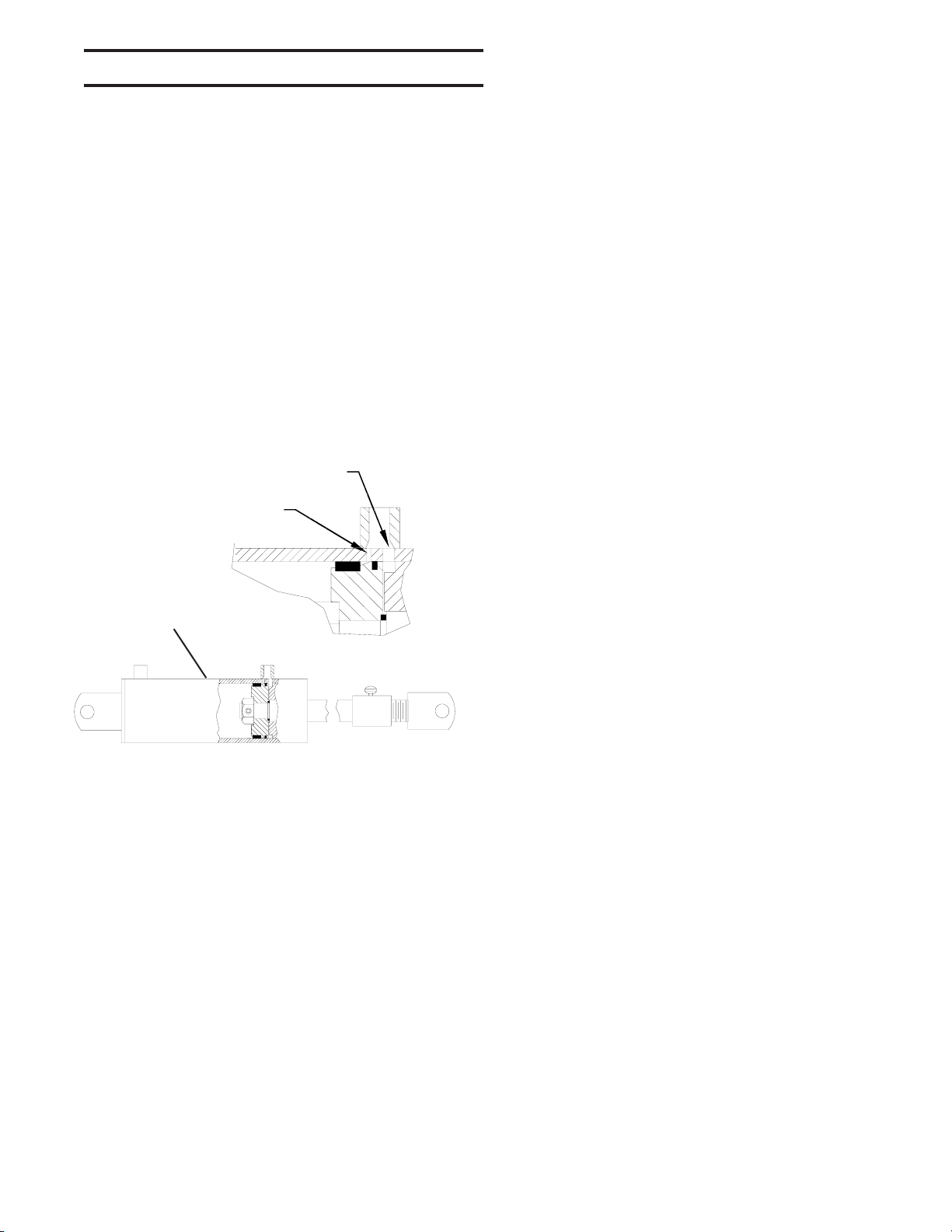

FIG.3. 77646
Note: To synchronize or re-
synchronize the bypass system, the
tractor control valve must be held
in the raised position until the entire
implement is raised and any air that
may be in the lines has been
expelled.
DEPTH CONTROL CIRCUITRY
