WilTec 34277 User manual

Operation Manual
Portable Mini Airbrush Compressor Set
34277
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignific -
antly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.

The information contained in this document may alter at any time without previous notice. It is prohib-
ited to copy or spread any parts of this document in any way without prior written allowance. ll rights
reserved.
The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this
operating manual, nor in the diagrams and figures shown.
Even though, the WilTec Wildanger Technik GmbH has undergone biggest possible efforts to ensure
that the operating manual is complete, faultless and up to date, mistakes cannot be entirely avoided.
If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing
from you.
Send an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
Do you wish to pick goods up? Our pick-up address is:
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
Germany
To shorten the waiting time and allow for a rapid on-site transaction, we ask you to call us previously
or placing your order via the webshop.
E-mail: [email protected]
Tel:[phone]
Fax: [phone]
To return orders for exchange, repair or for other purposes, please use the following address. tten -
tion! To allow for a smooth execution of your complaint or return, it is important to contact our cus -
tomer service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
E-mail: [email protected]
Tel:[phone]
Fax: [phone]
© by WilTec Wildanger Technik GmbH Item 34277 Page 2
http://www.WilTec.de
http://www.aoyue.eu 03 2021-1
http://www.teichtip.de

ntroduction
Thank you for purchasing this quality product. To minimize the risk of injury we urge that our cli-
ents take some basic safety precautions when using this device. Please read the operation in-
structions carefully and make sure you have understood its content.
Keep these operation instructions safe.
Safety precautions
CAUTION:
The use of this device is allowed only with fault current protection switch with a triggering nom-
inal current up to 30=m (according to VDE 0100 rticle 702 and 738).
The device is not intended for use by persons (including children) with impaired or limited
physical, sensory and mental abilities or lack of experience and/or knowledge, unless they are
supervised by a person responsible for their safety or follow the instructions made by this per -
son on how to use the device correctly.
Children should be supervised to make sure that they do not play with the device.
ATTENTION:
Visually inspect the device before every use. Do not use the device if the safety appliances
are damaged or worn out. Never override the safety appliances.
Use the device exclusively according to the intended purpose stated in the instructions for
use.
You are responsible for the safety of the working environment.
If the cable or the plug is damaged due to external influences the cable must not be repaired,
but has to be replaced with a new one. This work can be carried out only by an electrician.
Never lift, carry or fix the device by using the power cable.
Make sure that the electrical plug connection is protected from flood and moisture.
Disconnect the mains plug before maintaining the compressor.
The user is responsible for complying with the location specific safety and mounting regula-
tions. sk an electrician.
In case of device failure, the repairs can be carried out only by an electrician.
NOTES:
The user should choose the right compressor with the appropriate air volume and air pressure
to correspond to the actual work requirements.
Never expose the device to dust, acid, steam, explosive or flammable gases or atmospheric
influences (rain, sun, fog, snow).
Never use the compressor barefoot or with wet hands or feet.
Never allow children to touch the compressor switched-on or to insert the plug. It may cause
burns or electric shocks.
Do not open or damage any part of the compressor. If necessary, contact your seller.
Release the water by opening the drain valve before not using the compressor for a long time.
Store the compressor in a well ventilated place.
lways wear protective goggles. You should under no circumstances direct the airflow to-
wards your body, other persons’ bodies or animals.
Never use the compressor in areas with steam or moisture or close to water.
Switch off the compressor if you do not use it. Disconnect it from the mains before repairing,
reconditioning, maintaining, cleaning, or replacing parts. Never use the power cable as
handle. Keep the power cable away from hot objects, oil and sharp edges. Protect it against
breakage. Do not pull the power cable in order to unplug it from the power socket.
© by WilTec Wildanger Technik GmbH Item 34277 Page 3
http://www.WilTec.de
http://www.aoyue.eu 03 2021-1
http://www.teichtip.de

Do not store the compressor with the plug inserted into the socket. Do not allow children or
any other people who are not able to handle this device to play or work with it.
Be very careful when working with the compressor. Do not use it if you are tired. Persons un -
der the influence of alcohol, drugs or medication are not allowed to use this device.
When you start working make sure that all screws are tightened.
Do not use the compressor if it is damaged. If the compressor generates unusual noises and
strong vibrations or if other unusual signs occur that indicate some damage you should turn off
the compressor immediately. For repairs only use original spare parts. Do not make any tech-
nical modifications to the compressor. In case you cannot eliminate the malfunction hand over
the device to your seller.
Features
Suitable for airbrush guns with a nozzle diameter of 0.2–0.5 mm
Perfectly suitable for makeup and other cosmetic applications
Ready to start immediately, enables continuous work
djustable pressure
Rotatable, retractable airbrush gun holder
Illuminated on/off switch; always switch off the compressor when it is not in use.
Technical data
nput voltage (V) 230
nput frequency (Hz) 50
nput amperage ( ) 0.6
Output voltage (V) 12
Output amperage ( ) 1.6
Nominal air flow (ℓ/min) 10.5
Airbrush gun capacity (mℓ) 7
Max. compressor pressure (bar) 1
Compressor operating pressure (bar) 0.76
Airbrush gun pressure (bar) 0.70–3.4
Weight (kg) 0.96
Size (cm) 12×11.2×6
Scope of delivery
1 × air compressor HS08-5
1 × air hose
1 × airbrush gun
1 × 0,3=mm nozzle
1 × adapter
Operation instructions
1. Insert the plug of the power pack into the connection provided on the compressor and connect
the power pack to the mains. Use the appropriate compressor cover.
2. Press the white on/off switch, the compressor starts up. Briefly press the button to change the
working pressure. Turn off the compressor by pressing the button for two seconds.
© by WilTec Wildanger Technik GmbH Item 34277 Page 4
http://www.WilTec.de
http://www.aoyue.eu 03 2021-1
http://www.teichtip.de

3. The compressor is ready to start immediately and thus enables continuous work.
4. The automatic overheating protection switches the device off if the temperature is too high and
is reset after the motor has cooled down.
5. The airbrush gun holder can be retracted into the housing.

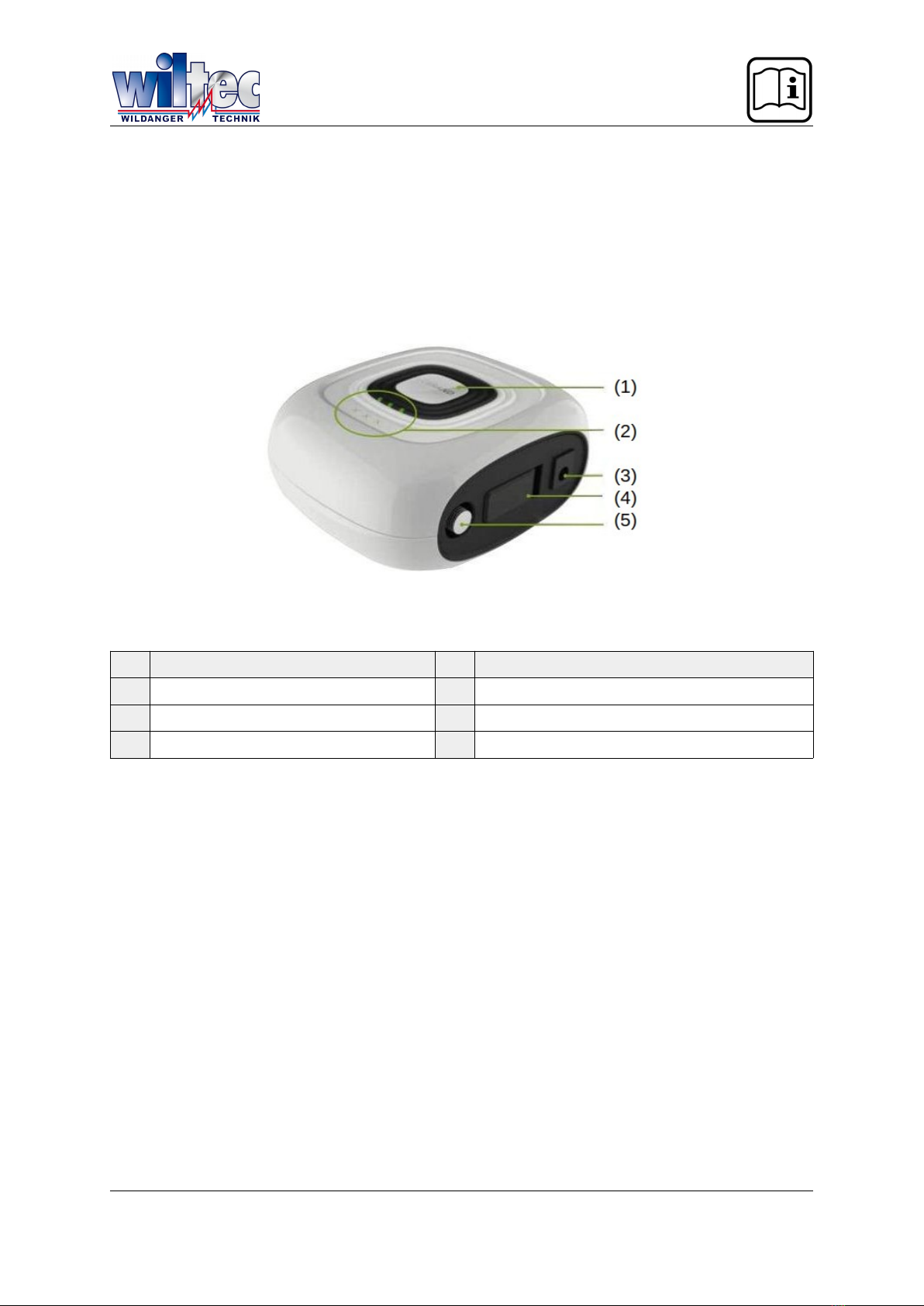

Main parts
№ Name № Name
1On/off switch 4Twistable and retractable gun holder
2LED light 5ir hose interface
3Power interface
© by WilTec Wildanger Technik GmbH Item 34277 Page 5
http://www.WilTec.de
http://www.aoyue.eu 03 2021-1
http://www.teichtip.de

Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were imple-
mented in the law related to electrical and electronic equipment and appliances.
ll WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company WilTec Technik GmbH has been registrated in the German registry E R under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal house-
hold waste but must be disposed to a recycling collec-
tion point for electronic and electrical waste equip-
ment. By contributing to the correct disposal of this art-
icle you protect the environment and the health of your
fellow men. Environment and health are threatened by
inappropriate disposal.
Material recycling helps reduce the consumption of raw materials.
dditional information on recycling this article can be provided by your local community, municipal
waste disposal facilities or the store where you purchased the article.
ddress:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions
manual require the written permission of WilTec Wildanger Technik GmbH.
