Operation Manual
Air Actuated Hydraulic Hand Jacks
ARTICLE 6197 61975
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ
insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities please contact us.
© by WilTec Wildanger Technik GmbH Seite 13
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

The information contained in this document is subject to change without prior notice. o part of this
document can be copied or duplicated in another form without the prior written consent of WilTec
Wildanger Technik GmbH. The WilTec Wildanger Technik GmbH assumes no liability for any errors in
this user manual or the connection diagram.
Although WilTec Wildanger Technik GmbH has made every effort to make sure that this user manual
is complete, accurate and updated, errors cannot always be avoided. In the event of problems with
this user manual please complete and send this form back to us.
FAX-notification (+++49 2403 55592-15),
from: ________________________________________
Name: ________________
Firm:_____________________
Tel/Fax:__________________
I would like to report the following mistakes:
_______________________________ ____________________________________
Customer Service WilTec Wildanger Technik GmbH
e-mail: [email protected]
Tel:++ [phone]
Introduction
Thank you for purchasing this quality product. To minimize the risk of injury by means of fire or
electric shock we urge that our clients take some basic safety precautions when using this
device. Please read the operation instructions carefully and make sure you have understood its
content.
Always use a grounded power connection with the appropriate mains voltage. You can
nd the corresponding mains voltage on the type plate. If you have any doubts about the
connection being grounded, have it checked by a qualied professional. Never use a
faulty electric cable.
o not inspect the electrical part of the pressure pond lter in a wet or damp
environment or when you are wet yourself and protect it from direct sunlight. Install this
device in a safe location so that nobody can step on the cable, fall over or damage it.
isconnect the power plug before cleaning it and use only a damp cloth for cleaning.
Avoid using cleaning agents and make sure that no liquid enters the electrical part of the pump.
The electric part of the device contains no parts that can be inspected or serviced by the user. Leave
the maintenance, adjustment and repair to qualified technical personnel. In case of unauthorised
intervention the 2-year warranty is no longer valid! Keep these operation instructions safe.
© by WilTec Wildanger Technik GmbH Seite 1
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

INTRODUCTION
Save these instructions. For your safety and the safety of others around you read this instructions
carefully before attempting to assemble, service or use your jack. Observe all safety and warning infor-
mation. Always wear safety glasses when operating this product. Failure to comply with the informa-
tion contained within could result in severe, even fatal injury and/or property damage.
PRODUCT DESCRIPTION
Air actuated / Hydraulic Hand Jacks are designed for lifting, but not sustaining, loads ranging from up
to 12 tons though 20 tons depending on the rated capacity of the jack. They can be used vertically or
angled to 5 degrees from vertical position. After lifting, loads must be immediately supported by appro-
priate means. Each model is suitable for use in an appropriately rated and designed vertical or bench
press structure. These jacks are not recommended for use in lifting or positioning houses and/or build-
ing structures. These jacks comply with applicable standards. For air actuated use, ensure that your
air source can dedicate is recommended.
Model Lifting Capacity (t) Base Size (LxW) Min Altitude (mm) Lifting Altitude (mm)
QYL12 12 197 x 118 250 495
QYL20 20 223 x 133 260 510
QYL20D 20 223 x 133 220 430
QYL22 22 220 x 168 225+25 435+100
QYL32 32 226 x 150 250+25 415+25
QYL50 50 240 x 180 270+25 430+25
BEFORE USE
1) Verify that the product and the application are compatible. Contact the manufacturer or an autho-
rized service partner.
2) Before using this product, read the owner’s manual completely and familiarize yourself thoroughly
with the product and the hazards associated with its improper use.
3) Open the release valve (counterclockwise not more than 2 full turns).
4) With ram fully retracted, locate and remove the oil filler plug. Insert the handle into the hand
sleeve, then pump 6 to 8 strokes. This will help release any pressurized air which may be trapped
within the reservoir. Ensure the oil level is just below the oil filler plug hole. Re-install the oil filler
plug.
5) Pour a teaspoon of good quality air tool lubricant into the air supply inlet of the lift control valve
(see illustration). Connect to air supply and operate 3 seconds to evenly distribute the lubricant.
© by WilTec Wildanger Technik GmbH Seite 15
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

6) Check to ensure that jack rolls freely (if equipped so) and that the pump operates smoothly before
putting into service. Replace worn or damaged parts and assemblies with original spare parts from
the manufacturer.
7) This product is fitted to accept the popular 1/4” PT air nipple. When installing 1/4” PT nipple of
your choice, ensure that thread tape or compound is used when servicing connections.
8) Inspect before each use. Do not use if bent, broken or cracked components are noted. Broken
parts must be repaired before the jack is taken into action again.
OPERATION
LIFTING
1) Assemble 2 pieces handle and ensure that spring clips align with slots.
2) Secure the load to prevent inadvertent shifting and movement.
3) Position the jack near desired lift point.
4) Close the release valve by turning it clockwise until it is firmly closed.
CAUTION: Use the handle provided with this product or an authorized replacement handle to ensure
proper release valve operation. Do not use an extender on the air hose nor the operating handle when
using to lift vehicle. Lift only on the manufacturer’s recommended lift point and in accordance with the
published guidelines in your vehicle owner’s manual. Always use the jac stands to support the load.
5) Insert and secure hand into hand sleeve. Pump handle or squeeze the lift control valve until sad-
dle contacts load. To end air operation simply release the grip on the lift control valve. EVER
WIRE, CLAMP OR OTHERWISE DISABLE THE LIFT CO TROL VALVE TO FU CTIO BY A Y
MEA S OTHER THA BY USI G THE OPERATOR’S HA D.
6) Raise load to desired height, then immediately transfer the load to appropriately-rated support de-
vices such as jack stands.
CAUTION: This is a lifting device only. It is designed to lift a part of the total vehicle (one wheel or
axle). Always wear safety glasses when using this equipment. Center the load on saddle before lifting.
Never wor on, under or around load until it is properly supported. Transfer the load immediately to
appropriate rated jac stands. Do not use this product for any purpose other than that for which
it was intended. It is the owner’s responsibility to eep labels and instructional material legible and
available. Replacement labels and manuals are available from the manufacturer. Failure to heed
these and all other warnings pertaining to this product can result in sudden loss of lifted load resulting
in death, personal injury and/or property damage.
© by WilTec Wildanger Technik GmbH Seite 16
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

LOWERING
1) Raise load enough to carefully remove jack stands.
2) Insert handle onto release valve and slowly turn the handle counterclockwise, but not more than
1/2 turn. If load fails to lower, carefully transfer the load to another lifting device and jack stands.
Carefully remove the affected jack, and then the jack stands. Lower the load again by slowly turn -
ing the release valve no more than 1/2 turn.
CAUTION: Be sure all tools and personnel are clear before lowering the load. Dangerous dynamic
shoc loads are created by quic ly opening and closing the release valve while the load is being low-
ered. The resulting overload may cause hydraulic system failure which could cause severe per-
sonal injury and/or property damage.
3) After removing jack from under the load, push the ram and handle sleeve down to reduce expo-
sure to rust and contamination.
MAINTENANCE
IMPORTA T: Use only a good grade hydraulic jack oil. Avoid mixing different types of fluid and
EVER use brake fluid, turbine oil, transmission fluid, motor oil or glycerin.
ADDING OIL
1) With saddle fully lowered and pump piston fully depressed, set jack in its upright level position and
remove the oil filler plug.
2) Fill until oil is level with the filler plug hole and reinstall the oil filler plug
CHANGING OIL
For best performance and longest life, replace the complete fluid supply at least once a year.
1) With saddle fully lowered and pump piston fully depressed remove the oil filler plug.
2) Lay the jack on its side and drain the fluid into a suitable container.
Note: Dispose hydraulic fluid in accordance with local regulations.
3) Fill with good quality jack oil. Reinstall oil filler plug. We recommend MOBIL DTE 13 or equivalent.
LUBRICATION
1) A coating of light lubricating oil to pivot points, axles and hinges will help to prevent rust and as-
sure that wheels, casters and pump assemblies move freely.
2) Periodically check the pump piston and ram for signs of rust or corrosion. Clean as needed and
wipe with an oily cloth.
CAUTION: NEVER use sandpaper or abrasive material on these surfaces.
3) When not in use, store the jack with pump piston and ram fully retracted.
© by WilTec Wildanger Technik GmbH Seite 17
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

TROUBLESHOOTING
Problem Possible Causes Solution
Jack will not
lift load
4) Release valve not tightly closed
5) Overload condition
6) Air supply inadequate
4) Ensure release valve is tightly closed
5) Remedy overload condition
6) Ensure adequate air supply
Jack bleeds off
after lift
4) Release valve not tightly closed
5) Overload condition
6) Hydraulic unit malfunction
1) Ensure release valve is tightly closed
2) Remedy overload condition
3) Contact manufacturer or service partner
Jack will not lower
after unloading
3) Reservoir overfilled
4) Linkages binding
3) Drain fluid to proper level
4) Clean and lubricate moving parts
Poor lift
performance
3) Fluid level low
4) Air trapped in system
3) Ensure proper fluid level
4) With ram fully retracted, remove oil filler
plug to let pressurized air escape; reinstall
oil filler plug
Will not lift to
full extension
2) Fluid level low 1) Ensure proper fluid level
Model
Lifting
Capacity
(t)
Min.
Altitude
(mm)
Lifting
Altitude
(mm)
Regulating
Altitude
(mm)
Air Pressure
Range
(MPA)
et
Weight
(kg)
QYL12 12 250 165 80 0.8-1.2 10
QYL20 20 260 170 80 0.8-1.2 17
QYL20D 20 220 130 80 0.8-1.2 15
QYL22 22 225+2
5130 80 0.8-1.2 36
QYL32 32 250+2
5160 - 0.8-1.2 21
QYL50 50 270+2
5160 - 0.8-1.2 34
© by WilTec Wildanger Technik GmbH Seite 18
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

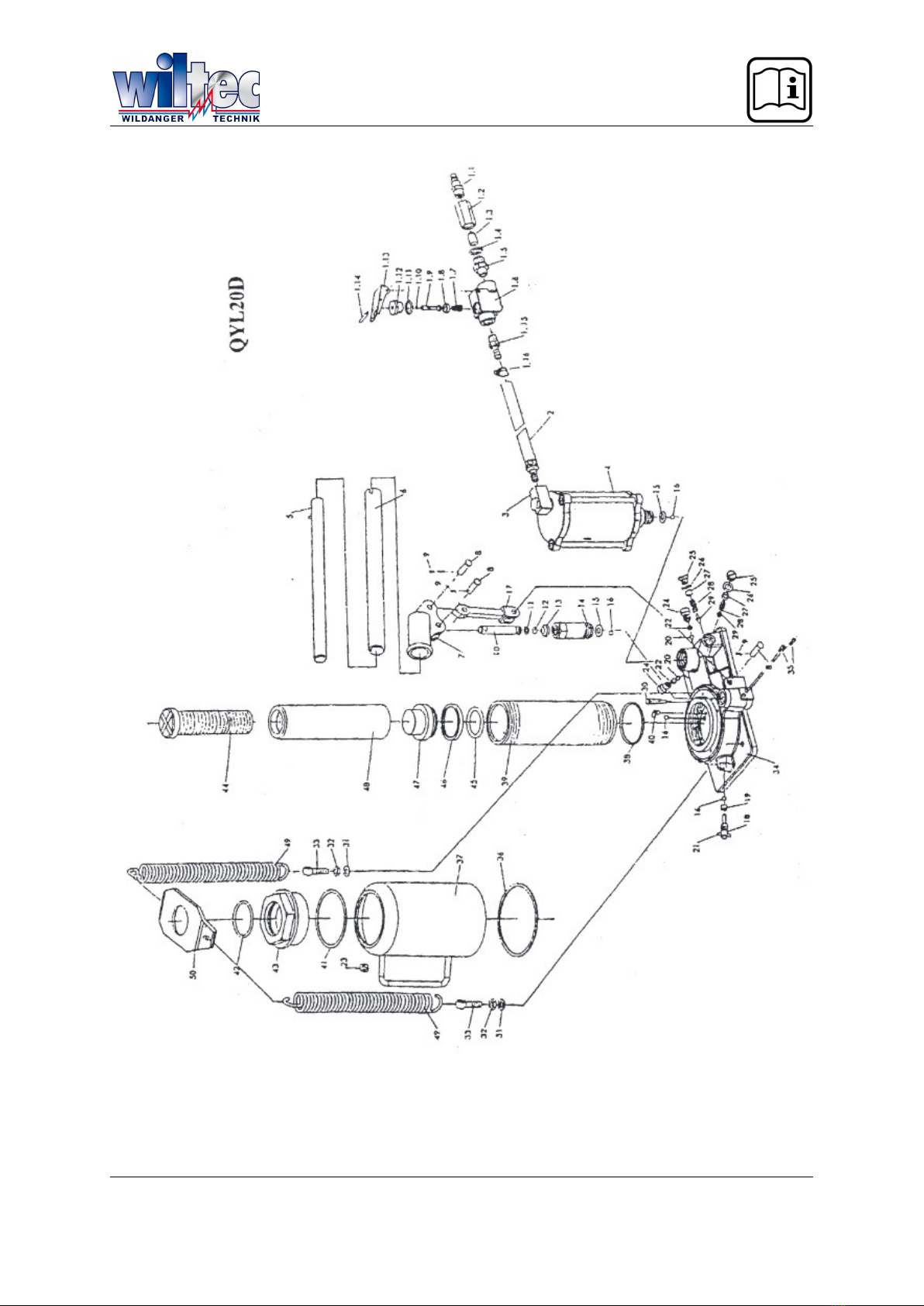

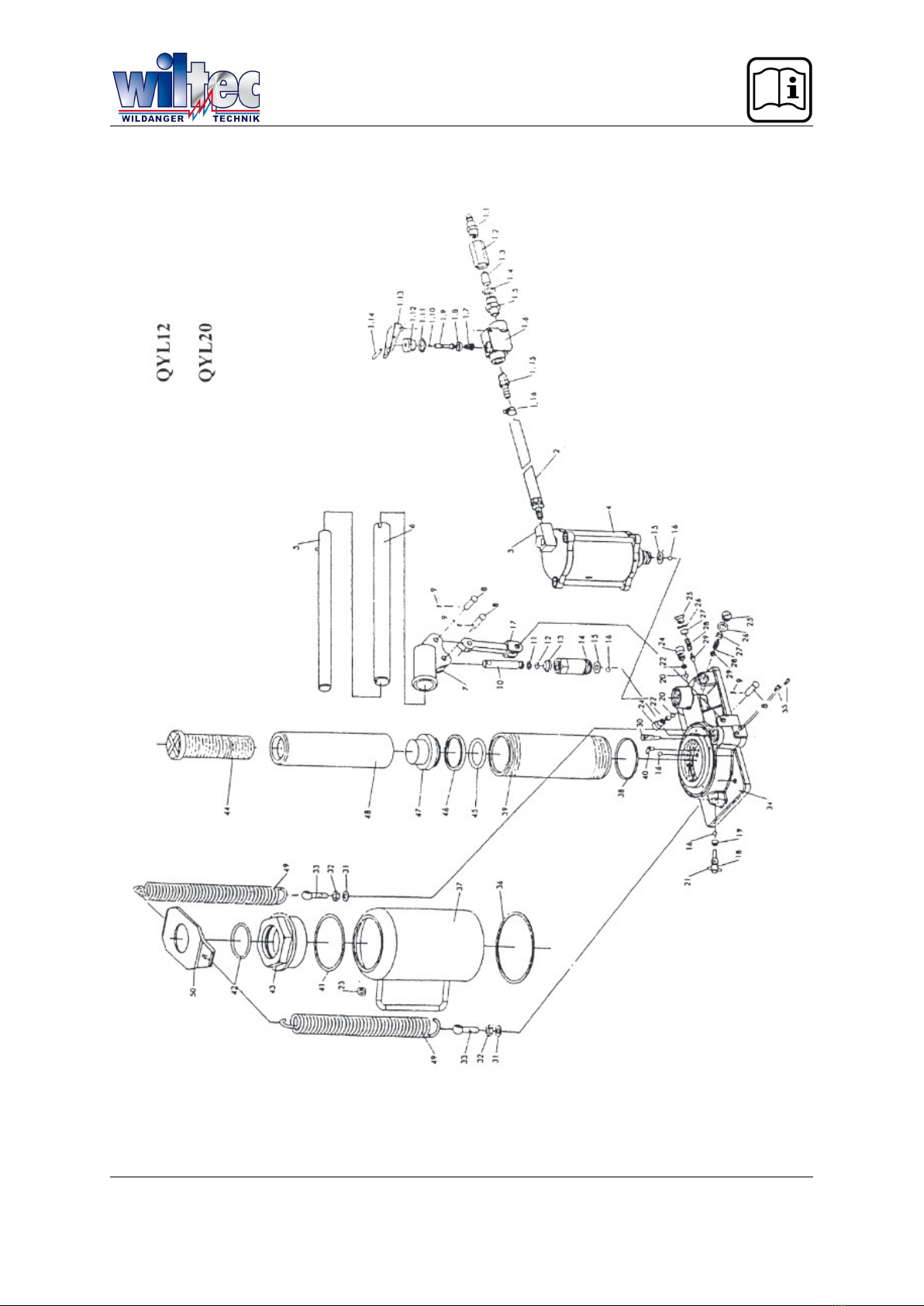

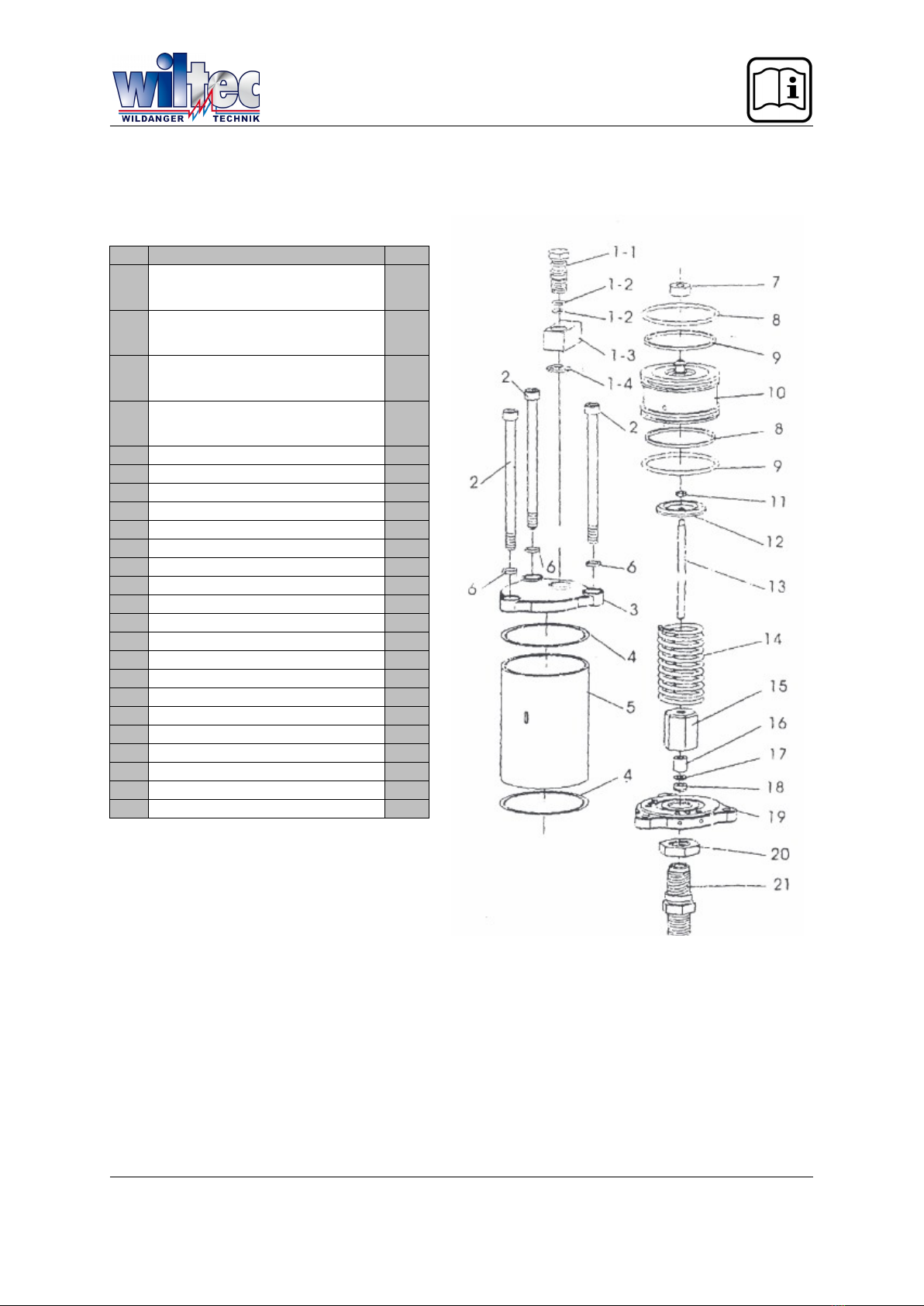

EXPLOSION DRAWING
© by WilTec Wildanger Technik GmbH Seite 19
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

© by WilTec Wildanger Technik GmbH Seite 20
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

PARTS LIST
No Description
QTY
N
oDescription
QTY
QYL12
D
QYL20
D
QYL20W QYL12
D
QYL20
D
QYL20W
1.1 Hose Connector 1 1 19 Release Valve Seal 1 1
1.2 Connecting ut 1 1 20 Steel Ball 6.35 1 1
1.3 Air Filter 1 1 21 Pin 1 1
1. O-Ring 18x2.4 1 1 22 Valve Spring 2 2
1.5 Connector 1 1 23 Filler Plug 1 1
1.6 Valve Body 1 1 2 Screw 2 2
1.7 Spring 1 1 25 Plug Screw 1 2
1.8 Packing 1 1 26 Plug Washer 1 2
1.9 Throttle 1 1 27 Overload Valve Screw 1 2
1.1
0
O-Ring 3x1.6 1 1 28 Safety Valve Spring 1 2
1.1
1
O-Ring 18x2.4 1 1 29 Overload Tapering Valve 1 2
1.1
2
ut 1 1 30 Filter et 2 2
1.1
3
Lever 1 1 31 Spring Washer 8 2 2
1.1 Lever Rin 1 1 32 ut 8 2 2
1.1
5
Hose Connector 1 1 33 Bolt M8x35 2 2
1.1
6
Hose Band 2 2 3 Basis 1 1
2Air Hose 1 1 35 Plug Screw 4 4
3Connector 1 1 36 Cylinder Bottom Seal 1 1
Air Pump 1 1 37 Reservoir 1 1
5Upper Handle 1 1 38 Packing 1 1
6Lower Handle 1 1 39 Cylinder 1 1
7Plunger 1 1 0 Steel Ball Retainer 2 2
8Shaft Pin 3 3 1 Cylinder Top Seal 1 1
9Cotter Pin 3 3 2 O-Ring 1 1
10 Pump Plunger 1 1 3 Top ut 1 1
11 Pump Plunger Retainer 1 1 Extension Screw 1 1
12 O-Ring 1 1 5 O-Ring 1 1
13 Dust Proof Ring 1 1 6 O-Ring Returner 1 1
1 Pump Reservoir 1 1 7 Ram Header 1 1
15 Copper Washer 1 1 8 Ram 1 1
16 Steel Ball 6 6 6 9 Spring 2 2
17 Plunger Convecting Rod 1 1 50 Spring Plate 2 2
18 Release Valve Screw 1 1
© by WilTec Wildanger Technik GmbH Seite 21
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

AIR MOTOR
EXPLOSION DRAWING AND PARTS LIST
No Description Qty
1.
1
Tube Connector 1
1.
2
O-Ring 2
1.
3
Removable Base 1
1. Split Washer 1
2Hex-Socket Screw 3
3Cover 1
Washer 2
5Air Pump Body 1
6Spring Washer 3
7Seal 2
8O-Ring 63.5x3.55 2
9Square Ring 1
10 Piston 1
11 ut M5 1
12 Block 1
13 Plunger 1
1 Spring 1
15 ut 1
16 Packing Guide 1
17 L Retainer 1
18 Y-Seal 1
19 Cover 1
20 Adjusting ut 1
21 Plunger Cover 1
© by WilTec Wildanger Technik GmbH Seite 22
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de
