WIMAXIT M1400CT User manual
1
WIMAXIT
PORTABLE MONITOR
M1400CT USER MANUAL
2
Contents in the box
1: M1400CT Monitor (including leather cover)
2: HDMI to Mini HDMI Cable
3: USB C to USB C Cable
4: USB-A (3.0) to USB-C cable
5: DC Power Adapter
6: User Manual
Note: If there is anything missing or damaged in the table list, contact us immediately.
Inquiry: sales@andycine.com
Website: www.wimaxit.com
Facebook/Instagram/Twitter: @Wimaxit
3
Interface instructions
LEFT SIDE RIGHT SIDE
4
LED indicator light
Blue Color: ON/ Input source detected
Red Color: No valid source/ Standby status
Dark: OFF
#
Function Description
#
Function Description
1
Speaker 1W
6
Mini HDMI Port
(Video/Audio input port)
2
Power/Input Button
Long Press to Turn ON/ OFF
Short press:Return on menu status;
Select input source
7
Type-C Port
(Power & Video/ Audio input)
3
Wheel Button
Push up: + brightness;
Push down: - volume;
Short press: menu
8
Type-C Port
(Power & Video/ Audio input)
4
Auxiliary 3.5mm
(Connect with Speaker
&Headphone/Ear Phone)
9
Micro-USB OTG Port
(Connect with wire/wireless
keyboard/Mouse)
5
Speaker 1W
10
.
LED Light Indicator
Red Color: Standby status/No
valid source;
Blue Color: ON/Input source
detected
Dark: OFF
5
Using Wimaxit’s Buttons
Power Button
Power On:
Hold power button for 2 seconds.
Power Off:
Hold power button for 3 seconds.
Return/Exist:
While on menu status, short press for return.
Input:
Short press power button to select input source.
Show Settings Menu:
Press wheel button.
While on menu status, short press to confirm and
save your setting.
Volume Setting Shortcut:
Toggle wheel button down.
Push up to increase volume
push down to decrease volume
Brightness Setting Shortcut:
Toggle wheel button up.
Push up to increase brightness
Push down to decrease brightness
Note: Make sure to save your settings via the Wheel Button before closing the menu.
6
Menu Settings
Brightness
Select brightness level between 1(lowest) to 10(highest)
Contrast
Select contrast level between 0(lowest) to 10(highest)
ECO
Select View Mode Settings (Standard, Game, Movie,
Photo, Vivid, User)
DCR
Dynamic Contrast Ratio (ON or OFF). Selecting ON will
allow higher contrast ratios
Sharpness
Select sharpness level between 0(lowest) to 4(highest)
COLOR
Color Temp.
9300k(coolest), 6500k(cool), SRGB (standard Red Green
Blue), User (custom RGB value)
Hue
Select hue levels 0 to 10
Saturation
Select Saturation levels 0 to 10
Low Blue Light
Levels 0 to 10. Low Blue Light Technology reduces the
emission of harmful low-blue lights on a display in order
to prevent eye fatigue.
FreeSync
On/off
PCM
Select Color Gamut from the following (SRGB, ADOBE,
User, NATIVE)
AUDIO
Volume
Select loudness levels 0 to 10
Mute
Select ON (muted) or OFF (unmuted)
OTHER
Language
Select language (English, Simplified Chinese, Traditional
Chinese, Deutsch, Le Francis, Italia, Spanish, Japanese,
Russian, Korean)
HDR
Select from the following (OFF, AUTO,2084)
Reset
Reset all settings to factory default
USB Touch
Select USB1 or USB2 when HDMI connected
INPUT
Auto Select
Recommended
Type-C1
Type-C2
HDMI
7

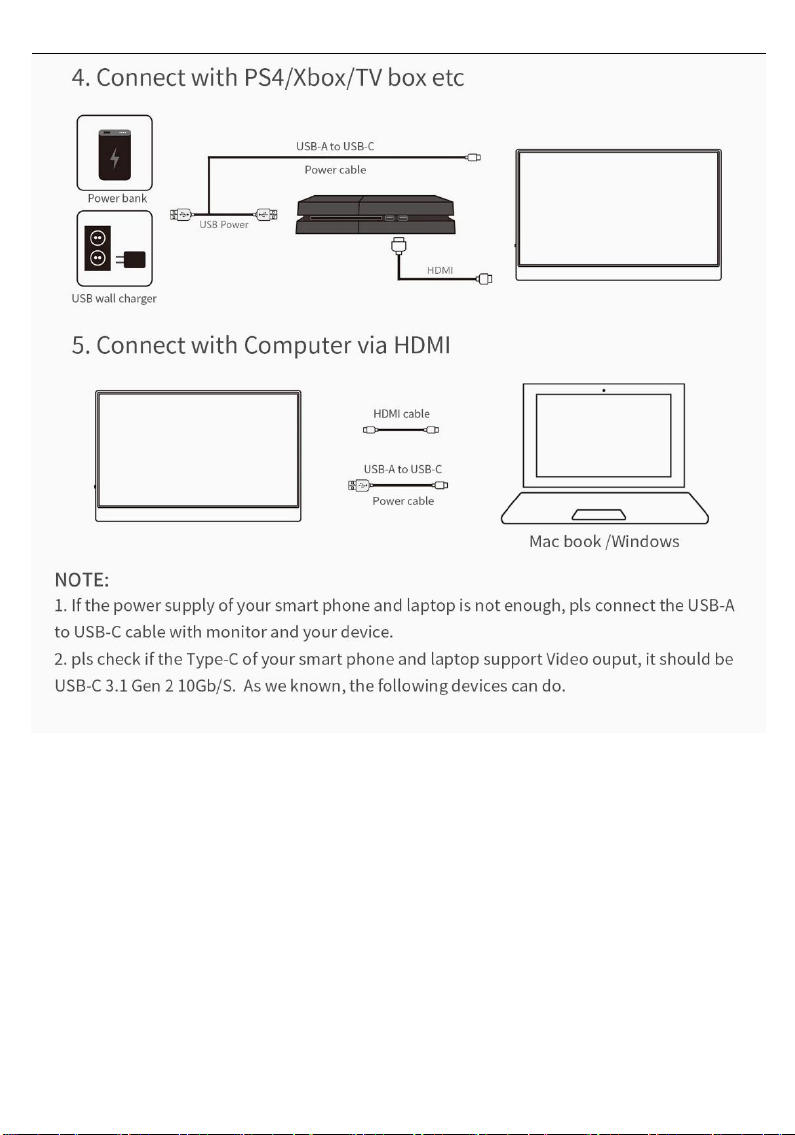

Ports and Connections
1. Video
Connect to monitor’s Mini HDMI / USB-C port with a valid source such as a PC or
gaming console.
NOTE: Not all PC, laptop, or mobile phone USB-C ports output signal. Please see the FAQ
for more information.
2. Power
Connect USB-C to either input port. Both USB Type- C ports are available to receive
both power and video signals.
FHD (1080P) Wimaxit model requires 5V, 2A minimum input power.
We recommend to use the original power supply (5V 3A or 9V 2A) for Samsung
phones while connecting to our Wimaxit’s display.
NOTE: Most PCs and laptops do not output 5V, 2A power and will not provide sufficient
charge to power the Wimaxit display without additional external power. Please using the
supplied power adapter to powering the monitor if your monitor is not powering on.
3. Touch Screen
Connect via Mini HDMI port: Mini HDMI will only input/output display signal. To
activate touch functionality, connect the monitor to your computer via either a USB 3.0 A
to USB-C cable or USB-C to USB-C cable through which the touch signal from the Wimaxit
will be sent to your device.
Connect via USB-C port: Connect via the USB-C cable for data, display and touch signal.
(Both USB-C ports can deliver data, display and touch signal.) Make sure to select the
correct USB- C input source that you connect with your device to activate the touch
function.
NOTE: For simultaneous power and data transfer, use one USB-C for data transmission
and another for power supply.
The power output of each device can vary. In case of a power shortage, lower brightness
and volume on the monitor or use the AC adapter to power the monitor.
You can use single-finger touch or multi-finger touch for up to 10 simultaneous touch
points.The touch function for wimaxit’s display DO NOT supports Mac OS
system.only support windows and Android OS.
9
PC：
Apple MacBook 12" 2016/MacBook 13" 2017/New MacBook Air/2018 MacbookPro2019
/Huawei Mate Book X/Mate Book E XiaomiAir12.5"/13.3"/Pro15.6.
Lenovo Yoga 900/ThinkPad. HP Envy 13 2017 /Spectre 13. ASUS U4100/ROG. Dell XPS
13/15
Android Phones：
Huawei Mate P30/P30 Pro/Mate P20/P20 Pro/Mate 10/10 Pro. Samsung
S9/S9+/S8/S8+/S10/S20/Note 8/Note9/Noto20(Samsung Dex)
NOTES:
Touchscreen function is only enabled when connecting to your device via USB-C as the
HDMI connection does not output touch signal.
10
Most PCs and laptops do not output 5V, 2A power and will not provide sufficient charge to
power the monitor without additional external power. Some standard chargers will also
not output sufficient power for the FHD monitor. Please using the supplied power adapter
to powering the monitor if your monitor is not powering on.
Not all mobile devices output signal and may not be able to work with the WIMAXIT
Monitor. Please see the FAQ for more information.
If your touchscreen or display does not work with any of these configurations, please
consult the FAQ at the end of the manual.
Specifications
Name
Wimaxit M1400CT Portable Monitor
Screen
14" IPS 98% sRGB color gamut
Resolution
1920*1080
Vertical Frequency
60Hz
Brightness
400nits
Contrast Ratio
1500:1
Viewing angles
85°/85°(L/R）85°/85(U/D)
Connectivity
HDMI mini Port、Type-C data/touch/power Port *2
、Micro-USB OTG Port *1 、Head Phone Out Port *1
Authorized Protection
HDCP
Compatible
Compatible with: Smart Phones, Game consoles, Xbox
One, Xbox 360, PlayStation 4, PlayStation, PC etc....
Speakers
2x 1W
Rating Voltage
5V 2A
Operating Temperature
-20℃～55℃
Storage Temperature
-30℃～65℃
Unit Size
321*191*9mm
Unit Weight
655g (only monitor)/1022g (with smart cover)
Note:
Design and specifications are subject to change without prior notice.
11
Safety Instructions:
1.Do not use a damaged, loose, unauthorized plug. This may cause an electric shock or
fire.
2.Do not operate power plug by wet hand. This may cause electric shock.
3.Please do not bend the monitor and place the heavy things on the screen.
4. High humidity and dust environment may cause the electric shock and damage the
monitor.
5.Please place the monitor on a flat and stable surface.
6.Please cleaning screen slightly with a moistened, soft fabric.
7.If the connector between the plug and the pin is dusty or dirty, clean it properly with a
dry cloth. A dirty connector can cause an electric shock or fire.
8.If there is weird smell and sound come from monitors. Please power off and contact
customer support for assistance.
Troubleshooting (FAQ)
1. My screen does not turn on
or I’m seeing a black / blank screen
Please try plugging it into a power source with the supplied power adapter or using the
USB C cable provided. Please do not use generic USB-C cables sine not all cables are made
equal. Some generic cables might not be able to power the monitor or provided image
output to the monitor.
2. Audio is playing from my Wimaxit
screen instead of my laptop or headphones
Please go into the audio / volume settings on your computer and switch output back to
your laptop or headphones.
3. Why isn’t my mobile device / tablet
connected to the Wimaxit?
Some phone brands, by design, do not output any display signal. Unfortunately, this
means you will not be cable to connect to your smart phone to your Wimaxit.
For Apple tablets and smart phones, you will need to use a special Lighting-to-HDMI
adapter available on amazon due to Apple’s limitations.
Make sure you’re also providing enough power to the monitor (5V 2A). Many tablets
12
and mobile devices do not output sufficient power to turn on the monitor. Please
power by connecting the Wimaxit to a charger or another device like a power bank.
4. Why doesn’t the touchscreen work?
Wimaxit’s mini HDMI input does not out touchscreen signal. You will need to
connect your device via the Provided USB-C and potentially power your monitor via
another USB-C port(go to Input setting to choose the right type C you connected) if
your device does not output sufficient power for the touchscreen to work.
Many mobile devices do not have touchscreen input signal for external monitors.
Some devices such as Huawei Mate have been designed to take touchscreen input.
5. Wimaxit display isn’t working
when a USB-C cable is connected
Make sure that your device is on the list of supported devices and that the USB-C port
on your device is a full-featured USB-C(USB-C 3.1 Gen2(10 Gbps)) port. If the USB-C port
on your device is only capable of charging, then it cannot support video transfer to
Wimaxit display.
6. The speakers aren’t working
Check to see if the display is set to “Silent”and make sure the volume is turned up. Go to
Volume Settings to set up Wimaxit’s audio.
7. The Power LED Light is green and there is no screen image
Check if the monitor and the computer are on.
Make sure your video input (USB-C or mini HDMI) are properly connected.
Inspect the signal cable and make sure the pins are not bent or damaged.
Connect the computer to another monitor to ensure the computer and output port
is working properly.
13
8. Screen image is too light or dark
Adjust the Brightness settings via the Roll key Button, short press the “+”,“-”Button.
9. Screen image bounces or a wave pattern is present in the image
Make sure the USB-C cable is properly connected.
Move away from electrical devices that may cause interference.
10. Screen image has color defects
(white does not look white)
Inspect the USB-C cable and make sure that none of the pins are bent.
Use another USB-C or HDMI cable to connect your device to the Wimaxit display.
11. My monitor keeps shutting off without warning
The monitor will shut down when its power supply is low. Make sure the device that
powers Wimaxit has sufficient power.
Some laptops and devices will have a lower power output if it is low on battery. It is
also common for some devices to have a defective output port that does not give a
consistent or sufficient power lever, which may result in the screen turning on and
off unexpectedly. We recommend powering the Wimaxit via the supplied power plug
if this continues happening with your device.
Check if the signal source (your phone, computer, game console, etc.) went into
sleep mode. Wimaxit display will turn off automatically if the signal source goes to
sleep for more than 15 seconds. This is done to preserve the power of your device.
THANK YOU
FOR CHOOSING US!
14
WIMAXIT MONITOR
www.wimaxit.com
support@wimaxit.com
Table of contents
Other WIMAXIT Monitor manuals
WIMAXIT
WIMAXIT M1331C User manual
WIMAXIT
WIMAXIT M828RPI User manual
WIMAXIT
WIMAXIT M1560CTV2 User manual
WIMAXIT
WIMAXIT M1410CT User manual
WIMAXIT
WIMAXIT M728 User manual
WIMAXIT
WIMAXIT M1050C User manual
WIMAXIT
WIMAXIT B07Q2RXW82 User manual
WIMAXIT
WIMAXIT M1562C User manual
WIMAXIT
WIMAXIT M1050C User manual
