WIMAXIT M1410CT User manual
1
WIMAXIT
PORTABLE TOUCHSCREEN MONITOR
M1410CT USER MANUAL
In order to ensure your safe use of this product, please read this
manual carefully before using this product and keep it properly.
2
Contents in the box
1 M1410CT Monitor
2 Mini HDMI to HDMI Cable
3 USB-C to USB-C Cable
4USB-A(3.0) to USB-C cable
5 DC 5V 2A USB Power Adapter
6 User Manual
7 Cleaning Cloth
8 Warranty Card
Note: If there is anything missing or damaged in the table list, contact us immediately.
Website: www.wimaxit.com
Facebook/Instagram/Twitter: @Wimaxit
3
Interface instructions
LEFT SIDE RIGHT SINE
4
#
Function Description
#
Function Description
1
Exit Button
(While on menu status, short press
for return;Auto Select/Type-C/HDMI)
6
Full-Featured USB-C Port
(Power&Video&Audio&Touch
input port)
Support DP ALT MODE
2
Wheel Button
Push wheel button up/down and
hold it for 2 second: brightness;
Push wheel button up/down: +/-
volume;
Short press: menu
7
Mini HDMI Port
(Video/ Audio input port)
3
Auxiliary 3.5mm
(Connect with Speaker & Head
Phone/Ear Phone)
8
180°adjustable
built-in stand
4
Power Indicator Light
Blue Color: ON/Input source detected
Red Color: No valid source/
Standby status
Dark: OFF
9
Speakers 1W*2
(Audio)
5
Full-Featured USB-C Port
(Power&Video&Audio&Touch input
port)
Support DP ALT MODE
Power Indicator Light
Blue Color: ON/ Input source detected
Red Color: No valid source/ Standby status
Dark: OFF
5
Button Description
Exit Button
Return:
While on menu status, short press for return.
Input:
Short press exit button to select input source.
Wheel Button
Power On:
Hold wheel button for 2 seconds.
Power Off:
Hold wheel button for 3 seconds.
Show Settings Menu:
Press wheel button.
While on menu status, short press to confirm and
save your setting.
Volume Setting Shortcut:
Push up to increase volume
push down to decrease volume
Brightness Setting Shortcut:
6
Push wheel button up/down and hold it for 2 seconds:
Push up to increase brightness
Push down to decrease brightness
Note: Make sure to save your settings via the Wheel Button before closing the menu.
Menu Settings
Brightness
Select brightness level between 0(lowest) to
100(highest)
Contrast
Select contrast level between 0(lowest) to 100(highest)
Black-equalizer
Select black-equalizer level between 0(lowest) to
100(highest)
Game Mode
Select View Mode Settings (Standard,Performance
Mode, FPS, RTS)
Color Effect
Saturation
Select Saturation levels 0 to 100
Hue
Select hue levels 0 to 100
Sharpness
Select OFF or ON
Information
Reset
Reset
Reset all settings to factory default
Auto Color
Adjust
Recommended
Auto Image
Adjust
Recommended
Advance
Ultra HDR Mode
Select from the following(Auto, Off, On)
Eye Protection
Select On or Off
3D Sound
Select On or Off
Anchor
Select On or Off
Option
Source
Select the following(Auto, HDMI, TypeC)
Language
Select language (English, Esp., Ita., Fra., Deu., 日本
語,한국어,Pyc., 简体中文,繁体中文)
7
Aspect Ratio
Select from the following (Wide, 5:4, 4:3)
Volume
Select loudness levels 0 to 100
Temperature
Temperature
sRGB(standard Red Green Blue), 5800, 6500, 7500, 9300,
User(custom)
Red
User Mode (select from 0 to 100)
Green
User Mode (select from 0 to 100)
Blue
User Mode (select from 0 to 100)
OSD Setting
H. Position
Menu horizontal position
V. Position
Menu vertical position
Menu Time
Menu appearance time (in seconds- 5-60)
Transparency
Menu transparency settings(0 to 100)

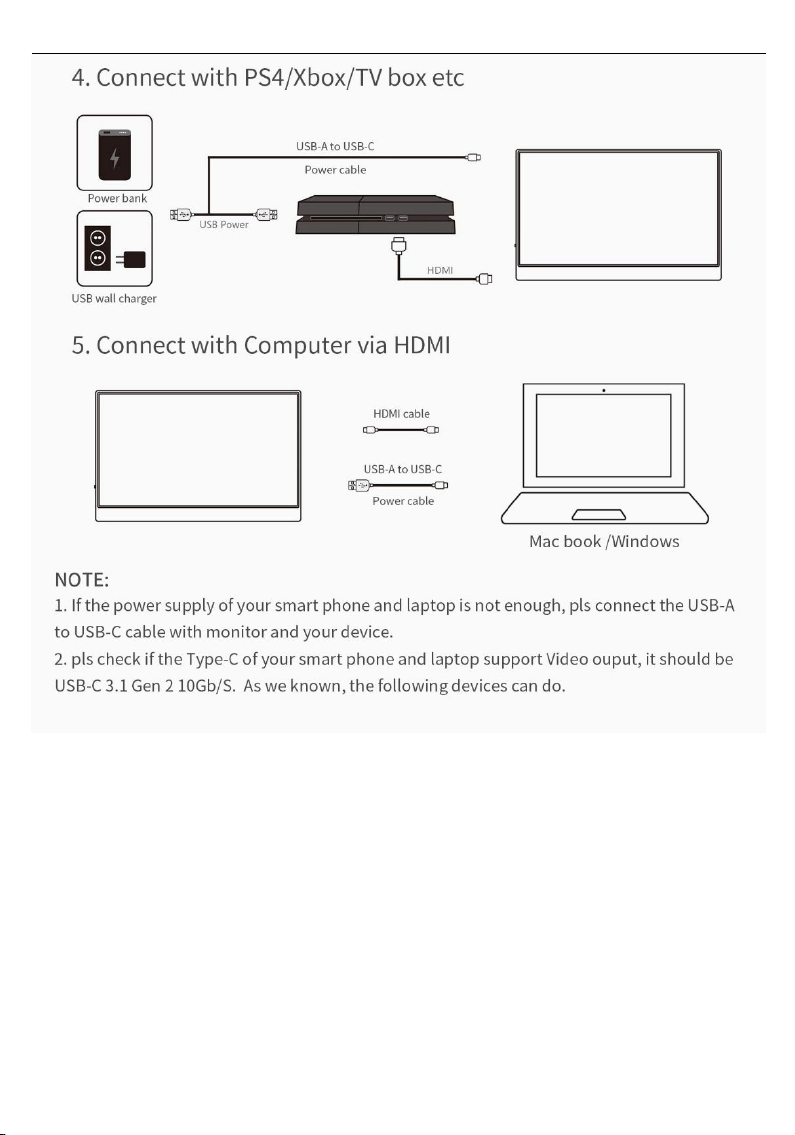

Ports and Connections
1. Video
Connect to monitor’s Mini HDMI / USB-C port with a valid source such as a PC or
gaming console.
NOTE: Not all PC, laptop, or mobile phone USB-C ports output signal. Please see the FAQ
for more information.
2. Power
Connect USB-C to the USB-C power port or USB-A to the USB-C power port, both
USB-C input ports in the monitor can deliver power, video and touch.
FHD (1080P) Wimaxit model requires 5V, 2A minimum input power.
We recommend to use the original power supply (5V 3A or 9V 2A) for Samsung
phones while connecting to our Wimaxit’s display.
NOTE: Most PCs and laptops do not output 5V, 2A power and will not provide sufficient
charge to power the Wimaxit display without additional external power. Please using the
supplied power adapter to powering the monitor if your monitor is not powering on.
3. Touch Screen
Connect via Mini HDMI port: Mini HDMI will only input/output display signal. To
activate touch functionality, connect the monitor to your computer via either a USB 3.0 A
to USB-C cable or USB-C to USB-C cable through which the touch signal from the Wimaxit
will be sent to your device.
8
Connect via USB-C port: Connect via the USB-C cable for data, display and touch signal.
NOTE: For simultaneous power and data transfer, use one USB-C for data transmission
and another for power supply.
The power output of each device can vary. In case of a power shortage, lower brightness
and volume on the monitor or use the AC adapter to power the monitor.
You can use single-finger touch or multi-finger touch for up to 10 simultaneous touch
points.
Please download the driver from here: https://touch-base.com/download or contact us
support@wimaxit.com if you encounter any touchscreen problem
10
PC：
Apple Macbook 12" 2016/Macbook 13" 2017/New Macbook Air/2018 MacbookPro2019
/Huawei MateBook X/MateBookE XiaomiAir12.5"/13.3"/Pro15.6 .
Lenovo Yoga 900/ThinkPad. HP Envy 13 2017 /Spectre 13. ASUS U4100/ROG. Dell XPS
13/15
Android Phones：
Huawei Mate P30/P30 Pro/Mate P20/P20 Pro/Mate 10/10 Pro. Samsung
S9/S9+/S8/S8+/S10/Note 8/Note9(Samsung dex)
NOTES:
Touchscreen function is only enabled when connecting to your device via USB-C as the mini
HDMI connection does not output touch signal.
11
Most PCs and laptops do not output 5V, 2A power and will not provide sufficient charge to
power the monitor without additional external power. Some standard chargers will also not
output sufficient power for the FHD monitor. Please using the supplied power adapter to
powering the monitor if your monitor is not powering on.
Not all mobile devices output signal and may not be able to work with the WIMAXIT
Monitor. Please see the FAQ for more information.
If your touchscreen or display does not work with any of these configurations, please
consult the FAQ at the end of the manual.
Specifications
Name
WIMAXIT M1410CT Portable Monitor
Panel Type
14 Inch IPS
Resolution
1920*1080 pixel
Vertical Frequency
60Hz
Brightness
250nits
Contrast Ratio
800:1
Viewing angles
170/170 Degree
Connectivity
Mini HDMI Port*1,Type-C Port *2,
3.5mm Head Phone Out Port *1
Authorized Protection
HDCP
Compatible
Compatible with: Computer, tablet PC, Smart Phones,
Game consoles, Xbox One, Xbox 360, PlayStation 4,
PlayStation, PC, etc....
Speakers
2x 1W
Power voltage
5V 2A
Operating Temperature
0˜50℃
Storage Temperature
-20˜60℃
Unit Size
12.6*7.6*0.19/0.35/0.45(320*192*4.85/9/11.5mm)
Unit Weight
1.29lb(585g)
Note :
Design and specifications are subject to change without prior notice.
12
Safety Instructions:
1.Do not use a damaged,loose,unauthorized plug. This may cause an electric shock or fire.
2.Do not operate power plug by wet hand. This may cause electric shock.
3.Please do not bend the monitor and place the heavy things on the screen.
4. High humidity and dust environment may cause the electric shock and damage the
monitor.
5.Please place the monitor on a flat and stable surface.
6.Please cleaning screen slightly with a moistened, soft fabric.
7.If the connector between the plug and the pin is dusty or dirty, clean it properly with a
dry cloth. A dirty connector can cause an electric shock or fire.
8.If there is weird smell and sound come from monitors. Please power off and contact
customer support for assistance.
Troubleshooting(FAQ)
1. My screen does not turn on
or i’m seeing a black / blank screen
Please try plugging it into a power source with the supplied power adapter or using the
USB C cable provided. Please do not use generic USB-C cables sine not all cables are made
equal. Some generic cables might not be able to power the monitor or provided image
output to the monitor.
2. Audio is playing from my Wimaxit
screen instead of my laptop or headphones
Please go into the audio / volume settings on your computer and switch output back to
your laptop or headphones.
3. Why isn’t my mobile device / tablet
connected to the Wimaxit?
Some phone brands, by design, do not output any display signal. Unfortunately, this
means you will not be cable to connect to your smartphone to your Wimaxit.
For Apple tablets and smartphones, you will need to use a special Lighting-to-Mini
HDMI adapter available on amazon due to Apple’s limitations.
Make sure you’re also providing enough power to the monitor(5V 2A). Many tablets
and mobile devices do not output sufficient power to turn on the monitor. Please
13
power by connecting the Wimaxit to a charger or another device like a power bank.
4. Why doesn’t the touchscreen work?
Wimaxit’s Mini HDMI input does not out touchscreen signal. You will need to
connect your device via the Provided USB-C and potentially power your monitor via
another USB-C port(power port) if your device does not output sufficient power for
the touchscreen to work.
Many mobile devices do not have touchscreen input signal for external monitors.
Some devices such as Huawei Mate have been designed to take touchscreen input.
5. Wimaxit display isn’t working
when a USB-C cable is connected
Make sure that your device is on the list of supported devices and that the USB-C port
on your device is a full-featured USB-C(USB-C 3.1 Gen2(10 Gbps)) port. If the USB-C port
on your device is only capable of charging, then it cannot support video transfer to
Wimaxit display.
6. The speaker aren’t working
Check to see if the display is set to “Silent”and make sure the volume is turned up. Go to
Volume Settings to set up Wimaxit’s audio.
7. The Power LED Light is dark and there is no screen image
Check if the monitor and the computer are on.
Make sure your video input(USB-C or Mini HDMI) are properly connected.
Inspect the signal cable and make sure the pins are not bent or damaged.
Connect the computer to another monitor to ensure the computer and output port
is working properly.
14
8. Screen image is too light or dark
Adjust the Brightness settings via the Wheel Button.
Or push wheel button up and press it for 2 seconds:
Push up to increase brightness
Push down to decrease brightness
9. Screen image bounces or a wave pattern is present in the image
Make sure the USB-C cable is properly connected.
Move away from electrical devices that may cause interference.
10. Screen image has color defects
(white does not look white)
Inspect the USB-C cable and make sure that none of the pins are bent.
Use another USB-C or Mini HDMI cable to connect your device to the Wimaxit
display.
11. My monitor keeps shutting off without warning
The monitor will shut down when its power supply is low. Make sure the device that
powers Wimaxit has sufficient power.
Some laptops and devices will have a lower power output if it is low on battery. It is
also common for some devices to have a defective output port that does not give a
consistent or sufficient power lever, which may result in the screen turning on and
off unexpectedly. We recommend powering the Wimaxit via the supplied power plug
if this continues happening with your device.
Check if the signal source (your phone, computer, game console, etc.) went into
sleep mode. Wimaxit display will turn off automatically if the signal source goes to
sleep for more than 15 seconds. This is done to preserve the power of your device.
15
THANK YOU
FOR CHOOSING US!
WIMAXIT MONITOR
www.wimaxit.com
support@wimaxit.com
Table of contents
Other WIMAXIT Monitor manuals
WIMAXIT
WIMAXIT M1331C User manual
WIMAXIT
WIMAXIT M1050C User manual
WIMAXIT
WIMAXIT M828RPI User manual
WIMAXIT
WIMAXIT M728 User manual
WIMAXIT
WIMAXIT M1560CTV2 User manual
WIMAXIT
WIMAXIT B07Q2RXW82 User manual
WIMAXIT
WIMAXIT M1400CT User manual
WIMAXIT
WIMAXIT M1562C User manual
WIMAXIT
WIMAXIT M1050C User manual
