WINBO WB20141117 User manual

User Manual for WINBO 3D Printers Version: WB20141117
WINBO 3D PRINTER
USER MANUAL
VERSION: WB20141117

User Manual for WINBO 3D Printers Version: WB20141117
Table of Contents
A. MACHINE SPECIFICATIONS.............................................................................................................................................. 2
B. SOFTWARE INSTALLATION............................................................................................................................................... 2
B.1 SOFTWARE INSTALLTION.............................................................................................................................................. 2
B.2 SOFTWARE CONFIGURATION....................................................................................................................................... 3
C. SOFTWARE SETTINGS....................................................................................................................................................... 4
C.1 CONFIGURATION FILE LEAD-IN................................................................................................................................... 4
C.2 QUICKPRINT PRINTING.................................................................................................................................................. 5
C.3 FULLSETTINGS PRINTING............................................................................................................................................. 6
D. ACCESSORIES INSTALLATION AND BASIC FUNCTIONS........................................................................................ 7
D.1 ACCESSORIES INSTALLATION ............................................................................................................................................... 7
D.2 BASIC FUNCTIONS................................................................................................................................................................ 8
D.2.1 MACHINE TESTS..................................................................................................................................................... 9
D.2.2 Level Build Plate (Important)................................................................................................................................... 9

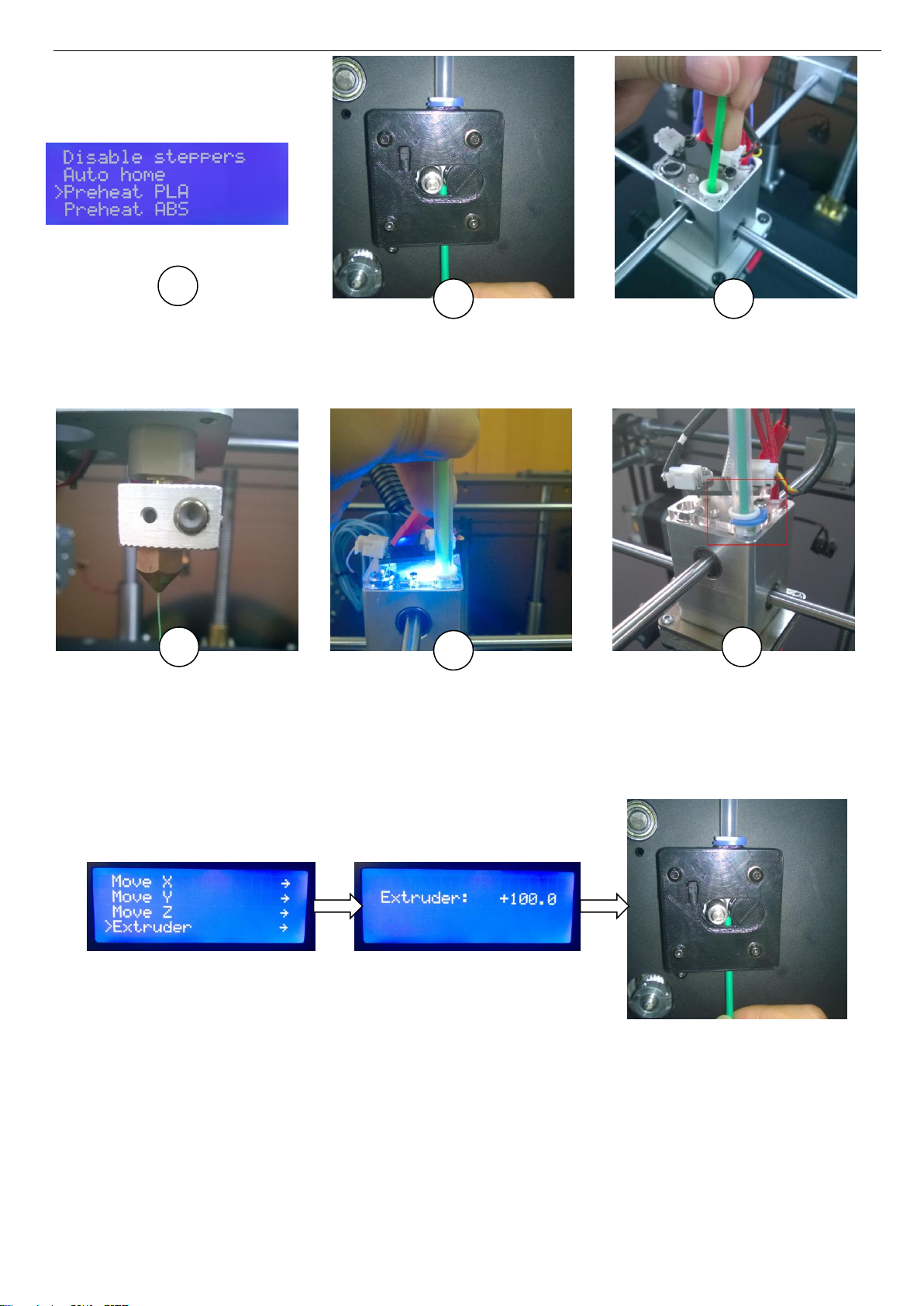

D.2.3 LOADING.................................................................................................................................................................. 10

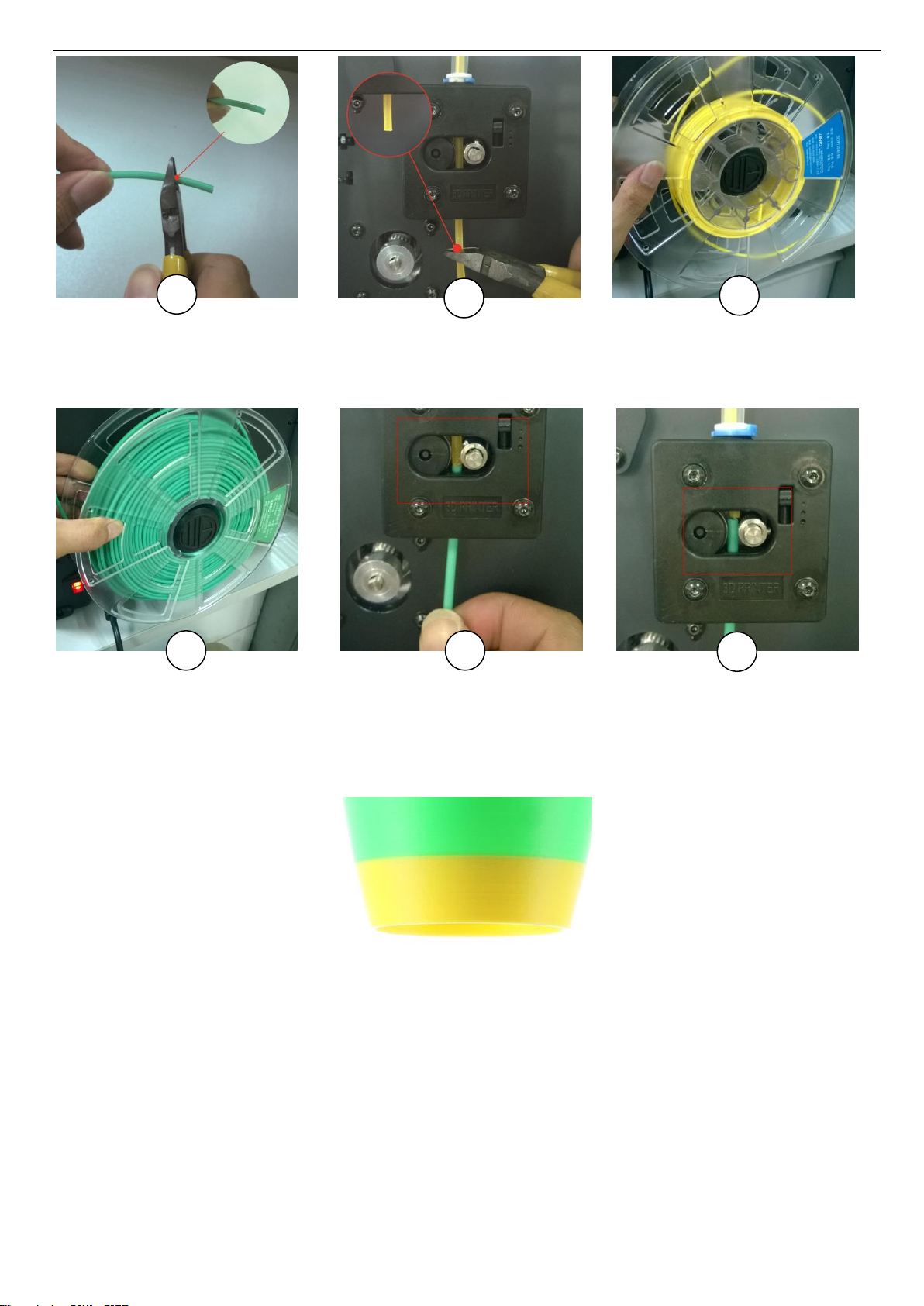

D.2.4 Change Filament During Printing......................................................................................................................... 11
D.2.5 UNLOADING............................................................................................................................................................ 13
E. MACHINE MENU EXPLANATION....................................................................................................................................13
F. START PRINTING................................................................................................................................................................. 14
F.1 MODELEDITION ............................................................................................................................................................. 14
F.1.1 ROTATE..................................................................................................................................................................... 15
F.1.2 SCALE ....................................................................................................................................................................... 15
F.1.3 FLIPPING (MIRROR).............................................................................................................................................. 16
F.1.4 OTHER EDITTINGS................................................................................................................................................ 16
F.1.5 VIEM MODE.............................................................................................................................................................. 17
F.2 PRINT FROM SD CARD (RECOMMENDED)................................................................................................................ 17
F.3 PRINT FROM COMPUTER.............................................................................................................................................. 18
G. CONTINUE THE PRINT AFTER POWER CUT.............................................................................................................. 20
H. MACHINE MAINTENANCE................................................................................................................................................ 23
I. CONTACT US.........................................................................................................................................................................24
AFTER-SALE SERVICES....................................................................................................................................................... 25

1
We are so excited to welcome you to the Winbo 3D printer community. 3D printers are precision
manufacturing equipment. Therefore, this User Manual is designed to start your journey with the Winbo
Dragon Style desktop 3D printers in the right direction. Your Winbo Dragon is optimized for PLA and PETG. It
is so crucial to take the time to learn about this User Manual as well as your new machine!
Due to long distance of transportation, please kindly unpack the machine box and check all the accessories
and tool sets before using your new machine, to make sure everything is OK: bolts fastened. Also please
remove those fixtures or padding used for the transportation. If there are questions or exceptions, please feel
free to contact us any time!
Before the first print, you need to know the following:
1. This is machine have been strictly tested before delivery. If it refuses to work when you receive it, please
kindly contact us as soon as possible.
2. Please save all packing materials for the machine in case of transportation and future repair (in factory). If
the machine will go through long distance transportation or be sent back to the factory for repair work,
please make sure that the machine has been well packed as the original packing. For repair issue, it is
unnecessary to send back the related accessories, such as the glass.
3. If you encounter any malfunctions for unknown reason, please turn off the machine and contact us as
soon as possible.
4. The materials for this machine are PLA and PETG.
5. Since it is a kind of plastic modeling machine, it may give out certain unpleasant smell during printing.
Please make sure the machine is working in a place with good ventilation.
6. The machine’s working environment should be between 15 to 35℃.
7. Protect the machine from humidity and dust.
8. Both the build plate and the extruder are heating parts. Please keep away from these two parts during
heating or printing process. Before repair, please cool down these two parts first.
9. The glass is fragile. During maintenance or repair work, please take away the glass first.
10. A 3D printer is a machine instead of a toy. Therefore, please don’t leave the kids along with the
machine.
11. This User Manual is updated all the time. You may contact us for the latest version if we fail to notify you.
WINBO will reserve the final interpretation on the User Manual.
12. Unpack the machine. Take out the machine as well as the accessories.
13. Install CURA, the software on the computer.
14. Power on the machine and level the build plate.
15. Load the material: PLA or PETG.
16. Transfer STL file into “.gcode”by CURA.
17. Save the “.gcode”file to the SD card and insert it to the machine. Find out the “.gcode” file that you need
to print.
18. Wait for the printing.
19. Make sure the machine is well working and material is enough.

User Manual for WINBO 3D Printers Version: WB20141117
2
A. MACHINE SPECIFICATIONS
B. SOFTWARE INSTALLATION
B.1 SOFTWARE INSTALLTION
Inside the SD card, there is the operation software for our machine. Double-click on “Cura_14.09.exe” and
install it by following default options as shown below:
PHYSICAL SPECIFICATIONS
DARGON
MACHINE SIZE: 440 x 360 x 740 mm
CBM: 560 x 485 x 960 mm
MACHINE WEIGHT: 16.2 kg
SHIPPING WEIGHT: 38.5 kg
PRACTICAL
MACHINE SIZE: 440 x 360 x 540 mm
CBM: 560 x 485 x 760 mm
MACHINE WEIGHT: 14.5 kg
SHIPPING WEIGHT: 35.4 kg
VALUE
MACHINE SIZE: 380 x 360 x 440 mm
CBM: 520 x 500 x 625 mm
MACHINE WEIGHT: 11.7 kg
SHIPPING WEIGHT: 19.7 kg
MINI
MACHINE SIZE: 335 x 305 x 390 mm
CBM: 475 x 445 x 560 mm
MACHINE WEIGHT: 9.2 kg
SHIPPING WEIGHT: 14.4 kg
TEMPERATURE
NOZZLE TEMPERATURE: 0-240℃（no
more than 260℃）
BUILDPATE TEMPERATURE: 0-110℃
（adjustable）
BUILDPATE HEATING: around 5 min
NOZZLE HEATING: around 3 min
PRINTING
LAYER THICKNESS: 0.06-0.4 mm (adjustable)
PRITNING MATERIALS: PLA/ PETG / ABS
FILAMENT DIAMETER: 3.0 mm
NOZZLE DIAMETER: 0.4 mm
NOZZLE MOVING SPEED: 20-150 mm/s
（ADJUSTABLE）
POSITIONING PRECISION:
Z-AXIS: 0.002 mm
XY-AXIS: 0.010 mm
BUILD TYPE:
FDM (FUSED DEPOSTION MODELING)
POWER SUPPLY
Connection: USB or SD CARD
AC INPUT: 95-230V, 50-60Hz
Output: 24V
Rated current: 14.6A
MACHINE POWER: 350W (Mini Style: 150W)
Working temperature: -20℃-60℃
SOFTWARE
FILE FORMAT: .stl
Input file: Gcode
OPERATONAL SOFTWARE: Professional 3D
printer software
SUPPORTS: Windows，Linux，Mac OX
3D DESIGN SOFTWARES:
SolidWorks, PRO-E, UG, Auto CAD, 3ds-Max,
Maya etc.

User Manual for WINBO 3D Printers Version: WB20141117
3
B.2 SOFTWARE CONFIGURATION
To run the software for the first time, you will encounter a welcome interface. Click on “Next” to enter the First
time run wizard and you may follow the instructions as below:
Next
Choose Other and Next

User Manual for WINBO 3D Printers Version: WB20141117
4
Build size:
DARGON：305 x 205 x 500 mm
PRACTICAL：305 x 205 x 300 mm
VALUE：245 x 205 x 200 mm
MINI：210 x 150 x 150 mm
Here comes the interface for the software:
If the machine has not been connected with the computer, you may skip the First time run wizard. When
running the software, you may enter the First time run wizard by coming to the “Expert” →”ReRun first run
wizard” under the menu.
C. SOFTWARE SETTINGS
C.1 CONFIGURATION FILE LEAD-IN
You may finish the software settings by leading in the configuration file in the SD card. Click on “File” and
choose “Open Profile”. Find out the “WINBO-3D Printer.ini” and click on it.
Choose Option and Next
Put in machine specifications
and Finish

User Manual for WINBO 3D Printers Version: WB20141117
5
C.2 QUICKPRINT PRINTING
When running the software the default option is QUICKPRINTING mode. On the left, you will find the
Specifications and Screen as shown below:
There are 3 types of QUICK PRINT High quality print, Normal quality print, Fast low quality print. You may
print with PLA or PETG.
A. 3 types of QUICK PRINT:
High quality print
Normal quality print
Fast low quality print
B. Choose the material for the printing: PLA or ABS
C. Diameter for the filaments: 2.85mm
D. Print suport for the sample
Specifications
Screen

User Manual for WINBO 3D Printers Version: WB20141117
6
C.3 FULL SETTINGS PRINTING
Choose “Tools” under the menu”Switch to full settings” as below:
BASIC SETTINGS ARE AS BELOW:
（1）Layer height: thickness for each layer. Normally it is 0.15mm. If you need high resolution, you may
choose smaller one.
（2）Shell thickness: the amount should bea multiple of 0.4. You may need to adjust this amount to get the
best printing quality.
（3）Enable retraction: Retract the filament while it is not printing. Enable recommended, otherwise, it will
create fine lines during printing.
（4）Bottom/Top thickness: it is related to the printing speed.
（5）Fill Density: normally it is 10-30%.
（6）Print Speed: the faster the print speed, the faster the feeding speed. And the result is burrs created
during printing.
（7）Printing Temperature: 230℃for ABS, PETG and PLA.
（8）Bed Temperature: 0℃for PLA and 70℃for ABS.
（9）Support Type: to choose where to print the support.
（10）Platform adhesion type: a setting to help the printed object stick to the printer bed.
（11）Diameter: you may put the actual diameter.
（12）Flow (%):100% for PLA and 85% for ABS.

User Manual for WINBO 3D Printers Version: WB20141117
7
Advanced settings:
（1）Nozzle size: 0.4mm (fixed).
（2）Speed（retraction）: the speed for retraction. Retraction is pulling the filament back when moving over a
gap in the print.
（3）Distance（retraction）: if it is 0, it mean no retraction made at all.
（4）Initial layer thickness: a thicker layer gives a thicker bottom layer which is easy to stick to the platform. If
it is 0, it means the same bottom layer as the printing layer.
（5）Cut off object bottom: Cut the bottom of the model, this effectively sinks the object into the printer bed. If
your object does not have a lot of contact area with the printer bed then this feature could help you.
（6）Travel speed: the speed at which the printhead moves when it is not printing.
（7）Bottom layer speed: the speed at which the printhead moves while it is laying down the first layer. This is
done to make the print stick easier.
（8）Minimal layer time: the minimal time spent on printing a single layer. If a layer takes less time to print than
this configured time, then the layer is cooled down. This ensures that a layer is cooled down and solid
enough before the next one is put on top.
（9）Enable cooling fan: the cooling fan is usually enabled and greatly improves print quality for PLA.
Note: for the Advanced setting, normally, they are default and require little adjustment.
D. Accessories Installation and Basic Functions
D.1 Accessories Installation
Unpacking the machine, you need to install the accessories:

User Manual for WINBO 3D Printers Version: WB20141117
8
D.2 Basic Functions
There is a control knob on the right of the LCD panel and the functions are as below:
You may press the knob for confirmation
Rotate it counter-clockwise: you are reading the next menu
Rotate it clockwise: you are reading the last menu
With power on, the LCD panel shows as below:
Put the spool holder
Load the filaments spool
Connect the cable
Put on the glass plate
Pull out he blue buckle on the
feeder mechanism
Insert the other end of the
transparent tube
Put back the blue buckle
2
1
3
4
5
6
7
