Windsor 10080220 User manual

Read these instructions before operating the machine
MODEL: CDT7
10080220
Operating Instructions
86038220 09/27/07
PRV NO. 98626
UU
CARPET EXTRACTOR

MACHINE DATA LOG/OVERVIEW
CADET 86038220 03/16/07
MODEL _______________________________________
DATE OF PURCHASE __________________________
SERIAL NUMBER ______________________________
SALES REPRESENTATIVE # _____________________
DEALER NAME ________________________________
OPERATIONS GUIDE NUMBER ___________________
PUBLISHED __________________________________________
For the name and address of your dealer contact: Windsor Industries
YOUR DEALER
Name: __________________________________________________________________________________________________
Address: _______________________________________________________________________________________________
Phone Number: _________________________________________________________________________________________
1

TABLE OF CONTENTS
CADET 86038220 03/16/07
2
Machine Data Log/Overview.........................1
Table of Contents..........................................2
HOW TO USE THIS MANUAL
How to use this Manual.................................1-1
SAFETY
Important Safety Instructions........................2-1
Hazard Intensity Level ..................................2-2
Grounding Instructions..................................2-3
OPERATIONS
Technical Specifications. ..............................3-1

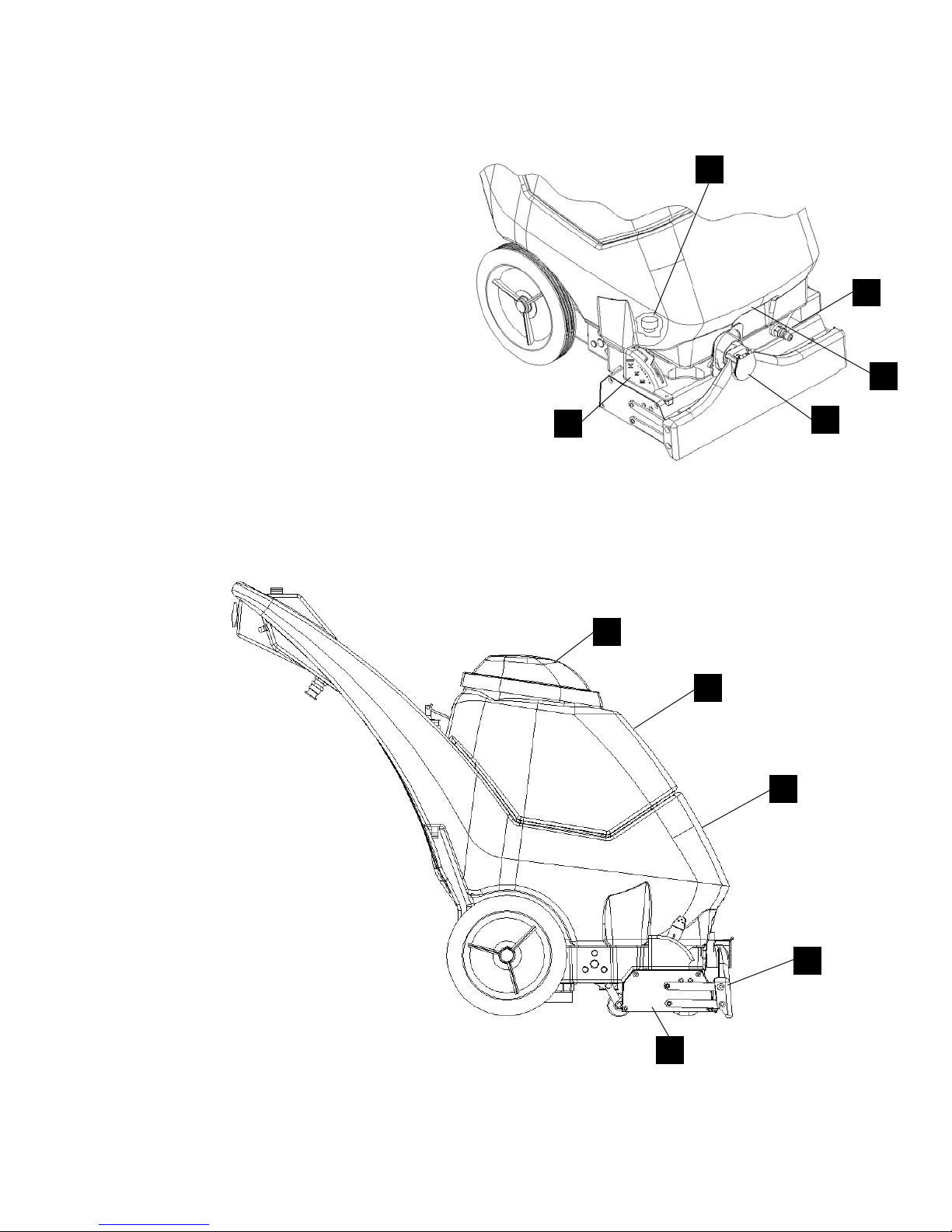

Controls/Component Location ......................3-2
Filling Operation............................................3-5

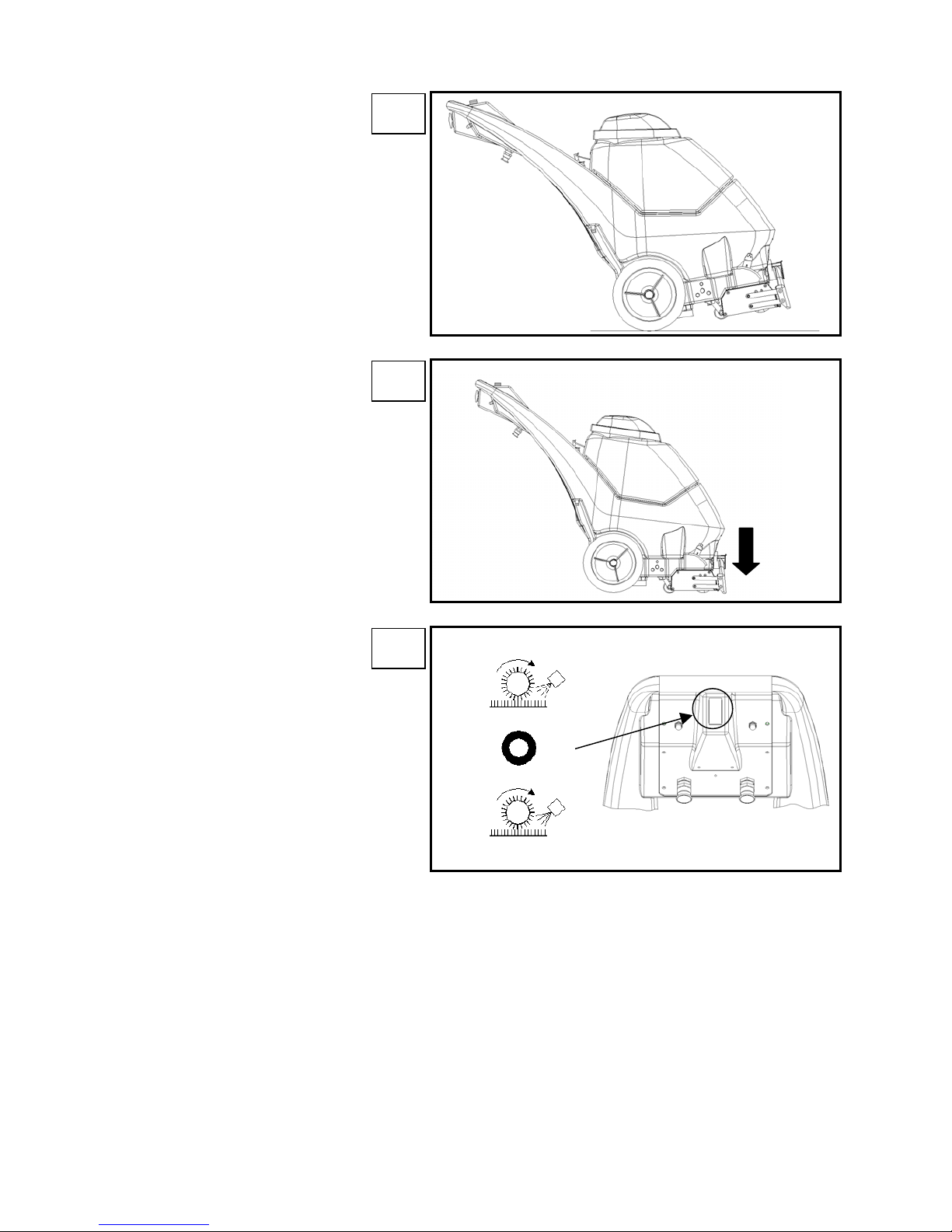

Operations. ...................................................3-6
Cleaning Procedure......................................3-8
Accessory Tool Usage................................3-10
MAINTENANCE
Service Schedule..............................……… 4-1
Periodic Maintenance. ..................................4-2
Daily/ Regular Maintenance..........................4-2
Vacuum Motor Replacement ........................4-3
Belt Replacement..........................................4-4
Solution Pump Replacement ............……… 4-5
Wiring Diagram.............................................4-6
Troubleshooting Chart ..................................4-7
GROUP PARTS LIST
Frame Assembly.........................................5-1
Brush Assembly..........................................5-3
Pump Assembly(prior to SN). .....................5-5
Pump Assembly..........................................5-7
Vacuum Shoe Assembly.............................5-9
Control Panel Assembly..............................5-11
Solution Tank Assembly. ............................5-13
Recovery Tank Assembly...........................5-15
Suggested Spare Parts/Notes ....................5-17

HOW TO USE THIS MANUAL
CADET 86038220 03/16/07
This manual contains the following sections:
- HOW TO USE THIS MANUAL
- SAFETY
- OPERATIONS
- MAINTENANCE
- PARTS LIST
The HOW TO USE THIS MANUAL section will tell
you how to find important information for ordering
correct repair parts.
Parts may be ordered from authorized dealers.
When placing an order for parts, the machine model
and machine serial number are important. Refer to
the MACHINE DATA box which is filled out during
the installation of your machine. The MACHINE
DATA box is located on the inside of the front cover
of this manual.
1-1
The model and serial number of your machine is on
the bottom back-end of the machine.
The SAFETY section contains important information
regarding hazard or unsafe practices of the
machine. Levels of hazards is identified that could
result in product or personal injury, or severe injury
resulting in death.
The OPERATIONS section is to familiarize the
operator with the operation and function of the
machine.
The MAINTENANCE section contains preventive
maintenance to keep the machine and its
components in good working condition. They are
listed in this general order:
- Periodic
- Daily/Regular
- Troubleshooting
The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts
lists include a number of columns of information:
MODEL _____________________________________
DATE OF PURCHASE ________________________
SERIAL NUMBER ____________________________
SALES REPRESENTATIVE # ___________________
DEALER NAME ______________________________
OPERATIONS GUIDE NUMBER __________________
- REF – column refers to the reference
number on the parts illustration.
- PART NO. – column lists the part
number for the part.
- PRV NO. - reference number.
- QTY – column lists the quantity of the
part used in that area of the machine.
- DESCRIPTION – column is a brief
description of the part.
- SERIAL NO. FROM – column indicates
the first machine the part number is
applicable to. When the machine design
has changed, this column will indicate
serial number of applicable machine.
The main illustration shows the most
current design of the machine. The
boxed illustrations show older designs.
If column has an asterisk (*), call
manufacturer for serial number.
-NOTES – column for information not
noted by the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement
parts numbers needed for ordering future parts.
NOTE: The number on the lower left corner of the
front cover is the part number for this manual.
PUBLISHED __ _________________________ _____

SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
This machine is for commercial use.
To reduce the risk of fire, electric shock, or injury:
Connect to a properly grounded outlet. See Grounding Instructions.
WARNING:
!
Do not leave the machine unattended. Unplug machine from outlet when not in use and before maintenance or
service.
Use only indoors. Do not use outdoors or expose to rain.
Do not allow machine to be used as a toy. Close attention is necessary when used by or near children.
Use only as described in this manual. Use only manufacturer’s recommended components and attachments.
Do not use damaged electrical cord or plug. Follow all instructions in this manual concerning grounding the
machine. If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into
water, return it to an authorized service center.
Do not pull or carry machine by electrical cord, use as a handle, close a door on cord, or pull cord around sharp
edges or corners.
Do not run machine over cord. Keep cord away from heated surfaces.
Do not unplug machine by pulling on cord. To unplug, grasp the electrical plug, not the electrical cord.
Do not handle the electrical plug or machine with wet hands.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
This machine is intended for cleaning carpet only.
Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
This machine is not suitable for picking up health endangering dust.
Turn off all controls before unplugging.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine near
flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops
and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
SAVE THESE INSTRUCTIONS
CADET 86038220 03/16/07 2-1

HAZARD INTENSITY LEVEL
CADET 86038220 03/16/07
2-2
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR
SAFETY. The level of hazard intensity is determined by the following definitions:
!WARNING
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
!CAUTION
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property
damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper
operating condition. Following is information that signals some potentially dangerous conditions to the
operator or the equipment. Read this information carefully. Know when these conditions can exist. Locate
all safety devices on the machine. Please take the necessary steps to train the machine operating
personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the
machine. Use manufacturer approved replacement parts.

GROUNDING INSTRUCTIONS
NOTE: In Canada, the use of a temporary adaptor is no
t
p
ermitted by the Canadian Electrical Code
PROPER GROUNDING
Metal Screw
A
dapto
r
Grounded Outlet Box
Fig. A Fig. B
Fig. C
Tab For Grounding Screw
Grounded
Outlet
Grounding Pin
A
dapto
r
THIS PRODUCT IS FOR COMMERCIAL USE ONLY.
ELECTRICAL:
In the USA this machine operates on a standard 15
amp 115V, 60 hz, A.C. power circuit . The amp,
hertz, and voltage are listed on the data label found
on each machine. Using voltages above or below
those indicated on the data label will cause serious
damage to the motors.
GROUNDING INSTRUCTIONS:
This appliance must be grounded. If it should
malfunction or break down, grounding provides a path
of least resistance for electric current to reduce the
risk of electric shock. This appliance is equipped with
a cord having an equipment-grounding conductor and
grounding plug. The plug must be inserted into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
This appliance is for use on a nominal 115-volt circuit,
and has a grounded plug that looks like the plug in
“Fig. A”. A temporary adaptor that looks like the
adaptor in “Fig . C” may be used to connect this plug
to a 2-pole receptacle as shown in “Fig. B”, if a
properly grounded outlet is not available. The
temporary adaptor should be used only until a
properly grounded outlet (Fig. A) can be installed by a
qualified electrician. The green colored rigid ear, lug,
or the like extending from the adaptor must be
connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adaptor is
used, it must be held in place by a metal screw.
WARNING:
!
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check
with a qualified electrician or service person if you are
in doubt as to whether the outlet is properly
grounded. Do not modify the plug provided with the
appliance - if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
CADET 86038220 03/16/07 2-3

TECHNICAL SPECIFICATIONS
POWER TYPE
ELECTRICAL: 115 V, 15 A, 60 HZ
ELECTRIC VACUUM MOTOR: (1) –3 stage, 1 hp, 99
cfm (2.80 cubic meters/min.) Waterlift –117” (297cm)
BRUSH: (1) 15” (38.1 cm.)
SOLUTION PUMP: Diaphragm style, internal bypass
SOLUTION CAPACITY: 7 gallons (26.5ltr)
RECOVERY CAPACITY: 7 gallons (26.5ltr)
BRUSH SPEED: 1000 rpm
GENERAL DIMENSIONS/WEIGHT
Vacuum shoe: 17” (43.18 cm) cast
aluminum with spring loaded down
pressure
WHEELS: (2) 10” dia. (25 cm) wheels
by 2”
WEIGHT: 92lbs. (42kg)
LENGTH: 41” (104 cm)
HEIGHT: 34” (86.36 cm)
WIDTH: 17.5” (44.45 cm)
SOLUTION SPRAY: 2 quick change
jets.
POWER CABLE: 50’ (12.7 m) (14
gauge)
17.5”
(44.45cm)
41”
(104cm)
34”
(86.36cm)
CADET 86038220 03/16/07
3-1

CONTROLS/COMPONENT LOCATIONS
1. Main Handle. Used to pull and maneuver
machine.
2. Electrical Cord.
3. Pump Switch. Turns on pump and enables
spray.
3 5
4. Brush/Spray switch. Turns on brush motor
and activates electro-valve to dispense solution
to floor through jets. Intermittent, off, and
continuous settings.
5. Vacuum Motor Switch. Turns on vacuum
motor
6. Brush Motor Circuit Breaker. 6 amp. Breaker
protecting brush motor.
4
1 7. Vacuum Motor Circuit Breaker. 15 amp.
Breaker protecting vacuum motor.
8. Recovery Dump Hose. Facilitates draining
dirty cleaning solution.
7
9. Solution Dump Hose. Facilitates draining
excess cleaning solution from solution tank.
2
6
8
9
CADET 86038220 03/16/07
3-2

CONTROLS/COMPONENT LOCATIONS
1. Solution Accessory Tool Hookup. Used for
various auxiliary cleaning tools.
1
2
3
10
9
2. Vacuum Hose Door. Used to connect various
auxiliary 1 ½ inch cleaning tool vacuum hoses.
3. Brush Height Adjustment. Used to regulate
brush height from storage position to various
carpet heights.
4. Recovery Tank. Used to collect dirty cleaning
solution.
5. Solution Tank. Used to hold cleaning solution.
6. Recovery Tank Dome.
7. Vacuum Shoe.
8. Brush Housing.
9. Front Lifting Handle.
10. Cleaning Solution Filter.
6
4
5
7
8
CADET 86038220 03/16/07
3-3

CONTROLS/COMPONENT LOCATIONS
1. Solution Intake Cover.
2. Vacuum Intake Cover.
3. Float Shut-Off.
4. Clean-Out Opening.
5. Pour Spout.
6. Lift Handle.
6
1
2
4
3
5
6
CADET 86038220 03/16/07
3-4

FILLING OPERATIONS
FILLING THE CADET
NOTE: Use clean bucket of water to fill solution tank
Do not put defoamer, solvents, spotter or
prespray chemicals in the solution tank.
Do not allow water to spill into vacuum motor inlet.
Dry spillage from top of solution tank before
replacing recovery tank.
CHEMICALS
Suitable Chemicals Non-Compatible Chemicals
Alkalis Aldehydes
Detergents Aromatic Hydrocarbons
Hydroxides SP Butyls
Soaps Carbon Tetrachloride
Vinegar Clorox*
Chlorinated Bleaches
Chlorinated Hydrocarbons
Lysol*
Methyl Ethel Ketone (MEK)
Perchorethylene (perc)
Phenolics
Trichlorethylene
D-Limonene
STEP
1
Remove recovery
tank
A
dd water
Add cleaning
chemical
Replace recovery
tank
RECOVERY TANK
SOLUTION
TANK
STEP
27 gal.
(26.5 ltr.)
FILL LINE 140°F
(
60°C
)
STEP
37 – 14oz.
(207ml – 414ml)
STEP
4
CADET 86038220 03/16/07
3-5

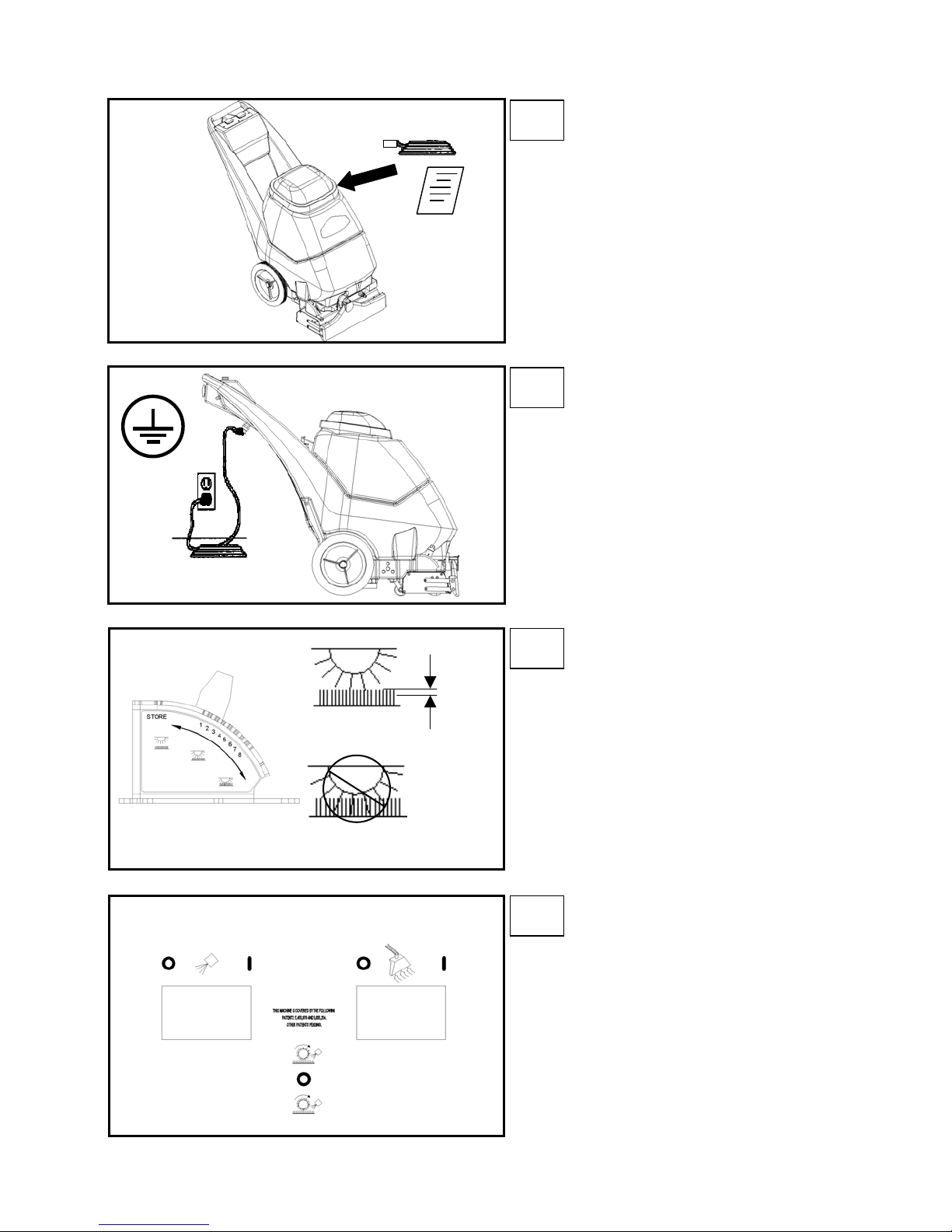

OPERATIONS
STEP
1Remove electrical cord and literature from
recovery tank. Fill solution tank (see filling
operations, page3-5).
Plug cord into grounded outlet.
STEP
2Note: Be sure dome is seated on recovery
tank, and float shut-off is installed correctly.
STEP
3Adjust brush to proper setting.
Note: For good operation the brush must
skim the carpet. If circuit breaker trips raise
brush to prevent damage to motor or carpet.
Turn on both Vacuum and Pump motor
switches (“ON”=“I”).
STEP
4
CORRECT
INCORRECT
1/8in
(3mm)
PUMP VACUUM
ON ON
CADET 86038220 03/16/07
3-6

OPERATIONS
Select intermittent or continuous switch
setting to turn on brush and start solution
spray.
The intermittent setting requires the
operator to hold the switch in the “on”
position with the thumb, and is typically
used in small areas where short cleaning
passes are made.
The continuous setting allows the operator
to set the switch in the “on” position with
one touch, and is typically used in large
areas where long cleaning passes are
made.
Lower machine to floor.
STEP
5
Tip machine back by main handle to move
to starting point.
STEP
6
STEP
7 INTERMITTENT
CONTINUOUS
CADET 86038220 03/16/07
3-7

CLEANING PROCEDURE
Start at wall closest to power outlet. Pull
straight back without pushing down on
handle.
STEP
1
Release intermittent setting or turn off
continuous setting on brush/spray switch
approximately 1 foot before ending
cleaning pass.
STEP
2
1ft.
(30cm) OFF
Push down on handle to raise vacuum
shoe and brush before moving to the next
cleaning pass. Overlap brush contact
area approximately 1inch.
During operation, observe the following: The
Cadet is equipped with clear internal covers to
facilitate operator viewing of dirty solution and
vacuum air flow.
During operation, observe the vacuum intake
cover. Large amounts of water or foam entering
the vacuum system can damage the vacuum
motor. If you notice either condition, shut down
the machine immediately. Empty recovery
tank and/or add defoamer to recovery tank.
STEP
3
STEP
4
SOLUTION
INTAKE COVER
VACUUM
INTAKE COVER
1in.
(25mm)
CADET 86038220 03/16/07
3-8

CLEANING PROCEDURE
Use right side of machine for cleaning
against walls. STEP
5
STEP
6
OFF
OFFOFF
After cleaning, turn off all controls, return
brush to storage position and carefully
unplug machine.
STEP
7
To speed drying, use a Windblower™fan.
Empty recovery tank by releasing dump
hose. Use a hose with cold water to clean
out the recovery tank. Also drain solution
tank after each use.
STEP
8
RECOVERY
DRAIN
SOLUTION
DRAIN
CADET 86038220 03/16/07
3-9

ACCESSORY TOOL USAGE
Turn on Pump and Vacuum Switch. Note:
Be sure intermittent/continuous switch is in
center (off) position and brush is in storage
p
osition.
Squeeze handle on accessory tool to begin
cleaning.
STEP
3
STEP
4
STEP
1Use only one of the following acceptable
accessory tools.
HT – 86000610 PRV NO. 89227
DDH – 86000060 PRV NO. 89226
DH – 86031540 PRV NO. 39504
Pull back collar and insert over machine
mounted fitting, then release collar to lock
into place.
Lift door on front of vacuum shoe and insert
1 ½ inch hose cuff into hole.
STEP
2
PUMP VACUUM
ON ON
OFF
CADET 86038220 03/16/07
3-10

MAINTENANCE
SERVICE SCHEDULE
MAINTENANCE DAILY WEEKLY QUARTERLY
Check machine for cord damage *
Check recovery dome and gasket for
damage and cleanliness *
Check brush – should be clean with no
lint or strings attached *
Inspect vac shoe for blockage; remove
fibers with coat hanger, etc. *
Check hoses for wear, blockages, or
damage *
Check handles, switches, and knobs
for damage *
Check vac motor intake filter and clean *
Run one gallon of water through
system *
Clean out recovery tank and check
float valve to make sure it moves freely *
Clean out solution tank and remove
and clean vacuum intake screen *
Clean outside of all tanks and check for
damage *
Run vac motor for at least one minute
to allow motor to dry *
Store with dome off tank to allow the
tank to dry *
Check all bearings for noise *
Check all gaskets for wear and leakage *
Check vacuum intake screen for
damage; replace if necessary *
Check pump pressure; observe spray
pattern and check with gauge if
necessary *
Check and clean solution screen *
Check belts for wear and replace as
necessary *
Check brush for wear; ensure bristles
are not damaged *
Check cables for fraying *
Check the spray bar (manifold) for
damage; replace if broken or bent *
Check condition of vac shoe and frame
for damage *
Check overall performance of machine *
Check vac motor carbon brushes *
4-1 CADET 86038220 03/16/07

MAINTENANCE
PERIODIC MAINTENANCE
Twice a month, flush a white vinegar solution (One
quart vinegar to two gallons of water) or anti-
browning solution (mixed as directed) through the
extractor. This will prevent build-up of alkaline
residue in the system. If spray jets become clogged,
remove the spray tips, wash them thoroughly, and
blow-dry.
NOTE: Do not use pins, wire, etc. to clean nozzles
as this could destroy spray pattern.
Periodically inspect all hoses, electrical cables and
connections on your machine. Frayed or cracked
hoses should be repaired or replaced to eliminate
vacuum or solution pressure loss. If the cable
insulation is broken or frayed, repair or replace it
immediately. Don’t take chances with electrical fire
or shock.
DAILY / REGULAR MAINTENANCE
Before making any adjustments or repairs to the
machine, disconnect the power cord from electrical
source.
1. Empty unused cleaning solution from the
solution tank.
2. Inspect and clean filter screen in solution tank.
3. Flush pumping system with 4 or 7 liters of clean,
hot water.
4. After each use, rinse tank with fresh water.
Periodically inspect the recovery tank and
decontaminate if necessary, using a Hospital
Grade Virucide or a 1-10 bleach to water
solution. Waste water should be disposed of
properly.
5. Check for and remove any lint or debris around
vac shoe.
6. Check spray jets for full spray pattern.
7. Remove lint and dirt build-up from brush and
housing.
NOTE: Brush removal.
A. To remove brush, grab and pull brush out
from end opposite drive belt (operator’s
right). Remove other end from brush driver.
B. To install brush, line up slots in brush core
with pin in driver on drive belt side
(operator’s left) and push brush onto driver.
Then snap bearing end (opposite end) of
brush into retaining clip.
8. Check cooling air screen (located on frame
behind left wheel) for lint or debris.
9. Check float and shut-off screen and clean as
necessary.
NOTE: Always store machine with brush in “Store”
position.
CADET 86038220 03/16/07 4-
2

MAINTENANCE
CADET 86038220 03/16/07
4-3
!
WARNING: ONLY QUALIFIED
MAINTENANCE
PERSONNEL ARE TO
PERFORM THE FOLLOWING REPAIRS.
VACUUM MOTOR REPLACEMENT
1. Turn off all switches and unplug machine.
2. Remove recovery tank.
3. Remove the (2) screws that fasten the solution tank to
the frame, and tilt tank back to expose the inside of the
frame.
4. Locate the vacuum motor wires and disconnect at the
connector. Close the solution tank.
5. Remove the (6) screws holding the vacuum motor cover
(p/n 27809) to the solution tank.
6. Remove the vacuum motor.
7. Reverse process to install vacuum motor.
Vacuum Motor Carbon Brushes Replacement (Windsor)
WARNING: The green
ground wire must be
attached for safe operation.
See wiring diagram.
End Cap
Carbon
Brushes
If armature commutator is grooved, extremely pitted or not
concentric, the motor will need to be replaced or sent to a
qualified service center.
Important:
These brushes wear quicker as the length shortens due to
increased heat. Spring inside brush housing will damage
motor if brushes are allowed to wear away completely.
Periodically check the length of the carbon brushes. Replace
both carbon brushes when either is less than 3/8" (9.5mm)
long.
3
8[9.5mm]
Important:
These brushes wear quicker as the length shortens due to
increased heat. Spring inside brush housing will damage
motor if brushes are allowed to wear away completely.
Periodically check the length of the carbon brushes. Replace
both carbon brushes when either is less than 3/8" (9.5mm)
long.
3/8 (9.5mm)
Vacuum Motor Carbon Brushes Replacement (Ametek)
Note: When replacing carbon brushes loosen wire terminal
BEFORE removing screws on bracket.
Note:
Place
stop in
groove.
Wire
Terminal
WARNING: The green
ground wire must be
attached for safe operation.
See wiring diagram.
End Cap
Carbon
Brushes
Wire Terminal
If armature commutator is grooved, extremely pitted or not
concentric, the motor will need to be replaced or sent to a
qualified service center.
