Windsor SCX264 User manual

86400260-A 06/29/15
Saber Cutter - 24V - Deluxe
Walk Behind Scrubber
Operating Instructions (ENG)
MODELS:
SCX264
10052380
SCXC264
10052430
BSCSCX264
10052860
SCX324
10052390
SCXC324
10052440
SCNX324
10052820
From Serial Number (Ref No1*)
*See Serial Number Page in
Spare Parts List or
call manufacturer.

IPX4

Warranty Registration
Thank you for purchasing a Kärcher North America product. Warranty registration is quick
and easy. Your registration will allow us to serve you better over the lifetime of the product.
To register your product go to :
http://warranty.karcherna.com/
For customer assistance:
1-800-444-7654
286400260 Manual Operators - Cutter 24V Deluxe
Machine Data Label
Overview
The Saber Cutter is a battery powered, self-propelled, hard floor scrubber intended for commercial use. The
appliance applies a cleaning solution onto a hard floor, scrubs the floorwith brushes or pads, and then vacuums the
soiled water back into the recovery tank.

3
Table of Contents
Machine Data Label. . . . . . . . . . . . . . . . . . . . . . . . . .2
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3
How To Use This Manual . . . . . . . . . . . . . . . . . . . . .4
Safety
Important Safety Instructions . . . . . . . . . . . . . . . . . .5
Hazard Intensity Level . . . . . . . . . . . . . . . . . . . . . . .7
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Operations
Technical Specifications . . . . . . . . . . . . . . . . . . . . .10
How The Machine Works . . . . . . . . . . . . . . . . . . . .12
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Machine Operation . . . . . . . . . . . . . . . . . . . . . . . . .18
Pre-run Machine Inspection . . . . . . . . . . . . . . . . . .18
Starting Machine. . . . . . . . . . . . . . . . . . . . . . . . . . .18
Emergency Stop Procedures . . . . . . . . . . . . . . . . .18
Filling Solution Tank . . . . . . . . . . . . . . . . . . . . . . . .18
Normal Scrubbing . . . . . . . . . . . . . . . . . . . . . . . . .19
Double Scrub . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Emptying And Cleaning Tanks . . . . . . . . . . . . . . . .20
Solution Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Maintenance
Service Schedule . . . . . . . . . . . . . . . . . . . . . . . . . .21
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Checking Gravity. . . . . . . . . . . . . . . . . . . . . . . . . . .24
To Charge The Batteries. . . . . . . . . . . . . . . . . . . . .24
Changing Batteries . . . . . . . . . . . . . . . . . . . . . . . . .25
Squeegee Blades . . . . . . . . . . . . . . . . . . . . . . . . . .26
Adjusting Squeegee . . . . . . . . . . . . . . . . . . . . . . . .26
To Remove Squeegee Assembly . . . . . . . . . . . . . .26
To Adjust Squeegee Pitch . . . . . . . . . . . . . . . . . . .27
To Adjust Amount Of Rear Squeegee Deflection . .27
To Replace Aqua-mizer™ Squeegee Blades. . . . .27
Scrub Brushes . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Finished Floors . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Recovery Tank Float Shut-off. . . . . . . . . . . . . . . . .28
Solution Strainer . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Changing Brush Motors . . . . . . . . . . . . . . . . . . . . .29
Traction Motor. . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Brush Shrouds & Brush Skirts . . . . . . . . . . . . . . . .30
Vacuum Motor. . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Actuator Scrub Deck Removal & Replacement . . .32
Greasing Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Machine Troubleshooting . . . . . . . . . . . . . . . . . . . .34
Suggested Spare Parts - 26” Scrub Head . . . . . . .36
Suggested Spare Parts - 32” Scrub Head . . . . . . .37
86400260 Manual Operators - Cutter 24V Deluxe

4
How To Use This Manual
This manual contains the following sections:
• How to Use This Manual
•Safety
• Operations
• Maintenance
• Suggested Spare Parts
The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.
Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important. Refer to the
MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA box
is located on the inside of the front cover of this manual.
The model and serial number of your machine is
located on the back of the machine.
The SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.
The OPERATIONS section is to familiarize the operator
with the operation and function of the machine.
The MAINTENANCE section contains preventive main-
tenance to keep the machine and its components in
good working condition. They are listed in this general
order:
• Batteries
• Scrub Brushes
• Adjusting Squeegee
• Scrub Deck Skirt
• Squeegee Blade/Brush Head Options
• Service Schedule
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement parts
numbers needed for ordering future parts.
NOTE: The manual part number is located on the
lower right corner of the front cover.
Model:
Date of Purchase:
Serial Number:
Dealer:
Address:
Phone Number:
Sales Representative:
86400260 Manual Operators - Cutter 24V Deluxe

5
Safety
Important Safety Instructions
When using this machine, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Use only indoors. Do not use outdoors or expose to rain.
Use only as described in this manual. Use only manufacturer’s recommended components and attachments.
If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return
it to an authorized service center.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
This machine is not suitable for picking up hazardous dust.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine near
flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops
and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
Disconnect battery before cleaning or servicing.
Before the machine is discarded, the batteries must be removed and properly disposed of.
Make sure all warning and caution labels are legible and properly attached to the machine.
During operation, attention shall be paid to other persons, especially children.
Before use all covers and doors shall be put in the positions specified in the instructions.
When leaving unattended, secure against unintentional movement.
The machine shall only be operated by instructed and authorized persons.
When leaving unattended, switch off or lock the main power switch to prevent unauthorized use.
Only chemicals recommended by the manufacturer shall be used.
This appliance has been designed for use with the brushes specified by the manufacturer. The fitting of other
brushes may affect its safety.
Do not use on surfaces having a gradient exceeding 2% unless the optional parking brake is installed on the
machine.
READ AND SAVE THESE INSTRUCTIONS
86400260 Manual Operators - Cutter 24V Deluxe

6
Safety
MESURES DE SÉCURITÉ IMPORTANTES
Lors de l’utilisation d’un appareil à batteries, il est nécessaire de respecter
systématiquement des mesures de sécurité de base, comme suit :
PRENEZ NOTE DE TOUTES CES MESURES AVANT D’UTILISER CETTE MACHINE.
Pour réduire les risques d’incendie, de chocs électriques, ou de
blessures :
N’utiliser cette machine qu’en intérieur. Ne jamais l’utiliser à l’extérieur ou dans la pluie.
N’utiliser cette machine que comme décrit dans le présent manuel. N’utiliser que les composants et les acces-
soires conseillés par le fabricant.
Lorsque la machine ne fonctionnant pas correctement, a fait l’objet d’une chute ou d’une détérioration, a été
laissée à l’extérieur, est tombée dans l’eau, la retourner au centre de service agréé.
Ne pas opérer la machine lorsque les conduits de ventilation sont bloquées. Débarrasser les débris des conduits,
car ils peuvent réduire l’écoulement d’air.
Cette machine n’est pas adaptée au ramassage de poussières dangereuses
Cette machine peut provoquer un incendie lorsqu’elle est utilisée près de vapeurs ou de matériaux inflamma-
bles. Ne pas l’utiliser près de liquides, de poussières ou de vapeurs inflammables.
Cette machine est destinée à un usage commercial. Elle est recommandée davantage pour les domaines hôtelier,
scolaire, hospitalier, industriel ou pour les bureaux, les chaînes de magasin, que pour un usage domestique
normal.
L’entretien et les réparations de la machine doivent être effectuées par un personnel qualifié.
Si de la mousse ou du liquide sort de la machine, la mettre hors tension immédiatement.
Déconnecter les batteries avant de nettoyer la machine ou de la soumettre à un entretien.
Avant de se débarrasser de la machine, il est nécessaire de retirer les batteries et de les jeter correctement.
S’assurer que toutes les plaques d’avertissement ou de précaution sont lisibles et fixées correctement sur la
machine.
Durant la manoeuvre de la machine, prendre garde aux personnes environnantes et notamment aux enfants.
Avant l’utilisation de la machine, veiller à positionner tous les couvercles et portes comme indiqué dans les
instructions.
Lorsque la machine est laissée sans surveillance, s’assurer qu’elle ne se déplace pas de manière accidentelle.
Cette machine ne doit être manoeuvrée que par un personnel expérimenté et qualifié.
Lorsque la machine est laissée sans surveillance, la mettre hors tension ou verrouiller l’interrupteur principal
afin d’empêcher un emploi non autorisé.
Seuls les produits chimiques recommandés par le fabricant doivent être utilisés.
Cette machine a été conçue pour être utilisée avec des brosses spécifiées par le fabricant.
L’utilisation d’autres brosses peut affecter sa sûreté.
N'employez pas sur des surfaces ayant un gradient de plus de 2%.
CONSERVER CES INSTRUCTIONS
86400260 Manual Operators - Cutter 24V Deluxe

7
Safety
The following symbols are used throughout this guide as indicated in their descriptions:
Hazard Intensity Level
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY.
The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the equip-
ment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on the
machine. Please take the necessary steps to train the machine operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use
manufacturer approved replacement parts.
Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep top
cover in raised position when charging. Keep sparks and flames away from the batteries. Do not smoke
around batteries.
Disconnect batteries before working on machine. Only qualified personnel should work inside machine.
Always wear eye protection and protective clothing when working on or near batteries. Avoid skin contact
with the acid contained in the batteries.
Never allow metal to lie across battery tops.
86400260 Manual Operators - Cutter 24V Deluxe

8
Safety
Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions :
Degrés De Risques En Cas De Danger
Ilexiste trois degrés de risques identifiés par les termes signalétiques –AVERTISSEMENT et ATTENTION eet
POUR VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante:
Avertissement - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou entraîner
la mort.
ATTENTION - Dangers ou méthodes dangereuses qui pourraient provoquer des blessures légères ou une détério-
ration du produit ou des biens immobiliers.
POUR VOTRE SÉCURITÉ: ce signe permet d’identifier les mesures de précaution à prendre pour assurer un bon
fonctionnement du matériel.
Rendre compte immédiatement d’une défaillance ou d’une détérioration de la machine. Ne pas utiliser la machine
si celle-ci ne fonctionne pas correctement. Lire soigneusement les informations ci-dessous signalant certains
dangers potentiels pour l’opérateur de la machine. L’opérateur doit être absolument au courant de ces dangers
potentiels. Localiser tous les dispositifs de sécurité sur la machine. Il est conseillé de prendre les mesures néces-
saires pour former le personnel opérateur.
POUR VOTRE SÉCURITÉ:
NE PAS MANOEUVRER LA MACHINE:
Lorsqu’on n’est pas expérimenté ou qualifié.
Lorsque le guide d’utilisation n’est pas été lu ou compris.
Dans des zones inflammables ou explosives.
Dans des zones où des objets peuvent tomber.
LORS DE L’ENTRETIEN DE LA MACHINE:
Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des
vêtements avec manches lors de l’utilisation de la machine. Utiliser les pièces détachées homologuées.
Les batteries émettent le gaz d'hydrogène. L'explosion ou le feu peut résulter. Étincelles de subsistance et flamme
nue loin. Compartiment de batterie de subsistance ouvert en chargeant. Étincelles et flammes de subsistance loin
des batteries. Ne fumez pas autour des batteries.
Déconnecter les batteries avant de travailler sur la machine. La machine ne doit être confiée qu’à un personnel
qualifié. Porter systématiquement des lunettes et des vêtements de protection lors d’une intervention sur les
batteries ou aux alentours. Éviter tout contact de la peau avec l’acide contenu dans les batteries.
Ne jamais placer d’objets métalliques sur le dessus des batteries.
86400260 Manual Operators - Cutter 24V Deluxe

9
Safety
Safety Labels
NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become
illegible, promptly replace them.
Emplacement De L'étiquette De Sécurité
REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment,
les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement rapide.
86400260 Manual Operators - Cutter 24V Deluxe

10
Operations
Technical Specifications
Special Notes:
The sound pressure level at the operator’s ear was measured to be 72 dBA. This was a nearfield, broad-band
measurement taken in a typical industrial environment on a tile floor. This appliance contains no possible source of
impact noise. The instantaneous sound pressure level is below 63 Pa.
The weighted root mean square acceleration at the operator’s arms was measured to be below 2.5m/s2 . This was
a tri-axial, third-octave-band measurement made during normal operation on a composite tile floor. The measure-
ment and related calculations were made in accordance with ANSI S3.34-1986.
ITEM DIMENSION/CAPACITY
Nominal power 1450 W
Rated Voltage 24VDC
Rated Amperage 60 Amps
Batteries 4 X 6 Volt 250-305-335AH @ 20 hr rate
Scrub Brush Motors 2 X .75 hp (0.56 kW)
Vacuum Motor .75 hp (0.56 Kw)
Propelling Motor .3 hp (0.22 Kw)
Mass (GVW) 915 lbs. (415 kg) with 335 AH
Weight empty without batteries 346 lbs. (157 kg)
Solution Control Gravity feed, fully variable with automatic
shut-off in neutral
Solution tank capacity 23 gal. (87 l)
Recovery tank capacity 25 gal. (95 l)
Scrub brush diameter for 26 in. (66 cm) scrub head 13 in (33.0 cm)
Scrub brush diameter for 32 in. (81 cm) scrub head 16 in (41 cm)
Scrub brush pressure Actuated 0 lbs to 150 lbs (0 kg to 68 kg)
Scrub brush speed 200 rpm
Tires 2 x 10 in (25.4 cm) non-marking foam-
filled
Casters 2 X 4 in (10.2 cm) polyurethane solid non-
marking
Foundation Pressure (at recommended tire psi) 21 lbs./in 2(140 kPa)
Maximum Speed 3.2 Miles/hour (5.2 km/hour)
Frame Construction Steel plate with epoxy powdercoat finish.
Brakes (optional) Tire lock parking brake.
Minimum aisle u-turn width with 26 in. (66 cm) scrub head 64 in. (163 cm)
Minimum aisle u-turn width with 32 in. (81 cm) scrub head 69 in. (175 cm)
Maximum rated climb and descent angle with empty tanks and without
optional parking brake 2%
Maximum rated climb and descent angle with full tanks and without
optional parking brake 2%
86400260 Manual Operators - Cutter 24V Deluxe

11
Operations
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
Cet appareil n'est pas prévu à l'usage des personnes (enfants y compris) avec des possibilités physiques, sensori-
elles ou mentales réduites, ou le manque d'expérience et de connaissance, à moins qu'ils aient été donnés la
surveillance ou l'instruction au sujet de l'utilisation de l'appareil par une personne chargée de leur sûreté. Des
enfants devraient être dirigés pour s'assurer qu'ils ne jouent pas avec l'appareil.
ITEM MEASURE
Height 45 in. (114 cm)
Length with 26 in. (66 cm) scrub head 64 in. (163 cm)
Length with 32 in. (81 cm) scrub head 66 in. (167 cm)
Width without squeegee and scrub head 24 in. (61 cm)
Width of squeegee for 26 in. (66 cm) scrub head 35 in. (89 cm)
Width of squeegee for 32 in. (81 cm) scrub head 39 in. (99 cm)
Width of scrub path for 26 in. (66 cm) scrub head 26 in. (66 cm)
Width of scrub path for 32 in. (81 cm) scrub head 32 in. (81 cm)
Height
Width
Length
86400260 Manual Operators - Cutter 24V Deluxe

12
Operations
How The Machine Works
The Saber Cutter is a battery powered, self-propelled,
hard floor scrubber intended for commercial use. The
appliance applies a cleaning solution onto a hard floor,
scrubs the floor with brushes, and then vacuums the
soiled water back into the recovery tank.
The machine's primary systems are the solution
system, scrub system, recovery system, and directional
control system.
The function of the solution system is to store cleaning
solution and deliver it to the scrub system. The solution
system consists of the solution tank, strainer, valve and
controls. The solution tank stores cleaning solution
(water and detergent) until it is delivered to the scrub
system. The strainer protects the valve from debris.
The valve is a solenoid type valve, which controls the
delivery of cleaning solution to the scrub system. The
valve automatically prevents solution flow unless the
scrub brushes are turned on and the machine is being
propelled. The solution control knob controls the
amount of cleaning solution delivered to the scrub
system by controlling the amount of time the valve is
open.
The function of the scrub system is to scrub the floor.
The scrub system consists of two rotary type disk scrub
brushes, motors, scrub deck skirt, lift mechanism and
controls. The brushes scrub the floor and the motors
drive the brushes. The brush drive hubs allow the scrub
brushes to follow irregularities and changes in the floor
without loosing contact with floor. The scrub deck skirt
controls the cleaning solution on the floor so that the
squeegee can pick it up. Thebrush lift mechanisms are
controls used to raise and lower the deck.
The function of the recovery system is to vacuum the
soiled water back into the recovery tank. The recovery
system consists of the squeegee, vacuum motor, float
ball filter, recovery tank and controls. The squeegee
wipes the dirty solution off the floor as the machine
moves forward. The vacuum motor provides suction to
draw the dirty solution off the floor and into the recovery
tank. The recovery tank stores the dirty solution. The
float ball filter protects the vacuum fan from debris and
shuts off air goingto the recovery tank when tank is full.
When flow of air is shut off the vacuum motor will
continue to run. At this time the recovery tank must be
drained.
The function of the directional control system is to
control the direction and speed of the machine. The
directional control system consists of the propel control
buttons, reverse button, speed control knob/potentiom-
eter, controller and transaxle. The propel controls
actuate switches which cause the machine to move
forward. For reverse motion depress the reverse button
while depressing one of the propel controls. The speed
control knob actuates a potentiometer, which signals
speed. The controller interprets the forward/reverse
signals from the switches and the speed signal from the
potentiometer to command the transaxle to propel the
machine in the direction, and at the speed, desired.
86400260 Manual Operators - Cutter 24V Deluxe

13
Operations

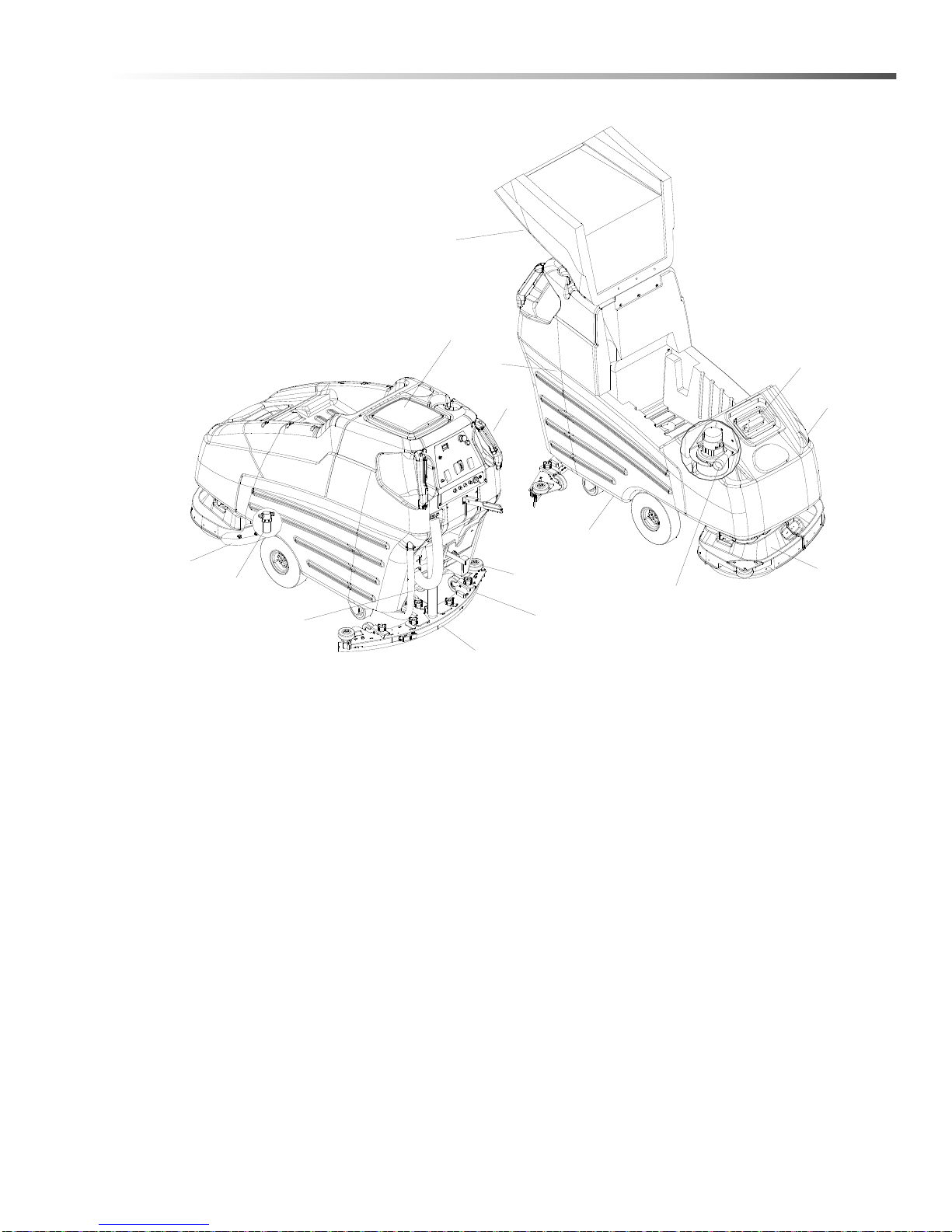

Components
1. Control Panel
2. Front Cover
3. Recovery Tank
4. Recovery Tank Drain Hose
5. Scrub Head Shrouds
6. Solution Tank
7. Solution Tank Cover
8. Solution Tank Drain Hose
9. Solution Strainer
10. Squeegee
11. Aqua-Mizer™
12. Top Cover
13. Vacuum Motor
14. Recovery Tank Dome
15. Accessory Pump Port (Optional)
11 9
8
10
4
15
1
14
3
6
5
2
7
12
13
86400260 Manual Operators - Cutter 24V Deluxe

14
Operations
Controls
3
13
6
8
72
9
5
16
15
1
12
11
14
10
4
86400260 Manual Operators - Cutter 24V Deluxe

15
Operations
1. Key Switch
2. Brush Pressure Indicator
3. Speed Control Knob
4. Propel Control Lever
5. Reverse Button
6. Brush Switch
7. Actuator Switch
8. Solution Control Knob
9. Vacuum Switch
10. Squeegee Lift Lever
11. Squeegee Pitch Adjustment Knob
12. Squeegee Deflection Adjustment Knobs
13. Battery Charge Level Indicator
14. Parking Brake (Optional)
15. Hour Meter (Optional)
16. Emergency Shut Off Switch (Optional)
1. Key Switch
Controls the power for machine functions.
To turn machine on, rotate key clockwise.
To turn machine off, rotate key counterclockwise.
FOR SAFETY: Always remove the key when
machine is unattended or during service to
prevent unauthorized movement.
2. Brush Pressure Indicator
The brush pressure indicator corresponds to the amp
draw of the scrub brush motors to tell how hard the
motors are working. The green zone indicates medium
or proper operating brush pressure. The red zone
indicates heavy or excessive brush pressure.Operating
in the red zone may cause the brush circuit breakers to
trip.
3. Speed Control Knob
Controls the speed of the machine.
To increase speed, rotate knob clockwise.
To decrease speed, rotate knob counterclockwise.
4. Propel Control Levers
Controls the machine direction, and scrub brushes and
solution flow.
To propel machine forward, squeeze either propel
lever.
The scrub brushes will not rotate and the solution will
not flow to scrub deck with the propel levers in neutral.
5. Reverse Button
Controls the reverse function.
To propel machine backward, push the reverse button
while squeezing either propel lever.
6. Brush Switch
Controls the scrub brush motors.
To turn scrub brushes on, press the bottom of the
switch. The brushes will not rotate with the propel
control levers in neutral.
To turn scrub brushes off, press the top of the switch.
86400260 Manual Operators - Cutter 24V Deluxe

16
Operations
7. Actuator Switch
Adjusts the amount of brush pressure to the floor by
raising or lowering the scrub deck.
To increase brush pressure, press the bottom of the
switch.
To decrease brush pressure or rise the scrub deck,
press the top of the switch.
8. Solution Control Knob
Controls solution flow to scrub deck.
To increase flow, rotate knob clockwise.
To decrease flow, rotate knob counterclockwise.
If the brush motors are turned off or the propel control
levers are in neutral, the flow is automatically inter-
rupted until the motors are turned on again. This
feature prevents unintentional draining of the solution
tank and allows the operator to adjust the solution flow
to the scrub deck without resetting each time the
scrubbing operation is interrupted.
9. Vacuum Switch
Controls the vacuum motor.
To start vacuum motor, press the bottom of the switch.
To stop vacuum motor, press the top of the
10.Squeegee Lift Lever
Raises and lowers the squeegee.
To lower the squeegee, lift the lever from its raised
position.
To raise the squeegee, lift the lever from its lowered
position.
11.Squeegee Pitch Adjustment Knob
Adjusts the deflection at the ends of the squeegee.
To increase squeegee blade deflection at the ends, turn
knob counterclockwise.
To decrease squeegee blade deflection at the ends,
turn knob clockwise.
12.Squeegee Deflection Adjustment
Knobs
Adjusts the deflection along the entire length of the
squeegee.
To increase squeegee blade deflection along the entire
length, turn the two knobs at the squeegee ends
counter-clockwise.
To decreasesqueegeebladedeflectionalong theentire
length, turn the two knobs at the squeegee ends clock-
wise.
86400260 Manual Operators - Cutter 24V Deluxe

17
Operations
13.Battery Charge Level Indicator
Indicates the charge level of the batteries.
The meter display is divided into 10 vertical bars. Bar
illuminated on the far right indicate full charge. Bars
flashing near the left side indicate the batteries should
be recharged. Further operation of the machine could
damage the machine or the batteries.
When the machine is left overnight with less than a full
charge, the display may initially indicate a full charge. It
will also indicate a full charge if the batteries are
disconnected, then reconnected. After a few minutes of
operation the meter will give the correct charge level.
14.Parking Brake (Optional)
Locks front wheels to prevent unintentional movement.
To set parking brake, push down to lock notch.
To release parking brake, push down and over out of
the lock down notch.
15.Hour Meter (Optional)
Records the number of hours the machine has been in
operation. This information is useful in determining
when to service the machine.
16.Emergency Shut-off Switch (Optional)
Shuts off machine.
To shut off machine, push the switch.
To restart machine, rotate the switch clockwise.
86400260 Manual Operators - Cutter 24V Deluxe

18
Operations
Machine Operation
Pre-run Machine Inspection
Do a pre-run inspection to find possible problems that
could cause poor performance or lost time from break-
down. Follow the same procedure each time to avoid
missing steps.
NOTE: See maintenance service schedule for daily
inspection items.
Starting Machine
NOTE: Perform pre-run machine check before
operating machine.
FOR SAFETY: Before starting machine, make
sure that all safety devices are in place and
operating properly.
1. Turn the machine power on.
2. Release the parking brake, if your machine is
equipped with this option.
3. Engage the direction propel levers for the desired
direction.
Emergency Stop Procedures
1. Release the propel levers.
2. Turn machine power off with key switch.
3. If an electrical problem is suspected push in
emergency stop button, if machine is equipped
with this option.
4. Apply brakes, if your machine is equipped with this
option.
Filling Solution Tank
FOR SAFETY: Before leaving or servicing
machine; stop on level surface, turn off machine
and remove key.
1. Turn the machine power off.
2. Set the parking brake if your machine is equipped
with this option.
3. Remove solution tank cover.
4. Fill the solution tank with clean water, leaving
enough room for the required amount of cleaning
solution. The solution tank capacity filled to 2” (5
cm) from bottom of fill inlet is 23 gallons (87 liters).
The water must not be hotter than 140° F (60°C) to
prevent damage to the tank.
5. Measure the chemical into the solution tank. Liquid
chemicals should be added to the solution tank
after filling with water. Dry chemicals should be
thoroughly mixed before being added into solution
tank. Commercially available, high alkaline floor
cleaners, are suitable for use in the solution
system.
NOTE: Read the chemical manufacturers
recommended proportion instructions.
6. Replace solution tank cover.
Flammable materials can cause an explosion or
fire. Do not use flammable materials in the tanks.
Les matières inflammables peuvent provoquer une
explosion ou un incendie. Ne pas utiliser de
matériaux inflammables dans les réservoirs.
86400260 Manual Operators - Cutter 24V Deluxe

19
Operations
Normal Scrubbing
Plan the scrubbing pattern in advance. The longest
track is around the perimeter of the area to be cleaned.
For efficient operation, the runs should be the longest
possible without turning, stopping, or raising and
lowering scrub deck/squeegee.
NOTE: In order to achieve the best possible results,
the area which is to be cleaned should be swept
before scrubbing. Large debris, strings & wire must
be removed to prevent being caught in brushes or
squeegee.
To Begin Scrubbing
When operating the machine around people, pay
close attention for unexpected movement. Use
extra caution around children.
Lorsque vous utilisez la machine en présence de
gens, portez une attention particulière aux mouve-
ments inattendus. Soyez plus prudent, surtout en
présence d’enfants.
Flammable liquids and/or reactive metals can
cause explosions or fire! Do not pick up.
Les liquides inflammables et / ou les métaux
réactifs peuvent provoquer des explosions ou un
incendie ! Ne les ramassez pas.
1. Turn the machine power on.
2. Lower the squeegee.
3. Turn the vacuum on.
4. Lower the scrub brushes to the floor.
5. Turn the scrub brushes on (brushes will start when
machine is propelled).
6. Drive machine forward to begin scrubbing.
NOTE: Shut machine off immediately if water or foam
is expelled from the machine.
7. Adjust the speed of the machine, solution flow and
scrub brush pressure as necessary.
NOTE: Once solution flow rate is set it is not
necessary to shut off solution when stopping
scrubbing. Solution flow is automatically shut off
when brush motors stop. When brush motors are
activated, flow automatically resumes.
To Stop Scrubbing
1. Release the propel levers.
2. Turn the scrub brushes off.
3. Raise the scrub brushes.
4. Raise the squeegee.
5. Turn the vacuum off.
6. Turn the machine power off.
INEFFICIENT SCRUBBING PATH
RECOMMENDED SCRUBBING PATH
86400260 Manual Operators - Cutter 24V Deluxe

20
Operations
Double Scrub
For floors which are heavily soiled or have thick accu-
mulations of floor finish may not clean sufficiently with
one pass. In these cases it will be necessary to double
scrub.
To double scrub, make the first pass over the surface
being cleaned with the squeegee up, vacuum off, the
solution on, Aqua-Mizer removed and brushes down.
This allows the solution to stay in contact with the soil
while loosening the surface accumulation with the
brushes. Allow time for the first application to stay in
contact with the floor. Length of time between the first
and second pass depends on amount of accumulation
and the type of chemical being used. A second
scrubbing with the squeegee down and again the
solution and brushes on will further loosen soil. The
additional application of solution will further assist the
difficult cleaning job.
FOR SAFETY: When using machine, go slow on
inclines and slippery services.
Emptying And Cleaning Tanks
1. Park the machine next to a floor drain. Drain hose
is on left rear corner of the machine.
2. Turn the machine power off and set parking brake,
if your machine is equipped with this option.
Solution Tank
1. Loosen small drain hose from the retainer, then
lower hose in direction of the drain.
2. Remove the solution tank cover.
3. Flush the solution tank out with clean water and
run several gallons of clean water through
systems. Do not use water hotter than 140°F
(60°C) to clean tank. Damage may occur.
NOTE: Never allow solution to remain in tank.
Damage to tank, seals and valves could occur.
4. Secure drain hose into the retainer.
Recovery Tank
1. Unhook the large drain hose from the retainer.
Unscrew the T-handle on plug enough to loosen
plug, then lower hose in direction of the drain. Do
not stand in front of end of hose. Recovered
solution will come out with force. Slowly remove
plug from drain hose.
2. Remove the recovery tank dome. Flush the
recovery tank out with clean water. Do not use
water hotter than 140°F (60°C) to clean tank.
Damage may occur.
3. Clean off the float shut-off system and inspect for
free movement of float. The float shut-off system is
located in the rear of the recovery tank.
4. Replace the drain plug and secure drain hose in
bracket.
5. If machine is to be stored, leave the recovery tank
dome off.
SOLUTION
TANK COVER
RECOVERY
TANK COVER RECOVERY
TANK DRAIN
SOLUTION
TANK DRAIN
86400260 Manual Operators - Cutter 24V Deluxe
