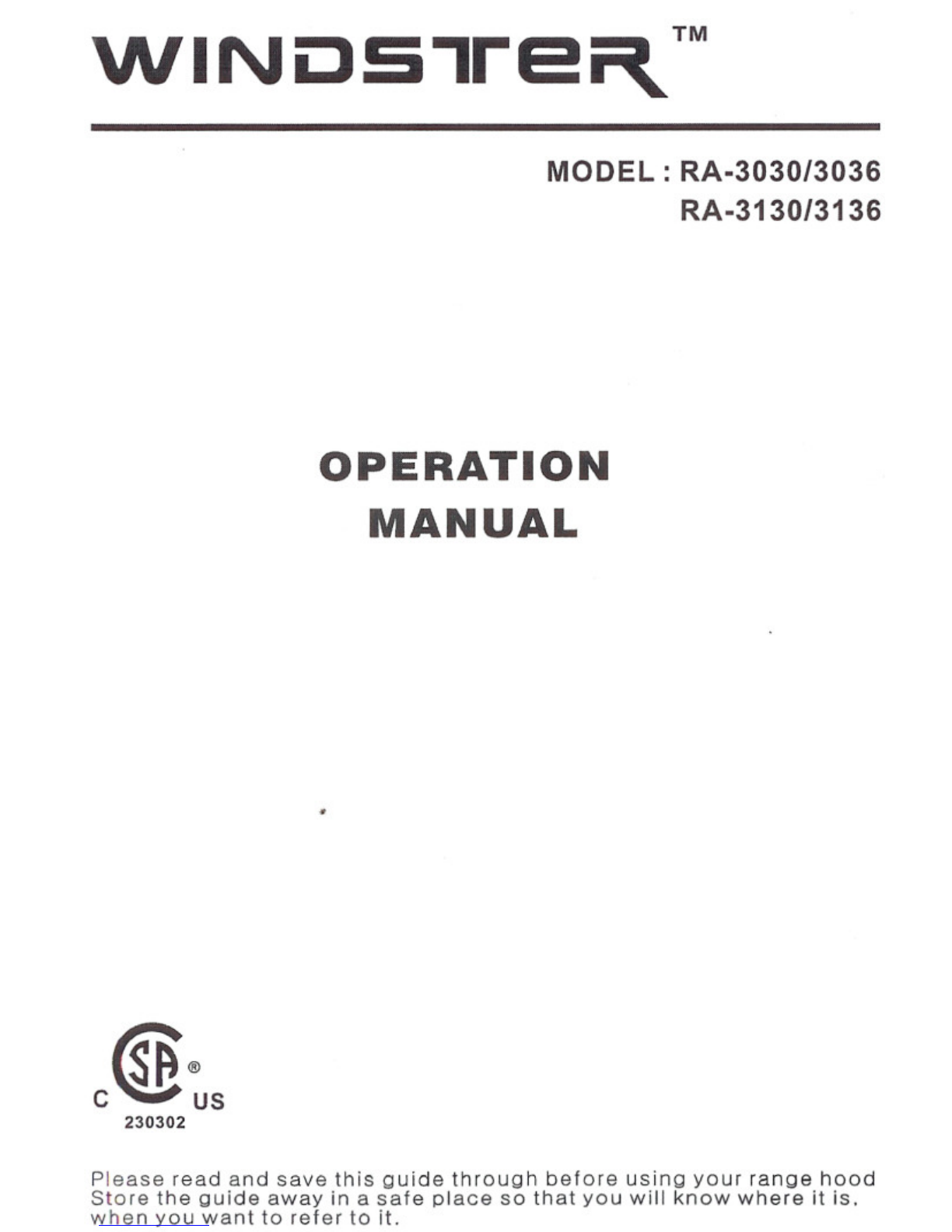

Windster RA-3030 User manual

WINi:JS're~TM
MODEL: RA.3030/3036
RA.3130/3136
OPERATION
MANUAL
c@~s
230302
Please read and save this guide through before using your range hood
Store the guide away in a safe place so that you will know where it is.
when you want to refer to it.

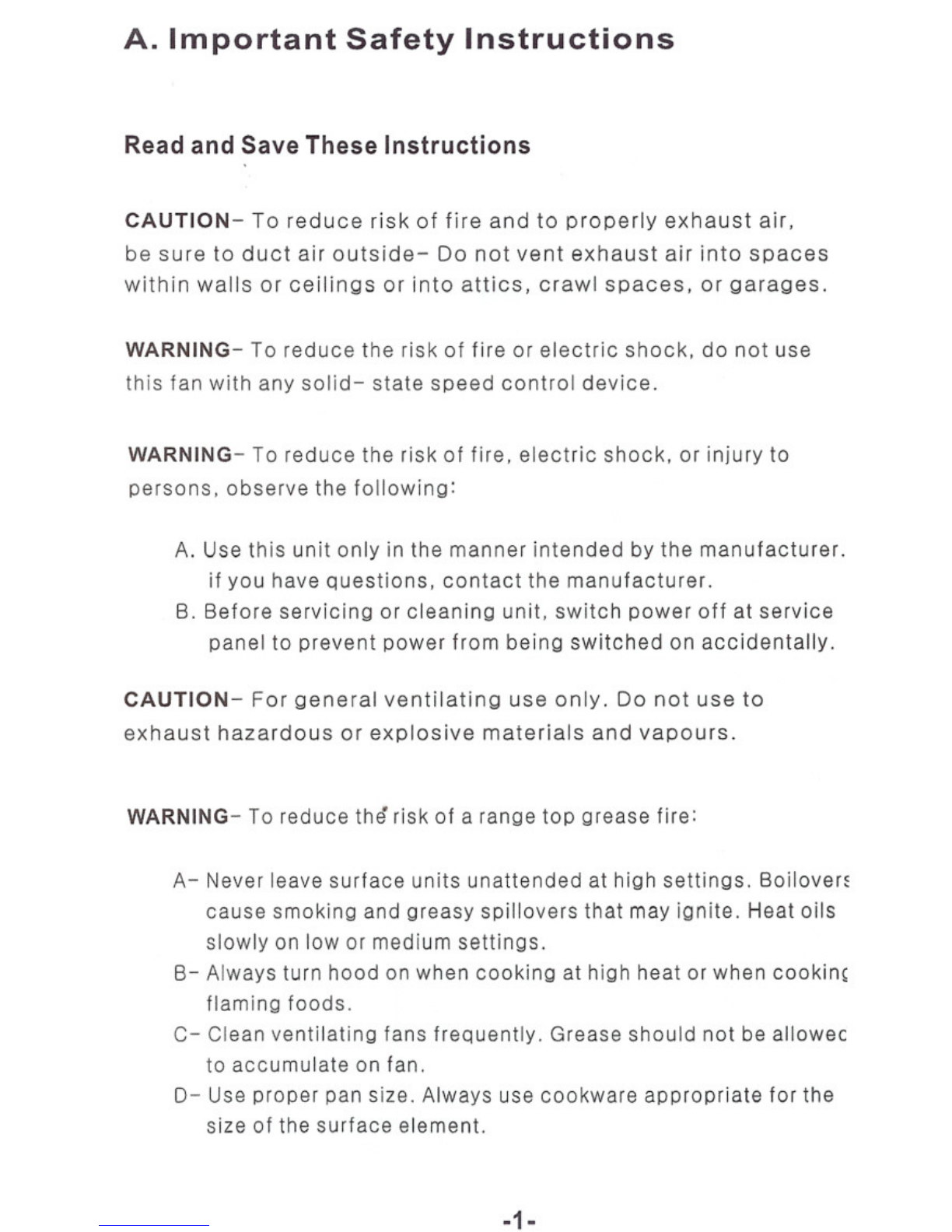

A. Important Safety Instructions
Read and Save These Instructions
CAUTION- To reduce risk of fire and to properly exhaust air.
be sure to duct air outside- Do not vent exhaust air into spaces
within walls or ceilings or into attics, crawl spaces, or garages.
WARNING- To reduce the risk of fire or electric shock. do not use
this fan with any solid- state speed control device.
WARNING- To reduce the risk of fire, electric shock. or injury to
persons, observe the following:
A. Usethis unit only in the manner intended by the manufacturer.
if you have Questions. contact the manufacturer.
B. Before servicing or cleaning unit. switch power off at service
panel to prevent power from being switched on accidentally.
CAUTION- For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and vapours.
WARNING-Toreduce the risk of a range top grease fire:
A- Neverleavesurface units unattended at high settings. Boilover~
cause smoking and greasy spillovers that mayignite. Heatoils
slowly on low or medium settings.
B- Alwaysturn hood onwhen cooking at high heat or when cookin~
flaming foods.
C- Cleanventilating fans frequently. Greaseshould not beallowec
to accumulate on fan.
D- Useproper pan size. Always use cookware appropriate for the
size of the surface element.
-1-

WARNING- To reduce the risk of injury to persons in the event of
a range top grease fire. observe the following:
A- SMOTHER FLAMES with a close- fitting lid. cookie sheet.
or metal tray, then turn off the burner. Be careful to preven
burns. If the flames do not go out immediately, EVACUATE
AND CALL THEFIREDEPARTMENT.
B- NEVER PICK UP A FLAMING PAN- You may be burned.
C- DO NOT USE WATER including wet dishcloths or towels-
a violent steam explosion will result.
0- USE AN EXTINGUISHER ONLY IF:
1. You know you have a CLASS ABC extinguisher, and you
already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
WARNING- Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel burning
equipment to prevent back drafting. Follow the heating equipment
manufacturer's guideline and safety standards such as these
published by the National Fire Protection Association (NFPA),and
the American Society for Heating. Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
Keep the range hood clean.
WARNING- To reduce the risk of fire. use only metal duct work.
-2-

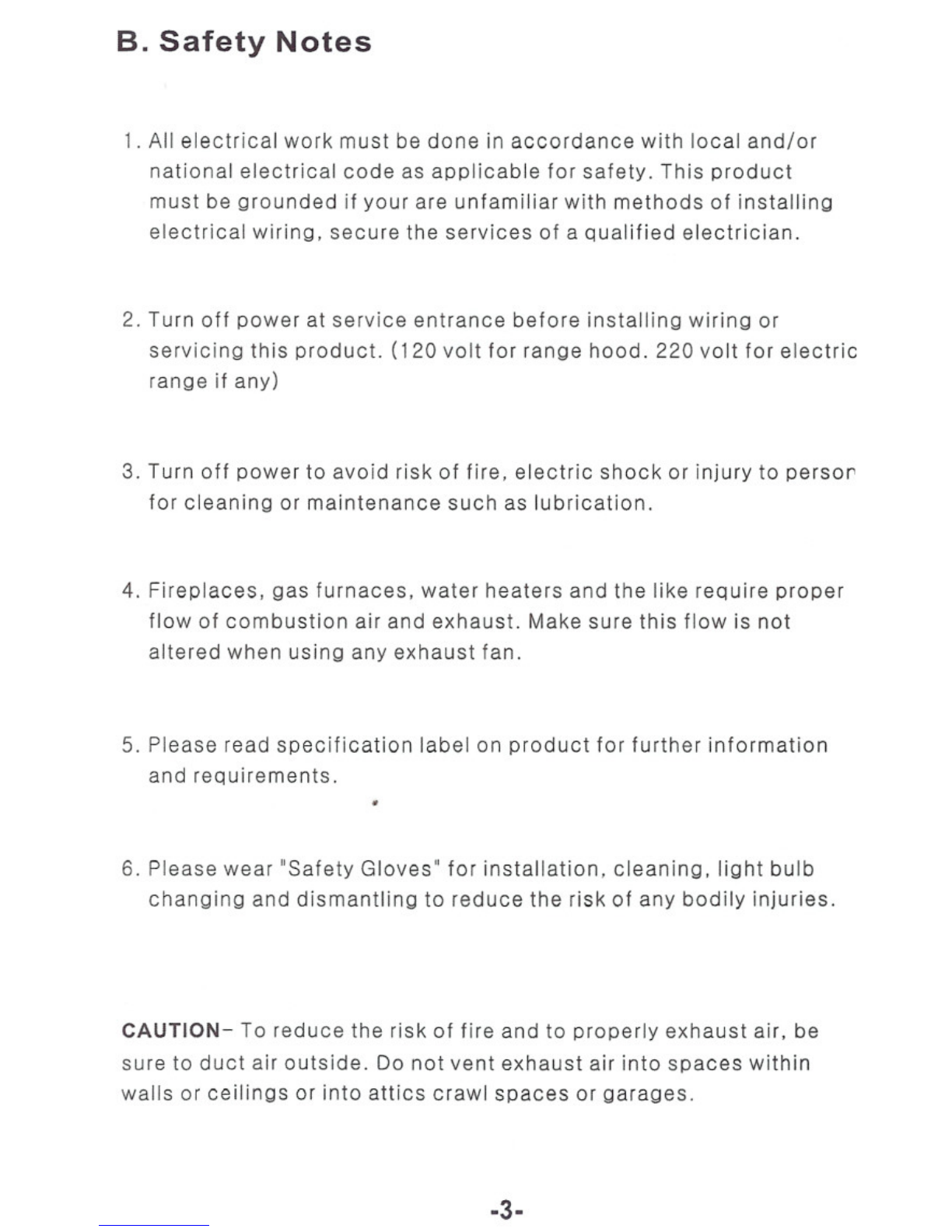

B. Safety Notes
1. Allelectrical work must be done in accordance with local and/or
national electrical code as applicable for safety. This product
must be grounded if your are unfamiliar with methods of installing
electrical wiring, secure the services of a qualified electrician.
2. Turn off power at service entrance before installing wiring or
servicing this product. (120 volt for range hood. 220 volt for electric
range ifany)
3. Turn off power to avoid risk of fire, electric shock or injuryto persor
for cleaning or maintenance such as lubrication.
4. Fireplaces. gas furnaces. water heaters and the like require proper
flowof combustion air and exhaust. Makesure this flow is not
altered when using any exhaust fan.
5. Please read specification label on product for further information
and requirements.
6. Please wear "Safety Gloves" for installation. cleaning, light bulb
changing and dismantling to reduce the risk of any bodily injuries.
CAUTION- To reduce the risk of fire and to properly exhaust air, be
sure to duct air outside. 00 not vent exhaust air into spaces within
walls or ceilings or into attics crawl spaces or garages.
.3.

c. Tools and Materials Required
~ Drill.electric of ratchet drive. with 3/16" wood bit (for drilling starter
holes and 1¥4"wood bit (to drillan access holes in the cabinet or
kitchen wall for the electric power line)
~ One common screwdriver.
~ Plier (for opening electrical knockout).
~ Two 1" (thick)x2" (wide)x12" (approximate length) wood strips for
recessed bottom kitchen cabinet installation only. (Purchase locally).
~ Electrical wire and supplies to comply with local cords.
~ Four 1 ¥4 " long flat head wood screws (purchase locally) to mount
wood strips.
~ Pencil and ruler for marking locations. Saber saw or keyhole saw for
cutting the 1"x2"wood strips to length.
D. Ducting
This style of range must be vented via ducting to the outside of the house
Followgeneral rules when ducting the hood: Use correct size of ducting
at least 6" round. do nof reduce size of ducting. make all turns gradual.
no short corners. Ifducting ran willbe longer than 10 feet enlarge duct by
at least 1"inch diameter after each 10feet. Tape alljoints in ducting and
all gasketed openings on hood for a tight seal.
For round ducting from the top:
Fit the gray plastic (Included) over the circular opening on top in order
to providea tightseal forductingto attach to. TheGRAYring is designed
to fit 6"and 7" ducting.
-4-

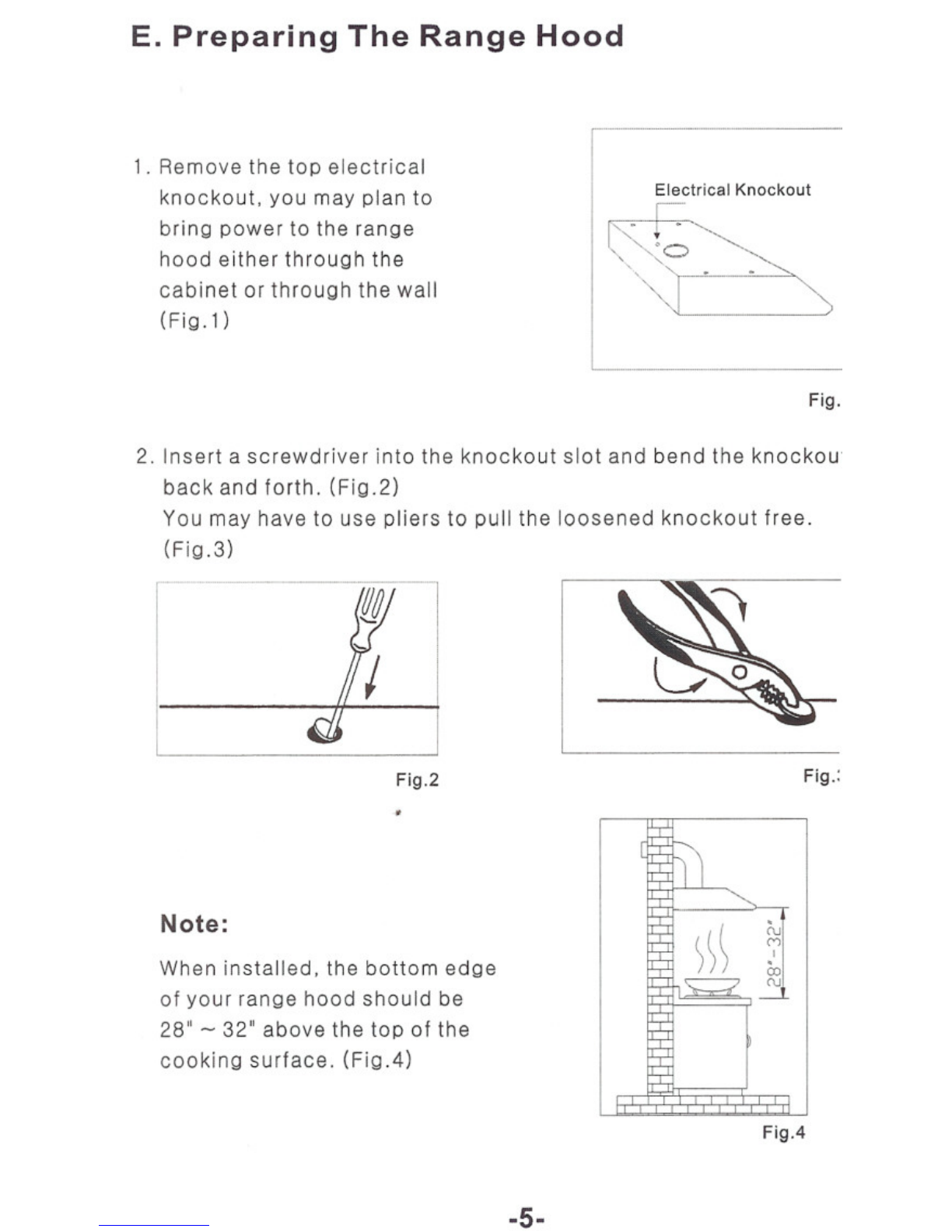

E. Preparing The Range Hood
1. Remove the top electrical
knockout. you may plan to
bring power to the range
hood either through the
cabinet or through the wall
(Fig.1)
~"~I Knooko",
~~~ ~
Fig.
2. Insert a screwdriver into the knockout slot and bend the knockou
backand forth. (Fig.2)
Youmay have to use pliers to pull the loosened knockout free.
(Fig.3)
Fig.2 Fig.:
Note:
When installed. the bottom edge
of your range hood should be
28" -32" above the top of the
cooking surface. (Fig.4)
Fig.4
-5-

F. Preparing The Installation Location
Note: Please also refer P.11 "J. Making the Electrical Connection'
1. A. If you want to move the electric range to make room for working on
the cabinet turn off the 220 volt power for the electric range at the
service entrance.
B. Before moving a gas range. shut off the gas.
Note:
Omitsteps2athrough2dif the hoodisto bemountedonacabinet
with aflush bottom.
2. For installation onto a recessed bottom cabinet:
a. Measure the space (under the cabinet between the inside front
edge and inside back edge (Fig.5). With a saber. cut two 1"x2"
wood filler strips (purchased locally) to fill in the bottom of the
cabinet.
b. Start a 1Y4" long wood screw (purchased locally) about 3" from
each end of the 1"x2" wood strips (Fig.6)
c. Position the strips on the cabinet bottom and screw the strips
securely to the cabinet (Fig.7)
d. For a more secure installation. drill four 3/16" holes from inside
the cabinet. down into the wood filler strips. Insert screws into the
starter holes in cabinet and tighten screws until wood filler strips
are secured under cabinet.
3. Center the hood in place beneath the cabinet and flush with the front
of the cabinet. Mark the following:
a. The four keyhole mounting slots for the hood. Markthese onto the
bottom of the cabinet; or. if the cabinet bottom is recessed. Onto
the wood strips (Fig.7)
b. The electrical knockout hole. (Fig.1)
Flg.5 -6- Fig.6

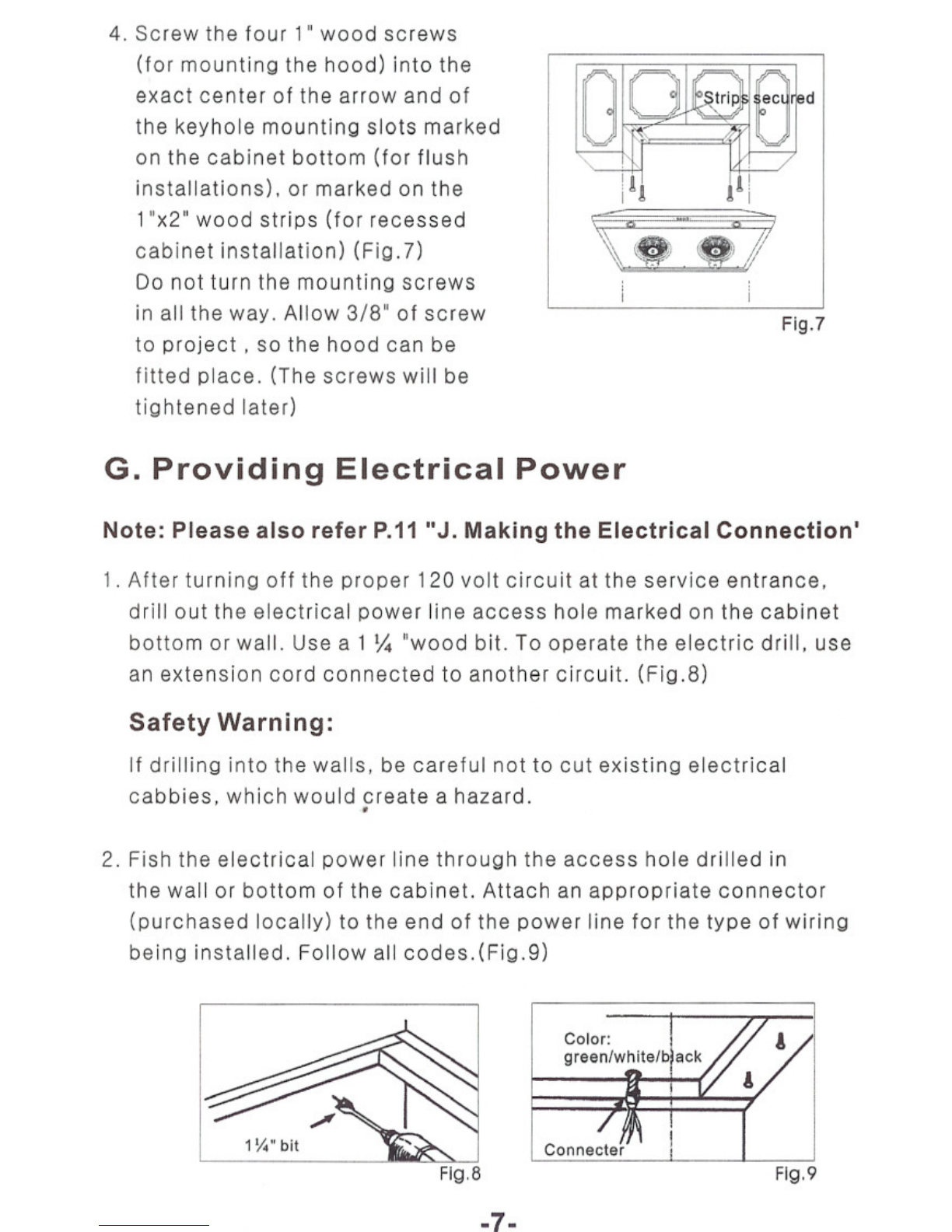

4. Screw the four 1"wood screws
(tor mounting the hood) into the
exact center of the arrow and of
the keyhole mounting slots marked
on the cabinet bottom (for flush
installations), or marked on the
1"x2"wood strips (tor recessed
cabinet installation) (Fig.7)
Do not turn the mounting screws
in allthe way. Allow3/8" of screw
to project. so the hood can be
fitted place. (The screws willbe
tightened later)
!!
I
~-
D D
~'
Fig.?
G. Providing Electrical Power
Note: Please also refer P.11 "J. Making the Electrical Connection'
1. After turning off the proper 120 volt circuit at the service entrance.
drill out the electrical power line access hole marked on the cabinet
bottom or wall. Use a 1v.. "wood bit. To operate the electric drill. use
an extension cord connected to another circuit. (Fig.8)
Safety Warning:
Ifdrillingintothewalls.be carefulnotto cut existingelectrical
cabbies. whichwouldcreate a hazard.
.
2. Fish the electrical power line through the access hole drilled in
the wall or bottom of the cabinet. Attach an appropriate connector
(purchased locally) to the end of the power line for the type of wiring
being installed. Followall codes.(Fig.9)
Color:
green/white/black
Flg,9
-7-

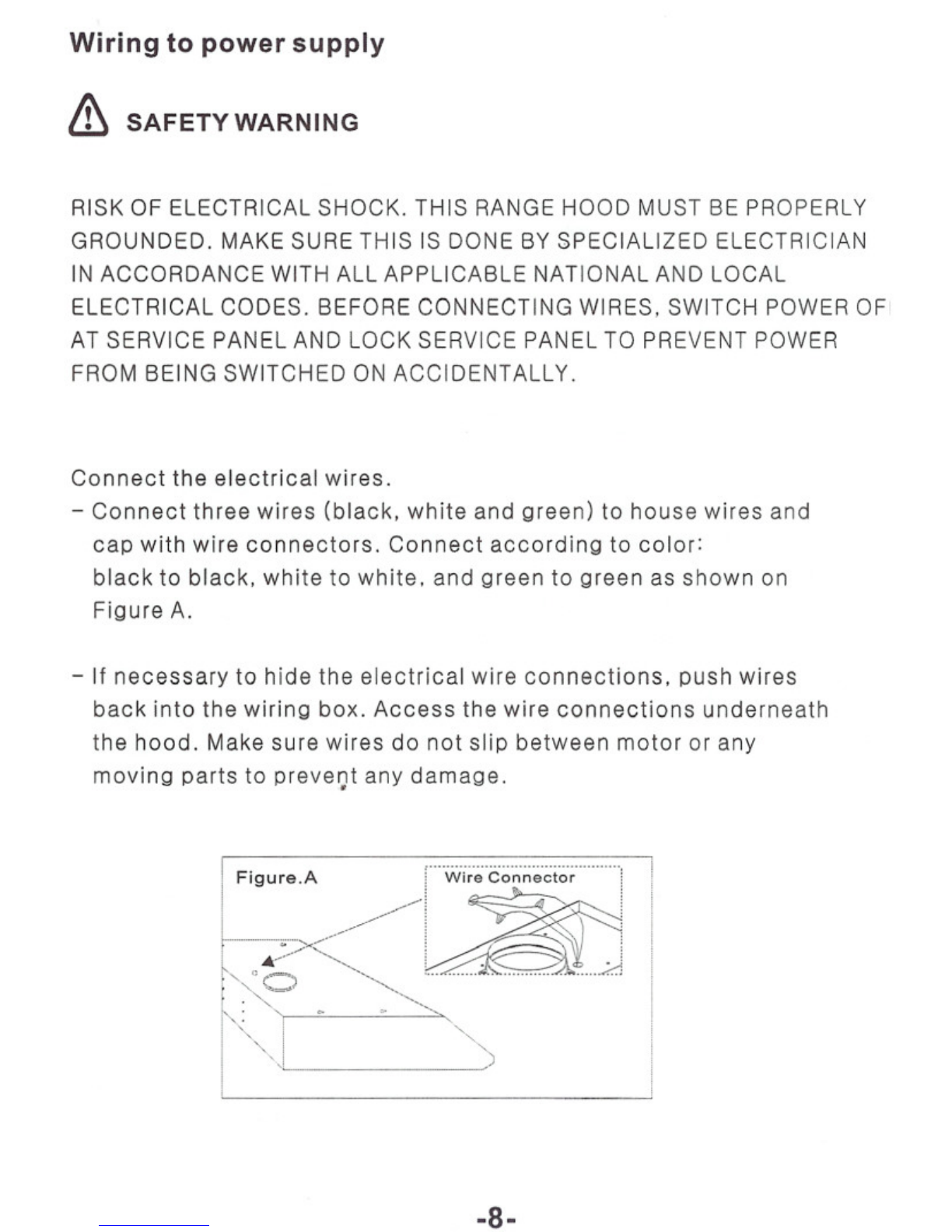

Wiring to power supply
&SAFETY WARNING
RISKOF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN
IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL
ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OF
AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER
FROM BEING SWITCHED ON ACCIDENTALLY.
Connect the electrical wires.
- Connect three wires (black. white and green) to house wires and
cap with wire connectors. Connect according to color:
black to black. white to white. and green to green as shown on
Figure A.
- If necessary to hide the electrical wire connections. push wires
back into the wiring box. Access the wire connections underneath
the hood. Makesure wires do not slip between motor or any
moving parts to prevelJt any damage.
Flgu,e.A ~
~! ;
. .
; :
. .
. .
: :
.: .
~"~ I. .!
,"0 ~_.. . . <::1
~ '--.
. ,,~ .. '-
.",J "')
-8-

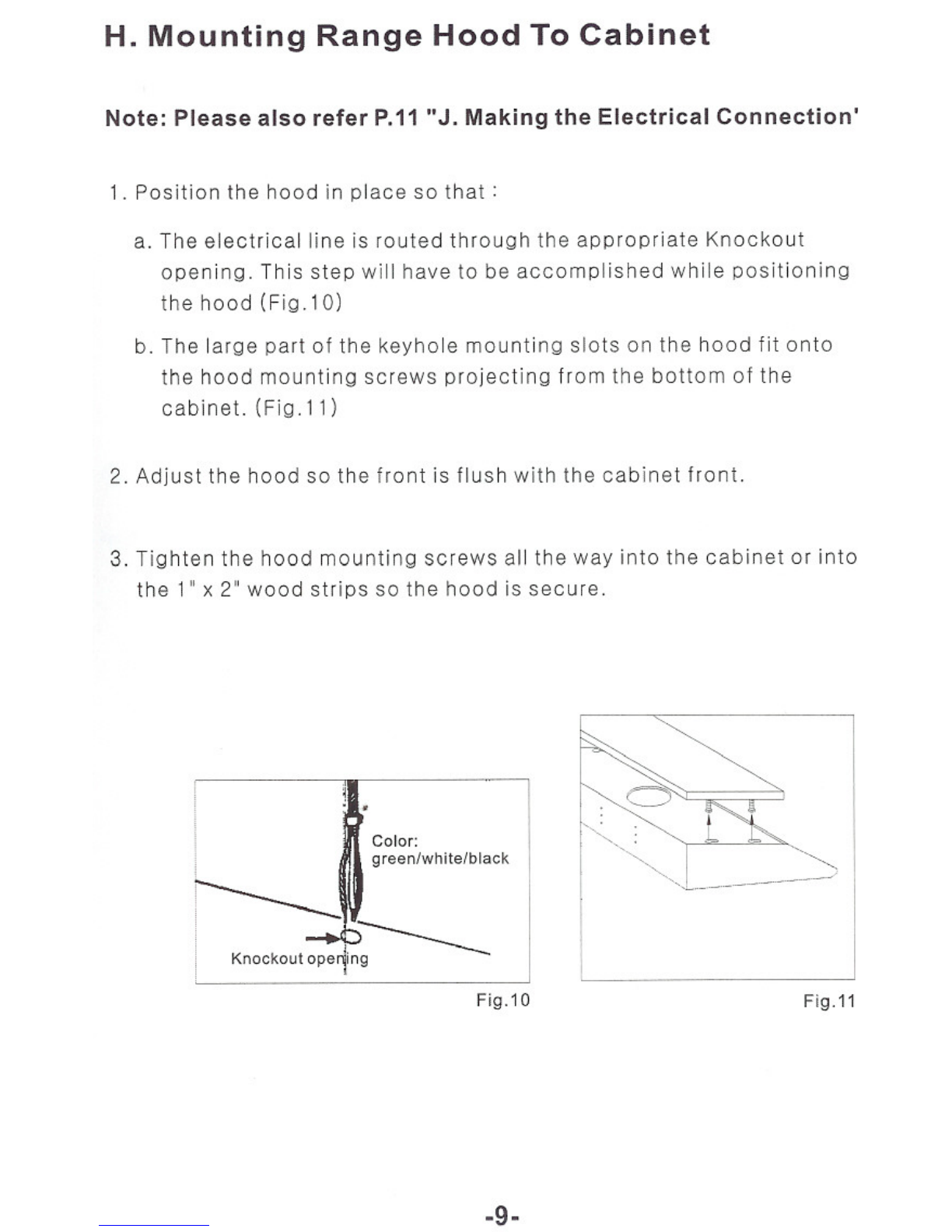

H. Mounting Range Hood To Cabinet
Note: Please also refer P.11 "J. Making the Electrical Connection'
1. Position the hood in place so that:
a. The electrical line is routed through the appropriate Knockout
opening. This step will have to be accomplished while positioning
the hood (Fig.1 0)
b. The large part of the keyhole mounting slots on the hood fit onto
the hood mounting screws projecting from the bottom of the
cabinet. (Fig.11)
2. Adjust the hood so the front is flush with the cabinet front.
3. Tighten the hood mounting screws all the way into the cabinet or into
the 1"x 2" wood strips so the hood is secure.
Color:
green/white/black ""'~, I_~
'1-_
Fig.10 Fig.11
-9-

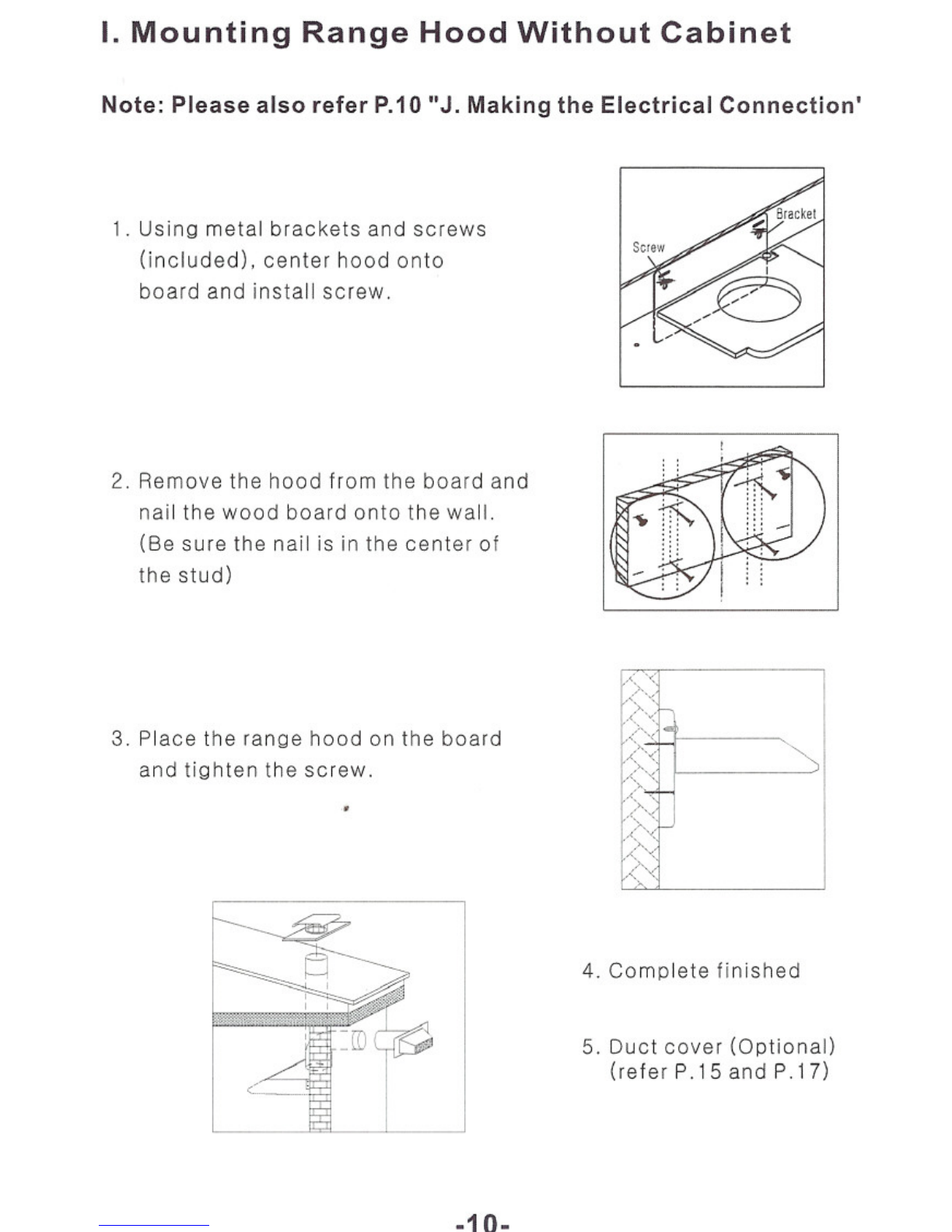

I. Mounting Range Hood Without Cabinet
Note: Please also refer P.10 "J. Making the Electrical Connection'
1. Using metal brackets and screws
(included), center hood onto
board and install screw.
2. Remove the hood from the board and
nail the wood board onto the wall.
(Be sure the nail is in the center of
the stud)
3. Place the range hood on the board
and tighten the screw.
-10-
4. Complete finished
5. Duct cover (Optional)
(refer P.15 and P.17)

J. Making the Electrical Connection
1. Turn the six nuts at the front/back of bottom board. ( Fig.13)
2. Remove screws on wiring case.
fish out wires through the
knockout. (Fig.13) screw
Fig.!
3. Mark the electrical connection by fastening all wires to the existing
wall wiring according to the their colors. (Black to Black, White to
White. Green to Ground)
4. After connection is done, reinstall wiring case cover and bottom
board.
5. Slide plastic collection cups onto the back metal mounting.
6. Turn on power and check operation of fan and light.
-11-

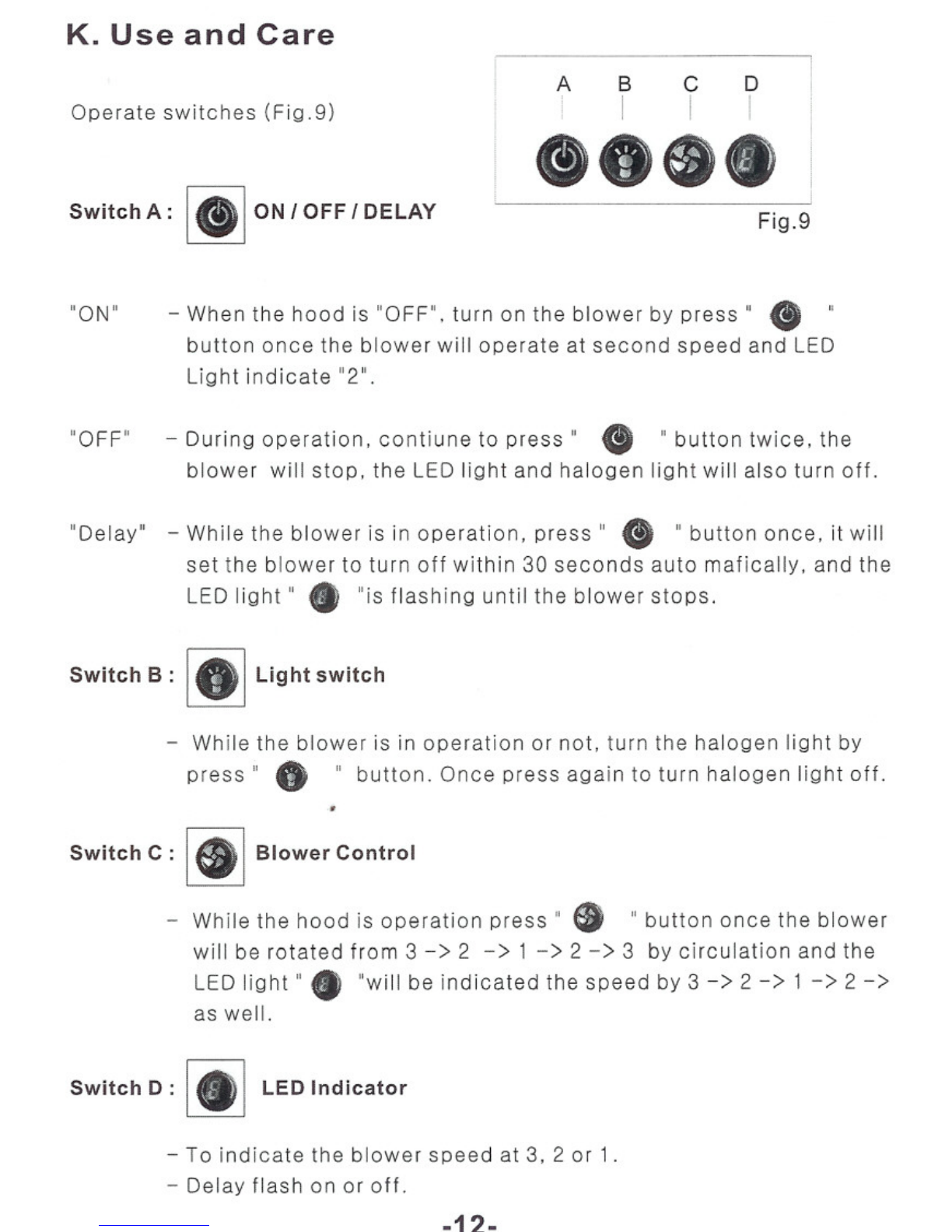

K. Use and Care
Operate switches (Fig.9) ABC 0
I I I
....
Switch A: IeION IOFF IDELAY Fig.9
"ON" - When the hood is "OFF", turn on the blower by press" .
button once the blower will operate at second speed and LED
light indicate "2",
"OFF" - During operation, contiune to press" ."button twice, the
blower will stop, the LED light and halogen light will also turn off.
"Delay" - While the blower is in operation, press" ."button once, it will
set the blower to turn off within 30 seconds auto mafically, and the
LED light" ."is flashing until the blower stops,
Switch B: 181 Light switch
- While the blower is in operation or not. turn the halogen light by
press". "button. Oncepress again to turn halogen light off.
Switch C :I(ItIBlower Control
While the hood is operation press" fa "button once the blower
will be rotated from 3 -) 2 -) 1-) 2 -) 3 by circulation and the
LEDlight". "will be indicated the speed by 3 -) 2 -) 1-) 2 -> :
as well.
Switch D: 181 LED Indicator
- To indicate the blower speed at 3,2 or 1.
- Delay flash on or off. -12-

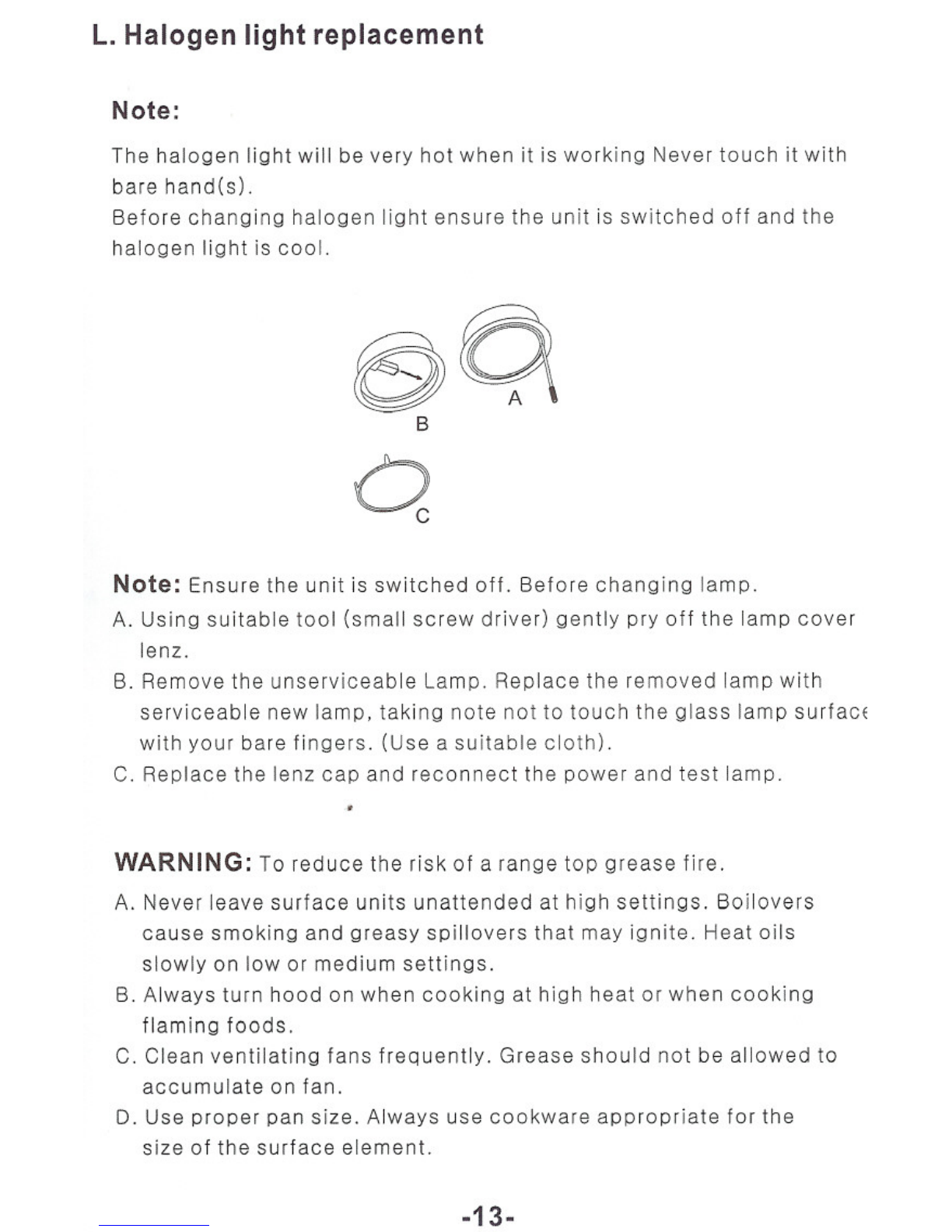

L. Halogenlight replacement
Note:
The halogen light will be very hot when it is working Never touch it with
bare hand(s).
Before changing halogen light ensure the unit is switched off and the
halogen light is cool. ~q
B
Q
Note: Ensure the unit is switched off. Before changing lamp.
A. Using suitable tool (small screw driver) gently pry off the lamp cover
lenz.
B. Remove the unserviceable Lamp. Replace the removed lamp with
serviceable new lamp, taking note not to touch the glass lamp surfacE
with your bare fingers. (Use a suitable cloth).
C. Replace the lenz cap and reconnect the power and test lamp.
WARNING: To reduce the risk of a range top grease fire.
A. Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers that may ignite. Heat oils
slowly on low or medium settings.
B. Always turn hood on when cooking at high heat or when cooking
flaming foods.
C. Clean ventilating fans frequently. Grease should not be allowed to
accumulate on fan.
D. Use proper pan size. Always use cookware appropriate for the
size of the surface element.
-13-

M. Maintenance Instruction
1. Maintenance shall be important than repair. Please take care of the
needed maintenance in order to secure and extend the excellent
functions and using life.
Note:
Before repairing the range hood. Disconnect the power source.
2. After using the machine. wipes the machine by neutral detergent in
order to keep it clean and maintain the appearance with brightness
and sanitation.
3. When the level of dirty oil of the collector reached 4/5 of height, it has t(
be removed in order to avoid overflowing and pollution.
N. Simple Trouble Shooting Rules
-14-
Symptom Correction
1.Checkpowersourceto seeif
.it is normal
Both fans are not operatable 2. Check power inlet plug to see
if it is plugged firmly into it's
isocket
1. Disconnect the power source
Illuminating indicator lamp 2. Check lamp bulb. replace it
gives no light with a new one if it is burned
out (20 watts 12V)
i
i
1. Check for damaged vanes
Hood vibrates 2. Check if exhaust duct is
isecured
----

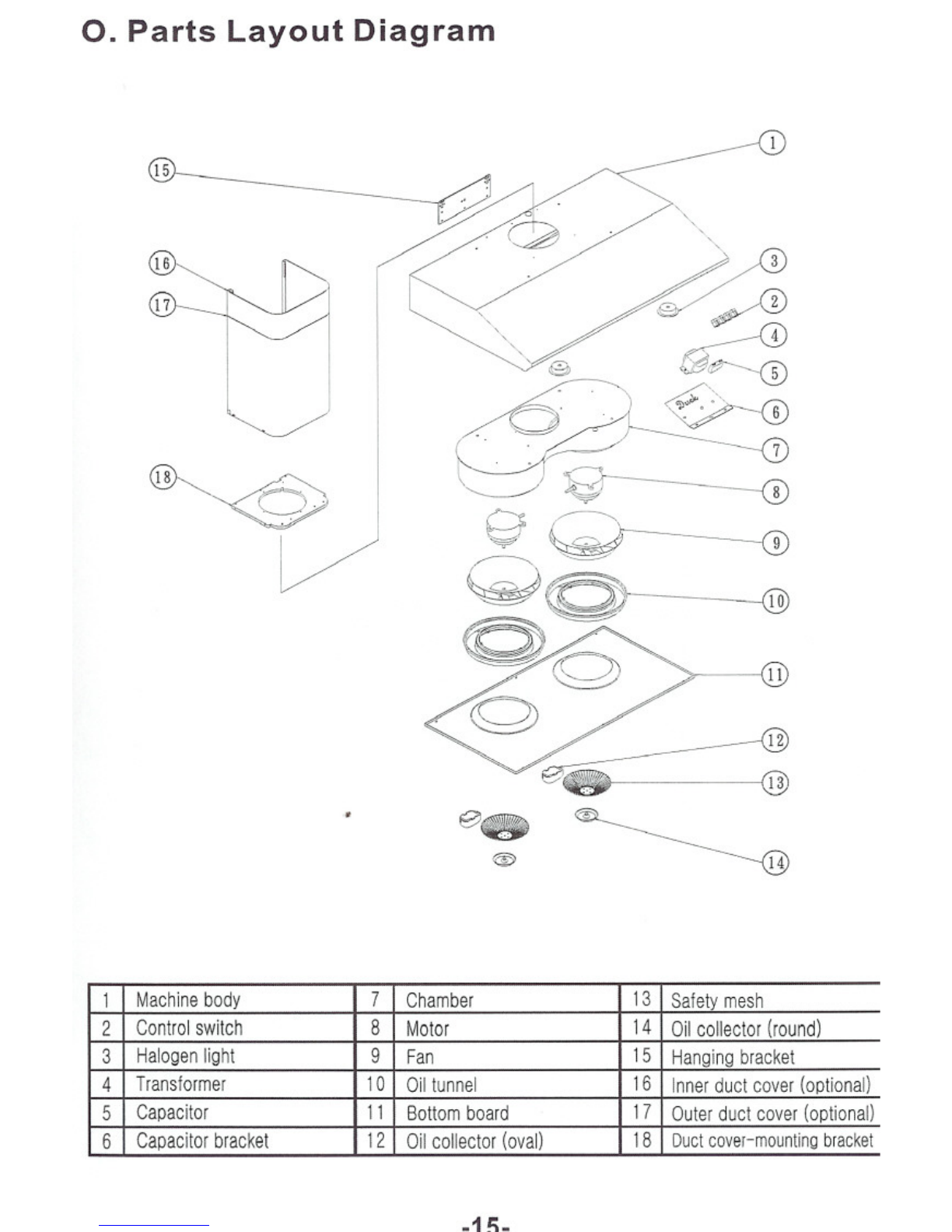

o. Parts Layout Diagram
15
~~
-15-
1Machinebody 7Chamber 13 Safetymesh
2Controlswitch 8 Motor 14 Oilcollector(round)
3Halogenlight 9 Fan 15 Hangingbracket
4Transformer 10 Oiltunnel 16 Innerductcoyer(optional)
5Capacitor 11 Bottomboard 17 Outerductcoyer(optional)
6ICapacitorbracket 12 Oilcollector(oval) 18 Ductcoyer-mountingbracket

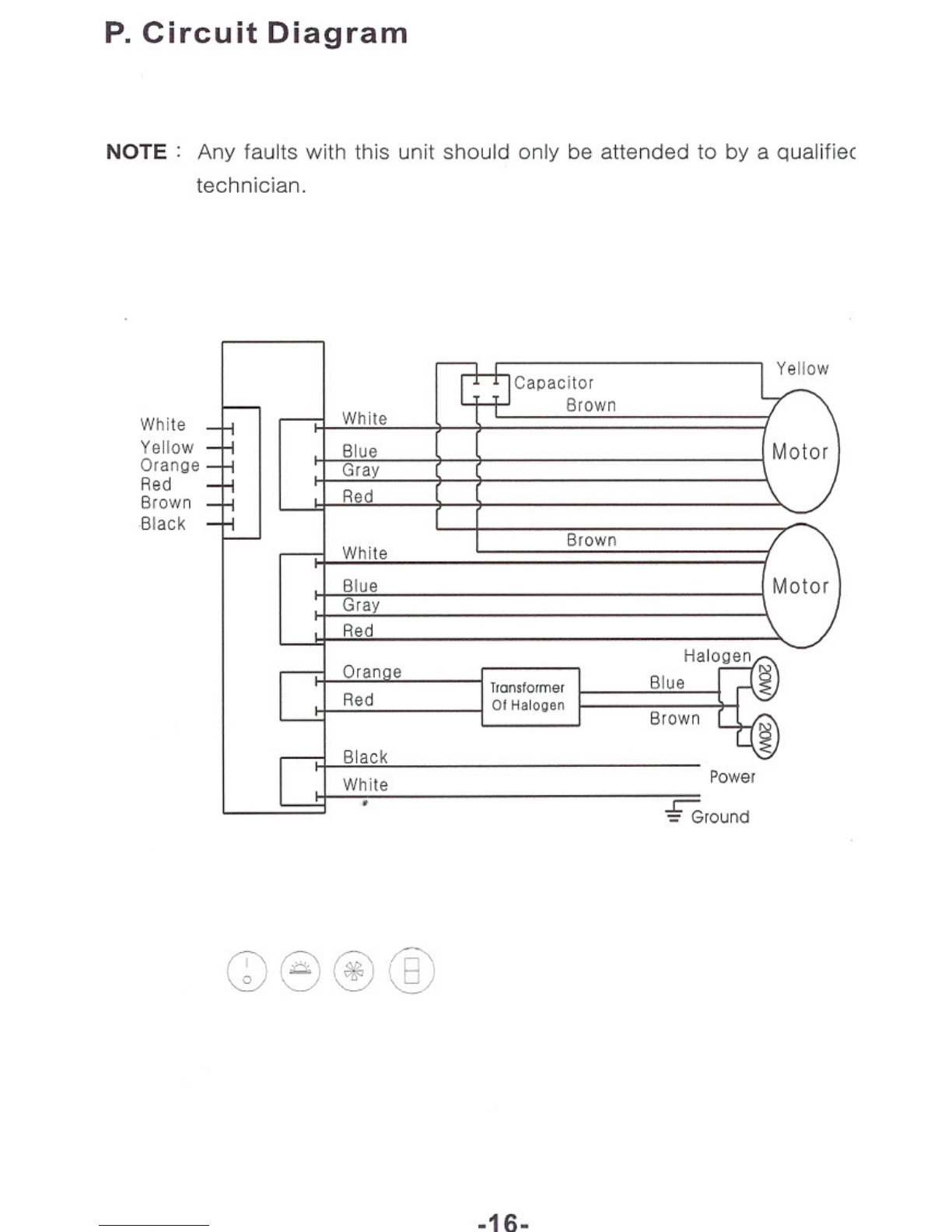

P. Circuit Diagram
NOTE:Any faults with this unit should only be attended to by a qualifiec
technician.
G)§@@
-16-

Q. Size
o Model: RA-3030 / RA-3036
oModel: RA-3130 / RA-3136 / RA-3142 / RA-314E
-17-
