Windster WS-208LF30SS User manual

www.windsterhood.com
User’s Manual
WS-208LF30SS
WS-208LF36SS
Please read this operation manual thoroughly before
using your range hood. Store it in a safe location for
when you need to reference it in the future.
NOTE: This unit does not support
ducted operation. For ducted
operation, please refer to model
WS208L30SS or WS208L36SS
For residential and indoor use only
UNDER CABINET SERIES

1
TABLE OF CONTENTS
Table of Contents
Safety Information ...............................................................2 - 3
Content Checklist .....................................................................4
Measurements ...........................................................................5
Preparation ...........................................................................6 - 7
Installation .................................................................................8
Operation & Features ...............................................................9
Cleaning & Maintenance .........................................................10
Troubleshooting ......................................................................11
Part List / Replacement Parts ................................................12
Warranty / Contact Us ......................................................13 - 14

2
SAFETY INFORMATION
SAFETY INFORMATION
TO REDUCE THE RISK OF A FIRE, ELECTRICAL SHOCK,
AND/OR INJURY OBSERVE THE FOLLOWING:
Unit is intended for indoor residential use only. If you should have questions,
contact the manufacturer at the address or telephone number listed in the
warranty.
In case the unit should need to be cleaned or repaired, switch power off at
either breaker or by disconnecting the power cord from the outlet.
Installation work and electrical wiring must be done by a qualified technician in
accordance with all applicable codes and standards, including fire-rated
construction.
Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s guideline and safety standards
such as those published by the National Fire Protection Association (NFPA),
and the American Society of Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
Because the unit is made of stainless steel, it may contain sharp edges. Be
careful to avoid cuts and abrasions by wearing protective gloves during
installation and cleaning.
Before you begin to cut or drill into the wall, verify that there is no electrical
wiring or any other hidden electrical components.
Ducted fans must always be vented to the outdoors.
Use metal ductwork when possible.
Do not use this fan with any solid-state speed control device and/or in-line
motor.
The unit must be properly grounded before beginning operation.

3
SAFETY INFORMATION
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
Regardless of heat level, never leave any surface materials unattended while
operating an open flame.
Always turn hood ON when cooking at high heat or when flambéing food (i.e.
Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
Depending on amount of usage, clean ventilating fans and filters frequently.
Grease should not be allowed to accumulate on fan or filter. For instructions
on the how to clean, see maintenance page.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not
go out immediately, EVACUATE AND CALL 911.
NEVER PICK UP A FLAMING PAN — Doing so may result in serious burns
and possibly spread the fire.
DO NOT USE WATER – Grease fire must be extinguished before further
action may be taken. Using water will agitate the grease and may cause a
violent steam explosion.
Use a Fire Extinguisher ONLY if:
You have a Class ABC extinguisher, and you already know how to
operate it.
The fire is small and contained in the area where it started.
The fire department is being called.
You are able to safely control the fire with your back to an open exit. *
Based on “Kitchen Fire safety Tips” published by NFPA.

4
CONTENT CHECKLIST
CONTENT CHECKLIST
1. CONTENTS INCLUDED
a. (1) WS208LF (30” or 36”) hood assembly
i. (2) Internal turbine blowers
ii. (1) Control switch
b. (1) User’s manual
c. (2) Charcoal filters & (1) stainless steel filler (30” model only)
d. (3) Charcoal filters (36” model only)
e. (1) Screw packet
2. TOOLS REQUIRED (NOT INCLUDED)
a. Safety gloves
b. Safety glasses
c. Electric drill w/ starter bit
d. Utility knife
e. Philips screwdriver
f. Spirit level
g. Measuring tape
h. Writing instrument (pen, marker, pencil)
i. Aluminum tape

5
MEASUREMENTS
NEED DIMENSION FOR ABOVE PICTURE

6
PREPARATION
PREPARATION
1. BEFORE YOU START
a. Be sure you have all the content of your purchase and required tools for
this installation.
b. Installation may take at least 1 to 2 hours from start to finish.
c. Plan to use as few elbows or turns as possible for more efficient air flow.
(DUCTED MODEL ONLY)
d. Collar size may need to be increased if utilizing a long duct run.
e. At least 12” of duct is required before using an elbow or making a turn.
(DUCTED MODEL ONLY)
f. Do not try to install this unit by yourself, SERIOUS INJURY MAY OCCUR.
g. At least two people are needed for installation.
h. Hire a qualified installer and electrician for this installation.
i. Cold weather installation will require make-up air or a CFM reducer.
Check with your local building codes for more detail. (DUCTED MODEL
ONLY)
2. LOCATION
a. Determine the exact location you want to install the range hood.
b. Distance between cooktop and range hood should be between 27”-33”.
c. Range hood should be mounted at stated measurements to ensure
performance and lifespan of electrical components.

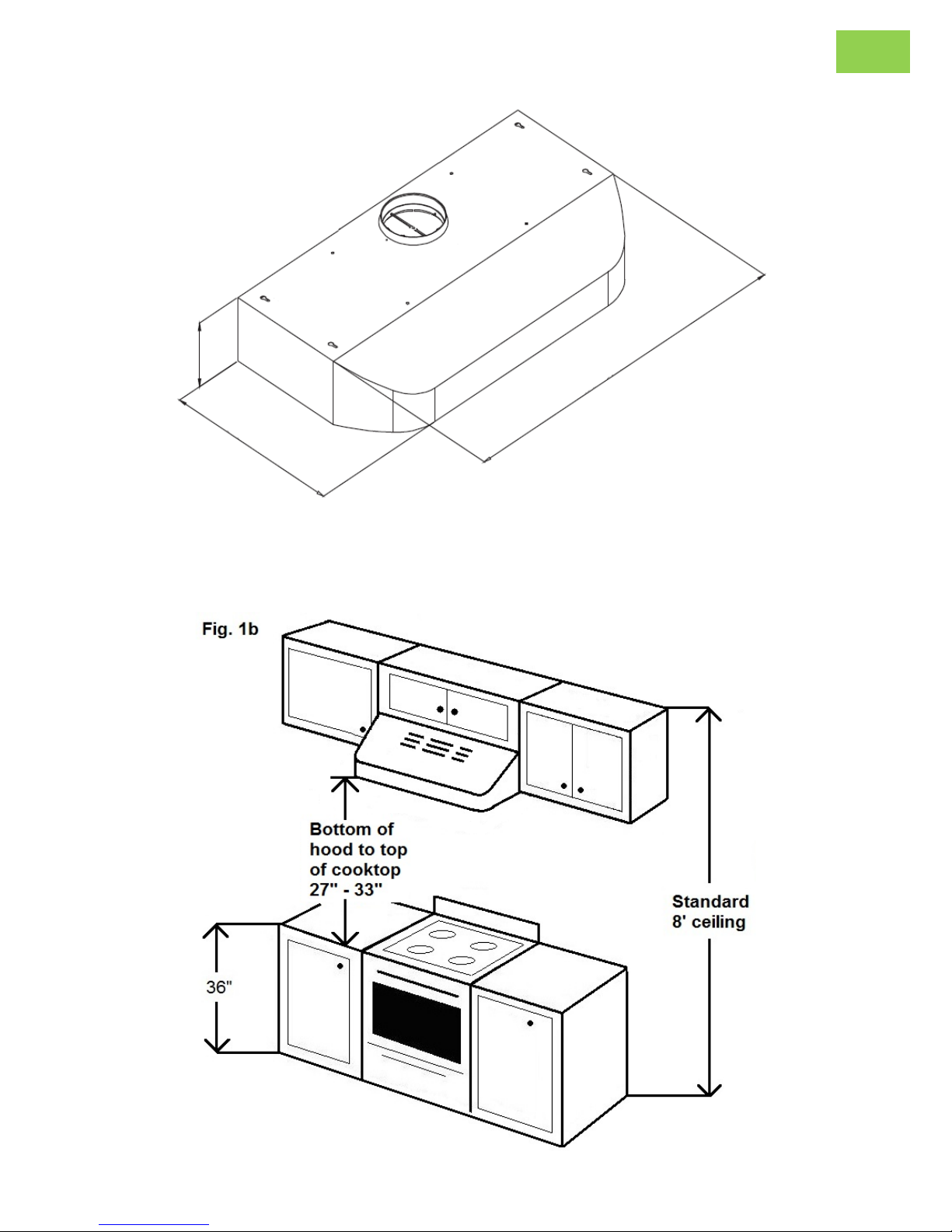

d. Use (diagram 1a & 1b) as measurement reference.
***Diagram 1a (hood measurement from TOP VIEW) ***

7
PREPARATION

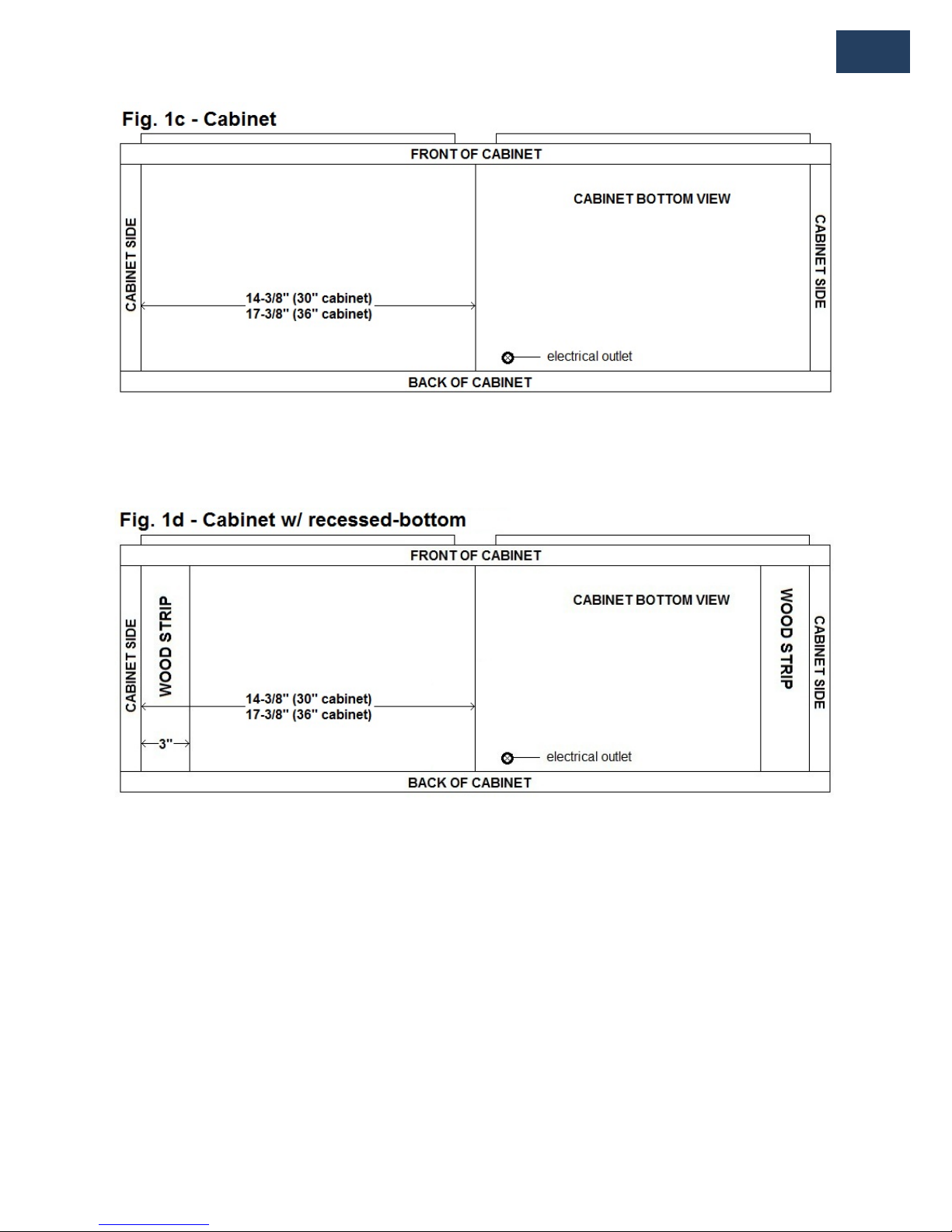

e. For cabinet with recessed-bottom, use (2) 3” x 12” or 15” wood strips on
both sides to balance the recession. Use (4) 1-1/4” long flat head screws
to secure the wood strips to cabinet. (Fig. 1c)
3. HOOD
a. Inspect for any sign of defect or damage. (ie. scratches, dents, loose
seams, etc.)
b. Power up the unit to make sure it is working properly.
c. Remove (2) charcoal filters and (1) stainless steel filler. (30” model only)
d. Remove the protective file on the stainless steel filler.
e. Remove (3) charcoal filters. (36” model only)

8
INSTALLATION
INSTALLATION
1. DUCTLESS INSTALLATION
a. Make sure all preparation steps are completed.
b. Feed the wires coming out of the hood through the bottom of the cabinet.
c. Lift the unit up flesh against the wall and the bottom of the cabinet.
d. Using the screws and washers provided, insert into each of the 4 keyhole
openings (2 on each side) and tightly secure the unit against the bottom
of the cabinet. NOTE: Install more screws through the back of the unit if
necessary.
e. Connect a 6” or 7” ducting to the collar of the hood. (DUCTED MODEL
ONLY)
f. Seal the connection points with aluminum tape. (DUCTED MODEL ONLY)

9
OPERATION & FEATURES
OPERATION & FEATURES
1. EASY ACCESS CONTROL SWITCH
a. Button 1 – ON/OFF
b. Button 2 – Low speed
c. Button 3 – Medium speed
d. Button 4 – High speed
e. Button 5 – Lights ON/OFF
2. FAN SPEED
a. Button 2 Low speed – 200 CFM / ___ Sones
b. Button 3 Medium speed – 410 CFM / ___ Sones
c. Button 4 High speed – 400 CFM / 4.8 Sones
3. LED LIGHTING
a. (2) 65 lm/w each
b. Color – Yellow
4. CHARCOAL FILTERS
a. (2) 10-5/8” x 11-1/8” charcoal filters (30” model only)
b. (1) 6-3/4” x 11-1/8” stainless steel filler (30” model only)
c. (3) 10-5/8” x 11-1/8” charcoal filters (36” model only)
DO NOT WASH CHARCOAL FILTER WITH WATER OR PUT
CHARCOAL FILTER IN DISHWASHER
a. Remove charcoal filters from unit and wipe the edges with soapy water.
b. Clean the charcoal filters regularly for the most efficient suction power.
c. Do not drop charcoal filters or filler.

10
CLEANING & MAINTENANCE
CLEANING & MAINTENANCE
WARNING!!!
To prevent the possibility of a fire and explosion, do not use
flammable liquids or solvents to clean the unit or any of its parts.
Check to make sure all power sources are disconnected
before servicing or taking unit apart for cleaning.
1. RANGE HOOD
a. Use household cleaner to remove grease or dirt from the outer shell of the
unit. Spray on wiping cloth or sponge and wipe in the direction of the grain
to avoid scratching the unit. (DO NOT SPRAY DIRECTLY ONTO UNIT)
b. Clean the inner working of the unit periodically to avoid grease build-up.
c. Do not open control switch panel while the hood is connected to power.
d. Use stainless steel cleaner to bring back the shine to the unit.
2. CHARCOAL FILTERS
DO NOT WASH CHARCOAL FILTER WITH WATER OR PUT
CHARCOAL FILTER IN DISHWASHER
a. Remove charcoal filters from unit and wipe the edges with soapy water.
b. Clean the charcoal filters regularly for the most efficient suction power.
c. Do not drop charcoal filters or filler.

11
TROUBLESHOOTING
TROUBLESHOOTING
WARNING!!!
Check to make sure all power sources are disconnected
before starting any troubleshooting. Safety gloves and glasses
should be worn when working on the unit. Serious injury or death
may occur if safety precautions are not followed.
WS208L/LF Series
Light Issue (Both not
turning on) New Transformer replacement is required
Light Issue (One light
not turning on)
Replace old defective Light fixture with New Light
fixture
Light/Speed buttons not
staying down Complete Control switch replacement is required
Unit Lacking Smoke
intake
Check that Contractor has NOT installed a reducer,
also check that air duct has not clogged the air flow
through its escape tunnel
Unit Showing no power
indication
Make Sure that in-home Power Outlet that it is
working properly and all wiring is done correctly
Unit making humming
noise Replace defective capacitor with new one

12
PART LIST / REPLACEMENT PARTS
PART LIST / REPLACEMENT PARTS
# Description # Description
1 Hood body 7 Air chamber
2 LED light 8 Motor
3 LED transformer 9 Teflon fan impeller
4 Control switch 10 Oil funnel
5 Inner bracket 11a (3) Charcoal filters
6 Capacitor 11b (2) Charcoal filters / (1) filler

13
WARRANTY / CONTACT US
WARRANTY / CONTACT US
LIMITED WARRANTY
Windster Hoods Inc. warrants its product against defects in material or workmanship as
follows:
Labor: For a period of one (1) year from the date of purchase, if the product is
determined to be defective, Windster will repair or replace the product, at its option, at
no charge. After the warranty period, customer must pay for all labor charges. During
the "labor" warranty period there will be no charge for any work done on the purchased
model. (All labor repairs are limited only to the installation of electrical components.)
Parts: In addition, Windster will supply, at no charge, new or rebuilt replacements in
exchange for defective parts for a period of two (2) years. After the warranty period, you
must pay for all parts costs. During the "parts" warranty period, there will be no charge
for parts
You must carry-in or mail-in your product during the warranty period. This warranty only
applies to products purchased and serviced in the United States or Canada.
** All parts and labor warranty will only apply to U.S. residents in the lower 48 states.
** Windster Hoods, Inc. will attempt to repair malfunctioning units prior to shipping a
replacement. In the case that a unit cannot be repaired and must be replaced, Windster
Hoods, Inc. will not be held liable for removal/installation fees of the
malfunctioning/replacement unit.

WARRANTY / CONTACT US
WHAT IS NOT COVERED BY MANUFACTURE WARRANTY
1. Damages resulting from any of the following:
a. Improper installation or maintenance
b. Any repair, modification, alteration or adjustment not authorized by
the manufacturer or an authorized service dealer
c. Misuse and/or accidents
d. Incorrect electric current, voltage or power supply
e. Improper setting of any control (Pressing multiple selections at the
same time)
f. Improper chemical cleaning (commercial or industrial cleaning agents)
2. Products purchased for use in a commercial or industrial setting (such as in a
hotel, office, restaurant, or other business)
3. Damage resulting from natural disasters (earthquake, flood, storm, etc.)
4. Aluminum Filters, Baffle Filters, Charcoal Filters, and Oil Cup Filters
5. Light Bulbs

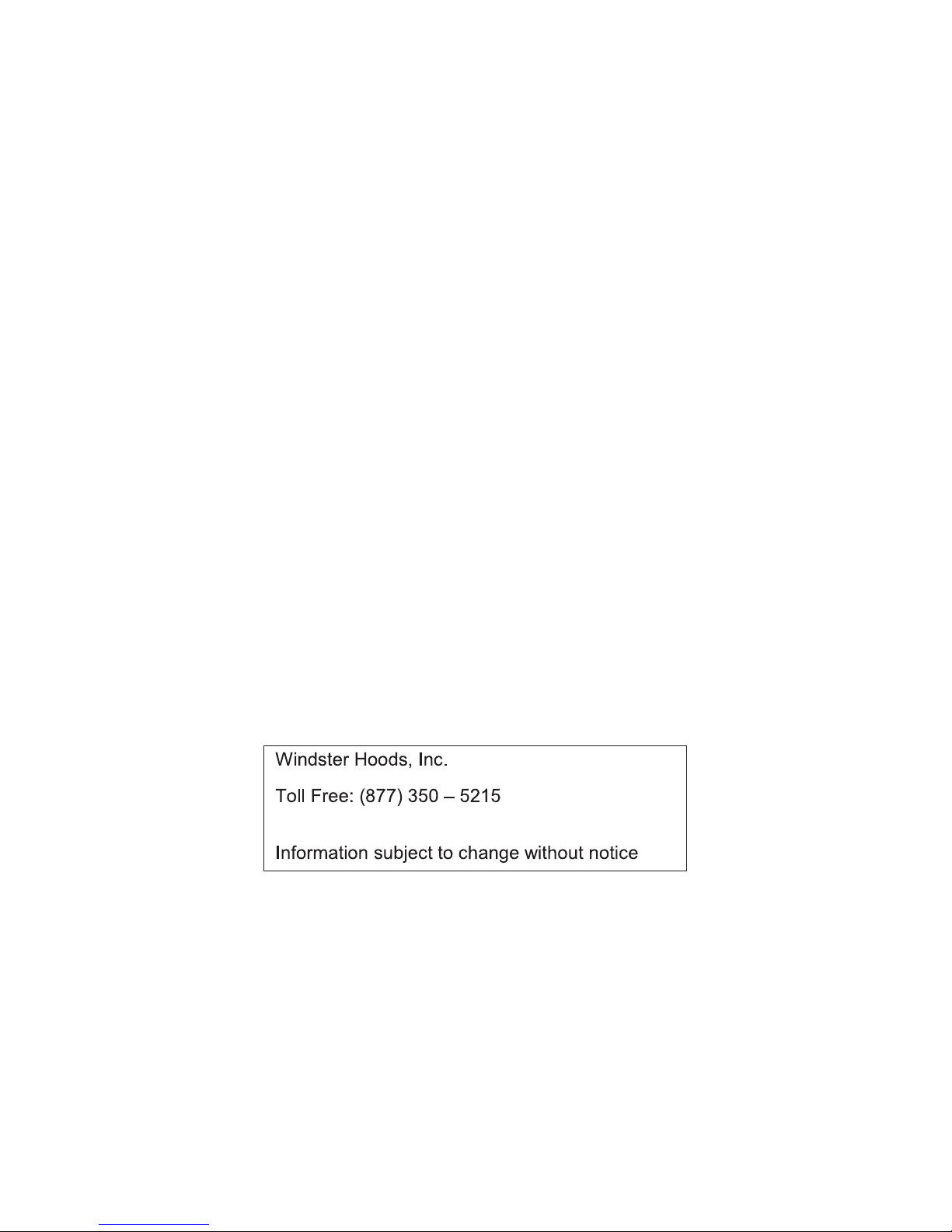

CONTACT US
www.windsterhood.com
