Windster RA34LU30SS User manual

www.windsterhood.com
User’s Manual
RA34LU30SS
RA34LU36SS
RA34LU42SS
RA34LU48SS
Please read this operation manual thoroughly before
using your range hood. Store it in a safe location for
when you need to reference it in the future.
NOTE: This unit does not support
ductless operation. For ductless
operation, please refer to model
WS38 series.
For residential and indoor use only
UNDER CABINET SERIES
WALL MOUNT SERIES

1
TABLE OF CONTENTS
Table of Contents
Safety Information ..............................................................2 –3
Content Checklist .....................................................................4
Measurements ...........................................................................5
Preparation ......................................................................... 6 –7
Installation ...........................................................................8 –9
Installation Diagram ................................................................10
Operation & Features .....................................................11 –12
Cleaning & Maintenance .........................................................13
Troubleshooting ......................................................................14
Part List / Replacement ..................................................15 –16
Warranty / Contact Us .....................................................17 –18

2
SAFETY INFORMATION
SAFETY INFORMATION
TO REDUCE THE RISK OF A FIRE, ELECTRICAL SHOCK,
AND/OR INJURY OBSERVE THE FOLLOWING:
Unit is intended for indoor residential use only. If you should have questions,
contact the manufacturer at the address or telephone number listed in the
warranty.
In case the unit should need to be cleaned or repaired, switch power off at
either breaker or by disconnecting the power cord from the outlet.
Installation work and electrical wiring must be done by a qualified technician in
accordance with all applicable codes and standards, including fire-rated
construction.
Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s guideline and safety standards
such as those published by the National Fire Protection Association (NFPA),
and the American Society of Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
Because the unit is made of stainless steel, it may contain sharp edges. Be
careful to avoid cuts and abrasions by wearing protective gloves during
installation and cleaning.
Before you begin to cut or drill into the wall, verify that there is no electrical
wiring or any other hidden electrical components.
Ducted fans must always be vented to the outdoors.
Use metal ductwork when possible.
Do not use this fan with any solid-state speed control device and/or in-line
motor.
The unit must be properly grounded before beginning operation.

3
SAFETY INFORMATION
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
Regardless of heat level, never leave any surface materials unattended while
operating an open flame.
Always turn hood ON when cooking at high heat or when flambéing food (i.e.
Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
Depending on amount of usage, clean ventilating fans and filters frequently.
Grease should not be allowed to accumulate on fan or filter. For instructions
on the how to clean, see maintenance page.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not
go out immediately, EVACUATE AND CALL 911.
NEVER PICK UP A FLAMING PAN —Doing so may result in serious burns
and possibly spread the fire.
DO NOT USE WATER –Grease fire must be extinguished before further
action may be taken. Using water will agitate the grease and may cause a
violent steam explosion.
Use a Fire Extinguisher ONLY if:
You have a Class ABC extinguisher, and you already know how to
operate it.
The fire is small and contained in the area where it started.
The fire department is being called.
You are able to safely control the fire with your back to an open exit. *
Based on “Kitchen Fire safety Tips” published by NFPA.

4
CONTENT CHECKLIST
CONTENT CHECKLIST
1. CONTENTS INCLUDED
a. (1) RA-34L series (30”, 36” 42” or 48”) hood assembly
b. (1) User’s manual
c. (1) Black 6” to 7” conversion collar
d. (2) Baffle filters w/ handles & (2) stainless steel filler (30” model only)
e. (2) Baffle filters w/ handles & (3) stainless steel filler (36” model only)
f. (2) Baffle filters w/ handles & (3) stainless steel filler (42” model only)
g. (3) Baffle filters w/ handles & (2) stainless steel filler (48” model only)
h. (1) Oil tray
i. (1) Screw packet
2. CONTENTS NOT INCLUDED
a. RA34LCFMR (CFM reducer)
b. RA34LDC (Duct cover)
c. 6” / 7” Aluminum or metal piping
3. TOOLS REQUIRED (NOT INCLUDED)
a. Safety gloves
b. Safety glasses
c. Electric drill w/ starter bit
d. Utility knife
e. Spirit level
f. Measuring tape
g. Writing instrument (pen, marker, pencil)
h. Aluminum tape

5
MEASUREMENTS

6
PREPARATION
PREPARATION
1. BEFORE YOU START
a. Be sure you have all the content of your purchase and required tools for
this installation.
b. Installation may take at least 2 to 3 hours from start to finish.
c. Plan to use as few elbows or turns as possible for more efficient air flow.
d. Collar size may need to be increased if utilizing a long duct run.
e. At least 12” of vertical duct is required before any turn.
f. Do not try to install this unit by yourself, SERIOUS INJURY MAY OCCUR.
g. At least two people are needed for installation.
h. Hiring a certified installer and electrician is recommended.
i. Cold weather installation will require make-up air or a CFM reducer.
Check with your local building codes for more detail.
2. LOCATION
a. Determine the exact location you want to install the range hood.
b. Distance between cooktop and range hood should be between 27”-33”.
c. Range hood should be mounted at stated measurements to ensure
performance and lifespan of electrical components.
d. Correctly measure the dimension needed to install the unit.
Use Fig. 1a on page 5 for unit measurements
Use Fig. 1b on page 5 for general measurements

7
PREPARATION
e. For cabinet with recessed-bottom, use (2) 3” x 12” or 15” wood strips on
both sides to balance the recession. Use (4) 1-1/4” long flat head screws
to secure the wood strips to cabinet. (Fig. 1d)
3. HOOD
a. Inspect for any sign of defect or damage. (ie. scratches, dents, loose
seams, etc.)
b. Power up the unit to make sure it is working properly.
c. Remove the protective file on the baffle filters and fillers.
d. Install baffle handles to filters using a Philips screwdriver.

8
INSTALLATION
INSTALLATION
1. UNDER CABINET INSTALLATION
a. Make sure all preparation steps are completed.
b. Feed the wires coming out of the hood through the bottom of the cabinet.
c. Lift the unit up flesh against the wall and the bottom of the cabinet.
d. Using the screws and washers provided, insert into each of the keyhole
openings and tightly secure the unit against the bottom of the cabinet.
NOTE: Install more screws through the back of the unit if necessary.
e. Use the conversion collar for 7” ducting.
f. Connect 6” or 7” ducting to the collar of the hood.
g. Finish off by sealing the connection point with aluminum tape.
2. WALL MOUNT INSTALLATION (OPTIONAL)
a. Optional RA34LDC duct cover is required for wall mount installation.
b. Inspect the RA34LDC for any sign of defect or damage. (ie. scratches,
dents, loose seams, etc.)
c. Be sure you have the following content.
i. Two piece stainless steel duct cover
ii. Duct cover height = 14-1/4” (lower) + 14-1/4” (upper)
iii. Plastic duct cover mounting panel
iv. Screw packet
v. Hood mounting bracket
vi. Duct cover mounting bracket
d. Determine the exact location you want to install the range hood.
e. Prepare back wall frame with cross wood support.
f. Install the hood mounting bracket to the back of the unit and secure it with
the (6) screws provided. (Fig. 2a)
g. Install the duct cover mounting panel with the (5) screws provided.
h. Use a spirit level to ensure the balance of the hood is true.
i. Mount the unit onto wall with mounting screws (not included) (Fig. 2b)

9
INSTALLATION
j. Use a spirit level to ensure the balance of the hood is true.
k. Mount the unit onto wall with mounting screws (not included) (Fig. 2b)
l. Determine the desired location for mounting the duct cover bracket and
secure it with the (2) screws provided. (Fig. 2c)
NOTE: IF USING CFM reducer, connect the reducer to unit
before continuing.
m. Connect 6” ducting to the collar of the unit and secure it with aluminum
tape. (Fig. 2d)
n. Adjust the duct cover to the desired height and slide it into the duct cover
mounting panel and bracket. (Fig. 2e)
o. Secure it with the (2) duct cover screws provided. (Fig. 2f)
3. COLD WEATHER INSTALLATION (OPTIONAL)
a. Check with your local building codes to see if a CFM reducer is an
acceptable alternative to make-up air.
b. Remove the RA34LCFMR (CFM Reducer) and inspect for any sign of
defect or damage. (ie. Cracks, broken flips)
c. For UNDER CABINET installation: COMPLETE Step A –D of Section
1 UNDER CABINET INSTALLATION THEN GO TO STEP E BELOW.
d. For WALL MOUNT installation: COMPETE Step A –J of Section 2
WALL MOUNT INSTALLATION THEN GO TO STEP E BELOW.
e. Place the CFM reducer onto the outlet of the unit and seal the connection
point with aluminum tape. (Be sure it is secure with no opening or gaps)
f. Connect a 6” ducting to the collar of the CFM reducer.
g. Finish off by sealing the connection point with aluminum tape.

10
INSTALLATION DIAGRAM
INSTALLATION DIAGRAM

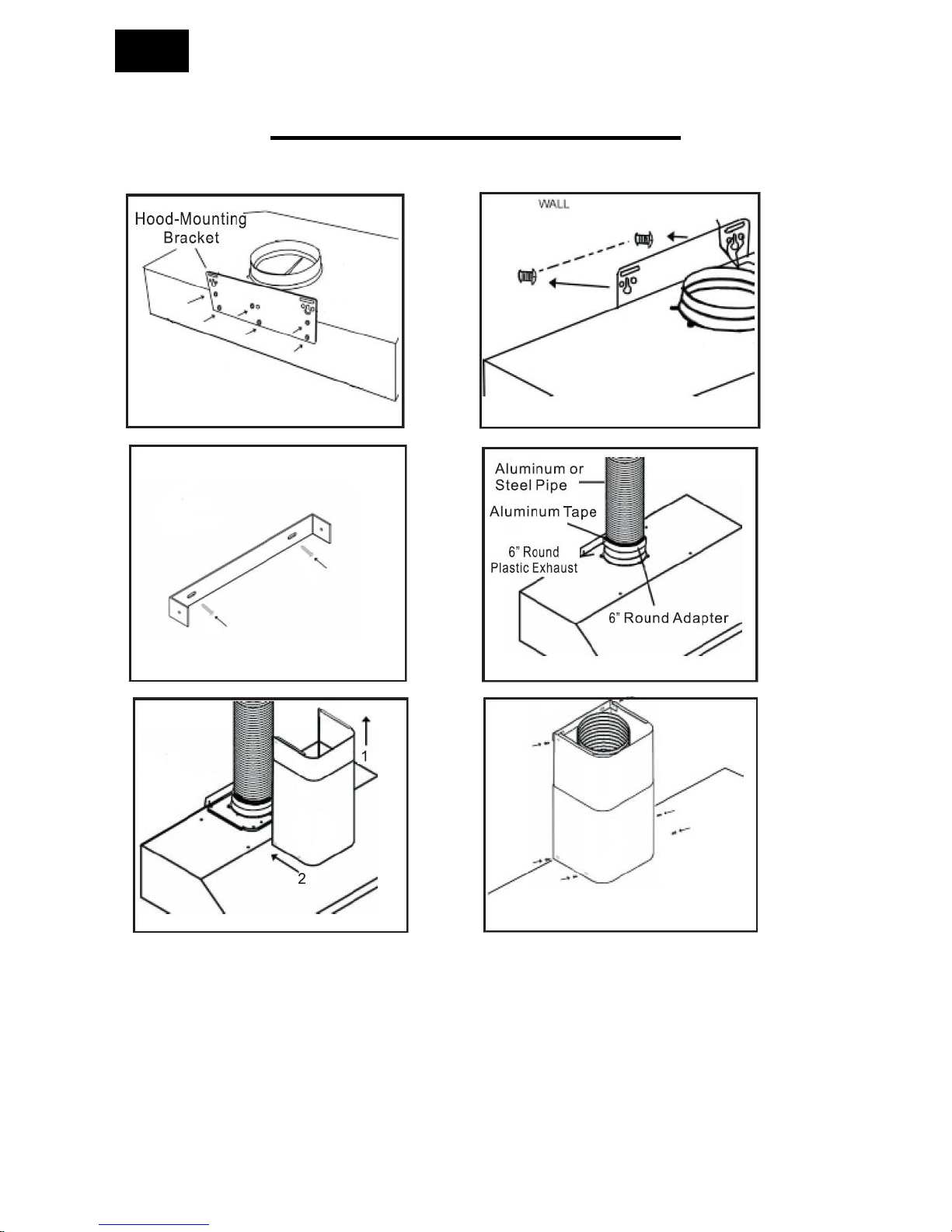

Fig. 2a Fig. 2b
Fig. 2c Fig. 2d
Fig. 2e Fig. 2f

OPERATION & FEATURES
11
OPERATION & FEATURES
1. EASY ACCESS CONTROL SWITCH (from left to right)
a. Button 1 –ON / DELAY SHUTOFF / OFF
b. Button 2 –Light control
c. Button 3 –Speed control
d. Blue color speed indicator
2. BAFFLE FILTERS
a. (2) 14-3/8” x 12-3/4” baffle filters and (2) fillers (30” model only)
b. (2) 14-3/8” x 12-3/4” baffle filters and (2) fillers (36” model only)
c. (3) 14-3/8” x 12-3/4” baffle filters and (2) fillers (42” model only)
d. (3) 14-3/8” x 12-3/4”baffle filters and (2) fillers (48” model only)

OPERATION & FEATURES
12
3. PUTTING IN THE OIL TRAY AND BAFFLE FILTERS
a. Insert the oil tray into the unit at an angle. (Fig. 3a)
b. ○
1Slide the baffle filter into
the hood.
○
2Push the baffle filter
upward.
c. ○ 3Slide the baffle filter
toward you.
○
4Pull the end of the
baffle filter downward.
d. ○
5Fit into place.

13
CLEANING & MAINTENANCE
CLEANING & MAINTENANCE
..WARNING!!!..
To prevent the possibility of a fire and explosion, do not use
flammable liquids or solvents to clean the unit or any of its parts.
Check to make sure all power sources are disconnected
before servicing or taking unit apart for cleaning.
1. RANGE HOOD
a. Use household cleaner to remove grease or dirt from the outer shell of the
unit. Spray on wiping cloth or sponge and wipe in the direction of the grain
to avoid scratching the unit. (DO NOT SPRAY DIRECTLY ONTO UNIT)
b. Clean the inner working of the unit periodically to avoid grease build-up.
c. Do not open control switch panel while the hood is connected to power.
d. Use stainless steel cleaner to bring back the shine to the unit.
2. BAFFLE FILTERS
a. Remove baffle filters from unit and place in warm soapy water.
b. Clean the baffle filters regularly for the most efficient suction power.
c. Do not drop baffle filters or filler.
d. Let it soak thoroughly and then clean it with wiping cloth or sponge.
e. Baffle filters may also be cleaned using residential dishwasher.

TROUBLESHOOTING
14
TROUBLESHOOTING
..WARNING!!!..
Check to make sure all power sources are disconnected
before starting any troubleshooting. Safety gloves and glasses
should be worn when working on the unit. Serious injury or death
may occur if safety precautions are not followed.
RA34L Series
Light Issue (All not
turning on)
1. Halogen lights may need to be changed.
2. New Transformer replacement is required.
Halogen light issue
1. Replace burnt 20w light bulb.
Light Issue (One light
not turning on)
1. Replace old defective fixture with new fixture.
Speed indicator not
showing speed levels
1. Complete Control switch replacement is required.
Burnt/melted control
switch
1. Complete Control switch replacement is required.
Speed levels not
working correctly
1. Check all wiring to and from the unit.
2. Complete control switch replacement is required.
Unit lacking smoke
intake
1. Check ducting for foreign object.
2. Ensure the ducting is properly sealed.
3. Clean filters to increase airflow.
Unit showing no power
indication
1. Make sure the power source is working properly.
2. All wiring is connected.
Unit making humming
noise
1. Replace defective capacitor with new one.

15

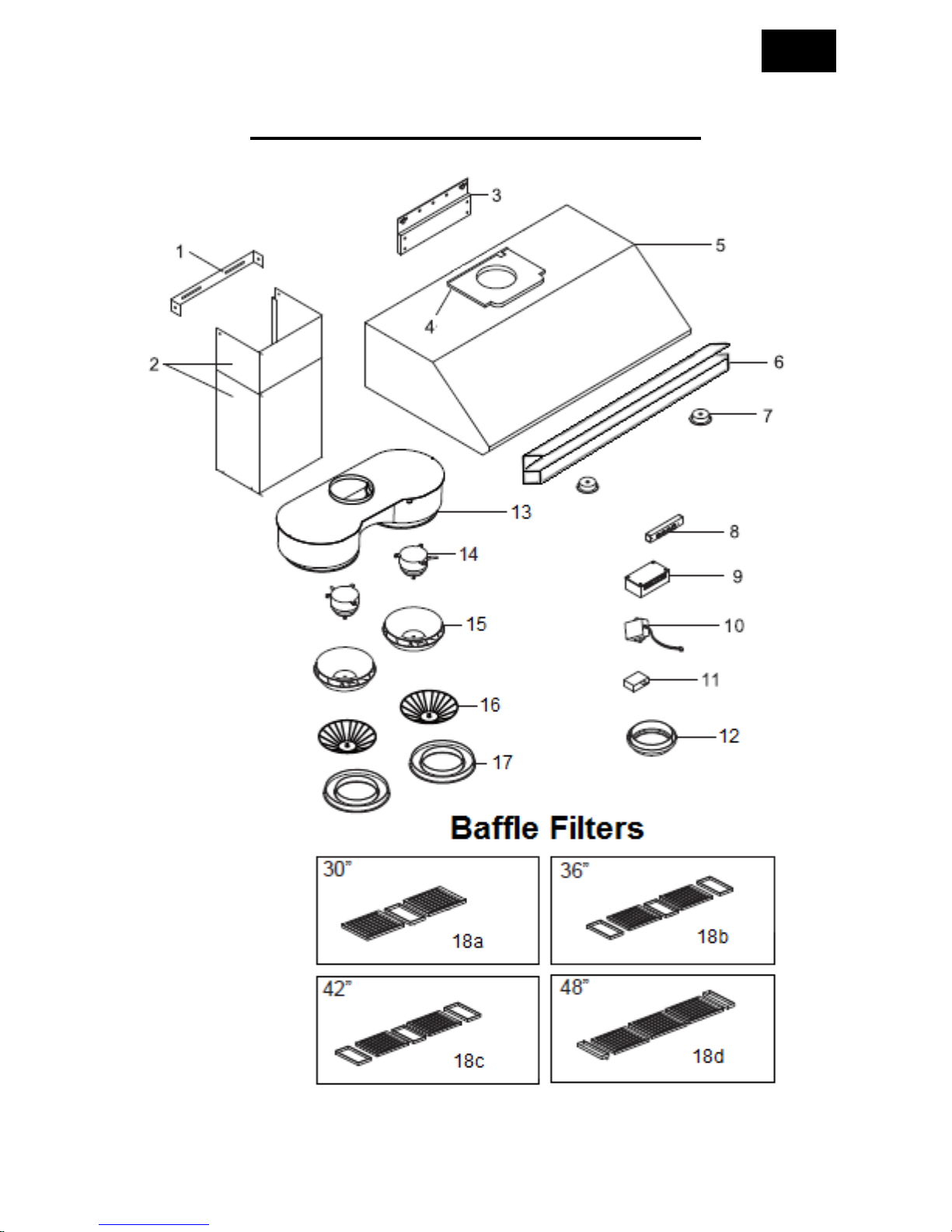

PART LIST / REPLACEMENT
PART LIST / REPLACEMENT

PART LIST / REPLACEMENT
16
#
Description
#
Description
1
Duct cover bracket (optional)
12
6” – 7” transition collar
2
Duct cover (optional)
13
Air chamber
3
Hood bracket (optional)
14
Motor
4
Duct cover panel (optional)
15
Fan impeller
5
Hood body assembly
16
Protective grill
6
Oil tray bar
17
Oil funnel
7
LED lights
18a
(2) baffle filters / (2) fillers (30” model)
8
Control switch
18b
(2) baffle filters / (3) fillers (36” model)
9
Control board
18c
(2) baffle filters / (3) fillers (42” model)
10
Transformer
18d
(3) baffle filters / (2) fillers (48” model)
11
Capacitor

WARRANTY / CONTACT US
17
WARRANTY / CONTACT US
LIMITED WARRANTY
Windster Hoods Inc. warrants its product against defects in material or workmanship as
follows:
Labor: For a period of one (1) year from the date of purchase, if the product is
determined to be defective, Windster will attempt to repair the product, at its option, at
no charge. After the warranty period, customer must pay for all labor charges. During
the "labor" warranty period there will be no charge for any work done on the purchased
model. (All labor repairs are limited only to the installation of electrical components.)
Parts: In addition, Windster will supply, at no charge, new or rebuilt replacements in
exchange for defective parts for a period of two (2) years. After the warranty period, you
must pay for all parts costs. During the "parts" warranty period, there will be no charge
for parts
You must provide the serial number of your unit for any replacement parts during the
warranty period. This warranty applies to products purchased and serviced in the
United States only.
For products purchased in Canada, please contact your local retailer where you
purchased the unit for service.
* Windster Hoods, Inc. will attempt to repair malfunctioning units prior to shipping a
replacement. In the case that a unit cannot be repaired and must be replaced, Windster
Hoods, Inc. will not be held liable for removal / installation fees of the malfunctioning /
replacement unit.

WARRANTY / CONTACT US
18
WHAT IS NOT COVERED BY MANUFACTURE WARRANTY
1. Damages resulting from any of the following:
a. Improper installation or maintenance
b. Any repair, modification, alteration or adjustment not authorized by
the manufacturer or an authorized service dealer
c. Misuse and/or accidents
d. Incorrect electric current, voltage or power supply
e. Improper setting of any control (Pressing multiple selections at the
same time)
f. Improper chemical cleaning (commercial or industrial cleaning agents)
2. Products purchased for use in a commercial or industrial setting (such as in a
hotel, office, restaurant, or other business)
3. Damage resulting from natural disasters (earthquake, flood, storm, etc.)
4. Aluminum Filters, Baffle Filters, Charcoal Filters, and Oil Cup Filters
5. Light Bulbs
CONTACT US
Windster Hoods, Inc.
5101 Commerce Dr.
Baldwin Park, CA 91706
TEL: [phone]
FAX: [phone]
Toll Free: (877) 350 –5215
E-mail: [email protected]
© Windster Hoods, Inc.
Information subject to change without notice

MEMO
