VHF/UHF MODEL HD7694P
High Definition (HD) Antenna
INSTRUCTION MANUAL
Register your product at winegard.com/myantenna
For help, email [email protected]
Winegard Company • 3000 Kirkwood Street • Burlington, IA 52601-2000
90 DAY LIMITED WARRANTY
Winegard Company warrants this Winegard product against any defects in materials or work-
manship within 90 (ninety) days from date of purchase. No warranty claim will be honored unless
at the time the claim is made, you present proof of purchase to an authorized Winegard dealer (if
unknown, please contact Winegard Company, 3000 Kirkwood Street, Burlington, IA 52601-2000,
Telephone [phone]).
Winegard Company (at its option) will either repair or replace the defective product at no charge
to you. This warranty covers parts, but does not cover any costs incurred in removal, shipping or
reinstallation of the product. This limited warranty does not apply if the product is damaged, deterio-
rates, malfunctions or fails from: misuse, improper installation, abuse, neglect, accident, tampering,
modication of the product as originally manufactured by Winegard, usage not in accordance with
product instructions or acts of nature such as damage caused by wind, lightning, ice or corrosive
environments such as salt spray and acid rain.
The 90 Day Warranty is provided on the condition that the equipment is properly delivered with all
handling and freight charges prepaid to your Winegard dealer for return to our factory for repair or
replacement. Winegard dealers will arrange for the replacement or repair and return to you without
charge the product which failed due to defective material or workmanship.
WINEGARD COMPANY WILLNOTASSUMEANY LIABILITIES FORANY OTHER WARRANTIES,
EXPRESS OR IMPLIED, MADE BY ANY OTHER PERSON.
ALL OTHER WARRANTIES WHETHER EXPRESS, IMPLIED OR STATUTORY INCLUDING
WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY ARE
LIMITED TO THE 90-DAY PERIOD OF THIS WARRANTY.
The foregoing shall be the sole and exclusive remedy of any person, whether in contract, tort or
otherwise, and Winegard shall not be liable for incidental or consequential damage or commercial
loss, or from any other loss or damage except as set forth above.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion of
limitation of incidental or consequential damages, so the above limitations or exclusions may not
apply to you.
This warranty gives you specic legal rights and you may also have other rights which vary from
state to state.
Printed in U.S.A. © Winegard Company 2002 Rev4 7-16 1450290
WARNING:Installation of this antenna near power lines is dangerous!
For your safety, follow the installation instructions.
1450290
Rev. 2/08
Rev4 7-16
POINT THIS END
TOWARD STATIONS
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - [phone] / [phone]

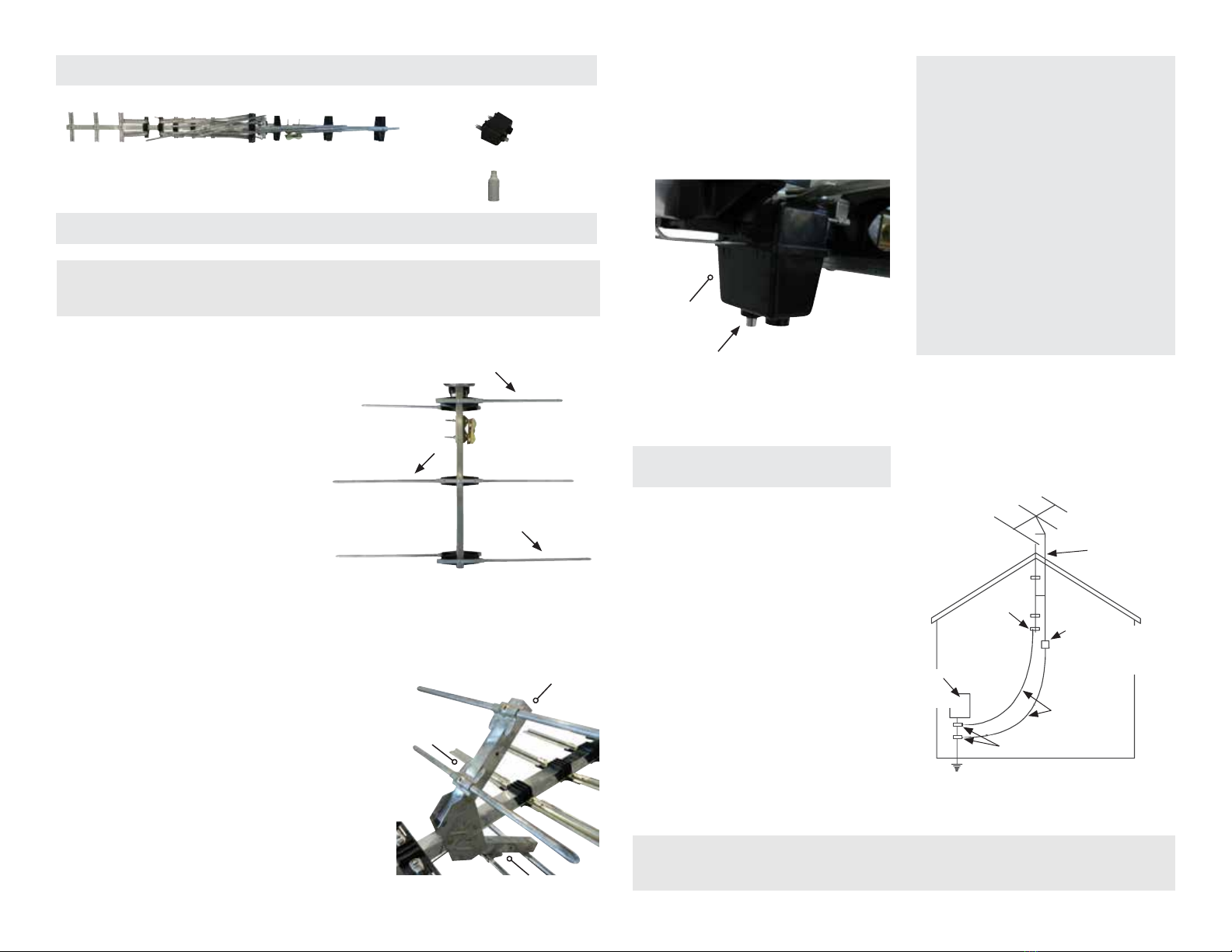

PARTS LIST
Antenna Assembly Cartridge Housing
Rubber Weather Boot
ASSEMBLY
1) Remove the antenna assembly
from the carton and compare
with parts list to ensure nothing
is missing and to become familiar
with the part names.
2) Lay the antenna on the ground with
the cartridge housing receptacle
facing down and the long elements
pointing towards you. Starting
with the element closest to you,
unfold the first three elements per
Figure 1 in direction of arrows until
they lock into place in the black
plastic blocks. Unfold the rest of
the elements on this side of the
antenna to the lock position.
3) Turn the antenna over so the
cartridge housing receptacle is now
facing up. Repeat step 2. Again lift
and rotate the elements that are
folded to the opposite side of the
boom just enough to slide over the
elements and boom.
4) Unfold the reflector booms slowly
until they lock in place. Then unfold
the elements on the reflector
booms. See Figure 2.
ATTACHING ANTENNA TO MAST
Loosen nuts on the mast clamp. Slide
the antenna over the mast, pointing
the front of the antenna (small end)
towards stations and tighten mast
clamp securely using a crescent
wrench (not included).
ATTACHING THE COAX
Slide the rubber boot over the end of
the coaxial cable. Attach the coaxial
cable to the cartridge housing. Slide
the boot over the boot collar on the
housing. The coaxial downlead may
be secured to the mast with tape or
plastic wire tires. See Figure 3.
5) Attach the housing cover so all 4
snaps are locked in place. Direction
of the housing does not matter.
See Figure 3.
1 Down
2 Up & Over,
Down
3 Up &Over,
Down
Reflector Boom
Reflector Boom
Element clip tip
pointing away
from main boom
Cartridge
Housing
Attach coaxial
cable with boot
1) Mount the lightning arrestor or
75 ohm coaxial grounding block
as close as possible to where the
75 ohm coaxial cable downlead
enters the house. See Figure 4.
2) The ground wires for both the
mast and the downlead should be
copper or aluminum wire, number
eight or larger. See Figure 4.
3) The downlead wire from the
antenna to the lightning arrestor
and the mast ground wire should
be secured to the house with
stand-off insulators, spaced four
to six feet apart. See Figure 4.
NOTE: In the case of a “ground up” antenna installation, it may not be necessary to ground the
mast if the mast extends four or more feet into the earth. Consult a TV serviceman for the proper
depth in your location.
LIGHTNING PROTECTION
FOR TV ANTENNA &SET
Antenna Lead
In Wire
Ground
Clamp
Electric
Service
Equipment
Antenna
Discharge Unit
(NEC Section 810-20)
Power Service Grounding
Electrode System
(NEC Art 250, Part H)
Ground
Clamps
Grounding Conductors
(NEC Section 810-21)
NEC - National Electrical Code
Example of antenna grounding as per
National Electrical Code, ANSI/NFPA 70
(May substitute a 75 ohm
Coax Grounding Block)
Figure 4
Example of antenna grounding as per
National Electrical Code, ANSI/NFPA 70
NEC – Nation Electrical Code
Antenna
Downlead Wire
Ground
Clamp
Electric
Service
Equipment
Antenna Discharge Unit
(NEC Section 810-20).
May substitute a 75 ohm
coax grounding block
Grounding
Conductors (NEC
Section 810-21)
Ground Clamp
Power Service Grounding Electrode
System (NEC Art 250, Part H)
Figure 1
Figure 2
Figure 3
NOTE: To prevent damage in shipping, some of the elements are folded to the opposite side of
the boom. For maximum performance, you must unfold the elements correctly. Please follow the
steps below.
