Winegard RD-4600 Operating instructions

1
RV DIGITAL SATELLITE SYSTEM
Models RD-4600 & RD-4646
U.S. PATENT NOS. 5,532,710
and 5,554,998
Made in U.S.A.
Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000
319/754-0600 • FAX [phone]
Printed in U.S.A. © Winegard Company 2001 2451099 Rev. 6/05/01
®
OWNER’S MANUAL
INSTALLATION INSTRUCTIONS
IMPORTANT:
INSTALL POINT
OF BASE
TOWARD FRONT
OF VEHICLE!

2
Center Roof Line
FIGURE 1
INSTALLATION & ASSEMBLY
STEP 1. Choose a location for antenna that will allow it to rest in travel position with top of
reflectorpointingtowardrearofvehicleandtoraiseandrotatewithoutinterferingwithother
roof-mounted equipment. Make sure inside ceiling area is clear where ceiling plate will
mount.
NOTE: Figure 1 shows minimum distance (10") antenna should be located from edge
of vehicle roof. We recommend you check with your dealer or the manufacturer to
see what provisions have been made in the roof for antenna mounting. A reinforced
area of roof as well as pre-wire downlead may be available.
NOTE: The system must be level for proper operation . If you have a curved roof you
should use a Winegard Models RW-1000 IW-1001 wedge kits to level the system.
STEP 2. Position template on roof (pg. 15 this manual) and drill a 1-3/4"hole through roof
andceilingofvehicle.Takecaretoavoiddamagetowiringwhichmayrunbetweenroof
and ceiling.
STEP 3. The mount is designed to fit roofs 1" to
6 3/4" thick. Cut elevating shaft and directional
handle to size, see table below.
CAUTION: IF YOU ARE USING THE RW-1000
ROOFWEDGE,ADD1/2" TOELEVATINGSHAFT
LENGTH GIVEN BELOW, BUT NOT TO THE
DIRECTIONAL HANDLE.
Front of the RV
26"
34" DIA.
OPERATING
AREA
NOT TO SCALE
17" RADIUS
It is highly recomended that the antenna be
mounted on roof center line. Do not mount
antenna closer than 10" from edge of roof.
Vehicle Roof
RW-1000
Roof Wedge
IW-1001
Ceiling Wedge
Antenna Controls
19.50"

3
ROOF ELEVATING SHAFT W/RW-1000 DIRECTIONAL
THICKNESS LENGTH HANDLE LENGTH
4 3/4" 6 1/4" RP-4200 req. 5 3/8"
4 1/2" 6" RP-4200 req. 5"
4 1/4" 5 3/4" 6 1/4" 4 3/4"
4" 5 1/2" 6" 4 1/2"
3 3/4" 5 1/4" 5 3/4" 4 1/4"
3 1/2" 5" 5 1/2" 4"
3 1/4" 4 3/4" 5 1/4" 3 9/16"
3" 4 1/2" 5" 3 3/8"
2 3/4" 4 1/4" 4 3/4" 3 1/16"
2 1/2" 4" 4 1/2" 2 3/4"
2 1/4" 3 3/4" 4 1/4" 2 3/8"
2" 3 1/2" 4" 2 1/16"
1 3/4" 3 1/4" 3 3/4" 1 3/4"
1 1/2" 3" 3 1/2" 1 3/8"
1 1/4" 2 3/4" 3" 1"
Directional
Handle
FIGURE 2
NOTE: Make sure that coax cable
fits between the reflector and the
fixed feed arm.
(4) 5/16-18
Hex Nut
(4) 5/16"
Flat Washer
(4) 5/16-18 x 5/8"
Flat Head Bolt
Rev. 6/05/01

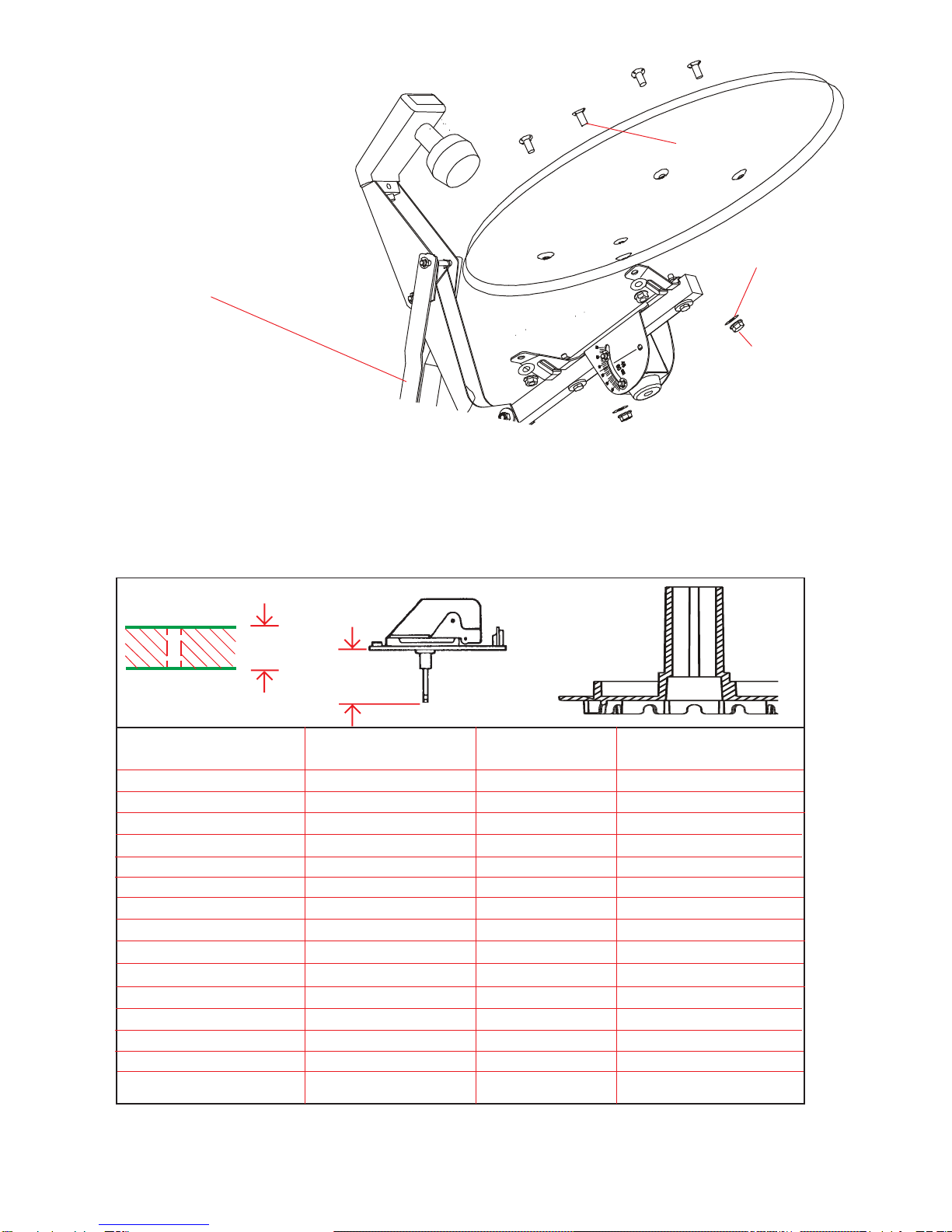

STEP 4. Attach reflector to backup
assembly as shown in Figure 2.
The mount is designed to fit roofs 1" to 4 3/4" thick. If roof is less than 4 3/4" thick, cut elevating shft and directional
handle to size. (See table below.) If roof is more than 4 3/4" thick, contact Winegard Company.
CAUTION: IF YOU ARE USING THE RW-1000 ROOF WEDGE, ADD 1/2" TO ELEVATING SHAFT LENGTH
GIVEN BELOW, BUT NOT TO THE DIRECTIONAL HANDLE.

4
STEP 6. Attach cable clamp to the coax cable 16" from the cable clamp
on the gear housing.
STEP 7. Attach cable clamp to roof 3" in front of baseplate as shown in
Figure 3, use 7/16" flat washer between screw head and clamp, apply
sealing compound over mounting screw head.
STEP 8. Feed downlead throught the roof using a Model CE-1000 cover
plate (included with hardware), Figure 3A. Weatherproof cable entry by
applying sealant under lip of roof-thru plate and where cable enters roof.
Attach plate to roof with screws provided. Apply sealant over screws and
around edge of roof-thru plate, making sure cable entry is sealed. Secure
cablesas necessarytoprevent whipping. DONOT MAKE CONNECTION
ONTOP OF ROOFunless thereis no otheroption, itis very difficultto
weatherproofoutsideconnection. Ifdownleadconnectionismadeon
top of roof make sure to weatherproof connection!
STEP 9. Assemble ceiling plate, directional handle and crank handle as
shown in Figure 5. The circled numbers indicate placement from the
ceiling down. Example: The ceiling plate 1 is located next to the ceiling.
The elevation crank handle 8 is farthest from the ceiling. The number
also indicates sequence of assembly.
NOTE:Wheninstallingpolyethyleneshim,#3,page5,slideshimonto
shaft as far as it will go. Then slide directional handle up over shaft
andshim and onto the gear housing. Twoshims aresupplied incase
one is not enough to create a snug fit between directional handle and
gear housing.
CAUTION: USE CAUTION WHEN INSTALLING THE ELEVATING
CRANK. ONCE SCREW TOUCHES SHAFT, TIGHTEN ONLY 1/4
TURN MORE. SCREW SIMPLY HOLDS ELEVATING CRANK ON.
DO NOT OVERTIGHTEN!
STEP 5. Mount antenna and lift on roof in travel position. Apply a liberal
amount of approved nonhardening sealing compound on bottom of base
plate and roof area around hole. See Figure 3. Secure base plate with
screws provided.
Cable clamp on gear housing.
CAUTION: DO NOT GET
SEALING COMPOUND ON
BEARINGSURFACEBETWEEN
BASE PLATE AND ROTATING
GEAR HOUSING. DO NOT
PAINTTOPOFBASEPLATEOR
AROUND ROTATING GEAR
HOUSING.
3" min.
FIGURE 3
Attach cable clamp here.
Make sure there is 16" of
coax between the cable
clamp on the gear housing
and the one 3" in front of
base plate. TOO MUCH OR
TOO LITTLE WILL CAUSE
DAMAGE TO COAX.
Downlead
from antenna
#10 x 1" Screws
NOTE: Applynon-hardeningsealing
compound between Base Plate and
roof of vehicle.
CE-1000
Downlead
connects to
satellite
receiver
FS-8100 male-to-male
F-connector
(if required)
FIGURE 3A INSIDE RV

5
FIGURE 4
Rotation
Clamp
ASSEMBLED VIEW
CAUTION: THE
ANTENNA MUST BE IN
THE TRAVEL POSITION
BEFORE ALIGNING THE
DIRECTIONAL HANDLE,
AND CEILING PLATE.
Tighten screw snugly
POINT TO
FRONT OF RV
POINTER
MUST POINT
TO CENTER
OF ROTA-
TION CLAMP
WHEN IN
TRAVEL
POSITION
1 Ceiling Plate
3 Directional
HandleExtension
4 Directional
Handle
ALIGN
POINTER WITH
ANTENNA
TRAVEL
POSITION
2 (4) #10 Phillips Flat
Head Screws
FIGURE 8
5 ELEVATING
CRANK HANDLE
(When installed,
extends 2-1/4"
from ceiling).
Snap Handle
into base
when not in use.
CAUTION: After INITIAL
INSTALLATION,
the antenna SHOULD ROTATE
APPROXIMATELY 360
DEGREES FROM TRAVEL
POSITION.
The pointer on the
DIRECTIONAL HANDLE
should point towards the
ROTATION CLAMP when in
TRAVEL POSITION.
POINT TOPOINT TO
POINT TOPOINT TO
POINT TO
FRONT OF RVFRONT OF RV
FRONT OF RVFRONT OF RV
FRONT OF RV

6
STEP 2. Move rotation clamp to the LOCK position.
STEP 3. Turn directional dial (see Figure 5) until the arrow is pointing North.
STEP 4. Unsnap elevation crank and turn (clockwise) in direction of "UP" arrow, about
14 - 15 turns or until some resistance is met.
STEP 5. Turn receiver ON, and access installation menus to determine antenna elevation
and direction/heading.
STEP6. Move rotationclamp tothe ROTATE position.Turn directionalhandle untilpointer
on directional handle is pointing in direction indicated by the receiver. Example: If receiver
says point antenna at 145° then rotate directional handle so that pointer is pointing at 145°
on the directional dial.
STEP 7. Refer to table below and turn elevation crank
counterclockwise (CCW) the number ofturnsindicated to
get the elevation shown by the receiver. One full turn
equals approximately 7° of elevation change.
OPERATION STEP 1. Using a compass, determine which direction is North. It is recommended that
you step outside to perform this step. Standing in or near coach/RV can give you an
incorrectreading. The more accurately you determine North, the easier it willbe to find the
satellite(s).

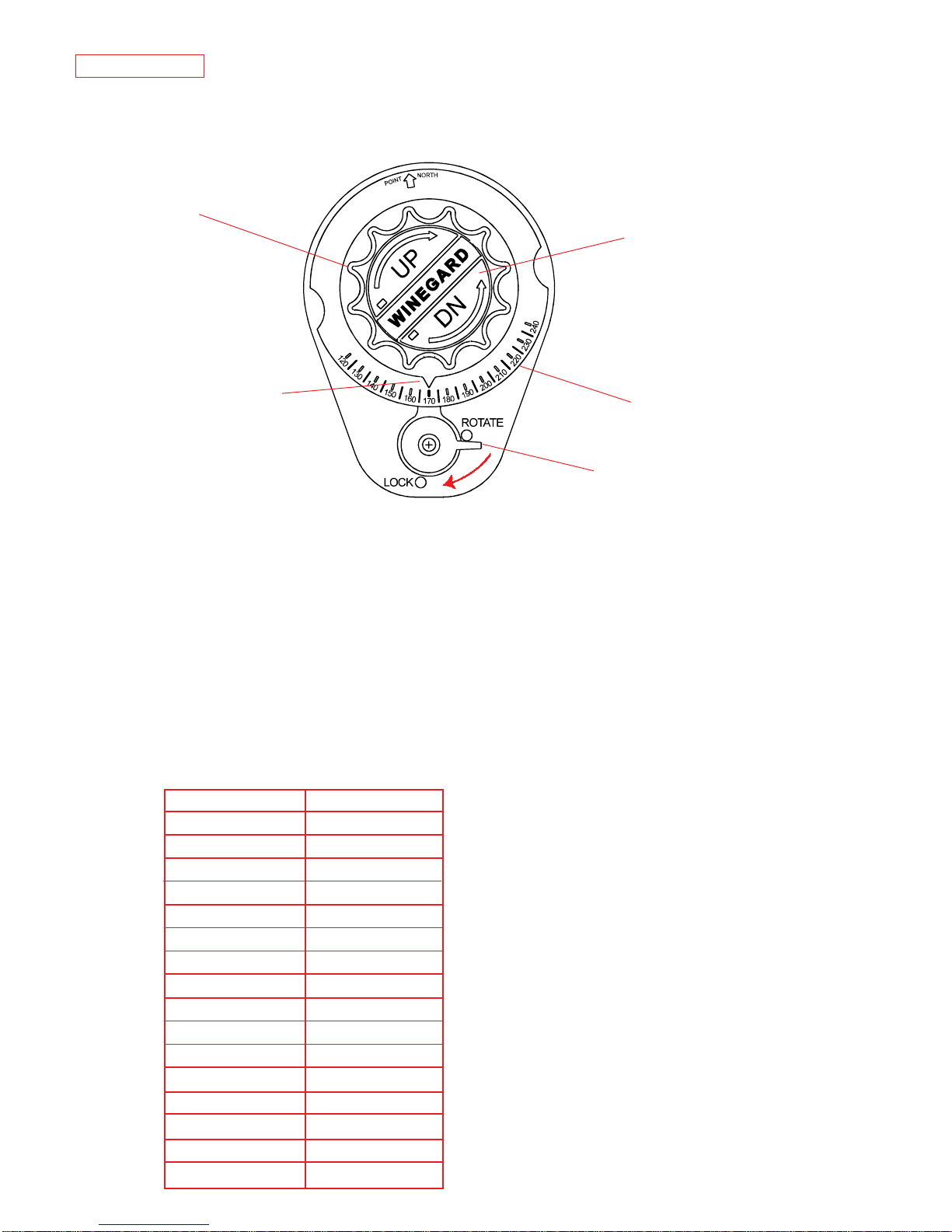

FIGURE 5
Directional Dial
Elevating Crank
Directional Handle
Pointer
Rotation Clamp
Directional
Handle
ELEVATION TURNS CCW
14 - 16oNONE
17 - 19o1/2
20 - 22o1
23 - 26o1-1/2
27 - 29o2
30 - 32o2-1/2
33 - 36o3
37 - 39o3-1/2
40 - 43o4
44 - 46o4-1/2
47 - 50o5
51 - 53o5-1/2
54 - 57o6
58 - 60o6-1/2
61 - 64o7
65 - 67o7-1/2

7
TUNING ANTENNA FOR BEST PICTURE
STEP 8. Yourreceivershouldindicateitisreceivingasignal. Totuneyour
antenna for the best picture slowly move the antenna left, then right until
you have found the position that gives the highest signal strength. It is
important to turn the antenna slowly; since the signal is digital the
receiver takes a few seconds to lock on.
STEP 9. Place rotation clamp in the LOCK position. This prevents the
antenna from moving and losing the signal.
STEP 10.Slowly raise then lower the antenna until you have peaked the
signal. You are now ready to watch satellite TV!
LOWERING ANTENNA TO TRAVEL POSITION
STEP 1. Set rotation clamp to the ROTATE position.
STEP 2. Rotate antenna until pointer on directional handle aligns with
the rotation clamp.
STEP 3. Turnelevatingcrank(counterclockwise)indirectionof"DOWN"
arrow until resistance is met. The number of turns will vary according to
the elevation angle the antenna was set to.
STEP 4. Move rotation clamp to the LOCK position. Antenna is now
locked in travel position.
STEP 5. Snap elevation crank into place.
CAUTION: UNDER NO CONDITIONS LOWER ANTENNA IN ANY
POSITION EXCEPT TRAVEL POSITION.
DO’S 1. Do check parking location for obstructions before raising antenna.
2. Do carefully raise, lower and rotate - if difficult, check for cause.
3. Do rotate slowly when searching for the satellite(s) and check fine tuning
on TV set to make sure it is properly adjusted.
4. Do lower antenna before moving vehicle.
5. Activate programming by calling programming service for your receiver.
DON’T’S 1. Don't move RV/coach with the antenna in the UP position. This will
VOID your warranty. This may also cause damage to your roof.
2. Don’t force elevating crank up or down. Check for cause of trouble.
3. Don’t rotate directional handle hard against stops.
4. Don’t apply paint over top of base plate or anywhere on lift.
5. Don't apply sealing compound on gear housing.

8
MAINTENANCE

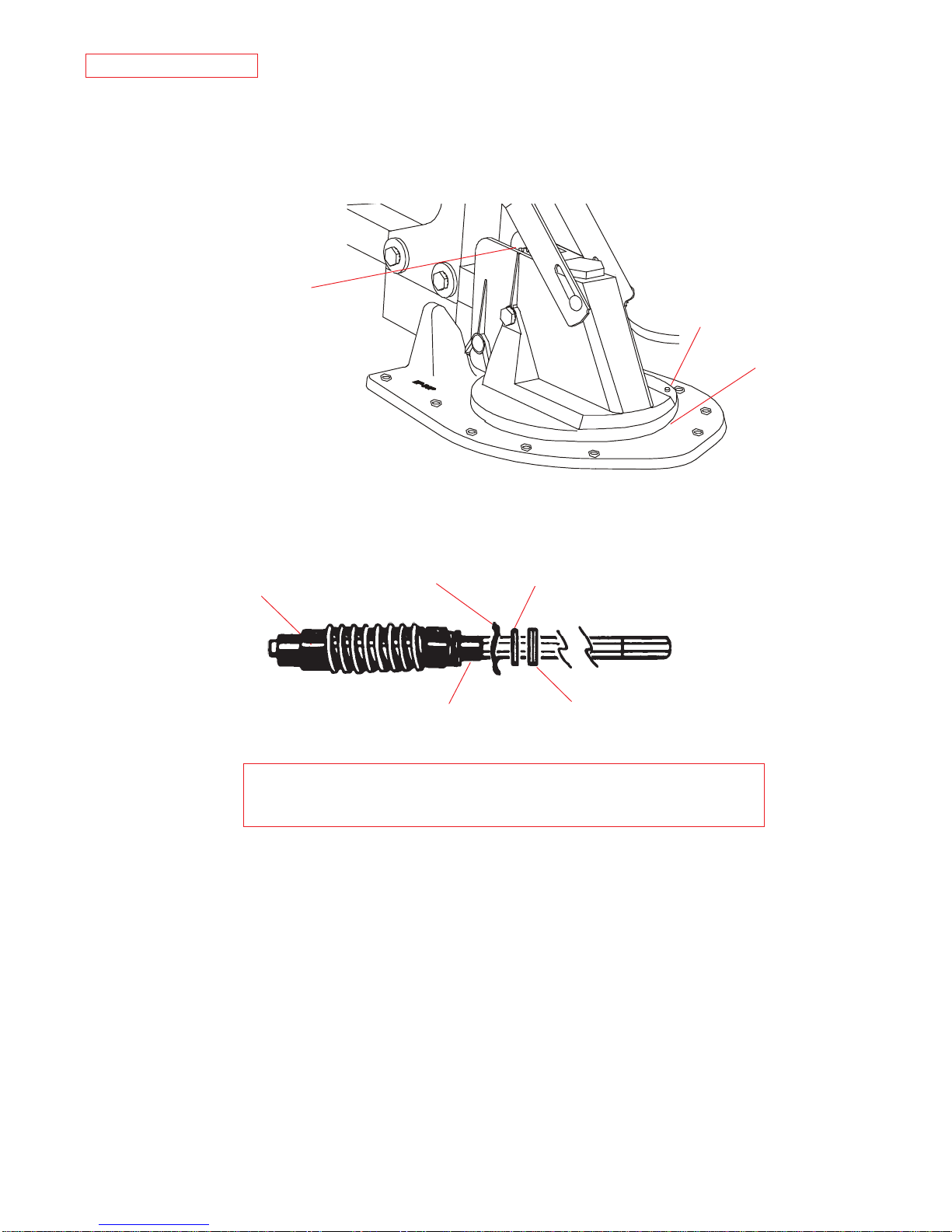

MOUNT LUBRICATIONTolubricate the mount, apply a liberal amount of silicone spraylubricant to
the elevating gear, the lubricant hole and between the gear housing and
baseplate. Run the antenna up/down and rotate the antenna to distribute
the lubricant. See Figure 6.
LUBRICATING RUBBER QUAD RING
Lubricate rubber quad ring on elevating shaft which is below worm gear
withsilicone spray lubricant atleasttwice yearly (Figure8). This will keep
quad ring from becoming brittle which could result in leaks down elevating
shaft.
FIGURE 6
WAVE WASHER FLAT WASHER
RUBBER QUAD RING
ELEVATING SHAFT & WORM GEAR ASSEMBLY REPLACEMENT PROCEDURE
NOTE: It is not necessary to remove rotating gear housing from base
plate or remove antenna from roof to replace the shaft & worm gear
assembly.
STEP 1. Lower antenna to travel position. Loosen screw on elevating
crank, remove crank, spring, directional handle. Parts list page 12.
STEP 2. Remove hex nuts, cable clip, and washer from bolt holding
elevatingtubeinrotatinggearhousing andremovebolt. Partslistpage10.
STEP 3. Removeplasticplugfromtopofrotatinggearhousing, disengage
elevating gear, remove elevating shaft assembly. Parts list page 10.
STEP 4. Lubricate worm gear assembly on new elevating shaft assembly
with spray silicone lubricant. Make sure wave washer, flat washer and
quadringareonlowerbearing(Figure7)andinsertassemblyinhousing.
STEP 5. Reinstall plastic plug in top of housing. Gears will mesh
automatically once elevating crank is turned.
STEP 6. Reinstallbolt,hexnuts,cableclipandwashersthatholdelevating
tube in rotating gear housing.
STEP 7. Replace directional handle, spring and elevating crank. Make
sure set screw contacts flat surface on shaft before tightening.
FIGURE 7
ELEVATING SHAFT
WORM GEAR
LOWER BEARING SURFACE
Spray lubricant
around edges
Spray lubricant
here on elevation gear
Remove cap and spray
lubricant into the lubricate
hole. Be sure place cap
firmly back on.

9
TROUBLE SHOOTING
NO PICTURE 1. Check that you have a clear line of sight to the satellite (no trees,
buildings, etc.).
2. Check that you have the TV set tuned for the correct channel 3 or 4
(same channel as output of receiver).
3. Double check that you have entered the correct zip code into the
receiver. If zip code is wrong, this can cause you to look in the wrong
direction/elevation for the satellite.
4. Checkthatthereareno obstructionsblocking theview ofthesatellites.
Thesignalfromthesatellite(s)WILLNOTpassthroughtrees,buildings,
mountains etc. Remember that the antenna has a 240offset, this
meansthat when theantennais straightupanddown (900)it is looking
240into the sky. See Figure 8.
5. Check connections at receiver, TV, and antenna.
6. Check TV. Does it receive pictures from off-air TV stations/VCR?
7. Retune system for best picture per procedure on page 7.
8. Inspect antenna. Make sure that it has not been damaged. If antenna
is even slightly bent, the receiver may not receive any signal.
9. Contact Dealer or Winegard Service Department.
ANTENNA DOES NOT OR IS HARD TO ROTATE
1. Inspectantennaonroof. Makesurethatmounthasnotbeendamaged.
2. Check for caulking between gear housing and baseplate.
3. Lubricate mount per procedure on page 8.
4. Contact Dealer or Winegard Service Department.
ANTENNA DOES NOT OR IS HARD TO RAISE
1. Inspectantennaonroof. Makesurethatmounthasnotbeendamaged.
2. Check for caulking on elevating shaft.
3. Lubricate elevating shaft per procedure on page 8.
4. Contact Dealer or Winegard Service Department.
WARRANTY REPAIR WORK
Before you have warranty work done on the system, make sure the
company/person performing the work has been approved by Winegard
Company. Ifnot,contactWinegardCo.(1-800-288-8094)beforeproceeding.
The Winegard warranty covers only the mount, antenna and LNBF. For
receiver warranty, refer to the manufacturer's warranty.
ORDERING REPAIR PARTS
Repair parts are available at many RV dealers and/or service centers
throughout the country. Or you can call Winegard Company
1-800-288-8094 (credit cards accepted).

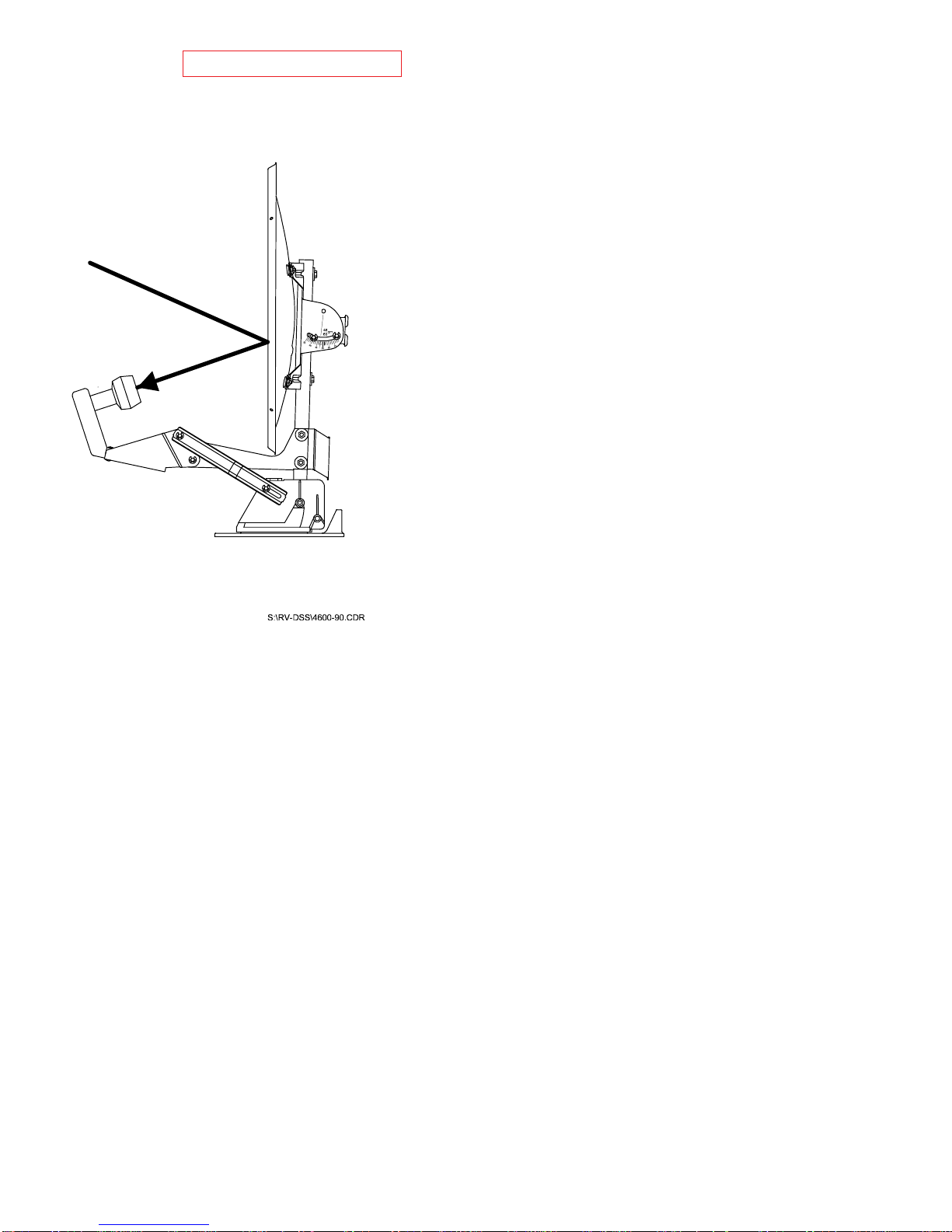

Antenna Reflector at 900
Signal from satellite
240look angle
LNBF
FIGURE 8

10

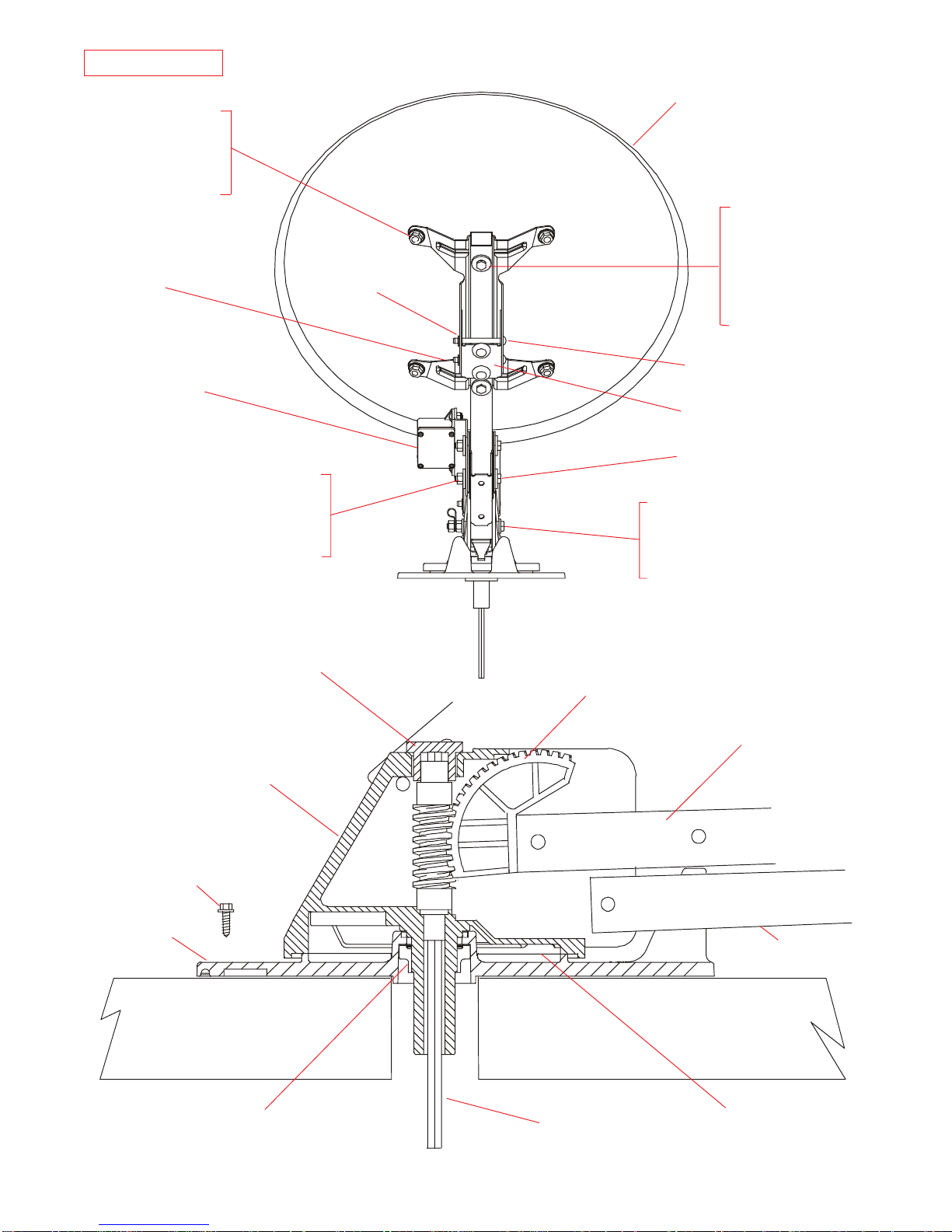

PARTS LIST
(5) E-Clip
P.N. 5160818
(2) 1/4-20 Hex Nut,
Nylock P.N. 2160220
(4) 1/4" Flat Washer
P.N. 2160039
(2) 1/4-20 X 1.75" Hex
Bolt P.N. 2160238
46cm (18") Reflector, White
P.N. 2745304
(3) 1/4 x 2-5/16" Pin
P.N. 2160814
Bumper Assembly
P.N. 3750823
(2)1/4-20X1.75"BOLT
P.N. 2160238
Aluminum Gear
Housing
P.N. 3100520
Plastic Plug
P.N. 2200045
Model RP-4000
Worm Gear &
Retaining Plug
See replacement
procedure on page 8.
RD-4610 Only
Aluminum Baseplate
P.N. 3100524
(4) 5/16" Hex Nut
P.N. 2160230
(4) 5/16" Flat Washer
P.N. 2160027
1/4-20 X 2.5" Hex Bolt
P.N. 2160237
(2) 1/4" Flat Washer
P.N. 2160024
REAR VIEW
Model RP-3000
Elevating Gear
Elevating Tube
P.N. 3506038
(2) 1/4" Flat Washer
P.N. 2160039
(4) 1/4-20 Hex Nut,
Nylock P.N. 2160220
Digital Elevation
Device, If attached
the 1/4-20 x 1.75 Hex
Bolts are replaced
with 1/4-20 x 2" Hex
Bolts
Backup
P.N. 2745348
Washer
P.N. 3200657
Retaining Nut
P.N. 2200047
(requires 15/16"
socket wrench)
(10) #10 x 1" Hex Head
Screw P.N. 2160178
Nylon Bearing
P.N. 3200656

11
PARTS LIST
(2) Cable Clamp
P.N. 2200060
(4) 1/4-20 Hex Nut,
Nylock P.N. 2160220
(2) Travel Link
P.N. 2745050
(3) 1/4 x 2-5/16" Pin
P.N. 2160814
(5) E-Clips
P.N. 5160818
LNBF Pivot Arm
P.N. 2745059
Spring
P.N. 2160820
(not shown
for clarity)
(4) Nylon Bearing
P.N. 2200726
(not shown
for clarity)
Fixed Feed Arm
P.N. 2745063
Travel Alignment Bracket
P.N. 2745061
Coaxial Cable
RD-4600 20'
P.N. 2753025
RD-4646 76"
P.N. 2753064
LNBF
P.N. 2780161
LNBFisattachedtopivotarmwith:
1/4-20 x 1/2" Cap Screw
P.N. 2160240
1/4-20 Nylock Hex Nut
P.N. 2160220
(2) 1/4" Washer
P.N. 2160024
(2) 1/4 x 1-7/8" Pin
P.N. 2160694
(4) Flat Head Bolts
(white) P.N. 2160361
Rev 5/99

12
Rev. 6/05/01
Ceiling Base
Directional Dial
(4) #10 Phillip Flat
Head Screws
Directional Handle
Azimuth Lock
Azimuth Lock Knob
Washer
#10 x 3/8" Phillips
#8-32 Square Nut
Crank Handle Base
Crank Handle
Knob
Washer
#8-32 x 3/8"
Phillips Screw
#10 x 3/8" Phillips Screw
Directional
Handle
Extension
PARTS LIST
INTERIOR HARDWARE KIT
RK-CEIL
CRANK HANDLE KIT
RK-HAND

13
SPECIFICATIONS
ANTENNA & MOUNT
Height when raised 27.25" max.
Height in the travel position 12.0" max.
Operating radius 17" (34" diameter circle)
Roof space required 19.5" x 31"
LNB Compatible with DSS®and DISH NetworkTM
Weight 13 lbs. max.
Color White
Antenna height 20.9"
Antenna width 19.5"
F/D 0.59
Offset angle 24o
Frequency range 10.95 - 12.75 GHz
Gain:
11.2 GHz 33.22 dBi
12.1 GHz 33.89 dBi
12.6 GHz 34.23 dBi
Aperture efficiency 73%
Cross polarization (on axis) -21 dB
*Beamwidth at -3 dB 3.5o
*Beamwidth at -10 dB 7.0o
Wind loading Up to hurricane force
Shipping weight: 16 lbs.
DSS®is a registered trademark of DIRECTV, Inc., a unit of Hughes Electronics Corporation.
DISH NetworkTM is a trademark of EchoStar Communications Corporation.

14
Printed in U.S.A. Winegard Company • 3000 Kirkwood Street • Burlington, Iowa 52601-2000 © Winegard Company, 2001 2451099 Rev. 6/05/01
ANTENNA/LIFT/LNBF TWO YEAR LIMITED WARRANTY
Winegard Company warrants this Winegard product (excluding receiver) against any defects in materials or
workmanshipwithintwo(2)yearesfromdateofpurchase.Nowarrantyclaimwillbehonoredunlessatthetimetheclaim
is made, you present proof of purchase to an authorized Winegard dealer (if unknown, please contact Winegard
Company, 3000 Kirkwood Street, Burlington, Iowa 52601-2000, telephone [phone]).
WinegardCompany (at itsoption)willeither repair orreplacethedefectiveproduct atnochargetoyou. Thiswarranty
covers parts, but does not cover any costs incurred in removal, shipping or reinstallation of the product. This limited
warranty does not apply if the product is damaged, deteriorates, malfunctions or fails from: misuse, improper
installation, abuse, neglect, accident, tampering, modification of the product as originally manufactured by Winegard,
usage not in accordance with product instructions or acts of nature such as damage caused by wind, lightning, ice or
corrosive environments such as salt spray and acid rain.
The Two Year Warranty is provided on the condition that the equipment is properly delivered with all handling and
freightchargesprepaidtoyourWinegarddealerforrepairorreturntoourfactoryattheaboveaddress.Winegarddealers
will arrange for the replacement or repair and return to you, without charge, the product which failed due to defective
material or workmanship.
WINEGARD COMPANY WILL NOT ASSUME ANY LIABILITIES FOR ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED, MADE BY ANY OTHER PERSON.
ALL OTHER WARRANTIES WHETHER EXPRESS, IMPLIED OR STATUTORY INCLUDING WARRANTIES OF
FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY ARE LIMITED TO THE TWO YEAR PERIOD
OF THIS WRITTEN WARRANTY.
The foregoing shall be the sole and exclusive remedy of any person whether in contract, tort or otherwise, and
Winegardshallnotbeliableforincidentalorconsequentialdamageorcommercialloss,orfromanyotherlossordamage
except as set forth above.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion of limitation of incidental
or consequential damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

15
Roof Template Goes Here
1-3/4" DIA.
DRILL COMPLETELY
THROUGH CEILING
TOWARD FRONT
OF VEHICLE
1/8" DRILL BIT
10 HOLES. DO NOT
DRILL THROUGH CEILING.
RD-4600/4646 TEMPLATE

16Printed in U.S.A. Winegard Company • 3000 Kirkwood Street • Burlington, Iowa 52601-2000 © Winegard Company, 1999 2451099 Rev. 5/99
