Winmate M-Series User manual

Please read these instructions carefully before using this product, and save this manual for future use.
M Series Box PC
Intel® Tiger Lake Core™i5-1135G7, 2.4 GHz
(turbo up to 4.2GHz)
Model No.:
ITMH100
ITMH100-6L
ITMH200
User Manual
Version 1.0
Document Part No: 915211101100

1
ITWS M Series Box PC User Manual
CONTENTS
Preface.........................................................................................................................................3
Chapter 1: Introduction..............................................................................................................6
1.1 Features..............................................................................................................................6
1.2 Package Contents...............................................................................................................7
1.3 Product Overview................................................................................................................8
1.3.1 I/O Connectors –ITMH100 ...............................................................................................8
1.3.2 I/O Connectors –ITMH100-6L..........................................................................................8
1.3.3 I/O Connectors –ITMH200 ...............................................................................................9
1.4 Dimensions........................................................................................................................10
1.4.1 ITMH100..........................................................................................................................10
1.4.2 ITMH100-6L.....................................................................................................................10
1.4.3 ITMH200..........................................................................................................................11
Chapter 2: Installation..............................................................................................................12
2.1 Mounting............................................................................................................................12
2.1.1 VESA Mount....................................................................................................................12
2.1.2 Desk Mount (ITMH200 only)...........................................................................................12
2.2 Service Access (ITMH100 only)........................................................................................13
2.3 Connecting the Power.......................................................................................................15
2.4 Connector Pin Define ........................................................................................................16
2.4.1 Isolated DC in Connector................................................................................................16
2.4.2 Giga LAN Connector .......................................................................................................16
2.4.3 USB 3.2 Gen 1 Connector ..............................................................................................16
2.4.4 HDMI Output Connector..................................................................................................16
2.4.5 DP Output Connector......................................................................................................17
2.4.6 Serial Port Connector......................................................................................................17
2.4.7 Giga LAN Connector........................................................................................................17
2.4.8 Audio Combo Connector (Mic in/ Line Out)....................................................................17
Chapter 3: Getting Started.......................................................................................................18
Chapter 4: BIOS Setting...........................................................................................................39
4.1 How and When to Use BIOS Setup...................................................................................39
4.2 BIOS Functions.................................................................................................................40
4.2.1 Main Menu.......................................................................................................................40
4.2.2 Boot .................................................................................................................................41
4.2.3 Serial Port Mode Settings: RS232, RS485, RS422........................................................42
Chapter 5: Specifications.........................................................................................................44
Appendix...................................................................................................................................46

2
ITWS M Series Box PC User Manual
Appendix A: System Dimensions ............................................................................................46
Appendix B: Software Developer Support...............................................................................47

3
Preface
Preface
Advisory Conventions
Four types of advisories are used throughout the user manual to provide helpful information or to
alert you to the potential for hardware damage or personal injury. These are Notes, Important,
Cautions, and Warnings. The following is an example of each type of advisory.
Note:
A note is used to emphasize helpful information
Important:
An important note indicates information that is important for you to know.
Caution A Caution alert indicates potential damage to hardware and explains how
to avoid the potential problem.
Warning! An Electrical Shock Warning indicates the potential harm from electrical
hazards and how to avoid the potential problem.
FCC Statement
This device complies with part 15 FCC rules.
Operation is subject to the following two conditions:
•This device may not cause harmful interference.
•This device must accept any interference received including interference that
may cause undesired operation
This equipment has been tested and found to comply with the limits for a class "B" digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at himown expense.
CE Notice (European Union)
Electromagnetic Compatibility Directive (2014/30/EU)
•EN55024: 2010/ A1: 2015
oIEC61000-4-2: 2009
oIEC61000-4-3: 2006+A1: 2007+A2: 2010
oIEC61000-4-4: 2012
oIEC61000-4-5: 2014
oIEC61000-4-6: 2014
oIEC61000-4-8: 2010
oIEC61000-4-11: 2004
•EN55032: 2012/AC:2013
•EN61000-3-2:2014
•EN61000-3-3:2013
Low Voltage Directive (2014/35/EU)
•EN 60950-1:2006/A11:2009/A1:2010/A12:2011/ A2:2013
This equipment is in conformity with the requirement of the following EU legislations and
harmonized standards. Product also complies with the Council directions.

4
ITWS M Series Box PC User Manual
Copyright Notice
No part of this document may be reproduced, copied, translated, or transmitted in any form or by
any means, electronic or mechanical, for any purpose, without the prior written permission of the
original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their respective owners.
Disclaimer
Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits
and/or software described or contained in this manual in order to improve design and/or
performance. We assume no responsibility or liability for the use of the described product(s)
conveys no license or title under any patent, copyright, or masks work rights to these products,
and make no representations or warranties that these products are free from patent, copyright, or
mask work right infringement, unless otherwise specified. Applications that are described in this
manual are for illustration purposes only. We make no representation or guarantee that such
application will be suitable for the specified use without further testing or modification.
Warranty
Winmate Inc. warranty guarantees that each of its products will be free from material and
workmanship defects for a period of one year from the invoice date. If the customer discovers a
defect, we will, at his/her option, repair or replace the defective product at no charge to the
customer, provide it is returned during the warranty period of one year, with transportation charges
prepaid. The returned product must be properly packaged in its original packaging to obtain
warranty service. If the serial number and the product shipping data differ by over 30 days, the in-
warranty service will be made according to the shipping date. In the serial numbers the third and
fourth two digits give the year of manufacture, and the fifth digit means the month (e. g., with A for
October, B for November and C for December).
For example, the serial number 1W22Axxxxxxxx means October of year 2022.
Customer Service
We provide a service guide for any problem by the following steps: First, visit the website of our
distributor to find the update information about the product. Second, contact with your distributor,
sales representative, or our customer service center for technical support if you need additional
assistance.
You may need the following information ready before you call:
•Product serial number
•Software (OS, version, application software,etc.)
•Description of complete problem
•The exact wording of any error messages
In addition, free technical support is available from our engineers every business day. We are
always ready to give advice on application requirements or specific information on the installation
and operation of any of ourproducts.

5
Preface
Safety Information
Warning! Always completely disconnect the power cord from your chassis
whenever you work with the hardware. Do not make connections while the power is
on. Sensitive electronic components can be damaged by sudden power surges.
Only experienced electronics personnel should open the PC chassis.
Avertissement! Toujours débrancher le cordon d’alimentation du chassis lorsque
vous travaillez sur celui-ci. Ne pas brancher de connections lorsque l’alimentation est
présente. Des composantes électroniques sensibles peuvent être endommagées par
des sauts d’alimentation. Seulement du personnel expérimenté devrait ouvrir ces
chassis.
Caution Always ground yourself to remove any static charge before touching the
CPU card. Modern electronic devices are very sensitive to static electric charges. As
a safety precaution, use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded bag when they are not in
the chassis.
Attention Toujours verifier votre mise à la terre afin d’éliminer toute charge
statique avant de toucher la carte CPU. Les équipements électroniques moderns
sont très sensibles aux décharges d’électricité statique. Toujours utiliser un bracelet
de mise à la terre comme précaution. Placer toutes les composantes électroniques
sur une surface conçue pour dissiper les charge, ou dans un sac anti-statique
lorsqu’elles ne sont pas dans le chassis.

6
ITWS M Series Box PC User Manual
Chapter 1: Introduction
Congratulations on purchasing Winmate® M Series BOX PC. ITMH100/ ITMH200 with 11th
Generation Intel® i5-1135G7 offers high performance computing power and outstanding video
processing. ITMH100/ ITMH200 are suitable forFactory Automation, Machine Vision, Surveillance
and other high-performance applications.
1.1 Features
Winmate® ITMH100 Embedded Computer offers the following features:
•Intel® Tiger Lake UP3 Core™i5-1135G7 rugged Box PC
•Multi Video Output, HDMI/DisplayPort
•Auto detection of the connected display, No settings necessary
•Quick & Easy Replaceable Hard Disk Design, No Tools required
•Support wide range 9-29V DC input
•Optional with Modular front Display as a Panel PC
Winmate® ITMH100-6L Embedded Computer offers the following features:
•Intel® Tiger Lake UP3 Core™i5-1135G7 processor, rugged Box PC
•Support LAN port x6
•Multi Video Output, HDMI/Display Port
•Quick & Easy Replaceable Hard Disk Design, No Tools required
•Support wide range 9-29V DC input
Winmate® ITMH200 Embedded Computer offers the following features:
•11th Generation Intel® i5-1145G7 Processors
•Multi Video Output, HDMI/ Display Port
•Support wide range 9-29V DC input Isolation Power
•Auto detection of the connected display, No settings necessary
•Quick & Easily Replaceable Hard Disk Design, No Tools required
•Optional with Modular front Display as a Panel PC Expansion slot for PCIex4
•One Quick & Easily Removable 2.5” SSD Bay Slot

7
Chapter 1: Introduction
1.2 Package Contents
Carefully remove the box and unpack your device. Please check if all the items listed below are
inside your package. If any of these items are missing or damaged contact us immediately.
Standard factory shipment list:
M Series Box PC
Quick Start Guide
(Hardcopy)
Driver CD
3 Pin
Terminal Block
P/N: 91521110109Z
91711110101U
Cable P/N:
94EL02X020E0
Connector P/N:
604520105001
Package may include the following items based on your order (optional):
Power Cord
AC Adapter
12V/ 84W
Varies by
country
90PO12800000

8
ITWS M Series Box PC User Manual

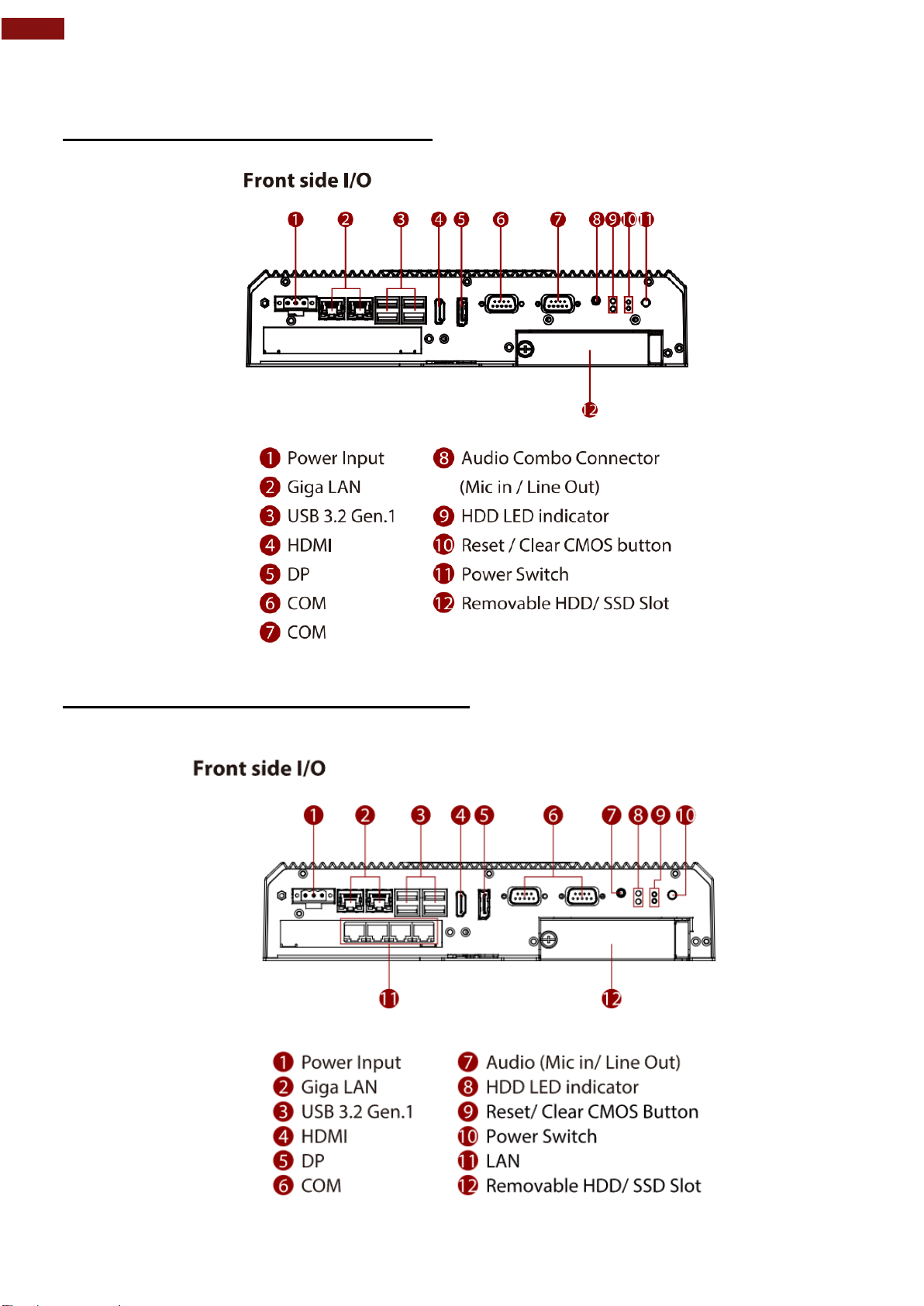

1.3 Product Overview
1.3.1 I/O Connectors –ITMH100
1.3.2 I/O Connectors –ITMH100-6L

9
Chapter 1: Introduction
1.3.3 I/O Connectors –ITMH200

10
ITWS M Series Box PC User Manual

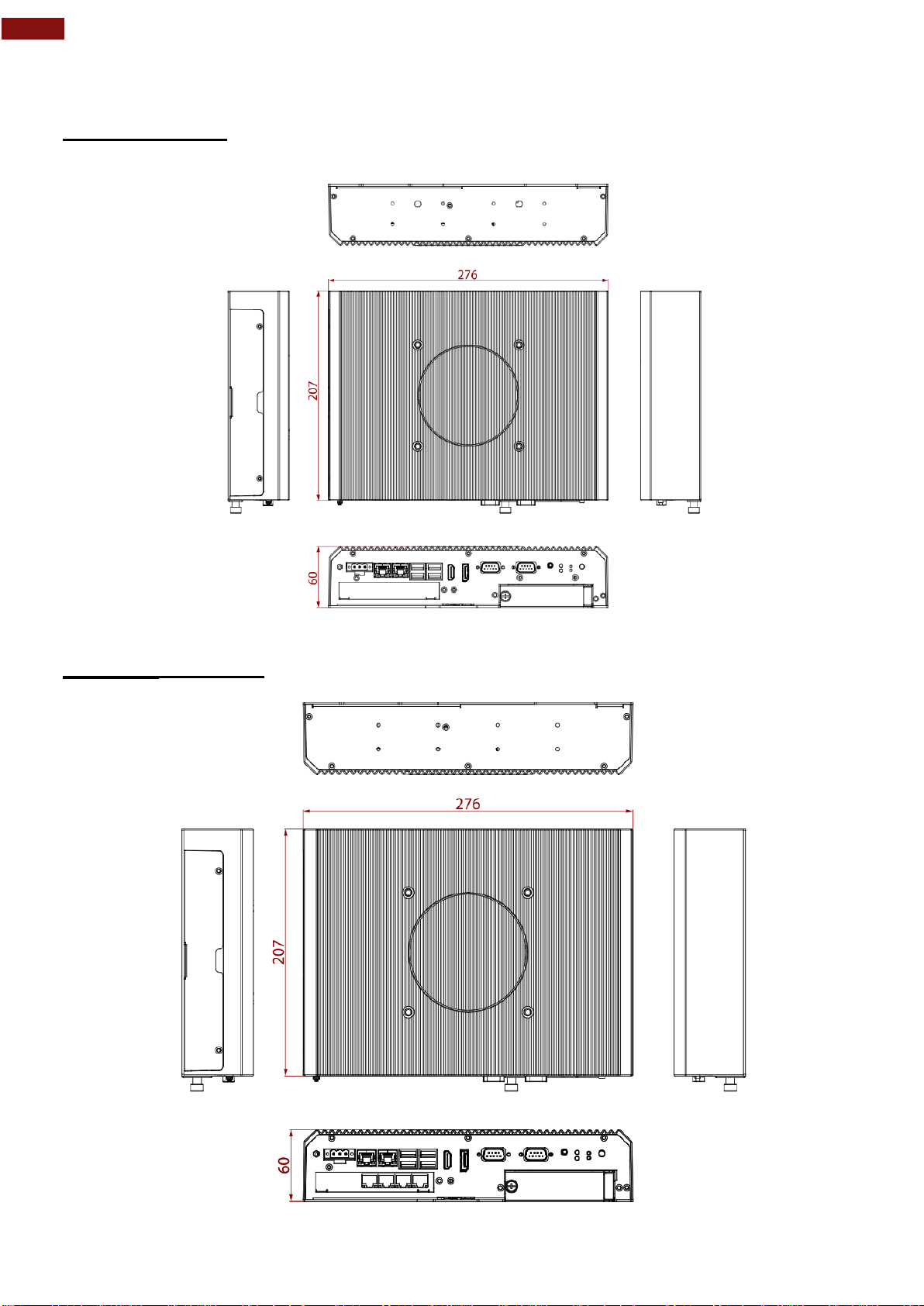

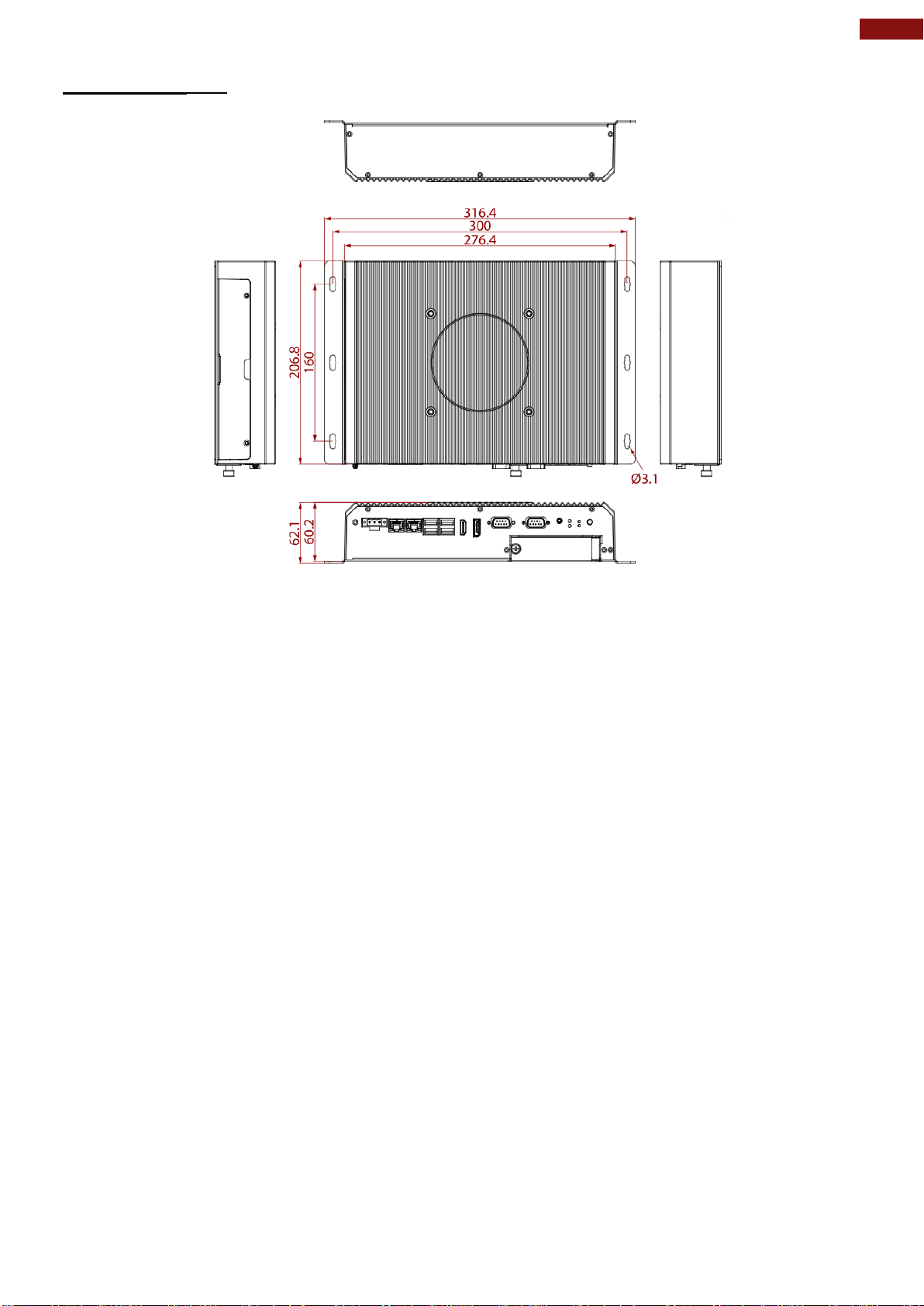

1.4 Dimensions
1.4.1 ITMH100
1.4.2 ITMH100-6L

11
Chapter 1: Introduction
1.4.3 ITMH200

12
ITWS M Series Box PC User Manual
Chapter 2: Installation
2.1 Mounting

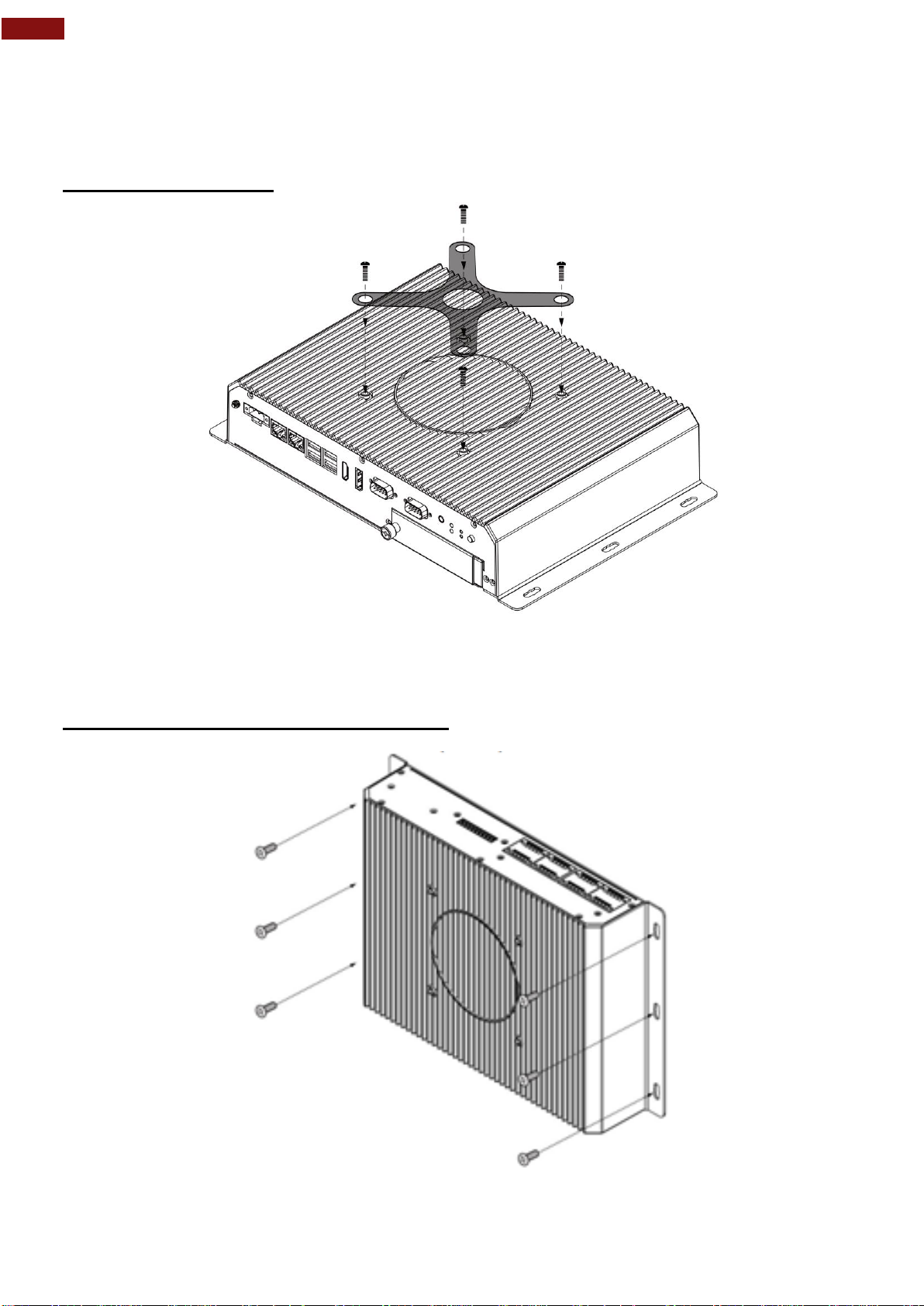

2.1.1 VESA Mount
Mounting Instruction:
1. Fasten screws to secure L-shape mounting brackets to the M SERIES BOX PC.
2.1.2 Desk Mount (ITMH200 only)

13
Chapter 2: Installation

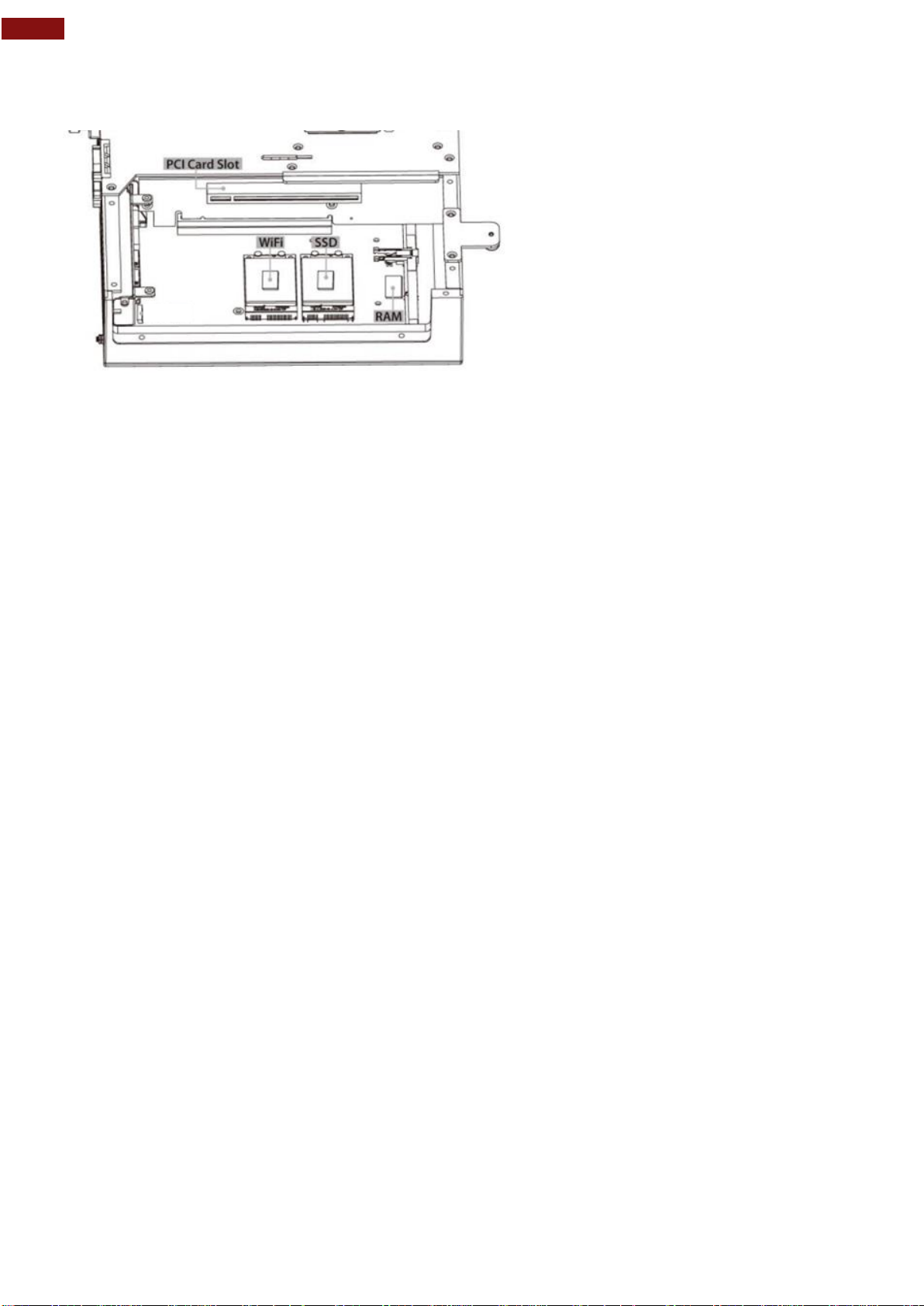

2.2 Service Access (ITMH100 only)
ITMH100 Box PC provides Service Access. To access the RAM, internal SSD and PCI Card
Slot, do the following steps to perform this task:
1. Turn the box pc over and face the back side
2. Locate the side to access the door. Then, remove the two screws on the side of the box pc
3. Remove the two screws on the bottom side of the box pc

14
ITWS M Series Box PC User Manual
4. User will be able to access the RAM, internal SSD, Fuse, and PCI Card Slot as follows

15
Chapter 2: Installation

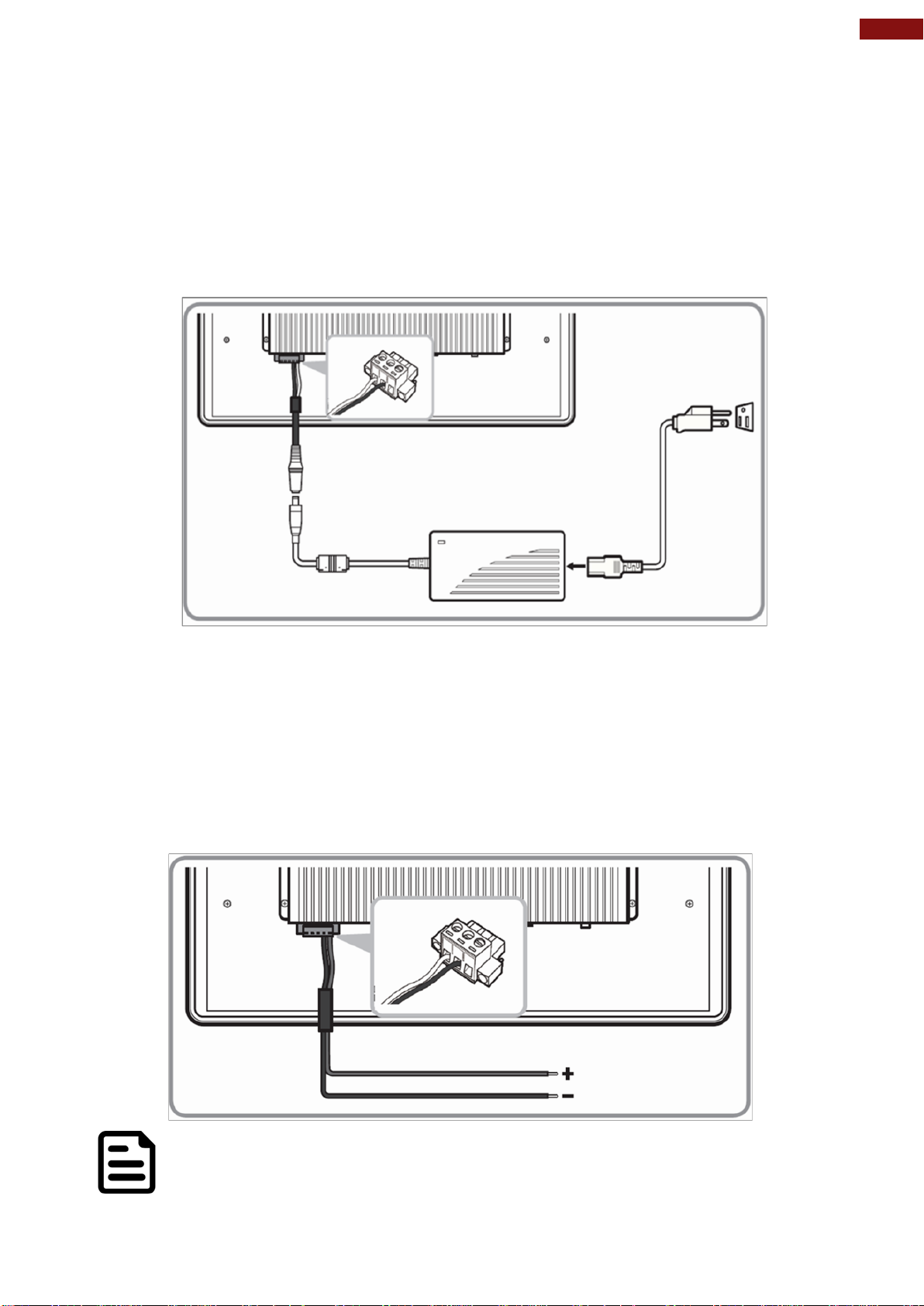

2.3 Connecting the Power
Connecting to AC Power Source
To connect the M Series Box PC to AC power source:
1. Plug one end of the terminal block cable firmly to the DC INJack.
2. Plug the other end of the terminal block plug to the ACadapter.
3. Connect the AC adapter to the power cord.
4. Plug the power cord to a working AC outlet. The device will boot automatically.
Connecting to DC Power Source
To connect the M Series Box PC to DC power source:
1. Insert the exposed wires of the DC Power Cable to the appropriate connectors on the
terminal block plug.
2. Plug the terminal block plug firmly to the DC IN Jack.
3. Connect the other end of the DC power cable (wires with lug terminals that are labeled “+”
and “–” to the terminals of the 9~29V DC Power Source. Ensure that the power connections
maintain the proper polarity.
NOTE
Power cords vary in appearance by region and country.

16
ITWS M Series Box PC User Manual

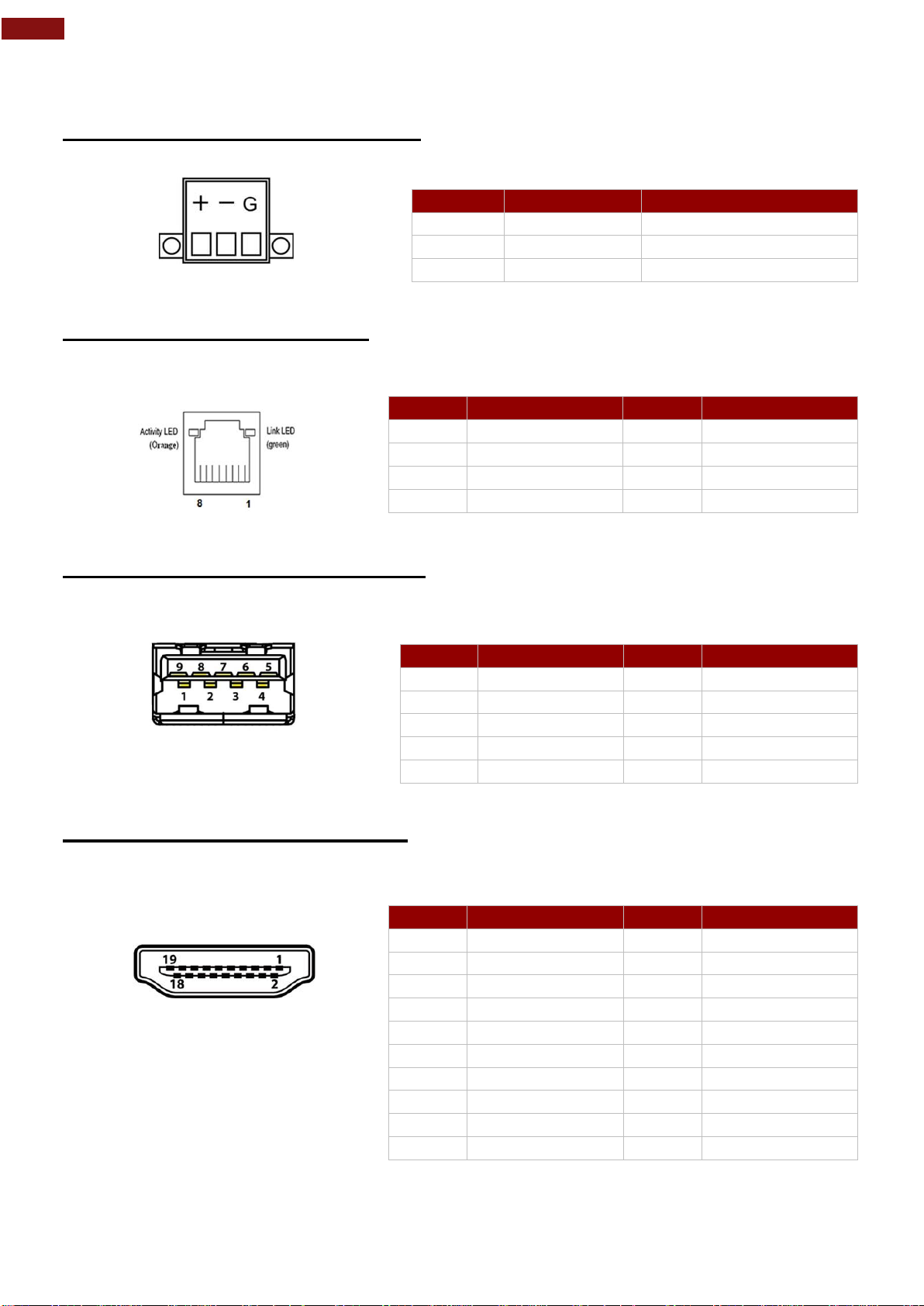

2.4 Connector Pin Define
2.4.1 Isolated DC in Connector
M SERIES BOX PC has a 3pin terminal block that accepts 9~29V DC input.
2.4.2 Giga LAN Connector
The M SERIES BOX PC equipped with one RJ45 10/100/1000 Mbps Ethernet interface for
connecting to the internet.
2.4.3 USB 3.2 Gen 1 Connector
The M SERIES BOX PC has four USB 3.2 Gen 1 connectors. Use USB3.2 Gen 1 connectors to
connect external devices such as mouse or keyboard to the device.
2.4.4 HDMI Output Connector
Use HDMI A Type19-pin female output connector to connect the HMI device to an external
display.
Pin No.
Signal Name
Description
1
VIN+
9-29V DC Input +
2
VIN-
9-29V DC Input -
3
GND
Ground
Pin №
Signal Name
Pin №
Signal Name
1
TX1+
2
TX1-
3
TX2+
4
TX2-
5
TX3+
6
TX3-
7
TX4+
8
TX4-
Pin №
Signal Name
Pin №
Signal Name
1
+5V
2
USB_D-
3
USB_D+
4
GND
5
STDA_SSRX-
6
STDA_SSRX+
7
GND_DRAIN
8
STDA_SSTX-
9
STDA_SSTX+
Pin №
Signal Name
Pin №
Signal Name
1
TMDS_DATA2+
2
GND
3
TMDS_DATA2-
4
TMDS_DATA1+
5
GND
6
TMDS_DATA1-
7
TMDS_DATA0+
8
GND
9
TMDS_DATA0-
10
TMDS_CLOCK+
11
GND
12
TMDS_CLOCK-
13
CEC
14
NC
15
DDC_CLOCK
16
DDC_DATA
17
GND
18
5V
19
Hot Plug Detect

17
Chapter 2: Installation
2.4.5 DP Output Connector
Use HDMI A Type19-pin female output connector to connect the HMI device to an external
display.
2.4.6 Serial Port Connector
The M Series Box PC uses D-SUB 9pin connector to connect serial interfaces.
2.4.7 Giga LAN Connector
The M Series Box PC equipped with two RJ45 10/100/1000 Mbps Ethernet interface for
connecting to the internet.
2.4.8 Audio Combo Connector (Mic in/ Line Out)
Pin №
Signal Name
Pin №
Signal Name
1
Lane 0+
2
GND
3
Lane 0-
4
Lane 1+
5
GND
6
Lane 1-
7
Lane 2+
8
GND
9
Lane 2-
10
Lane 3+
11
GND
12
Lane 3-
13
AUX_EN_N
14
GND
15
AUX+
16
GND
17
AUX-
18
Hot Plug
19
GND
20
+3.3V
Pin №
RS-232
(Default)
RS- 422
RS- 485
1
DCD
TxD-
D-
2
RXD
TxD+
D+
3
TXD
RxD+
NC
4
DTR
RxD-
NC
5
GND
GND
GND
6
DSR
NC
NC
7
RTS
NC
NC
8
CTS
NC
NC
9
RI
NC
NC
Pin No
Signal Name
Pin No
Signal Name
1
TX1+
2
TX1-
3
TX2+
4
TX2-
5
TX3+
6
TX3-
7
TX4+
8
TX4-

18
ITWS M Series Box PC User Manual
Chapter 3: Getting Started
3.1 How to Enable Watchdog
To enable Watchdog, you need to download Winmate Watchdog utility. Findmore information on
Watchdog in “Watchdog Guide” that you can download from Winmate Download Center.
To enable watchdog in Watchdog_AP follow the instructions below:
1. On the right bottom side of the desktop screen, click triangle button to show hidden
icons.
2. Click icon to open Watchdog utility.
3. In Watchdog utility window set countdown time and periodically feed time, or disable
watchdog.
Example:
Every 10 min watchdog will monitor the system, in case
any error occurs the system will restart automatically
when the countdown time reaches 0.
Every 9 min watchdog timer will be reset to 10 min.
Settings
Description
Watchdog Countdown Time
The system automaticity restarts when this countdown time
reaches zero.
Default: 10 min
Periodically Feed Time
To set a cycle time to automatically reset watchdog timer.
Default: 9 min
Enable / Disable
Enable or disable watchdog.
Default: Enable

19
Chapter 3: Getting Started
3.2 S4 Wake on LAN
In Windows 10 OS shutdown settings will not have Hibernate mode if your storage capacity is
below 32 GB.
Caution Check if the system has the storage capacity of minimum 32 GB before
entering Hibernation mode.
Storage capacity below 32 GB:
Storage capacity above 32 GB
