Winmate OMIW User manual

OMIW Motherboard
3.5” SBC with Intel ® 5th Generation Dual Core i5 Processors,
Display Port, LVDS, Giga Ethernet, and Mini-PCIe Interface
V110
User Manual
Version 1.0
Document Part Number:
915211171008

OMIW Motherboard
II
Preface
Copyright Notice
No part of this document may be reproduced, copied, translated, or transmitted in any form or
by any means, electronic or mechanical, for any purpose, without the prior written permission
of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their respective owners.
Disclaimer
We reserve the right to make changes, without notice, to any product, including circuits and/or
software described or contained in this manual in order to improve design and/or performance.
We assume no responsibility or liability for the use of the described product(s), conveys no
license or title under any patent, copyright, or masks work rights to these products, and makes
no representations or warranties that these products are free from patent, copyright, or mask
work right infringement, unless otherwise specified. Applications that are described in this
manual are for illustration purposes only. We make no representation or warranty that such
application will be suitable for the specified use without further testing or modification.
Warranty
We warrant that each of its products will be free from material and workmanship defects for a
period of one year from the invoice date. (Standard is one year, extended warranty will need to
discuss with our sales representatives. If the customer discovers a defect, we will, at its option,
repair or replace the defective product at no charge to the customer, provided it is returned
during the warranty period of one year, with transportation charges prepaid. The returned
product must be properly packaged in its original packaging to obtain warranty service.
If the serial number and the product shipping data differ by over 30 days, the in-warranty
service will be made according to the shipping date. In the serial numbers the third and fourth
two digits give the year of manufacture, and the fifth digit means the month (e. g., with A for
October, B for November and C for December).
For example, the serial number 1W16Axxxxxxxx means October of year 2016.
Packing List
Before using this Motherboard, please make sure that all the items listed below are present in
your package:
OMIW Motherboard
User Manual & Driver CD
If any of these items are missing or damaged, contact your distributor or sales representative
immediately.

OMIW Motherboard
III
Customer Service
We provide a service guide as below for any problem by the following steps: First, contact your
distributor, sales representative, or our customer service center for technical support if you
need additional assistance. You need to prepare the following information before you call:
Product serial number
Peripheral attachments
Software (OS, version, application software, etc.)
Detailed problem description
The exact wording of any error messages
In addition, free technical support is available from our engineers every business day. We are
always ready to give advice on application requirements or specific information on the
installation and operation of any of our products. Please do not hesitate to call or e-mail us.

OMIW Motherboard
IV
Advisory Conventions
Four types of advisories are used throughout the user manual to provide helpful information or
to alert you to the potential for hardware damage or personal injury. These are Notes,
Important, Cautions, and Warnings. The following is an example of each type of advisory.
NOTE:
A note is used to emphasize helpful information
IMPORTANT:
An important note indicates information that is important for you to know.
CAUTION
A Caution alert indicates potential damage to hardware and explains how to avoid
the potential problem.
WARNING!
An Electrical Shock Warning indicates the potential harm from electrical
hazards and how to avoid the potential problem.

OMIW Motherboard
V
Safety Precautions
CAUTION
Always ground yourself to remove any static charge before touching the
CPU card. Modern electronic devices are very sensitive to static electric
charges. As a safety precaution, use a grounding wrist strap at all times.
Place all electronic components in a static-dissipative surface or
static-shielded bag when they are not in the chassis.
Safety and Warranty
1. Please read these safety instructions carefully.
2. Please keep this user manual for later reference.
3. Please disconnect this equipment from any AC outlet before cleaning. Do not use liquid
or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near the equipment and
must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall
could cause damage.
7. Make sure the voltage of the power source is correct before connecting the equipment
to the power outlet.
8. Position the power cord so that people cannot step on it. Do not place anything over
the power cord.
9. All cautions and warnings on the equipment should be noted.
10. If the equipment is not used for a long time, disconnect it from the power source to
avoid damage by transient over-voltage.
11. If any of the following situations arises, get the equipment checked by service
personnel:
A. The power cord or plug is damaged.
B. Liquid has penetrated into the equipment.
C. The equipment has been exposed to moisture.
D. The equipment does not work well, or you cannot get it to work according to the
user’s manual.
E. The equipment has been dropped and damaged.
F. The equipment has obvious signs of breakage.

OMIW Motherboard
VI
Revision History
Version
Date
Note
Author
1.0
12-Jul-2016
Initial release
Austin Chang

OMIW Motherboard
VII
Contents
Table of Contents
PREFACE............................................................................................................................................................I
CHAPTER 1 GENERAL INFORMATION ...............................................................................................................1
1.1 INTRODUCTION.................................................................................................................................................1
1.2 FEATURES ........................................................................................................................................................1
1.3 MOTHERBOARD SPECIFICATIONS ..........................................................................................................................2
1.3.1 Hardware Specifications....................................................................................................................... 2
1.3.2 Software Support .................................................................................................................................3
1.4 FUNCTIONAL DESCRIPTION.................................................................................................................................. 4

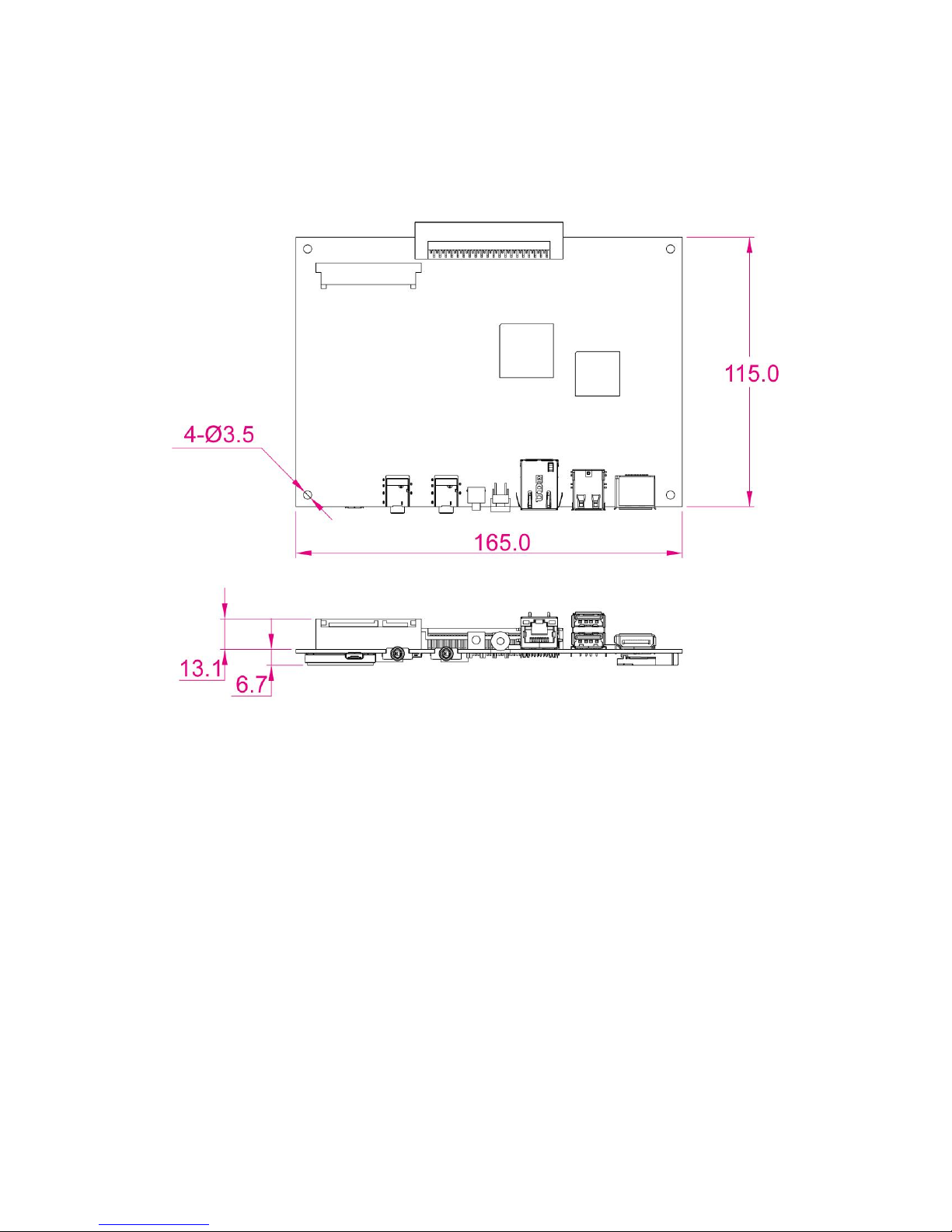

1.5 PHYSICAL DESCRIPTION ...................................................................................................................................... 5
CHAPTER 2 HARDWARE INSTALLATION ............................................................................................................7
2.1 MOTHERBOARD COMPONENTS ............................................................................................................................ 7
2.1.1 Front Side View.....................................................................................................................................7
2.1.2 Rear Side View......................................................................................................................................8
2.1.3 I/O Side View ........................................................................................................................................ 8

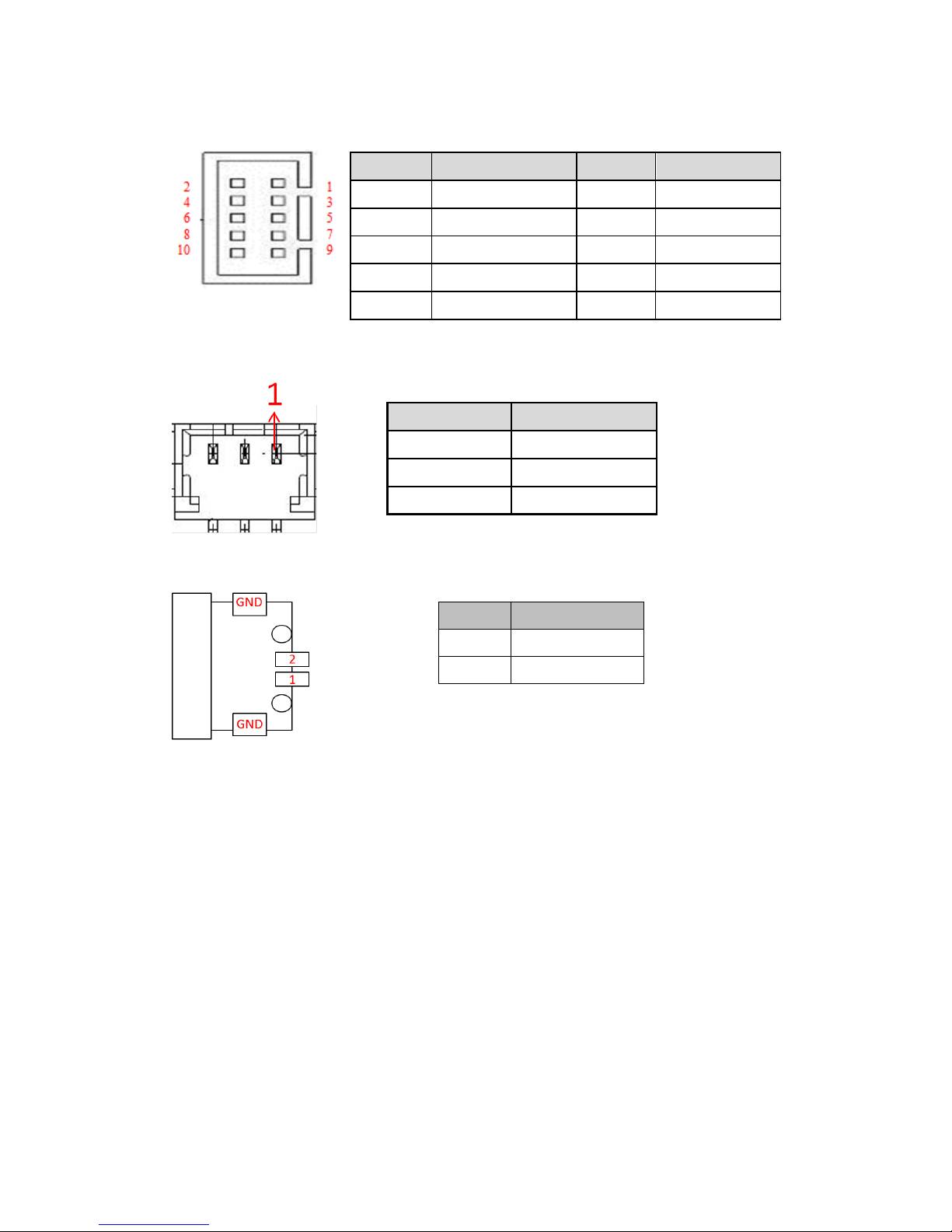

2.2CONNECTOR PIN ASSIGNMENTS ...........................................................................................................................9
2.2.1 Front Side ............................................................................................................................................. 9
2.2.2 Rear Side............................................................................................................................................. 12
2.2.3 I/O Side............................................................................................................................................... 17
CHAPTER 3 AMI BIOS SETUP ..........................................................................................................................24
3.1 HOW AND WHEN TO USE BIOS SETUP ............................................................................................................... 24
3.2 BIOS FUNCTIONS............................................................................................................................................25
3.2.1 Main Menu......................................................................................................................................... 25
3.2.2 Advanced Settings.............................................................................................................................. 27
3.2.3 Chipset Menu ..................................................................................................................................... 44
3.2.4 Boot Menu..........................................................................................................................................46
3.2.5 Security Menu ....................................................................................................................................47
3.2.6 Save & Exit..........................................................................................................................................48
3.3 USING RECOVERY WIZARD TO RESTORE COMPUTER............................................................................................... 50
CHAPTER 4 DRIVER INSTALLATION .................................................................................................................53
4.1 CHIPSET DRIVER.............................................................................................................................................. 53

OMIW Motherboard
VIII
4.2 GRAPHICS DRIVER ...........................................................................................................................................56
4.3 AUDIO DRIVER................................................................................................................................................59
4.4 ETHERNET DRIVER...........................................................................................................................................61
4.5 INTEL®MANAGEMENT ENGINE SOFTWARE ...................................................................................................... 64
4.6 USB 3.0 DRIVER INSTALLATION (WINDOWS 7).....................................................................................................67
CHAPTER 5: TECHNICAL SUPPORT..................................................................................................................72

OMIW Motherboard
1
General Information
This chapter includes the OMIW motherboard
background information.

User Manual Chapter 1 General Information
OMIW Motherboard
1
Chapter 1 General Information
1.1 Introduction
Thank you for choosing the OMIW Motherboard. The motherboard is powered by Intel®
Broadwell core i5 5200U processor that allows running on Windows 10 IoT Enterprise,
Windows Embedded 8.1 Industry PRO, Windows Embedded 8 Std., Windows Embedded
Std. 7, and Windows 7 PRO for Embedded System operating system.
OMIW is designed for Open Pluggable Specification (OPS) module that can be installed
into the display panel through a single and standard interfacing based on the 80 pin JAE
plug and receptacle connectors. The power supply to the OMIW together with the
defined feature interfaces are being routed through the set of connectors, and provide a
functional system level computing solution for digital signage.
There is an advanced full set of I/O ports including two USB3.0, one LAN port, one
Display Port 1.2 to connect to external display. The current model allows adding Wi-Fi or
3G models for better connectivity and information exchange.
1.2 Features
OMIW motherboard has the following features:
Intel® Broadwell Core i5 5200U processor
DDR3L 1333 and 1600 MHz SO-DIMM x 1 Slot (up to 8GB) system memory
Intel® HD Graphics 5500
4096x2160 @ 60Hz graphic resolution with display port
1 x RJ-45, 2 x USB 3.0, 1 x Display Port 1.2, 2 x Audio phone jack (Line-in/
Line-out), 1 x Power Button, 1 x Reset Button
Wi-Fi / 3G modules (optional)
