MINI46 Thank you for purchasing LP-Mini 46 ultra compact handhold FM
transceiver manufactured by Wintecronics� Based on the ever-changing
innovative technology, we have been able to develop many different
wireless products that have gained widely consumers’ attention�
Besides our appreciation for your love of our products, we even wish
you to be attentive to new product information� Your precious comment
will be appreciated by us�
Please read through the manual carefully to learn whole features of this
model�
Certicate Approval
CE0681
Applicable model for this manual
LP-MINI46
Safety warning
Consumers need to understand clearly about safety in the use of
product Turn off power before fueling or parking at the gas station�

1 2
Features
1� Wide frequency coverage that suits application in many
countries�
2� 32 programmable channels and 2 programming keypads
3� Internal TCXO resonator to enhance freq� stability
4� Digitally designed to ensure stable quality
5� Extra-small size in rugged case, compliant with US military
environment test
6� Signal light indicator ON/OFF
7� Independent CTCSS/DCS
8� Narrow band (2�5K)/ Wide band (5K) programmable options
9� 9 steps of VOX (voice-activated feature)
10� Multiple programmable functions, Programmable PRI / SOS /
SCAN channel function
Appearance Introduction
12
3
4
5
6
789
10
11
12
13
14
15
16
1� Antenna (SMA socket)
2� LED Indicator
3� Power Switch / Volume Control
4� External Mic� Jack
5� Data socket (mini USB)
6� LCD display
7� Up button
8� Set button
9� Down button
10� PTT button (Push to talk)
11� ��Monitor button
12� Backlight button
13� Speaker
14� Mic
15� Lanyard hole
16� Belt Clip

3 4
Accessories Supplied with the Mini-46
1� Radio Unit 1PCS
2� SMA rubber ex antenna 1PCS
3� Battery 1PCS
4� Clip 1PCS
5� Rapid Charger 1PCS
6� MINI-46 quick guide 1PCS
Functions
1� Antenna (SMA socket)
Provide attached SMA rubber ex Antenna or other 50Ω
impedance Antenna�
2� LED Indicator LED Indicator turns on red when transmitting� LED Indicator turns
on green when SQL�
3� Power Switch / Volume
Control
Rotate the power switch / volume control knob clockwise to switch
power ON� When the click sound of switch and the melody is
heard, the transceiver is powered� Adjust volume appropriately�
4� External Mic� Jack
Turn to lowest volume if external Mic�/speaker is used, then adjust
appropriately�
5� Data socket (mini USB) Data socket (mini USB): provide optional accessories and
computer interface�
6� LCD display It appears transceiver’s situation�
7� Up button Under menu item, it is a select button� Press temporarily up key
(▲) into scan mode.
8� Set button Under menu item, press temporarily set key is locked�
9� Down button Under menu item, it is a select button� Press temporarily down key
(▼) into scan mode.
10� PTT button (Push to talk) Press PTT button of the transceiver for transmission� Release
PTT button for receiving�
11� ��Monitor button Press monitor button to turn off SQL temporary and to receive
weak signal, due to distance�
12� Backlight button Press backlight button to turn on backlight� (it will turn OFF
automatically after 8 sec� or press the button again to turn off)
13� Speaker
14� Mic
15� Lanyard hole
16� Belt Clip Push up battery latch to release battery back�
Note It is harmful to radio if Antenna is not connecting or is
connected wrong one�
Note Avoid outburst of sound harmful to ears� Rotate the power
switch / volume control knob counterclockwise to switch
power OFF� When the click sound of switch is heard,
transceiver’s power is turned off�
Note Avoid outburst of sound harmful to ears�
Appearance Introduction

5 6
Installation of Accessories
To remove belt clip
Lift belt clip lock tab up, then gently pull the belt clip up�
To install belt clip
Slide the clip up into the slot on the back of radio until the
belt clip latch clicks�
Installation of Accessories
To Install
Place battery pack into battery compartment, when the click sound of
switch, it will lock into compartment�
To Remove
1� holding radio in one hand, push up battery latch
2� slide battery pack backwards

7 8
Installation of AccessoriesInstallation of Accessories
Use of external MIC / Speaker
1� Remove accessory jack cover
2� Insert accessory jack
3� Fix accessory with the screws
Note Rotate the Power Switch / Volume knob slowly to avoid
outburst of sound harmful to ears�
Battery charging
1�Green On: Charger is powered by the adapter�
2�Turns Red: Battery is charging�
3�Flash Green Light: Battery is fully charged�
4�Flash Red Light: Battery failed� (2W Radio / Battery)
5�Flash Red & Green Light: Battery failed� (4W Radio / Battery)

910
Manu items
No. Items Contents Factory
Setting Note
1TSQ Tone Squelch Type OFF OFF / T / CTCSS / DCS
2CTCSS CTCSS frequency 1(67�0Hz) 1(67�0Hz)~51(254�1Hz)
3DCS DCS CODE 023 023~754
4TX POWER TX power
Adjustment Low High / Low
5VOX Voice-Activate
System OFF OFF / Level1~ Level 9
6Mic� Gain Mic� Gain Low High / Low
7SAVE MODE Power Saving
mode 1:1 OFF / 1:1~1:4
8SQL RF Squelch L3 L0~L9
9SCRAMBLER Scrambler OFF OFF / code1~code9
10 COMPANDOR Compandor OFF ON / OFF
11 APO Auto-power-off OFF OFF / 3min / 10min / 30min
/ 60min
12 TOT Time-out-Timer OFF OFF / 30sec / 60sec /
120sec / 180sec
13 KEY BEEP Key Beep ON ON / OFF
14 PTT BEEP PTT Beep OFF ON / OFF
15 ROGERTONE Roger tone OFF ON / OFF
16 Call Tone Call Tone Music 1 OFF / Music 1~Music9
17 SEND ID PTT ID OFF ON / OFF
18 DEFAULT Default
The battery needs to be charged fully before using radio� The radio
has a battery voltage icon to show on LCD screen�
1� Power On/Off: Rotate the power switch / volume control knob
clockwise to switch power ON� When the click sound of switch and
the melody is heard, the transceiver is powered on� Note: avoid
outburst of sound harmful to ears� Rotate the Power switch/ volume
control knob counterclockwise to switch power OFF� When the
click sound of switch is heard, transceiver’s power is turned off�
2� Receiving / Transmitting: Rotate the Channel Control knob to the
desired channel� Before press and hold PTT button please check
LED indicator turns on green or not� The LED indicator turns on
red during transmission� Talk to the speaker microphone from
a distance of 10 cm� Release PTT button for the transceiver for
receiving� During receiving, LED indicator turns on green�
3� Adjusting Volume: For the adjustment of volume, rotate the
Power / Volume control knob in clockwise direction to increase
volume� Rotate Power / Volume knob counterclockwise to
decreases volume� Rotate the power switch/volume knob slowly
to avoid outburst of sound harmful to ears� Press monitor button
to turn off SQL temporary� Then, rotate the volume control knob in
clockwise slowly to an appropriate level�
4� Channel Adjustment:
Momentarily press ▲▼ to select channel.
Temporarily press ▲▼ to start scanning of channel.
While receiving signal, release PTT scan mode�
Operation Guide
Note Avoid outburst of sound harmful to ears�
Note Avoid outburst of sound harmful to ears�

11 12
2� CTCSS: There are 51 codes of CTCSS as below table
(factory setting is 1 (67�0Hz)) setting is 1 (67�0Hz))
167� 0 11 97�4 21 136�5 31 192�8 41 159�8
271�9 12 100�0 22 141�3 32 203�5 42 165�5
374�4 13 103�5 23 146�2 33 210�7 43 171�3
477�0 14 107�2 24 151�4 34 218�1 44 177�3
579�7 15 110�9 25 156�7 35 225�7 45 183�5
682�5 16 114�8 26 162�2 36 233�6 46 189�9
785�4 17 118�8 27 167� 9 37 241�8 47 196�6
888�5 18 123�0 28 173�8 38 250�3 48 199�5
991�5 19 127�3 29 179�9 39 69�3 49 206�5
10 94�8 20 131�8 30 186�2 40 62�5 50 2 2 9�1
51 25 4�1
Contents GuideContents Guide
1� TSQ: TSQ selectable, there are four items as below:
(factory setting is OFF)
OFF: Turn off TSQ and LCD screen shows as below:
DCS: Turn on DCS and LCD screen shows as below:
CTCSS: Turn on CTCSS and LCD screen shows as below:
T: Turn on Tone, during transmission� LCD screen shows “T” as below:
LCD screen doesn’t show “T” during receiving�

13 14
4� Tx Power: TX power is selectable to Low or
High (Factory setting is Low)
LCD Screen shows as below:
5� VOX: Volume / Sensitivity Adjustment (Factory setting is OFF)
Turn on VOX and LCD screen shows “VOX” words as below:
VOX’s sensitivity: VOX’s sensitivity can be selected from1-9
levels� VOX 4 is more sensitive than VOX9� VOX1 is least
sensitive�
3� DCS: There are 81 codes of DCS as below table�
(Factory setting is 023)
023 114 071 156 245 365 465 532 627
025 115 072 162 251 371 466 662 631
026 116 073 165 261 411 503 664 754
031 125 074 172 263 412 506 703
032 131 174 315 265 413 516 712
043 132 205 331 271 423 546 723
047 134 223 343 306 431 565 731
051 143 226 346 311 432 606 732
054 152 243 351 445 632 612 734
065 155 244 364 464 654 624 743
Contents Guide Contents Guide

15 16
9� Scrambler: Scrambler (Factory setting is OFF)
The radio sets 9 codes of scrambler to measure a radio signal
securely� It can only be understand by someone who has special
group at the same code� It can’t transmission and receiving without
scrambler code�
There are 9 codes of scrambler from code 1 to code 9, as below:
10� Compandor: Compandor (Factory setting is OFF)
The radio supports Compandor function� To turn on compandor
are used in radio communication and in some noise reduction
schemes�
Please turn off this function if a radio doesn’t support this function�
Turn on Compandor, LCD screen shows
【】
as below:
11� APO: APO (factory setting is OFF)
Choose 03/10/30/60 min� depending on your need� While 03 is
selected, the radio automatically turns power off if none of the
key is operated�
LCD screen shows
【APO 】
as bellows�

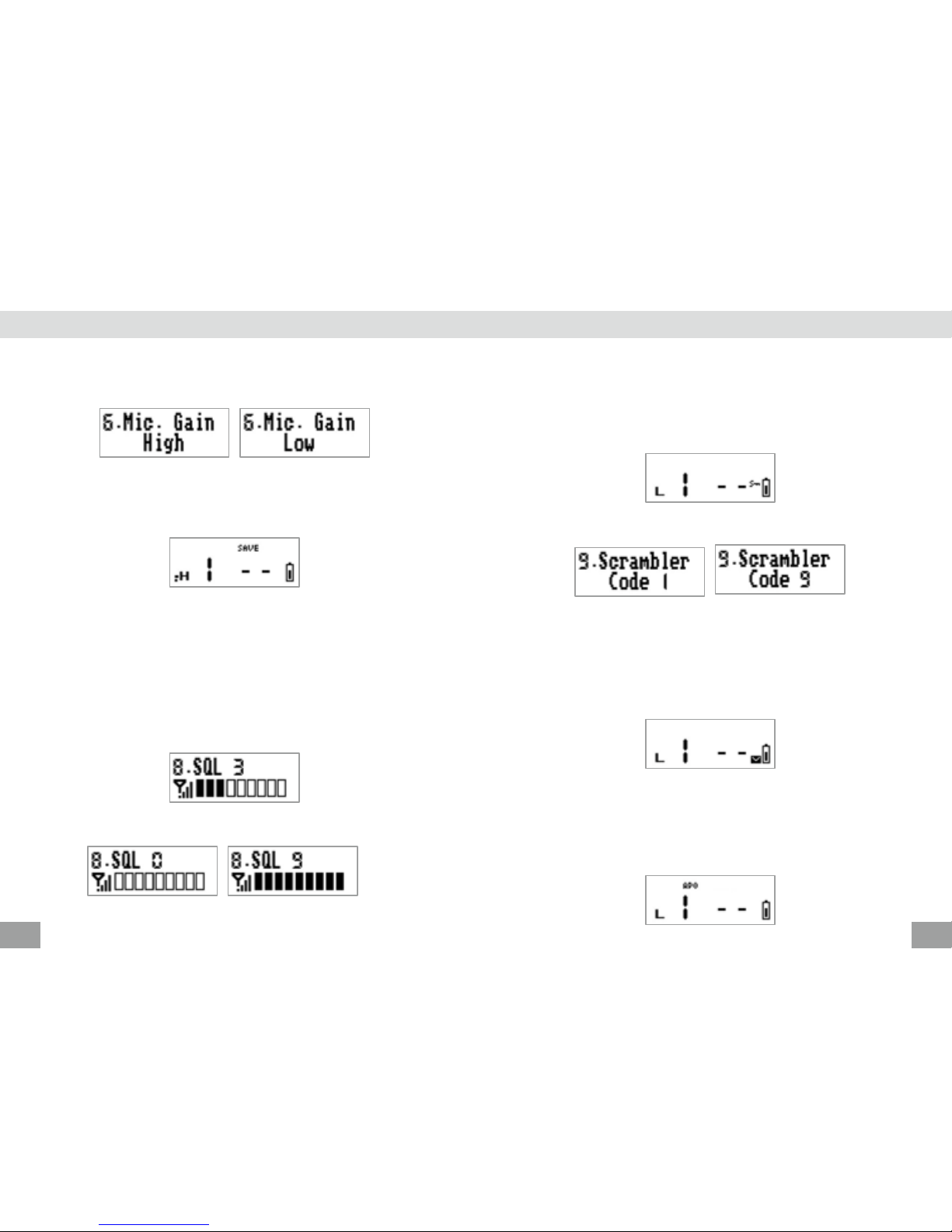

6� Mic Gain: Mic� Gain (Factory setting is Low)
Adjust Mic� Gain to transmit a clear volume�
7� Save Mode: Power Saving Mode (Factory setting is 1:1)
Turn on power saving mode could extend radio using time,
LCD screen shows “Save” words as below:
Power save mode can be selected 1:1 – 1:4 and off� If
power save mode is 1:4 then saving power is excellent�
8� SQL: SQL Fine ADJ (factory setting is L3)
SQL FINE adjustment, value from L0 (SQL OFF) to L9 as below:
Too low volume might miss users’ attention�
SQL factory setting is L3
SQL Min L0 & SQL Max L9
Contents Guide Contents Guide

17 18
16� CALL TONE: Factory setting is Music 1
While turn on call tone, temporarily press backlight button to
transmission all member of group�
There are 9 tones are selected�
LCD screen shows as below:
Turn On and select Music 1
17� SEND ID: PTT ID (Factory setting is OFF)
Turn on PTT ID, while release PTT, it will transmit PTT ID to all
radio automatically� It provides talker’s ID and ID settings need to
execute by software�
LCD screen shows
【ID 】
as below:
While receiving others ID, LCD screen shows as below:
12� TOT: Time-out timer (Factory setting is OFF)
Choose 30/60/120/180 depending on your need� Turn off “TOT”,
the radio will be continuous transmission� While turn on “TOT” and
choose 30 sec�, push and hold PTT if continuous talk exceeds 20
sec� and radio will send out a beep sound�
At the same time, LCD screen shows “ ” ash, the radio will stop
transmission at time-out�
LCD screen shows
【TOT】
words as below:
13� KEY BEEP: Factory setting is ON
Turn on /off key beep button, LCD screen shows as below:
14� PTT BEEP: PTT melody (Factory setting is OFF)
Turn on PTT Beep, while press PTT button a short beep will be
sent out�
15� ROGERTONE: Roger Tone (Factory setting is OFF)
Roger Tone is selectable to ON/OFF
Beep tone will be heard at the end of the each transmission
Contents Guide Contents Guide

19
18� DEFAULT: Return to factory setting
Follow LCD screen instruction and press “YES” to return to
factory setting
Contents Guide

PK MINI46-E VER�2
