Wishbone Mark II User manual

manual
gebrauchsanweisung | manual | instructions de | manuale | handleiding

3-bikes-in-1
www.wishbonebike.com

1
NEDERLANDSITALIANOFRANÇAISESPAÑOLDEUTSCHENGLISH

2

ASSEMBLY:
– COMPONENTS 4-5
– ASSEMBLE THE TRIKE 6-7
– ASSEMBLE THE BIKE 8-9
– FRONT WHEEL ON 10-11
– FRONT WHEEL OFF 12
– ASSEMBLE THE HANDLEBAR 13
GETTING THE RIGHT FIT:
– FLIP THE FRAME OVER 14-15
– ADJUST THE SEAT 16
ECO BIKE 17
MAINTENANCE 17
WARNING 17
OUR WARRANTY 18
CERTIFICATE OF OWNERSHIP 100
CONTACT US BACK COVER
contents
And you’ve scored yourself a happy Sunday afternoon, a smiling kid, and a rider for life. Nice.
With its sustainable design and
manufacture, and innovative
3-bikes-in-1 feature, the WishboneTM
Bike designed in New Zealand
really is the ultimate pre-bike.
ENGLISH

4

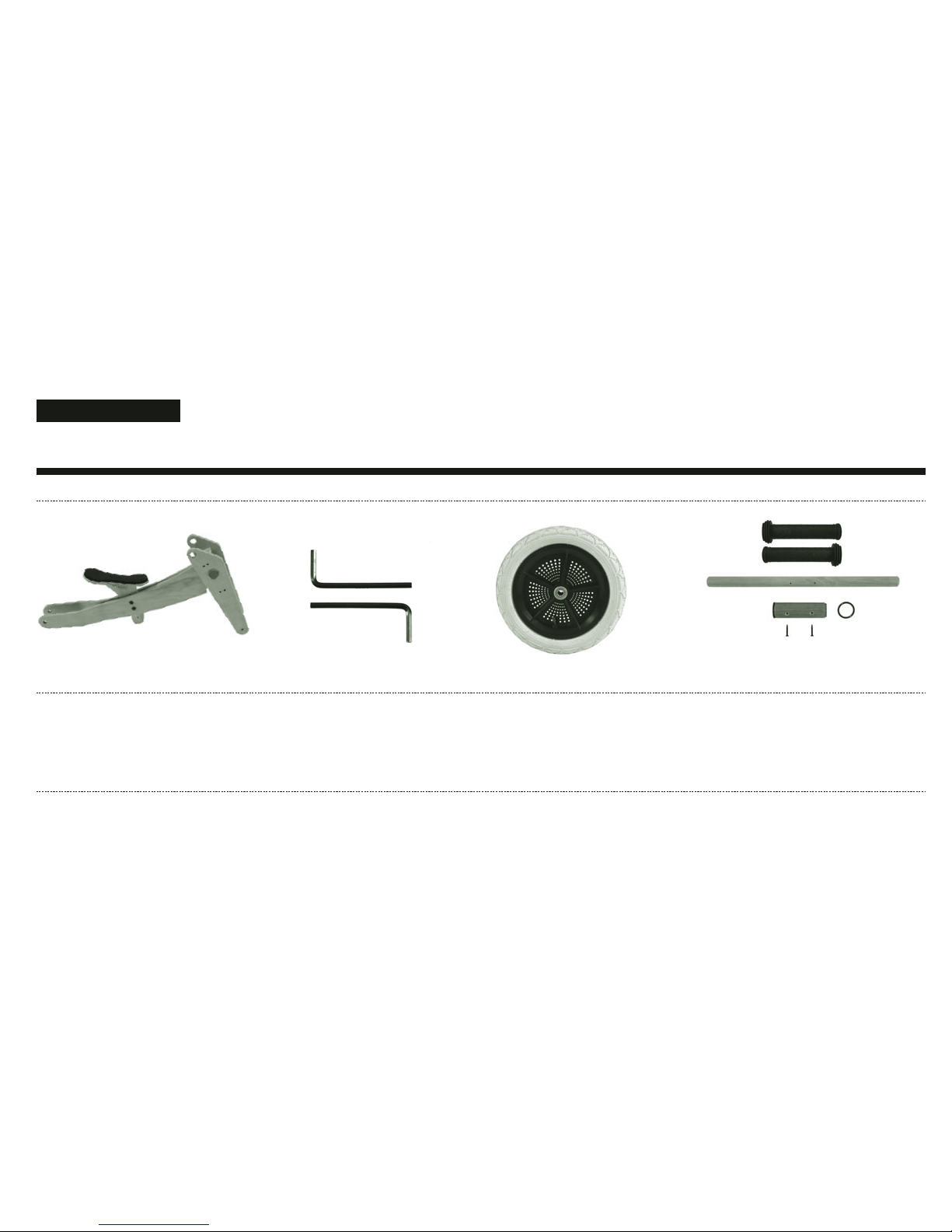

components
a. threaded rod
b. 2 x washers
c. 2 x long capping nuts
d. long axle tube
e. 3 spacers – 2 x long, 1 x medium
b.
c.
a.
f. g. h.
k.
n. o.m.
l.
i. j.
d.
e.
Trike rear axle kit: Bike rear axle kit: Front wheel kit:
f. threaded rod
g. 2 x washers
h. 2 x capping nuts
i. short axle tube
j. 2 mini spacers
k. threaded rod
l. 2 x capping nuts
m. short axle tube
n. 2 small spacers
o. nylon bush

5
ENGLISH
components
Bike frame, forks and seat
Handlebar kit:
2 x allen keys safety wheel, tube and tyre p. handlebar
q. handlebar collar
r. 2 x rubber rings
s. 2 x screws
t. 2 x handgrips
p. t.
q.
s.
r.

6

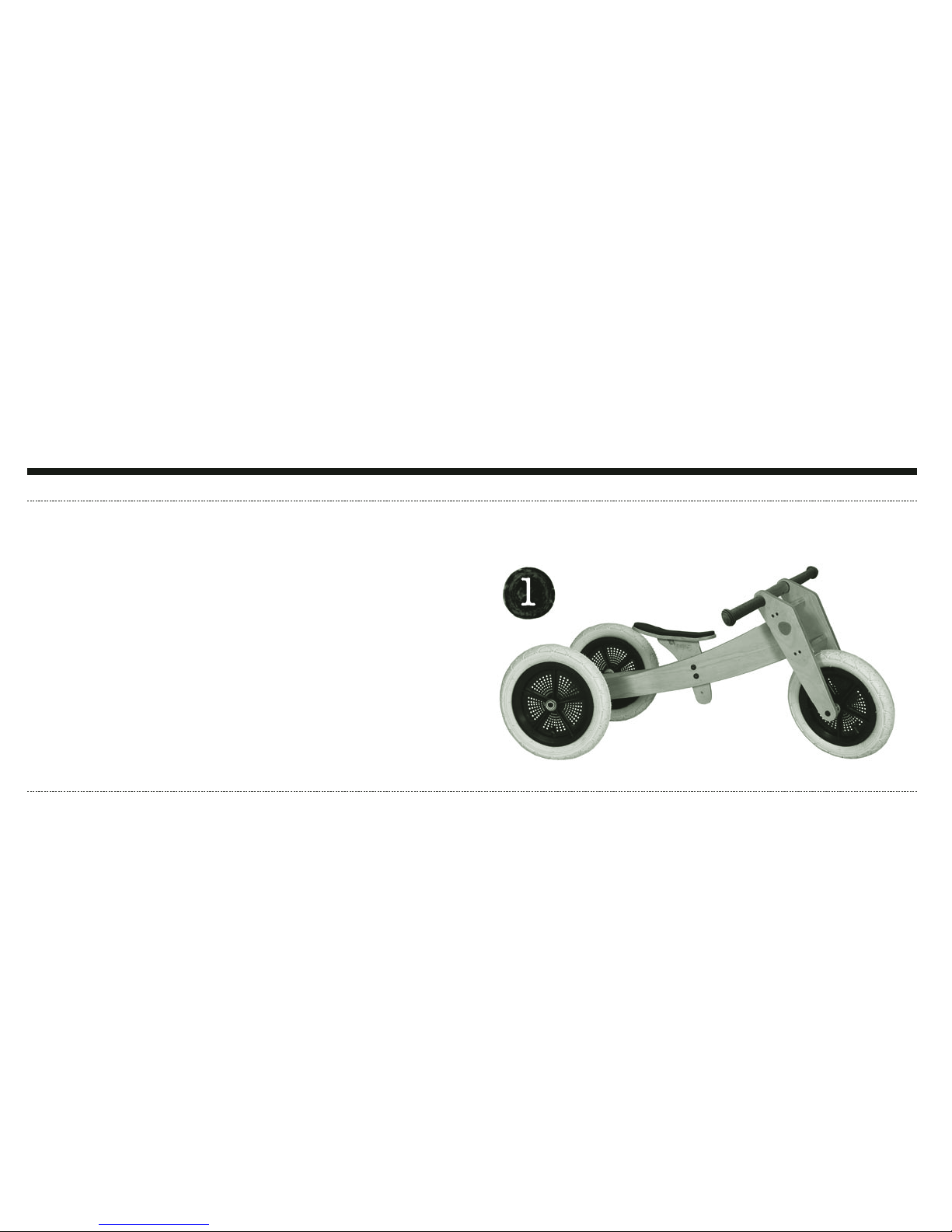

assemble the trike
Trike kit components.
1. 2. 3. 4.
Insert axle tube through
frame and middle spacer.
Thread spacers on each end. Place wheels on each end.

7
ENGLISH
assemble the trike
Insert threaded rod with
washer and capping nut
on one end.
5. 6. 7.
Place washer and capping
nut on other end.
Tighten.

8

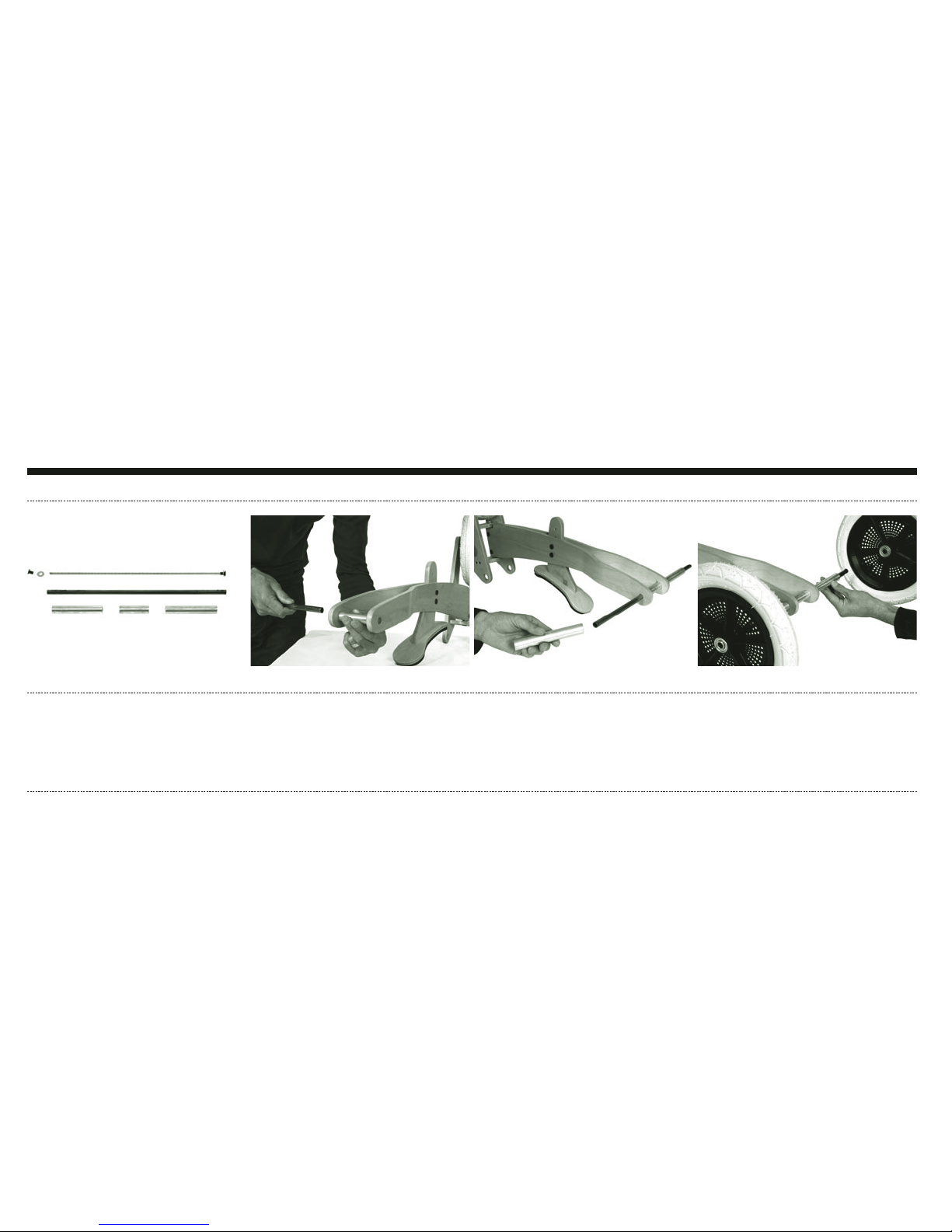

assemble the bike – back wheel
Insert axle tube through
rear wheel hub.

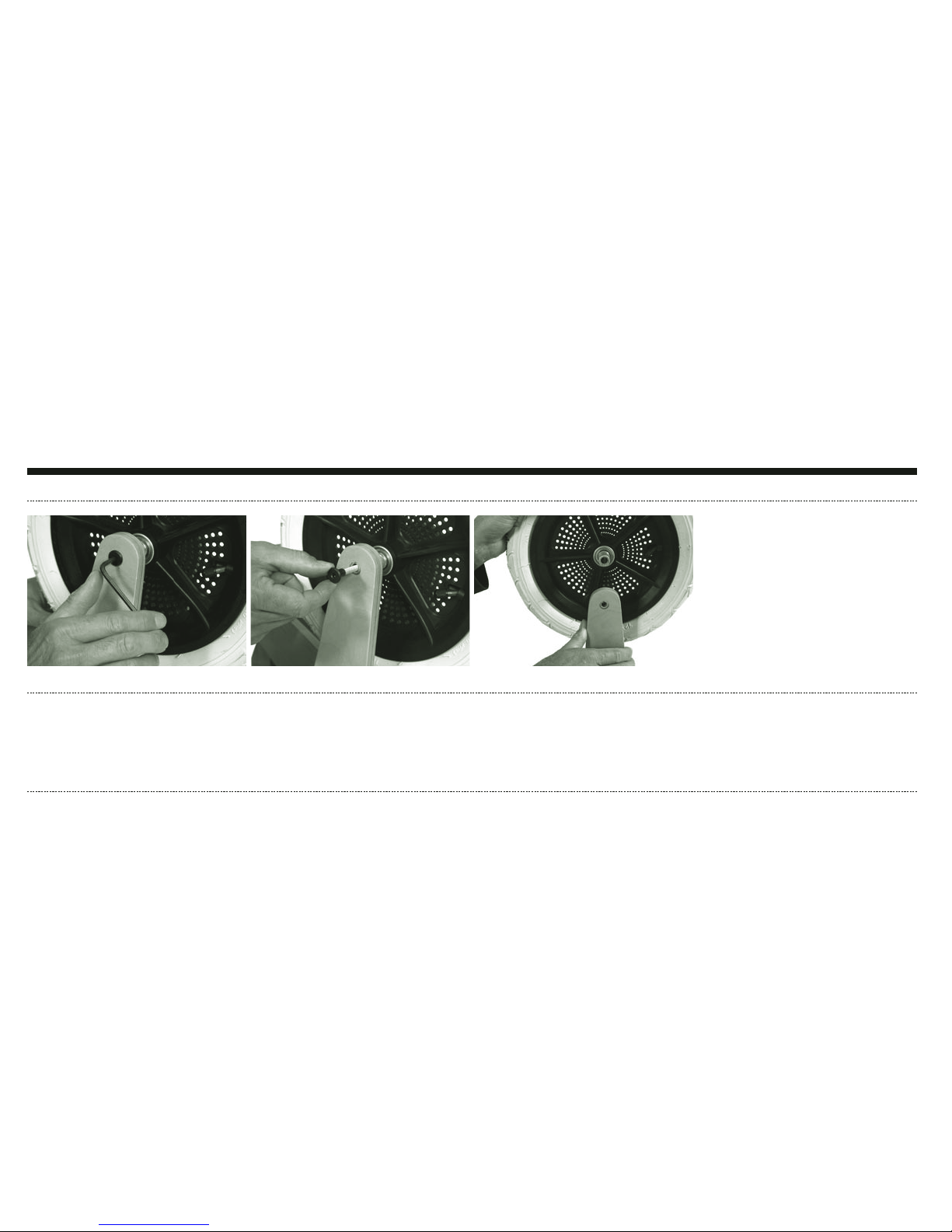

1. 2. 3. 4.
Thread mini spacers on
each end.
Place axle and wheel
between frame.
Place axle and wheel
between frame.

9
ENGLISH
assemble the bike – back wheel
Place axle and wheel
between frame.
5. 6. 7. 8.
Insert threaded rod with
washer and capping nut on
one end.
Place washer and capping
nut on other end.
Tighten.

10

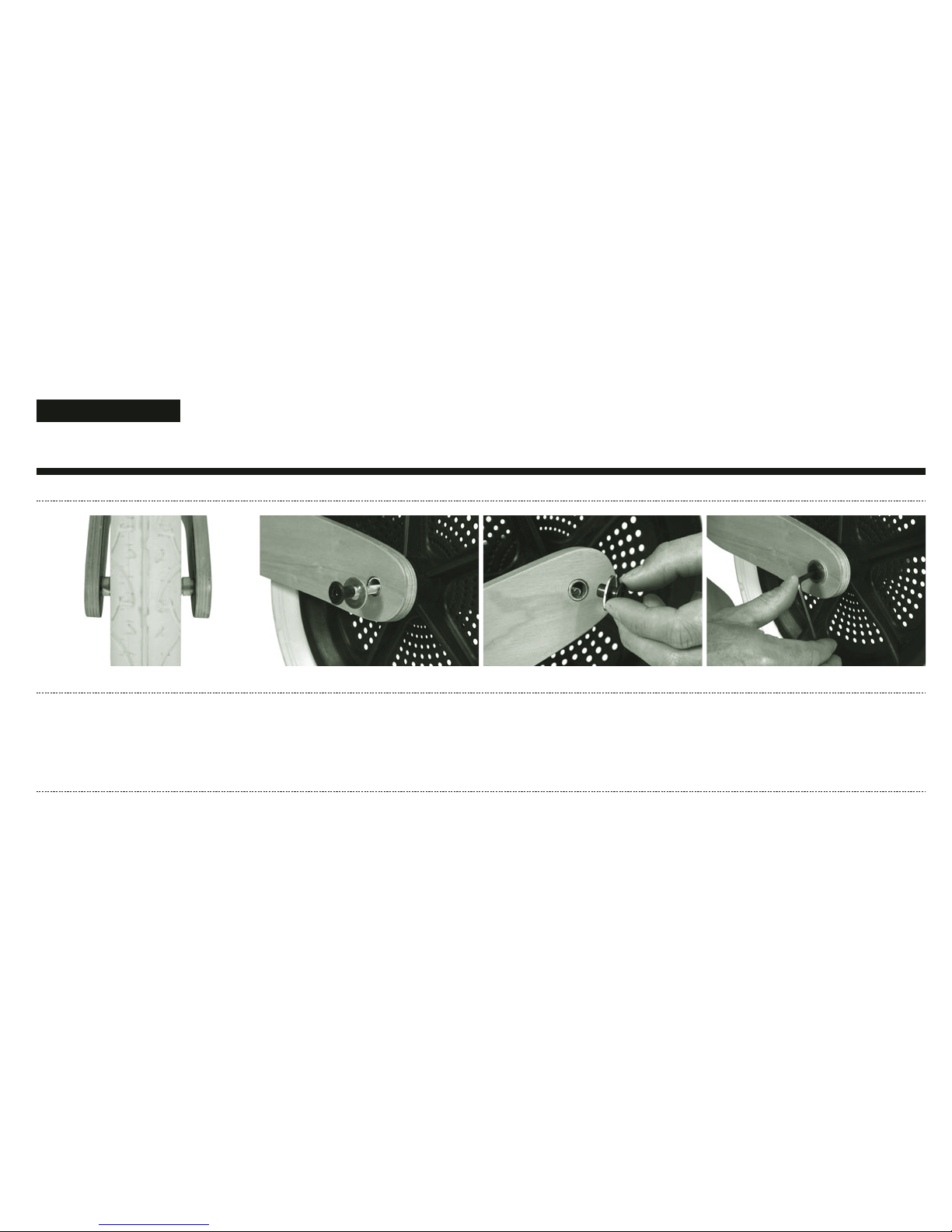

front wheel on
Insert axle tube through
front wheel hub.
1. 2. 3.
Thread small spacers and
nylon bushes on each end.
Place axle and wheel
between forks.
4.
Place axle and wheel
between forks.

11
ENGLISH
front wheel on
Insert threaded rod with
capping nut on one end.
5. 6. 7.
Place capping nut on other end. Tighten.

12
front wheel off
Loosen one capping nut.
1. 2. 3.
Pull out threaded rod. Remove front wheel.

13
ENGLISH
assemble the handlebar
Insert handlebar through
forks, rubber rings and
handlebar collar.
1. 2. 3. 4.
Insert handlebar through
forks and handlebar collar.
Tighten two screws. Ensure your handgrips
fit securely – they are an
important safety measure.

14

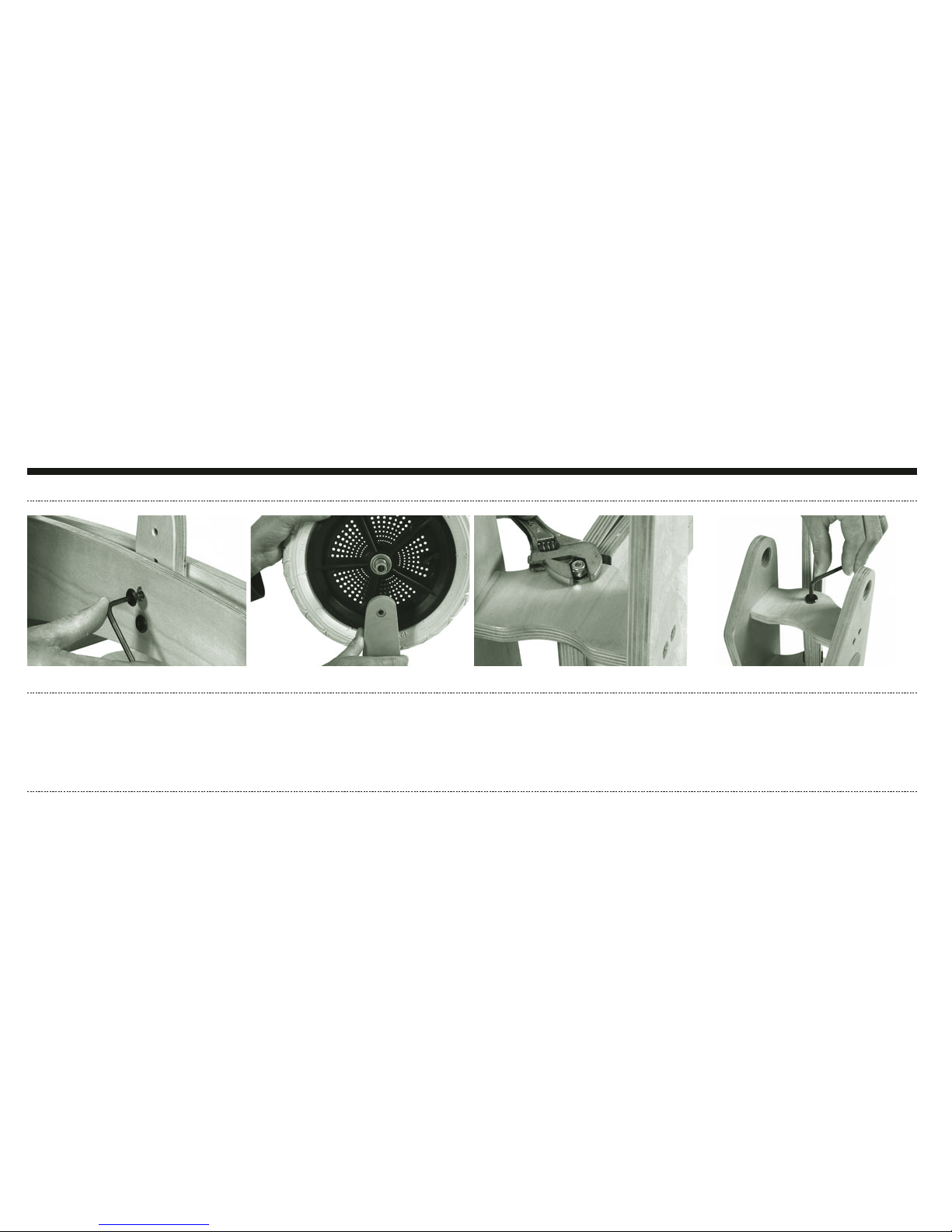

Remove seat.
1. 2. 3.
Remove front wheel. Undo nut on the underside
of the headset.
4.
Loosen threaded rod using an
allen key in the capping nut.
flip the frame over

15
ENGLISH
Remove threaded rod. Replace wheel.
5. 6.
Flip frame over.
Tighten nuts and
threaded rod.
7. 8.
Replace seat.
flip the frame over

16

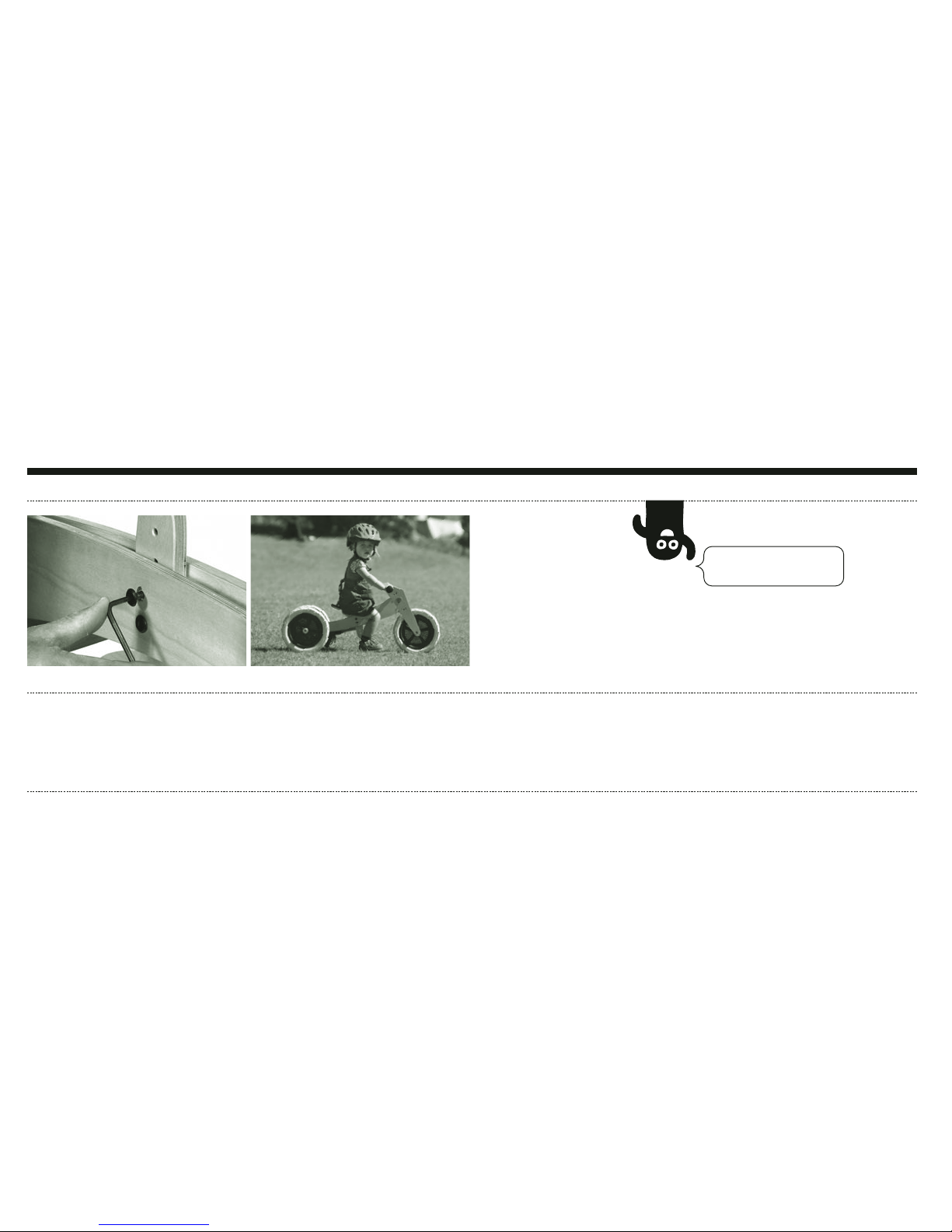

see, that was easy
Loosen and remove capping
nuts and bolts.
1. 2.
Child’s feet should be flat
on the ground.
adjust the seat

17
ENGLISH
eco bike maintenance
This product contains small parts
that present a choking hazard.
For safety reasons, this product
is to be assembled by an adult.
We recommend that proper
protective gear be worn while
riding a Wishbone Bike.
This includes closed shoes,
an approved safety helmet and
adequate protective clothing
such as long pants or elbow/knee
pads. Never allow more than one
rider at a time.
For your child’s safety and
the safety of others,use great
caution at all times.
To reduce the risk of injury,
adult supervision is required
at all times. In particular, the
rider should be coached in the
use of his or her feet to brake
and stop the bike.
Never use on public highways
or in areas where motor vehicles
are present or on sloping areas.
Do not use near steps, driveways,
roadways, bodies of water, or
swimming pools.
Wishbone is not responsible for
any injuries suffered while using
Wishbone Bike. The purchaser
assumes the risk of any activity they
engage in with the Wishbone Bike.
WARNING!
Every Wishbone Bike is made
from plantation-sourced woods
and is glued and finished with non-
toxic products. The Bike box and
all paper inside is recycled and
printed with non-toxic inks.
The canvas bag for extra parts
is made from certified organic
cotton. Every component on this
bike is fully recyclable.
Make regular inspections of all
fastenings to make sure they are
tight. Normal wear and tear may
make them loosen.
We recommend you keep all tyres
inflated to max 25 psi. Tube valves
are car size – pump them up when
you visit the gas station.
Clean with warm water and a
soft
cloth. Lubricate wheels lightly
with a standard bike oil. Use a
wood wax or polish to maintain
the wooden components finish.
Do not store your bike outdoors.

18
warranty
We want you to feel confident in
the quality of our products and
customer service.
So we have warranted our
products against manufacturing
defects for one year from the date
of purchase. Within this
period, we
will be pleased to repair
any
product or component that has a
manufacturing defect or, if we
think it is necessary, replace it,
free of charge. Your first contact
point for any warranty query is
your store of purchase.
Our warranty extends to an
original purchaser who bought
new product from an authorized
dealer of our products. Please
have your proof of purchase
ready. Any freight charge to
deliver the product back to us
or our representative is all you’ll
need to pay.
If you bought your bike second
hand (well done!) or have modified
it somehow, if you have not used
or maintained it properly or if the
problem is really just normal wear
and tear, then you probably don’t
qualify for our free-of-charge-
repair-or-replace warranty.
But you are welcome to contact us
anyway. We’ll do our best to help
you. Again, contact your store of
purchase first.
Please note that in some countries
or states you may have more
rights too.
THIS WARRANTY IS MADE
IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING, BUT NOT
LIMITED TO, WARRANTIES OF
MERCHANTABILITY OR
FITNESS FOR A PARTICULAR
PURPOSE, AND THERE ARE
NO OTHER WARRANTIES
THAT EXTEND BEYOND THIS
EXPRESS WARRANTY.
