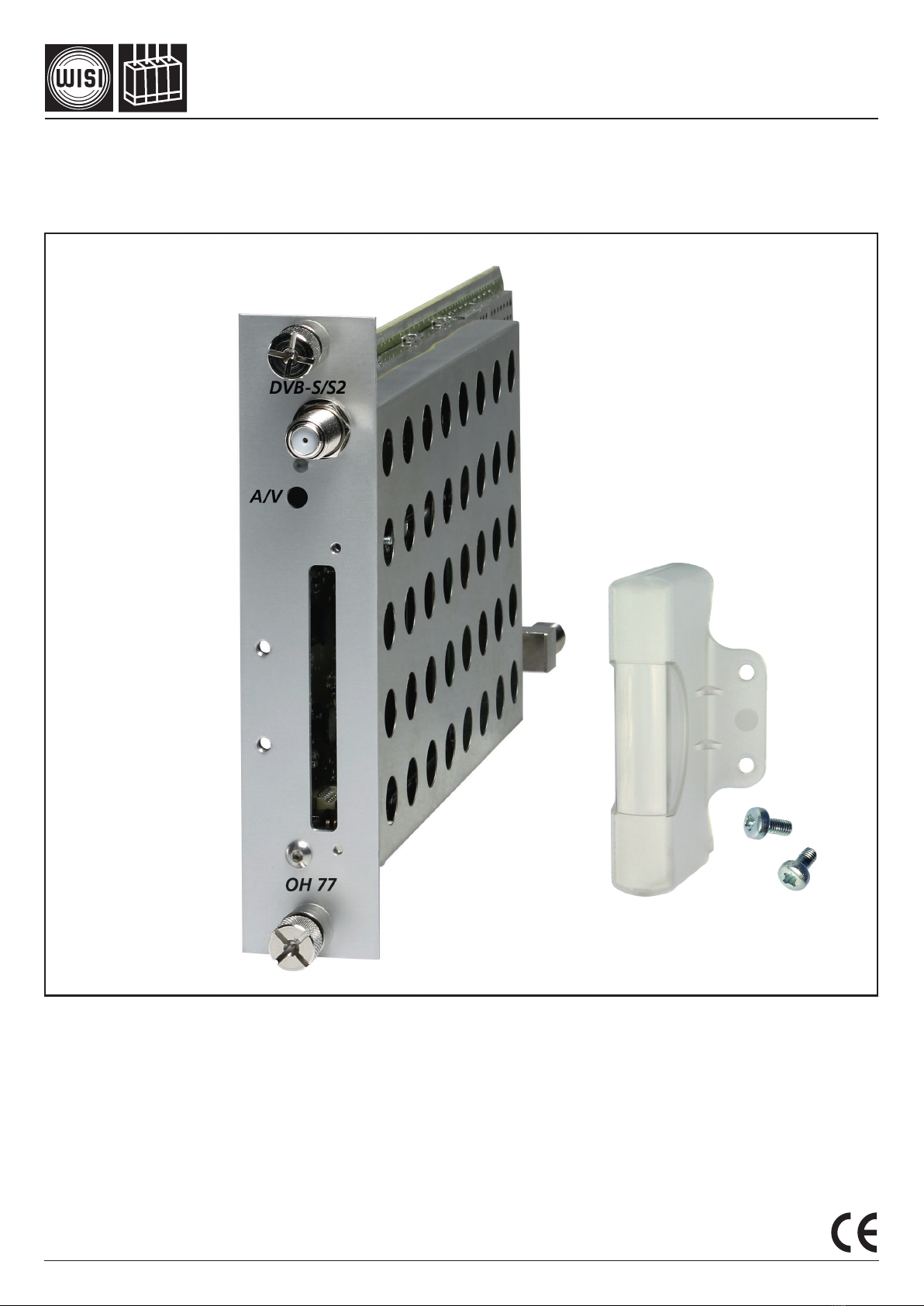

Wisi COMPACT OH 77 D User manual

WISI COMPACT HEADEND
OH 77 D
Betriebsanleitung
Operating instructions
• Empfang eines DVB-S/S2-Signals und
Aufbereitung in einen analogen TV-Kanal
• Empfang und Entschlüsselung von
MPEG-2- und MPEG-4-Signalen,
sowie Dolby* Digital Ton
• Eingebaute CI-Schnittstelle
• NICAM Encoder
• Eingangsfrequenzbereich 950–2150 MHz
• Ausgangsfrequenzbereich 45–862 MHz
• Restseitenband-Modulator
*Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• Reception of a DVB-S/S2 signal and
processing to an analogue-TV-channel
• Demultiplexing and decoding of MPEG-2
and MPEG-4 signals, also Dolby* Digital sound
• Built-in CI interface
• NICAM audio processing
• Input frequency range 950–2150 MHz
• Output frequency range 45–862 MHz
• Vestigial sideband modulator
412 448 e
Schutzkappe für CI-Schächte
Dust cap for CI slot

- 2 -
Headend OH 41 (OK 41 A) (Zubehör) / Headend OH 41 (OK 41 A) (Accessory)
Left Right
Down
Up
W I S I H E A D E N D
O H 5 0 V 1 . 0 0
Stand by
Betriebsspannung am Grundgerät angeschlossen und „Initialisierung der Module“ abgeschlossen.
Handset an Buchse des Grundgerätes einstecken. Durch Drücken einer Taste gelangt man in
das Modul- oder System-Menü.
Stand by
Supply voltage connected to basic unit and wait till mode “Initialising the modules” has finished. Plug
the handset into the socket on the basic unit. Press any key to call the module menu or
System menu.
Modul-Menü / Module menu
Modul 1 OH 77 D/Module 1 OH 77 D
Parameter-Menü / Parameter menu
Modul 2 OH 85/Module 2 OH 85 DiSEqC
Sat-IF
Parameter-Untermenü/Parameter sub-menu
1894
Modul 14 OH 88 H/Module 14 OH 88 H
Modul-Menü / Modul menu
▲▼ Tasten / keys — Modul 1… 14 wählen/Select module 1...14
▶Taste/keys — Weiter zum Parameter-Menü / Move to parameter sub-menu
◀Taste/keys — Zurück / Back
Hinweis: Nach erfolgter Programmierung ziehen Sie
das Handset ab.
Note: After programming disconnect the handset.

- 3 -
Headend OH 41 (OK 41 A) (Zubehör) / Headend OH 41 (OK 41 A) (Accessory)
Front-LED / Front LED indication
Parameter-Menü / Parameter menu
▲▼ Tasten / keys — Parameter wählen / Select parameter
▶Taste/keys — Weiter zum Parameter-Untermenü /Move to parameter sub-menu
◀Taste/keys — Zurück/Back
Parameter-Untermenü / Parameter sub-menu
◀▶ Tasten / keys — Zu ändernde Stelle wählen
Cursor blinkt unter der Stelle z.B. 1894
Bei Überschreiten des dargestellten Zahlenbereiches, zurück zum
Parameter-Menü
Select the digit to be changed
Cursor blinks below the digit, e.g. 1894
If the permissible range is exceeded, the unit returns to the parameter menu
▲▼ Tasten / keys — Wert ändern z.B. 1894 in 1834
Change the value, e.g. change 1894 to 1834
Speichern / Saving data
Autom. nach Verlassen des Parametermenüs oder ca. 60 Sekunden nach der letzten Eingabe.
Data are saved automatically after leaving the parameter, or 60 seconds after the last entry.
rot/red kein Eingangssignal / no input signal
grün/green Eingangssignal wird dekodiert / decoding input signal
Front Klinkenbuchse 3,5 mm (A/V) / Front A/V connector 3.5 mm
Audio-Links / audio left
Video (1 Vss / 75 Ω)
GND für Audio + Video /
GND for audio + video
Audio-Rechts / audio right

- 4 -
Bedienung / Instructions
DiSEqC
Sat-IF Eingangsfrequenzwahl
950–2150 MHz Eingangsfrequenz des gewählten Kanal-Tuners
Input frequency selection
950–2150 MHz input frequency of the tuner of the selected
channel
SymRate Eingangssymbolrate
1000–45000 kSym/s Symbolrate des gewählten Kanal-Tuners
Input symbol rate
1000–45000 kSym/s symbol rate of the tuner of the selected channel
DVBMode Typ des empfangenen SAT-Signals
DVB-S1 .......................DVB-S1-Signal wird vom Tuner dekodiert
DVB-S2 .......................DVB-S2-Signal wird vom Tuner dekodiert
unknown ....................Es kann kein Eingangssignal dekodiert werden
Type of the satellite signal at the input
DVB-S1 .......................DVB-S1 signal will be decoded by the tuner
DVB-S2 .......................DVB-S2 signal will be decoded by the tuner
unknown ....................No input signal can be detected
Sat-Lev Eingangspegel des empfangenen SAT-Signals
in dBμV Pegel des dekodierten Eingangsignals
Dekodierung ist ab 40 dBµV möglich.
Input level of the satellite signal at the input
in dBμV Level of the decoded input signal
Decoding works from 40 dBµV
Eingangsebenenwahl
LNB off .......................keine LNB-Speisung
SAT1-SAT16 .................Ebenenwahl mit DiSEqC-Protokoll*
LNB DC .......................nur LNB-DC-Speisung
Level Selection
LNB off .......................no LNB feeding
SAT1-SAT16 .................level selection with Diseq protocol*
LNB DC .......................only dc-feeding for the LNB
* Es können nur Multischalter mit DiSEqC gesteuert werden.
DiSEqC-Zuordnugstabelle siehe Seite 13.
Only multiswitches with DiSEqC can be controlled.
DiSEqC allocation table see page 13.

- 5 -
Program Programmauswahl
1 Das Erste _T .........Pgm.-Name; ‚_‘ = FTA; T = TV
2 zdf_neo _T* ........Pgm.-Name; ‚_‘ = FTA; T = TV; ‚*‘ = ausgewählt
3 NDR Kultur _R .........Pgm.-Name; ‚_‘ = FTA; R = Radio
Programme selection
1 Das Erste _T .........Pgm.-Name; ‚_‘ = FTA; T = TV
2 zdf_neo _T* .......Pgm.-Name; ‚_‘ = FTA; T = TV; ‚*‘ = selected
3 NDR Kultur _R .........Pgm.-Name; ‚_‘ = FTA; R = Radio
Bedienung / Instructions
Sat-CNR Signal/Rauschabstand Eingangssignal
in dB
Signal to noise ratio of the input signal
in dB
Sat-BER Bitfehlerrate Eingangssignal
<1.00e-7 Bitfehlerrate des dekodierten Signales
Bit error rate of the input signal
<1.00e-7 Bit error rate of the input signal
Die Darstellung dient nur als Beispiel und ist aus verschiedenen Programmströmen zusammengefügt.
Hier werden die vorhandenen Services dargestellt. Der Service wird mit einer laufenden
Nummer dargestellt, dann folgt der Service-Name. Die Zeichen „_“ oder „#“ zeigen den Verschlüsse-
lungsstatus des Eingangssignales an: „_“ steht für FTA (free to air) nicht verschlüsselt und „#“ steht
für einen verschlüsselten Service. Das nächste Zeichen gibt den Servcie-Typ an „T“ = TV,
„R“ = Radio. Ein Service kann durch verlassen des Untermenüs ausgewählt werden.
Der Service wird daraufhin eingestellt, erkennbar durch den sich drehenden Balken rechts.
The following description only serves as an example, which is combined from services of different
transponders. It displays the available services.
The services are represented with a consecutive number, followed by the service name. The symbol
“_” or “#” are showing the status of the Decryption: “_” stands for FTA (free to air), and “#” stands
for an encrypted service. The next symbol shows the type of service: “T” for TV, “R” for radio.
A service can be selected by leaving the sub menu. The service will then be tuned.
While this is happening you will see the “active” bar turning on the right side of the display.
BISS BISS Mode Auswahl des Modus ( nur 1 )
Select mode ( only 1 )
BISS Key Eingabe des Entschlüsselungscodes
Insertion of the decoding key

- 6 -
Bedienung / Instructions
Programmauswahl
deu Stehen bei einem Service mehrere Sprachen zur
mis Verfügung, so werden diese hier dargestellt und es
deu AC3 kann eine ausgewählt werden. Wenn AC3 angezeigt
wird ist Dolby* Digital Ton verfügbar.
Programm selection
deu If multiple languages are available, one of the
mis displayed can be selected. If AC3 is displayed then
deu AC3 Dolby* Digital sound is available.
*Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
PgmLang
VPSMode Video Programming System Modus
off ...............................keine Übertragung der VPS-Info
EIT ...............................VPS-Info aus EIT wird eingefügt
TTX .............................VPS-Info aus Teletext wird eingefügt
Video programming system info mode
off ...............................no distribution of VPS info
EIT ...............................VPS info from EIT will be inserted
TTX .............................VPS info from teletext will be inserted
Zoom Bildausgabeformat
4:3 box ........................Bildformat 4:3 in Letterbox
16:9 .............................Bildformat 16:9
4:3 pan ........................Bildformat 4:3 pan scan
Aspect ratio format
4:3 box ........................Aspect ratio 4:3 in Letterbox
16:9 .............................Aspect ratio 16:9
4:3 pan ........................Aspect ratio 4:3 pan scan
Ausgangsdämpfungssteller
5 dB 0–15 dB in 1-dB-Schritten
Output attenuator
5 dB 0–15 dB in 1-dB-steps
Out-Att
F-Out Ausgangsfrequenz
471,25 45,00–862,00 in 0,25 MHz
Output frequncy
471,25 45,00–862,00 in 0,25 MHz

- 7 -
Bedienung / Instructions
SubMode Untertitel-Modus
teletext ........................Untertitel aus Teletext
DVB .............................Untertitel aus DVB-TS-Daten
Sub title mode
teletext ........................Sub title from teletext
DVB .............................Sub title from DVB-TS data
SubLang Untertitel-Sprache
off ...............................keine Untertitel
deu..............................ausgewählte Untertitelsprache
Sub title language
off ...............................No sub title
deu..............................selected sub title language
Bor.Up* Videosignalausgabe Rand oben
0..................................Startzeile für ausgegebenes Videosignal
Video signal output border up
0..................................Start line for displayed video signal
Bor.Dwn* Videosignalausgabe Rand unten
576..............................Endzeile für ausgegebenes Videosignal
Video signal output border down
576 ..............................End line for displayed video signal
Bor.Lft* Videosignalausgabe Rand links
0..................................Startpixel auf der linken Seite des Videosignales
Video signal output border left
0..................................Start pixel for displayed video signal
Bor.Rgh* Videosignalausgabe Rand rechts
720..............................Endpixel auf der rechten Seite des Videosignales
Video signal output border right
720..............................End pixel for displayed video signal
* Werden die voreingestellten Boarder-Werte verändert, so wird automatisch
der Teletext ausgeblendet.
If the boarder values are changed the tele text will be surpressed.

- 8 -
Bedienung / Instructions
VidNorm Video Norm des Ausgangsignals
PAL
N T S C- M
SECAM
Video standard of the output signal
PAL
N T SC- M
SECAM
TV-Std TV-Standard des generierten Ausgangssignals
B/G ..............................alle Audiosignalarten sind zulässig
D/K..............................alle Audiosignalarten sind zulässig
I...................................Audiosignal stereo oder dual wird auf mono
umgestellt
L..................................wie bei I
M................................wie bei I
TV standard of the generated output signal
B/G ..............................any audio signal is permitted
D/K ..............................any audio signal is permitted
I...................................stereo or dual tone will be changed to mono
L..................................stereo or dual tone will be changed to mono
M................................stereo or dual tone will be changed to mono
SCRatio Bild-Tonträgerabstand
10–17 Wird bei Änderung des TV-Standards oder der
Ausgangsfrequenz entsprechend des TV-Standards
gesetzt.
Video to sound carrier ratio
10–17 Automatically adjusts according to selected TV
standard, if TV standard or output frequency is
changed .

- 9 -
Bedienung / Instructions
Absenkung des NICAM-Signales
0– -3 Hier kann der NICAM-Ausgangspegel um bis zu
3 dB abgesenkt werden.
Sound carrier attenuator for NICAM
0– -3 Here the NICAM sound carrier can be lowered up to
3 dB.
NIC-Lev
NICAM Art des generierten NICAM Ausgangssignals
off ...............................Das NICAM Signal ist aus, Audio analog
on................................NICAM Audiosignal wird generiert
backup.........................NICAM und analog Audio wird generiert
Type of generated NICAM output signal
off ...............................NICAM signal off, audio analogue
on................................NICAM audio signal will be generated
backup.........................NICAM and analogue audio signal will be
generated
A-Level Audiosignal Pegelanpassung
+12… -12
Audio signal level adjustment
+12… -12
A-Mode Art des generierten Audioausgangssignals
st. LtRt .........................Als Audiosignal wird fest stereo LtRt (Dolby Pro
Logic) generiert
st. LoRo .......................Als Audiosignal wird fest stereo LoRo generiert
Mode of the audio output signal
st. LtRt ........................Audio signal is generated in stereo LtRt (Dolby Pro
Logic)
st. LoRo........................Audio signal is generated in stereo LoRo
PCR-Mod* Program Clock Reference
PCR on ........................Default, MPEG-Decoder wird durch PCR
syncronisiert (Bei Transponder mit fehlerhafter PCR)
PCR off ........................Keine PCR-Synconisation
Program Clock Reference
PCR on.........................Default, MPEG decoder is syncronized
(For Transponder with incorrect PCR)
PCR off ........................No PCR synconisation
* Bei zu großer Abweichung der PCR, kann der Farbhilfsträger nicht richtig
generiert werden > S/W-Bild. Dies wir durch „PCR off“ behoben, nun kann
jedoch eine fehlerhafte Lippensyncronität auftreten.
At a too large deviation of the PCR, the color sub-carriers can not properly
be generated > B/W image. This can be resolved by setting „PCR off“, but
now a faulty lip sync can occur.

- 10 -
Bedienung / Instructions
TP-Gen Testbildgenerator Ausgangssignal
off ...............................Testbild aus
B/W.............................Testbild schwarz/weiss
color ............................Testbild Farbbalken
Test pattern generator output signal
off ...............................Test pattern off
B/W .............................Test pattern black and white
color ............................Test pattern color
MPEG Dekoder Software-Version
V1.00 Hier wird die Version der MPEG-Dekoder-Software
dargestellt. Auch diese kann geg. durch Update
verändert werden.
MPEG decoder software version
V1.00 It displays the version of the MPEG decoder soft-
ware. It can change by software updates.
MPEG-SW
MPEG-Dekoder Hardware-Version
V1.00 Hier wird die Hardware-Version des MPEG-Dekoders
ausgegeben.
MPEG decoder hardware version
V1.00 It displays the hardware version of the MPEG deco-
der.
MPEG-HW
OH 77 D Modul Hardware-Version
V1.00 Hier wird der Hardwarestand des OH 77 D Modules
ausgegeben. Wird vom Software-Update benötigt.
OH 77 D module hardware version
V1.00 It displays the hardware version witch is needed
for software updates.
HW-Ver
OH 77 D Modul Software-Version
V1.00 Hier wird die Softwareversion des OH 77 D Modules
dargestellt. Diese ändert sich geg. Nach einem
Software Update.
OH 77 D module software version
V1.00 It displays the software version of the module. It
may change in case of a software update.
SW-Ver

- 11 -
Bedienung / Instructions
OH 77 D Modul Bootloader-Version
V1.16 Hier wird die Bootloader-Version des Modules aus-
gegeben.
OH 77 D module bootloader version
V1.16 It displays the bootloader version of the module.
BL-Ver
NICAM-Modul Software-Version
V1.00 Hier wird die Software-Version des NICAM-
Modules ausgegeben
NICAM module software version
V1.00 It displays the software version of the NICAM modu-
le.
NICAM-V

- 12 -
Bedienung / Instructions
OH 77 D Modul Update
no Durch Wahl von „yes“ kann hier gezielt ein
yes Software-Update an dem gewählten OH Modul
durchgeführt werden.
Insert USB Stick USB Stick mit OH 77 D Software in OH 50 USB-
Anschluss einstecken.
V1_59.bin_ Es wird immer die Software mit der
höchsten Versionsnummer angezeigt. Durch die
„Up“ „Down“ Tasten kann, wenn vorhanden,
aber auch eine andere Version ausgewählt werden
Die Versionen sind aufsteigend sortiert. Durch
Drücken der „Rechts-Taste“ wird die Version für das
Update ausgewählt.
Start Update:Yes Nun bei Start Update „Yes“ wählen und mit der
V1_59.bin „Rechts-Taste“ bestätigen. Das Update wird dann
gestartet. Mit „No“ wird das Update der Modul-
software übersprungen.
Hinweis: Liegen den Update-Dateien auch
Erweiterungsupdates bei werden diese ebenso
angezeigt. Der Updatevorgang erfolgt wie bereit
beim Modulupdate beschrieben
OH 77 D module update
no A controlled software update of the selected
yes module can be done by selecting “yes”.
Insert USB Stick Connect a USB-stick with the OH 77 D software to
the USB-connector.
V1_59.bin_ It displays the software with the highest version
number first. Other versions can be selected with
the “Up” and “Down” keys. The versions are
sorted in ascending order. The selection of the
version can be done by the “right”-key.
Start Update:Yes Now select Start Update ‚yes‘, and confirm it
V1_59.bin with the “right”-key. The update will then be started.
Selecting “no” skips the update of the module soft-
ware.
Note: If in the Update files extention updates are available
they will be also displayed.
The update procedure is the same as described in
the module update.
Update

- 13 -
Technische Daten / Specifications
Eingang / Input
Eingangsimpedanz / Input Impedance 75 Ω
Eingangsfrequenzbereich / Input frequency range 950–2150 MHz
Eingangsfrequenzschritte / Input frequency steps 1 MHz
Rückflußdämpfung am Eingang / Input return loss >8 dB
ZF-Frequenz/-Bandbreite / IF-frequency / -bandwidth none (Zero-IF)
Eingangspegelbereich / Input level range 47–70 dBµV
AFC / AFC ±10 MHz
Modulationsart / Modulation scheme QPSK, 8PSK
Symbolrate / Symbol rate 1–45 MS/s
Filterung / Filtering Nyquist √ cos
Dämpfung / Roll-Off 20% / 25 % / 30%
FEC outer code / FEC outer code BCH
FEC inner code / FEC inner code LDPC (1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10)
Datenformat / Data format EN302307
Spektrale Invertierung / Spectral inversion C-Band/KU-Band
Ausgang / Output
Ausgangsimpedanz / Output impedance 75 Ω
Ausgangsfrequenzbereich / Output frequency range 45–862 MHz
Frequenzschritte / Frequency steps 250 kHz
Frequenzstabilität / Stability of output frequency ±30 kHz
Ausgangskanal Bandbreite / Output channel bandwidth 7/8 MHz
Ausgangspegel / Output level (1 dB steps) 90–105 dBµV
TV-Normen / TV-standards B/G, D/K, I, L, M, N
Video-Norm / Video-standard PAL, SECAM, NTSC
Video-Format / Video-format 4:3, 16:9, 4:3-Zoom
Video-Decoder / Video decoder MPEG-2 (ML@MP) H.264 (MPEG-4)
Audio-Decoder / Audio decoder MPEG-2 (L1/L2), Dolby*
Audio-Format / Audio format Stereo (LtRt, LoRo) and NICAM
Gruppenlaufzeit / Group delay (-0,5 … 4,43 MHz) <80 ns
S/N Video / S/N video (CCIR-rec. 567-1) >57 dB
S/N Audio / S/N audio ( color test pattern) >50 dB
Amplitudengang / Stability of output level ±1,5 dB
Störabstand / Spurious
innerhalb Kanal / inside TV-channels >55 dB
außerhalb Kanal / outside a TV-channes >55 dB

- 14 -
Allgemeine Daten / General specifications
Abmessungen / Dimensions 220 (253*) x 105 x 29,5 mm
Anschlüsse / Connectors *with F-connector
RF-input 1 x F-connector
RF-output 1 x F-connector
Power Connector on board
Control Connector on board
Stromaufnahme (ohne CAM-Modul oder LNB-Versorgung) /
Current consumption (without CAM module or LNB-supply) 0,80 A/12 V
Leistungsaufnahme / Power consumption <10 W
Betriebstemperaturbereich / Operating temperature range -20 °C to +55 °C
Solltemperaturbereich / Nominal temperature range +5 °C to + 55 °C
Technische Daten / Specifications
*Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license from Dolby Laboratories.

- 15 -
DiSEqC Zuordnungstabelle / DiSEqC allocation table
DiSEqC-Ebene Standardzuordnung
SAT1 LNB A (z.B.: Astra) vertikal Low-Band
SAT2 LNB A (z.B.:Astra) horizontal Low-Band
SAT3 LNB A (z.B.: Astra) vertikal High-Band
SAT4 LNB A (z.B.: Astra) horizontal High-Band
SAT5 LNB B (z.B.: Eutelsat) vertikal Low-Band
SAT6 LNB B (z.B.: Eutelsat) horizontal Low-Band
SAT7 LNB B (z.B.: Eutelsat) vertikal High-Band
SAT8 LNB B (z.B.:Eutelsat) horizontal High-Band
SAT9 LNB C vertikal Low-Band
SAT10 LNB C horizontal Low-Band
SAT11 LNB C vertikal High-Band
SAT12 LNB C horizontal High-Band
SAT13 LNB D vertikal Low-Band
SAT14 LNB D horizontal Low-Band
SAT15 LNB D vertikal High-Band
SAT16 LNB D horizontal High-Band
DiSEqC level Standard allocation
SAT1 LNB A (e.g.: Astra) vertical Low-Band
SAT2 LNB A (e.g.:Astra) horizontal Low-Band
SAT3 LNB A (e.g.: Astra) vertical High-Band
SAT4 LNB A (e.g.: Astra) horizontal High-Band
SAT5 LNB B (e.g.: Eutelsat) vertical Low-Band
SAT6 LNB B (e.g.: Eutelsat) horizontal Low-Band
SAT7 LNB B (e.g.: Eutelsat) vertical High-Band
SAT8 LNB B (e.g.:Eutelsat) horizontal High-Band
SAT9 LNB C vertical Low-Band
SAT10 LNB C horizontal Low-Band
SAT11 LNB C vertical High-Band
SAT12 LNB C horizontal High-Band
SAT13 LNB D vertical Low-Band
SAT14 LNB D horizontal Low-Band
SAT15 LNB D vertical High-Band
SAT16 LNB D horizontal High-Band

WISI Communications GmbH & Co. KG
Empfangs- und Verteiltechnik
Wilhelm-Sihn-Straße 5–7
75223 Niefern-Oeschelbronn, Germany
Tel.: +49 72 33-66-292, Fax: 66-320,
E-mail: info@wisi.de, http://www.wisi.de Technische Änderungen und Druckfehler vorbehalten!
Technical Modifications reserved. WISI cannot be held
liable for any printing error.
21/16
Table of contents
Other Wisi Control Unit manuals
Popular Control Unit manuals by other brands

SonicWALL
SonicWALL NSA 250M series installation guide

GEM
GEM 410 Installation, operating and maintenance instructions

MBW
MBW M300DP Installation & user manual

Siemens
Siemens P Series Mounting instructions

SMC Networks
SMC Networks HRS-DI006 Operation manual

Parker
Parker H Series Installation and operation manual
