Wittco 1220-3-BC User manual

WITTCO FOOD SERVICE EQUIPMENT 7737 NORTH 81 STREET
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC MILWAUKEE, WI 53223
www.wittco.com © 2011 Wittco Foodservice Equipment F-41013 (03-11)
INSTALLATION &
OPERATION MANUAL
FOOD HOLDING & TRANSPORTATION CABINETS
AND BANQUET CARTS
MODELS:
1220-3-BC
1220-7
1220-8-BC
1220-15-BC
1220-20-BC
1826-5-BC-IS
1826-7-BC-IS
1826-7-DBL-IS
1826-7-SCH
1826-13-BC-IS
1826-15-BC-IS
1826-15-SCH
2-90
2-96
2-150
580
For additional information on WITTCO or to locate an authorized parts
and service provider in your area, visit our website at www.wittco.com

H & T CABINETS F-41013 (03-11)
1
IMPORTANT FOR YOUR SAFETY
THIS MANUAL HAS BEEN PREPARED FOR PERSONNEL QUALIFIED TO INSTALL
ELECTRICAL EQUIPMENT, WHO SHOULD PERFORM THE INITIAL FIELD START-
UP AND ADJUSTMENTS OF THE EQUIPMENT COVERED BY THIS MANUAL.
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS OR LIQUIDS IN THE
VICINITYOF THIS OR ANY OTHER APPLIANCE.
Improper installation, adjustment,
alteration, service, or maintenance can
cause property damage, injury, or death.
Read the installation, operating and
maintenance instructions thoroughly
before installing or servicing equipment.
IN THE EVENT OF A POWER FAILURE,
DO NOT ATTEMPT TO OPERATE THIS DEVICE.

H & T CABINETS F-41013 (03-11)
2
TABLE OF CONTENTS
IMPORTANT FOR YOUR SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
INTRODUCTION .... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
ELECTRICAL REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
STAINLESS STEEL CARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
LOCKOUT / TAGOUT PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
SERVICE & PARTS INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
WIRING DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 – 15

H & T CABINETS F-41013 (03-11)
3
GENERAL
INTRODUCTION
Wittco Holding & Transport Cabinets
and Banquet Carts are produced with
quality workmanship and material.
Proper installation, usage, and
maintenance of your cabinet will result
in many years of satisfactory
performance.
It is suggested that you thoroughly read
this entire manual and carefully follow all
of the instructions provided.
Wittco Holding & Transport Cabinets
and Banquet Carts provide an efficient
means of transporting and holding bulk
prepared foods at proper serving
temperatures.
INSTALLATION
Before installing, verify that the electrical
service agrees with the specifications on
the rating plate located on the lower
back corner of the cabinet. If the supply
and equipment requirements do not
agree, do not proceed with unpacking
and installation, Contact Wittco
Customer Service Department
immediately. (Fig. 2)
UNPACKING:
The Cabinet was inspected before
leaving the factory. The transportation
company assumes full responsibility for
safe delivery upon acceptance of the
shipment. Immediately after unpacking,
check for possible shipping damage to
the cabinet.
If the cabinet is found to be damaged,
save the packaging material and
contact the carrier within 15 days of
delivery.
Carefully unpack and place in a work
accessible area as near the installation
position as possible.
1. Open the door and carefully
remove any packaging materials
and the retaining straps that hold
the wire plate racks (Banquet
Carts) or the tray slides and tray
slide upright side supports
(Holding & Transport Cabinets).
2. Peel off vinyl protection film.
3. On Banquet Carts, lift the plate
racks into position on the side
brackets.
4. On Holding & Transport
Cabinets, remove cardboard
element cover protector from
cabinet bottom.
Remove adjustable tray slides
from box.
Remove the tray slide supports
and install them in the cabinet.
a. Hook the openings in the
flat flange of the support
over two vertical carriage
bolts on the interior of the
cabinet.
b. Make sure all flanges on
the four supports face the
door opening.
Install tray slides in the cabinet.
Make sure the hook on the end of
the tray slide is up.

H & T CABINETS F-41013 (03-11)
4
CLEANING:
The cabinet should be thoroughly
cleaned prior to putting into service.
Use a mild soap and water solution to
clean the interior of the unit. Never use
harsh chemicals or abrasive pads to
clean the unit. Refer to cleaning
instructions on page 6 of this manual.
LOCATION:
For efficient cabinet operation, choose a
location that will provide easy loading
and unloading without interfering with
the final assembly of food orders.
The installation location must allow
adequate clearances for servicing and
proper operation. (Fig. 1)
Fig. 1
ELECTRICAL REQUIREMENTS
ELECTRICAL CODES & STANDARDS:
The cabinet must be installed in
accordance with:
In the United States of America:
1. State and Local Codes.
2. National Electrical Code, ANSI/
NFPA-70 (latest edition.) Copies
may be obtained from: The
National Fire Protection
Association, 1Batterymarch Park,
Quincy, MA 02269.
1-617-770-3000 www.nfpa.org
In Canada:
1. Local Codes.
2. Canadian Electrical Code, CSA
C22.1 (latest edition.) Copies
may be obtained from: The
Canadian Standard Association.
www.csa.ca
ELECTRICAL CONNECTIONS:
The cabinet is factory wired for either
110/120 volt or 208/240 volt, single
phase operation. All 110/120 volt
cabinets are equipped with a 8 foot cord
and NEMA 5-15 plug as standard
equipment. All 208/240 volt cabinets
are equipped with a 8 foot cord and

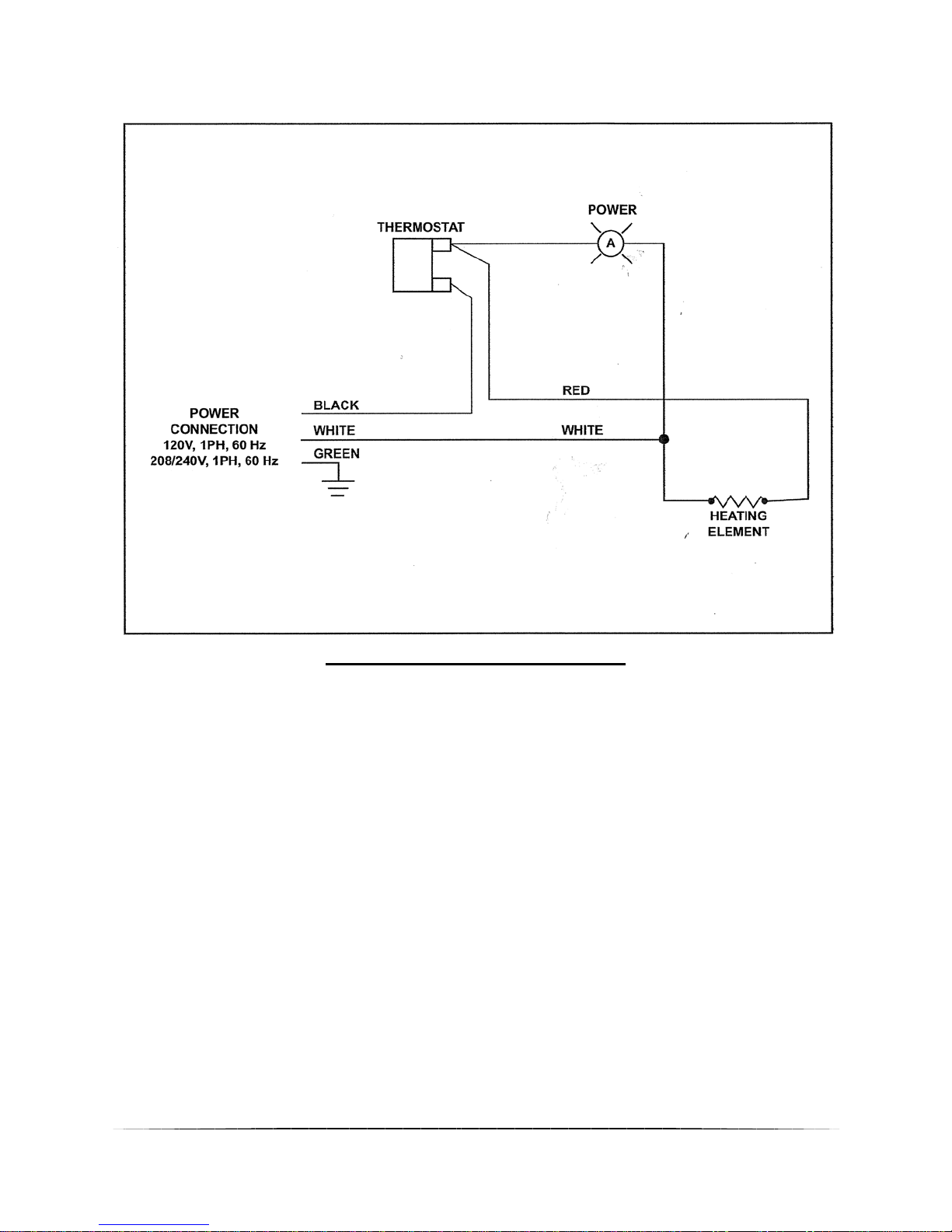

NEMA 6-15 plug. Refer to wiring
diagrams in the back of this manual.
The cord and plug supplied is a suitable
durable cord with a molded three-prong
plug, and is provided with a proper
strain relief.
All cabinets are
equipped with a three-prong plug. It
is imperative that this plug must be
connected into a properly grounded
three-prong receptacle. If the
receptacle is not the proper

H & T CABINETS F-41013 (03-11)
5
grounding type, contact an
electrician. Do not remove the
grounding prong from this plug.
Verify that the power source
matches the Serial Data Plate located
on the lower back corner of the
cabinet and the plug configuration
before connection is made.
(Fig.2)
OPERATION
CONTROLS
The Cabinet and its parts
are hot. Be very careful when operating,
cleaning, or servicing the cabinet.
POWER FULL-RANGE FAN ON/OFF
INDICATOR THERMOSTAT SWITCH **
LIGHT
THERMOMETER HEAT INDICATOR LIGHT
(Fig. 3)
Power Indicator Light:
The Red Power Indicator Light indicates
power is supplied to the cabinet. The
red light will stay lit as long as the
cabinet is plugged in.
Heat Indicator Light:
The Amber Heat Indicator Light
indicates the heating element(s) are
heating. The amber light will stay lit as
long as the heating element(s) are
engaged. Once the predetermined
temperature is achieved, the heating
element(s) will begin to cycle. During
this period, the amber light will turn on
and off.
Fan On/Off Switch:
** Models manufactured after 2010
The Fan On/Off Switch turns the fan on
only. The use of the fan is optional.
Turn on fan if forced air holding is
desired.
Thermometer:
The Thermometer indicates the interior
temperature of the cabinet.
Thermostat:
The Thermostat turns power on to the
heating element(s). The thermostat
setting is from 1 to 10. The greater the
thermostat setting number, the higher
the temperature. (Fig. 4)
It is recommended that prior to
placing the cabinet in operation, that
it be preheated at the highest
temperature setting for a period of 30
to 45 minutes.

H & T CABINETS F-41013 (03-11)
6
Thermostat
Setting
Approximate
Temperature
1 100⁰F (37⁰C)
2 110⁰F (43⁰C)
3 120⁰F (49⁰C)
4130⁰F (54⁰C)
5 140⁰F (60⁰C)
6150⁰F (66⁰C)
7 160⁰F (71⁰C)
8 170⁰F (77⁰C)
9180⁰F (82⁰C)
10 190⁰F (88⁰C)
(Fig. 4)
OPERATING INSTRUCTIONS
The Cabinet and its parts
are hot. Be very careful when operating,
cleaning, or servicing the cabinet.
Once the cabinet has been connected to
the appropriate power source, the
cabinet is ready for operation. Begin by
turning the thermostat dial to the
number 5. This will cause the heating
element(s) to start heating. Once the
red light is lit, the thermostat dial can be
turned to the desired setting.
When cooking is completed, turn the
thermostat dial to the OFF position.
The operator should always monitor the food product to insure that it remains at
a proper temperature.
CLEANING
Always unplug
electrical power supply before
cleaning.
The Cabinet and its parts
are hot. Be very careful when operating,
cleaning, or servicing the cabinet.
DAILY:
1. Unplug electrical power supply.
2. Allow warmer to cool before
cleaning.
3. Clean the interior of the cabinet
with a mild soap and water.
Never use harsh chemicals or
abrasive pads to clean the cabinet.
4. Rinse and dry with a soft dry
cloth.
5. Clean the exterior of the cabinet
with a clean damp cloth.
HEAVY-DUTY CLEANING:
For heavy-duty cleaning, use warm
water, a degreaser, and a plastic,
stainless steel, or Scotch-Brite pad.
Never rub in a circular motion -- rub
gently in the direction of the steel grain.
Always rinse thoroughly.

H & T CABINETS F-41013 (03-11)
7
STAINLESS STEEL CARE
CLEANING:
Stainless Steel contains 70 – 80% iron,
which will rust if not properly maintained.
Stainless Steel also contains 12 – 30%
chromium, which forms an invisible
passive, protective film that shields
against corrosion.
If the protective film remains intact, the
stainless steel will remain intact.
However, if the film is damaged, the
stainless steel can break down and rust.
PREVENTIVE CARE:
To prevent stainless steel break-
down, follow these steps:
1. Never use any metal tools,
scrapers, files, wire brushes,
or scouring pads (except for
stainless steel scouring pads,)
which will mar the surface.
2. Never use steel wool – which
will leave behind particles that will
rust.
3. Never use acid-based or
chloride containing cleaning
solutions – which will break
down the protective film.
4. Never rub in a circular motion.
Always rub gently in the direction
of the steel grain.
5. Never leave any food products
or salt on the surface. Many
foods are acidic. Salt contains
chloride.
PRESERVING & RESTORING:
Special stainless steel polishing
cleaners can preserve and restore the
protective film.
Preserve the life of stainless steel with a
regular application of a high-quality
stainless steel polishing cleaner, as a
final step to daily cleaning.
If signs of breakdown appear, restore
the stainless steel surface. First,
thoroughly clean, rinse, and dry the
surface. Then, on a daily basis, apply a
high-quality stainless steel polish
according to manufacturer’s instructions.
HEAT TINT:
Darkened areas, called “heat tint,” may
appear on stainless steel exposed to
excessive heat. Excessive heat causes
the protective film to thicken. This is
unsightly, but is not a sign of permanent
damage.
To remove heat tint, follow the routine
cleaning procedure. Stubborn heat tint
will require heavy-duty cleaning.
To reduce heat tint, limit the exposure of
equipment to excessive heat.
MAINTENANCE
The Cabinet and its
parts are HOT. Be very careful when
operating, cleaning, or servicing the
cabinet.
Always unplug
electrical power supply before
servicing the cabinet.

H & T CABINETS F-41013 (03-11)
8
LOCKOUT / TAGOUT PROCEDURE
Always perform the LOCKOUT / TAGOUT
Procedure before removing any sheet metal panels or
attempting to service this equipment.
The Lockout / Tagout Procedure is used to protect personnel working on an electrical
appliance. Before performing any type of maintenance or service on an electrically
operated appliance, follow these steps:
1. In electrical box, place unit’s circuit breaker into OFF position.
2. Place a lock or other device on electrical box cover to prevent someone from
placing circuit breaker ON.
3. Place a tag on electrical box cover to indicate that unit has been disconnected for
service and power should not be restored until tag is removed by maintenance
personnel.
4. Disconnect unit power cord from electrical outlet.
5. Place a tag on cord to indicate that unit has been disconnected for service and
power should not be restored until tag is removed by maintenance personnel.

H & T CABINETS F-41013 (03-11)
9
TROUBLESHOOTING
SYMPTOMS
POSSIBLE CAUSES
REMEDY
Cabinet not operating
Cabinet not connected to
power source.
Connect cabinet to power source.
No power.
Check circuit breaker
Check GFCI
Moisture problem.
Dry moisture problem.
GFCI or Ground Fault
Circuit Indicator tripped
Shorted element
Contact Authorized Service
Provider.
Pinched/damaged wire.
Contact Authorized Service
Provider.
Damaged power cord.
Contact Authorized Service
Provider.
Defective: element,
thermometer, thermostat,
etc.
Contact Authorized Service
Provider.
Cabinet is connected to
power source, switch is
ON, circuit breaker is ON,
but cabinet is not heating.
Light faulty
Contact Authorized Service
Provider.
Power/Heat Indicator
Light not lit.
Door not shut properly or
needs adjustment
Check door seal and Contact
Authorized Service Provider.
Cabinet does not heat
properly
Defective: element,
thermometer, thermostat,
thermostat requires
adjustment
Contact Authorized Service
Provider.
Fan not operating
ON/OFF switch not ON
Turn ON/OFF switch on
Defective fan
Contact Authorized Service
Provider.
SERVICE & PARTS INFORMATION
To obtain Service and Parts information concerning this model, contact Wittco Service
Department at the address listed on the front cover of this manual or refer to our
website: www.wittco.com for a complete listing of Authorized Service and Parts depots.
Customer Service 1-800-367-8413
Technical Service 1-866-628-0485
Service Parts 1-866-628-0485
When calling for service, have the model number and serial number available.

H & T CABINETS F-41013 (03-11)
10
SPECIFICATIONS
MODEL NO.
HEIGHT
IN *
(mm)
WIDTH
IN
(mm)
DEPTH
IN
(mm)
SHIPPING
WT.
Lb. (kg)
VOLTS
WATTS
AMPS
2-90
71.75"
(1822)
31.75"
(806)
42.75"
(1086)
242#
(110 kg) 120 2000 16.6
2-96
62"
(1575)
51.5"
(1308)
29"
(737)
435#
(197 kg)
120
2000
16.6
2-150
73"
(1854)
61.25"
(1556)
29"
(737)
590#
(268 kg)
120
2000
16.6
1826-5-BC-IS
33.25"
(845)
26.5"
(673)
33.75"
(857)
173
#
(79 kg)
120
1000
8.3
1826-7-BC-IS
39.75"
(1010) 26.5" (673)
33.75"
(857) 198
#
(90 kg) 120 1000 8.3
1826-13-BC-IS
60.25"
(1531)
26.5"
(673)
33.75"
(857)
270
#
(123 kg)
120
1200
10
1826-15-BC-IS
66"
(1677)
26.5"
(673)
33.75"
(857)
297
#
(135 kg)
120
1200
10
1826-7-DBL-IS
72.5"
(1842)
24.5"
(622)
31.75"
(806)
400#
(182 kg)
120
2000
16.6
1826-7-SCH
37.625"
(956)
23.75"
(584)
30.25"
(781)
195#
(90 kg)
120
1200
10
1826-15-SCH
66"
(1676)
23.75"
(584)
30.25"
(781)
315#
(144 kg)
120
1200
10
580
62.25"
(1582)
24.75"
(629)
38"
(966)
370#
(169 kg)
120
2000
16.7
1220-3-BC
23.5"
(597)
18"
(457)
23.75"
(604)
80#
(36.6 kg)
120
600
5
1220-7-BC
36.75"
(934)
21"
(534)
2
6.75"
(680)
14
0#
(64 kg)
120
600
5
1220-8-BC
31.5"
(800)
18.25"
(464)
25"
(635)
90#
(40.9 kg)
120
600
5
1220-15-BC
60.5"
(1537)
21"
(534)
26.75"
(680)
200#
(91 kg)
120
1200
10
1220-20-BC
61"
(1549)
39.5"
(1003)
29"
(737)
264#
(120 kg)
120
1200
10
*HEIGHT MEASUREMENT INCLUDES 5” CASTERS 2-2011

H & T CABINETS F-41013 (03-11)
11
WIRING DIAGRAMS
Models Manufactured before 2010:
2-90, 2-96, 2-150,
1826-5-BC-IS, 1826-7-BC-IS, 1826-13-BC-IS, 1826-15-BC-IS,
1826-7-SCH, 1826-15-SCH,
1220-15 BC, 1220-20-BC
580

H & T CABINETS F-41013 (03-11)
12
Model Manufactured before 2010
1826-7-DBL-IS

H & T CABINETS F-41013 (03-11)
13
Models Manufactured before 2010
1220-3-BC, 1220-7, 1220-8-BC

H & T CABINETS F-41013 (03-11)
14
Model Manufactured 01/01/2010 THROUGH 01/20/2011
1826-7-DBL-IS

H & T CABINETS F-41013 (03-11)
15
Models Manufactured after 2010
1826-5-BC-IS, 1826-7-BC-IS, 1826-13-BC-IS, 1826-15-BC-IS
1826-7-SCH, 1826-15-SCH
1220-7-BC, 1220-15-BC
Model Manufactured after 01/20/2011
1826-7-DBL-IS
