WMF 9000F User manual

Series 9011 33 4340 4010 10.2019
User Manual
00.00.000
Grounds separator English

2User Manual Grounds separator WMF9000 F
|
Congratulations on your purchase of your
WMFGrounds separator.
This grounds separator for WMFcoffee machines for
quantity brewing (e.g. WMF9000 F) separates coffee
grounds from rinsing water before the water flows into
the drainage pipes. The coffee grounds are collected in
agrounds container enabling easy disposal.
Follow the User Manual
> Read the User Manual carefully prior to use.
> Please refer to the User Manual, paying
special attention to the safety instructions
and Safety chapter.
> Follow the warning instructions on the coffee
machine and the device.
> Ensure that the staff and all users have access
to the User Manual.
Hazard to life due
to electrical shock
• The voltage inside the device and the coffee
machine is ahazard to life.
> Never open the housing.
> Never loosen the screws, and do not remove
any housing parts.
Conditions for use and installation
• In the event of failure to comply with
maintenance information and the specifica-
tions in the Technical Data chapter, no
liability is accepted for any resultant damage.
> Follow the User Manual.
> Maintenance and repair work may be
performed only by the WMFService, using
original spare parts.
CAUTION
Follow the User Manual signs
andsymbols
wpage 13
Follow the Safety chapter
wstarting on page 4
WARNING
Follow the Safety chapter
wstarting on page 4
IMPORTANT
Technical data
wstarting on page 27
Maintenance
wpage 21
Introduction and general information

3
User Manual Grounds separator WMF9000 F
Table of Contents
Table of Contents 3
1 Safety 4
1.1 General safety instructions 4
1.2 Intended use 9
1.3 Conditions for use and installation 11
2 Introduction 12
2.1 Parts of the coffee machine 12
Glossary .........................................................................14
3 Operation 15
3.1 Operation safety instructions 15
3.2 Switch on the grounds separator 15
3.3 Full message 16
3.4 Empty grounds container 16
3.5 Switch off grounds separator 18
3.6 Shut down the machine - Shutofffor several days 18
4 Care 19
4.1 Clean the grounds separator 19
Weekly cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5 Maintenance and service 21
5.1 Maintenance 21
5.2 WMFService 21
6 Messages and instructions 22
6.1 Operating faults 22
7 Safety and warranty 23
7.1 Hazards to the machine 23
7.2 Directives 24
7.3 Duties of the owner/operator 25
7.4 Warranty claims 26
Appendix: Technical data 27
Technical data: Grounds separator 27
Appendix: Accessories and spare parts 30
Index 31
Table of Contents

4User Manual Grounds separator WMF9000 F
Safety
1 Safety
Misuse
• Failure to follow the safety
instructions can result in death or
serious injury.
> Follow all the safety instructions.
1.1 General safety instructions
Hazards to the operator
At WMF, safety is one of the most essential
product features. The effectiveness of the
safety devices can only be ensured if the
following points are observed:
> Do not touch hot device
components.
> Do not use the device if it is not
working properly or if it is damaged.
> Use the device only when it is
completely assembled.
> Read the User Manual carefully
prior to use.
> Always ensure the electrical mains
switch outside the coffee machine
is switched off. Make sure the mains
plug is unplugged at the end of
each service day.
WARNING
Intended use
wstarting on
page9
CAUTION

5
User Manual Grounds separator WMF9000 F
Safety
> In the event of amalfunction,
contact WMFCustomer Service.
> Do not use device outdoors.
> The coffee machine must be
switched off before the grounds
separator is cleaned.
> Built-in safety devices must never
be altered.
> This device can be used by children
of age 8years or older while under
continuous supervision, as well as
by persons with reduced physical,
sensory, or mental capabilities or
lack of experience or knowledge,
once they have been instructed in
the safe use of the machine and the
risks associated with it.
> Children must not play with the
device.
> Cleaning and user maintenance
must not be performed by children.
> Do not spray the housing of the
device with the water hose or steam
jet device.
CAUTION

6User Manual Grounds separator WMF9000 F
Safety
Despite the presence of safety devices, the
grounds separator is apotential hazard
if used improperly. Please observe the
following instructions when using the
device so as to prevent injury and health
hazards:
Hazard to life due
to electrical shock
• The voltage inside the device is
ahazard to life.
> Never open the housing.
> Never loosen the screws, and do not
remove any housing parts.
> Never use adamaged power cord.
> Avoid damage to the power cord.
Do not kink or crush it.
> Never immerse the mains plug
in water or other liquids, or pour
water or other liquids over the
mains plug. Always keeps the mains
plug dry.
WARNING

7
User Manual Grounds separator WMF9000 F
Safety
Burn hazard/scalding hazard
• When cleaning, agrounds container
must be placed in the grounds
separator.
• The grounds collected in the
grounds container are hot.
• The hot rinsing water from the
coffee machine poses aburn hazard
in the grounds separator.
> Never reach into the grounds
separator while cleaning the coffee
machine.
> Always use the carry aids on the
grounds container provided for this
purpose.
CAUTION

8User Manual Grounds separator WMF9000 F
Safety
Health hazard/
irritation and scalding hazard
• Cleaning fluid runs out of the
flexible line when cleaning.
Thismust be safely disposed of.
• Hot liquids can irritate the skin, and
the heat poses ascalding hazard.
• The grounds container may contain
hot liquid or hot coffee grounds.
> Never reach into the grounds
separator when cleaning the coffee
machine.
> Ensure that no one ever drinks the
cleaning solution.
Slipping hazard
• Fluids can be discharged from
the grounds separator if used
improperly or if errors occur. These
fluids can cause aslipping hazard.
> Regularly check the grounds
separator for leaks, and make sure
no water is coming out.
CAUTION
CAUTION

9
User Manual Grounds separator WMF9000 F
Safety
1.2 Intended use
Misuse
• If the device is used other than as
intended, this could lead to arisk of
injury.
> The grounds separator must be used
as intended.
• The WMFGrounds separator is designed for separating coffee
grounds from the rinsing water before it flows into the
drainage pipes.
• This machine is intended for large-scale service in hotels,
restaurants, and similar locations. The machine may be
operated only by specialist personnel.
Installation location
• The device must be placed and leveled on ahorizontal, sturdy,
water-resistant, and heatproof base.
• The device must not be cleaned using awater jet. The device
must be installed where it is protected against water spray.
• The device must not be located on asurface that is sprayed or
cleaned with awater hose, steam jets, steam cleaner, or similar
devices.
WARNING

10 User Manual Grounds separator WMF9000 F
Safety
Drain connection
• Pipe or hose with at least 1½" (DN40) and aminimum gradient
of 2cm/m.
• Use an original WMFsiphon 33 2163 2000as an anti-odour
seal.
Ambient temperature
• Ambient temperature +5°C to amaximum of +35°C
Usage
• Use of the device is subject to the instructions in this User
Manual and those for the coffee machine to which the unit is
connected.
Any other use or use that goes beyond the aforementioned is
considered incorrect use. The manufacturer shall not be liable
for any damage resulting from this.
• Under no circumstances should the WMFGrounds separator
for the 9000 F be used to separate water from substances
other than coffee grounds.

11
User Manual Grounds separator WMF9000 F
Safety
1.3 Conditions for use and installation
Risk of fire and accidents
> The conditions for installation and
use must be met.
> The conditions for use and
installation listed in the “Technical
Data” chapter must be met.
Any necessary on-site preparatory work for the drainage
connection at the customer‘s premises must be arranged by
the machine owner/operator. The work must be carried out by
authorised installation technicians in compliance with general,
country-specific and local regulations.
The WMFService engineers may only connect the coffee
machine to existing prepared connection points. WMFService is
neither authorised nor responsible for carrying out any on-site
installation work prior to connection.
The device must only be connected and commissioned by
WMFService.
WARNING
Technical data
wstarting on
page27

12 User Manual Grounds separator WMF9000 F
Introduction | Parts of the coffee machine
2 Introduction

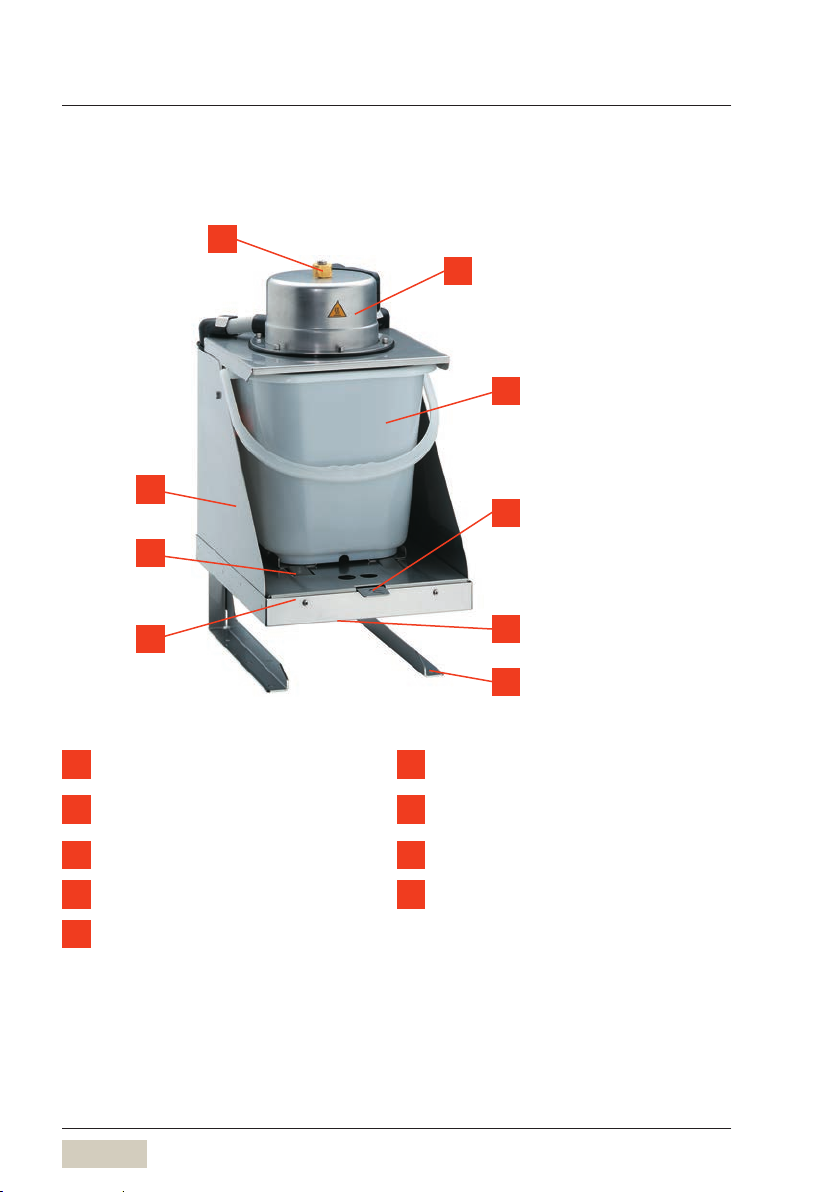

2.1 Parts of the coffee machine
8
1
4
9
2
3
5
6
7
1Infeed rinsing 6Height adjustable feet
2Pre-drainage
with insert and rinsing nozzle 7Catch pan
3Grounds container with sieve insert 8Grid
4Release lever 9Housing
5Drain

13
User Manual Grounds separator WMF9000 F
Introduction

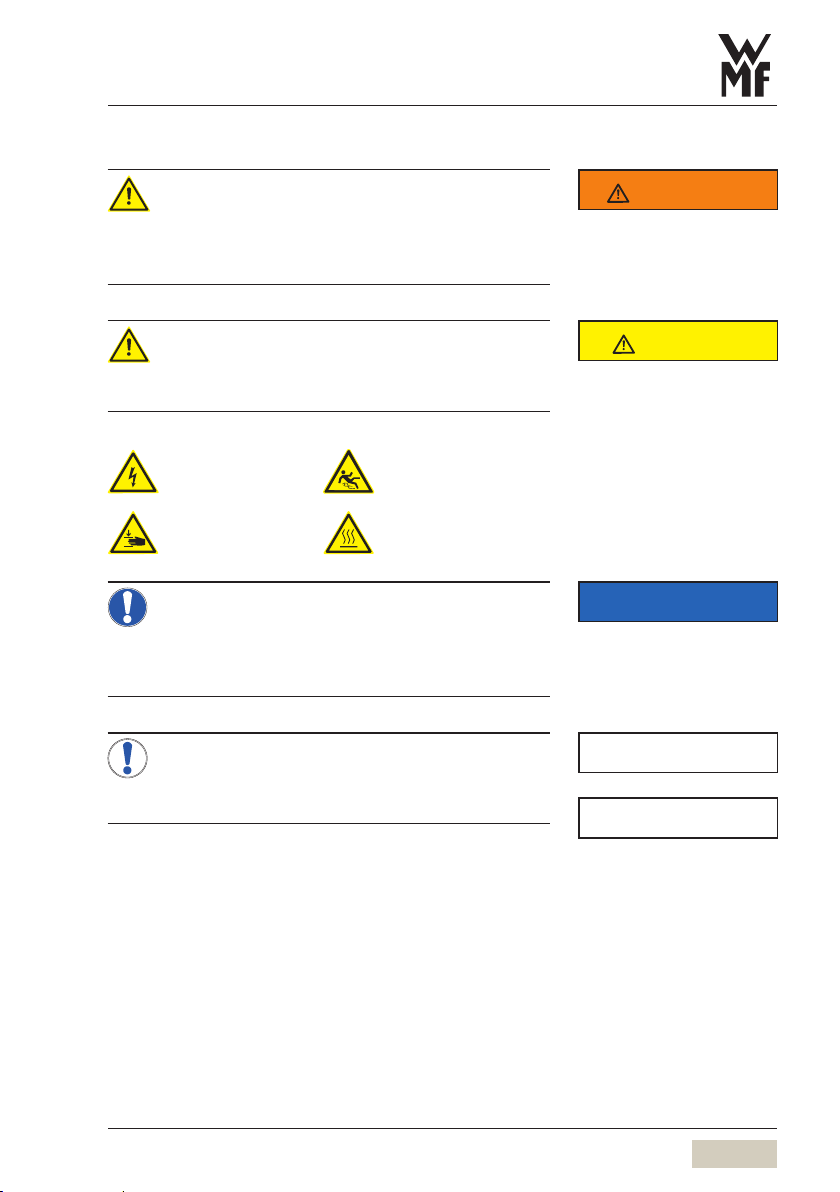

User Manual Signs and Symbols
Personal injury safety instructions
If the safety instructions are not followed, this
could lead to mild to severe injury in case of
improper use.
Personal injury safety instructions
If the safety instructions are not followed, this
could lead to mild injury in case of improper use.
Electrical shock Slipping hazard
Bruising or
crushing hazard Hot surfaces
Notice of property damage
• for the grounds separator
• to the installation location
> Always follow the User Manual.
Note/tip
• Instructions for safe use and tips for easier
operation.
WARNING
Follow the Safety chapter
wstarting on page 4
CAUTION
Operation safety instructions
wpage 15
Care safety instructions
wpage 19
Follow the Safety chapter
wstarting on page 4
IMPORTANT
Follow the Warranty chapter
wstarting on page 26
Technical data
wstarting on page 27
NOTE
TIP

14 User Manual Grounds separator WMF9000 F
Introduction
Glossary
Term Explanation
• • Listings, selection options
  Individual steps
Text in italics Description of coffee machine state and/or explanations of
automatic steps.
Coffee grounds Used coffee grounds
Rinsing Intermediate cleaning

15
User Manual Grounds separator WMF9000 F
Operation | Operation safety instructions
3 Operation
3.1 Operation safety instructions
Burn hazard/scalding hazard
• The grounds collected in the grounds
container are hot.
> Always use the carry aids on the grounds
container provided for this purpose.
Note
• Water or coffee grounds residues may remain
on the bottom of the grounds container.
> Do not place the grounds container on
surfaces which attract dirt, such as carpets.
> Move the grounds container with care.
3.2 Switch on the grounds separator
The grounds separator is ready for operation as soon as
the coffee machine is switched on.

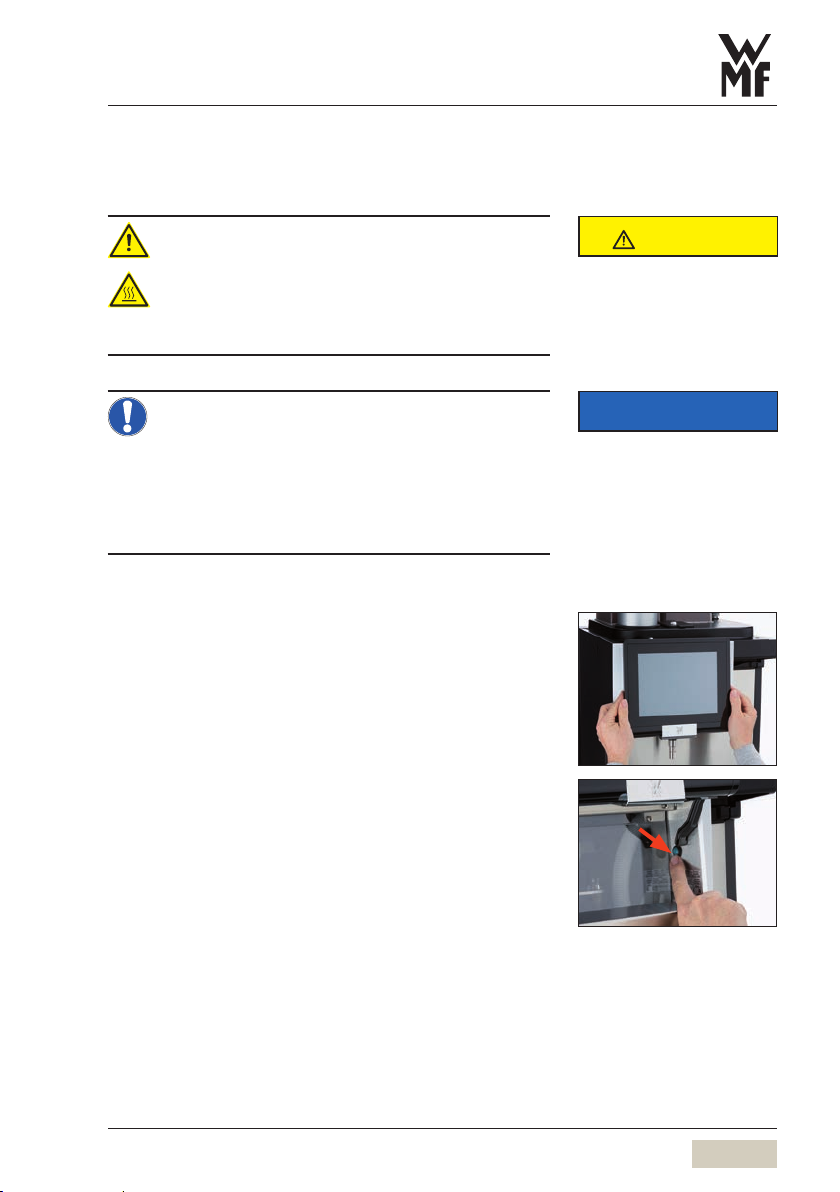

 Slide the operating panel of the coffee machine
upwards
The ON/OFF switch is on the right-hand side, behind
the operating panel.
 Press the ON/OFF switch until asignal sounds
CAUTION
Follow the Safety chapter
wstarting on page 4
IMPORTANT
Switch on the coffee machine
wUser Manual for coffee machine

16 User Manual Grounds separator WMF9000 F
Operation | Full message
3.3 Full message
A sensor in the grounds separator can detect
• whether agrounds container is in use,
• whether the grounds container is full.
These messages will be displayed on the coffee
machine display.
 Follow the instructions in the User Manual for
coffee machine
 Regularly monitor the fill level of the grounds
container, empty it regularly
• Replacing without emptying will result in the
coffee grounds container being overfilled.
Thecoffee machine will be soiled. This may
cause subsequent damage to the machine.
> Always empty the grounds container before
replacing.
3.4 Empty grounds container
Burn hazard
• The grounds collected in the grounds
container are hot.
> Always use the carry aids on the grounds
container provided for this purpose.
• After the last brewing, leave the grounds
container to rest for afurther 5minutes to
allow the remaining water to drain off.
• Water or coffee grounds residues may remain
on the bottom of the grounds container.
> Do not place the grounds container on
surfaces which attract dirt, such as carpets.
> Move the grounds container with care.
9178
Grounds container empty?
Software for grounds separator
wUser Manual for coffee machine
IMPORTANT
CAUTION
Follow the Safety chapter
wstarting on page 4
NOTE
IMPORTANT

17
User Manual Grounds separator WMF9000 F
Operation | Empty grounds container
• Replacing without emptying will result in the
coffee grounds container being overfilled.
Thecoffee machine will be soiled. This may
cause subsequent damage to the machine.
> Always empty the grounds container before
replacing.
• If the coffee machine is working to full
capacity, we recommend to use asecond
grounds container. This avoids interruptions
to operation when needing to clean and
empty the grounds container.
 Briefly raise the retaining lever
 Remove the grounds container from the housing
The coffee grounds can now be disposed of.
Coffee preparation is automatically locked after the
container is removed.
 Replace emptied grounds container into the housing
 On the coffee machine display confirm that the
grounds container has been placed
IMPORTANT
IMPORTANT
Empty the grounds separator
wUser Manual for coffee machine

18 User Manual Grounds separator WMF9000 F
Operation | Switch off grounds separator
3.5 Switch off grounds separator
 Switch off the coffee machine
This also switches off the grounds separator.
• Carry out aclean before the coffee machine
and grounds separator are switched off.
3.6 Shut down the machine -
shutofffor several days
 Before shutting down the coffee machine and
grounds separator for alonger period of time, clean
the pre-drainage insert, and grounds container with
sieve insert, grid and catch pan
 Rinse the anti-odour seal of the catch pan with
plenty of clear water
 If operation of the grounds separator is Shut off
for several weeks, we recommend cleaning the
pre-drainage sieve and grounds container sieve
before resuming operation of the grounds separator
IMPORTANT
Clean the grounds separator
wstarting on page 19
Clean the grounds separator
wstarting on page 19

19
User Manual Grounds separator WMF9000 F
Care | Clean the grounds separator
4 Care
4.1 Clean the grounds separator
To ensure hygienic operation, clean the grounds
separator regularly.
 Clean the WMFcoffee machine in accordance with
the instructions in the User Manual for coffee
machine
 Switch off the coffee machine, then clean the
grounds separator
Burn hazard/scalding hazard
• While cleaning your WMFcoffee machine, the
grounds container is rinsed with hot water.
• When cleaning, always make sure there is
an empty grounds container in the grounds
separator.
Clean the coffee machine
wUser Manual for coffee machine
CAUTION
IMPORTANT

20 User Manual Grounds separator WMF9000 F
Care | Clean the grounds separator

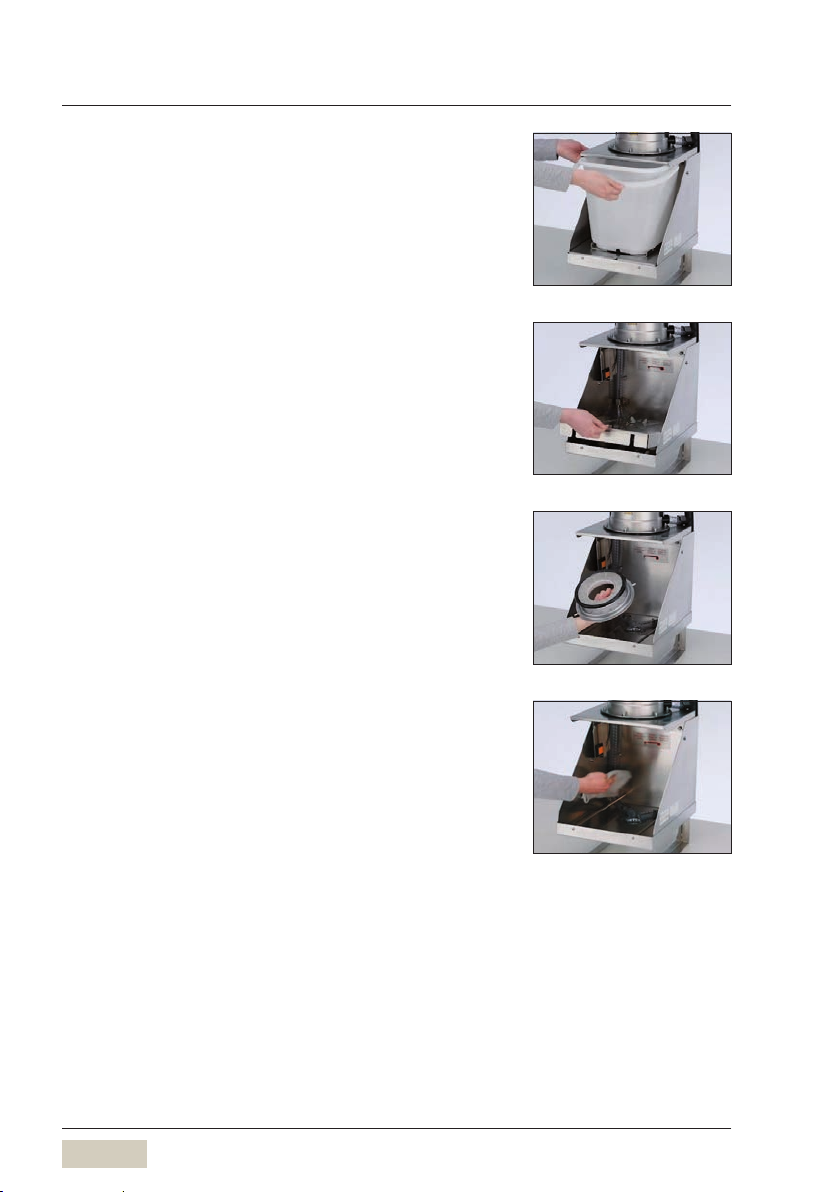

Weekly cleaning
The sieve insert of the grounds container, the
pre-drainage sieve, and the grounds container itself
must be cleaned once per week.
 Briefly raise the retaining lever
 Remove the grounds container from the housing
and emty it
 In the sieve insert, turn the middle screw
counter-clockwise
 Remove the sieve insert from the grounds container
by pulling it out upwards
 Raise the grid slightly to the front and pull it out
upwards
 Rinse both parts with hot water or clean them in
adishwasher
 Remove the insert for pre-drainage and rinse with
clear water
 Using hot water and adamp cloth, wipe the inside
of the housing
This prevents aheavy build-up of odours and mould.
 Replace the insert for pre-drainage
 Load the sieve insert into the grounds container and
tighten clockwise
 Insert the grid
 Replace the grounds container
Remove grounds container
Remove grid
Remove pre-drainage sieve
Clean the housing
