Wolf ML-136758 Manual

CATALOG OF
REPLACEMENT PARTS
GAS CONVECTION
OVENS
WKG ML-126620
WKGD ML-126621
WKGC ML-126622
WKGX ML-126623
WKGDX ML-126624
WKGDX ML-126625
WLGO ML-136758
For additional information on Wolf Range or to locate an authorized parts
and service provider in your area, visit our website at www.wolfrange.com
WOLF RANGE
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.WOLFRANGE.COM
P.O. BOX 696, LOUISVILLE, KY 40201-0696
TEL. [phone]
FORM 43033 Rev D (July 2008)

- 2 -
GAS CONVECTION OVENS REPLACEMENT PARTS
OVEN PANELS
15
14
26
23-24-25
27-28
11-12
21-22
17 THRU 20
13
16
1
2
4
5
9-10
PL-55982
29 THRU 32
34-35
3
6
7-8
33

- 3 -
GAS CONVECTION OVENS REPLACEMENT PARTS
OVEN PANELS
ILLUS. PART NO. NAME OF PART AMT.
PL-55982
1 00-424840-00002 Panel – Back (SST) (Optional) ...................................................................................................1
2 00-424153-000G1 Back – Panel Assy. .................................................................................................................... 1
3 00-405016-00001 Cord – Electric Supply (120 V. Only) ......................................................................................... 1
4 00-423289-000G1 Motor Mount ................................................................................................................................ 1
5 00-411289-00004 Spacer – Fan Housing ................................................................................................................ 4
6 SC-120-15 Mach. Screw 1/4-20 x 4 Rd. Hd. ................................................................................................. 4
7 00-411136-00004 Fan – Cover (60 Hz.) ................................................................................................................. 1
8 00-411136-00003 Fan – Cover (50 Hz.) ................................................................................................................. 1
9 00-415780-00003 Wheel – Blower (60 Hz.) ........................................................................................................... 1
10 00-415780-00005 Wheel – Blower (50 Hz.) ........................................................................................................... 1
11 WS-029-46 Washer ....................................................................................................................................... 4
12 NS-046-86 Nut Assy. 5/16-18 KEPS Hex ........................................................................................................ 4
13 00-358723-00001 Spacer – Steel ............................................................................................................................ 2
14 SC-113-65 Cap Screw 5/16-18 x 11/4Hex Hd. ............................................................................................... 4
15 WS-029-46 Washer ....................................................................................................................................... 4
16 FE-002-52 Connector – Conduit 3/8TS (90 Deg.) ........................................................................................ 1
17 FE-006-05 Lock Nut 1/2................................................................................................................................. 1
18 00-414540-00B35 Conduit 3/8x 35 Lg. ..................................................................................................................... 1
19 00-342285-00001 Bushing – Plastic ........................................................................................................................ 2
20 FE-002-03 Connector – Conduit 3/8TS Straight ............................................................................................ 1
21 00-358516-00001 Motor 1/2Hp. (2 Speed) (115/50/60/1) ........................................................................................ 1
22 00-358516-00002 Motor 1/2Hp. (2 Speed) (208-240/50/60/1) ................................................................................ 1
23 00-411496-000F1 Switch – Micro ........................................................................................................................... 1
24 NS-038-08 Lock Nut 1/4-20 Hex .................................................................................................................... 2
25 WS-029-49 Washer ....................................................................................................................................... 2
26 00-425324-00001 Bracket – Door Switch ............................................................................................................... 1
27 00-411265-00011 Rack Assy. (WKG, WKGD, WKGC) .......................................................................................... AR
28 00-411265-00010 Rack Assy. (WKGX, WKGDX, WKGCX) .................................................................................. AR
29 00-357036-00001 Oven Lamp (40 W.) (120-130 V.) .............................................................................................. 2
30 00-357036-00002 Oven Lamp (40 W.) (250 V.) ......................................................................................................2
31 00-423832-00001 Cover – Light (Metal) .................................................................................................................. 2
32 00-357036-00003 Lens – Lamp (Glass) ................................................................................................................. 1
33 00-417856-00001 Lug – Grounding (With Set Screw) ........................................................................................... 1
34 00-424140-00002 Panel – Outer (RH) (SST) (WKG, WKGD, WKGC) ..................................................................... 1
00-424140-00005 Panel – Outer (RH) (Aluminized) (WLGO) ................................................................................. 1
35 00-424228-00002 Panel – Outer (RH) (SST) (WKGX, WKGDX, WKGCX) ............................................................. 1
00-427617-00001 Flue – Deflector Assy. ................................................................................................................ 1
00-413627-000G1 Tube – Snorkel Assy. ................................................................................................................. 1
00-402558-00004 Clip – Bulb ................................................................................................................................... 2
00-346358-00002 Thermostat (High Limit) (With Mounting Plate) ........................................................................... 1
00-346357-00001 Thermostat (High Limit) .............................................................................................................. 1

- 4 -
GAS CONVECTION OVENS REPLACEMENT PARTS
DOOR ASSEMBLY
(SIMULTANEOUSLY OPENING DOORS)
1 THRU 4
5-6
7
8-9
10-11
18
19 21-22
23
24
25-26
27
28-29
30
20
14 THRU 17
PL-55983-A
12-13
33
31
32
34
34

- 5 -
GAS CONVECTION OVENS REPLACEMENT PARTS
DOOR ASSEMBLY
(SIMULTANEOUSLY OPENING DOORS)
ILLUS. PART NO. NAME OF PART AMT.
PL-55983-A
1 00-356562-00001 Handle – Door ............................................................................................................................. 1
2 00-356563-00001 Grip – Front ................................................................................................................................1
3 00-356563-00002 Grip – Rear ................................................................................................................................. 1
4 SC-113-98 Mach. Screw 10-24 x 1/2Hex Washer Hd. ................................................................................ 3
5 SC-041-01 Cap Screw 1/4-20 x 3/4Hex Hd. (SST) ........................................................................................ 4
6 WL-019-37 Lockwasher 1/4Light .................................................................................................................. 4
7 00-356550-00001 Latch – Friction ........................................................................................................................... 1
8 00-421913-00002 Shell – Outer Door (RH) (W/O Window) .................................................................................... 1
00-421913-00004 Shell – Outer Door (LH) (W/O Window) .................................................................................... 1
9 00-421913-00001 Shell – Outer Door (RH) (W/Window) ....................................................................................... 1
00-421913-00003 Shell – Outer Door (LH) (W/Window) ........................................................................................ 1
10 00-421904-000G1 Frame Assy. – Door (LH) ........................................................................................................... 1
11 00-421905-000G1 Frame Assy. – Door (RH) ........................................................................................................... 1
12 00-424163-00001 Lever – Door Switch .................................................................................................................. 1
13 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 1
14 00-499289-000G1 Door Assy. (LH) (W/Window) (Chain Door) (New Style) .................................................. 1
00-424730-00001 Door Assy. (LH) (W/Window) (Chain Door) (Old Style) ............................................................ 1
15 00-499289-000G2 Door Assy. (LH) (W/O Window) (Chain Door) (New Style) .............................................. 1
00-424730-00002 Door Assy. (LH) (W/O Window) (Chain Door) (Old Style) ........................................................ 1
16 00-499290-000G1 Door Assy. (RH) (W/Window) (Chain Door) (New Style) .................................................. 1
00-424731-00001 Door Assy. (RH) (W/Window) (Chain Door) (Old Style) ........................................................... 1
17 00-499290-000G2 Door Assy. (RH) (W/O Window) (Chain Door) (New Style) .............................................. 1
00-424731-00002 Door Assy. (RH) (W/O Window) (Chain Door) (Old Style) ........................................................ 1
18 SD-034-62 Self-Tapping Screw 10-32 x 1/2Hex Washer Hd., Type T ........................................................ 4
19 00-358534-00001 Window Assy. ............................................................................................................................ 1
20 SD-034-22 Mach. Screw 10-32 x 1/2Phil. Pan Hd. ....................................................................................... 9
21 00-358532-00001 Shell – Inner Door (RH & LH) (W/Window) ................................................................................ 1
22 00-358533-00003 Shell – Inner Door (RH & LH) (W/O Window) ............................................................................ 1
23 00-343143-00002 Washer ....................................................................................................................................... 2
24 00-347080-00002 Bearing – Door Shaft ................................................................................................................. 2
25 00-343608-00002 Door Chain & Turnbuckle Assy. ................................................................................................. 2
26 00-352667-00001 Cable – Door Stop ...................................................................................................................... 1
27 PS-004-11 Spiral Pin 3/16 x 11/4Heavy ........................................................................................................... 2
28 00-342166-00001 Sprocket – Door Shaft ................................................................................................................ 2
29 SC-047-28 Set Screw 1/4-28 x 3/8Hex Hdls., Cup Pt. ................................................................................... 2
30 00-347080-00002 Bearing – Door Shaft ................................................................................................................. 2
31 SC-022-40 Mach. Screw 1/4-20 x 3/4Phil. Flat Hd. ........................................................................................ 4
32 SC-113-90 Mach. Screw 1/4-20 x 3/4Hex Hd. ............................................................................................... 2
33 00-499300-000G1 Channel – Door Sill Weldment (Chain) (New Style) ........................................................ 1
00-357846-00001 Channel – Door Sill Weldment (Old Style) .................................................................................. 1
34 SC-117-73 Screw, Roller Latch, Plate ......................................................................................................... 2

- 6 -
GAS CONVECTION OVENS REPLACEMENT PARTS
DOOR ASSEMBLY
(INDEPENDENTLY OPENING DOORS)
PL-55984-A1
7-8
9-10
11-12
17
18
23
24
22
25
26
27
19
4-5-6
13 THRU 16
20-21
1
28
2-3
5
6
29
New
4
Mounted to Upper
“C” Channel
See Page 2
Old Style
Mounted to
Door
30
6
5
New
32
31

- 7 -
GAS CONVECTION OVENS REPLACEMENT PARTS
DOOR ASSEMBLY
(INDEPENDENTLY OPENING DOORS)
ILLUS. PART NO. NAME OF PART AMT.
PL-55984-A1
1 00-357929-00001 Handle – Door (Black) ................................................................................................................ 1
2 SC-041-01 Cap Screw 1/4-20 x 3/4Hex Hd. (SST) ........................................................................................ 2
3 WL-019-37 Lockwasher 1/4Light .................................................................................................................. 2
400-497585-00001 Strike Plate (New Style) (Attaches to Upper “C” Channel) (See Pg. 16) .................... 2
00-423847-00001 Strike – Door (Old Style) (Mounted to Door) .............................................................................. 1
5 SC-117-73 Mach. Screw .............................................................................................................................. 4
6 WL-019-35 Lockwasher ............................................................................................................................... 4
7 00-358600-00001 Shell – Outer Door (RH & LH) (W/Window) ............................................................................... 1
8 00-358600-00002 Shell – Outer Door (RH & LH) (W/O Window) (Not Shown) ..................................................... 1
9 00-421905-000G1 Frame Assy. – Door (RH) ........................................................................................................... 1
10 00-421904-000G2 Frame Assy. – Door (LH) ........................................................................................................... 1
11 00-424163-00001 Lever – Door Switch .................................................................................................................. 1
12 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 1
13 00-499285-000G1 Door Assy. (LH) (W/Window) (Independent Doors) (New Style) .................................. 1
00-358529-00005 Door Assy. (LH) (W/Window) (Independent Doors) (Old Style) ............................................... 1
14 00-499285-000G2 Door Assy. (LH) (W/O Window) (Independent Doors) (New Style) .............................. 1
00-358529-00006 Door Assy. (LH) (W/O Window) (Independent Doors) (Old Style) ........................................... 1
15 00-499286-000G1 Door Assy. (RH) (W/Window) (Independent Doors) (New Style) .................................. 1
00-358530-00003 Door Assy. (RH) (W/Window) (Independent Doors) (Old Style) ............................................... 1
16 00-499286-000G2 Door Assy. (RH) (W/O Window) (Independent Doors) (New Style) .............................. 1
00-358530-00004 Door Assy. (RH) (W/O Window) (Independent Doors) (Old Style) ........................................... 1
17 SD-034-62 Self-Tapping Screw 10-32 x 1/2Hex Washer Hd., Type T ........................................................ 4
18 00-358534-00001 Window Assy. ............................................................................................................................ 1
19 SD-034-22 Mach. Screw 10-32 x 1/2Phil. Pan Hd. ....................................................................................... 8
20 00-358532-00001 Shell – Inner Door (RH & LH) (W/Window) ................................................................................ 1
21 00-358533-00003 Shell – Inner Door (RH & LH) (W/O Window) ............................................................................ 1
22 PS-004-11 Spiral Pin 3/16 x 11/4Heavy ........................................................................................................... 1
23 00-347080-00002 Bearing – Door Shaft ................................................................................................................. 1
24 00-343143-00002 Washer ....................................................................................................................................... 2
25 00-499263-00001 Door Stop (New Style) ........................................................................................................... 1
00-424158-00001 Door Stop (Old Style) .................................................................................................................. 1
26 SC-113-90 Mach. Screw 1/4-20 x 3/4Hex Hd. ............................................................................................... 2
27 SC-022-40 Mach. Screw 1/4-20 x 3/4Phil. Flat Hd. ........................................................................................ 4
28 00-499262-00001 Channel – Door Sill Weldment (New Style) ....................................................................... 1
00-357846-00001 Channel – Door Sill Weldment (Old Style) .................................................................................. 1
29 00-499264-00001 Cover, Cutout .............................................................................................................................. 1
30 00-497586-00001 Roller Latch (New Style) (Mounted to Top of Doors) ..................................................... 2
00-347545-00001 Roller Ball Door Latch (Old Style) (Mounted to “C” Channel) .................................................... 1
31 00-357837-00001 Door End Seal (LH Door) ............................................................................................................ 1
32 SC-113-78 Mach. Screw .............................................................................................................................. 3
00-423848-00001 Shim – Door Strike .................................................................................................................... AR
NOTE: When ordering items 7 or 8 for an old style oven, 2 of part 499264-1, 4 of part SC-117-73 and
4 of part WL-019-35 are also needed.

- 8 -
GAS CONVECTION OVENS REPLACEMENT PARTS
GAS PIPING AND FLAME CHAMBER
30-31
16 15
17 THRU 26
28
29
27
2
1
14
10
11-12
9
8
PL-55985
4-5
3
6
7
13

- 9 -
GAS CONVECTION OVENS REPLACEMENT PARTS
GAS PIPING AND FLAME CHAMBER
ILLUS. PART NO. NAME OF PART AMT.
PL-55985
1 00-423819-00003 Pipe – Weldment Gas Inlet ......................................................................................................... 1
2 00-423828-00001 Tube – Flex (30") (Prior to March 15, 2005) .............................................................................. 1
00-423828-00006 Tube – Flex (30" LG 3/8MPT) ( March 15, 2005 to Present) ..................................................... 1
3 00-425433-00001 Fan – Clip .................................................................................................................................... 1
4 00-424940-00001 Fan – Cooling (120 V.) ............................................................................................................... 1
5 00-424940-00002 Fan – Cooling (230 V.) ............................................................................................................... 1
6 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 2
7 00-423820-00001 Deflector – Air ............................................................................................................................ 1
8 FP-013-17 Elbow – Street 1/2x 90 Deg. ....................................................................................................... 2
9 SC-113-80 Cap Screw 1/4-20 x 1/2Hex Hd. .................................................................................................. 4
10 00-424728-00001 Bracket – Gas Valve .................................................................................................................. 1
11 00-410841-00018 Valve – Gas Control (NAT) (Prior to March 15, 2005) ............................................................... 1
00-497269-00001 Valve – Gas Control (NAT) (March 17, 2005 to Present) ......................................................... 1
12 00-410841-00019 Valve – Gas Control (PRO/BUT) (Prior to March 15, 2005) ...................................................... 1
00-497269-00002 Valve – Gas Control (PRO/BUT) (March 17, 2005 to Present) ................................................. 1
13 SC-117-60 Mach. Screw 10-32 x 11/4Oval Hd. ........................................................................................... 2
14 00-423828-00002 Tube – Flex (Prior to March 15, 2005) ....................................................................................... 1
00-423828-00007 Tube – Flex (18” LG 3/8MPT) (March 15, 2005 to Present) ..................................................... 1
15 00-424138-00001 Manifold ...................................................................................................................................... 1
16 SC-113-80 Cap Screw 1/4-20 x 1/2Hex Hd. .................................................................................................. 2
17 00-010901-00030 Orifice – Spud (30 Drill) (NAT) (Sea Level to 2000 Ft.) ............................................................. 1
18 00-010901-00032 Orifice – Spud (32 Drill) (NAT) (2000 to 2499 Ft.) ..................................................................... 1
19 00-010901-00034 Orifice – Spud (34 Drill) (NAT) (3500 to 4499 Ft.) ..................................................................... 1
20 00-010901-00035 Orifice – Spud (35 Drill) (NAT) (2000 to 4000 Ft.) ..................................................................... 1
21 00-010901-00036 Orifice – Spud (36 Drill) (NAT) (4000 to 8000 Ft.) ..................................................................... 1
22 00-010901-00037 Orifice – Spud (37 Drill) (NAT) (8500 to 10500 Ft.) ................................................................... 1
23 00-010901-00048 Orifice – Spud (48 Drill) (PRO/BUT) (Sea Level to 2499 Ft.) ..................................................... 1
24 00-010901-00049 Orifice – Spud (49 Drill) (PRO/BUT) (2500 to 4499 Ft.) ............................................................. 1
25 00-010901-00050 Orifice – Spud (50 Drill) (PRO/BUT) (4500 to 7499 Ft.) ............................................................. 1
26 00-010901-00051 Orifice – Spud (51 Drill) (Sea Level to 2000 Ft.) ....................................................................... 1
27 00-417879-00001 Nozzle – Pilot Burner .................................................................................................................. 1
28 SD-034-49 Self-Tapping Screw 8-32 x 1/2Hex Washer Hd., Type T .......................................................... 2
29 00-424194-00001 Ignitor – Flame Detector ............................................................................................................. 1
30 00-424135-000G1 Burner Assy. (WKG, WKGD, WKGC, WLGO) ........................................................................... 1
31 00-424195-000G1 Burner Assy. (WKGX, WKGDX, WKGCX) ................................................................................. 1
00-424191-000G1 Burner Access Cover ................................................................................................................ 1

- 10 -
GAS CONVECTION OVENS REPLACEMENT PARTS
ELECTRICAL COMPONENT PANEL
PL-55986
32-33
38
37
39
40-41
42
44
43
45
46
49
47-48
34-35
36
1-2
12
13
14
15-16
17
18-19
20
22
21
23-24
25
29
28
26-27
3-4
5
6
7-8
9
10-11
30
31

- 11 -
GAS CONVECTION OVENS REPLACEMENT PARTS
ELECTRICAL COMPONENT PANEL
ILLUS. PART NO. NAME OF PART AMT.
PL-55986
1 00-417934-000G1 Block – Porcelain Assy. .............................................................................................................. 1
2 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 1
3 00-421758-000G1 Transformer (120 V.) (24 V. Output) ......................................................................................... 1
4 00-421758-000G2 Transformer (208-240 V.) (24 V. Output) ................................................................................. 1
5 SD-032-07 Self-Tapping Screw 10-24 x 1/2Hex Washer Hd., Type TT ...................................................... 2
6 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 2
7 00-411497-000A1 Relay (1 Pole) (120 V.) ............................................................................................................... 1
8 00-411497-000A2 Relay (1 Pole) (200 V.) ............................................................................................................... 1
9 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 2
10 00-411497-000A1 Relay (1 Pole) (120 V.) ............................................................................................................... 1
11 00-411497-000A2 Relay (1 Pole) (200 V.) ............................................................................................................... 1
12 SD-032-07 Self-Tapping Screw 10-24 x 1/2Hex Washer Hd., Type TT ...................................................... 2
13 00-423760-00001 Bracket – Ignition Module ........................................................................................................... 1
14 00-424137-00002 Control – Spark Ignition ............................................................................................................... 1
15 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 2
16 NS-044-07 Nut Assy. 8-32 Hex KEPS .......................................................................................................... 2
17 FE-024-23 Bushing – Electrical (Snap) ....................................................................................................... 1
18 00-416535-00006 Relay – Heating (120 V.) ............................................................................................................ 1
19 00-416535-00007 Relay – Heating (200-240 V.) ....................................................................................................1
20 SD-034-49 Self-Tapping Screw 8-32 x 1/2Hex Washer Hd., Type T .......................................................... 2
21 SD-032-07 Self-Tapping Screw 10-24 x 1/2Hex Washer Hd., Type TT ...................................................... 1
22 00-417856-00001 Lug – Grounding (With Set Screw) ........................................................................................... 1
23 00-417934-000G1 Porcelain – Block Assy. .............................................................................................................. 1
24 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 1
25 SD-034-49 Self-Tapping Screw 8-32 x 1/2Hex Washer Hd., Type T .......................................................... 2
26 00-416535-00006 Relay – Heating (120 V.) ............................................................................................................ 1
27 00-416535-00007 Relay – Heating (200-240 V.) ....................................................................................................1
28 00-424832-00001 Bracket – Mounting .................................................................................................................... 1
29 00-413764-00001 Thermostat (Roast & Hold) ........................................................................................................ 1
30 SC-114-83 Mach. Screw 6-32 x 1/4Pan Hd. ................................................................................................ 2
31 SD-032-07 Self-Tapping Screw 10-24 x 1/2Hex Washer Hd., Type TT ...................................................... 2
32 00-417934-000G1 Porcelain – Block Assy. .............................................................................................................. 1
33 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 1
34 00-411500-00012 Transformer (120 V.) (24 V. Output) ......................................................................................... 1
35 00-411500-00013 Transformer (208-240 V.) (24 V. Output) ................................................................................. 1
36 SD-032-07 Self-Tapping Screw 10-24 x 1/2Hex Washer Hd., Type TT ...................................................... 2
37 00-423760-00001 Bracket – Ignition Module ........................................................................................................... 1
38 SD-032-07 Self-Tapping Screw 10-24 x 1/2Hex Washer Hd., Type TT ...................................................... 1
39 00-424137-00002 Control – Spark Ignition ............................................................................................................... 1
40 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 2
41 NS-044-07 Nut Assy. 8-32 Hex KEPS .......................................................................................................... 2
42 FE-024-23 Bushing – Electrical (Snap) ....................................................................................................... 1
43 00-417856-00001 Lug – Grounding (With Set Screw) ........................................................................................... 1
44 SD-032-07 Self-Tapping Screw 10-24 x 1/2Hex Washer Hd., Type TT ...................................................... 1
45 00-417934-000G1 Porcelain – Block Assy. .............................................................................................................. 1
46 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 1
47 00-416535-00006 Relay – Heating (120 V.) ............................................................................................................ 1
48 00-416535-00007 Relay – Heating (200-240 V.) ....................................................................................................1
49 SD-034-49 Self-Tapping Screw 8-32 x 1/2Hex Washer Hd., Type T .......................................................... 1
00-353589-00001 Probe Temperature (WKGD, WKGDX) ....................................................................................... 1
00-423813-00003 Wire – Ignition (High Voltage) ..................................................................................................... 1
00-428428-000g1 Flame Sensor Wire ..................................................................................................................... 1

- 12 -
GAS CONVECTION OVENS REPLACEMENT PARTS
ELECTRICAL COMPONENT PANEL
(PROGRAMABLE)
PL-55989
10
9
8
7
6
11
12
13-14
20-21 15
5
3-4
1-2
22
17
16
18
19

- 13 -
GAS CONVECTION OVENS REPLACEMENT PARTS
ELECTRICAL COMPONENT PANEL
(PROGRAMABLE)
ILLUS. PART NO. NAME OF PART AMT.
PL-55989
1 00-417934-000G1 Porcelain – Block Assy. .............................................................................................................. 1
2 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 1
3 00-421758-000G1 Transformer (120 V.) (24 V. Output) ......................................................................................... 1
4 00-421758-000G2 Transformer (208-240 V.) (24 V. Output) ................................................................................. 1
5 SD-032-07 Self-Tapping Screw 10-24 x 1/2Hex Washer Hd., Type TT ...................................................... 2
6 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 4
7 00-821875-00002 Relay – Solid State (50 Amp.) .................................................................................................... 2
8 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 4
9 00-821875-00002 Relay – Solid State (50 Amp.) .................................................................................................... 2
10 SD-032-07 Self-Tapping Screw 10-24 x 1/2Hex Washer Hd., Type TT ...................................................... 1
11 00-423760-00001 Bracket – Ignition Module ........................................................................................................... 1
12 00-424137-00002 Control – Spark Ignition ............................................................................................................... 1
13 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 2
14 NS-044-07 Nut Assy. 8-32 Hex KEPS .......................................................................................................... 2
15 FE-024-23 Bushing – Electrical (Snap) ....................................................................................................... 1
16 00-417856-00001 Lug – Grounding (With Set Screw) ........................................................................................... 1
17 SD-032-07 Self-Tapping Screw 10-24 x 1/2Hex Washer Hd., Type TT ...................................................... 1
18 SD-034-52 Self-Tapping Screw 8-32 x 1 Hex Washer Hd., Type T ........................................................... 1
19 00-417934-000G1 Porcelain – Block Assy. .............................................................................................................. 1
20 00-416535-00006 Relay – Heating (120 V.) ............................................................................................................ 1
21 00-416535-00007 Relay – Heating (200-240 V.) ....................................................................................................1
22 SD-034-49 Self-Tapping Screw 8-32 x 1/2Hex Washer Hd., Type T .......................................................... 2
00-920883-00003 Probe Temperature (WKGC, WKGCX) ....................................................................................... 1
00-423813-00003 Wire – Ignition (High Voltage) ..................................................................................................... 1
00-428428-000G1 Flame Sensor Wire ..................................................................................................................... 1

- 14 -
GAS CONVECTION OVENS REPLACEMENT PARTS

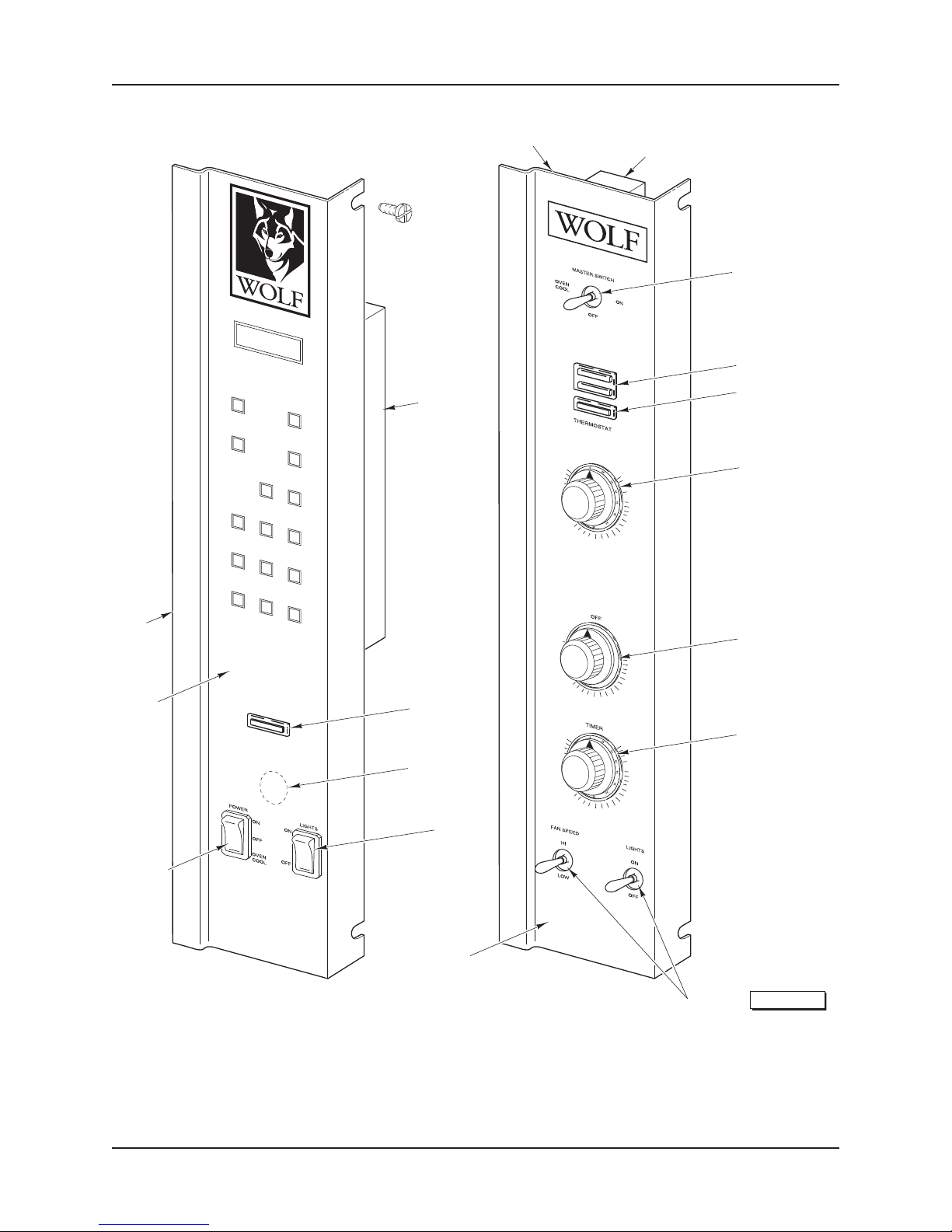

CONTROL PANEL
1
PL-55987
2-3
4
34-35
5 THRU 10
31
32-33
15 THRU 21
11 THRU 14
22
23 THRU 30
40
39
41
38
36
37

- 15 -
GAS CONVECTION OVENS REPLACEMENT PARTS
CONTROL PANEL
ILLUS. PART NO. NAME OF PART AMT.
PL-55987
1 00-340324-00008 Switch ........................................................................................................................................ 1
2 00-354575-00002 Light – Indicator (110-120 V.) .................................................................................................... 1
3 00-354575-00001 Light – Indicator (200-240 V.) .................................................................................................... 1
4 00-354575-00004 Light – Indicator .......................................................................................................................... 1
5 00-411242-00001 Knob ........................................................................................................................................... 1
6 00-353613-00002 Temperature Control Board (WKGD, WKGDX) .......................................................................... 1
7 00-411506-00003 Thermostat (KX Units Built Prior to 02/2001) ............................................................................. 1
8 SC-114-82 Mach. Screw 4-40 x 5/16 Rd. Hd. (Use With Item 6) ................................................................... 2
9 WS-024-20 Washer (Use With Item 6) .......................................................................................................... 2
10 SC-114-83 Mach. Screw 6-32 x 1/4Slotted Pan Hd. (Use With Item 7) ....................................................... 2
11 00-411242-00001 Knob ........................................................................................................................................... 1
12 00-411690-00003 Timer (120 V.) (60 Hz.) (5 Hr.) ................................................................................................... 1
13 00-411690-00004 Timer (240 V.) (60 Hz.) (5 Hr.) ................................................................................................... 1
14 00-411690-00006 Timer (240 V.) (50 Hz.) (5 Hr.) ................................................................................................... 1
15 00-411242-00001 Knob ........................................................................................................................................... 1
16 00-411690-00001 Timer (120 V.) (1 Hr.) ................................................................................................................. 1
17 00-411690-00002 Timer (240 V.) (60 Hz.) (1 Hr.) ................................................................................................... 1
18 00-411690-00003 Timer (120 V.) (60 Hz.) (5 Hr.) ................................................................................................... 1
19 00-411690-00004 Timer (240 V.) (60 Hz.) (5 Hr.) ................................................................................................... 1
20 00-411690-00005 Timer (240 V.) (50 Hz.) (1 Hr.) ................................................................................................... 1
21 00-411690-00006 Timer (240 V.) (50 Hz.) (5 Hr.) ................................................................................................... 1
22 00-340324-00009 Switch (D.P.D.T.) ........................................................................................................................ 2
23 00-424213-00001 Overlay – Panel (1 Hr.) (WKGD, WKGDX) (W/Roast & Hold) (Prior to March 15, 2005) ......... 1
00-497289-00001 Overlay – Panel (1 Hr.) (WKGD, WKGDX) (W/Roast & Hold) ................................................... 1
24 00-424249-00001 Overlay – Panel (5 Hr.) (WKGD, WKGDX) (W/Roast & Hold) (Prior to March 15, 2005) ......... 1
00-497291-00001 Overlay – Panel (5 Hr.) (WKGD, WKGDX) (W/Roast & Hold) ................................................... 1
25 00-424204-00001 Overlay – Panel (1 Hr.) (WKGD, WKGDX) (W/O Roast & Hold) (Prior to March 15, 2005) ...... 1
00-497283-00001 Overlay – Panel (1 Hr.) (WKGD, WKGDX) (W/O Roast & Hold) ) ............................................. 1
26 00-424240-00001 Overlay – Panel (5 Hr.) (WKGD, WKGDX) (W/O Roast & Hold) (Prior to March 15, 2005) ...... 1
00-497290-00001 Overlay – Panel (5 Hr.) (WKGD, WKGDX) (W/O Roast & Hold) ................................................ 1
27 00-424203-00001 Overlay – Panel (1 Hr.) (WKG, WKGX) (W/O Roast & Hold) ..................................................... 1
28 00-424241-00001 Overlay – Panel (5 Hr.) (WKG, WKGX) (KX Unit W/O Roast & Hold) ........................................ 1
29 00-424214-00001 Overlay – Panel (1 Hr.) (WKG, WKGX) (W/Roast & Hold) ........................................................ 1
30 00-424248-00001 Overlay – Panel (5 Hr.) (WKG, WKGX) (W/Roast & Hold) ........................................................ 1
31 00-499296-000G1 Panel – Control Weldment .......................................................................................................... 1
32 00-411499-00003 Buzzer (230 V.) .......................................................................................................................... 1
33 00-411499-00004 Buzzer (115 V.) .......................................................................................................................... 1
34 NS-044-05 Nut Assy. 6-32 Hex KEPS .......................................................................................................... 7
35 00-424846-00001 Controller (Watlow #734) ........................................................................................................... 1
36 00-354575-00004 Light – Indicator .......................................................................................................................... 1
37 00-423918-00001 Beeper – Electronic .................................................................................................................... 1
38 00-358628-00002 Switch – Rocker (2 Position) ..................................................................................................... 1
39 00-358628-00001 Switch – Rocker (3 Position) ..................................................................................................... 1
40 00-424844-00001 Overlay – Panel (WKGC, WKGCX) (Prior to March 15, 2005) .................................................. 1
00-497293-00001 Overlay – Panel (WKGC, WKGCX) ............................................................................................ 1
41 00-499301-000G1 Panel – Control Weldment .......................................................................................................... 1

- 16 -
GAS CONVECTION OVENS REPLACEMENT PARTS
1-2
3
20
17-18-19
21
4 THRU 6
7
9
8
PL-55988-A1
22
12
13 THRU 16
10-11
25
24
23
New Old
OVEN PANELS
RH CAVITY SIDE
26 - 27 New

- 17 -
GAS CONVECTION OVENS REPLACEMENT PARTS
OVEN PANELS
ILLUS. PART NO. NAME OF PART AMT.
PL-55988-A1
1 00-424141-00002 Top (SST) (WKG, WKGD, WKGC) .............................................................................................. 1
2 00-424229-00002 Top (SST) (WKGX, WKGDX, WKGCX) ...................................................................................... 1
00-424141-00003 Top (Aluminized) (WLGO) .......................................................................................................... 1
3 00-421799-00001 Top – Front ................................................................................................................................. 1
00-957607-00001 Top – Front (WLGO) ................................................................................................................... 1
4 00-353484-00001 Plate – Retainer .......................................................................................................................... 2
5 SC-053-46 Mach. Screw 1/4-20 x 3/4Truss Hd. (SST) ................................................................................. 4
6 NS-038-08 Lock Nut 1/4-20 x 1 Hex .............................................................................................................. 4
7 00-347080-00002 Bearing – Door Shaft ................................................................................................................. 2
8 00-353482-00001 Spacer ........................................................................................................................................ 2
9 00-353483-00001 Plate – Upper Door Bearing ....................................................................................................... 2
10 00-499302-00001 Panel – Outer (SST) (LH) (WKG, WKGD, WKGC) (New Style) ........................................... 1
00-499302-00002 Panel – Outer (Aluminized) (LH) (WLGO) ................................................................................. 1
00-424142-00002 Panel – Outer (SST) (LH) (WKG, WKGD, WKGC) (Old Style) ................................................... 1
11 00-499303-00001 Panel – Outer (SST) (LH) (WKGX, WKGDX, WKGCX) (New Style) .................................... 1
00-424230-00002 Panel – Outer (SST) (LH) (WKGX, WKGDX, WKGCX) (Old Style) ........................................... 1
12 00-423842-000G1 Seals – Vertical Door (LH & RH) ................................................................................................ 1
13 00-342141-00001 Rack – Support (LH) (WKG, WKGD, WKGC) ............................................................................. 1
14 00-342141-00002 Rack – Support (RH) (WKG, WKGD, WKGC) ............................................................................ 1
15 00-424833-00001 Rack – Support (LH) (WKGX, WKGDX, WKGCX) (Prior to Nov. 20, 2002) .............................. 1
00-428104-00003 Rack – Support (LH) (WKGX, WKGDX, WKGCX) ..................................................................... 1
16 00-424833-00002 Rack – Support (RH) (WKGX, WKGDX, WKGCX) (Prior to Nov. 20, 2002) .............................. 1
00-428104-00004 Rack – Support (RH) (WKGX, WKGDX, WKGCX) ..................................................................... 1
17 00-499261-00002 Trim – Bottom (W/O Access Door) (New Style) ................................................................ 1
00-957608-00001 Trim – Bottom (W/O Access Door) (WLGO) .............................................................................. 1
00-421797-00002 Trim – Bottom (Old Style) ............................................................................................................ 1
00-423766-000G1 Trim – Bottom (Prior to March 2007) (Incls. Items 19 & 20) ...................................................... 1
18 00-423758-00001 Access Door (Old Style) ............................................................................................................ 1
19 00-425199-00001 Fastener – Nylon (Push-In) ........................................................................................................ 2
20 00-424865-00001 Cover – Trim ............................................................................................................................... 1
21 00-357507-00001 Seal – Horizontal Door ............................................................................................................... 2
22 SC-115-51 Mach. Screw 10-32 x 1/2Phil. Truss Hd. ................................................................................... 2
23 00-497585-00001 Strike Plate (New Style) (Mounted on Upper “C” Channel) ......................................... 2
00-347545-00001 Roller Ball – Door Catch (Old Style) ........................................................................................... 1
00-423847-00001 Strike Plate (Old Style) (Mounted on Doors) .............................................................................. 1
24 00-423848-00001 Shim – Door Strike (Old Style) ..................................................................................................AR
25 NS-038-03 Lock Nut – SP 10-32 .................................................................................................................. 2
26 00-499278-00001 Probe Guard (New) ................................................................................................................ 1
27 SD-032-07 Screw, 10-24 x ½ Hex Hd. ........................................................................................................ 2
00-423014-000G1 Roller Ball Door Catch Kit (Old Style) ......................................................................................... 1
00-357919-00001 Door Seal Kit (Includes Items 12 & 21) ...................................................................................... 1

- 18 -
GAS CONVECTION OVENS REPLACEMENT PARTS
RECOMMENDED SPARE PARTS
PART NO. NAME OF PART AMT.
00-353589-00001 Thermocouple D-Models ............................................................................................................ 1
00-920883-00003 Thermocouple C-Models ............................................................................................................ 1
00-410841-00018 Combo Valve (Nat. Gas) (Robertshaw) .................................................................................... 1
00-410841-00019 Combo Valve (LP Gas) (Robertshaw) ...................................................................................... 1
00-497269-00001 Combo Valve (Nat. Gas) (White Rogers) .................................................................................. 1
00-497269-00002 Combo Valve (LP Gas) (White Rogers) ..................................................................................... 1
00-424940-00001 Cooling Fan (120V) .................................................................................................................... 1
00-424940-00002 Cooling Fan (240V) .................................................................................................................... 1
00-424137-00002 Spark Ignition Control .................................................................................................................. 1
00-423813-00003 Ignition Wire “High Voltage” ........................................................................................................ 1
00-346357-00001 High Limit (550 Degree) .............................................................................................................. 1
00-416535-00006 Heat Relay D-Model (120V) .......................................................................................................1
00-416535-00007 Heat Relay D-Model (208/240V) ................................................................................................ 1
00-411496-000F1 Door Switch ............................................................................................................................... 1
00-421758-000G1 Transformer (120V/24V) ........................................................................................................... 1
00-421758-000G2 Transformer (240V/24V) ........................................................................................................... 1
00-411690-00001 1-Hour Timer (120V) .................................................................................................................. 1
00-411690-00002 1-Hour Timer (240V) .................................................................................................................. 1
00-411242-00001 Knob ........................................................................................................................................... 1
00-411506-00003 Thermostat (KX) ......................................................................................................................... 1
00-353613-00002 Solid State Temperature Control D-Model .................................................................................. 1
00-424846-00001 Watlow Computer Control C-Model ............................................................................................ 1
00-497585-00001 Strike Plate (New Style) (Mounted on “C” Channel) ...................................................... 1
00-423847-00001 Door Strike (Old Style) (Mounted on Doors) .............................................................................. 1
00-497586-00001 Roller Latch (New Style) ( Mounted on Doors) ................................................................ 1
00-347545-00001 Roller Ball Door Latch (Old Style) (Mounted to “C” Channel) .................................................... 1
00-423014-000G1 Door Roller Kit (Old Style) ........................................................................................................... 1
00-424194-00001 Ignitor/Sensor ............................................................................................................................. 1
00-340324-00008 ON/OFF Toggle Master Switch .................................................................................................. 1
00-357036-00001 Lamp Assy. ................................................................................................................................. 1
00-340324-00009 Toggle Switch ............................................................................................................................. 1

- 19 -
GAS CONVECTION OVENS REPLACEMENT PARTS
NOTES

- 20 -
GAS CONVECTION OVENS REPLACEMENT PARTS
NOTES
