WLEO SERIES
ELECTRIC
CONVECTION OVENS
MODELS
WLEO ML-136825
WOLF RANGE
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.WOLFRANGE.COM
3600 NORTH POINT BLVD.
BALTIMORE, MD 21222
OWNER'S MANUAL
INSTALLATION & OPERATION
For additional information on Wolf Range or to locate an authorized parts
and service provider in your area, visit our website at www.wolfrange.com
FORM 32709 (Oct. 2008)

– 2 –
Installation, Operation and Care of
WLEO SERIES
ELECTRIC CONVECTION OVENS
KEEP THESE INSTRUCTIONS FOR FUTURE USE
Your Wolf Electric Convection Oven is produced with quality workmanship and material. Proper
installation,usageandmaintenanceofyourovenwillresultinmanyyearsofsatisfactoryperformance.
The manufacturer suggests that you thoroughly read this entire manual and carefully follow all of the
instructions provided.
GENERAL
The WLEO Series Electric Convection Ovens feature a 500°F thermostat, timer, porcelain interior and
a two-speed, 1/2HP blower motor as standard equipment. Ovens equipped with standard voltages are
208 or 240 V, 60 Hz, single- or three-phase. Ovens equipped for 480 V, 60 Hz, three-phase electrical
specifications are optional.
TheWLEOSeriesOven isasinglecavity ovenfurnishedwithfive racks. Independentlyopeningdoors
are standard. Oven lights with on-off switch are standard on all models.
An open stand with lower storage rack is available as an option.
Stacked ovens are furnished with either Stacking Kit 426983G3 (8" LEGS) or Stacking Kit 426984G3
(CASTERS) for mounting one oven on top of the other.
Additional racks are available as accessories.

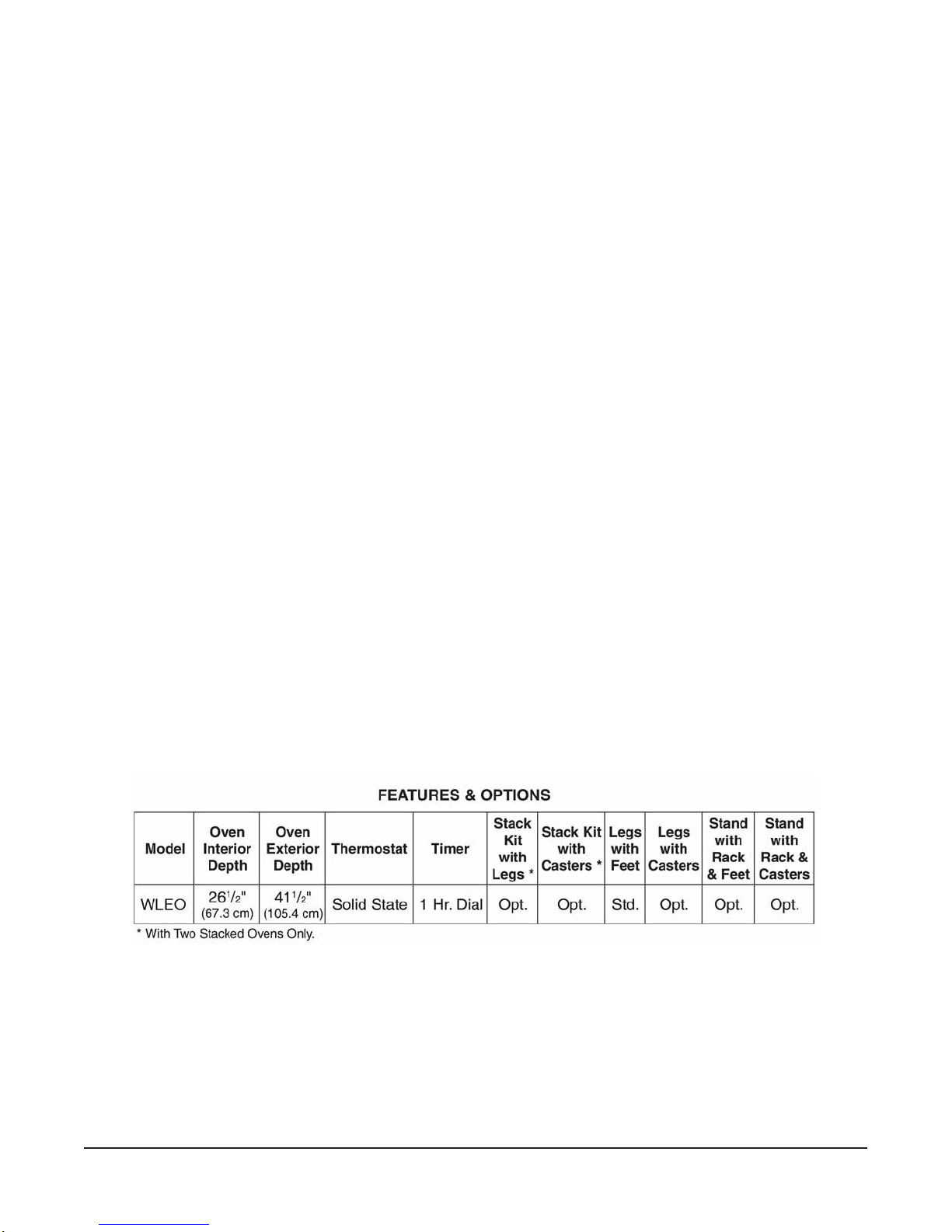

Features of the models are shown below:
© THE WOLF RANGE COMPANY LLC, 2008

– 3 –
INSTALLATION
UNPACKING
Immediately after unpacking the oven, check for possible shipping damage. If the oven is found to be
damaged, save the packaging material and contact the carrier within 15 days of delivery.
Prior to installation, verify that the electrical service agrees with the specifications on the oven data
plate, located on the inside of the top front cover.
Do not use the doors or their handles to lift the oven.
LOCATION
The installation location must allow adequate clearances for servicing and proper operation. There
must be 18" (457 mm) of clearance on the right side of the oven from any open flame.
INSTALLATION CODES AND STANDARDS
In the United States, install the oven in accordance with:
1. State and local codes.
2. NationalElectricalCode,ANSI/NFPA-70(latestedition).CopiesmaybeobtainedfromTheNationalFire
Protection Association, Batterymarch Park, Quincy, MA 02169-7471.
3. NFPAStandard#96,
VaporRemovalfromCookingEquipment (latestedition).Copiesmaybeobtained
from The National Fire Protection Association, Batterymarch Park, Quincy, MA 02169-7471.
In Canada:
1. Local codes.
2. CSA C22.1 Canadian Electrical Code (latest edition).
3. CSA C22.2 No. 109 Commercial Cooking Equipment (latest edition).
The above are available from the Canadian Standard Association, 5060 Spectrum Way, Suite 100,
Mississauga, Ontario, Canada L4W 5N6.
INSTALLING BASIC OVEN
The oven must be installed on legs or mounted on a modular stand. Installations on concrete bases or
other supports restricting air circulation underneath the oven is not advisable and may void the
warranty. If using the modular stand, set the oven on the stand after unpacking.
Assembling the Legs to the Oven
The legs must be installed on the bottom of the oven. Gently position the oven on its left side, taking care
not to scratch or damage the oven.
Attach each of the four leg assemblies to the bottom of the oven with the 24 bolts and lockwashers (six per
leg). Carefully raise the oven to its normal position.

– 4 –
Ovens Mounted on Casters
Ifthe ovenis to be installed oncasters, assemblethe castersto
the legs provided. Then attach the caster-leg units to the oven
ateachcornerusingthe24boltsandlockwashers(sixboltsand
lockwashersperleg).Placethelockingcastersonthefrontlegs
and nonlocking casters on the rear legs.
ASSEMBLING THE STAND TO THE OVEN
Attach each of the four leg assemblies to the bottom of the oven
withthe24boltsand lockwashers(sixperleg). Carefullyraise the
oven to its normal position. Attach the undershelf to the legs with
eight bolts and lockwashers (two per leg).

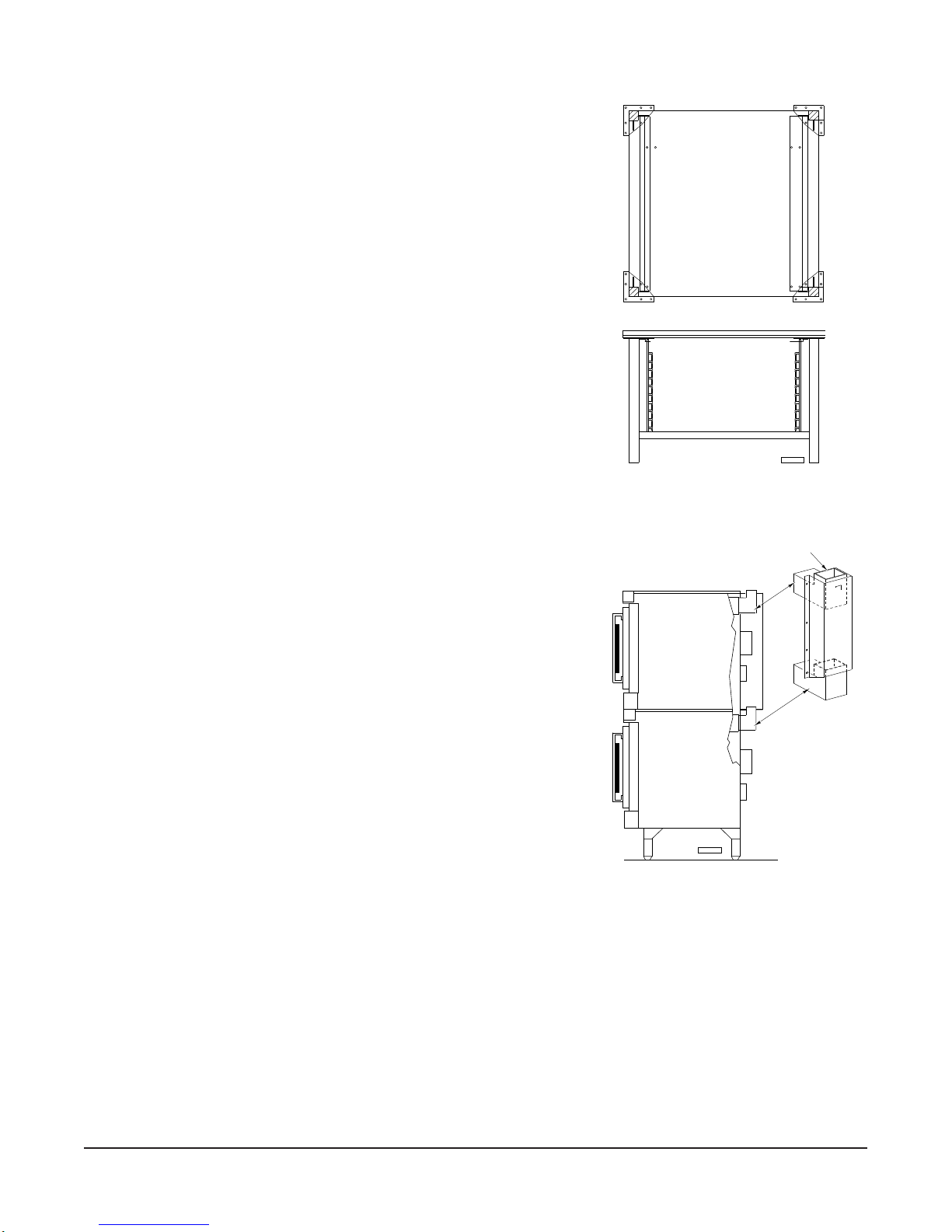

Install the rack guides into the undershelf at desired locations (for
panorflatrack),thenattachtheracksupportstothetopendofthe
rackguides.Attachracksupportstothelegassemblybyremoving
one middle bolt and reattaching back through the end holes in the
rack support (Fig. 2).
ASSEMBLING STACKED OVENS
Unpacktheovensandthestackkit.Positiontheoventobeused
asthebottomovenonitsleftsideforaccesstotheovenbottom,
taking care not to scratch or damage it.
Attachthefourlegassemblieswiththe24boltsandlockwashers
(six per leg).
Place the lower oven (with legs) on the floor and remove two 7/16"
(11 mm) diameter knockouts on each side of the top cover.
Install two locating studs to the bottom of the top oven per
stacking kit instructions.
Move the oven with legs to the installed position. Place the
upper oven on top of the lower oven using the locating studs.
Removetheoptionalrearpanel,ifprovided,fromtheTOPoven.
Install the Stacking Flue (Fig. 3) with the four screws provided.
Replace the top oven rear panel, if provided.
LEVELING
Make sure that the oven racks are level in the final installed position. If the oven is installed on legs,
turn the adjustable feet in or out to level the oven front-to-back and side-to-side. If the oven is installed
oncasters,loosensetscrewsandturncastersinorouttoleveltheovenfront-to-backandside-to-side.
Retighten set screws after leveling.
BACK
FRONT
PL-53274
Fig. 2
Fig. 3
STACKING FLUE
PL-53463

– 5 –
ELECTRICAL CONNECTIONS
Electrical and grounding connections must comply with the applicable portions
of the National Electrical Code and/or other local electrical codes.
Disconnect the electrical power to the machine and follow lockout / tagout
procedures.
Remove the wiring compartment cover on the front of the oven. Remove the appropriate knockout on
the bottom of the oven and attach the power supply conduit to the bottom of the oven.
Comply with the appropriate wiring diagram (located inside the right side panel) when making
connections to the electrical supply lines.
Replace the wiring compartment cover and right side panel. Turn on the power supply.
ELECTRICAL DATA
208-240 V 480 V NOMINAL AMPERES PER LINE WIRE
TOTAL
3-PHASE LOADING 3-PHASE LOADING 3-PHASE 1-PHASE
KW KW PER PHASE KW PER PHASE 208 V 240 V 480 V 208 V 240 V
L1-L2 L2-L3 L1-L3 L1-L2 L2-L3 L1-L3 L1 L2 L3 L1 L2 L3 L1 L2 L3
Single Oven 12.5 4 4 4.5 4 4 4.5 35 33 35 33 29 33 14.4 15.3 15.3 60 52
Stacked Oven 25 8 8 9 8 8 9 70 66 70 66 58 66 28.8 30.6 30.6 120 104
ELECTRICAL CONNECTIONS (Stacked Ovens)
Electrical and grounding connections must comply with the applicable portions
of the National Electrical Code and/or other local electrical codes.
Disconnect the electrical power to the machine and follow lockout / tagout
procedures.
Make sure that the electrical power supply agrees with the specifications on the oven data plate, the
wiring diagram on the oven and Electrical Data, page 5.
1. Wires to connect both ovens are provided with each oven. Carefully route these leads from the
top oven through the bushing (supplied with the stacking kit) through the electrical access
knockout holes common to both ovens.
2. ConnectwiresX,YandZfromtheupperoventothelowerovenperthewiringdiagramusingwire
nuts provided. Attach the power supply conduit to the bottom of the lower oven. Connect the
power supply leads to the line side of the terminal block on the bottom oven.
3. Finally,inspectandcheck allwiringandterminal connections fortightnessor pinch points(cover
on oven frame).
4. Refer to reference drawing 426986 supplied with the stacking kit for electrical connection
instructions.
5. Refer to instructions supplied with the stacking kit for marking the combined electrical load
information to the electrical data plate of the bottom oven.

– 6 –
OPERATION
The oven and its parts are hot. Use care when operating, cleaning or servicing
the oven.
CONTROLS — MODEL WLEO
MOISTURE VENT DAMPER – Open the damper to exhaust excess moisture. Close the damper
when cooking dry products. Select settings between OPEN and
CLOSED for optimum performance.
MASTER SWITCH – ON - Turns oven control circuits on.
– OFF - Turns oven control circuits off.
– OVEN COOL - Allows the fan motor to run with the doors ajar to
speed oven cooling.
ON LIGHT (Amber) – Lit when MASTER SWITCH is turned to ON.
HEAT LIGHT (White) – Comesonandgoesoffwhentheheatingelementscycleonandoff.
TEMPERATURE – Controls oven temperature.
TIMER – Use to set the cooking time. Alarm sounds continuously when time
haselapsedto0.TurnthetimerOFFtosilencethealarm.Thetimer
does not turn the oven off. Keep timer set to OFF when the oven is
not in use.
FAN SPEED – Adjust air velocity in the oven cavity.
HI - Normal operating speed.
LOW - Use this setting when cooking a delicate product like
meringue, which could blow around in the oven.
LIGHTS – ON - Turns the interior lights on.
– OFF - Turns the interior lights off.

– 7 –
BEFORE FIRST USE
Beforeusing the oven for thefirst time,it mustbe burnedoff to releaseany odorsthat mightresult from
heating the new surfaces in the chamber.
1. Using a clean damp cloth, wipe the inside of the oven, including the racks.
2. Close the oven doors, turn the MASTER SWITCH to ON, turn the Thermostat to 300°F (149°C)
and allow the oven to cycle for 6 to 8 hours before turning the MASTER SWITCH to OFF.
USING MODEL WLEO
Preheating
1. TurnMASTER SWITCHto ON. AmberON lightwill comeon, indicating thatpower tooven ison.
2. Set Thermostat as desired. Refer to COOKING GUIDELINES for suggested temperatures and
times for various products.
3. Prepare product and place in suitable pans. When white HEAT light goes off, oven has reached
desired preheat temperature.
Cooking
1. Opendoorsandloadtheproductintotheoven.Placepansinthecenteroftheracks.Closedoors.
2. Set the Timer. After the preset time lapses, turn Timer to OFF position to stop alarm.
3. When product is done, open doors and carefully remove cooked product from the oven. Care
should be taken when wiping up any spills, as oven is still hot.
End of Day
1. Turn Thermostat to OFF.
2. Turn MASTER SWITCH toOVEN COOL. Leave doors open while the fan is on to cool the oven.
3. When oven has cooled sufficiently, turn MASTER SWITCH to OFF and clean the oven.

– 8 –
PROPER UTENSILS
Theuseofproperutensilscanenhanceovenoperation.Mediumandlightweightpansallowtheproduct
towarmfaster.Roastmeatsinshallowpansdeepenoughtoholdalljuicesyetallowfreeaircirculation.
OPERATING HINTS
When using the convection oven for the first time with a particular food, check the degree of doneness
periodicallybeforethesuggestedtimehaselapsed.Thiswillensurethedesireddonenessisachieved.
Record your temperature and time settings for various products. The convection oven can provide
consistent and repeatable results.
The convection oven is faster than conventional deck-type ovens; temperature settings are lower and
cook times are shorter. Since recipes and foods are subject to many variations and tastes, the
guidelines regarding Times and Temperatures in this manual are SUGGESTIONS ONLY. Experiment
withyourfoodproductstodeterminethecookingtemperaturesandtimesthatgiveyouthebestresults.
NOTE: For a more even bake, place the pans horizontally in the center of the oven rack and decrease
the suggested cooking temperature by 50°F (10°C).

– 9 –
COOKING GUIDELINES
Theinformation inthe Cooking Guidelineschart issuggested only. Cooking times forvarious products
may be different depending on the brand, consistency and the chef’s preferences for taste and
presentation. The times below may require adjustments. Note the times and temperatures of your
preferred results for future use. The preheating time for all of the following is 15 minutes.
Cooking Cooking Max. Internal
Amount Temp. Time Cook Temp.
Product lbs. (kg) °F (°C) Hours °F (°C)
Prime Rib 20 (9.06) 225 (107) 5 140 (60)
Rib Eye Boneless 12 (5.43) 225 (107) 3 140 (60)
Top Round 20 (9.06) 225 (107) 5 140 (60)
Steamship Round 20 (9.06) 225 (107) 7 140 (60)
Bottom Round 20 (9.06) 225 (107) 5 140 (60)
Boneless Strip Loin 12 (5.43) 225 (107) 3 140 (60)
Whole Tenderloin 6 (2.71) 225 (107) 2 140 (60)
Top Sirloin Butt 14 (6.34) 225 (107) 3 140 (60)
Beef Short Ribs 10 (4.53) 225 (107) 4 165 (74)
Cube Steaks 10 (5.43) 225 (107) 3 180 (82)
Beef Back Ribs 30 (13.6) 225 (107) 5 175 (79)
Beef Stew 10 (5.43) 225 (107) 4 175 (79)
Corned Beef 12 (5.43) 250 (121) 4 165 (74)
Fresh Ham 12 (5.43) 250 (121) 6 165 (74)
Cooked Cured Ham 12 (5.43) 250 (121) 4 135 (57)
Pork Back Ribs 10 (4.53) 250 (121) 5 175 (79)
Pork Spare Ribs 30 (13.6) 250 (121) 5 175 (79)
Fresh Sausages 10 (4.53) 225 (107) 2 175 (79)
Pre-Cooked Sausage 10 (4.53) 250 (121) 13/4160 (71)
Roast Suckling Pig 30 (13.6) 250 (121) 6 170 (77)
Bacon 350 (177) 40 min. N/A
Roasted Chicken 10 (4.56) 350 (177) 45 min. 165 (74)
Chicken Pieces (per tray) 10 (4.56) 250 (121) 21/2170 (77)
Whole Chickens
(per chicken) 3.25 (1.47) 250 (121) 21/2170 (77)
Whole Turkeys 20 (9.06) 230 (110) 61/2170 (77)
Bone In Turkey Breast 10 (4.53) 250 (121) 5 160 (71)
Roast Duckling (per duck) 4 (1.81) 350 (177) 11/2170 (77)
Rack of Lamb 15 racks 250 (121) 31/2160 (71)
per tray
Lamb Shanks, Braised 250 (121) 4 180 (82)
Fish Filets 4-6 oz. (23g) 225 (107) 40 min. 160 (71)
1/1 Gastronome
Clear Soups or 12x20x4" 225 (107) 3 175 (79)
Steam Pan
Frozen Pizza (2) 18” Pies 350 (177) 15 min. 175 (79)
Rice 1 Qt. dry 250 (121) 2 160 (171)
Baked Potatoes 90 CT. 350 (177) 1 200 (93)

– 10 –
POWER OUTAGE
In case of a power outage, the oven will automatically shut down. When power is restored to the lines,
the oven will resume its normal operation. However, if the oven is to be left unattended during a power
outage, push the MASTER SWITCH to the OFF position. When power is restored to the lines, push
MASTER SWITCH to the ON position, wait for the oven to preheat, then resume normal cooking
operations.
CLEANING
Disconnect the electrical power to the machine and follow lockout / tagout
procedures.
• Clean outside of the oven daily by wiping with a clean, damp cloth.
• Clean porcelain oven interior daily with soap or detergent and water. Rinse thoroughly and wipe
dry with a soft, clean cloth.
Product Amount Temp. Time
Frozen Croissant Dough 1.75 oz. 350°F (177°C) 25 Min
Cinnamon Croissant 1.75 oz. 350°F (177°C) 35 Min.
Small Bread Loaves 1 Tray 350°F (177°C) 30 Min.
Large Bread Loaves 1.5 lbs. 350°F (177°C) 60 Min.
Sheet Cake (1) 18x26" Tray 300°F (149°C) 25 Min.
Scone Mix 1 Tray 350°F (177°C) 30 Min.
Muffin Mix 1 Tray 350°F (177°C) 30 Min.
Kaiser Rolls 1 Tray 350°F (177°C) 16 Min.
Italian Bread 1 Tray 350°F (177°C) 40 Min.
Danish Rounds* 1 Tray 350°F (177°C) 30 Min.
Cream Cake* 1 Tray 350°F (177°C) 60 Min.
Cookies 1 Tray 325°F (163°C) 16 Min.
*The maximum internal cooking temperature should be 190°F (88°C).
STANDARD COOKING TIME CHART

– 11 –
MAINTENANCE
The oven and its parts are hot. Use care when operating, cleaning or servicing
the oven.
Disconnect the electrical power to the machine and follow lockout / tagout
procedures.
The fan motor comes with sealed bearings and requires no lubrication.
Annually check the vent, when cool, to be sure it is free of obstructions.
REPLACING LAMPS
1. Allow oven to cool.
2. Remove all racks by pulling forward, lifting up and out.
3. Unscrew glass dome(s) from light body.
4. Replace the bulb(s).
5. Reassemble glass dome(s) and racks by reversing the disassembly procedure.
SERVICE AND PARTS INFORMATION
Toobtain service andparts information concerningyour WLEO Oven, contact the Wolf Range Service
Depot in your area.

– 12 –
FORM 32709 (Oct. 2008) PRINTED IN U.S.A.
