Wolf e Series User manual

E Series Oven
Installation Guide
SPECIFICATIONS, INSTALLATION, AND MORE

E Series Oven
Contents
2Important Note
3Product Information
4Specifications
12 Installation
E Series Oven
Important Note
To make sure this product is installed and operated safely
and efficiently, take note of the following types of
highlighted information throughout this guide:
IMPORTANT NOTE: Highlights information that is
especially important.
CAUTION
Indicates a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING
States a hazard that may cause serious injury or
death if precautions are not followed.
IMPORTANT NOTE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specified.
2 |English

Product Information
Important product information, including the model and
serial number, are listed on the product rating plate. If
service is necessary, contact Wolf Factory Certified
Service with the model number and serial number. For
the name of the nearest Wolf Factory Certified Service or
for questions regarding the installation, visit the Product
Support section of our website, or call Wolf Customer
Care at 800-222-7820.
The rating plate is located near the bottom trim on the
left. The oven door must be open to view the rating plate.
RATING
PLATE
E Series Oven
Product Information
wolfappliance.com |3

Installation Requirements
The oven can be installed in a standard or flush inset
application. If a cooktop is installed above an oven, a
minimum of 1/4" (6) is required between the units. The
location of the electrical supply within the oven opening
may require additional cabinet depth.
Base Support Min
Single Oven 250 lb (115 kg)
Double Oven 400 lb (181 kg)
Finish the edges of the opening. They may be visible
when the door is open.
For standard installations, the face trim overlaps stiles and
rails.
Trim Overlap Dimension
Top 1" (25)
Bottom 0"
Sides 11/16" (18)
For flush inset installations, a minimum 1/8" (3) reveal is
required on all sides. To ensure consistent reveals, each
corner of the opening must be exactly 90°.
Dual Installation
Two 30" single ovens can be installed side by side in a
standard or flush inset application. A dual installation kit is
required. To maintain appropriate airflow, the ovens must
be installed into one opening. Any cosmetic or structural
material placed between the ovens will impede airflow
and is not recommended. Refer to the illustrations on the
following pages.
The dual installation kit is available through an authorized
Wolf dealer. For local dealer information, visit the locator
section of our website subzero-wolf.com.
Specifications
Installation Requirements
4 |English

Electrical Requirements
Installation must comply with all applicable electrical
codes.
Locate the electrical supply flush with the back wall and
within the shaded area shown in the illustrations on pages
6-11. For ease of installation, the electrical supply for the
oven can be placed in an adjacent cabinet within reach of
the conduit.
Performance may be compromised if the electrical supply
is less than 240 volts.
The oven is supplied with a conduit consisting of two
insulated hot lead conductors and a bare ground
conductor. The wiring diagram covering the control
circuit is provided with the oven.
ELECTRICAL REQUIREMENTS-Single Oven
Electrical Supply grounded, 240/208 VAC,
60Hz
Service 30 amp dedicated circuit
Conduit 4' (1.2 m)
Total Amps 22
Max Connected Load 5.4 kW
ELECTRICAL REQUIREMENTS-Double Oven
Electrical Supply grounded, 240/208 VAC,
60Hz
Service 50 amp dedicated circuit
Conduit 5' (1.5 m)
Total Amps 45
Max Connected Load 10.8 kW
Specifications
Electrical Requirements
wolfappliance.com |5

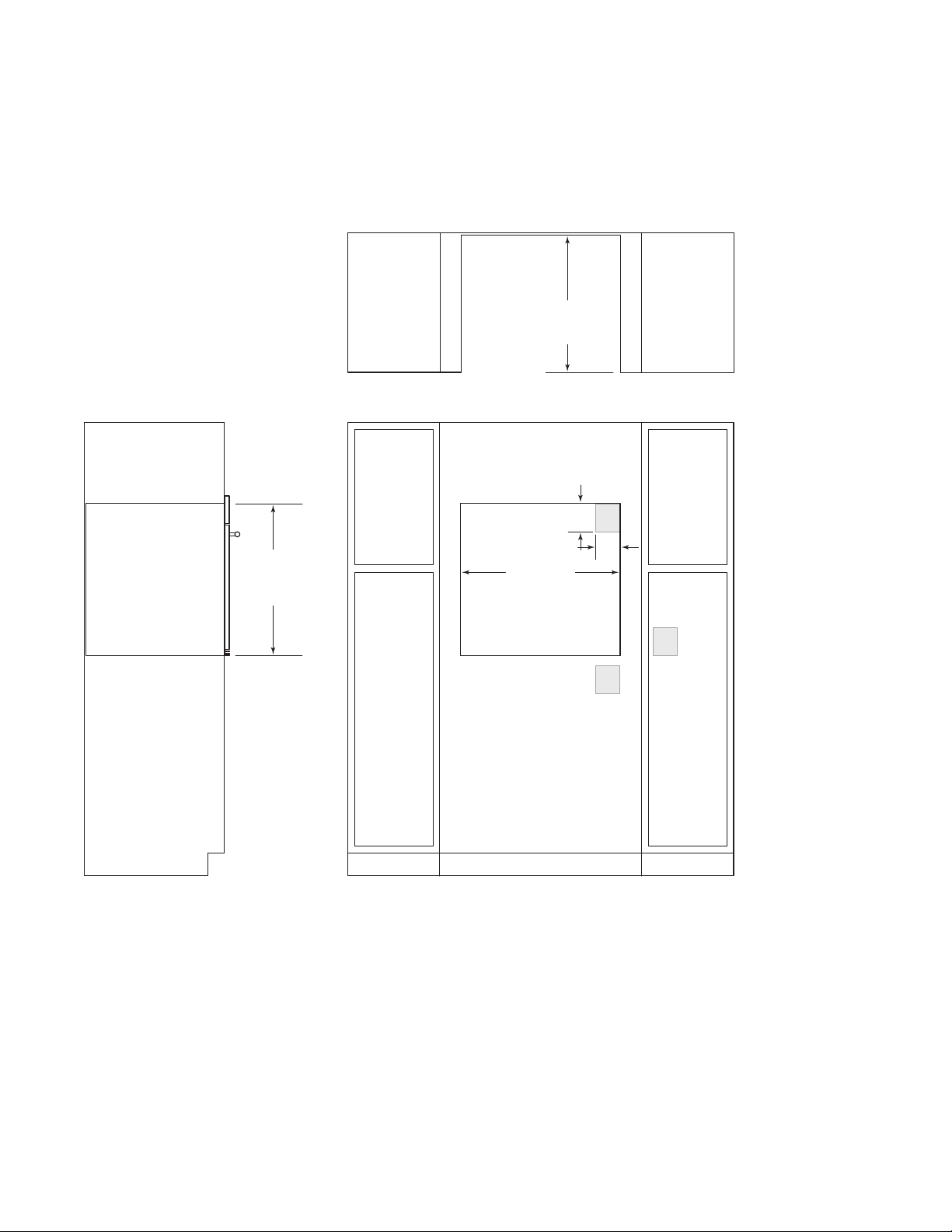

30" Single Oven Standard
Installation
281/2" (724)
OPENING WIDTH
E
5"
(127)
E
E
4"
(102)
FRONT VIEWSIDE VIEW
NOTE: Location of electrical supply within opening may require additional cabinet depth.
231/4" (591)
OPENING
DEPTH
TOP VIEW
271/2"
(699)
OPENING
HEIGHT
Specifications
30" Single Oven Standard
Installation
6 |English

30" Single Oven Flush Inset
Installation
301/8" (765)
FLUSH INSET WIDTH**
*Shaded areas will be visible and should be finished to match cabinetry.
**Dimension provides minimum reveals.
NOTE: Location of electrical supply within opening may require additional cabinet depth.
283/4"
(730)
FLUSH INSET
HEIGHT**
E
5"
(127)
4"
(102)
FRONT VIEWSIDE VIEW
11/8" (29)
1/8" (3)
13/16" (21)
24" (610)
FLUSH INSET
DEPTH
7/8" (22)
TOP VIEW
E
E
FINISHED
CLEATS*
Specifications
30" Single Oven Flush Inset
Installation
wolfappliance.com |7

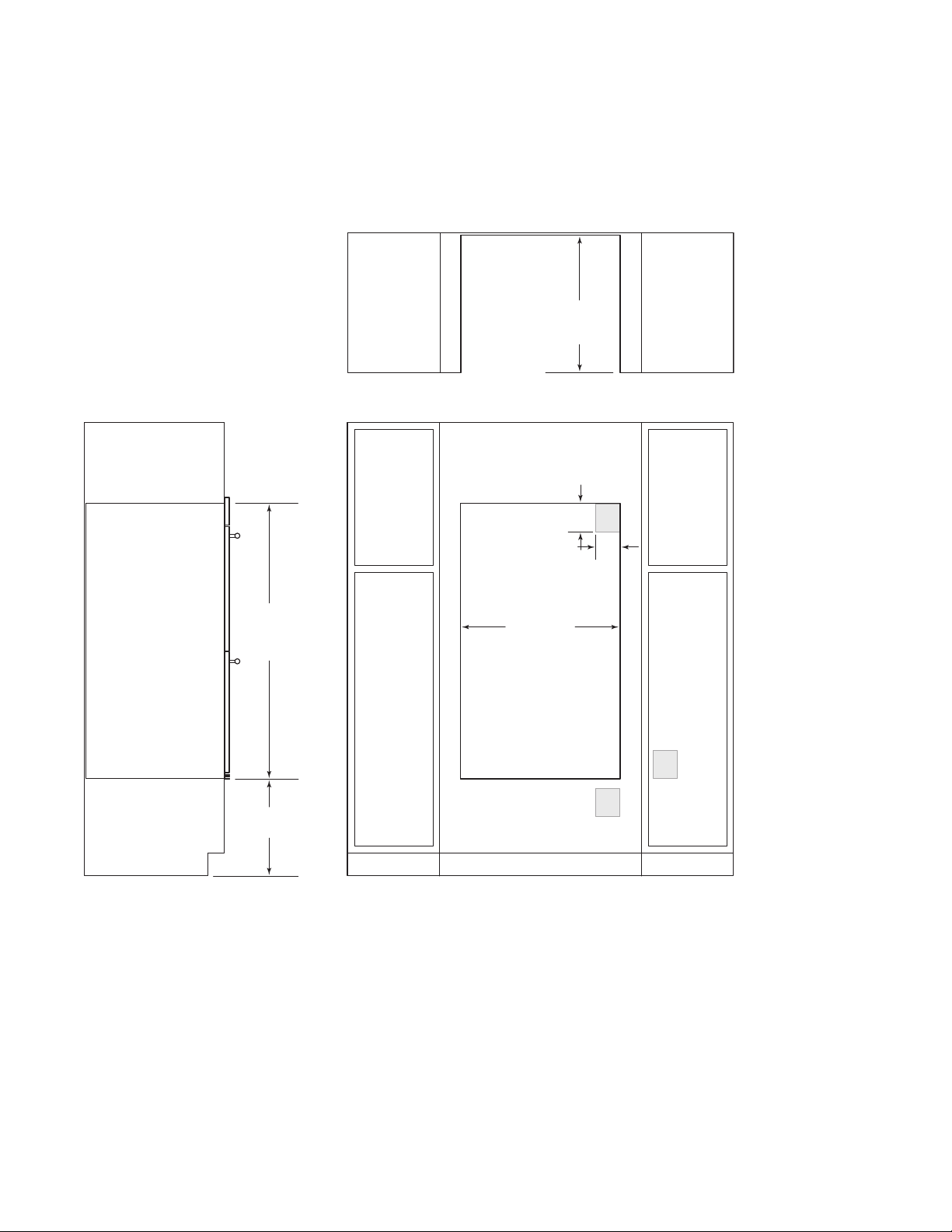

30" Double Oven Standard
Installation
281/2" (724)
OPENING WIDTH
E
5"
(127)
4"
(102)
E
E
FRONT VIEWSIDE VIEW
NOTE: Location of electrical supply within opening may require additional cabinet depth.
497/8"
(1267)
OPENING
HEIGHT
231/4" (591)
OPENING
DEPTH
17" (432)
TYPICAL
TOP VIEW
Specifications
30" Double Oven Standard
Installation
8 |English

30" Double Oven Flush
Inset Installation
301/8" (765)
FLUSH INSET WIDTH**
E
5"
(127)
4"
(102)
FRONT VIEWSIDE VIEW
511/8"
(1299)
FLUSH INSET
HEIGHT**
11/8" (29)
1/8" (3)
13/16" (21)
24" (610)
FLUSH INSET
DEPTH
17" (432)
TYPICAL
TOP VIEW
E
E
FINISHED
CLEATS*
*Shaded areas will be visible and should be finished to match cabinetry.
**Dimension provides minimum reveals.
NOTE: Location of electrical supply within opening may require additional cabinet depth.
7/8" (22)
Specifications
30" Double Oven Flush
Inset Installation
wolfappliance.com |9

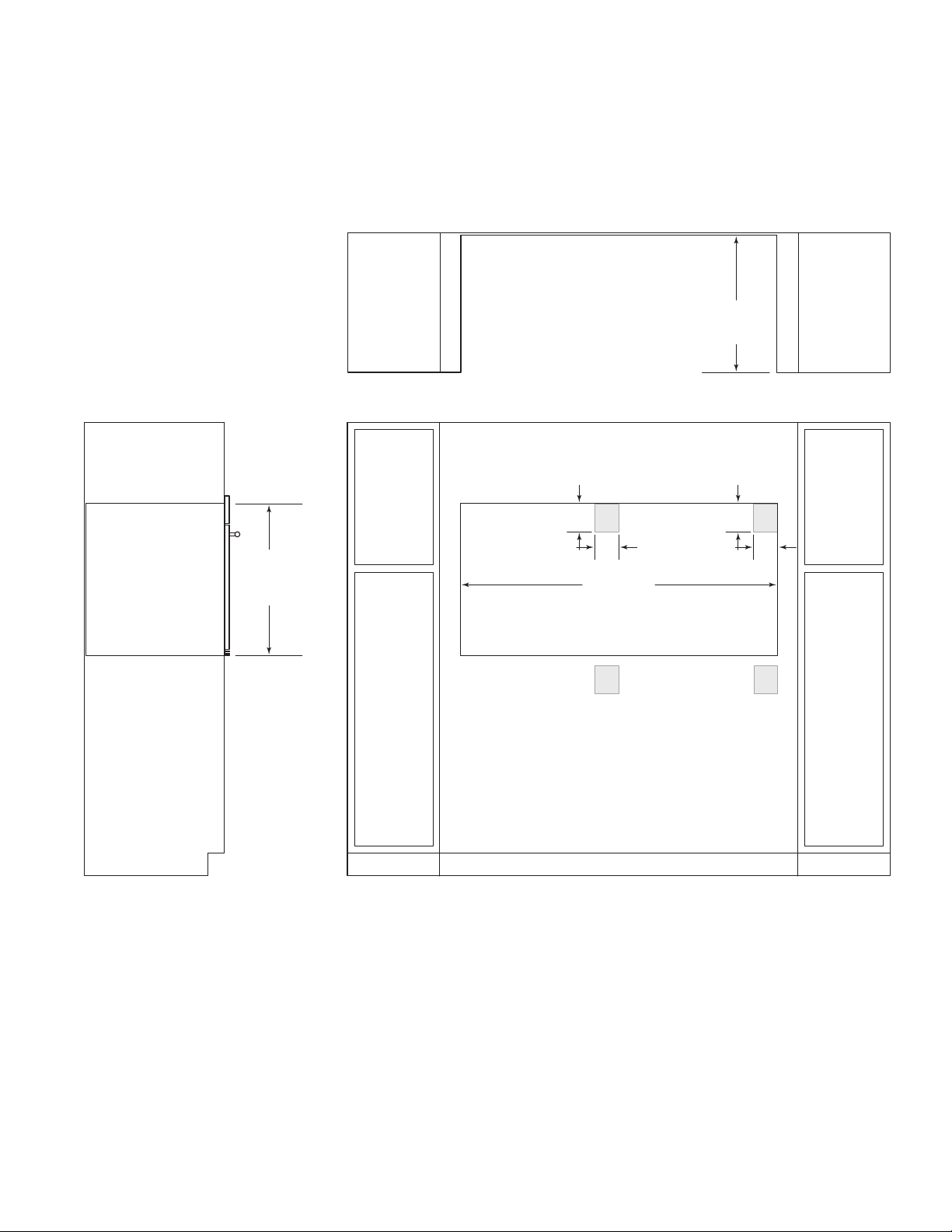

30" Single Oven Dual
Standard Installation
E
5"
(127)
E E
4"
(102)
E
5"
(127)
4"
(102)
FRONT VIEWSIDE VIEW
NOTE: Location of electrical supply within opening may require additional cabinet depth. A dual installation kit is required for this installation.
231/4" (591)
OPENING
DEPTH
TOP VIEW
271/2"
(699)
OPENING
HEIGHT
581/2"(1486)
OPENING WIDTH
Specifications
30" Single Oven Dual
Standard Installation
10 |English
