CONTENTS
7Orifice, 15k simmer, '79'
1Orifice, 9.2k simmer, '65'
3Orifice, 15k main and simmer, '180'
3Orifice, 18k main, '205'
1Orifice, 20k main, '208'
1Orifice, 9.2k main, '140'
2Orifice, griddle, '51'
1Orifice, charbroiler, '50'
14 Orifice, 15k bypass main, '67'
1Orifice, 9.2k bypass main, '54'
1Orifice, 9.2k bypass simmer, '50'
1Orifice, charbroiler/French top, '1F'
1 Label, conversion
This kit is for DF3050, DF3650, DF4850, DF6050 models,
and is intended to convert from liquid propane to natural
gas.
Note: Depending on the model, additional components
may be included with this kit, but not used.
WARNING
This conversion kit shall be installed by a qualified service
agency in accordance with the manufacturer's instructions
and all applicable codes and requirements of the authority
having jurisdiction. If the information in these instructions
is not followed exactly, a fire, explosion or production of
carbon monoxide may result causing property damage,
personal injury or loss of life. The qualified service agency
is responsible for the proper installation of this kit. The
installation is not proper and complete until the operation
of the converted appliance is checked as specified in the
manufacturer's instructions supplied with the kit.
WARNING
Turn off the power and gas to the product before starting
this procedure.
SURFACE BURNER RATING
The front left burner is 20,000 Btu. Any additional front
burners to the right are 18,000 Btu. The rear left burner is
9,200 Btu. Any additional rear burners to the right are
15,000 Btu.

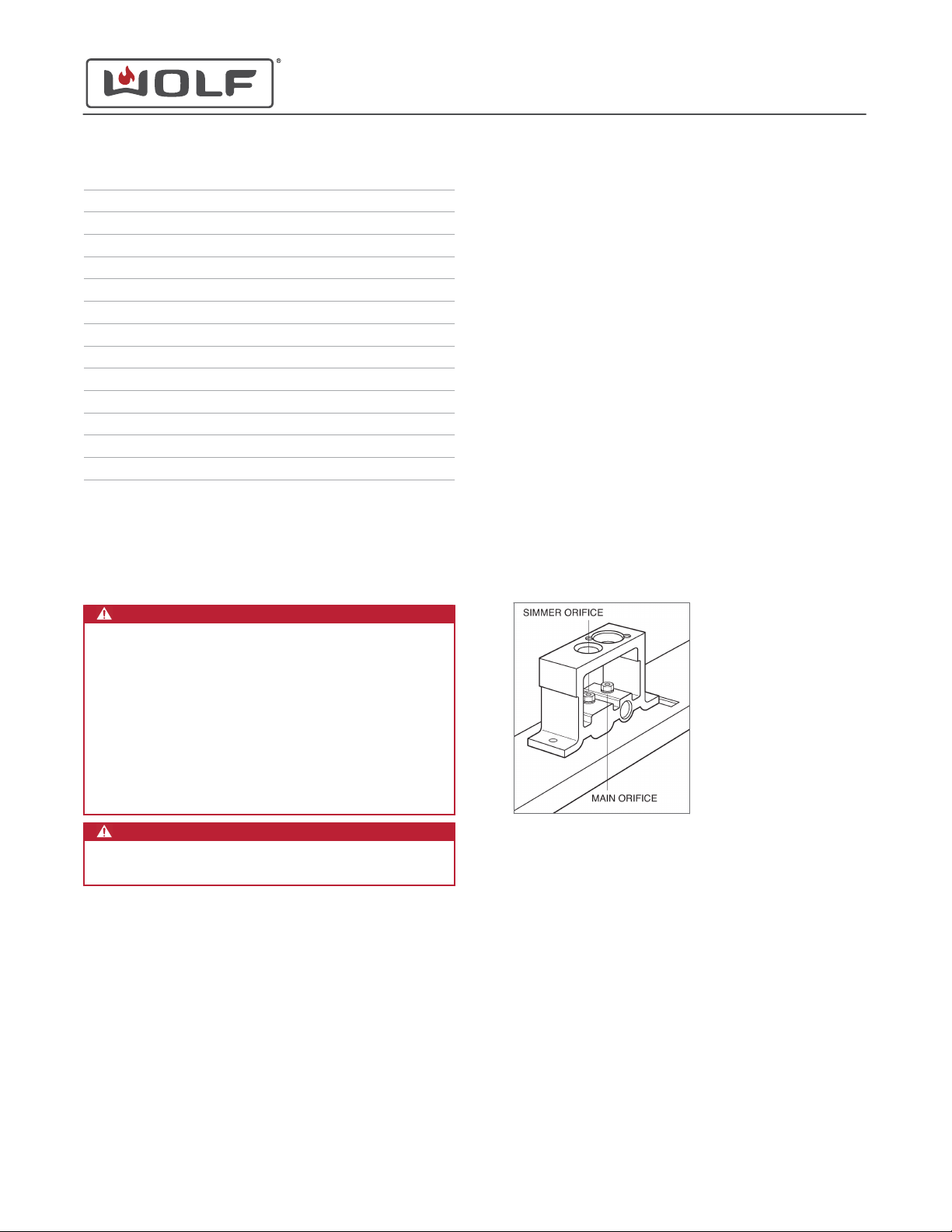

SURFACE BURNERS
1Remove the burner cap, then remove two screws
from each surface burner.
2Gently lift each burner, then disconnect the ignitor
wire. Set burner assemblies aside.
3For each 20,000 Btu (5.9 kW) burner, remove the
existing main orifice and replace with a new '208'
then remove the simmer orifice and replace with a
new '79' orifice.
For the 18,000 Btu (5.3 kW) burner, remove the
existing main orifice and replace with a new '205'
then remove the simmer orifice and replace with a
new '79' orifice.
For each 15,000 Btu (4.4 kW) burner, remove the
existing main orifice and replace with a new '180'
then remove the simmer orifice and replace with a
new '79' orifice.
For the 9,200 Btu (2.7 kW) burner, remove the
existing main orifice and replace with a new '140'
then remove the simmer orifice and replace with a
new '65' orifice.
Dual Fuel Range Conversion to Natural Gas
Installation
www.subzero-wolf.com 800.222.7820
829537 REV-A 04/2020 Page 1 of 3 *829537$REVA*

SURFACE BURNER VALVES
1Remove the skirt.
2Remove the door(s).
3Remove the collar(s).
4Remove the burner knobs and bezels.
5Remove the bullnose.
6Remove two 6-lobe screws from each bezel
receptacle, then remove the receptacle from the
valves.
7For the 20,000 Btu (5.9 kW), 18,000 Btu (5.3 kW),
and 15,000 Btu (3.5 kW) burner valves, remove the
main and simmer bypass orifices and replace with
new '67' main and '62' simmer orifices.
For the 9,200 Btu (2.7 kW) burner valve, remove the
main and simmer bypass orifices and replace with
new '54' main and '50' simmer orifices.
8For charbroiler and French top models, remove the
orifice and replace with a new '1F' orifice.
FRENCH TOP
1Remove the center plate, burner head bracket and
burner cap, then remove two screws from the burner.
2Gently lift the burner, then disconnect the ignitor wire.
Set burner assembly aside.
3Remove the existing main orifice and replaced with a
new '180'.
GRIDDLE AND CHARBROILER
1For a griddle, remove the existing orifice and replace
the griddle with a new '51' orifice.
2For a charbroiler, remove the existing orifice and
replace with a new '50' orifice.
REGULATOR CONVERSION
1Use a flat blade screwdriver to rotate the regulator
cap, then remove the cap.
2Flip the cap over and install. 'NAT' appears on the
cap when properly converted.
Dual Fuel Range Conversion to Natural Gas
Installation
www.subzero-wolf.com 800.222.7820
Page 2 of 3

GAS LEAK TESTING
WARNING
Never test for a gas leak with a flame.
1Brush a liquid detergent solution onto all gas
connections, then open the gas valve.
2If bubbles appear, close the valve and adjust
connections.
3Check for leaks again.
4Clean off the detergent solution.
COMPLETION
Once the conversion is complete, fill out the applicable
information on the conversion label, then place it next to
the existing rating plate. Install all previously removed
components and verify operation.
