Wolf I363418 Instructions for use

Planning Information
Model I363418(R) Pro Island Hood
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/06
1
Classic stainless
steel finish
Backdraft damper
Stainless steel
baffle filters
Infinite speed
blower control
Welded seams
and hemmed edges
Halogen lighting
Model I363418
Model I363418R
Rail Option
Hand finished crafts-
manship
Recessed easy
access controls
Decorative rail
(optional)
AWolf Pro island hood — the final touch to complete
your stage featuring professional cooking equipment.
This premier ventilation system complements your
cooking appliance of choice, guaranteeing you’ll look
the part, no matter what new cooking challenges you
take on.
This 36" (914) wide island hood is 34" (864) deep and
available in the classic stainless steel finish. You also
have the option of decorative rails. While classic stain-
less steel rails are standard on the (R) model, platinum
or brass rails are also available to match the bezels of
our dual fuel ranges and sealed burner rangetops.
The Pro island hoods are recommended for use with all
Wolf cooking appliances.
Wolf Pro island hoods are available in
the classic stainless steel finish. Rail
option hoods (R) come with classic stain-
less steel decorative rails and stand-offs
for both sides of the hood. Optional
platinum or brass rails match dual fuel
range bezels. Pro island hoods are sold as
a shell only; internal, in-line and remote
blower options are available.
Model I363418R shown with standard classic stainless steel decorative
rails, platinum or brass rails available as a sales accessory

36" (914)
OVERALL WIDTH
18"
(457)
18" (457)
OVERALL
HEIGHT
34" (864)
OVERALL DEPTH
13"
(330)
4"(102)
2"
(51)
3/4" (19)
DIAMETER
OF RAIL
2"
(51)
18" (457)
OVERALL
HEIGHT
36" (914)
OVERALL WIDTH
4"(102)
34" (864)
OVERALL DEPTH
13"
(330)
18"
(457)
Planning Information
Model I363418(R) Pro Island Hood
Dimensions in parentheses are in
millimeters unless otherwise specified.
2
Model I363418
Model I363418R with Rail
OVERALL DIMENSIONS
FEATURES
Classic stainless steel finish
Rail option hoods (R) come with classic
stainless steel decorative rails and stand-offs
– optional platinum or brass rails to match
dual fuel range and sealed burner rangetop
bezels are available as a sales accessory
Internal, in-line and remote blower options
Heavy-duty 16-gauge brushed stainless steel
construction
Stainless steel enclosed liner
Continually welded seams, hemmed edges
and sides and hand finished craftsmanship
Recessed easy-access controls
Infinite-speed blower control
Heat sentry feature automatically turns unit
on when heat is sensed and automatically
adjusts blower speed
Halogen lighting with two settings
Removable, dishwasher-safe, restaurant-
grade stainless steel baffle filters
Transition with backdraft damper included
UL listed to US and Canadian safety
standards
UL approved for covered outdoor applications
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
Dimensions may vary by ±
1
/ 8 " (3).

Planning Information
Model I363418(R) Pro Island Hood
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
BLOWER OPTIONS
1200 CFM Internal Blower 804703
1100 CFM In-Line Blower 808332
900 CFM Remote Blower 801641
1200 CFM Remote Blower 801642
1500 CFM Remote Blower 804701
Refer to the Pro Ventilation
Recommendations chart at the end
of this section.
ACCESSORIES
Platinum or brass decorative rails
and stand-offs for both sides of
the hood
6" (152) and 12" (305) duct
covers
Contact your Wolf dealer for additional
information on accessories.
SPECIFICATIONS
Overall Width of Hood 36" (914)
Overall Height of Hood 18" (457)
Overall Depth of Hood – I363418 34" (864)
I363418R (including rails) 38" (965)
Duct Size 10" (254) Round
Discharge Vertical
Electrical Supply Requirements 110 / 120 V AC, 60 Hz
15 amp dedicated circuit
Shipping Weight (shell only) 95 lbs (43 kg)
Specifications are subject to change without notice.

Planning Information
Model I363418(R) Pro Island Hood
Dimensions in parentheses are in
millimeters unless otherwise specified.
4

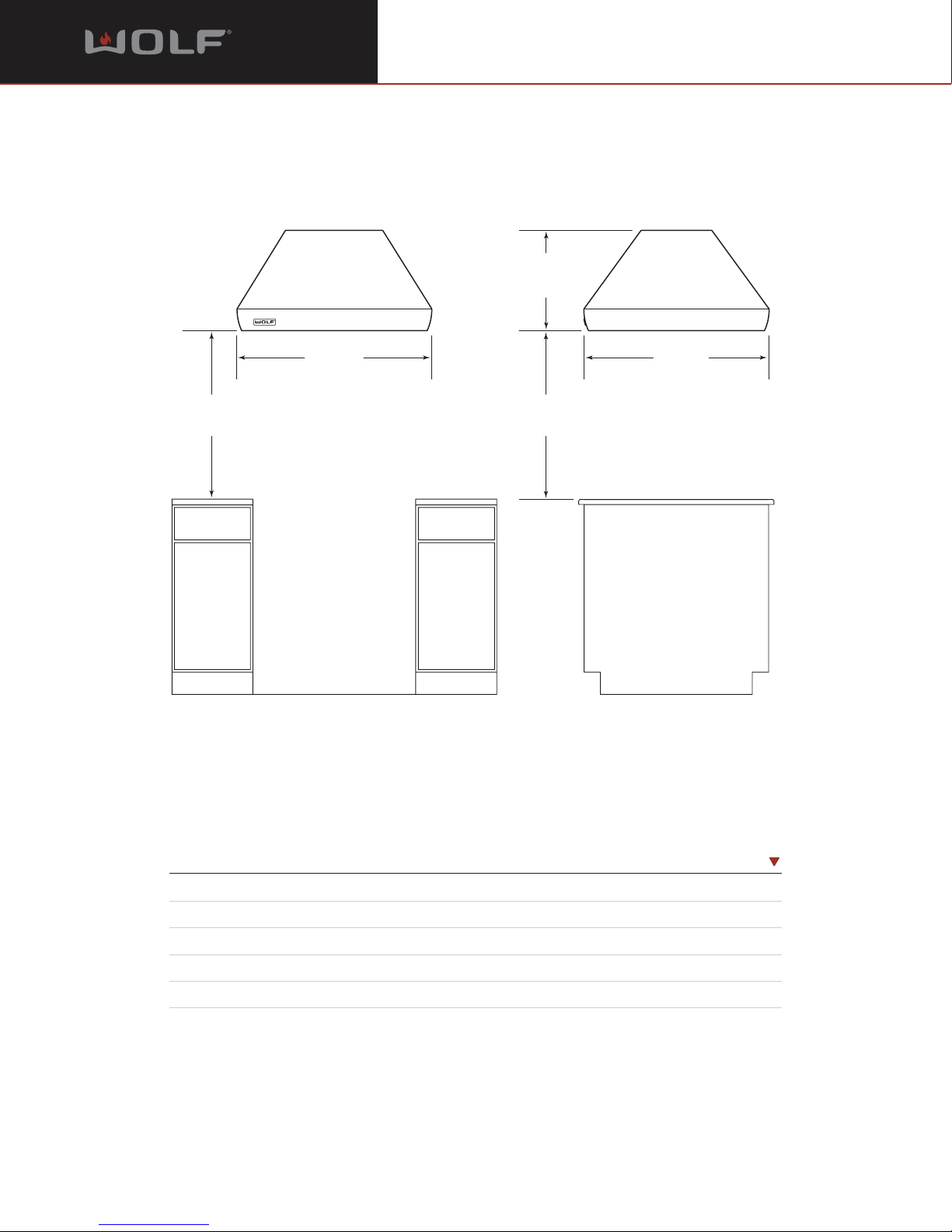

INSTALLATION SPECIFICATIONS
18" (457)
HEIGHT
OF HOOD
34" (864)
DEPTH OF HOOD
36" (914)
WIDTH OF HOOD
LOCATION OF ELECTRICAL SUPPLY
CENTERED THROUGH TOP OF HOOD
30" TO 36"
(762–914)
TO COUNTERTOP
30" TO 36"
(762–914)
TO COUNTERTOP
DIMENSIONS
Overall Width of Hood 36" (914)
Overall Height of Hood 18" (457)
Overall Depth of Hood (excluding rails) 34" (864)
Countertop to Bottom of Hood 30" (762) to 36" (914)
Location of Electrical Centered through top of hood
See Installation Instructions shipped with unit for detailed specifications.

Planning Information
Model I363418(R) Pro Island Hood
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions and installation specifics.
Wolf Pro island hoods are recommended for
use with any Wolf cooking appliance. The hood
must overlap the cooking surface by a minimum
of 3" (76) on either side.
Installation of all Pro island hoods should be
30" (762) to 36" (914) from the bottom of the
hood to the countertop. Follow the dimensions
shown in the Installation illustration.
Wolf Pro island hoods are shipped without a
blower assembly. Internal, in-line and remote
blower assemblies are available. Blower options
also vary with the volume of air that needs to
be moved and the length of the duct run. Refer
to the charts at the end of this section for Pro
ventilation recommendations and blower
options.
IMPORTANT NOTE: Install this ventilation hood
only with a Wolf blower.
Pro island hoods require a separate,
grounded 110/120 V AC, 60 Hz power supply.
The service should have its own 15 amp circuit
breaker. Placement of the electrical supply is
not critical, as long as you provide a minimum
of 6" (152) of 120 V AC, 60 Hz power cable.
Location of electrical is centered through the
top of the hood as shown in the Installation
illustration on page 4.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
Refer to the installation instructions shipped
with each Wolf product for detailed specifica-
tions. This information can also be found on
our website, wolfappliance.com.

Planning Information
Model I363418(R) Pro Island Hood
6
Dimensions in parentheses are in
millimeters unless otherwise specified.

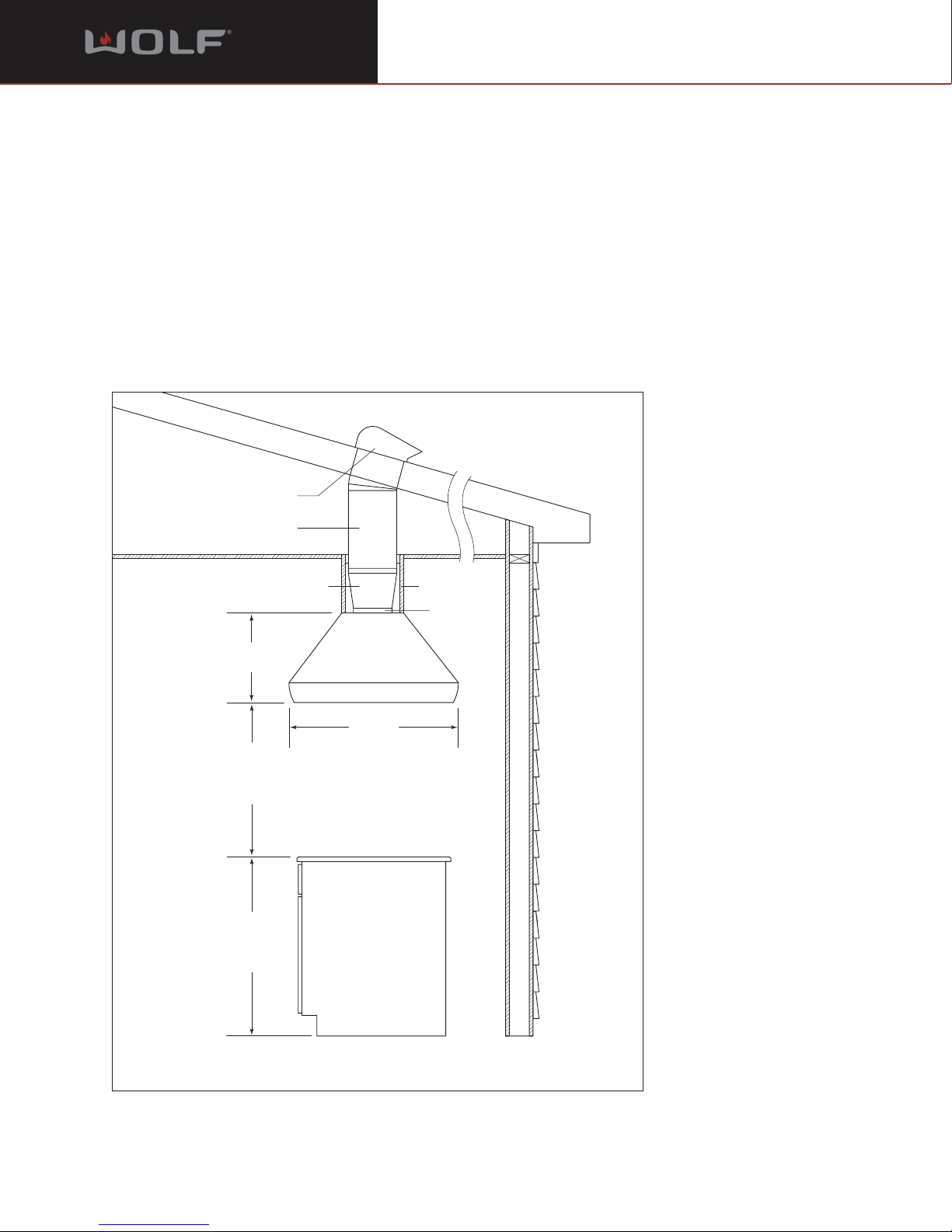

ROOF CAP OR REMOTE BLOWER
18" (457)
HEIGHT OF HOOD
ISLAND HOOD
DUCTWORK INSTALLATION
THROUGH ROOF
34" (864)
DEPTH OF HOOD
10" ROUND DUCT
VERTICAL
DISCHARGE
VERTICAL DISCHARGE ONLY FOR ISLAND HOODS.
TRANSITION
141/8"W x 9"D TO 10" ROUND
11"H (INCLUDING FLANGES)
SOFIT, CABINET OR
DUCT COVER
30" TO 36"
(762–914)
COUNTERTOP
TO BOTTOM OF
VENTILATION HOOD
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
DUCTING CONSIDERATIONS
Pro island hoods are shipped without the blower
assembly. Internal, in-line or remote blower
assemblies are available.
Wolf Pro island hoods have a vertical discharge
location as shown in the illustration below.
IMPORTANT NOTE: Install these ventilation
hoods only with a Wolf blower.
Refer to the Pro ventilation charts at the end of
this section for recommendations and blower
options.
Ducting considerations for
Pro island hoods.

Planning Information
Wolf Ventilation Recommendations
Dimensions in parentheses are in
millimeters unless otherwise specified.
7
241/2"
(622)
151/2"
(394)
281/4"
(718)
203/4"
(527)
243/4"
(629)
14"
(356)
43/4"
(121)
10" (254)
Diameter
143/4"
(375)
291/2"
(749)
291/2"
(749)
18" (457)
22"
(559)
101/8"
(257)
71/4"
(184)
10"
(254)
10" (254)
Diameter
Remote BLOWER-60REM and
BLOWER-90REM
143/4"
(375)
291/2"
(749)
291/2"
(749)
21" (533)
25"
(635)
103/8"
(264)
71/4"
(184)
10"
(254)
10" (254)
Diameter

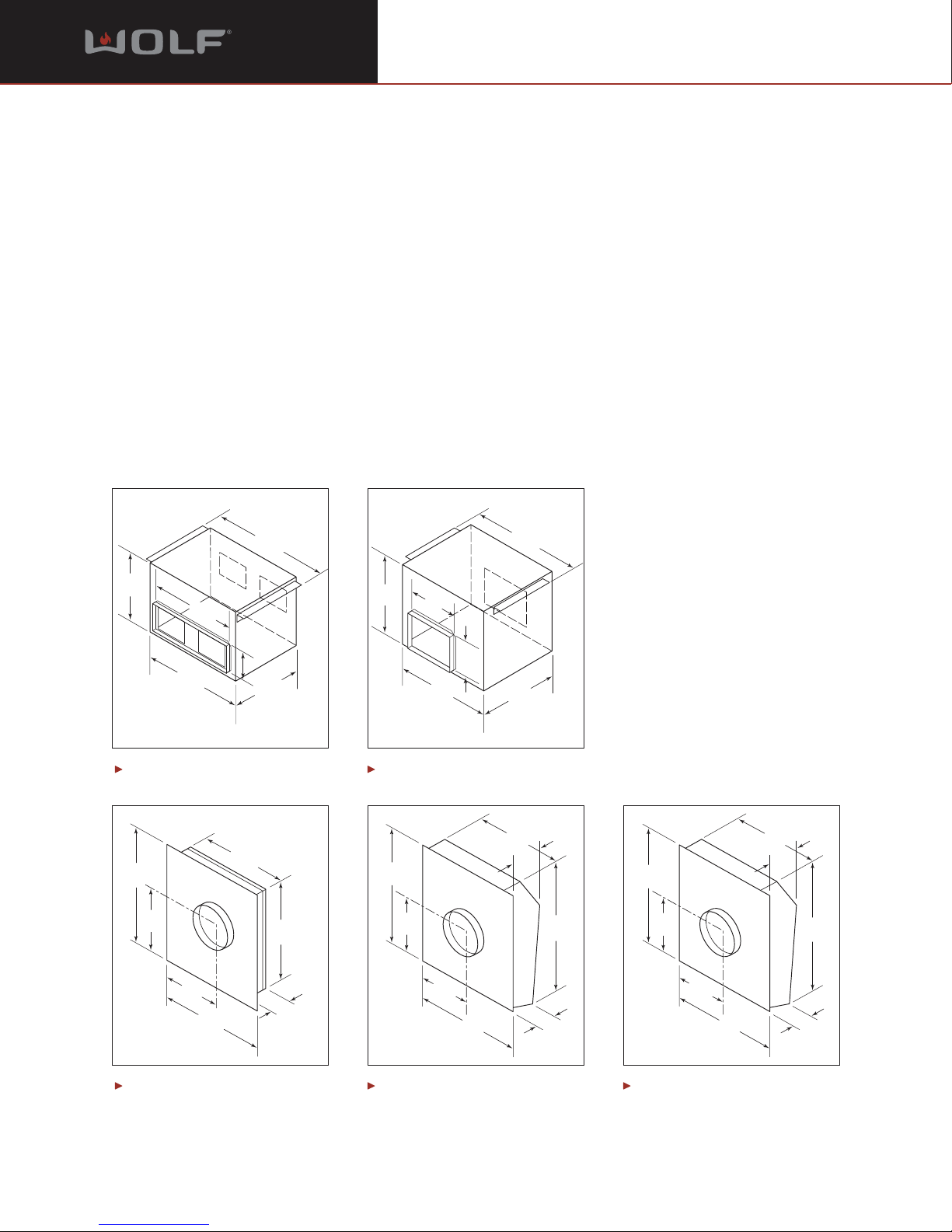

WOLF BLOWER ASSEMBLIES
A ventilation system must include a blower
assembly. With a few exceptions where internal
blowers are included, Wolf ventilation hoods and
downdrafts are shipped without the blower
assembly. An internal, in-line or remote blower
assembly must be selected to accommodate the
cooking appliance, CFM requirements and home-
owner preferences. Internal, in-line and remote
blower assemblies are available as sales acces-
sories through your Wolf dealer.
Wolf internal, in-line and remote blowers are for
use with Wolf cooktop hoods, downdraft
systems and Pro ventilation hoods and hood
liners.
IMPORTANT NOTE: Use only a Wolf blower
with all Wolf ventilation products.
Internal blowers are mounted inside the hood
canopy or downdraft blower box. In-line blowers
are mounted in between the hood and the
exterior of the home. Remote blowers can be
mounted on the roof or in some cases, on an
exterior wall. Refer to the illustrations below for
dimensions of Wolf in-line and remote blowers.
Ventilation recommendation charts on the
following pages provide minimum CFM recom-
mendations according to the cooking appliance
and ventilation system used and blower options
for each specific ventilation hood or downdraft.
Remote BLOWER-120REM Remote BLOWER-150REM
113/4"
(298)
211/2"
(546)
243/8"
(619)
181/2"
(470)
121/4"
(311)
41/2"
(114)
18"
(457)
22"
(559)
247/8"
(632)
12"
(305)
18"
(457)
8"
(203)
In-line BLOWER-60IL In-line BLOWER-110IL
Dimensions may vary by ±
1
/ 8 " (3).

Planning Information
Wolf Ventilation Recommendations
8
Dimensions in parentheses are in
millimeters unless otherwise specified.
PRO VENTILATION CFM RECOMMENDATIONS
Pro Island Hoods
I363418 I423418 I543418 I663418
DF304 / R304 / SRT304 600 600
DF366 / R366 / SRT366 / RT366 900
DF364 / R364 / SRT364 / RT364 900
RT362 900
R488 / RT488 1100
DF486 / R486 / SRT486 / RT486 1100
DF484 / R484 / SRT484 / RT484 900
R482 / RT482 900
DF606 / R606 1500
DF604 / R604 1500
Model numbers for dual fuel ranges, gas ranges, sealed burner rangetops and gas rangetops indicate width and number of surface
burners. Features such as a charbroiler, griddle and/or French Top will vary.
CFM recommendations are based on total Btu/hr output. Wolf recommends 1 CFM per 100 Btu/hr (.03 kW). Additional CFM may be
required for long duct runs.
PRO VENTILATION BLOWER OPTIONS
Pro Island Hoods
Blower Description Blower Number Island Hood Models
1200 CFM Internal IBLOWER-120INT (804703) All Island Hoods
1100 CFM In-Line BLOWER-110IL (808332) All Island Hoods
900 CFM Remote BLOWER-90REM (801641) I363418 / I423418 / I543418
1200 CFM Remote BLOWER-120REM (801642) All Island Hoods
1500 CFM Remote BLOWER-150REM (804701) All Island Hoods
Vertical discharge with 10" (254) round duct.
Island hood models without decorative rails listed; blower options are the same for (R) models. Transition with backdraft damper
included with island hoods. Blower configurations are for reference only. Refer to minimum CFM recommendations for your specific
cooking product. Always consult a qualified HVAC Engineer for specific applications.
