Wolfbox G890 User manual

2
Mirror Dash Cam G890
User Manual
V03

IC warning:
This device contains licence-exempt transmitter(s)/receiver(s)/ that comply with Innovation Science and
Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:
1. This device not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the
device.
Radiation Exposure: This equipment complies with Canada radiation exposure limits set forth for an
uncontrolled environment. To maintain compliance with IC's RF Exposure guidelines, this equipment should be
installed and operated with minimum distance of 20cm the radiator your body. This device and its antenna(s)
must not be co-located or operation in conjunction with any other antenna or transmitter.
Déclaration de l'ISED Canada:
Cet appareil contient des tasmittre (s) / récepteur (s) sans licence / conformes à l'innovationRSS exemptes de
licence de Sciences et Développement économique Canada. L'opération est sous réserve des deux conditions
suivantes:
1. Cet appareil ne peut pas causer d'interférences et.
2. Cet dispositif doit accepter toute interférence, y compris peut provoquer le fonctionnement indésirable de
l'appareil.
Exposition aux rayonnements : Cet équipement est conforme aux radiations du Canada limites d'exposition
pour un environnement incontrôlé noncé d'exposition RF Pour maintenir le respect des guides d'exposition RF
d'IC, cquipment doit être.installé et actionné avec une distance minimale de 20cm le radiateur de votre corps.
Cet appareil et ses antennes ne doivent pas être co-localisé ou en opération en conjonction avec toute autre
antenne ou émetteur.

01
CONTENT
Precautions
Specification
Package Contents
Installation
Wiring Introduction
Product Overview
Settings
Data Playback
Play on Computer
Trouble Shooting
Customer Support
02
04
05
07
15
22
23
36
38
38
39

02
Please read this manual carefully before operation and keep it for future reference. It will be
helpful should you encounter any operational problem.
Improper installation will void the manufacturer's warranty. The installation instructions
do not apply to all types of vehicles and are written as guidelines to assist in installing the
system.
Consult an experienced technician if you are not comfortable installing the product.
Please make sure to read and understand call local laws and regulations regarding cameras
and their use in a vehicle. Laws vary by state.
Do not obscure the view of the road ahead or impede the deployment of any airbags in the
event of an accident.
When not in use, please disconnect the car adaptor from both the12/24V DC outlet in your
vehicle and the device itself.
Precautions

03
Only clean the device with a soft dry cloth, for tough dirt, apply some neutral detergent
diluted in 5 to 6 parts water to a soft cloth.
Note that alcohol, thinner, benzene, etc could cause damage to the paint or coatings.
Avoid making contact with the Lens as damage may be caused.
The video recordings made by this Digital Video Recorder are intended for personal use
only.
Whilst driving, do not adjust the controls of your device as this is a distraction to driving.

04
Specification
Item Name
Model
Screen Size
Display Resolution
Recording Resolution
Lens
Recording Format
Photo Format
Memory Card
Storage Temperature
Operating Temperature
Product Weight
Item Dimension
Input
Output
WOLFBOX G890
12" IPS Touch Screen
1480 x 320
JPEG
Micro SD card 32G-512G U1
-22°F~176°F
-4°F ~158°F
3.76 lb
11.4 x 2.8 x 1.2 (in)
DC 12V
DC 5V - 3A
12" Stream Media Mirror Dash
Cam with 3 Channels
Front Camera: 2560×1440
Internal Camera: 1920 x 1080
Rear Camera: 1920 x 1080
Front Camera: F1.55 136°
Internal Camera: F1.8 140°
Rear Camera: F1.8 140°
MP4

05
Package Contents
WolfBox G890
Mirror dash cam
Package contents
Car Charger Rubber Strap x 4 Cleaning Cloth Internal Camera
Rear Camera
Docking station

06
Rear Camera Cable
Car Wire Trim Tool
1 Docking station 3M Adhesive * 1
3 Internal Camera 3M Adhesive * 1
2 Rear Camera 3M Adhesive * 1
3M Adhesive x 2
Internal rear camera bracket * 1
Screws x 4
Outside rear camera bracket * 1
Cable Clips * 6
Hardware Kit
Type-c Power Cable
User Manual * 1

07
Installation
Warning
Please MAKE SURE to connect all cameras and wires BEFORE power ON the Mirror Screen,
otherwise, the camera cannot work properly.
Please follow the instructions below for the first-time installation of the Stream Media Mirror
Dash Camera. It is designed to be fitted to the existing rear-view mirror using the straps.
Insert Micro SD Card
Insert the Micro SD Card into the stream media mirror dash camera, taking care that the gold
contacts are facing towards the backside of the stream media mirror dash camera. Push the
memory card until it clicks into the slot.

08
Insert Micro SD Card
Notice:
Notice:Use your nail to push the memory card into a slot if required. Take care that the card
has clicked into the slot, a second push inwards will release the memory card.
Do not remove or insert the memory card when the Mirror Dash Cam is turned on. This may
damage the memory card.
Take care when removing the SD card from the Mirror Dash Cam when it is installed in the
vehicle. Due to the card slot mechanism, the card will spring from the slot when released.
Periodically reformat the memory card. Every 2-3 weeks we recommend that you reformat
the memory card. Please do this after you've downloaded any files from the SD card that you
may want to keep, as formatting the card will remove all content.
Format your memory card using the Mirror Dash Cam. This will make sure that the card is
structured specifically for your camera.
Press to enter into the setting and choose the Format Card option to follow the
on-screen instructions accordingly.

09
Mount the Mirror Dash Cam
Step 1: Attach the upper end of the straps to the retaining hooks on the top of the rear-view
mirror.
Step 2: Extend the straps around the back of the rear-view mirror and attach them to the
bottom retaining hooks.

10
The straps have been designed so they can be cut down to give further size options, as
required.
The straps should be a tight fit when fitted, thus ensuring the Stream Media Mirror Dash
Camera is securely fitted to the existing rear-view mirror.
Notice:
Docking Station Installation (As shown in illustration)
step 1: Take the docking station out of the box, and tear off 3M adhesive of it. Then please affix
it to the front windshield.
step 2: After installed, please link the host of G890 with docking station.
Please pay attention to that interface of the dock should be upward.

11
Camera Installation
Uncover the 3M tape protective film and lens protective film of the front camera and the
internal camera.

12

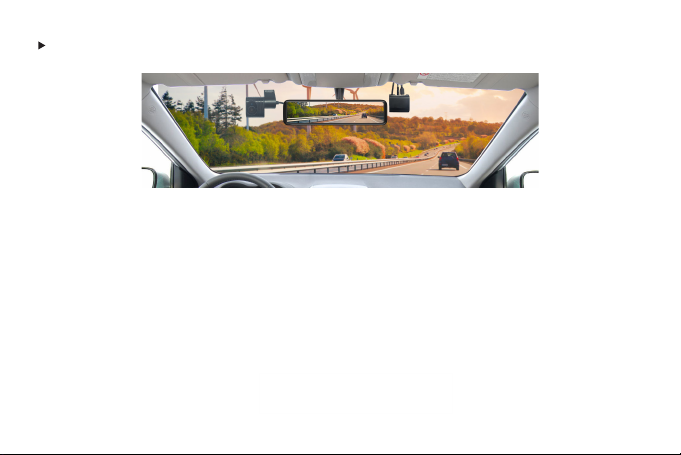

Attach the internal camera to a suitable position on the front windshield.
Rear Camera Installation
Use the provided double-sided tape or screws to fix rear camera. The angle can be adjusted,
so be sure to find a perfect viewing angle for your camera before fix it.

13
Install inside the car
Please choose type 1 bracket to mount the rear camera if you'd like to install it inside your
vehicle.
Install outside the vehicle
Please choose type 2 bracket to mount the rear camera if you'd like to install it outside your
vehicle.

14
Rear Camera Installation
Notice:
Make the connection first and ensure the machine work well before installing.
Keep away with the driving operation and the active part of the car. Do not get caught by
screws or seat gaps.
When drilling holes in car, please do not break the vibrator, tank and wires.
Before attaching the double-sided tape, please remove stain or oil with alcohol cleaner from
the surface.
When temperature is low, please warm up the mounting surface with dryer, in order to
improve the adhesion before sticking.
The provided 3M sticker cannot be reused, or the adhesion will not be strong enough.
Do not disassemble or change any part of this product, this will not be covered by warranty.

15
Wiring Introduction
NOTICE: The purple line in the picture refers to the reversing light line.
Connect the red trigger wire to
the positive of the reversing lamp
Yellow: Constant Power
Red: ACC Power
Black: Attach to the Grounding
Docking Station
Type-c Power Cable
4 pin Interface
8 pin Interface
Internal Camera Rear Camera
Rear camera cable

16

17
Insert Red, Yellow & Black Cables
a. Yellow cable (BATT/B+)
The yellow wire should be connected to the constant power supply in the car
fuse box.
Test method: Use a voltage tester to check the fuse slot to make sure it still has
power when the car's engine is turned off.
c. Black cable (GND)
Connect this black cable(GND) to the metal part of the vehicle. Most cars have
screws or metal parts next to the fuse box. Connect the black cable to the screw
or metal part. (As shown on the left).
b. Red cable (ACC)
The red wire should be connected to the ACC power supply in the car fuse box.
Test method: Use a voltage tester to check the fuse slot to make sure it has
power when the car's engine is on but no power when the engine is off.

18
Universal Compatibility Chart
