WolfPack HDTVIPA100 Series User manual

4K IP Streaming Extender
All Rights Reserved
User Manual
Version: HDTVIPA100_2019V1.0

4K IP Streaming Extender
Preface
Read this user manual carefully before using the product. Pictures shown in this
manual are for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated till
November, 2018. In the constant effort to improve the product, we reserve the right to
make functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class Adigital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

4K IP Streaming Extender
SAFETY PRECAUTIONS
To ensure the best performance from the product, please read all instructions carefully
before using the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install
this product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage.
If an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

4K IP Streaming Extender
Table of Content
1. Product Introduction....................................................................................................1
1.1 About 10G Network ...........................................................................................1
1.2 Features ............................................................................................................2
1.3 Package List......................................................................................................2
2. Specification ...............................................................................................................4
3. Panel Description........................................................................................................5
4. System Connection.....................................................................................................8
4.1 Usage Precaution..............................................................................................8
4.2 Connection Type................................................................................................8
4.3 System Diagram................................................................................................9
4.4 Hardware Setup...............................................................................................10
5. GUI Control...............................................................................................................12
5.1 Basic Configuration .........................................................................................12
5.2 Device Configuration .......................................................................................13
5.3 Video Routing Tab ...........................................................................................15
5.3.1 Video Switching.....................................................................................16
5.3.2 Send single source to all RX devices ....................................................17
5.3.3 Stopping/Starting Video.........................................................................17
5.3.4 Disconnecting Source from RX..............................................................17
5.4 Wall Routing Tab..............................................................................................18
5.4.1 Configuring a Video Wall .......................................................................18
5.4.2 Preset Setting........................................................................................19
5.4.3 Removing Decoder (RX) from Video Wall .............................................20
5.4.4 Changing Output Resolution for Video Wall Decoders ..........................20
5.5 HDMI Audio Routing Tab .................................................................................21
5.6 Analog Audio Routing tab................................................................................23
5.7 RS-232 Routing Tab ........................................................................................25
3.1 HDTVIPA100-TX Front Panel ............................................................................5
3.2 HDTVIPA100-TX Rear Panel.............................................................................5
3.3 HDTVIPA100-RX Front Panel.............................................................................6
3.4 HDTVIPA100-RX Rear Panel ............................................................................7

4K IP Streaming Extender
5.7.1 Assign Sender to all Receivers..............................................................25
5.7.2 To send RS-232 data from Control layer to a device .............................25
5.8 Infrared Routing Tab........................................................................................27
5.8.1 Assign Sender to all Receivers..............................................................27
5.8.2 To send IR data from Control layer to a device......................................27
5.9 Global Command Options and Settings ..........................................................29
5.9.1 Decoder Settings options ......................................................................29
5.9.2 Encoder Settings options.......................................................................35
5.10 Group management.......................................................................................40
5.11 System Management Tab..............................................................................41
5.11.1 Device Firmware Upgrade...................................................................41
5.11.2 System Backup and Restore ...............................................................42
5.11.3 System Logs........................................................................................44
5.11.4 Security Setting....................................................................................45
5.12 Routing Table.................................................................................................46
6. Panel Drawing ..........................................................................................................49
7. Troubleshooting & Maintenance ...............................................................................50
8. Customer Service .....................................................................................................51

4K IP Streaming Extender
1
1. Product Introduction
4K/60Hz/4:4:4, HDR. It is designed for HDMI/DP transmission over IP network with
external audio and control signals at distances up to 100m over copper cable. It works
with one control PC (Wake on LAN) and one 10GbE Switch to control a variety of
functions.
market utilizing AptoVision BlueRiver™ NT+ technology, which synergizes various
IP/AV standards to work together as one. It combines a variety of 4K IP technologies
and features under one unified protocol using a simplified topology.
decoder, seamless switching, Video wall, 1G Ethernet, IR, RS232, audio
embedding/de-embedding, audio down-mixing, etc. The control PC merge all functions
into Web-GUI, it means that user control system functions over multiple OS which
support browser anywhere in the same local area network.
Compares with traditional HDBaseT matrixAV Switching, IPA100 features low, easy
installation, more interoperability and flexibility. It is ideal for distributing AV over 10
Gigabit Ethernet in enterprises and other large-scale installations.
1.1 About 10G Network
Unlike traditional AV extension technology such as HDBaseT where transmitters and
receivers are connected point to point or joined together using custom matrix switch,
transmitters and receiver units based on BlueRiver NT and NT+ technology are
interconnected using standard of the shelf 10G Layer 2/3 network switches.
Through this architecture all signals are now packed into data packets that are
independently routed. Not only does this allow sending data from one transmitter to one
receiver (1 to 1) or one transmitter to many receivers (1 to many).
An added benefit of packet data transmission is that each signal type (video, audio,
RS232 etc.) is routed independently and not necessary to the same destination. As an
example, HDMI video received by particular Transmitter goes to 4 receivers, while the
audio goes to all receivers.
This flexibility in signal routing enables multiple applications including: matrix switching,
scalers and video-walls.
The 4K/60 HDR HDMI Over IP series is a network AV TX/RX w/HDMI and DP inputs up to
The HDTVIPA100 series provides one of the most advanced IP Streaming solutions on the
The HDTVIPA100 series features uncompressed video with zero-latency from encoder to

4K IP Streaming Extender
2
1.2 Features
AptoVision BlueRiver™ NT+ technology. NT1000 chip is implemented in the
transmitter and NT2000 chip is implemented in the receiver.
Streams uncompressed video with zero-latency, audio, and control, with the
flexibility of transmitting them together or to separate network destinations.
Supports HDMI 2.0 and video resolution up to 4K@60Hz 4:4:4 8bit, 1080P 3D.
18Gbps high bandwidth and supports HDR 10 and Dolby Vision.
Automatically detect and switch HDMI and DP inputs.
Transmits and receive RS232 and IR to any units by using Unicast or Broadcast
IPV4 protocol or local control byAPI server.
IPA100 series are configurable HDCP 2.2 compliant from encoder to decoder.
Allows a video source to be stretched across multiple displays.
Seamless switching between different encoder with selectable output resolutions
up to 4K scaling ability.
Encoder route HDMI audio, external audio as an independent streaming for
decoder embedding.
BlueRiver NT+ Series is compatible with SDVoE, offering zero-latency AV-over-IP
with true 4K/60 and video processing.
1.3 Package List

2x Mounting Ears with 6 Screws
4x Plastic Cushion
1x 3-pin Terminal Block
1x Power Adaptor (12V DC 2A)
1x User Manual
WolfPack™ 4K/60 HDR HDMI Over IP-TX:
1x WolfPack™ 4K/60 HDR HDMI Over IP Transmitter (Encoder)

4K IP Streaming Extender
3

2x Mounting Ears with 6 Screws
4x Plastic Cushion
1x 3-pin Terminal Block
1x Power Adaptor (12V DC 2A)
1x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.
WolfPack™ 4K/60 HDR HDMI Over IP-RX:
1x WolfPack™ 4K/60 HDR HDMI Over IP Transmitter (Decoder)

4K IP Streaming Extender
4
2. Specification
Video Input
(1) HDMI, (1) DP
Video Input Connector
(1) Type-A female HDMI, (1) DisplayPort
HDMI Input Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
DP Input Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
Audio Input
(1) AUDIO
Audio Input Connector
(1) 3.5mm jack
Control
(1) 10G LAN, (1) IR IN, (1) IR OUT, (1) RS232,
(1) ETHERNET
Control Connector
(2) RJ45, (2) 3.5mm jack, (1) 3-pin terminal block
Video Output
(1) HDMI
Video Output Connector
(1) Type-A female HDMI
HDMI Output Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
Audio Output
(1) AUDIO
Audio Output Connector
(1) 3.5mm jack
Control
(1) 10G LAN, (1) IR IN, (1) IR OUT, (1) RS232,
(1) ETHERNET
Control Connector
(2) RJ45, (2) 3.5mm jack, (1) 3-pin terminal block
General
External Power Supply
Input: AC 100~240V, 50/60Hz, Output: 12V DC 2A
Power Consumption
TX:19W (Max);
RX:21W (Max)
Operation Temperature
-10℃~ +55℃
Storage Temperature
-25℃~ +70℃
Relative Humility
10%-90%
Dimension (W*H*D)
224.0mm x 49.2mm x 110.0mm
Net Weight
TX:1.15KG; RX:1.18KG
WolfPack™ 4K/60 HDR HDMI Over IP TX
WolfPack™ 4K/60 HDR HDMI Over IP RX

4K IP Streaming Extender
5
3. Panel Description
①POWER LED: The LED illuminates red when power is applied.
②LINK LED: The LED indicates if Ethernet packets are transmitted.
LED off: Packets are not transmitted
LED blinking: Packets are transmitted
③HDMI LED: The LED illuminates green when the HDMI video source is selected.
④DP LED: The LED illuminates green when the DP video source is selected.
①DC 12V: DC barrel port for AC power adapter connection.
②DP IN: DisplayPort input port to connect DP video source device.
③HDMI IN: Type-A female HDMI port to connect HDMI video source device.
④10G LAN: RJ45 port to connect RX or Network Switch with CATx cable.
LINK DPHDMI
1234
HDMI IN AUDIO IN IR IN RS232
Tx Rx
IR OUTDC 12V ETHERNET
123456789
3.1 WolfPack™ 4K/60 HDR HDMI Over IP-TX Front Panel
3.2 WolfPack™ 4K/60 HDR HDMI Over IP-TX Rear Panel

4K IP Streaming Extender
6
⑤IR IN: 3.5mm jack to connect an IR receiver for IR routing control.
⑥IR OUT: 3.5mm jack to connect an IR emitter for IR routing control.
⑦RS232: 3-pin terminal block for RS232 routing control. Supports point to point
unicast and point to multipoint broadcast configuration.
⑧AUDIO IN: 3.5mm jack to connect audio source.
⑨ETHERNET: RJ45 port to connect PC that need to access LAN.
①POWER LED: The LED illuminates red when power is applied.
②LINK LED: The LED indicates if Ethernet packets are received. It also indicates if
FPGA SERDES can detect a valid signal.
LED off: Packets are not received and RX SERDES is NOT linked.
LED blinking: Packets are received and the RX SERDES IS linked.
Steady light: Packets are not transmitted and the RX SERDES is linked.
③HDMI LED: The LED illuminates green when connect to display.
LINK HDMI
123
3.3WolfPack™ 4K/60 HDR HDMI Over IP-RX Front Panel

4K IP Streaming Extender
7
①DC 12V: DC barrel port for AC power adapter connection.
②HDMI OUT: Type-A female HDMI port to connect HDMI display device.
③10G LAN: RJ45 port to connect TX or Network Switch with CATx cable.
④IR IN: 3.5mm jack to connect an IR receiver for IR routing control.
⑤IR OUT: 3.5mm jack to connect an IR emitter for IR routing control.
⑥RS232: 3-pin terminal block for RS232 routing control. Supports point to point
unicast and point to multipoint broadcast configuration.
⑦AUDIO OUT: 3.5mm jack to connect audio output device.
⑧ETHERNET: RJ45 port to connect PC that need to access LAN.
HDMI OUT AUDIO OUT
IR IN RS232
Tx Rx
IR OUTDC 12V ETHERNET
12345678
3.4WolfPack™ 4K/60 HDR HDMI Over IP-RX Rear Panel

4K IP Streaming Extender
8
4. System Connection
4.1 Usage Precaution
Make sure all components and accessories included before installation.
System should be installed in a clean environment with proper temperature and
humidity.
All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
4.2 Connection Type
There are five types of connection way can be chosen:
Extender (Point-to-Point Application)
In a point to point configuration, there is no need for a Switch. Distribute full,
uncompressed data up to 4K@60Hz 4:4:4 resolution as well as 1G Ethernet, audio and
control signals over IP - Surpass the limitations of other technologies.
Splitter (Point-to-Many Application)
With only one IPA100E-TX transmitter and one 10G Ethernet Switch, any A/V signal
can be flawlessly and instantly distributed to a near limitless number of receivers and
screens, any number of times.
Matrix (Many-to-Many Application)
The combination of switching and splitting enables a completely scalable matrix
system. Independently route video, audio, IR and RS232 control signal from any source
to any endpoint. The IPA100 series allows for on-the-fly upgrading and a virtually
unlimited number of I/O ports.

4K IP Streaming Extender
9
Video Wall Application
Create and manage video walls in setups up to 5x5 screens. The IPA100 series
product line features full bezel correction and instant seamless switching of full
bandwidth source material as well as further innovative features for video wall
management.

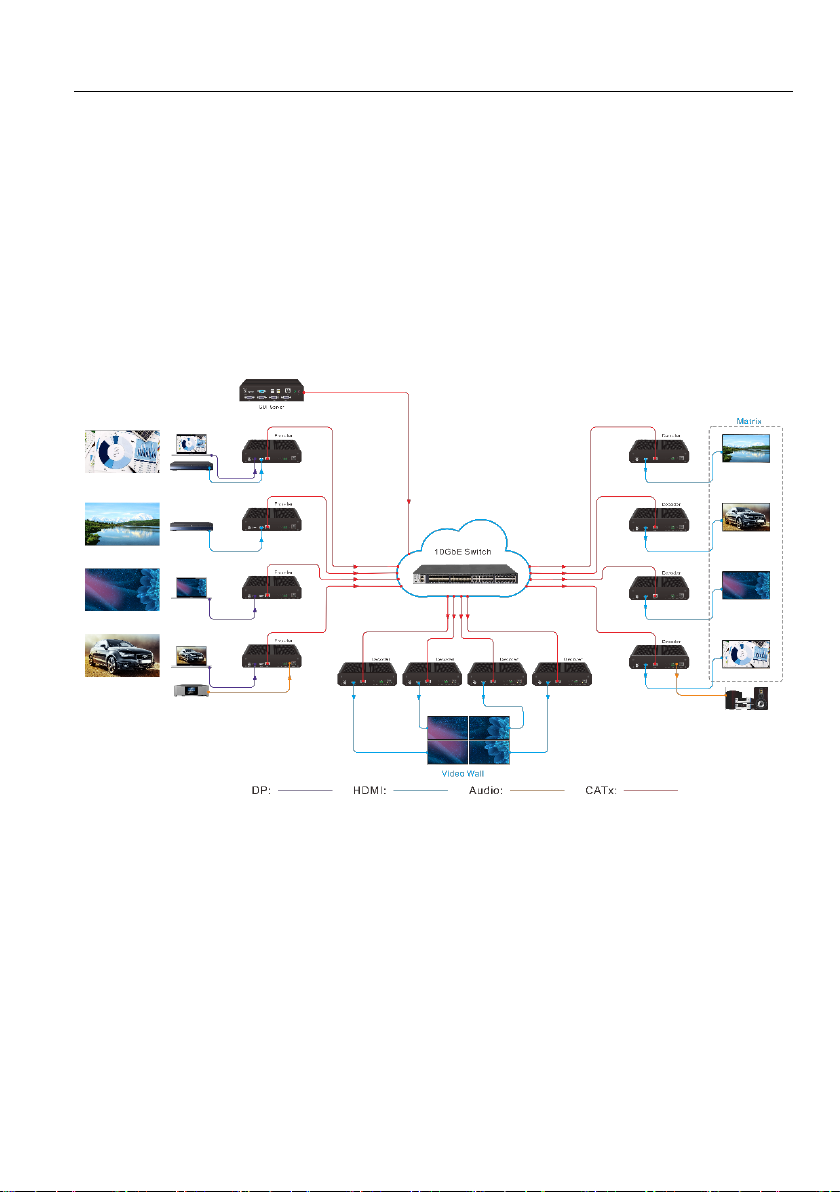

4.3 System Diagram
The following diagram illustrates typical input and output connection that can be utilized
with the extender:
Matrix System

4K IP Streaming Extender
10
4.4 Hardware Setup
The IPA100 extender set you have received include one transmitters (TX) and one
receivers (RX).
Please follow the steps below to complete the system installation:
1) Connect the power supply (12V DC) to the power connectors.
2) Connect the video/graphics source device to the HDMI input connector on each TX
unit.
3) Connect the video display device to the HDMI output connector on each RX unit.
4) (Optional) Connect audio sources to the audio input connector of the TX if you
want to test additional audio extension.
5) (Optional) Connect audio output device (e.g. speaker or headphone) to the audio
output connector of the RX if you want to test additional audio extension.
6) (Optional) Connect RS232 devices as needed if you want to test RS232 serial
extension between TX and RX units.
7) (Optional) Connect GbE compatible Ethernet devices as needed for testing the 1
Gig Ethernet ports of any TX or RX units.
8) (Optional) Connect compatible IR emitter modules to the IR output connectors of
any TX or RX.
9) (Optional) Connect compatible IR receiver modules to the IR input connectors of
any TX or RX.
10) Connect a 10G Ethernet cable (Cat-6a recommended) from the 10GbE port each
TX and RX unit to any available 10GBaseT port.
Cat-x port of the 10GbE switch (except the management/console port of the
switch).
12) The hardware setup is now complete.
Note that any TX can also be connected directly to a RX without the 10GbE switch
in the middle using fiber cable or Cat-x cable to test point to point functionality.
11) Connect the control PC to the GbE port of any HDTVIPA100 device or to a

4K IP Streaming Extender
11
Note that in order to test switching functionality through a 10GbE switch; you must
use a 10GbE layer 2, layer 3 switch with IGMP snooping capabilities. Ensure that
the IGMP snooping setting is enabled and broadcast setting is disabled using the
appropriate configuration software provided the switch manufacturer.
Switch list: The below table contains the Ethernet switches validated and known to
work with IPA series device.
Manufacturer
Model Number
BlackBox
LGB5028A
Netgear
ProSAFE PLUS XS708E
Netgear
ProSAFE Smart XS708T/712T/716T/728T/748T
Netgear
M4300 Series
Netgear
M7300-24XF XSM7224S
Speed-NT
UK-6000 Series
Extreme Network
Summit X670 Series
Arista Networks
7050X Series
Note that NetGear M4300 Series are recommended.

4K IP Streaming Extender
12
5. GUI Control
5.1 Basic Configuration
The web-based GUI is used to configure and control signal extension, routing and
switching between TX and RX units.
Before proceeding GUI, make sure all IPA units are powered ON. Then ensure that the
IP addresses of PC and all IPA units are on the same local area network (LAN). If this is
not the case, please manually set IP address mode as DHCP.
Please type the IPAddress of the control PC in the internet browser, and it will enter
the below log-in webpage:
Username: admin
Password: admin
Please type the user name and password, and then click Sign In.

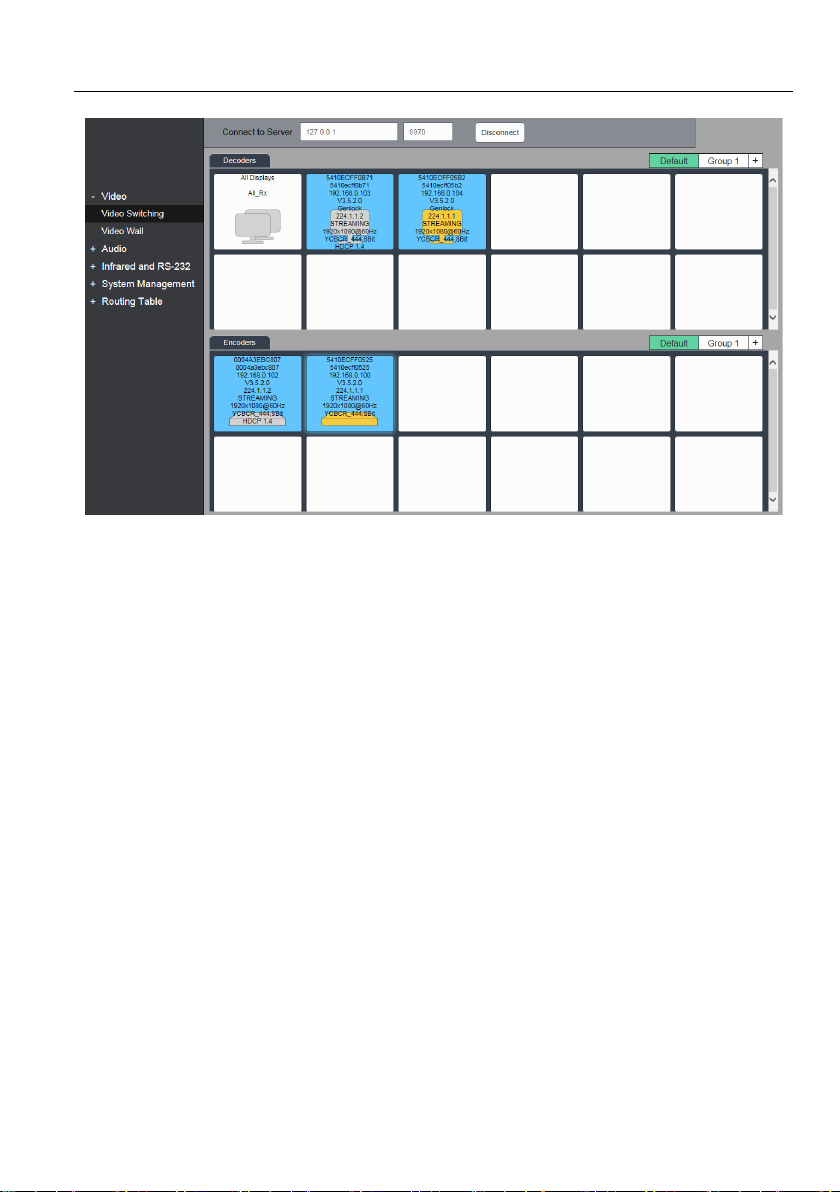

Upon launch, the main interface appear as per the picture below:

4K IP Streaming Extender
13
5.2 Device Configuration
Before starting the GUI control, make sure the control PC is connected either directly to
the network switch or to the Gigabit Ethernet port on one of the devices (TX or RX).
Upon launch, the main window will open up in the “Video Switching” tab. It will discover
all the TX and RX devices on the network and display them inside the application GUI.
The first step is to connect to the Server. Enter the IP address and click connect.
The default Server setting is:
IP Address: 127.0.0.1
Port Number: 6970
All connected devices on the network will appear as a blue tiles within the GUI window.
Each tile will identify the “Hostname” of the device. The default device “Hostname” is
the MAC address. Note that the “Hostname” can be updated at any time. The “IP
Address” of the device is also indicated within the tile.
If a source device is connected to the HDMI port of the TX, a picture illustrating a
source device will appear within the tile belonging to the TX along with information
about the video feed. Similarly, if a display device is connected to the RX, an illustration
of a display will appear within the corresponding RX tile. If no device is visible within the
tile, it means that the device is connected and detected but no source (or display)

4K IP Streaming Extender
14
device is connected to the TX (RX).
TX Device tile info
RX Device tile info

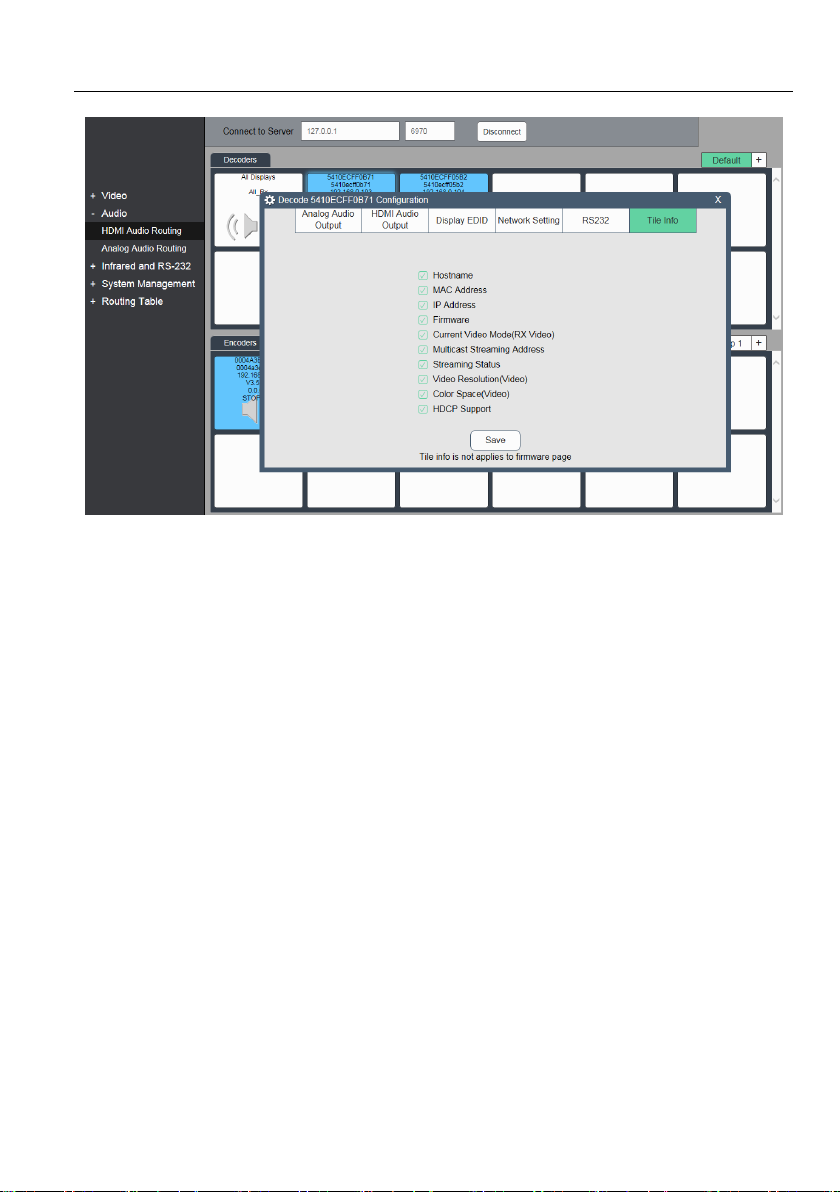

The device tile information can be set by following the below steps:
1) Right click TX or RX device tile.
2) Click the option “Setting”
3) Select the Tile Info
4) Select the type of information which needs to be displayed.
Hostname
IPAddress
Color Space
Streaming/Stopped Status
Software Version Multicast Streaming Address
Video Resolution
HDCP Version
(MAC Adress)
Hostname
IPAddress
HDCP Version
Video Resolution
Multicast Streaming
Address
Software Version Current Video Mode
Streaming/Stopped Status
Color Space
(MAC Adress)

4K IP Streaming Extender
15
5.3 Video Routing Tab
Video Routing tab is used to manage video routing between TX and RX devices. There
are three modes available for Video Routing:
Genlock
The primary benefit of the Genlock mode is very low (zero-frame) latency between the
source and displays. The display is genlocked to the source as if it is directly
connected.
When Genlock is selected, what is sent out to the display is a byte-by-byte replication
of what was received from the source.
The only exception is in the occasional instance when the input video has too high a
bandwidth to fit into a 10G network link. In these cases, the video is slightly
compressed to bring the stream down below the 10G limitation of the network. An
example of a signal that is over 10G is a UHD 60Hz with full color sampling (RGB or
YCbCr 444).
Genlock Scaling
This mode combines the low latency and source locking benefits of the Genlock mode
with the output scaler found in the Fast Switch Full Screen mode.
