WolfPack TPHD-BYE User manual

TPHD-BYE
HDBaseT Extender Set 70m
All Rights Reserved
Version: TPHD-BYE_2019V1.1
User Manual

HDBaseT Extender Set 70m
Preface
Read this user manual carefully before using the product. Pictures shown in this manual
are for reference only. Different models and specifications are subject to real product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated till March,
2019. In the constant effort to improve the product, we reserve the right to make
functions or parameters changes without notice or obligation. Please refer to the dealers
for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

HDBaseT Extender Set 70m
SAFETY PRECAUTIONS
To ensure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

HDBaseT Extender Set 70m
Table of Contents
1. Product Introduction....................................................................................................1
1.1 Features ............................................................................................................1
1.2 Package List ......................................................................................................1
2. Product Description ....................................................................................................2
2.1 Transmitter.........................................................................................................2
2.2 Receiver ............................................................................................................2
3. System Connection.....................................................................................................3
3.1 Usage Precautions ............................................................................................3
3.2 System Diagram ................................................................................................3
3.3 Connection Procedure.......................................................................................3
3.4 Twisted Pair Cable Connection..........................................................................4
4. Specification ...............................................................................................................5
5. Panel Drawing ............................................................................................................6
6. Troubleshooting & Maintenance .................................................................................7
7. Customer Service .......................................................................................................8

HDBaseT Extender Set 70m
1
1. Product Introduction
The TPHD-BYE extender set consists of a transmitter and receiver pair. HDMI signals
are input into the transmitter and HDBaseT technology is used to transmit the signals to
the receiver up to 70 m via a Cat5e/Cat6 cable. The receiver then outputs the HDMI
signal.
Bi-directional IR is also transmitted across the Cat5e/Cat6 cable. The extender set
supports PoC, which can be used to power the receiver via the Cat5e/Cat6 cable. This
eliminates the need for power at the receiver end.
The TPHD-BYE has a good application in various occasions, such as computer realm,
monitoring, big screen displaying, meeting room, education and bank & securities
institution etc.
1.1 Features
Supports full HD: Delivers high-resolution image (1080p 3D, 4Kx2K)
Maximum transmission distance is 230 ft. (70 m) for 1080p and 131 ft. (40m) for
4Kx2K over single CAT5e/CAT6 cable
High Bandwidth: 10.2Gps.
HDTV Compatible, use HDMI 1.4 and HDCP2.2 compliant.
Support PoC & CEC.
Uses HDBaseT technology for extended capability and reliability
Bi-directional IR control
LED indicators show work status.
Note: Please use a CAT5e cable with low impedance (Shielded twisted pair will be
better and should be well grounded ) for good transmission effect.
1.2 Package List
1x TPHD-BYE (including TX and RX)
4x Mounting Ears with 4 Screws
8x Plastic Cushions
1x Power Adapter (12V DC 1A)
1x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

HDBaseT Extender Set 70m
2

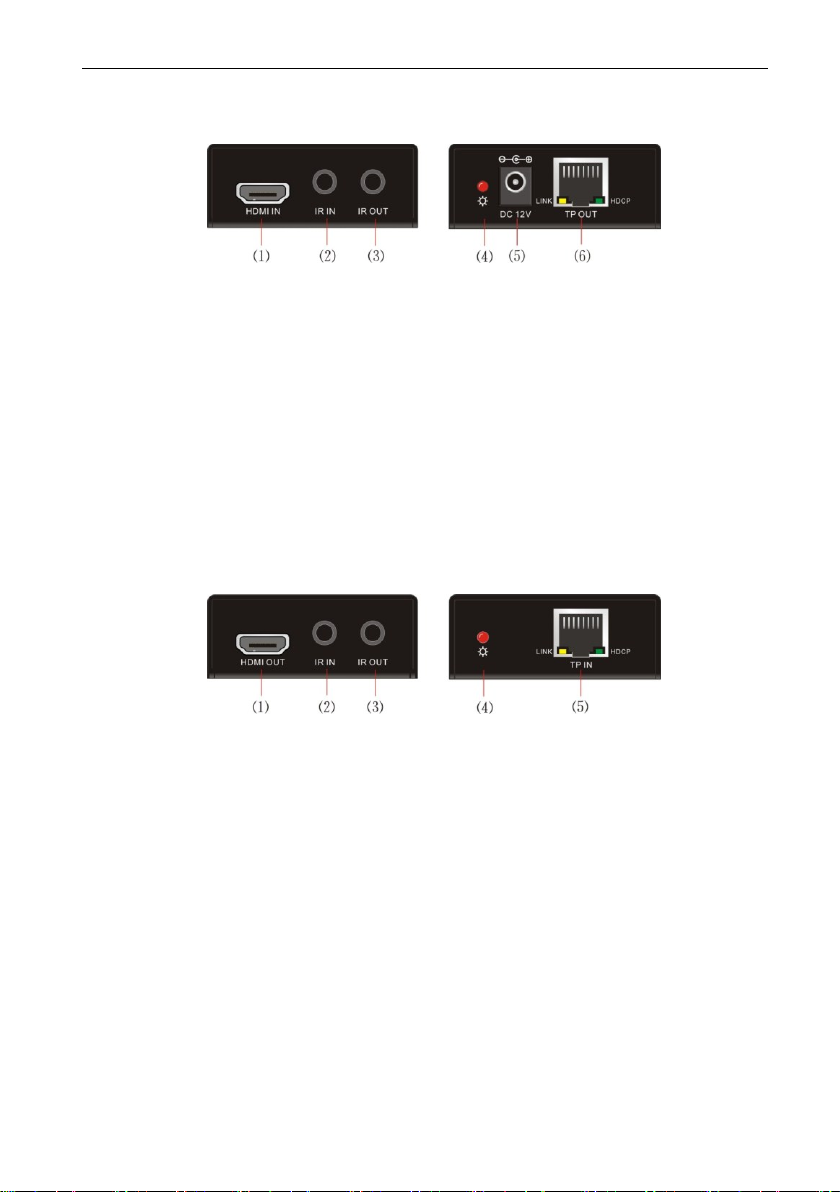

2. Product Description
2.1 Transmitter
①HDMI IN: Type-A female HDMI input port to connect an HDMI source device.
②IR IN: 3.5mm mini jack to connect IR receiver or IR system for IR pass-through.
③IR OUT: 3.5mm mini jack to connect IR emitter for IR pass-through.
④Power LED: The LED illuminates red when power is applied.
⑤DC 12V: Power port for 12V DC power adapter connection.
⑥TP OUT: RJ45 port to connect the TP IN port of receiver by CATx cable. The LED
illuminates green when there is HDMI video traffic with HDCP. It will blink green
when there is HDMI video traffic without HDCP and will be off when there is no
HDMI video traffic. The LINK LED illuminates orange when there is a valid
HDBaseT link between the transmitter and the receiver.
2.2 Receiver
①HDMI OUT: Type-A female HDMI output port to connect an HDMI display device.
②IR IN: 3.5mm mini jack to connect IR receiver or IR system for IR pass-through.
③IR OUT: 3.5mm mini jack to connect IR emitter for IR pass-through.
④Power LED: The LED illuminates red when power is applied.
⑤TP IN: RJ45 port to connect the TP OUT port of transmitter by CATx cable. The
LED illuminates green when there is HDMI video traffic with HDCP. It will blink green
when there is HDMI video traffic without HDCP and will be off when there is no
HDMI video traffic. The LINK LED illuminates orange when there is a valid
HDBaseT link between the transmitter and the receiver.

HDBaseT Extender Set 70m
3
3. System Connection
3.1 Usage Precautions
Make sure all components and accessories included before installation.
System should be installed in a clean environment with proper temperature and
humidity.
All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
The Cat5e/Cat6 terminations for HDBaseT devices should be a straight-thru TIA/EIA
T568B standard.

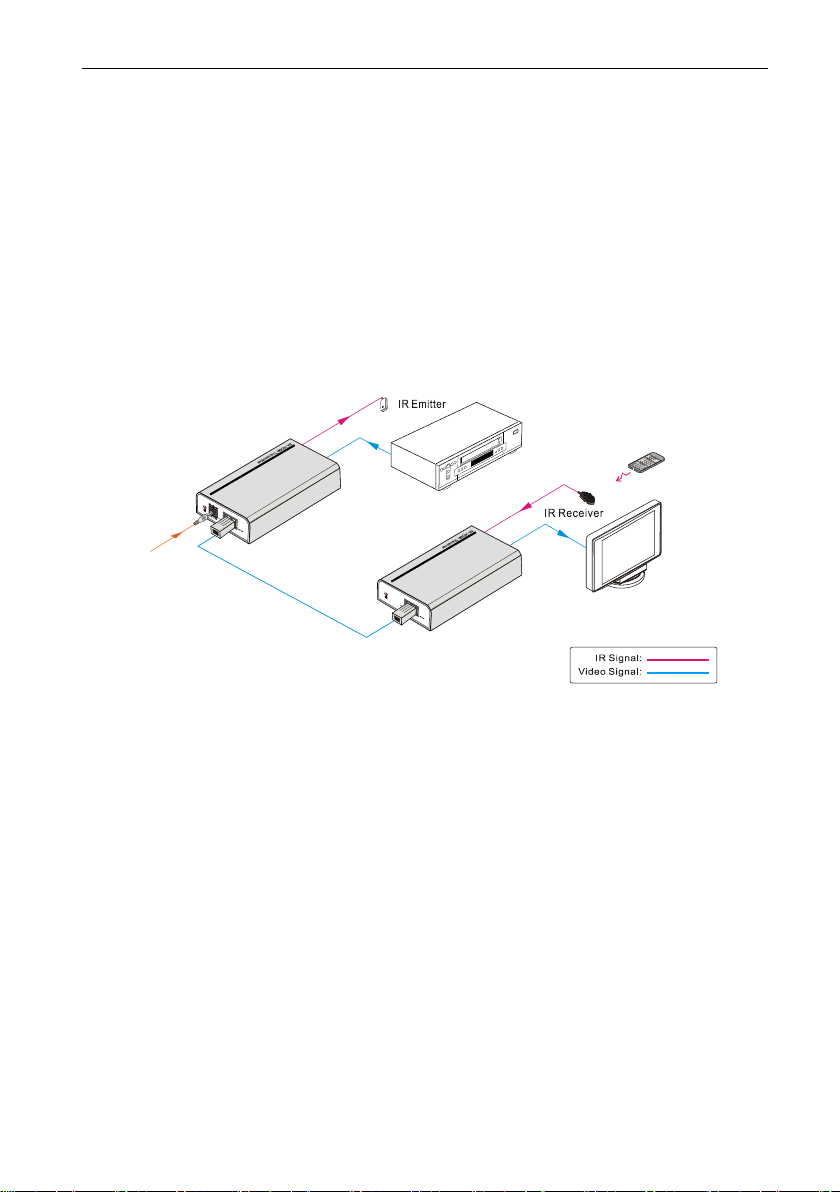

3.2 System Diagram
3.3 Connection Procedure
Step1. Connect HDMI source (such as Blue-ray DVD) to the HDMI IN port of the
transmitter with an HDMI cable.
Step2. Connect TP OUT port of the transmitter to TP IN port of the receiver via a
CAT5e/CAT6 cable.
Step3. Connect a HDMI display device (such as HDTV) to HDMI OUT port of the
receiver with HDMI cable.
Step4. When using the bi-directional IR control:
a) Connect the IR emitter at either end to the IR OUT port on either the
transmitter or the receiver.
b) When using a powered IR receiver, connect via a 3.5 mm stereo plug to the
IR IN on either the receiver or the transmitter.
Step5. Connect 12V DC power adaptor to the power port of transmitter, the receiver will
be energized synchronously with PoC solution.
HDTV
DVD
IR Remote
CAT5e/CAT6
Receiver
Transmitter

HDBaseT Extender Set 70m
4

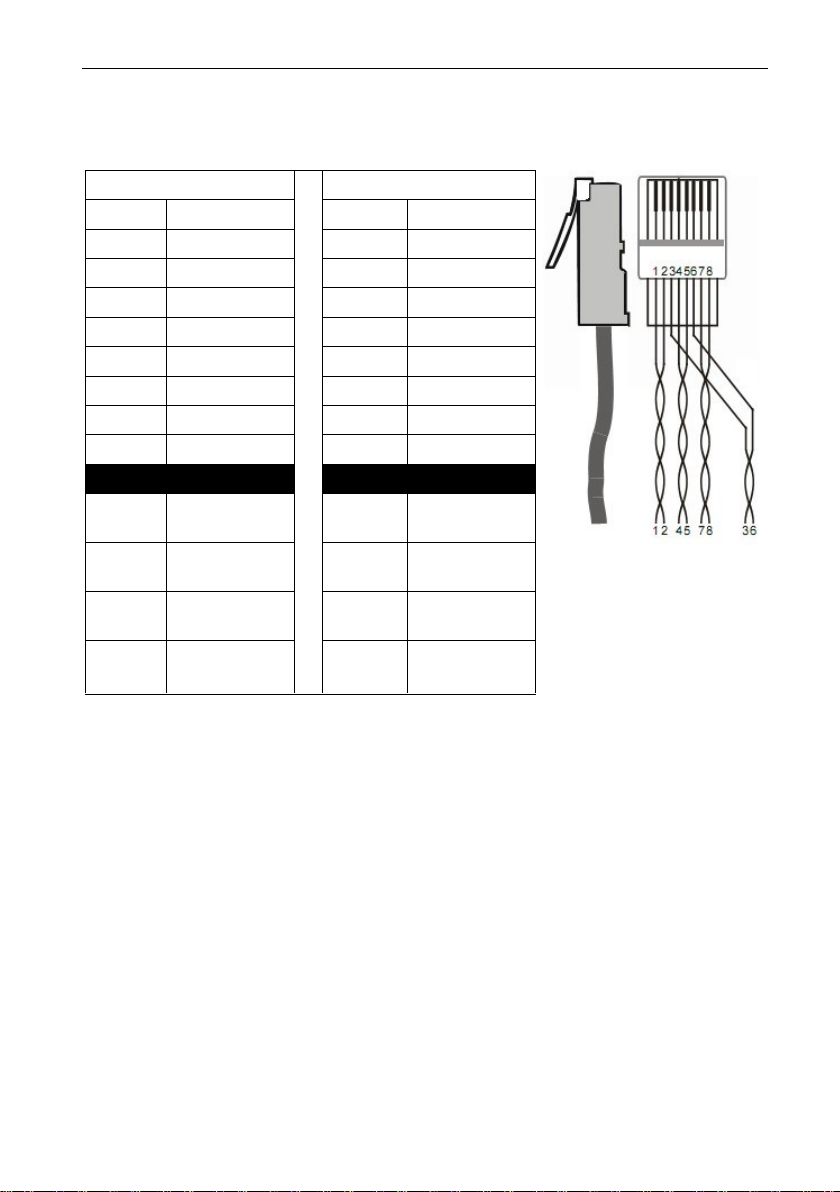

3.4 Twisted Pair Cable Connection
The Cat5e/Cat6 terminations for HDBaseT devices should be a straight thru
TIA/EIAT568B standard. TIA/EIA T568A standard is NOT recommended.
Note: To make a better transmission, cable connectors MUST be metallic, the shielded
layer of cable MUST be connected to the connector’s metal shell.
TIA/EIA T568A
TIA/EIA T568B
Pin
Cable color
Pin
Cable color
1
green white
1
orange white
2
green
2
orange
3
orange white
3
green white
4
blue
4
blue
5
blue white
5
blue white
6
orange
6
green
7
brown white
7
brown white
8
brown
8
brown
1st
Ground
4--5
1st
Ground
4--5
2nd
Ground
3--6
2nd
Ground
1--2
3rd
Group
1--2
3rd
Group
3--6
4th
Group
7--8
4th
Group
7--8

HDBaseT Extender Set 70m
5
4. Specification
Transmitter
Input
(1) HDMI IN
Input Connector
(1) Type-A female HDMI
Output
(1) TP OUT
Output Connector
(1) RJ45
Control
(1) IR IN (1) IR OUT
Control Connector
(2) 3.5mm mini jacks
Receiver
Input
(1) TP IN
Input Connector
(1) RJ45
Output
(1) HDMI OUT
Output Connector
(1) Type-A female HDMI
Control
(1) IR IN (1) IR OUT
Control Connector
(2) 3.5mm mini jacks
General
Video Resolution
Up to 4K@60Hz 4:2:0
HDMI Audio Format
LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital®
Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.
Transmission Standard
HDBaseT
Transmission Distance
4K@60Hz 4:2:0 ≤ 40 meters (131 feet),
1080P@60Hz ≤70 meters (230 feet)
Bandwidth
10.2Gbps
HDMI Standard
1.4
HDCP Version
2.2, 1.4 compliant. Pass-through
Operation Temperature
-5~ +55℃
Storage Temperature
-25 ~ +70℃
Relative Humidity
10%-90%
Power Supply
Input:100V~240V AC; Output:12V DC 1A
Max Power Consumption
9.6W
Dimension (W*H*D)
TX/RX: 61.6mm x 24.3mm x 120.6mm
Net weight
TX/RX: 280g
Note: All nominal levels are at ±10%.

HDBaseT Extender Set 70m
6

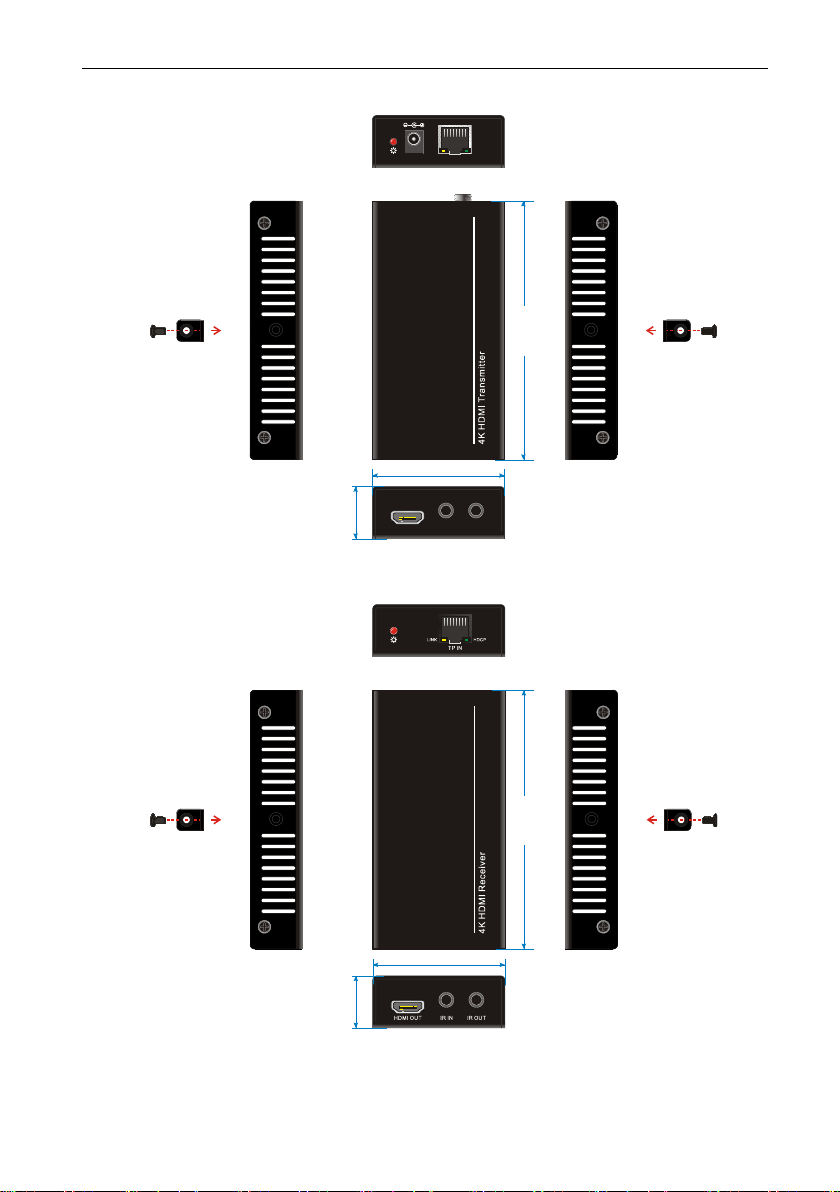

5. Panel Drawing
TPHD-BYE-T Transmitter
TPHD-BYE-R Receiver
HDMI I N IR IN IR O UT
DC 1 2V TP OU T
LIN K HD CP
61.6 mm
24.3 mm
120.6 mm
61.6 mm
24.3 mm
120.6 mm

HDBaseT Extender Set 70m
7
6. Troubleshooting & Maintenance
No image on display:
Ensure that the display device has been set to the correct input.
Ensure that the HDMI cables used for both the source/transmitter and the
receiver/display are properly connected and are working. Test the HDMI cables
directly from a source to display and ensure their operation.
Ensure that the Cat5e/Cat6 cable has not been damaged and that it has been
terminated correctly with T568B on both ends. A temporary length of Cat5e/Cat6
can be used for testing to ensure that the devices are all compatible and working
properly.
Ensure proper grounding of the power supply.
Known issues with HDMI 1.2 source devices:
Older compatibility (HDMI 1.2) may result in HDBaseT transmission issues.
Please contact Technical Support of PTN Electronics for a solution to these
issues.
Color lose or poor picture quality:
Ensure that the HDMI cables used for both the source and transmitter and the
receiver and display are properly connected and are of good quality. Test the
HDMI cables directly from a source to display and ensure their picture quality.
Ensure proper grounding of the power supply.
If the static becomes stronger or picture quality becomes worse when connecting
the video connectors, this may be due to improper grounding.
Check the grounding and make sure all the components are properly grounded
to a common ground. Improper grounding may cause damage to the receiver.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.

HDBaseT Extender Set 70m
8
7. Customer Service
The return of a product to our Customer Service implies the full agreement of the terms
and conditions hereinafter. There terms and conditions may be changed without prior
notice.
1) Warranty
The limited warranty period of the product is fixed three years.
2) Scope
These terms and conditions of Customer Service apply to the customer service
provided for the products or any other items sold by authorized distributor only.
3) Warranty Exclusion
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear.
Use of supplies or parts not meeting our specifications.
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized by distributor.
Any other causes which does not relate to a product defect.
Shipping fees, installation or labor charges for installation or setup of the product.
4) Documentation
Customer Service will accept defective product(s) in the scope of warranty coverage
at the sole condition that the defeat has been clearly defined, and upon reception of
the documents or copy of invoice, indicating the date of purchase, the type of
product, the serial number, and the name of distributor.
Remarks: Please contact your local distributor for further assistance or solutions.
