Woodhaven 4512S User manual

Identify and verify that you have all the parts listed. Read
the instructions at least once, familiarizing yourself with the
parts and assembly options before beginning assembly.
There are two ways to assemble the stop, depending on whether
you want the stop arm on the left or right side of the stop body. For best
support mount the stop arm so it's between the stop body and the work.
Mount the stop arm to the stop block so that
the rounded edge of the stop block (opposite from
the T-slot side) faces the front of the track.
4512S Flip Stop
Please Read Carefully!
1
Part Desc . . . . . Qty
4512A 3/4" Arm . . . . . . . . . . . 1
4519B Stop Block . . . . . . . . . . 1
4519P Pivot Pin . . . . . . . . . . . 1
4512SF MDF Block. . . . . . . . . . 1
MF020 1-1/4" screw. . . . . . . . . 1
5760B Oval nut. . . . . . . . . . . . 1
Part Desc . . . . . Qty
5540 Knob. . . . . . . . . . . . . . . 1
HB050 1-1/2" bolt . . . . . . . . . . 1
WS001 1/4" Steel Washer. . . . 1
WN001 1/4" Nylon Washer . . 1
NUT004 10-24 Nut . . . . . . . . . . 1
NUT010A Locknut . . . . . . . . . . . . 1
MA002 10-24 Set Screw . . . . . 1
5786 3/32" Allen Wrench . 1
Parts List
Starting from the ribbed
side of the stop body,
insert the 1-1/2" hex bolt
(HB050) thru the cross
hole in the stop
body and attach
the knob (5540)
to the end of
the bolt.
NUT010A
on 4519P
Stop Arm:
4512A
T-slot face of
Stop Block
NUT004
& MA002
Allen
Wrench
WN001
5540

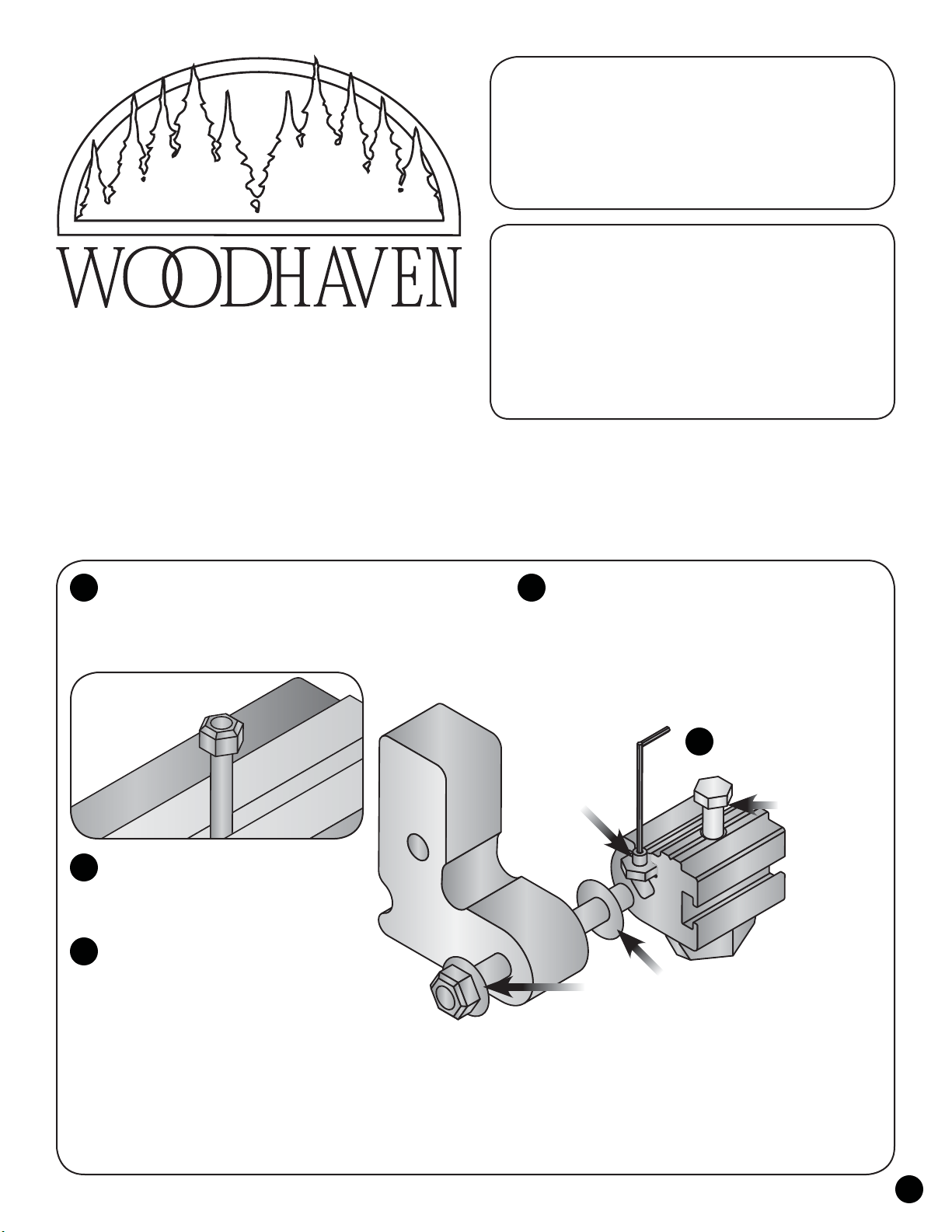

ASSEMBLY
Clamp the smooth portion of the
pivot pin (4519P) in a vise with non-
marring jaws and screw the locknut (NUT010A)
on the threaded end of the pivot pin until
the nut is flush with the end of the pin.
Insert the 1/4" steel washer (WS001)
on the pivot pin (against the nut),
followed by the stop arm (4512A)
and the 1/4" nylon washer (WN001).
Start the 10-24 set screw (MA002)
in one of the 10-24 nuts (NUT004).
Slide the nut/set screw into the T-slot
indicated in the stop block (4519B).
Insert the smooth portion of the pivot pin (4519P)
in the diamond/square shaped slot in the stop block
and, using the 3/32" allen wrench (5786) tighten the
set screw on the pivot pin, locking the pivot pin in the stop
body. Make sure the set screw nut is not rubbing against
the nylon washer on the pivot pin. Adjust the locknut on
the pivot pin to get the desired amount of tension on the
stop arm so it pivots as hard or as easy as you like.
A
B
C
D
E
NUT010A
flush with end
of 4519P
4519P Pivot Pin
WS001

2
Insert the 1-1/4" screw (MF020) thru the countersunk hole
in the MDF block (4512SF) and start the oval nut (5760B) on the end
of the screw. Slide the oval nut on to the T-slot of the Double Track,
position the MDF block under the stop arm and tighten the screw.
Attach the assembled Stop to the edge of the Double
Track by sliding the bolt head in the T-slot of the track.
Position where desired and tighten the knob.
OPTIONALACCESSORIES
The optional 4523 Micro Adjuster
attaches to either stop and allows up
to 5/8" of fine adjustment.
©Copyright WOODHAVEN INC. 6/30/15
[phone] or WWW.WOODHAVEN.COM
4512S Right
Mount
4512SF
MF020
5760B
4523
Micro Adjuster
