Operation
Starting The Engine
1
1-1 G15E97doc013105 Operation
SECTION 1 OPERATION
1.1 Starting The Engine
Engine Start
DANGER! Always be sure the blade is disengaged and all
persons are out of the path of the blade before starting the
engine. Failure to do so will result in serious injury.
DANGER! Operate your engine/machine only in well venti-
lated areas. The exhaust gases of your engine can cause
nausea, delirium and potentially death unless adequate
ventilation is present.
DANGER! Never operate an engine with a fuel or oil leak.
The leaking fuel or oil could potentially come in contact with
hot surfaces and ignite into flames.
WARNING! Do not operate engine without proper and
operational spark arrester/muffler. Sparks emitted from the
engine exhaust could ignite surrounding materials, causing
serious injury or death.
1. Close the engine choke by moving the choke lever to the start position.
2. Turn the key switch to the START position and release. Release the key switch to the
RUN position after the engine starts.
3. When the engine starts, slowly open the choke all the way by moving the choke lever to
the off position.
Engine Shutoff
1. Disengage the clutch handle to stop the blade if necessary.
2. Let the engine run for 15 seconds with no load, then turn the key switch to the OFF posi-
tion.

Maintenance
Safety
Maintenance G15E97doc013105 2-1
2
SECTION 2 MAINTENANCE
Refer to the manufacturer’s manual for maintenance intervals and procedures unless oth-
erwise instructed in this manual. Follow the manufacturer’s recommendations for dusty
conditions.
IMPORTANT! This manual only provides information about
additional procedures or procedures to be performed at dif-
ferent time intervals than found in the manufacturer's manu-
als. Refer to the manufacturer's manual for complete
maintenance instructions.
2.1 Safety
Use caution when performing maintenance or service to the engine.
DANGER! Always be aware of and take proper protective
measures against rotating shafts, pulleys, fans, etc. Always
stay a safe distance from rotating members and make sure
that loose clothing or long hair does not engage rotating
members resulting in possible injury.
DANGER! Engine components can become very hot during
operation. Avoid contact with any part of a hot engine. The
exhaust components of your engine are especially hot dur-
ing and following operation. Contact with hot engine com-
ponents can cause serious burns. Therefore, never touch
or perform service functions on a hot engine. Allow the
engine to cool sufficiently before beginning any service
function.
WARNING! Remove the blade before performing any
engine service. Failure to do so may result in serious injury.
WARNING! Always wear proper and necessary safety
equipment when performing service functions. Proper
safety equipment includes eye protection, breathing protec-
tion, hand protection and foot protection.
This symbol identifies the interval (hours of operation) at which each maintenance pro-
cedure should be performed. "AR" signifies maintenance procedures which should be
performed as required.
0

Maintenance
Cooling System
2
2-2 G15E97doc013105 Maintenance
2.2 Cooling System
Wash the engine or brush off sawdust and debris every 50 hours of operation. Clean the
grass screen, cooling fins, and external surfaces. Remove any dust, dirt or oil. See
engine manual for further instructions.
50

Maintenance
Air Filter & Pre-Cleaner
Maintenance G15E97doc013105 2-3
2
2.3 Air Filter & Pre-Cleaner
WARNING! Always wear proper and necessary safety
equipment when performing service functions. Proper
safety equipment includes eye protection, breathing protec-
tion, hand protection and foot protection.
Service the pre-cleaner every four hours of operation. Service by gently shaking excess
sawdust and debris from the foam piece.
Clean the air filter (air cleaner element) and pre-cleaner (element wrapper) every eight
hours of operation. See the engine manual for further instructions.
Replace the air filter (cleaner) every 200 hours of operation.
Replace the pre-cleaner (element wrapper) every 2000 hours of operation.
4
8
200
2000

Maintenance
Fuel Filter
2
2-4 G15E97doc013105 Maintenance
2.4 Fuel Filter
Replace the fuel filter every 100 hours of operation or as required for engine perfor-
mance.
100

Maintenance
Battery
Maintenance G15E97doc013105 2-5
2
2.5 Battery
Check the battery electrolyte level every 50 hours of operation. See manufacturer’s man-
ual for instructions.
DANGER! Batteries expel explosive gases. Keep sparks,
flames, burning cigarettes, or other ignition sources away at
all times. Always wear safety goggles and a face shield
when working near batteries. Failure to do so will cause
serious injury.1
WARNING! Battery posts, terminals and related accesso-
ries contain lead and lead compounds, chemicals known to
the State of California to cause cancer and reproductive
harm. Wash hands after handling.
1. Battery Council International, copyright 1987
50

Maintenance
RPM Adjustments
2
2-6 G15E97doc013105 Maintenance
2.6 RPM Adjustments
WARNING! Remove the blade before performing any
engine service. Failure to do so may result in serious injury.
Check the RPM with a tachometer after the first 20 hours of operation and every 200
hours thereafter.
See Table 2-1.
Before checking the RPM, make sure belt and brake strap tensions are correct (See Saw-
mill Maintenance). Also check oil, fuel, and coolant levels.
Make sure the throttle cable does not affect the engine RPM when the clutch handle is
disengaged. Make sure the cable is not bent or kinked.
1. Start the engine to measure the low-end RPM.
2. Refer to the engine manual to adjust the low-end RPM.
3. Engage the clutch handle to throttle the engine and measure the high-end RPM. The
high-end RPM is factory-set at 3750. Readjust the throttle cable if necessary to increase
or reduce the high-end engine speed.
The engine should start to throttle as soon as you start moving the clutch handle down. If
the engine dies instead, restart the engine and adjust the throttle linkage as far as possi-
ble without affecting low-end RPM. With the engine idling and the clutch disengaged,
loosen the cable bolt and pull the throttle cable up to a point just below where it affects the
low-end RPM. Retighten the cable bolt. NOTE: A properly adjusted throttle will extend the
cable spring 1/4" to 3/8" (6.4 - 9.5 mm) when running and have a slight amount of slack in
the cable when idling.
See Figure 2-1.
Engine High End RPM Low End RPM
TABLE 2-1
200

Maintenance
RPM Adjustments
Maintenance G15E97doc013105 2-7
2
FIG. 2-1

Maintenance
Miscellaneous Maintenance
2
2-8 G15E97doc013105 Maintenance
2.7 Miscellaneous Maintenance
Inspect the spark plugs every 100 hours of operation. Remove any deposits and adjust
gap if necessary. See engine manual for further information.
100

Replacement Parts
Engine Assembly
Replacement Parts G15E97doc013105 3-1
3
SECTION 3 REPLACEMENT PARTS
3.1 Engine Assembly
REF DESCRIPTION (Indicates Parts Available In Assemblies Only) PART # QTY.
ENGINE ASSEMBLY, 15HP KOHLER 016711 1
1Engine, 15 HP Kohler #PH44528 033377 1
2Filter, Kohler Air #47-083-01 014718 1
3Pre-Cleaner, Kohler Air #52-083-01 014719 1
4Filter, Kohler Oil #52-050-02 014717 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
16
18
19
20
21
2223
24
25
26
250056B

Replacement Parts
Engine Assembly
3
3-2 G15E97doc013105 Replacement Parts
Muffler Kit, G15 Kohler 016499 1
5Muffler, Kohler #12-068-39 016106 1 
Gasket, Kohler Muffler #12-041-03 016494 1
6Deflector, Kohler Pipe #12-755-28 016496 1
7Arrestor, Kohler Spark #12-189-02 016495 1
8Guard, Kohler Muffler #12-314-11 016105 1
Plug, Kohler Spark #12-132-02 (Champion #RC12YC) P12757 1
Filter, Kohler In-Line Fuel #25-050-02 014720 1
Switch, Kohler PHI Oil #25-099-24-S 051992 1
9Plate, LT25G15 Throttle Mount 016712 1
10 Bushing, 1” Split Taper P09552 1
11 Pulley, 4” OD 3-Groove Engine S10435 1
12 Key, 1/4 x 1/4 x 1 11/16" S04124 1
13 Cable Assembly, G15 Throttle 015445 1
14 Spring, G15 Throttle 015449 1
15 Bracket Weldment, G15 Throttle Link Pivot 015435 1
16 Nut, 10-24 Self Locking F05010-14 1
17 Screw, 1/4” x 3/8” (10-24 Thread) Socket Shoulder F05004-57 1
18 Bracket, G15 Throttle Link Wire 015446 1
19 Hose, Oil Drain P10082 1
20 Cap, 3/8” NPT Pipe P04332 1
21 Bracket Weldment, Drive Belt Support Painted 015963 2
22 Washer, 5/16” Split Lock F05011-13 2
23 Bolt, 5/16-24 x 1” Hex Head F05006-11 2
HARNESS ASSEMBLY, BATTERY TO ENGINE 024718 1
24 WASHER, 3/8” SPLIT LOCK F05011-4 4
25 BOLT, 3/8-16 X 1” HEX HEAD F05007-87 4
26 BELT, 2BXF71 DRIVE 036163 1 1
1036163 Kevlar 2BXF71 belt replaces P12949 2BX71 belt supplied prior to 9/03. Kevlar belt reduces stretch and provides greater range
of adjustment.

Replacement Parts
Engine Mount Assembly
Replacement Parts G15E97doc013105 3-3
3

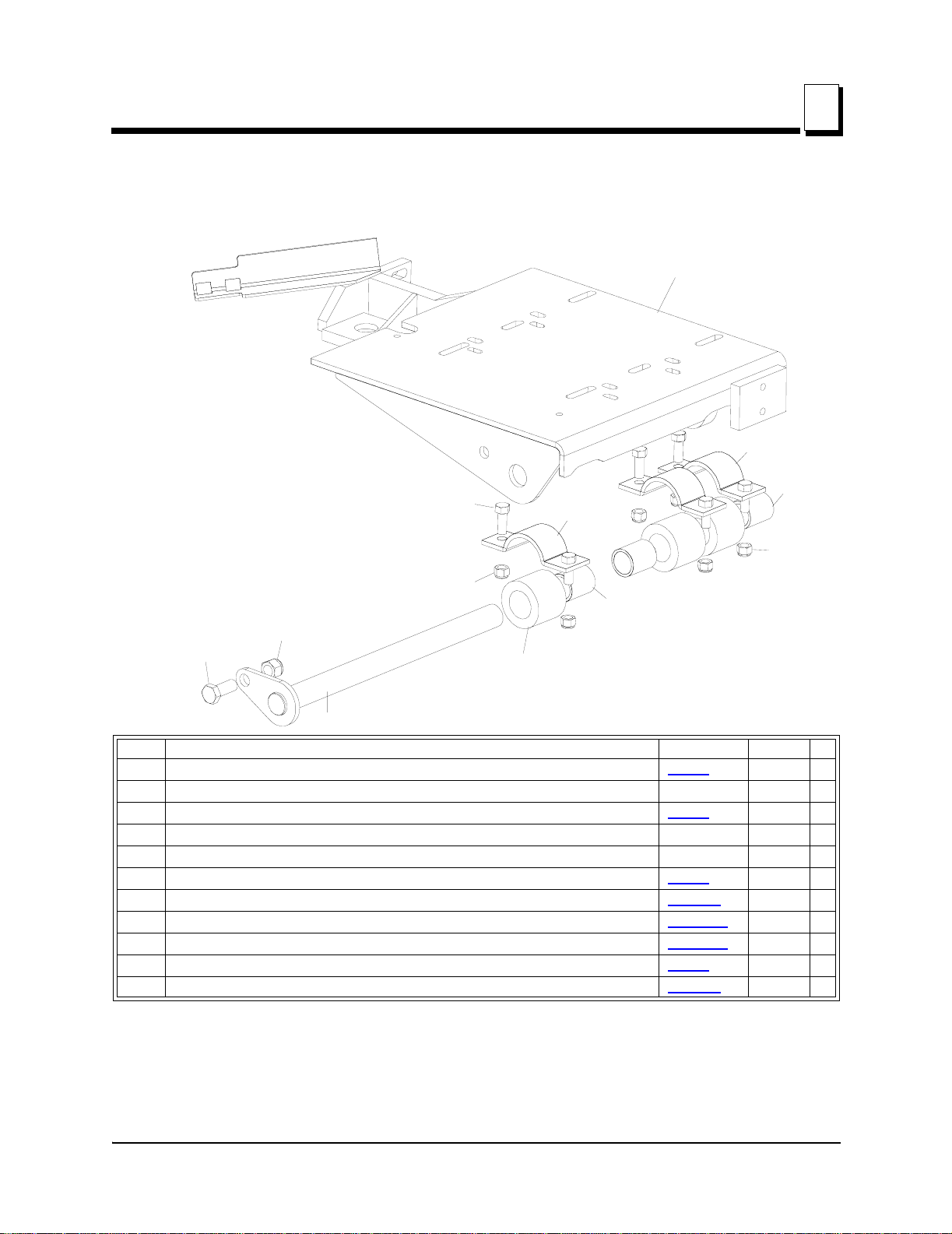

3.2 Engine Mount Assembly
REF DESCRIPTION (Indicates Parts Available In Assemblies Only) PART # QTY.
MOUNT KIT, KOHLER ENGINE 016319 1
1Mount Weldment, Kohler Engine 014514 1 
BUSHING ASSEMBLY, MOTOR MOUNT 016380 3
2Bushing, 2” OD x 2” 016378 1 
3Bearing, 1” x 1 1/4” x 2” 016379 1 
4 CLAMP WELDMENT , MOTOR MOUNT PIVOT BUSHING 014540 3
5 BOLT, 3/8-16 X 1” HEX HEAD F05007-7 3
6 NUT, 3/8-16 HEX NYLON LOCK F05010-10 6
7 BOLT, 1/2-13 X 1 1/4” HEX HEAD GRADE 5 F05008-37 1
8 PIN WELDMENT, ENGINE MOUNT PIVOT 014154 1
9 NUT, 1/2-13 NYLON LOCK F05010-8 1
1
2
3
3
4
4
5
6
6
7
8
9
3H0509-3

Replacement Parts
Engine Pulley Guards
3
3-4 G15E97doc013105 Replacement Parts
3.3 Engine Pulley Guards
REF DESCRIPTION (Indicates Parts Available In Assemblies Only) PART # QTY.
1 GUARD WELDMENT, G15 ENGINE PULLEY 015343 1
2 GUARD, G15 SIDE ENGINE PULLEY 016236 1
3 WASHER, 1/4” SAE FLAT F05011-11 4
4 BOLT, 1/4-20 X 3/4” HEX HEAD FULL THREAD F05005-1 4
5 GROMMET, 5/8” WIRE P04137 1
1
2
3
4
3
4
34
5
250044

Index G15E97doc013105 i
M
maintenance 2-1
air cooling system 2-2
battery 2-5
fuel filter 2-4
miscellaneous 2-8
RPM adjustments 2-6
P
parts list
engine assembly 3-1
engine mount assembly 3-3
pulley guards 3-4
S
starting 1-1
INDEX
