woodmizer MKI for Pre-97 Sawmills Setup guide

Debarker Option
Safety, Installation, Operation,
Maintenance & Parts Manual
MKI for Pre-97 Sawmills rev. A.00 - D.04
Safety is our #1 concern! Read and understand
all safety information and instructions before oper-
ating, setting up or maintaining this machine.
April 1998 Form #690

ii MKI96DB98doc011711 Table of Contents
Table of Contents Section-Page
SECTION 1 SAFETY 1-1
1.1 Installation and Maintenance..................................................................1-1
1.2 Operation and Towing............................................................................1-2
SECTION 2 DEBARKER INSTALLATION 2-1
2.1 Debarker Frame Mounting Holes...........................................................2-2
2.2 Debarker Control Mounting Holes.........................................................2-3
2.3 Debarker Control Installation.................................................................2-4
2.4 Debarker Installation..............................................................................2-6
2.5 Lower Harness Installation...................................................................2-10
2.6 Upper Harness Installation...................................................................2-21
SECTION 3 ALIGNMENT 2-25
SECTION 4 OPERATION AND MAINTENANCE 3-1
4.1 Locking Pin Operation ...........................................................................3-1
4.2 Control Overview...................................................................................3-2
4.3 Operation................................................................................................3-3
4.4 Maintenance ...........................................................................................3-5
4.5 Troubleshooting......................................................................................3-7
TOC

Table of Contents Section-Page
Table of Contents MKI96DB98doc011711 iii
SECTION 5 ELECTRICAL INFORMATION 4-1
5.1 Electrical Symbol Diagram ....................................................................4-1
5.2 Electrical Component List......................................................................4-2
SECTION 6 DEBARKER PARTS 5-1
6.1 Mount/Lock Pin Assembly.....................................................................5-1
Rev. D.03+
6.2 Mount/Lock Pin Assembly.....................................................................5-2
Rev. B.00 - D.02
6.3 Mount/Lock Pin Assembly.....................................................................5-4
Rev. A.00
6.4 Frame Assembly.....................................................................................5-5
Rev. B.00+
6.5 Frame Assembly.....................................................................................5-7
Rev. A.00
6.6 In/Out Motor Drive Assembly................................................................5-9
Rev. B.00+
6.7 In/Out Motor Drive Assembly..............................................................5-11
Rev. A.00
6.8 Blade Motor & Horn Assembly ...........................................................5-13
6.9 Debarker Control Box Assembly .........................................................5-15
Rev. B.00+
6.10 Debarker Control Box Assembly .........................................................5-17
Rev. A.00
6.11 Debarker Support Plate Retrofit...........................................................5-19
6.12 Spring Rod Assembly...........................................................................5-20
INDEX 1-I

Safety
Installation and Maintenance
1
1-1 MKI96DB98doc011711 Safety
SECTION 1 SAFETY
This symbol calls your attention to instructions concerning your personal safety. Be sure
to observe and follow these instructions. This symbol accompanies a signal word. The
word DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury. WARNING suggests a potentially hazardous situation
which, if not avoided, could result in death or serious injury. CAUTION refers to poten-
tially hazardous situations which, if not avoided, may result in minor or moderate injury to
persons or equipment. Read all safety instructions before operating this equipment and
observe all safety warnings!
1.1 Installation and Maintenance
DANGER! On electric mills, hazardous voltage inside the
disconnect box, starter box, and at the electric motor can
cause shock, burns, or death. Disconnect and lock out
power supply before performing debarker installation! Fol-
low all applicable electrical codes.
DANGER! Make sure all electrical installation, service
and/or maintenance work is performed by a qualified elec-
trician and is in accordance with applicable electrical codes.
Failure to do so will result in serious injury or death.
DANGER! Before performing any service to this equip-
ment, turn the key to the OFF position, remove the key, and
disconnect the sawmill battery ground terminal. Failure to
do so will result in serious injury or death.
WARNING! Before replacing the debarker blade, move the
sawmill blade guide arm in front of the sawmill blade to
cover the blade teeth. Failure to do so may result in serious
injury or death.

Safety
Operation and Towing
Safety MKI96DB98doc011711 1-2
1
1.2 Operation and Towing
DANGER! Make sure all guards and covers are in place
and secured before operating the debarker option. Failure
to do so may result in serious injury.
DANGER! Keep all persons out of the path of moving
equipment when operating the debarker. Failure to do so
will result in serious injury.
DANGER! Always remove the key from the control panel
before preparing the debarker for towing. Failure to do so
may result in serious injury.
WARNING! Debarker is ON when warning bell sounds. DO
NOT disconnect the warning bell. Doing so may result in
serious injury.
WARNING! If the debarker continues to run with the key
switch in the OFF position, remove the negative battery ter-
minal from the battery post.
DO NOT continue to operate the mill if the main key switch
does not control debarker operation. Doing so could result
in serious injury. Call Wood-Mizer customer service for
more information.

Debarker Installation
2
2-1 MKI96DB98doc011711 Debarker Installation
SECTION 2 DEBARKER INSTALLATION
DANGER! On electric mills, hazardous voltage inside the
disconnect box, starter box, and at the electric motor can
cause shock, burns, or death. Disconnect and lock out
power supply before performing debarker installation! Fol-
low all applicable electrical codes.
DANGER! Before performing any service to this equip-
ment, turn the key to the OFF (0) position, remove the key,
and disconnect the sawmill battery ground terminal. Failure
to do so will result in serious injury or death.
CAUTION! Due to various design changes and past retro-
fits and options, you should very carefully look your mill
over to determine Debarker compatibility before beginning
Debarker installation.
The Debarker Option may be installed to most sawmills with the required up/down chains
and 60 amp or larger alternator systems.
See Table 2-1. Look at your sawmill up/down chains to verify they are the proper style
for use with the Debarker Option. Refer to the chart below to determine if the Debarker
Option may be installed on your specific sawmill.
Up/Down
Chain
Type
Install
Debarker? Comments
Single
#40 No The Debarker Option can only be installed on sawmills equipped with dual up/down chains (after 7/86).
Dual #40 Yes,ifUSA
chain. See
comments.
"USA" should be stamped into the side plates of the chain. If it is not, you will
need to replace the existing chains with the proper specified chains. If you did
not receive replacement chains with your Debarker order and find that you need
them, call Wood-Mizer Customer Service at 1-800-525-8100.Do not proceed
with Debarker installation or further operation until your mill is equipped
with the correct up/down chains.
#50-2 Yes The Debarker Option can be installed on any sawmill equipped with #50-2
up/down chain (after 3/97).
TABLE 2-1

Debarker Installation
Debarker Frame Mounting Holes
Debarker Installation MKI96DB98doc011711 2-2
2
2.1 Debarker Frame Mounting Holes
IMPORTANT! Later sawmills are equipped with pre-drilled
Debarker mounting holes. Verify hole locations before
beginning Debarker installation. Proper hole location is
imperative for safe and effective Debarker operation.
Five holes in the sawmill saw head are required to mount Rev. A.00 - D.02 debarkers.
Seven holes in the sawmill saw head are required to mount Rev. D.03 and later debark-
ers.
See Figure 2-1. If your sawmill has no pre-drilled holes, use the provided template as a
guide to drill the required holes.
1. Locate the template against the top of the c-frame. Move the harness and water lube
hose out of the way and locate the template against the side of the c-frame. Locate the
bent tab against the c-frame vertical tube. Clamp the template in place to secure it.
2. Use a 13/32" drill to start holes at locations A and B. Use a 7/16" drill to start holes at loca-
tion C. Remove the template and drill holes through completely. NOTE: Debarkers prior to
Rev. D.03 only require two holes at location B. The template should match the mounting
configuration of your debarker.
FIG. 2-1
3H0209B
S
ecure temp
l
ate to top an
d
side of horizontal saw head tube
Position template tab
against vertical tube
A
C
B

Debarker Installation
Debarker Control Mounting Holes
2
2-3 MKI96DB98doc011711 Debarker Installation
2.2 Debarker Control Mounting Holes

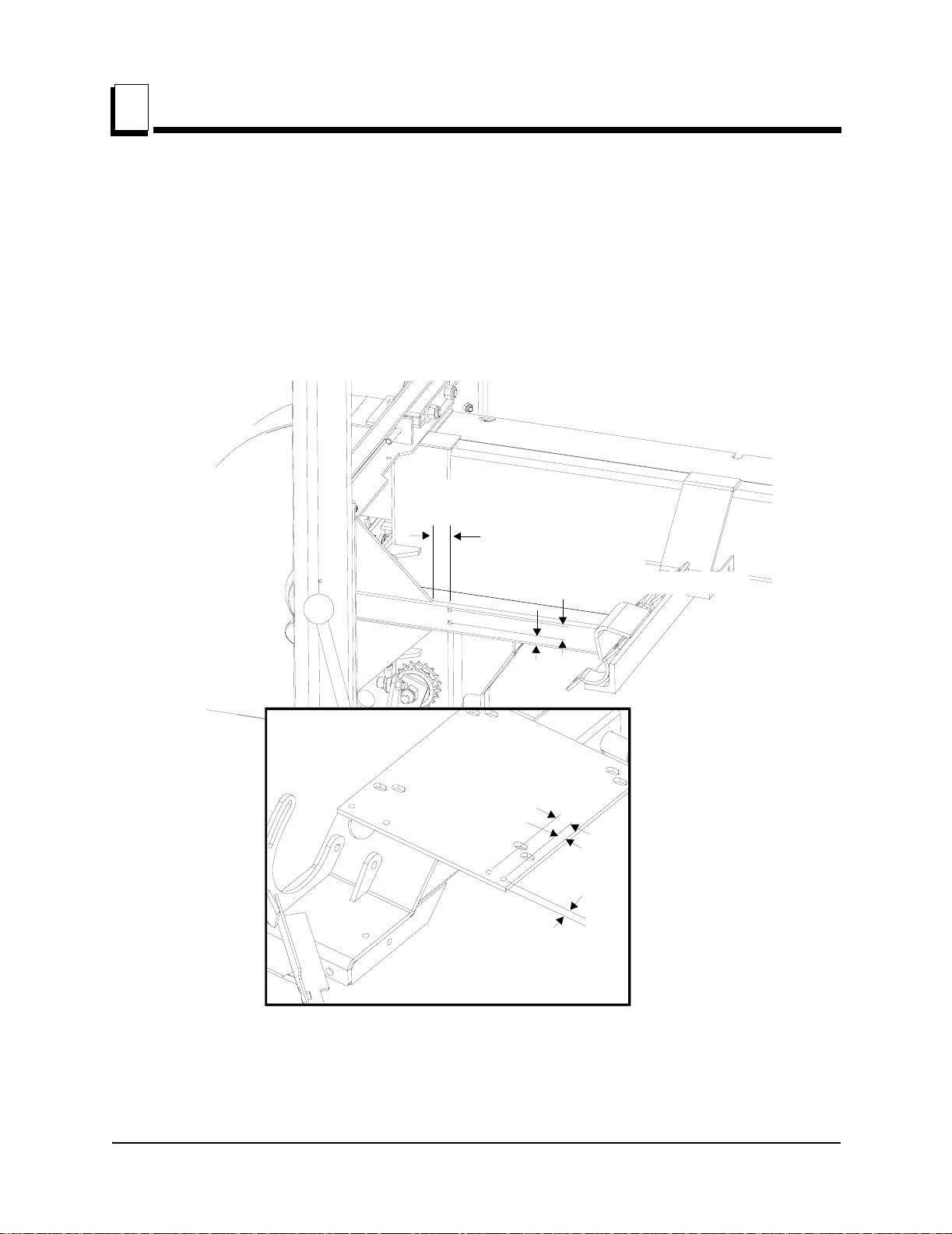

See Figure 2-2. The model and age of your sawmill will determine where you need to
install the debarker control. If you have a standard mill manufactured after June 1996, or
any super series mill, use the location D on the motor support tube shown in the main
portion of the figure. If you have a standard mill manufactured during or prior to June
1996, use the alternate location D on the motor mount plate shown in the figure inset. Drill
two 9/32" diameter holes at the locations shown.
FIG. 2-2
7/8"
7/8"
1 1/4"
9/16"
1/2"
1/2"
Alternate Location D
Configuration 2
(2) 9/32" Ø holes
Location D
Configuration 1
(2) 9/32" Ø holes
through both walls
(See also alternate location below)
3H0201D

Debarker Installation
Debarker Control Installation
Debarker Installation MKI96DB98doc011711 2-4
2
2.3 Debarker Control Installation
NOTE: Loose installation hardware is located in the bag
assembly.
1. Assemble the control box to location D (or alternate location D, as determined by mill
type).
2. If you have a standard sawmill manufactured after LT30 rev. F6, LT40 rev. F7, or
LT30HD/40HD rev. F9, or if you have any revision super series sawmill:
See Figure 2-3. Install the mounting bracket as shown and use the four 1/4-20 x 3/8”
socket button head screws to secure the bracket to the control box. Use the provided
1/4-20 x 2 3/4” hex head grade 2 bolts and 1/4-20 hex lock nuts to secure the box assem-
bly to the mill.
FIG. 2-3
Debarker
Control
Box
Location 'D'
Lock Nut
s
Bolts
3H0203C

Debarker Installation
Debarker Control Installation
2
2-5 MKI96DB98doc011711 Debarker Installation
If you have a standard sawmill manufactured prior to LT30 rev. F6, LT40 rev. F7, or
LT30HD/40HD rev. F9:

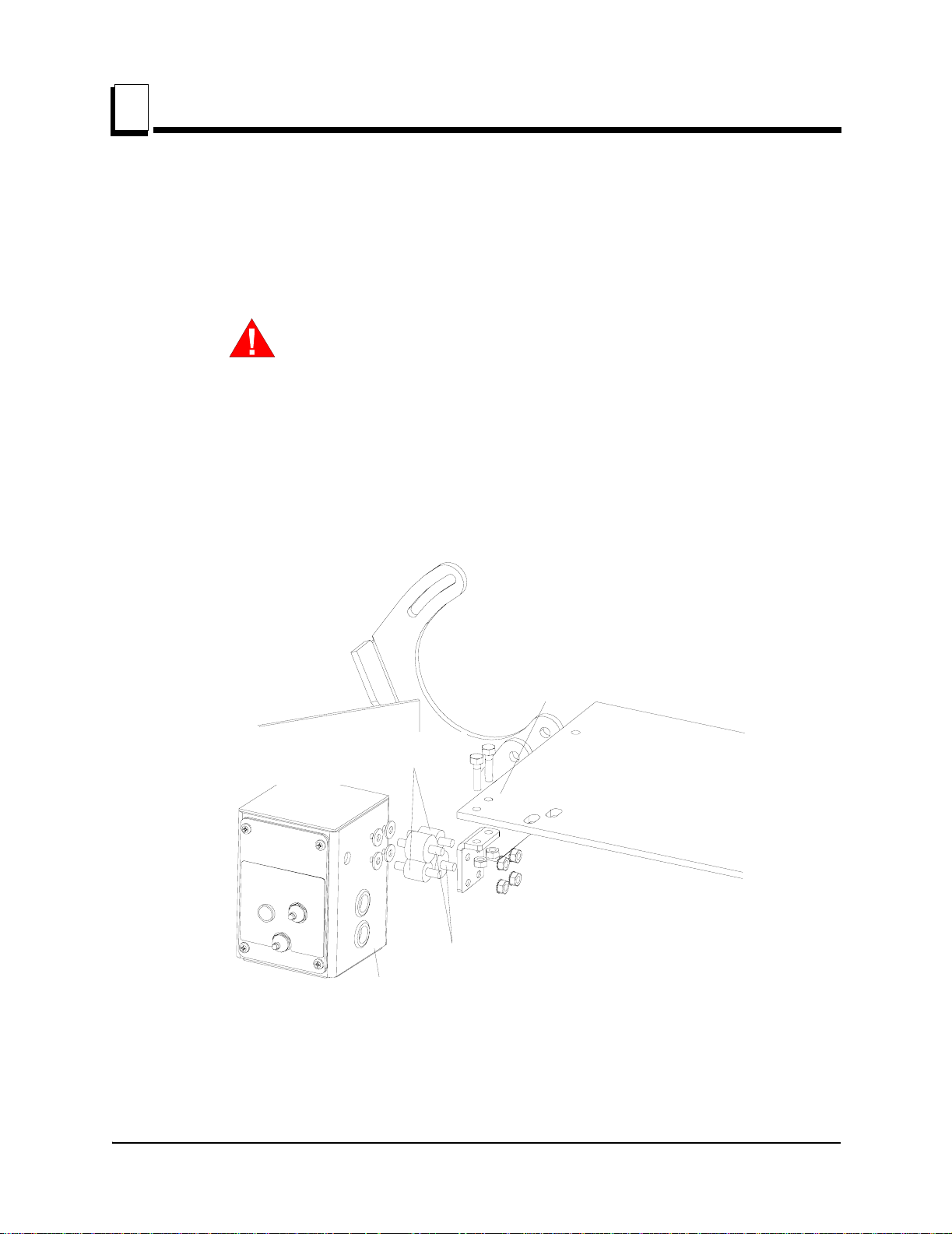

See Figure 2-4. Install the four 1/4" SAE flat washers and vibration isolators to the control
box and tighten by hand. NOTE: Install and tighten one isolator at a time, placing the 1"
isolators diagonal to each other and the 3/4" isolators diagonal to each other.
DANGER! To prevent possible damage or injury, be sure
the enclosed vibration isolators are installed to the
Debarker control box before Debarker use on any of the
mill revisions listed below.
Position the mounting bracket as shown and use four 1/4-20 self locking nuts to secure
the bracket to the control box.
Use the provided 1/4-20 x 1” hex head grade 2 bolts and 1/4-20 hex lock nuts to secure
the box assembly to the mill.
FIG. 2-4
Control box assembly
3/4“ Vibration Isolators
3
H
0586
1“ Vibration Isolators
Location D (alternate)

Debarker Installation
Debarker Installation
Debarker Installation MKI96DB98doc011711 2-6
2

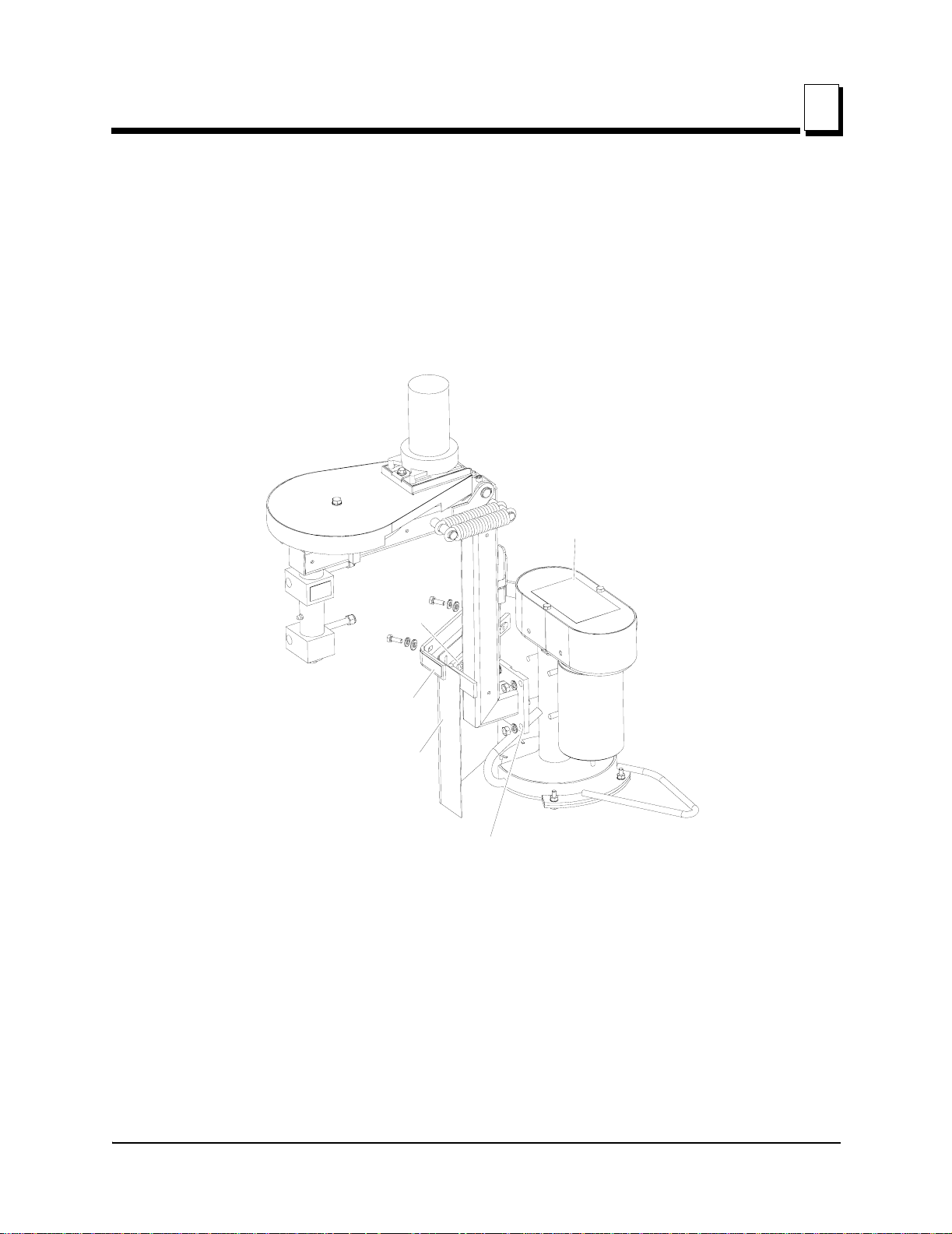

2.4 Debarker Installation
NOTE: You will not use all components of the debarker bag assembly during installation.
Excess hardware is included to cover all possible mill variations and needs.
Rev. A.00 - D.02 Only:
3. Assemble the debarker to the sawmill saw head. Align the mounting block holes and the
holes in the sawhead at location B. Place the supplied pad 1 between the saw head and
mounting block assembly, aligning the slots in the pad with the two mounting holes. Use
the provided 3/8-16 hex nylon lock nuts to secure in place.
NOTE: When installing, make sure the blade guide wire harness is routed between the
c-frame and the pivot arm.
See Figure 2-5.
1 016048 pad was added (Rev. D.02) to to prevent loss of debarker alignment caused by mount
pivoting during operation. Previous revision debarkers can be upgraded with pad or four-bolt
mount used after Rev. D.03 (See page 7).
FIG. 2-5
Harness from
control box Mounting
nuts
Mounting
block
assembly
3H0202C
Mounting
bolts
Pad
Location B

Debarker Installation
Debarker Installation
2
2-7 MKI96DB98doc011711 Debarker Installation
Rev. D.03 Only:
1. Open the middle blade housing cover. Remove the four pre-installed bolts and nuts from
the debarker frame mounting blocks.
2. Assemble the debarker to the sawmill saw head. Align the mounting block holes and the
holes in the saw head. Insert the bolts from the back of the saw head, through the
debarker mounting block holes. Use the lock nuts to secure in place. Tighten the mount-
ing bolts to 20 ft.-lbs. torque. Do not tighten the set screws in the mounting blocks until
debarker alignment has been performed.
NOTE: When installing, make sure the blade guide motor wire harness is routed between
the saw head and the pivot arm.
See Figure 2-6.
FIG. 2-6
Debarker
frame assembly
Mounting bolts (4)
Lock
nuts (4)
3H0578B-1
Blade guide
arm motor
harness

Debarker Installation
Debarker Installation
Debarker Installation MKI96DB98doc011711 2-8
2
3. Assemble the debarker cutting head to the mount plate on the frame.
Use the two provided U-bolts, 5/16” split lock washers and 5/16-18 hex nuts to secure in
place.
See Figure 2-7. Install the flexible guard and guard bracket to the pivot arm guard
bracket. Secure in place with the provided 1/4” flat washers, 1/4” split lock washers, and
1/4-20 x 3/4” hex head full thread bolts.
FIG. 2-7
Cutting head
assembly
Pivot arm
guard
bracket
Guard bracket
Flexible guard
Mount
p
late
3H0204B

Debarker Installation
Debarker Installation
2
2-9 MKI96DB98doc011711 Debarker Installation
4. Install the spring arm assembly to the debarker in/out pulley using the 3/8-16 x 1 3/4" hex
head bolt, two flat washers, and two lock nuts provided.
5. Remove the idle-side blade housing cover. Align the two holes in the spring arm bracket
with the two holes in the top of the saw head blade housing. Use the provided 3/8-16 x 1”
hex head bolts and 3/8-16 nylon lock nuts to secure the spring arm bracket saw head.
Replace the blade housing cover. Close the middle blade housing cover.
See Figure 2-8.
6. Replace the existing middle cover wing nut with the provided middle cover wing nut.
See Figure 2-9.

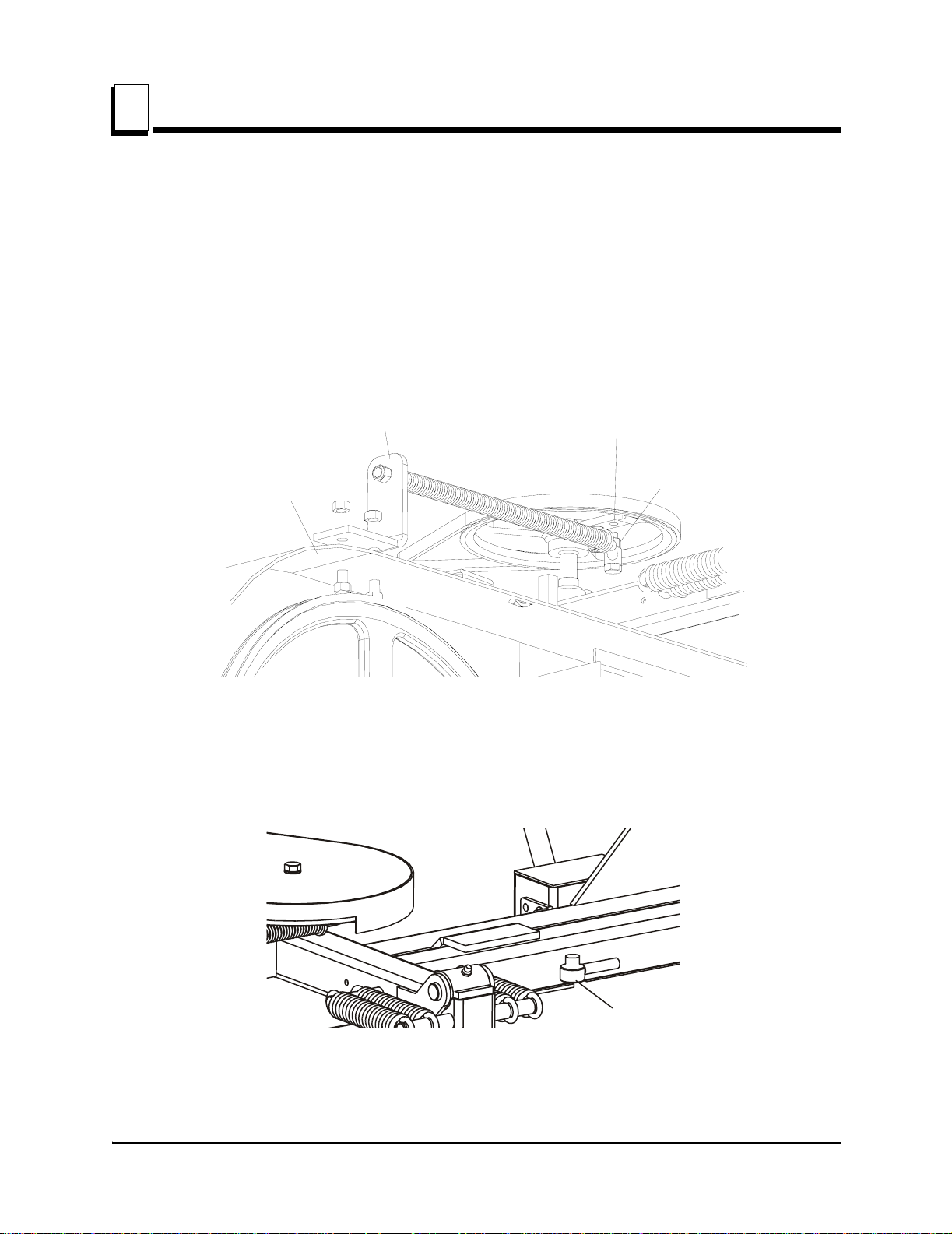

FIG. 2-8
FIG. 2-9
Bolt/nut
assembly
Motor pulley
Spring arm bracket
Location A
3H0206
Wing nu
t

Debarker Installation
Lower Harness Installation
Debarker Installation MKI96DB98doc011711 2-10
2
2.5 Lower Harness Installation
DANGER! On electric mills, hazardous voltage inside the
disconnect box, starter box, and at the electric motor can
cause shock, burns, or death. Disconnect and lock out
power! Follow all applicable electrical codes.
DANGER! Before performing any service to this equip-
ment, turn the key to the OFF (0) position, remove the key,
and disconnect the sawmill battery ground terminal. Failure
to do so will result in serious injury or death.
IMPORTANT! Avoid pinch and pivot points, unnecessary
wire bending and open spaces where the wire could get
caught by a log, etc. If you have any questions, call
Wood-Mizer customer service.

Debarker Installation
Lower Harness Installation
2
2-11 MKI96DB98doc011711 Debarker Installation
Rev. A.00 Debarker Only:
1. Locate the lower motor harness on the debarker control box. Route the lower harness
under and around the sawmill motor mount using provided clamps and 1/4-20 x 7/8” hex
head grade 2 bolts as needed. Then route the harness between the debarker pivot arm
and the c-frame as shown. Loop the harness up and over the c-frame, routing it under-
neath the spring arm, and along the debarker pivot arm. Leave the wire in this position for
now.
See Figure 2-10.
2. Install the provided 20" piece of tubing over the red and black debarker pivot arm drive
motor wires. Strip the end of the black drive motor wire and install a provided 1/4” male
quick connect terminal.

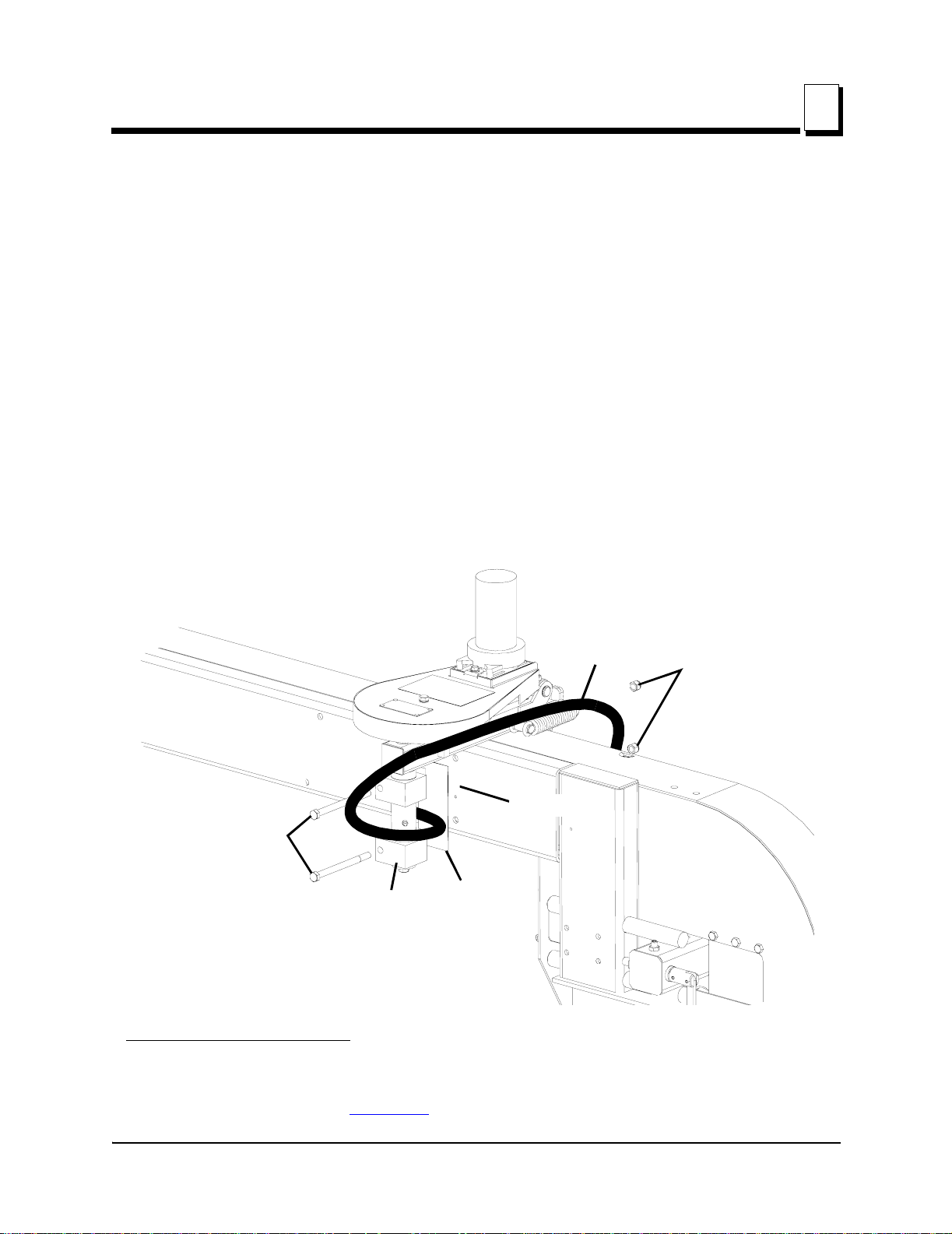

FIG. 2-10
Lower motor harness
3H0210

Debarker Installation
Lower Harness Installation
Debarker Installation MKI96DB98doc011711 2-12
2
See Figure 2-11.
3. Cut the red drive motor wire so it is 1” shorter than the black drive motor wire, strip the
end, and install a provided 1/4” male quick connect terminal. This will allow the wires to
be neatly bundled together and wrapped later.
4. Connect the red drive motor wire to the red lower harness wire. Connect the black drive
motor wire to the black lower harness wire.

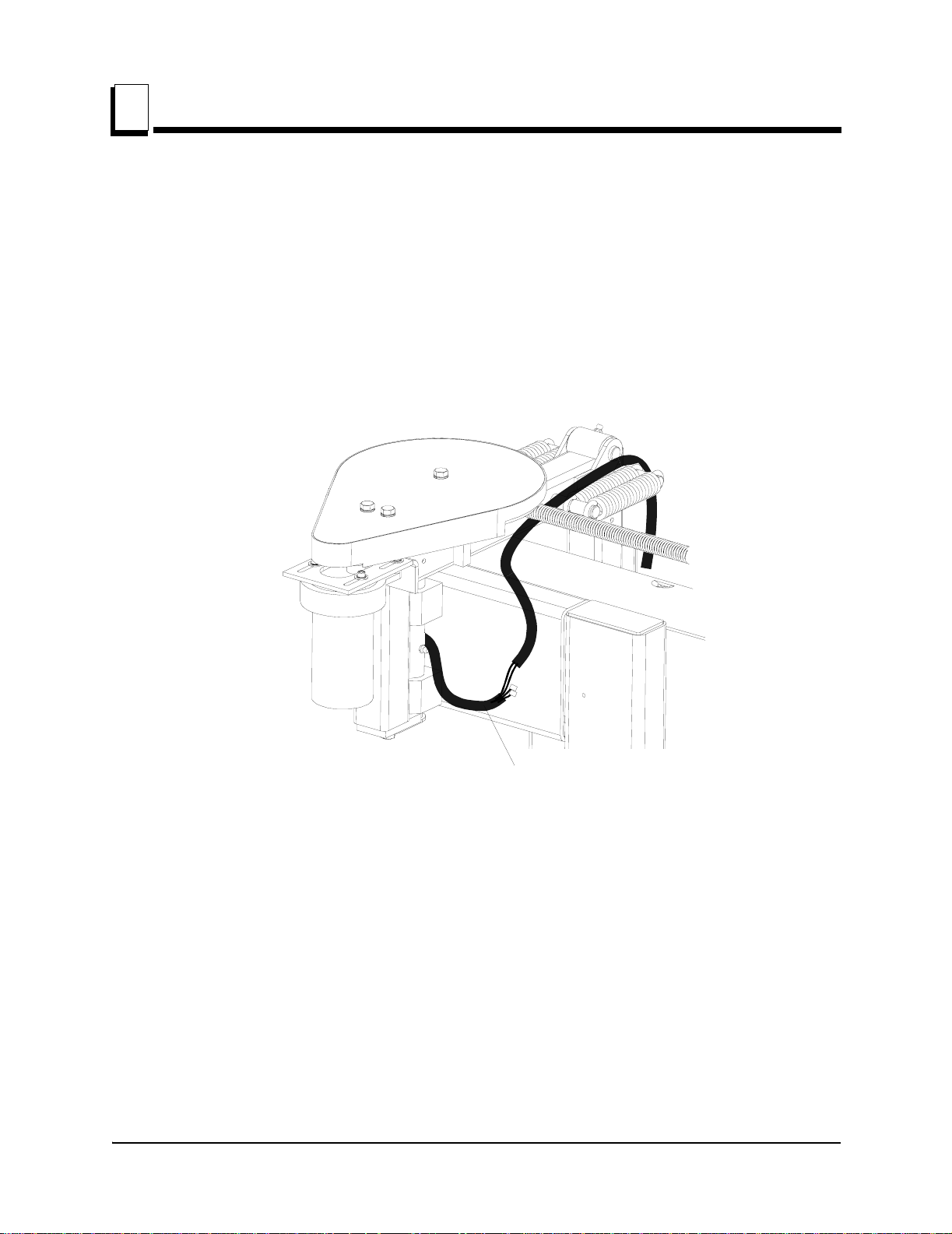

FIG. 2-11
Install tubing
over pivot arm
drive motor wires
Offset wire
connections by 1"
3H0211

Debarker Installation
Lower Harness Installation
2
2-13 MKI96DB98doc011711 Debarker Installation
5. Form the drive motor wire tubing in a loop as shown. Use two of the provided wire ties to
attach the tubing to the side of the drive motor.
See Figure 2-12.
6. Use a provided clamp and 1/4-20 x 1/2” hex head bolt to attach the tubing to location D on
the pivot arm.
7. Use two wire ties to secure the tubing to the lower harness at two locations as shown. Be
sure to retain the tubing loop to allow the debarker arm to move and pivot in full range and
also to prevent undue wire stress from sharply bent wires.
8. Wrap the exposed wires and connections with electrical tape. Tuck the wrapped portion of
the harness between the pivot arm and c-frame.
FIG. 2-12
Clamp
tubing at
Location D
Secure tubing to drive motor
3H0212
Secure tubing to lower
harness at these locations.
Allow tubing to loop.
Do not sharply bend tubin
g

Debarker Installation
Lower Harness Installation
Debarker Installation MKI96DB98doc011711 2-14
2
9. Making sure to leave the loop, use provided clamps and 1/4-20 x 7/8” hex head bolts to
secure the lower harness to the pivot arm at locations E and F and G as shown.
See Figure 2-13.
10. Next, connect the lower harness wires to the terminals at the bottom of the debarker cut-
ting motor. The harness tubing and wires will be longer than necessary (to allow for differ-
ences in routing). Route the wires to the terminals. Cut excess length.
11. Route the wires from the warning bell down the side of the motor to the terminals. Cut
excess length.
12. Route the black motor wire from the lower harness and the black wire from the warning
bell through one of the provided rubber boots.
13. Strip the end of the black motor wire and install a 1/4” 8 gauge ring terminal. Strip the end
of the black warning bell wire and install a 1/4” 14-16 gauge ring terminal. To install the
14-16 gauge ring terminal, fold the stripped end of the wire over the insulation, install the
ring terminal and crimp in place.
FIG. 2-13
L
ocat
i
on
E
Location F
Location G
3H0213B

Debarker Installation
Lower Harness Installation
2
2-15 MKI96DB98doc011711 Debarker Installation
14. Connect the ring terminals to motor terminal A using a supplied 1/4-20 self-locking nut.
IMPORTANT! Make sure that the ring terminals do not
touch motor body.
15. Route the red motor wire from the lower harness and the red wire from the warning horn
through one of the provided rubber boots.
16. Strip the end of the red motor wire and install a 1/4” 8 gauge ring terminal. Strip the end of
the red warning horn wire and install a 1/4” 14-16 gauge ring terminal. To install the 14-16
gauge ring terminal, fold the stripped end of the wire over the insulation, install the ring
terminal and crimp in place.
17. Connect the ring terminals to motor terminal B using a supplied 1/4-20 self-locking nut.
IMPORTANT! Make sure that the ring terminals do not
touch the motor body.
18. Slide the rubber boots over the ring terminals and motor posts to protect connections.
19. Use a provided wire tie to secure the horn wires to the lower harness approximately 3"
from the motor terminals as shown.
See Figure 2-14.
FIG. 2-14
L
o
w
e
r m
oto
r h
a
rn
ess
3H0214
Horn wires
