Woodpecker Joinery BRAMSHALL User manual

BRAMSHALL
GREENHOUSE
INSTALLATION
INSTRUCTIONS
For further advise please call [phone] or email
[email protected]
Drawn April 2015 by R.Hirst
Recommended to be installed by a competent, experienced tradesman
with appropriate tools and personal protective equipment. Installation
requires a minimum team of two persons.
While every effort has been made to ensure that the information contained in this
guide is accurate and complete, no liability can be accepted for any errors or
omissions. In no event shall the supplier of the building be liable for any direct,
indirect, incidental, special, exemplary, or consequential damages (including, but
not limited to, procurement of substitute goods or services; loss of use or profits;
or business interruption) however caused and on any theory of liability, whether in
contract, strict liability, or tort (including negligence or otherwise) arising in any
way out of the installation or use of this timber greenhouse, even if advised of the
possibility of such damage.
©WOODPECKER JOINERY UK LTD 2015, PAGE 1 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

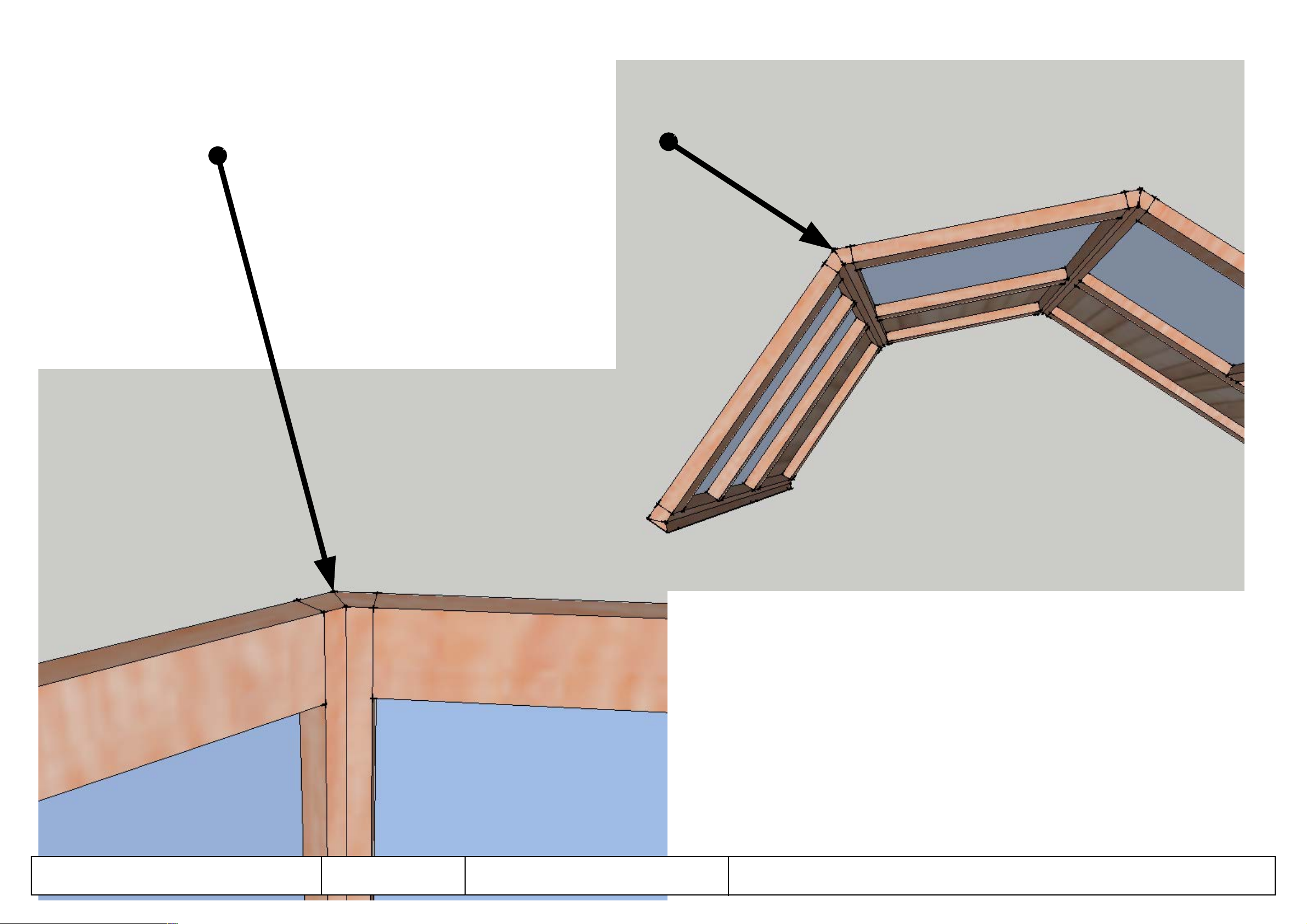

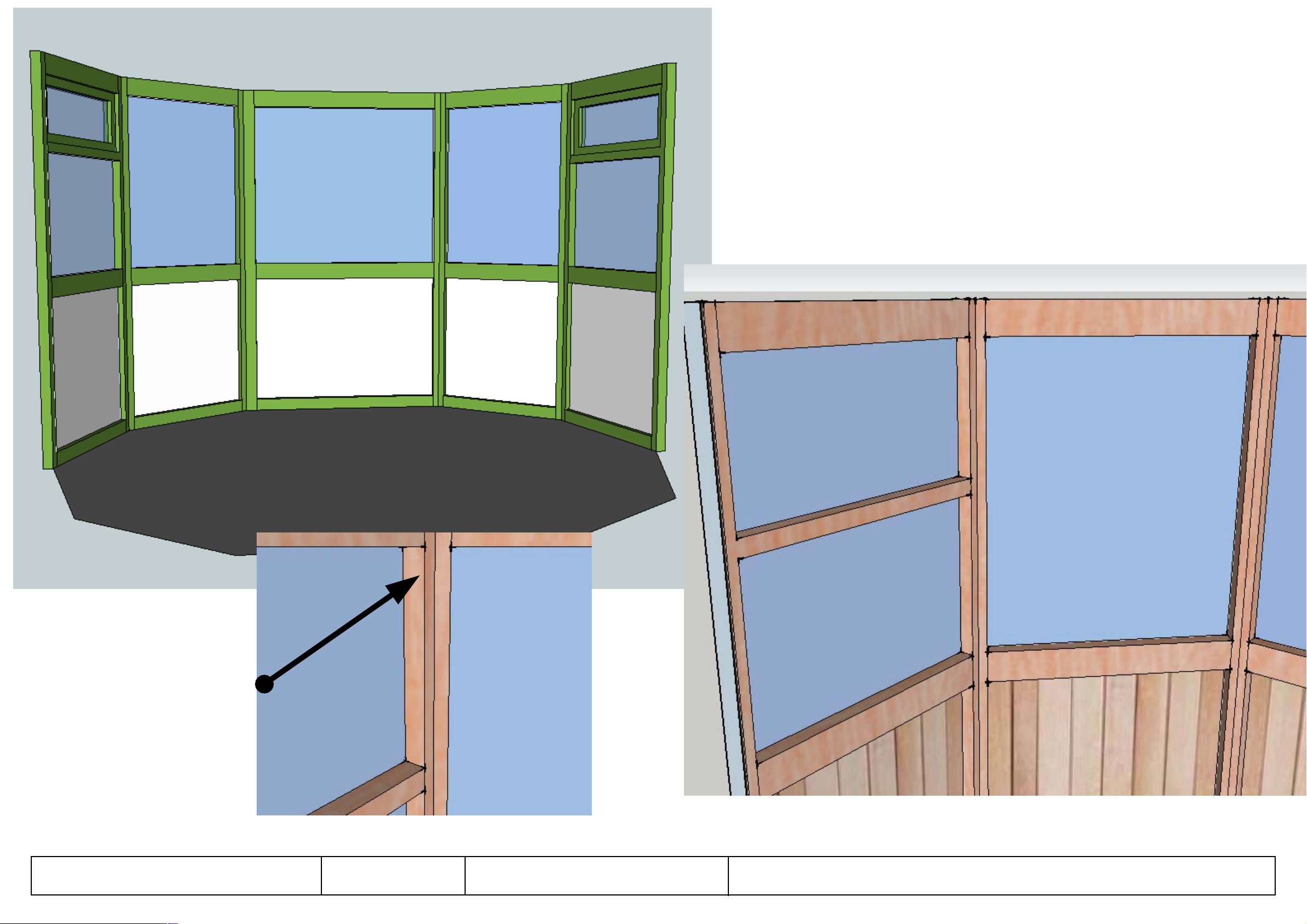

BROWN
SILICONE BETWEEN
UPRIGHT SECTIONS
TOP OF SECTIONS
MUST BE LEVEL
ASSEMBLE THE
GREENHOUSE
SIDES
©WOODPECKER JOINERY UK LTD 2015, PAGE 2 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 2 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

©WOODPECKER JOINERY UK LTD [MONTH YEAR]
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
6 mm Hole
Fixed with 80mm Screw
and cup washer
FIX AS INDICATED
BY RED ASTERIX
*
©WOODPECKER JOINERY UK LTD 2015, PAGE 3 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 3 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
6 mm Hole
Fixed with 80mm Screw
and cup washer
FIX AS INDICATED
BY RED ASTERIX
©WOODPECKER JOINERY UK LTD 2014, PAGE 4 OF 28
STRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 4 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 4 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

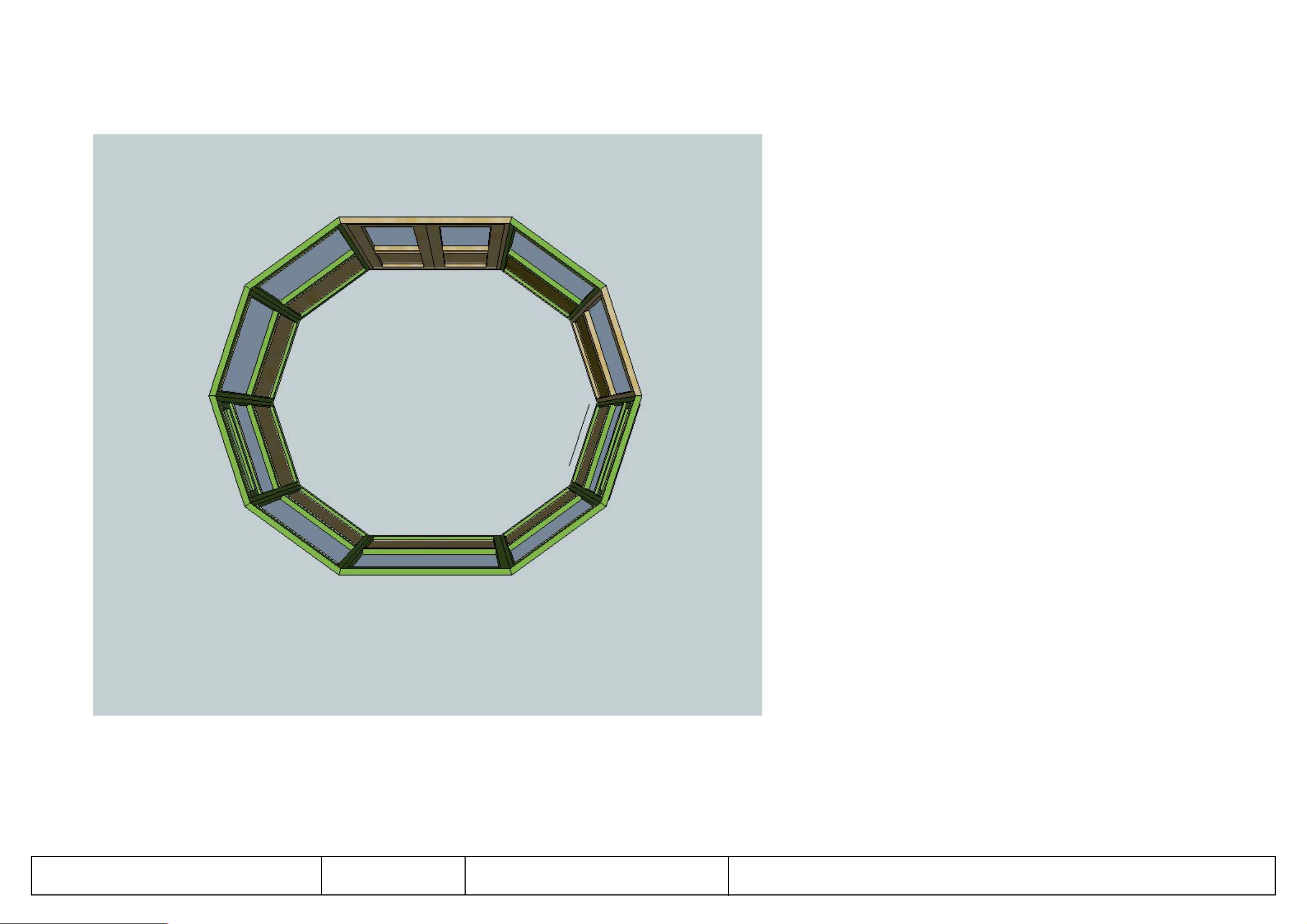

COMPLETE GREENHOUSE SIDE ASSEMSBLY. DO NOT FIX GREENHOUSE TO BASE
AT THIS POINT
©WOODPECKER JOINERY UK LTD 2014, PAGE 5 OF 28
STRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 5 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 5 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

*
*
*
6 mm Hole
Fixed with 80mm Screw
and cup washer
FIX AS INDICATED
BY RED ASTERIX
AT ROOF SECTION POiNT
FIX SECTIONS TOGETHER
WITH 50MM SCREW.
(HOLE MAY NOT BE PREDRILLED)
THIS MUST BE DONE AT ALL
ROOF POINT JOINTS
*
*
ALL ROOF SECTION SEEMS AND JOINTS
MUST BE MATED WITH APPLICATION
OF BROWN SILICONE
ASSEMBLE THE
GREENHOUSE
ROOF
©WOODPECKER JOINERY UK LTD 2014, PAGE 6 OF 28
STRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
*
*
©WOODPECKER JOINERY UK LTD 2015, PAGE 7 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 6 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
6 mm drill Hole
Fixed with 80mm Screw
and cup washer
FIX AS INDICATED
BY RED ASTERIX
©WOODPECKER JOINERY UK LTD 2014, PAGE 7 OF 28
STRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
*
*
*
*
*
*

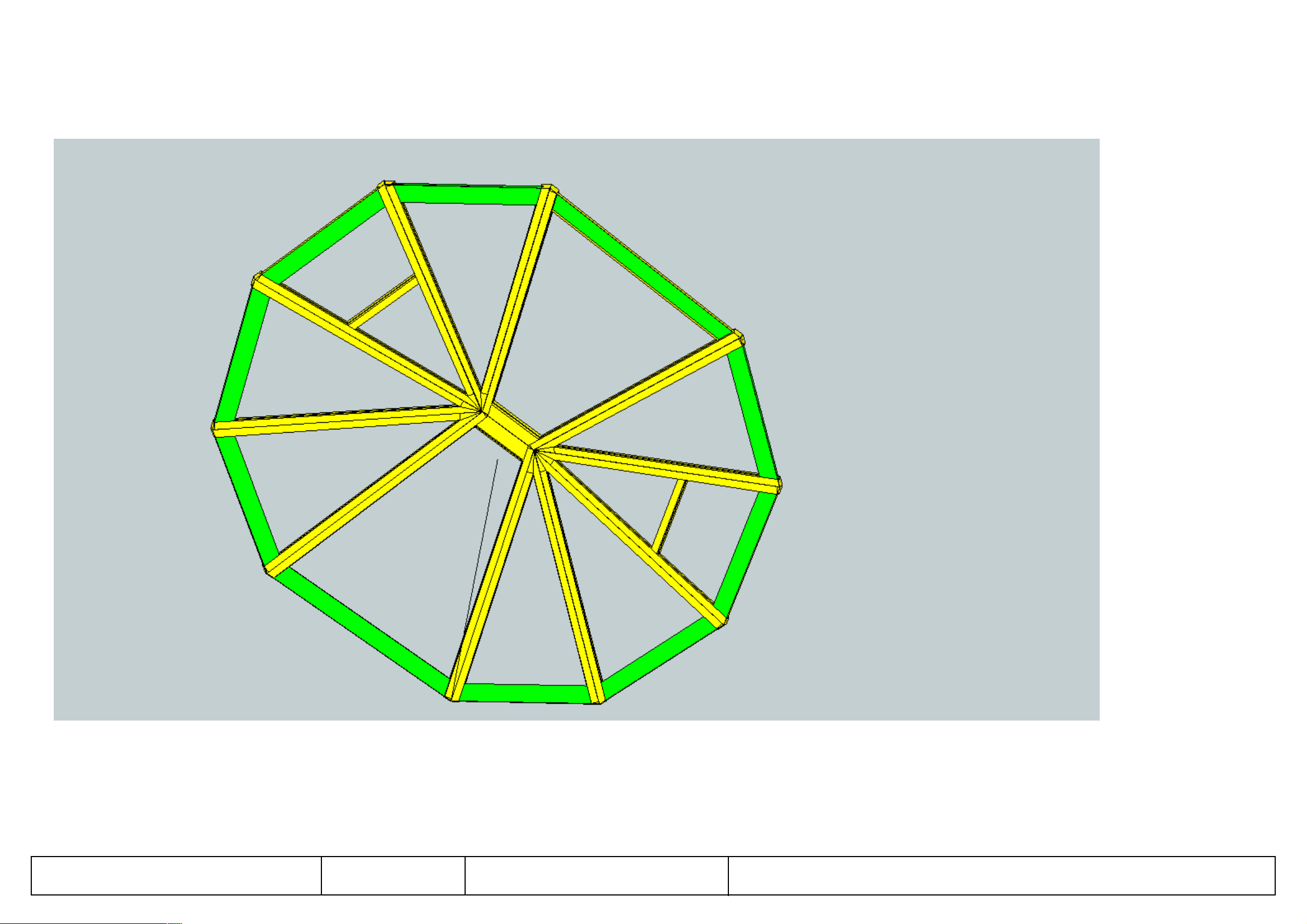

IMAGE OF THE UNDER SIDE OF THE ROOF
ALL ROOF SECTION SEEMS AND JOINTS
MUST BE MATED WITH APPLICATION
OF BROWN SILICONE
©WOODPECKER JOINERY UK LTD 2015, PAGE 1 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 7 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

©WOODPECKER JOINERY UK LTD [MONTH YEAR]
©WOODPECKER JOINERY UK LTD 2014, PAGE 8 OF 3
SCALE 1:30
UNITS: MILLIMETRES

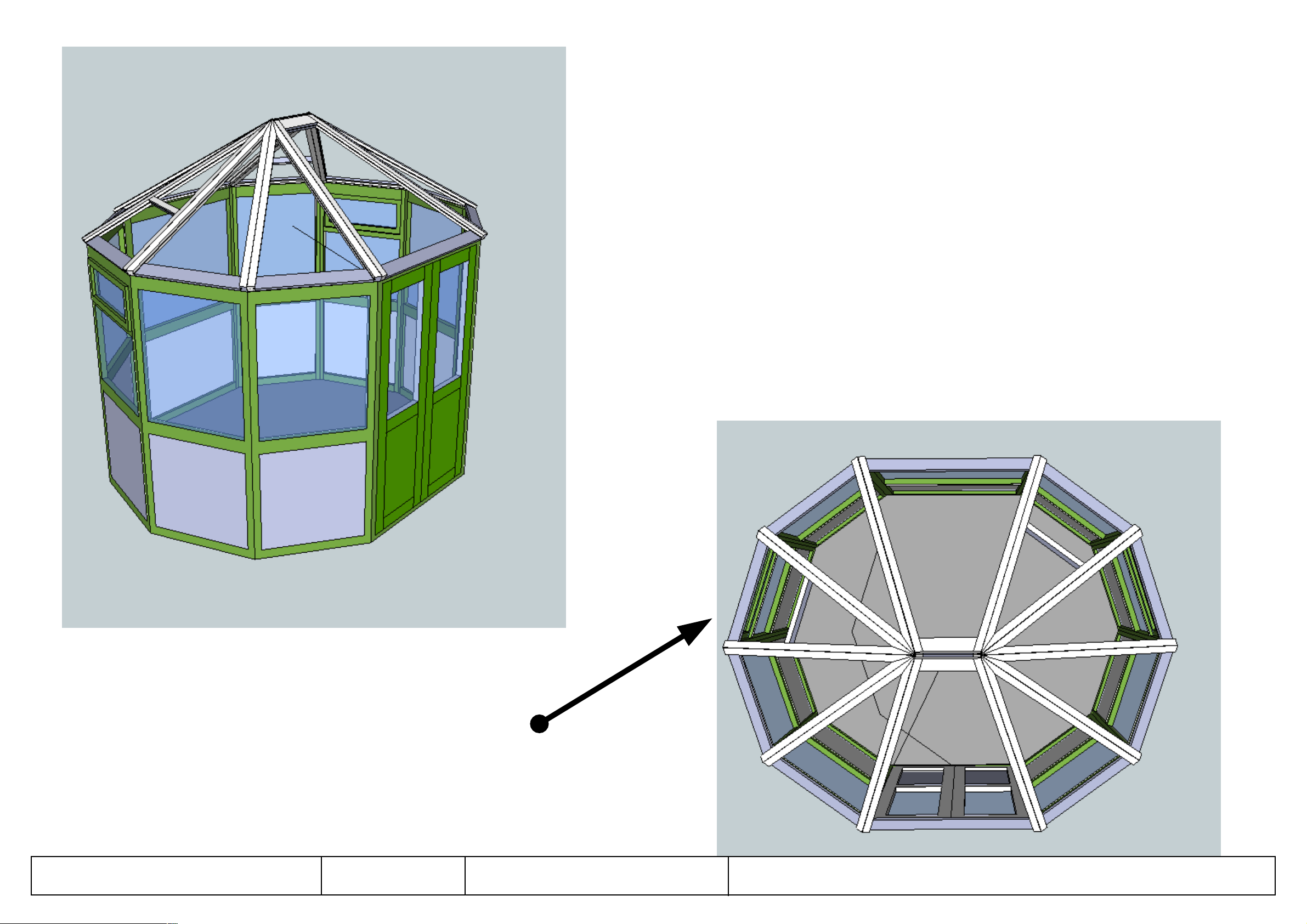

GREENHOUSE DIMENSIONS
ALL DIMENSIONS APPROXIMATE
COMPLETE GREENHOUSE ROOF
AT GROUND LEVEL.
GAPS MAY OCCURR BETWEEN
EXTERIOR SEAMS,
THIS IS TO BE EXPECTED.
RECOMMEND A SMALL BEAD OF
SILICONE IS APPLIED BETWEEN THE
ROOF SECTIONS EXHIBITING
GAPPINGS DOWN THE FULL LENGTH
OF THE ROOF. AREAS ARE
HIGHLIGHTED IN BLUE
©WOODPECKER JOINERY UK LTD 2015, PAGE 1 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 8 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

©WOODPECKER JOINERY UK LTD 2014, PAGE 9 OF 28
STRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

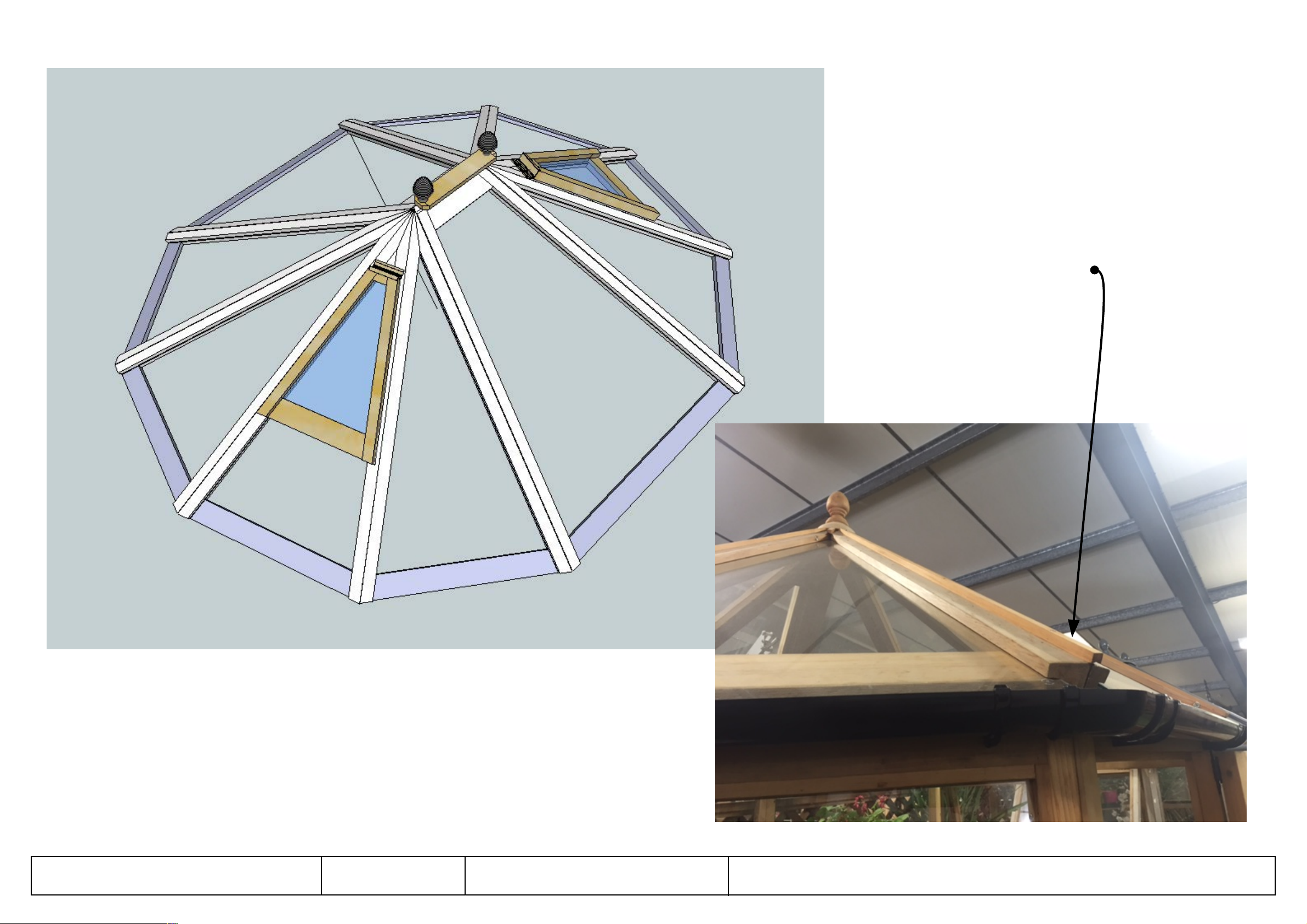

FIT ACORN RIDGE
UPON ASSEMBLED ROOF
STRUCTURE. APPLY AMPLE
AMOUNTS OF SILICONE
BETWEEN MATING FACES TO
ENSURE ROOF SEAL.
(highlighted in blue)
©WOODPECKER JOINERY UK LTD 2015, PAGE 1 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 9 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

©WOODPECKER JOINERY UK LTD 2014, PAGE 9 OF 28
STRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
*
*
*
*
6 mm Hole
Fixed with 70mm Screw
and cup washer
FIX AS INDICATED
BY RED ASTERIX
©WOODPECKER JOINERY UK LTD 2015, PAGE 1 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 10 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

FIX BEADING STRIP AS INDICATED
BY GREEN ASTERIX. SECURE ALL
BEADING STRIP WITH 25MM
STAINLESS
NAIL BRAD
*
*
*
*
©WOODPECKER JOINERY UK LTD 2014, PAGE 12 OF 28
STRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
BEADING PEICE SHOULD BE FITTED
AT EACH ROOF JOIN.
BEADING SHOULD AT LEAST ABUT
THE RIDGE AND EXTEND UNDER
ACRON RIDGE IF POSSBILE
*
*
*
*
*
*
*
*
©WOODPECKER JOINERY UK LTD 2015, PAGE 1 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 11 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

*
*
FIX AS INDICATED
BY RED ASTERIX. SECURE ALL
ROOF VENTS
BY THIS METHOD
USE 50X4MM SCREW.FITTED
WITH A EPDM RUBBER WASHER
(HOLE MAY NOT BE PREDRILLED)
IN SOME CASES
APPLY AMPLE SILICONE BETWEEN
ALUMINIUM HINGE BASE PLATE
AND GREENHOUSE FRAME
©WOODPECKER JOINERY UK LTD 2014, PAGE 17 OF 28
STRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 1 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 12 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

VENT MUST FIT ALIGNED
WITH BOTTOM OF CASEMENT
BOX.
VENT WILL OVERHANG
AT THE SIDES OF CASEMENT
BOX.
OVERHANG IS
DESIGNED TO BE EVEN ON
BOTH SIDES OF CASEMENT BOX.
©WOODPECKER JOINERY UK LTD 2014, PAGE 16 OF 28
STRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 1 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 13 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
ALL ROOF SECTION SEEMS AND JOINTS
MUST BE MATED WITH APPLICATION
OF BROWN SILICONE
6 mm Hole
Fixed with 100mm Screw
NO WASHER. Head of screw must be below the surface of the timber.
FIX AS INDICATED
BY RED ASTERIX
COMBINE GREENHOUE
ROOF AND SIDE ASSEMBLY
©WOODPECKER JOINERY UK LTD 2014, PAGE 10 OF 28
STRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
*
*
*
*
©WOODPECKER JOINERY UK LTD 2015, PAGE 1 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 14 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

©WOODPECKER JOINERY UK LTD 2015, PAGE 15 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
*
*
*
*
6 mm Hole
Fixed with 50mm Screw
and cup washer
FIX AS INDICATED
BY RED ASTERIX

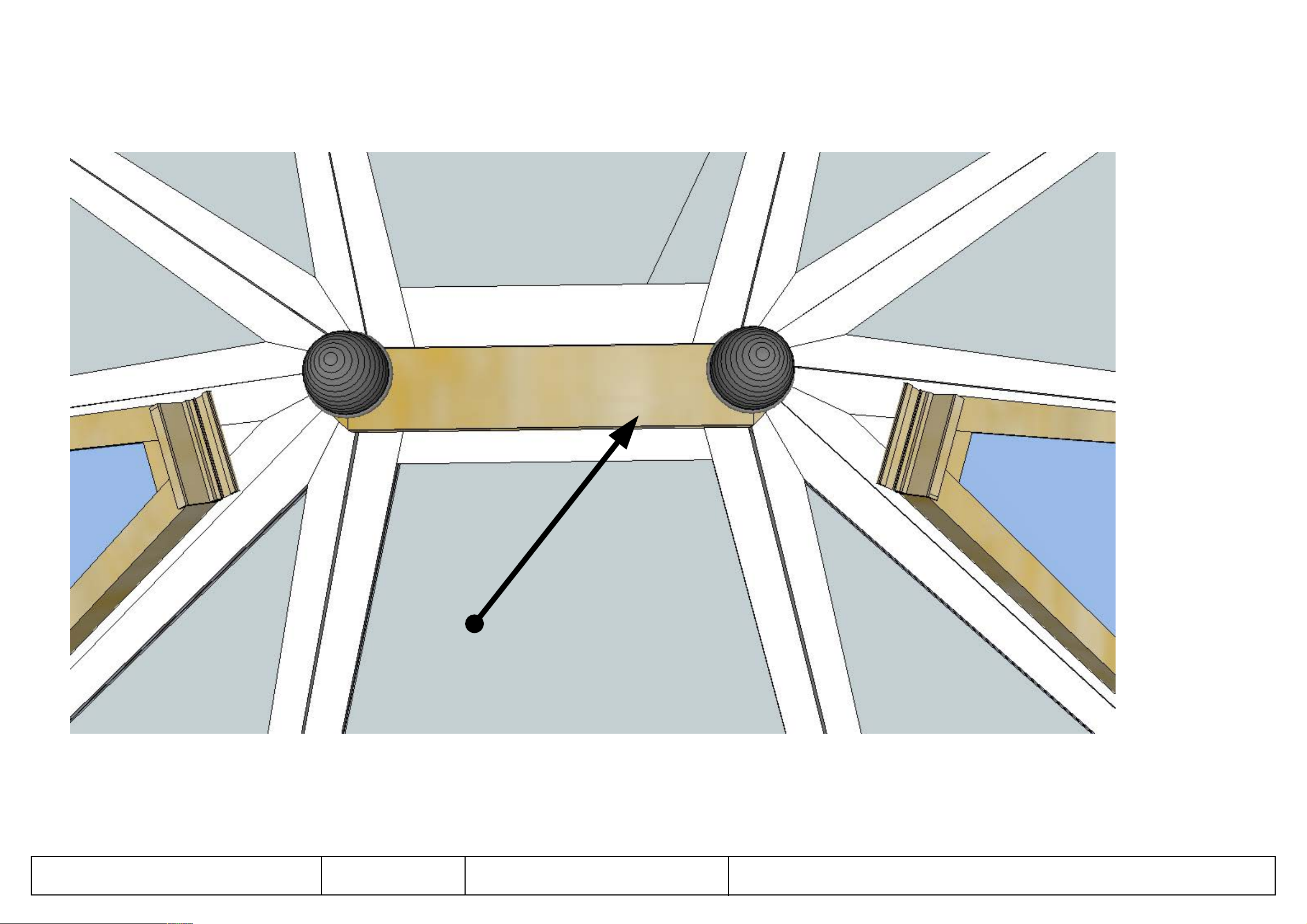

FIX INTERIOR RIDGE TRIP

START GREENHOUSE
ROOF INSTALLATION
WITH UNDERVENT PIECE
OF GLASS FIRST.
EDGE OF GLASS MUST
FIT FULLY INTO DEPTH OF
GROOVE
PLACE ADJACENT PIECE OF
GLASS. LOCATE BY POSITION
MATCHING HEGIHT OF BOTTOM POINT AND
ENSURING
THIS IS LEVEL
GLAZE THE GREENHOUSE
ROOF
©WOODPECKER JOINERY UK LTD 2014, PAGE 11 OF 28
STRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
FIX GLASS IN PLACE WITH 25MM
SCREW AND PLASTIC SLEEVE. FIX GLASS
THROUGH PRE DRILLED HOLE IN THE GLASS PANE.
©WOODPECKER JOINERY UK LTD 2015, PAGE 1 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 16 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

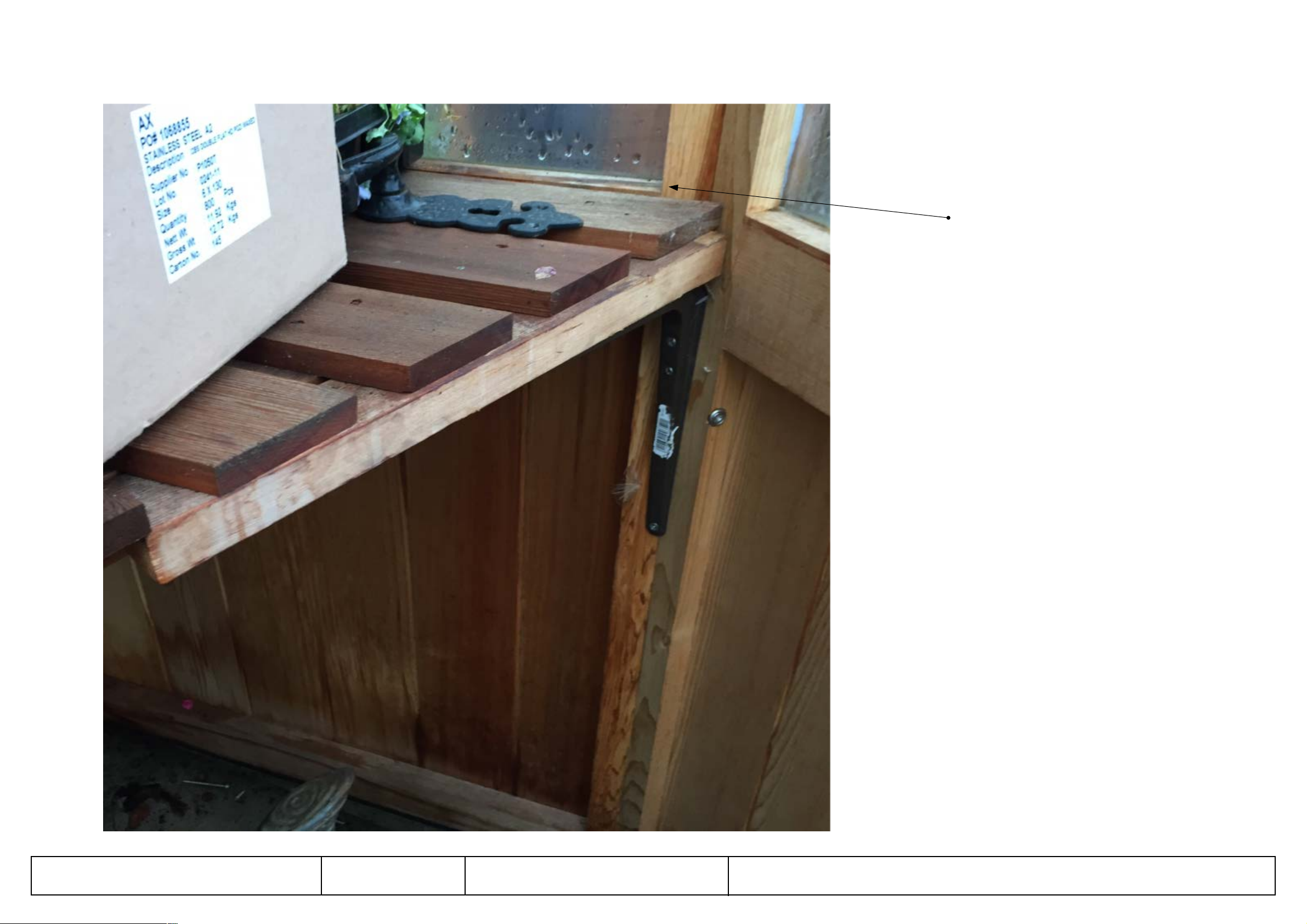

FIX AS INDICATED
BY GREEN ASTERISK. SECURE ALL
STAGING BRACKETS PEICES BY
THIS METHOD
MATCH HEIGHT WITH
WINDOW CILL
USE 40X4MM SCREW
USE 25X3.5MM SCREW
*
*
*
*
FIT THE GREENHOUSE
STAGING
©WOODPECKER JOINERY UK LTD 2014, PAGE 21 OF 28
STRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 1 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 17 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

FIT ALL STAGING
USE GREENHOUSE STAGING
AS A GUIDE TO CONFIRM IF THE
GREENHOUSE FRAME IS SITTING
IN THE CORRECT POSITION.
MODIFY FRAME AS REQUIRED BY
LIFTING AND PUSHING ON THE
OUTSIDE OF THE BUILDING.
©WOODPECKER JOINERY UK LTD 2014, PAGE 22 OF 28
STRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 1 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 18 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

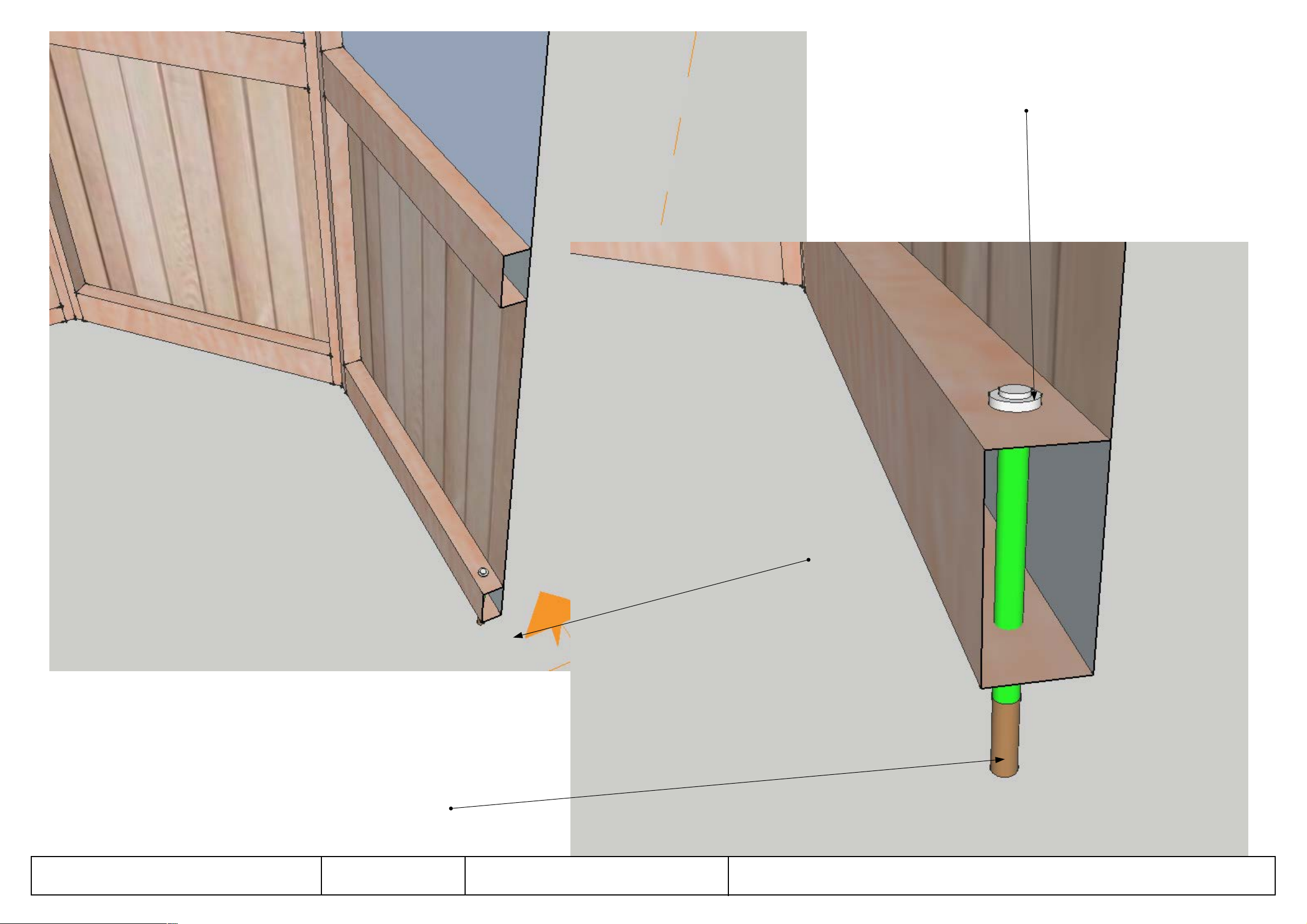

FIX AS INDICATED
BY PINK ASTERISK. USE METHOD
AS DESCRIBED ON FOLLOWING PAGE
FIX THE GREENHOUSE
TO THE BASE
©WOODPECKER JOINERY UK LTD 2014, PAGE 23 OF 28
STRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
*
*
*
*
*
*
©WOODPECKER JOINERY UK LTD 2015, PAGE 1 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 19 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS

130MM X 6MM
STAINLESS SCREW
WITH
LARGE WASHER
RAWL PLUG
©WOODPECKER JOINERY UK LTD 2014, PAGE 24 OF 28
STRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 1 OF 23
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
©WOODPECKER JOINERY UK LTD 2015, PAGE 20 OF 24
BRAMSHALL GREENHOUSE
ALL DIMENSIONS APPROXIMATE
INSTALLATION
INSTRUCTIONS
