Workrite Ergonomics FDEX54-72-X Programming manual

1 of 8 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
Box1
Box2
Parts Included, Frame Set
Hardware kit, 4225338 (Silver and White) or 4225339 (Charcoal)Companion Leg
Assembly & Installation Instructions:
Fundamentals 2-Leg Workcenter FDEX54-72-X
Required & Sold Separately
Foot Kit
Basic or Programmable Control
Worksurface
H4 mm Allen Wrench
Qty: 1
PPower Supply
Qty: 1
OPower cord - 3.5 meters
Qty: 1
KCable Spool
Qty: 1
LCable Loops
Qty: 5
NLeg Cable - 2 meter
Qty: 1AControl Leg
Qty: 1
FLong Bracket
Qty: 2
BCompanion Leg
Qty: 1
CShort Bracket
Qty: 2
JFeet Glides
Qty: 4
DLe End Bracket
Qty: 1
ERight End Bracket
Qty: 1
G#M6 × 14 mm Flat Head Cap
Screw
Qty: 20
I#12 × ¾" Pan Head Laminate
Top Screw
Qty: 26
M#8 × ⅝" Pan Head Screw
Qty: 7
BCompanion Leg
Qty: 1

2 of 8 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

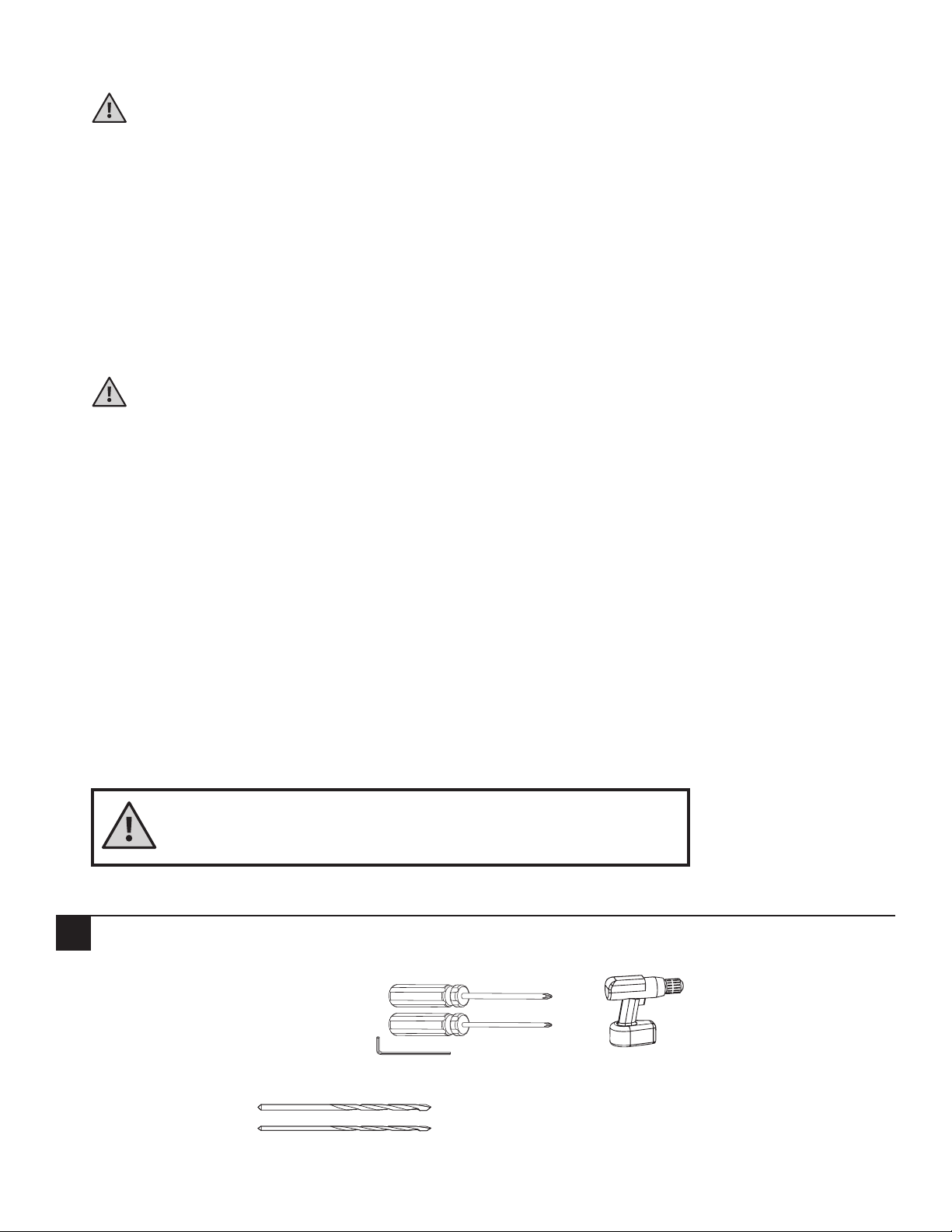

Verify that you have all the tools needed for the assembly
You will need the following tools:
#2 tip Phillips screwdriver or drill/driver
#3 tip Phillips screwdriver or drill/driver
M4 tip bit or 4 mm Allen Wrench (H)
If you do not have a Workrite worksurface, you will also need:
⅛" pilot drill bit
" pilot drill bit
WARNING: Maximum loading of table assembly is 125 lb. (56.7 kg). Maximum load includes the weight of the
table top itself, any equipment placed upon it, and any equipment suspended or hanging under it. Loading should be evenly distributed
over table surfaces. “Payload Capacity” is the Workrite Ergonomics recommended maximum loading which includes the Workrite sourced
table top.
Fundamentals 2-leg
V = 120VAC, 60Hz / 2.5 A maximum
IMPORTANT SAFETY INSTRUCTIONS:
When using an electrical furnishing, basic precautions should always be followed, including the following:
Read all instructions before using this Fundamentals Workcenter.
DANGER:To reduce the risk of electric shock, always unplug this Fundamentals Workcenter from the electrical outlet
before cleaning.
WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Unplug from outlet before putting on or taking o parts.
2. Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.
3. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by the
manufacturer.
4. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or
dropped into water. Return the furnishing to a service center for examination and repair.
5. Keep the cord away from heated surfaces.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
8. To disconnect, remove plug from outlet.
9. Each surface intended to support an equipment payload capacity of 125 pounds.
FOR COMMERCIAL USE ONLY
SAVE THESE INSTRUCTIONS
or
✓
IMPORTANT NOTE!
You must complete initialization (Step 11) at the end of
assembly or your workcenter WILL NOT FUNCTION PROPERLY.

3 of 8 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
Lay Out Legs & Brackets
Lay Legs (A and B) and Brackets (C, D, E and F) on the floor.
Attach Short & Medium Brackets
Attach Short Brackets (C) and Long Brackets (F) using Allen
Wrench (H) and Flat Cap Screws (J) to both legs. Do not tighten
screws completely.
Attach Right End Bracket (D) to sides of the right (Control) Leg (F) using Flat Cap Screws (J). Attach Le End
Bracket (C) to sides of the le (Companion) Leg (G) using Allen Wrench (H) and Flat Cap Screws (J).Do not
tighten screws completely.
Note: the right leg will be on your le and vice versa when the assembly is seen upside down.
G#M6 × 14 mm Flat Head
Cap Screw
E
C
C
B
F
F
D
C
E
D
G
C
G
G
G
A
To avoid stripping the threads, always
insert and make the first few turns
of the screw BY HAND with an Allen
wrench (H), ensuring it is in straight.
Le (Companion) leg
Right (Control) leg
front
2
Hardware at actual size
G
H
G
F
F
1

4 of 8 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
Attach Base to Pre-Drilled Workrite Worksurface and Tighten Screws
If you do not have a Workrite pre-drilled worksurface, skip to Step 4:
Position leg assemblies to align holes in brackets to pre-drilled holes in worksurface then attach loosely using
Pan Head Laminate Top Screws (I). If you use an electric screwdriver, be sure it is on the lowest torque setting to
avoid stripping the holes in the top.
Tighten all screws connecting brackets to leg assemblies, then tighten all screws attaching brackets to top.
Skip to Step 5.
3 screws per Short Bracket (C)
5 screws per Long Bracket (F)
I
I
C
D
F
I
3
I#12 × ¾" Pan Head
Laminate Top Screw
Hardware at actual size
E
4 screws per End Bracket
(D & E)

5 of 8 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
Attach Base to non-Workrite Worksurface and Tighten Screws
Position leg assemblies on bottom side of worksurface using measurements below.
Mark placement of mounting holes, then use ⅛” drill bit to drill pilot holes at marked locations. You may wish to
mark your drill bit so you do not drill any more than ¾” deep and damage your worksurface top.
Do not drill all the way through worksurface!
Position leg assemblies to align holes in
brackets to pilot holes in worksurface then
attach loosely using Pan Head Laminate Top
Screws (I). If you use an electric screwdriver, be
sure it is on the lowest torque setting to avoid
stripping the holes in the top.
Tighten all screws connecting brackets to leg
assemblies, then tighten all screws attaching
brackets to top.
6⅛"
6⅛"
2⅞"
2⅞"
6⅛"
6⅛"
2⅞"
2⅞"
3 screws per Short Bracket(C)
5 screws per Long Bracket (F)
I
I
C
D
F
a
b
c
dd
d
c
4
I#12 × ¾" Pan Head
Laminate Top Screw
Hardware at actual size
b
a
a
front
E
4 screws per End Bracket
(D&E)

6 of 8 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
Attach Cable Spools and Cable Loops
Attach Cable Spool (K) with the #12 × ¾"Pan Head Laminate Top Screw (I) and Cable Loops (L) to underside of
worksurface using #8 × ⅝"Pan Head Screw (M) making sure to wrap the Cable Loop around the cables prior to
attaching. If you DO NOT have a Workrite worksurface, mount cable spools in a convenient location between
legs and control box.
Attach Feet (sold separately)
Screw in the four Foot Glides (J).
Refer to foot kit instructions for steps to install your feet.
Attach Control (sold separately)
Refer to control instructions for steps to install your control.
L
M
M
J
L
L
L
L
K
I
6
5
7
Programmable Control shown

7 of 8 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
Connect Leg Cables to Control leg and Companion Leg
Connect the Leg Cable (N) to the six position connector labeled ”1” on both the Control Leg and the Companion
Leg (G).
Insert the Power Cord (O) into the two position connector labeled “DC” on the Control Leg.
Insert the control cable into the data connector labeled “A1” on the Control Leg.
O
B
A
N
N
8
Control cable
Control Leg
Companion Leg
O
Control cable

8 of 8 Workrite Ergonomics | 800.959.9675 www.workriteergo.com
#1500212- Rev B
Initialize Legs
Aer all legs and the control are connected, and the power cord has been plugged in, hold the down arrow on
the Control until the legs make a short motion down and then back up. This initializes and synchronizes the
table legs.
Adjust Feet Guides
If necessary, adjust leveling guides on table feet to level the worksurface. Unscrew to increase height, screw in to
decrease height.
Cleaning instructions
To clean the legs, apply cleaner to a so cloth.
Suggested cleaners: Windex or Formula 409.
Do not use solvents and do not saturate or spray cleaners directly to table base.
Hold down the down arrow until table
moves slightly upwards
Connect Power Cord to the Power Supply and put workcenter upright
Connect the Power Cord (R) to the Power Supply (S).
Turn the table over into an upright position.
Plug the Power Cord into the power outlet.
Never connect or remove leg or
control cables when power is
connected! Doing so will damage
the Control Leg.
You must complete
this initialization step
or your table will NOT
function properly.
10
11
b
9
a
c
✓
a b c
O
P
P
