Workzone DY160121 User manual

USER MANUAL
AUS
AFTER SALES SUPPORT
[email protected]1300 663 907
MODEL: DY160121, 06/2019, 56434
STEPS SMART
LADDER STABILITY
SENSOR

3
After Sales Support
1300 663 907 Model Number DY160121
[email protected]om.au
AUS
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts for a period
of 12 months from the date of purchase. Defects that occur within this warranty period, under
normal use and care, will be repaired, replaced or refunded at our discretion. The benets
conferred by this warranty are in addition to all rights and remedies in respect of the product
that the consumer has under the Competition and Consumer Act 2010 and similar state and
territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage.You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
AFTER SALES SUPPORT
MODEL: DY160121 PRODUCT CODE: 56434 06/2019
REGISTER YOUR PURCHASE ATwww.aldi.com.au/en/about-aldi/product-registration/TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION
1300 663 907
AUS [e-mail]
STEP SMART LADDER STABILITY SENSOR
YEAR WARRANTY
1
Contents
Warranty Details 2
Welcome 4
General Safety Instructions 4
Pack Contents 5
Features 5
Technical Specications 5
Product Overview 5
Before First Use 6
Instructions 6
Insert Batteries 6
Basic Ladder Safety 7
General Ladder Safety 7
Using your ladder 7
Function Overview 8
Visual Representation of X Axis or a Sideways Lean 8
Visual Representation of Z Axis or Ladder Tilt 9
Set Up Overview 10
Set Up 11
Operation 13
Using the Step Smart Ladder Stability Sensor 13

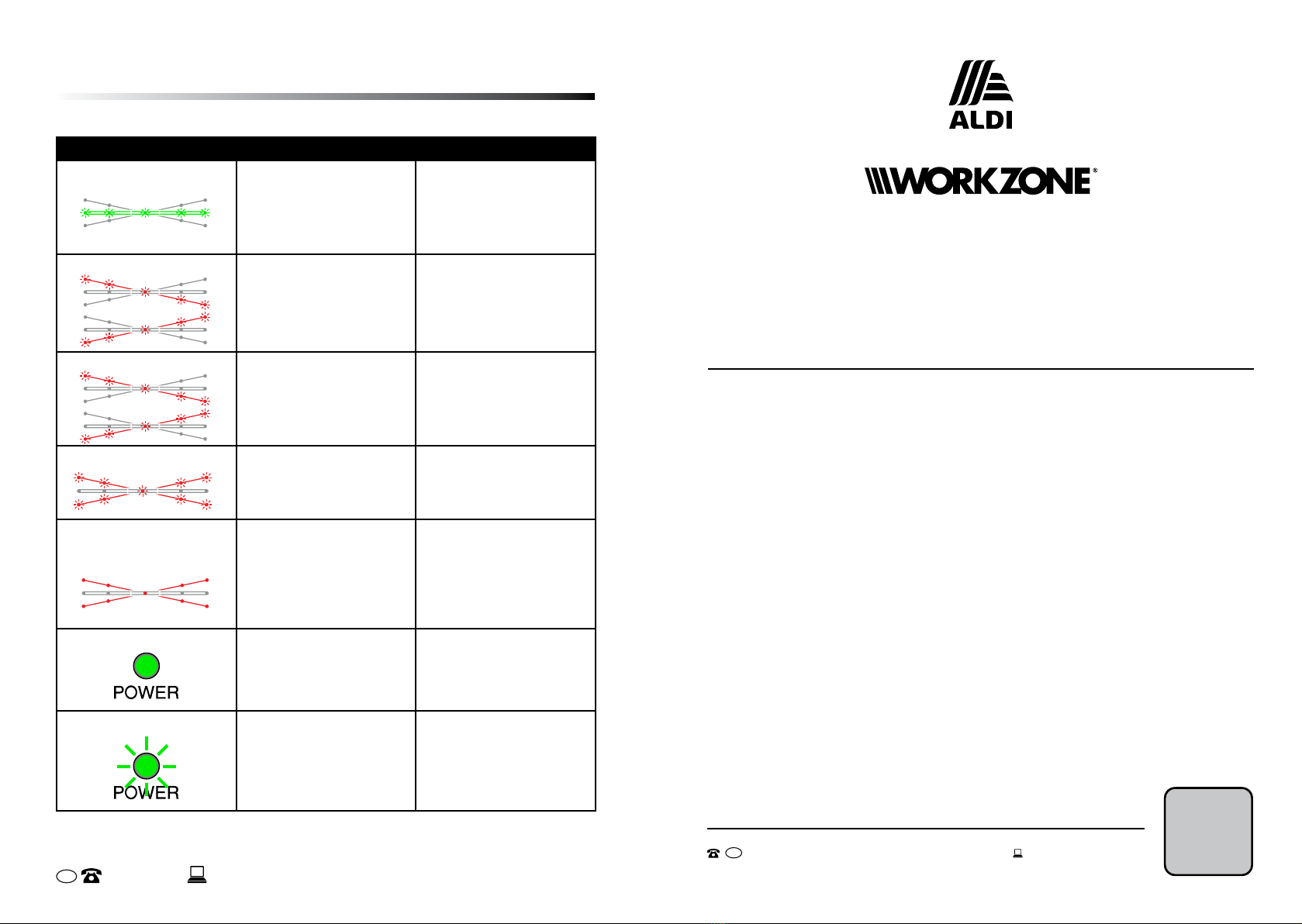

Display Functions 14
Repair and Refurbished Goods or Parts Notice 15
Warranty Details

45
Af
Af ter ter Sales Suppo Sales Suppo rt rt
1300 663 907 1300 663 907 Model Number DY160121
Model Number DY160121 cust[email protected]
[email protected]om.au
AUS AUS
Congratulations on choosing to buy a WORKZONE® product. By doing so
you now have the assurance and peace of mind that comes with purchasing
a product made by one of the leading manufacturers. All products brought
to you by WORKZONE® are manufactured to the highest standards of
performance and safety and, as part of our philosophy of customer service
and satisfaction, are backed by our comprehensive 1 year warranty. We
hope you will enjoy using your purchase for many years to come.
Welcome
General Safety Instructions
Read this manual thoroughly before rst use and keep it in a safe place for
future reference, along with the warranty card, purchase receipt and carton.
Follow all instructions and take notice of all warnings to reduce the risk of
re or electric shock.
• Carefully follow all instructions for assembly and mounting
• The device contains no serviceable parts. Opening the product will void your
warranty (aside from battery compartment)
• Take care of the device, rough use and mistreatment may aect electronic
components
• Always exercise caution when operating any electronic device
• Keep away from liquids, oils, petrol, and all chemicals
• Turn o when not in use
• Supervise young children to ensure they do not play with the product
• This product is intended for domestic use only, and is not intended for
commercial, industrial or trade use
IMPORTANT NOTE:
The product is a warning device only, it will alarm and notify you if your ladder
moves, it will not:
• Prevent falling from a ladder
• Ensure proper use of a ladder
• Detect faults or any damage to a ladder
• Provide any stability to a ladder
The device can only take accurate readings if set up correctly, so ensure you
read the instructions in full before use.
Pack Contents
• 1 x Step Smart Ladder Stability Sensor Unit (assembled with mounting
bracket)
• 3 x AA Activ Energy Batteries
• 1 x Instruction Manual (Not Shown)
• 1 x Getting Started Guide (Not Shown)
• 1 x Warranty Card (Not Shown)
Voltage: 4.5V (3x1.5V AA) DC
Dimension: 325 x 78 x 55mm (with bracket)
Features
Technical Specifications
• Universal application - ts to most ladders
• Telescopic mounting bracket with rubberised grip ends
• Precision sensors detect changes in angle of ladder
• LED display with warning lights
• Audible alarm to alert you when the ladder angle changes
• Durable aluminum housing
2 3 4 5 61
8 97
1. ON/OFF button
2. LED level indicators
3. Power indicator
4. Battery cover
5. Bracket locking clip*
6. Telescopic bracket and adjustable pole
7. Mounting feet
8. SET level button
9. Speaker
Product Overview
*Bracket has been reversed for illustrative purposes

67
Af
Af ter ter Sales Suppo Sales Suppo rt rt
1300 663 907 1300 663 907 Model Number DY160121
Model Number DY160121 cust[email protected]
[email protected]om.au
AUS AUS
Instructions
• Unpack your Step Smart Ladder Stability Sensor device and check that you
have received all the components according to Pack Contents on page 5
• Remove any packaging material and promotional labels before using your
Step Smart Ladder Stability Sensor device for the rst time
• Plastic wrapping can be a suocation hazard for babies and young children,
so ensure all packaging materials are out of their reach and disposed of safely
• Ensure you have read and understood all instructions and warnings in this
manual before use. Refer to the Product Overview on page 10 to familiarize
yourself with the product and identify all parts
Insert Batteries
1. Unscrew the battery cover, and insert the batteries (provided), noting the
polarity marked on the back of the device
WARNING: Do not mix old and new batteries. Do not mix Alkaline, Standard
(Carbon - Zinc), Or Rechargeable (Nickel - Cadmium) batteries
• Non-rechargeable batteries are not to be recharged
• Rechargeable batteries are to be removed from the appliance before being
charged
• Batteries are to be inserted with the correct polarity
• Exhausted batteries are to be removed from the appliance and safely
disposed of
• If the appliance is to be stored unused for a long period, the batteries should
be removed
• The supply terminals are not to be short-circuited
2. Screw the battery cover back into place
3. Press the Power button to check that you have installed the batteries
correctly; the LED’s will light up and begin ashing. Turn OFF by holding
down the Power button once you have conrmed the batteries are
installed correctly. There will be three short beeps
Before First Use
IMPORTANT NOTE:
• Always refer to the product manual or instructions provided with your ladder
• The Step Smart Ladder Stability Sensor is a warning device only. It does not
replace general ladder safety and should only be used in conjunction with
safe ladder use
• Correct mounting and Set Up is an integral part of using the Step Smart
Ladder Stability Sensor device
General Ladder Safety
Setting up your ladder
• Your ladder should be set up on a rm footing and secured against
slippage
• Straight ladders should be erected at an angle of approximately 76° (4:1)
to the ground or 14° at the top
• Step ladders need to be opened fully and ladder locks or braces engaged
before climbing
• Upper and lower sections of extension ladders should be overlapped to
provide stability
• Weight of the ladder should be placed squarely on the ladder feet and not
on the rungs
• Two or more people should be used to erect long or heavy ladders
Using your ladder
• Three points of contact must be maintained at all times when climbing
• Only one person should be on the ladder at any one time and the weight
limit of ladder should not be exceeded
• Do not carry tools in your hands while climbing
• Hold onto rungs rather than side rails for more safety if a foot slips
• Wear appropriate footwear
• Work from within the ladder width, center of body (i.e. belt buckle) should
not be further than the side rail. Do not overreach as overreaching can
lead to the ladder tipping sideways
• Face the ladder when going up or down or when working from it
• Stand on a rung that is at least 900mm from the top of a single or
extension ladder
• Stand on or below the second tread below the top plate of any stepladder
Basic Ladder Safety

89
Af
Af ter ter Sales Suppo Sales Suppo rt rt
1300 663 907 1300 663 907 Model Number DY160121
Model Number DY160121 cust[email protected]
[email protected]om.au
AUS AUS
<1.5º
1.5º-2.7º
2.7º-5º
5º+
1
Flashing Green
<1.5º
Slow Flashing Red
Slow Beep
1.5º-2.7º
2
Rapid Flashing Red
Rapid Beep
2.7º-5º
3
Two Solid Red Lines
Constant Alarm
5º+
4
1
2
3
4
5º-14º
Flashing Green
5º-14º
Two Flasing Red Lines
Rapid Beep
Change of 1.5º
from set position
Two Solid Red Lines
Constant Alarm
Wall
Side
Ladder
View
Change of 2.7º
from set position
1.5º
1.5º
2.7º
2.7º
1
1
2
2
3
3
Function Overview
Visual Representation of X Axis or a Sideways Lean
This visual shows the degree of change required to initiate the alarm when the
ladder moves sideways.
NOTE: This representation is not to scale and is for a visual reference only
Visual Representation of Z Axis or Ladder Tilt
This visual shows the degree of change required to initiate the alarm when the tilt
of the ladder changes.
NOTE: This representation is not to scale and is for a visual reference only
Function Overview
