World Tech Toys HORIZON SPY DRONE User manual

INSTRUCTION MANUAL
INTRODUCTION
Thank you for purchasing this amazing World Tech Toys product. This quadcopter is suitable for indoor and outdoor
flight. Please carefully read the entire manual before operating this quadcopter and keep it for reference in the future.
14+
FOR AGES 14 AND UP
ITEM NO. 34895

INDOOR AND OUTDOOR FLIGHT PRECAUTIONS
PREVENTING MOISTURE
PROPER OPERATION
TRANSMITTER AA BATTERY SAFETY
QUADCOPTER BATTERY PACK SAFETY
KEEP AWAY FROM HEAT
PRECAUTIONS
This quadcopter is designed for indoor and outdoor flight. Please make sure there are no obstacles in
the flight path of the quadcopter. Colliding into an obstacle while flying may damage the quadcopter.
Make sure there is little to no wind when flying outside. Only fly the quadcopter when people are a
safe distance away. Do not fly the quadcopter within the vicinity of a crowd. The spinning rotors may
cause injury if the quadcopter comes in contact with someone.
Do not fly the quadcopter outside when it is raining. Do not fly the quadcopter close to open water.
If the quadcopter’s comes in contact with water, it may short circuit the electronics and damage the
quadcopter.
Do not modify or add anything to the quadcopter. Modifying the quadcopter may change its ability to
fly properly causing it to crash. Do not disassemble the quadcopter.
Make sure the AA batteries in the transmitter are installed with the correct polarity. Do not mix
rechargeable AA batteries with non-rechargeable AA batteries. Do not dispose of drained AA batteries
into a fire. Batteries may explode if disposed in a fire causing injury. Remove the AA batteries in the
transmitter if you are not going to fly the quadcopter for a long period of time. Store AA batteries in a
cool dry place. Keep AA batteries away from heat.
The quadcopter’s battery pack is Lithium polymer. Li-po batteries pose higher operational risks
compared to other battery packs so it’s important to follow the instructions when using the battery.
Manufacturer and dealer assume no liability for accidental damages caused by improper usage.
Do not use a charger other than the factory supplied charger to avoid causing a fire or damaging the
battery pack. Do not try to disassemble, crush, burn or reverse polarity. Make sure there are no
metallic materials close to the contacts of the battery. Do not charge the battery unsupervised.
Do not charge the battery overnight. Over charging the battery may damage it, causing it to not hold a
charge. Stop using or charging the battery if you notice the battery temperature has increased more
than usual.
The quadcopter is made out of various plastics and Styrofoam. Plastics and Styrofoam are very
susceptible to damage or deformation due to extreme heat and cold temperatures. Make sure not to
store the quadcopter near any source of heat such as an oven or heater. It is best to store the
quadcopter indoors in a climate controlled room temperature environment.

QUADCOPTER DIAGRAM
Styrofoam Body
Rotor Blade
Motor
Motor Shield
Camera
Metal Rotor Arm
Flip Stunt Mode
Speed Control
Video Record
Control
Photo Control
Power Switch
Antenna
Forward/Backward
[Left/Right Sideways Flight]
Ascend/Descend
[Left/Right Turning]
Left/Right Turning Trim
Power Indicator
Left/Right Sideways Trim
LCD Screen
Forward/Backward Trim
TRANSMITTER DIAGRAM

LCD INTERFACE AND SYNCING PROCEDURE
Signal Icon
Channel Display
Left/Right Turn
Trimming Display
Battery Level
Stick Modes
Display
Forward/Backward
Trim Display
Left/Right Sideways
Trim Display
After installing the batteries, turn the transmitter
switch to “ON.” The power indicator light flashes
and the signal icon “ ” appears in the top left of
the LCD screen, when there is no signal. After the
transmitter successfully pares with the quadcopter,
the transmitter will beep twice and the signal icon
changes to “ ”. Push the Ascend/Descend
control to the top, then pull the control back to the
bottom. The transmitter will beep once. The power
indicator will light. The transmitter has successfully
pared with the quadcopter and control information
appears on the LED screen.
Battery Cover
4 AA Batteries
(Batteries not included.)
First remove the screw on the battery
cover and then remove the battery cover
itself. Then install 4 AA batteries.
Make sure they are installed with the
correct polarity. Replace the battery
cover and screw.
CAUTION:
1. Make sure the polarity of the batteries
are correctly installed.
2. Do not mix old and new batteries.
3. Do not mix different types of batteries.
TRANSMITTER BATTERY INSTALLATION
CHARGING THE QUADCOPTER
WARNING
The quadcopter battery pack has 2 connection wires. One for the USB charger and one for quadcopter. Use the
included USB charger and plug it into a USB outlet. Then USB charger cord to the quadcopter battery pack. The LED
light on the USB charger will turn on when the battery is fully charged.
Full charge will take approximately 1.5 hours.
DO NOT CHARGE THE BATTERY UNSUPERVISED. DO NOT CHARGE THE BATTERY OVERNIGHT.
DO NOT OVER CHARGE THE BATTERY. OVER CHARGING THE BATTERY CAN DAMAGE THE BATTERY
AND OR CAUSE A CATASTROPHIC FAILURE.
USB Charger
Iron Li-po Battery
LED Light

3.7V 850mAh
BATTERY PACK SPECIFICATIONS
Battery Type Battery Specification Usage Duration Charge Time
HOW TO CONTROL THE QUADCOPTER
Before flying the quadcopter for the first time please read the instructions carefully
and make sure you fully understand how to control quadcopter.
Move Right/Move Left Throttle
Fly Upward
Move Left
Move Right Fly Downward
Turn Left
Turn Right
Move Forward/Backward Turn Left/Turn Right

ADJUSTING THE TRIM
If the quadcopter moves in any direction while hovering without transmitter input, you will need to adjust the trim.
If the quadcopter is spinning to the left, push the TURN
RIGHT TRIM button until the quadcopter stops spinning.
If the quadcopter is spinning to the right, push the TURN
LEFT TRIM button until the quadcopter stops spinning.
If the quadcopter is moving forward, push the
BACKWARD TRIM button until the quadcopter stops
moving forward.
If the quadcopter is moving backward, push the
FORWARD TRIM button until the quadcopter stops
moving backward.
If the quadcopter is moving left, push the MOVE RIGHT
TRIM button until the quadcopter stops moving left.
If the quadcopter is moving right, push the MOVE LEFT
TRIM button until the quadcopter stops moving right.
Turn Left Trim Turn Right Trim
Forward Trim
Forward
Right
Left
Backward Trim
Backward
Move
Right Trim Move Right
Move Left
Move
Left Trim

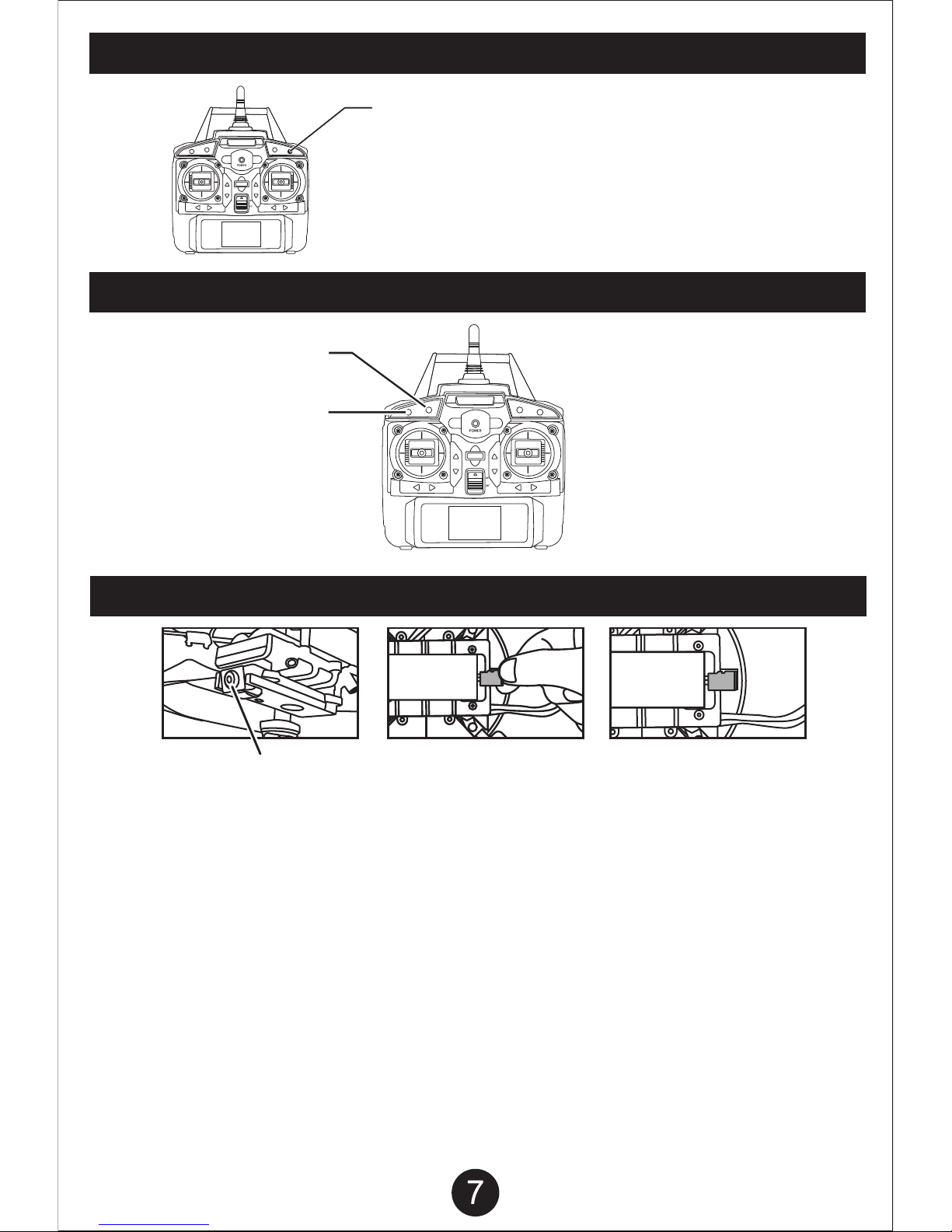

QUADCOPTER FLIP STUNT
FLIP STUNT BUTTON
WARNING
Make sure the Quadcopter is hovering at least 10 feet off the ground before performing the flip stunt. The flip stunt will
cause the quadcopter to drop approximately 6 feet. If you perform the flip stunt while being less than 10 feet off the
ground, the quadcopter may crash and become damaged.
The Flip Stunt Mode button is located on the top right of the remote controller
next to the speed button. The Flip Stunt Mode action will differ depending on the
current speed setting of the drone.
30% And 60% Speed Setting:
After pressing the Flip Stunt Mode button the drone will fly up and perform one
forward flip.
100% Speed Setting:
After pressing the Flip Stunt Mode button the drone will fly up and perform one
forward flip. After the flip the drone is still in Flip Stunt Mode, push the right
joystick in any direction and the drone will do a single flip in that direction. The
drone will continue to be in Flip Stunt Mode until the button is pressed again.
NOTE: The Flip Stunt Mode action will differ depending on the
current speed setting of the drone.

CAMERA FUNCTION
QUADCOPTER SPEED CONTROL
SPEED CONTROL BUTTON
To control the speed of the quadcopter, push the Speed Control
button, has 3 speeds, High, Medium, and Low.
- Low Speed: Transmitter beeps once
- Medium Speed: Transmitter beeps 2 times.
- High Speed: Transmitter beeps 3 times.
Video Record
Control
Photo Control
(Note: Pictures
cannot be taken
in Video Mode.)
PREPARATIONS OF VIDEO RECORDING
SD Card Installation: Insert the SD card into the slot, lightly press until the SD card clicks into place. Press the
SD card to eject the card..
Note: The camera indicator will not light up when the SD card is not inserted properly.
Indicator Lights of Camera:
BLUE – Standby Status
RED LIGHT STAYS ON – Recording Video
RED LIGHT FLASHES ONCE – Taking Photo
Recording Video/Taking Photos: Turn on the quadcopter, then lightly press the Record button once to start
recording video. The red LED light on the camera will stay on while recording. Press the Record button again to
stop recording video. Press the Photo button and the red LED light on the camera will flash once when taking a
photo. Videos and photos taken by the drone will be saved on the SD card.
Viewing Your Videos/Photos: Turn the quadcopter off. Remove the SD card, then install it into a card reader
(connected to the computer). Videos and photos can be viewed using media players.
Camera Insert the SD card into the
recording unit.
Press the SD card lightly,
then remove the card.

TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Quadcopter is unresponsive. The
Transmitter light keeps flashing.
Quadcopter is unresponsive.
Transmitter light is ON. Quadcopter
is unresponsive.
Quadcopter’s rotors spins but doesn’t
take off.
Quadcopter is shaking when flying.
Quadcopter still moves forward after
adjusting the trim.
Quadcopter moves while hovering
without transmitter input. Trim needs to be adjusted. Adjust the trim.
Gyroscope midpoint is off. Turn off both transmitter and quadcopter.
Go through power on process and make
sure you place the quadcopter on a flat
surface before taking off.
Transmitter batteries are
installed incorrectly.
Transmitter and or quadcopter
is not powered ON.
Turn both transmitter and quadcopter ON.
Transmitter batteries are drained.
Quadcopter’s battery pack
is drained.
Rotor blades are damaged. Replace the damaged rotor blades.
Rotor blades are damaged. Replace the damaged rotor blades.
Quadcopter is not on a
flat surface.
Place the quadcopter on a flat surface
before attempting to take off.
Charge the quadcopter’s battery pack.
Quadcopter’s battery pack is drained. Charge the quadcopter’s battery pack.
Install fresh batteries to the transmitter.
Install the batteries with the
correct polarity.
Transmitter is not syncing with
quadcopter.
Repeat the power up process.
Website: www.worldtechtoys.com
Email: [email protected]
Phone: [phone]
Monday - Friday / 9:00AM - 5:00PM / Pacific Time
WWW.WORLDTECHTOYS.COM
MADE IN CHINA
SPECIFICATIONS, COLORS AND CONTENT
MAY VARY FROM ILLUSTRATIONS
POST FLIGHT
After you are done flying the Drone UFO quadcopter make sure the battery pack on the quadcopter is disconnected
and the transmitter power is turned off. If you are not going to use the quadcopter for a long period of time, please
remove the AA batteries to prevent the batteries from draining or leaking.
