Worx Landroid M WG794E Operation instructions

WG794E
P02
P18
P34
P50
P66
P82
Lawn Mowing Robot
Roboter-Rasenmäher
Robot de fauchage à pelouse
Robot tosaerba
Robot cortacesped
Grasmaairobot
EN
D
F
I
ES
NL

Lawn Mowing Robot EN
2
TABLE OF CONTENTS
1. Safety Instruction
1.1 General & additional safety instruction
1.2 Information on the Landroid®M
2. Technical Data and Packaging Content
2.1 Technical data
2.2 Component list
3. Understanding Your Landroid®M
3.1 How does my Landroid®M know what to mow?
3.2 How does my Landroid®M know where to go?
A. Finding the charging base
B. Rain sensors
C. Sensing the boundary wire
D. Starting and stopping while mowing
3.3 How big of an area can my Landroid®M mow?
3.4 How efficiently will my Landroid®M mow the grass?
4. Boundary Wire Basics
4.1 Pegging the Boundary Wire
4.2 Burying the Boundary Wire
4.3 Joining the Boundary Wire
4.4 Turn on and test installation
5. Maintenance
5.1 Battery life
5.2 Winter hibernation
5.3 Keep it clean
A. Cleaning the body
B. Cleaning the underbelly
C. Clean the contact pins and the charging strips
5.4 Keep it sharp
A. Rotate and flip the blades
B. Replace the blades
5.5 Replacing the battery
6. Declaration of Conformity
3
3
5
6
6
7
9
9
10
10
10
10
10
11
11
12
12
12
12
13
13
13
13
14
14
14
15
15
15
15
16
17
ORIGINAL INSTRUCTIONS

Lawn Mowing Robot EN
3
1. Safety Instruction
1.1 General & additional safety instruction
WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Carefully read the instructions for the safe operation of the machine.
Save all warnings and instructions for future reference.
•This appliance is not intended for use by persons (including children) with limited physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the appliance.
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
SAFE OPERATION PRACTICES
Training
a) Read the instructions carefully. Make sure you understand the instructions and are familiar with the controls and the
proper use of the appliance;
b) Never allow people unfamiliar with these instructions or children to use the appliance. Local regulations can restrict the
age of the operator;
c) The operator or user is responsible for accidents or hazards occurring to other people or their property
Preparation
a) Ensure the correct installation of the automatic perimeter delineation system as instructed.
b) Periodically inspect the area where the appliance is to be used and remove all stones, sticks, wires, bones, and other
foreign objects.
c) Periodically visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace
worn or damaged blades and bolts in sets to preserve balance.
d) On multi-spindle appliances, take care as rotating one blade can cause other blades to rotate.
OPERATION
1. GENERAL
a) Never operate the appliance with defective guards, or without safety devices, for example deflectors, in place;
b) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times;
c) Never pick up or carry an appliance while the motor is running;
d) Turn off the machine.
- Before clearing a blockage.
- Before checking, cleaning or working on the appliance.
e) It is not permitted to modify the original design of robotic lawnmower. All modifications are made at your own risk.
f) Start robotic lawnmower according to the instructions. When the main switch is in the ON position, make sure you keep
your hands and feet away from the rotating blades. Never put your hands and feet under the mower.
g) Never lift up robotic lawnmower or carry it around when the main switch is in the ON position.
h) Do not let persons who do not know how robotic lawnmower works and behaves use the mower.
i) Do not put anything on top of robotic lawnmower or its charging station.
j) Do not allow robotic lawnmower to be used with a defective blade disc or body. Neither should it be used with defective
blades, screws, nuts or cables.
k) Do not use robotic lawnmower if the main switch does not work.
l) Always switch off robotic lawnmower using the main switch when you do not intend to use the mower. Robotic
lawnmower can only start when the main switch is moved to the ON position and the correct PIN code has been
entered.
2. ADDITIONALLY WHEN THE APPLIANCE IS OPERATING AUTOMATICALLY
a) Do not leave the machine to operate unattended if you know that there are pets, children or people in the vicinity.
3. ADDITIONALLY WHEN USING THE MANUAL CONTROLLER
a) Mow only in daylight or in good artificial light;
b) Avoid operating the equipment in wet grass;
c) Do not operate the appliance when barefoot or wearing open sandals. Always wear substantial footwear and long
trousers;

Lawn Mowing Robot EN
4
d) Always be sure of your footing on slopes;
e) Use extreme caution when reversing the appliance towards you;
f) Always switch on the motor according to instructions with feet well away from the blades(s);
MAINTENANCE AND STORAGE
WARNING! When the mower is turned upside down the main switch must always be set to the
OFF position.
The main switch should be set to the OFF position during all work on the mowers under frame, such
as cleaning or replacing the blades.
a) Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition;
b) Inspect the robotic lawnmower each week and replace worn or damaged parts for safety;
c) Check especially that the blades and blade disc are not damaged. Replace all blades and screws at the same time if
necessary so that the rotating parts are balanced.
d) Ensure that only replacement cutting means of the right type are used;
e) Ensure that batteries are charged using the correct charger recommended by the manufacturer. Incorrect use may result
in electric shock, overheating or leakage of corrosive liquid from the battery;
f) In the event of leakage of electrolyte flush with water/neutralizing agent, seek medical help if it comes into contact with
the eyes etc;
g) Servicing of the appliance should be according to manufacturers instructions.
Transport
The original packaging should be used when transporting robotic lawn mower over long distances.
To safely move from or within the working area:
a) Press the STOP button to stop the mower. If the anti-theft alarm is activated, enter the first digit of the PIN code.You
select the four digit PIN code when you start the mower for the first time.
b) Move the main switch to the OFF position if you intend to carry the mower.
c) Carry the mower by the handle at the rear under the mower. Carry the mower with the blade disc away from the body.

Lawn Mowing Robot EN
5
1.2 Information on the Landroid®M
WARNING - Robotic lawnmower can be dangerous if incorrectly used.
Read through the Operator’s manual carefully and understand the content before using your robotic
lawnmower.
WARNING - Keep a safe distance from the machine when operating.
WARNING - Operate the disabling device before working on or lifting the machine.
Keep your hands and feet away from the rotating blades. Never place your hands or feet close to or under
the body when robotic lawnmower is in operation.
Robotic lawnmower can only start when the ON/OFF button press ON and the correct PIN code has been
entered. Inspection and /or maintenance must be carried out with the main switch set to OFF.
WARNING - Do not ride on the machine.
Don’t litter to fire
Don’t throw into water
Batteries should be recycled
Batteries contain Li-ion, Waste batteries should be sorted for eco-friendly. Do not dispose of waste batteries
as unsorted municipal waste.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice.

Lawn Mowing Robot EN
6
2. Technical Data and Component List
2.1 Technical data
Type: WG794E (790-799-Designation of machinery, representative of lawn mowing robot)
Rated voltage 28V Max*
No load speed 2800/min
Cutting diameter 180mm
Cutting height 20-60mm
Cutting height positions 5
Battery type Lithium-Ion
Battery model WA3225
Charging time 1.5h approx.
Charger model WA3716
Charger rating Input: 100-240V~50/60Hz, 50W,
Output: 24-28V DC, 1.5A
Machinery weight 8.3kg
Protection degree IPX4
*Voltage measured without workload. Initial battery voltage reaches maximum of 28 volts. Nominal voltage is 25.2volts.
Noise and technical data
A weighted sound pressure 44.5dB(A), KPA: 3.25dB(A)
A weighted sound power 63dB(A)
Wear ear protection when sound pressure is over 80dB(A)
Accessories
Charging Base with 15m Extension Cable 1
Cutting Blades and Screws 9
Wire Pegs 200
180m Boundary Wire 1
Charging Base Fixing Nails 4
Power Adaptor 1
Boundary Wire Distance Gauge 1
Hex Key 1
We recommend that you purchase genuine accessories listed in the above list from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Refer to the accessory packaging for further details.
Store personnel can assist you and offer advice.

Lawn Mowing Robot EN
7
2.2 Component List
68 75
9
10
11
12
13
24
23
2221
15
14
17
1916
18
3
4
2
1
25
20

Lawn Mowing Robot EN
8
1. HANDLE BAR
2. LOW VOLTAGE CABLE
3. CONTACT PINS
4. CHARGING BASE
5. CHARGING STRIP
6. DISPLAY WINDOW
7. CONTROL PANEL COVER
8. STOP BUTTON
9. RAIN SENSOR
10. DRIVING WHEEL
11. HANDLE
12. BATTERY PACK
13. BLADE TURNING DISC
14. CUTTING BLADE
15. FRONT WHEEL
16. START KEY
17. DISPLAY
18. KEYPAD
19. ON/OFF KEY
20. POWER ADAPTOR
21. BOUNDARY WIRE (180m)
22. WIRE PEGS
23. CHARGING BASE FIXING NAILS
24. BOUNDRY WIRE DISTANCE GAUGE
25. HEX KEY

Lawn Mowing Robot EN
9
3. Understanding Your Landroid®M
We would like to congratulate you on your new purchase of the Landroid®M and entering into the care-free life of automatic
mowing. In the following, We would like to help you better understand how your Landroid®M thinks.
3.1 How does my Landroid®M know what to mow?
The Landroid®M chooses its direction at random and never repeats the same mowing direction. It will make sure your
entire lawn is evenly mowed without leaving behind any unattractive mowing paths (See Fig. A).
A

Lawn Mowing Robot EN
10
3.2 How does my Landroid®M
know where to go?
Your Landroid®M is capable of doing things on its own. The
Landroid®M knows when it needs to go to its Charging Base (4) to
charge, can sense when it is raining, can stop itself if it senses a
problem, and knows to stop and turn around when it bumps into
something blocking its path, such as a person, pet, or other object.
The Landroid®M will also automatically stop its Blade Turning Disc (13)
from rotating if it is lifted off the ground to prevent an accident.
A. Finding the charging base
When your Landroid®M needs to recharge, it will stop mowing and
follow the Boundary Wire (21) in an anti-clockwise motion back to
its Charging Base. To save energy, the Landroid®M chooses not to
rotate its Blade Turning Disc when returning to its Charging Base.
B. Rain sensors
The Landroid®M has a Rain Sensor (9) at its side that will sense
rain drops and tell the Landroid®M to stop mowing and follow the
Boundary Wire back to its Charging Base (See Fig. B).
The Landroid®M is programmable to have a delay start function
(0 – 180 mins) when it rains. When the rain sensors are wet, the
Landroid®M returns to its docking station. Only when the rain
sensors become dry will the Landroid®M begin the delay start
countdown or return to mowing immediately. See the Programming
and Troubleshooting Guide for more details.
C. Sensing the boundary wire
The Landroid®M always obeys the border set by the Boundary
Wire and uses two sensors at its front to sense when it is getting
close(See Fig. C). Before changing direction, the Landroid®M will overrun the Boundary Wire up to 20cm*.
*This is the recommended distance. Use the provided distance gauge to ensure proper installation.
D. Starting and stopping while mowing
If you would like to command the Landroid®M to stop mowing, then simply press the STOP button (8) on top of the mower.
To start mowing, press the ON/OFF key, press start key directly or open the Control Panel Cover and input your further
commands, at last press START key (See Fig. D,E).
B
C
D
D
1
2
E

Lawn Mowing Robot EN
11
If the Landroid®M senses that something is wrong, it will display a fault message on the Display (16), and will turn itself off
if it does not receive any input from the user within 20 min (for information on fault messages refer to the Programming
and Troubleshooting Guide).
To resume:
• Correcttheproblems.
• PressON/OFFKey(19).
• PressSTART Key.
• NowtheLandroid®M will begin to mow!
3.3 How big of an area can my Landroid®M mow?
Your Landroid®M is capable of mowing areas of up to around 1000m2, although this depends on various factors, such as:
• Speciesofgrassinyourlawnanditsgrowthrate.
• SharpnessoftheCuttingBlades(14).
• Humidity.
• Surroundingtemperature.
• AmountofobstaclesinyourLawn.
If the surrounding temperature is very hot where you live then your Landroid®M may charge at a slightly slower rate. The
Landroid®M uses less energy in open areas that have fewer obstacles, such as flower beds, fountains, walkways, etc…
See the chart below for mowing time suggestions depending on the area of your lawn:
Area(m2)Recommended mowing time per day(hour)
200 1.4 h
500 2.7 h
1000 5.4 h
Mowing time are different for every lawn depending on the factors mentioned previously. Gradually adjust the time you
allow your Landroid®M to mow each day until you find most suitable setting.
3.4 How efficiently will my Landroid®M mow the grass?
The Landroid®M’s cutting height can be adjusted between 2cm - 6cm. Before starting your Landroid®M for the first time,
you should cut the grass to the height not more than 9 cm.Then make sure you open the Control Panel Cover (7) and set
the cutting height to its maximum cutting height of 6cm (See Fig. F, G).
FG

Lawn Mowing Robot EN
12
Your Landroid®M will cut its best in dry weather. It does not like wet grass, which can build up on the Blade Turning Disc (13)
and within the motor, and can also cause loose traction and slippage while working.
Your Landroid®M is afraid of Lightening Storms. In case of a Lightening Storm, protect the Landroid®M by unplugging the
Charging Base (4), disconnecting the Boundary Wire (21), and making sure the Landroid®M is not allowed to charge.
Your Landroid®M loves mowing grass and needs its Cutting Blades (14) kept in good condition to cut its best. The
Landroid®M can do most things by itself, but will need your help sometimes to keep from hurting itself.
• NeverlettheLandroid®M travel over gravel.
• RemoveorblockoffobstaclesthattheLandroid®M could accidentally climb on and hurt its Blade Turning Disc.
• Removealldebrisandforeignobjectsfromyourlawn.
4. Boundary Wire Basics
4.1 Pegging the Boundary Wire
Use the Boundary Wire Distance Gauge (24) to set the correct
distance from the border of your lawn (approx. 35cm*).
* This is the recommended distance. Use the provided distance
gauge to ensure proper installation.
If your neighbor also uses a Landroid®M, then you must keep a
spacing of at least 2 metres between your Boundary Wire and your
neighbors.
Please be aware that your Landroid®M will not be able
to receive a signal from the Boundary Wire beyond the
distance of 18m.
The boundary wire must outline the intended mowing area exactly. Your Landroid
®
M will become confused by
extra bends or coils of Boundary Wire that are not part of its mowing area ( See Fig. H). If there is excess Boundary Wire after
the mowing area has been outlined, then cut it off and store this additional wire in a separate location. However, it is important
to leave the necessary length where it connects to the Charging Base so it can be connected and still remain buried.
4.2 Burying the Boundary Wire
We recommend that you bury your boundary wire a few centimeters underground.This will ensure trouble-free operation
year after year, season after season. For burying the Boundary Wire you may purchase the optional WORX Territorial Marker
Tool accessory at the same store that sold you your Landroid®M.
If you are planning to bury the Boundary Wire then it should be noted that when entering its Charging Base for the first
time, your Landroid®M may find problems with the way you have laid the wire. It is recommended to first peg down the
Boundary Wire to the lawn so it is easy to make adjustments if necessary. This will allow the Landroid®M to become
adjusted to its new environment and ensures it will successfully work with the charging base before the Boundary Wire is
buried.
4.3 Joining the Boundary Wire
IMPORTANT: The Boundary Wire will not work properly
if it is joined to extend over a distance of 200m.

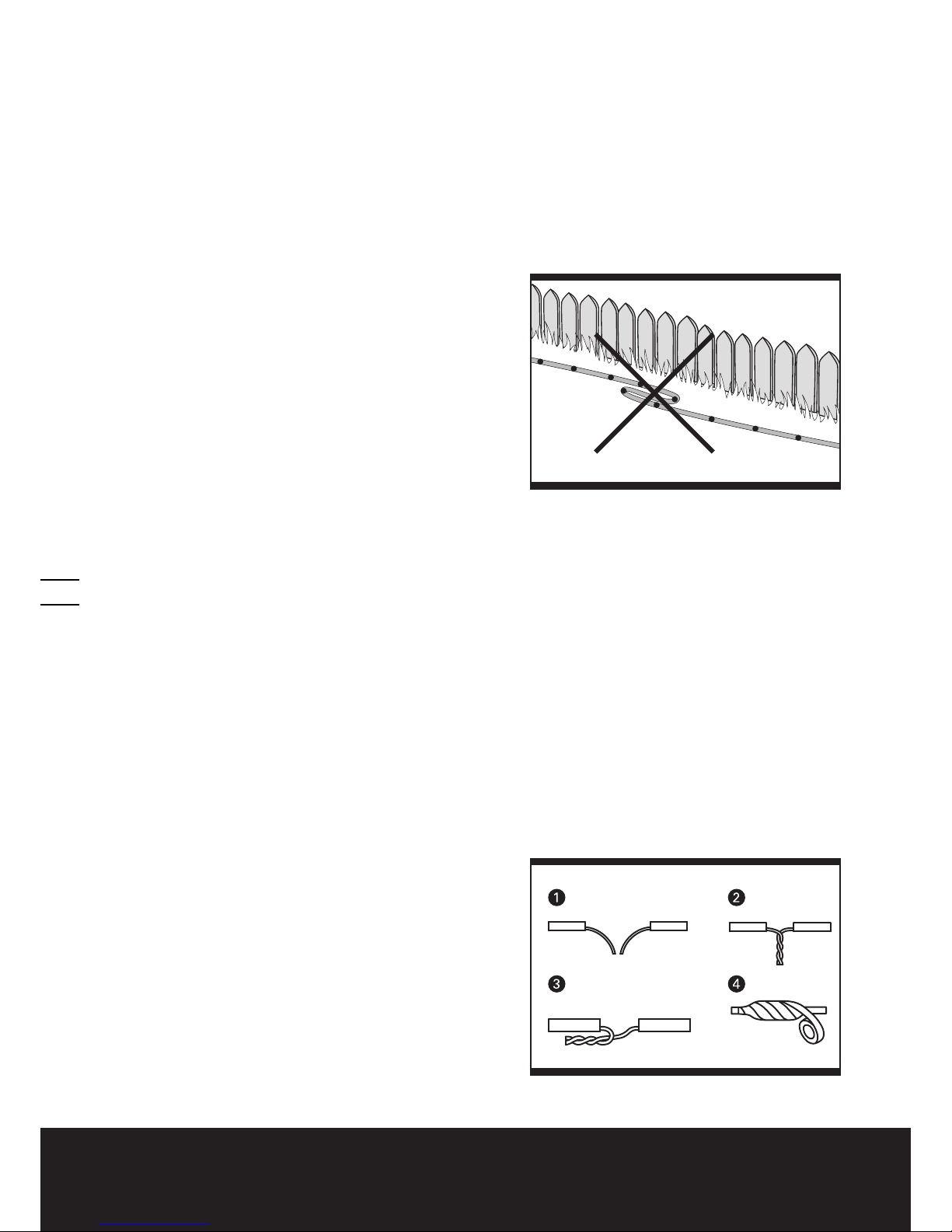

The Boundary Wire (21) can be extended simply by splicing the ends
and connecting it to the ends of another piece of wire. You can use
scotch tape to secure the joined part of the wire. (See Fig. I)
H
I

Lawn Mowing Robot EN
13
4.4 Turn on and test installation
If the green light does not come on, then check the power connections.
If the LED is flashing green, check if the boundary wire is connected well.
Red light on: charging.
Red light flashing: error message, correct the problems.
If your Landroid®M is inside its territory but the display says “out of cutting area” and the LED is green, it means you
clamped the boundary wire ends incorrectly. Just reverse them.
5. Maintenance
Your Landroid®M needs to be checked from time to time. The Landroid®M works hard and after time needs a good cleaning
as well as to have its parts replaced, as they can become worn. In the following we want to let you know how to take care
of your Landroid®M.
5.1 Battery life
The heart of the Landroid®M is its 28-volt lithium-ion battery. No maintenance is required. For proper storage of the battery,
make sure it is fully charged in kept in a cool dry place between (20°C-60°C).
The life-span of the Landroid®M’s battery depends on various factors, such as:
• Howlongthemowingseasonlastinyourregion
• AmountofhourstheLandroid®M mows per day
• Howtomaintainyourbatterywhileinstorage
Landroid®M can be charged manually without the boundary wire.
To manually charge the battery without connecting the boundary wire to the charging base;
1. Connect the Charging Base to a suitable power supply.
2. Manually dock the Landroid®M into the Charging Base while the Landroid®M is powered off.
3. The charging base red light will turn on.
4. Within 3 seconds and before the charging base light turns green, press the Landroid®M power ON/OFF button.
5. Landroid®M will begin to charge.
5.2 Winter hibernation
Your Landroid®M will live longer and healthier if it is allowed to hibernate. So even though it is tough, we would recommend
that you store your Landroid®M in your shed or garage during the winter.
Before you set your Landroid®M away for winter hibernation, you should make sure to:
• ThoroughlycleanyourLandroid®M.
• Fullychargethebattery.
• Turnthepoweroff.
JK

Lawn Mowing Robot EN
14
To maximize the battery’s life, it is recommended to fully charge the
battery before storage during winter. To only charge the battery you:
• ConnecttheBoundaryWire(21)totheChargingBase(4).
• ConnecttheChargingBasetoapowersource.
• PlacetheLandroid®M in the Charging Base.

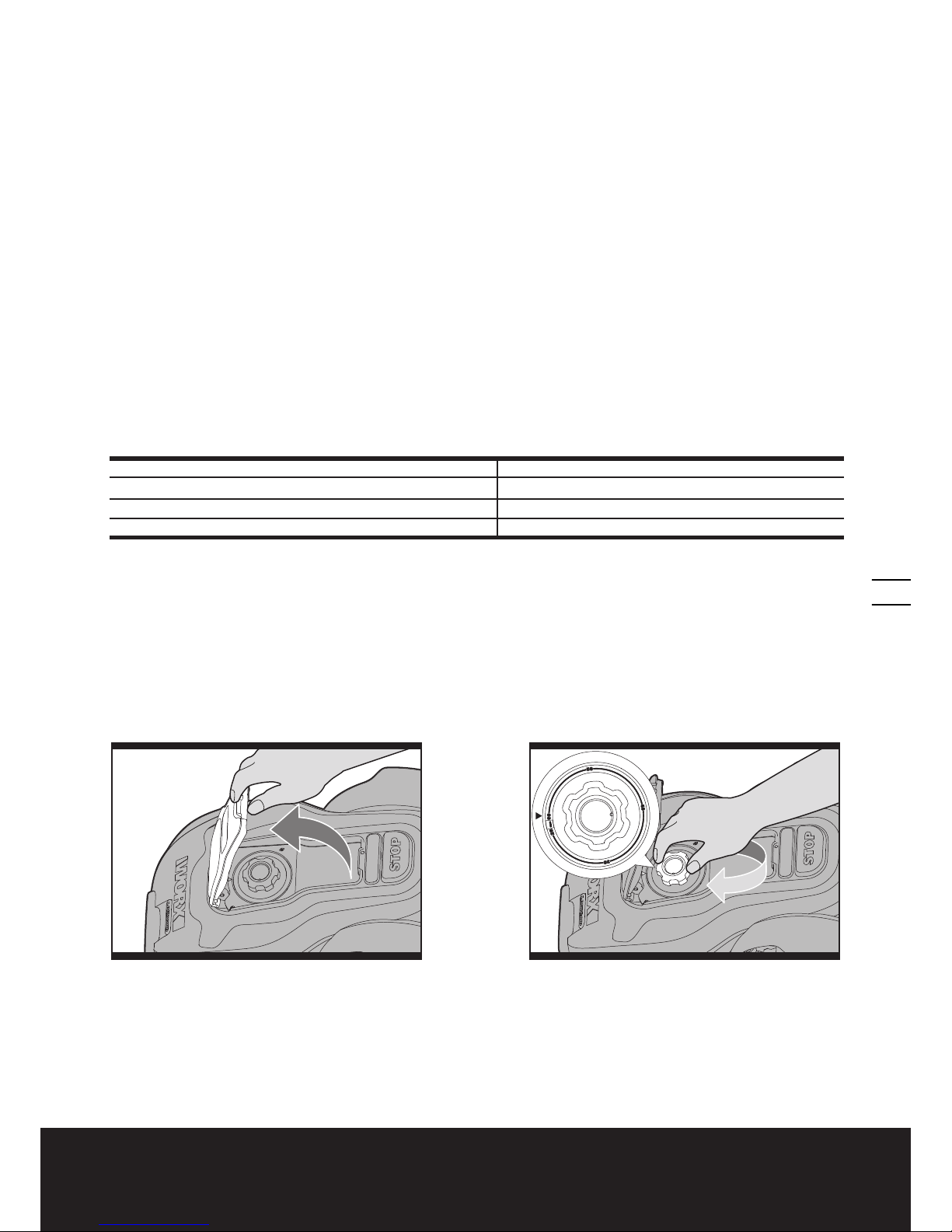

• PresstheOn/OffKey.(SeeFig.J)
• ThenpresstheHomeKey.(SeeFig.K)
• ClosetheControlPanelCover.(SeeFig.L)
• AllowtheLandroid®M to charge for at least 1.5 hrs.
The Boundary Wire can be left in the ground although its ends
should be protected, such as placed in a tin can with grease. If the
Charging Base is left outside for winter, leave the Boundary Wire
connected.
NOTE: Before storing for winter, you can take your Landroid®M to a dealer for a thorough cleaning and tune-up, where its
functions will be tested and worn parts will be replaced.
When bringing the Landroid®M back to work after winter hibernation, make sure the Charging Strips (5) and Contact Pins (3)
are clean, it is recommended to use a fine grade emery cloth to clean. Then make sure the date and time are correct and
send the Landroid®M back to what it loves doing: mowing.
5.3 Keep it clean
WARNING: Before cleaning turn your Landroid®M OFF by pressing the ON/OFF Button. Put on
protective gloves before cleaning the Blade Turning Disc (13) and do not use running water.

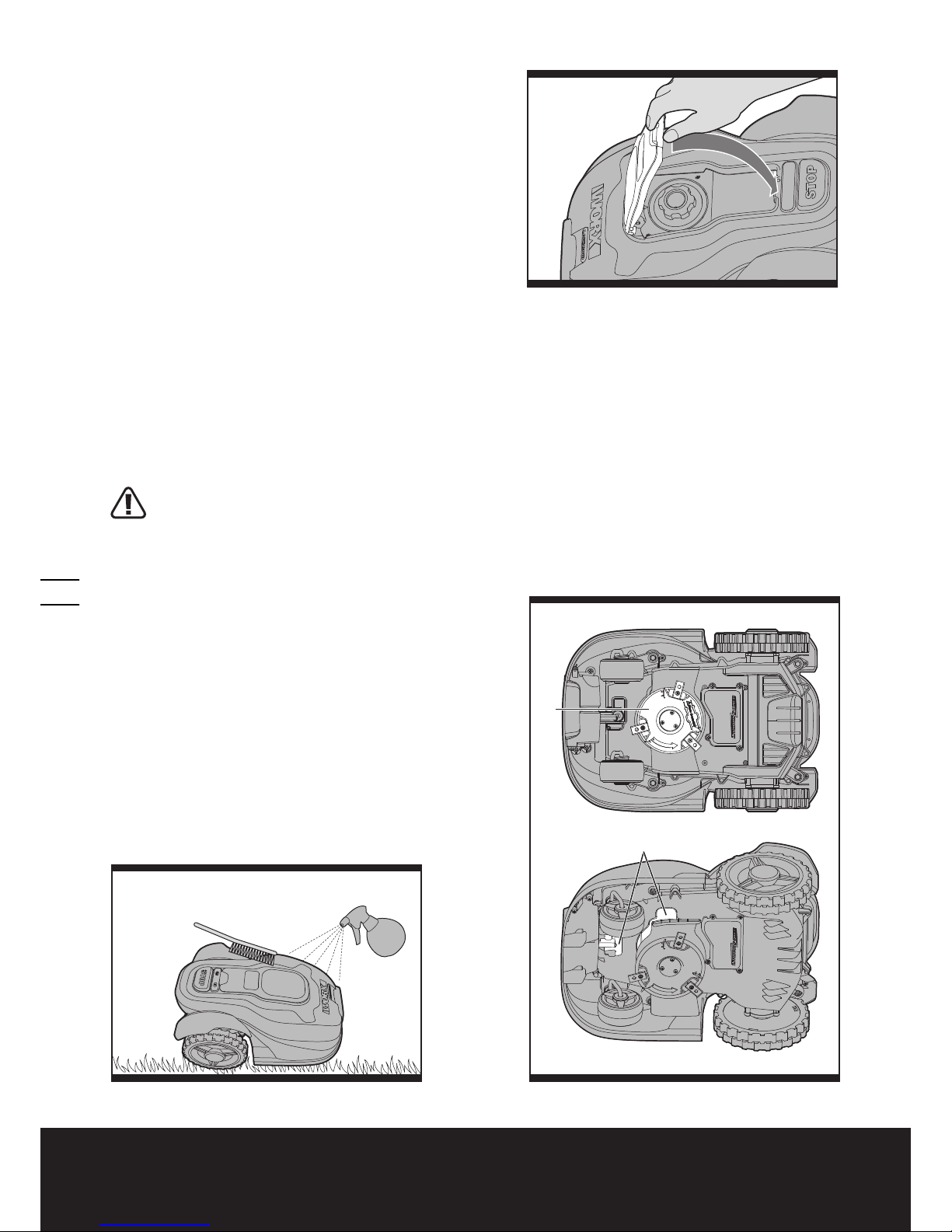

(See Fig. M,N)
A. Cleaning the body
Your Landroid®M will live a much happier and longer life if it is cleaned regularly. Although, as your Landroid®M is an
electric machine, you will need to take care when cleaning, so
DO NOT use a hose or otherwise pour running water on your
Landroid®M, it is best to use a spray bottle filled with water. When
cleaning the machine body use a soft brush or clean cloth and avoid
using solvents or polishes (See Fig.M) .Lastly, make sure that you
remove all build up of grass clippings and debris.
B. Cleaning the Underside
Again, it is important that you power the Landroid®M OFF using the
ON/Off Button and wear protective gloves before touching
the Blade Turning Disc (13).
First, flip your Landroid®M upside down to expose its underside.
Here you will see the Blade Disc (a), the chassis (b), and the Front
Wheel (15) and Driving Wheel(10). Clean everything thoroughly with
a soft brush or moist rag.(See Fig.N)
MN
(a)
(b)
L

Lawn Mowing Robot EN
15
Rotate the Blade Disc to make sure it moves freely and that there is not anything lodged between it and the surrounding
Motor Frame Box. Also, make sure the Blades are able to spin freely and that there's no grass obstructing them.
IMPORTANT: Remove any lodged debris so that it does not cause a crack in the Blade Disc. Even the tiniest crack can
decrease your Landroid®M's mowing output.
C. Clean the contact pins and the charging strips
Clean the Contact Pin (3) located on the Charging Base (4) and the Charging Strip (5 )located on the Landroid®M using a
cloth. Remove any build up of grass clippings and debris around the contact pins and charge strips periodically to ensure
the Landroid®M successfully charges each time.
5.4 Keep it sharp
WARNING: Before cleaning, adjusting, or replacing the Blades, turn your Landroid®M OFF by
pressing the ON/OFF Button to OFF and put on protective gloves.
WARNING! For blade replacement, make sure you replace ALL the blades every time. If the
blade is new but the screw has been reused, then the screw can wear off while mowing
causing the blade to fly off the mower violently. This could cause serious injury.
The Landroid®M does not cut grass like other mowers. Its
Cutting Blades (14) are razor sharp on all 4 edges and spin in
both directions for maximum cutting capacity (See Fig.O ).Each
blade of your Landroid®M has 4 cutting edges. Depending on the
frequency the Landroid®M mows your lawn, the cutting blades will
need to be flipped/rotated periodically for a new cutting edge. If
your Landroid®M is programmed to mow the lawn every day then
the cutting blades will need to be rotated monthly for the best
mowing results. Each cutting blade will last up to 4 months when
it is programmed to mow every day. When the cutting blades are
dull and worn out, they should be replaced with the spare blades
provided with your Landroid®M. Spare blades are also available at
your nearest WORX retailer.
A. Rotate and flip the blades
Your Landroid®M carries 3 Blades that are all screwed onto your its Blade Turning Disc (13). The Blades are what let the
Landroid®M do its job and need care and attention. Every once in awhile, you should simultaneously rotate and flip all 3
blades for a perfect cut. When rotating and flipping the Blades, make sure all the Blades are adjusted at the same time
or else it could make the Blade Disc off balance. If your Landroid®M mows on a normal schedule (daily) then the Blades
should last one season if they are rotated and flipped every month. Always check to see if the Blades are chipped or
damaged and replace them if they are.
B. Replace the blades
After some time, usually every season, your Landroid®M’s Blades
will need to be replaced. Your Landroid®M does not like mowing
while using Blades of different age and quality. So when replacing
the Blades, make sure to replace all of them at the same time. You
can replace them with one of the three spare Blade kits and extra
Blade screws supplied with your Landroid®M.
Before attempting to replace your Landroid®M’s Blades, turn the
power off and put on protective gloves. Then follow these steps:
1. Gently flip the Landroid®M over.
2. Take the screws off the Blades with a straight or Phillips
screwdriver.
3. Firmly screw on the new Blades.(See Fig. P)
IMPORTANT: After screwing the Blade to the Blade
Disc, make sure the Blade is able to spin freely.
43
1 2
O
P

Lawn Mowing Robot EN
16
5.5 Replacing the battery
WARNING: Press the ON/OFF Key to OFF before attempting any adjustment, replacement or repair.
If you need to replace the Battery, follow these steps:
1. Gently Turn your Landroid®M upside down.

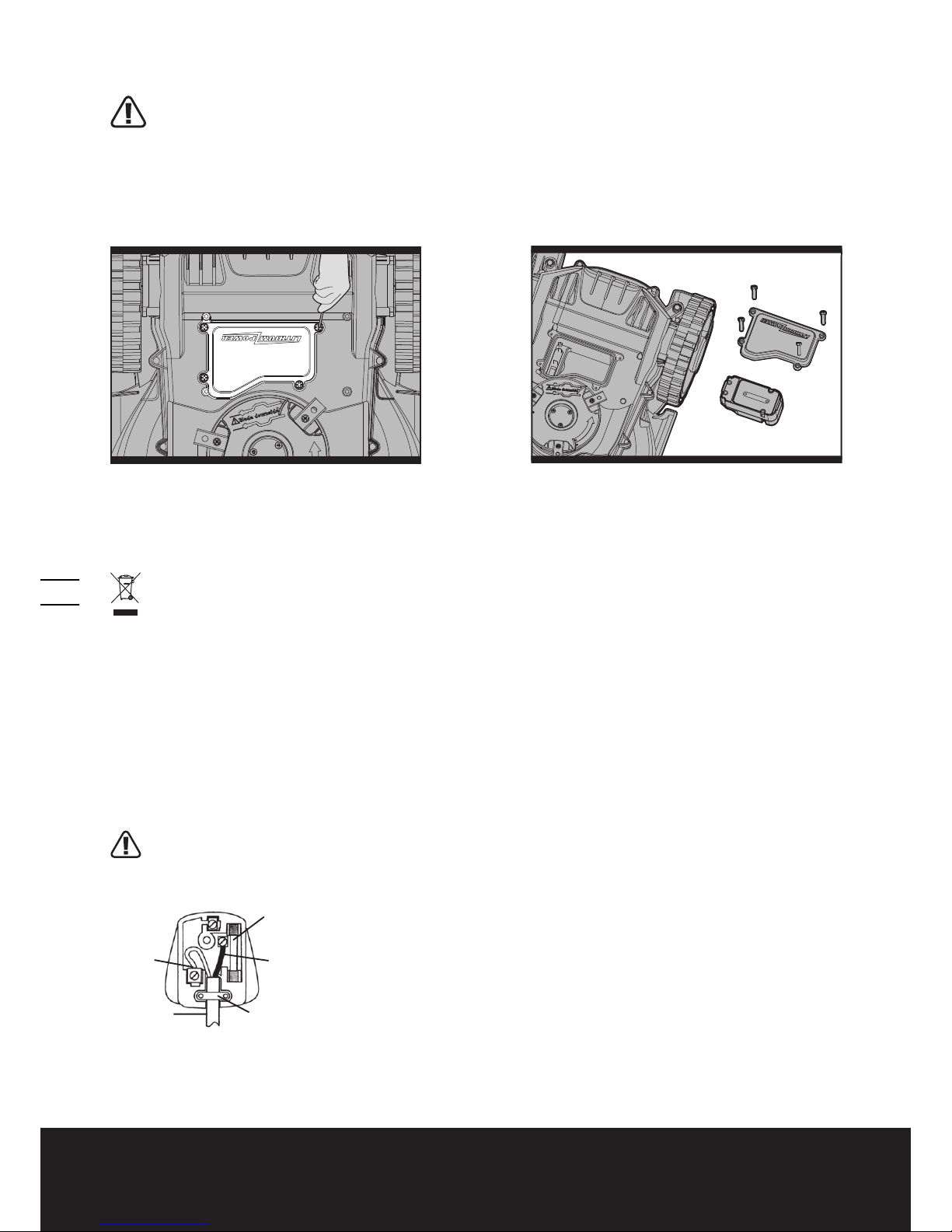

2. Remove the four screws on the battery. (See Fig. Q)
3. Take out the old battery. (See Fig. R)
4. Put in the new battery.
5. Firmly replace the 4 screws.
Environmental Protection
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
Plug Replacement (UK & Ireland Only)
If you need to replace the fitted plug then follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in
accordance with the following code:
Blue – Neutral
Brown – Live
As the colors of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in
your plug, proceed as follows. The wire which is coloured blue must be connected to the terminal which is marked with N. The wire which
is coloured brown must be connected to the terminal which is marked with L.
WARNING: Never connect live or neutral wires to the earth terminal of the plug. Only fit an approved BS1363/A plug and the
correct rated fuse.
NOTE:If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed
to prevent engaging into a socket.
Connect
Blue to N
(neutral)
Outer sleeve
firmly clamped
Cable grip
Brown L (live)
13 Amp fuse approved
to BS1362
R
Q

Lawn Mowing Robot EN
17
Declaration of Conformity
We,
POSITEC Germany GmbH Konrad-Adenauer-Ufer 37 50668 Köln
Declare that the product
Description WORX Lawn Mowing Robot
Type WG794E (790-799-Designation of machinery, representative of lawn mowing robot)
Function Cutting grass
Complies with the following Directives,
Machinery Directive 2006/42/EC
Electromagnetic Compatibility Directive 2004/108/EC
RoHS Directive 2011/65/EU
Noise Emission in the Environment by Equipment for Use Outdoors Directive
2000/14/EC amended by 2005/88/EC
Conformity Assessment Procedure as per Annex V.
Measured Sound Power Level: 61.95dB(A)
Declared Guaranteed Sound Power Level: 63dB(A)
Standards conform to,
EN ISO 12100-1
EN ISO 12100-2
EN ISO 14121-1
EN ISO 3744
EN 55014-1
EN 55014-2
The person authorized to compile the technical file,
Name Russell Nicholson
Address Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK
2013/01/10
Leo Yue
POSITEC Quality Manager
PIN Code Area:

Roboter-Rasenmäher D
18
INHALT
1. Sicherheitsvorschriften
1.1 Allgemeine Sicherheitshinweise für Elektrowerkzeuge
1.2 Informationen zum Landroid®M
2. Technische Daten und Lieferumfang
2.1 Technische Daten
2.2 Komponenten
3. Wissenswertes zu Ihrem Landroid®M
3.1 Wie weiß mein Landroid®M, wo er mähen soll?
3.2 Wie weiß mein Landroid®M, wohin er fahren soll?
A. Ladebasis finden
B. Regensensor
C. Begrenzungskabel erkennen
D. Beim Mähen stoppen und wieder starten
3.3 Welche Fläche kann mein Landroid®Mmähen?
3.4 Wie gut mäht der Landroid®Mdas Gras?
4. Grundlegendes zum Begrenzungskabel
4.1 Begrenzungskabel abstecken
4.2 Begrenzungskabel eingraben
4.3 Begrenzungskabel verbinden
4.4 Einschalten und Installation prüfen
5. Wartung
5.1 Akkulaufzeit und - haltbarkeit
5.2 Überwintern
5.3 Sauber halten
A. Gehäuse reinigen
B. Unterseite reinigen
C. Kontakte und Ladestreifen reinigen
5.4 Immer schön scharf
A. Messer drehen und umdrehen
B. Messer austauschen
5.5 Akku austauschen
6. Konformitätserklärung
BEDIENUNGSANLEITUNG
19
19
21
22
22
23
25
25
26
26
26
26
26
27
27
28
28
28
28
29
29
29
29
30
30
30
31
31
31
31
32
33

Roboter-Rasenmäher D
19
1. Sicherheitsvorschriften
1.1 Allgemeine Sicherheitshinweise für Elektrowerkzeuge
WARNUNG: Lesen Sie alle Sicherheitshinweise und Anweisungen. Versäumnisse bei der
Einhaltung der Sicherheitshinweise und Anweisungen können elektrischen Schlag, Brand und/
oder schwere Verletzungen verursachen.
Lesen Sie die Bedienungsanleitung zum sicheren Betrieb des Gerätes aufmerksam durch.
Bewahren Sie alle Sicherheitshinweise und Anweisungen für die Zukunft auf.
•Dieses Gerät ist nicht zur Verwendung durch Personen (einschließlich Kindern) vorgesehen, die über reduzierte
körperliche Eignung, Wahrnehmung oder geistige Fähigkeiten, Mangel an Erfahrung und Wissen verfügen, sofern diese
Personen nicht von einer verantwortlichen Person beaufsichtigt oder in der Verwendung des Gerätes unterwiesen
wurden.
•Kinder sollten grundsätzlich beaufsichtigt werden, damit sie nicht mit dem Gerät spielen.
VOR GEBRAUCH BITTE GENAU DURCHLESEN UND FÜR WEITERE FRAGEN AUFBEWAHREN
SICHERER BETRIEB
Training
a) Die Anweisungen aufmerksam durchlesen. Machen Sie sich mit den Bedienelementen und dem vorschriftsmäßigen
Gebrauch des Rasenmähers vertraut.
b) Niemals Kindern oder mit diesen Anweisungen nicht vertrauten Personen erlauben, den Rasenmäher zu benutzen.
Nationale Vorschriften können das Alter der Bedienperson möglicherweise beschränken.
c) Bedenken Sie, dass der Bediener oder Benutzer bei Unfällen oder Gefährdungen anderer Personen oder deren
Eigentum die Verantwortung trägt!
Vorbereitung
a) Prüfen Sie, ob der Draht für die automatische Begrenzung des Verfahrwegs korrekt installiert ist.
b) Inspizieren Sie die Gegend, in der die Ausrüstung eingesetzt werden soll, gründlich und entfernen Sie alle Objekte, die
durch die Maschine aufgeschleudert werden könnten.
c) Vor der Benutzung immer durch Augenschein prüfen, ob Messer, Messerschrauben und Schneidbalken abgenutzt oder
beschädigt sind. Abgenutzte Messer und Schrauben nur im ganzen Satz auswechseln, um Unwuchten zu vermeiden.
d) Achten Sie darauf, dass bei Geräten mit mehreren Klingen ein Klingensatz durch den anderen in Rotation versetzt
werden kann.
BETRIEB
1. ALLGEMEINE SICHERHEITSHINWEISE
a) Betreiben Sie das Gerät niemals mit defektem Schutz oder ohne installierte Sicherheitsvorrichtungen, wie etwa
Deflektoren;
b) Hände und Füße nicht in die Nähe oder unter rotierende Teile bringen.
c) Niemals den Rasenmäher bei laufendem Motor anheben oder tragen.
d) Maschine ausschalten
- Vor dem Beseitigen einer Verstopfung;
- Vor dem Überprüfen, Reinigen oder Arbeiten am Gerät.
e) Der ursprüngliche Zustand des WORX Landroid®Mdarf nicht modifiziert werden. Alle Änderungen erfolgen auf eigene
Verantwortung.
f) Starten Sie den WORX Landroid®Mvorschriftsgemäß. Mit dem Hauptschalter in Position ON darauf achten, dass Hände
und Füße nicht in die Nähe der rotierenden Messer gelangen. Hände oder Füße nie unter den Mäher halten.
g) Wenn sich der Hauptschalter in der Position ON befindet, darf der WORX Landroid®Mniemals angehoben oder
herumgetragen werden.
h) Erlauben Sie niemandem, der sich mit den Funktionen und Verhaltensmustern von WORX Landroid®Mnicht auskennt,
den Mäher zu benutzen.
i) Keine Gegenstände auf den WORX Landroid®Moder seine Ladestation legen.
j) Wenn der Messerteller oder das Gehäuse defekt ist, darf der WORX Landroid®Mnicht in Betrieb genommen werden.
Das gleiche gilt für defekte Messer, Schrauben, Muttern oder Kabel.
k) Den WORX Landroid®Mnicht benutzen, wenn der Hauptschalter defekt ist.
l) Den WORX Landroid®Mstets mit dem Hauptschalter ausschalten, sobald der Mäher nicht benutzt wird. Der WORX
Landroid®Mkann nur gestartet werden, wenn sich der Hauptschalter in der Stellung ON befindet und der korrekte PIN-
Code eingegeben wurde.

Roboter-Rasenmäher D
20
2. HINWEIS ZUM AUTOMATIKBETRIEB DES ROBOTERS
a) Den WORX Landroid®Mniemals verwenden, wenn sich Personen – besonders Kinder – oder Haustiere in der Nähe
aufhalten.
3. GENERELLE HINWEISE ZUM UMGANG MIT RASENMÄHERN
a) Nur bei Tageslicht oder gutem künstlichen Licht mähen.
b) Nach Möglichkeit nicht in nassem Gras arbeiten.
c) Tragen Sie beim Mähen stets festes Schuhwerk und eine lange Hose. Den Rasenmäher nicht barfuß oder mit offenen
Sandalen benutzen.
d) Auf schrägen Flächen stets auf sicherenTritt achten.
e) Beim Rückwärtsgehen oder Ziehen des Rasenmähers äußerst vorsichtig sein.
f) Den Motor wie in den Anweisungen beschrieben starten und dabei darauf achten, dass die Füße ausreichend weit von
den Messern entfernt sind.
WARTUNG UND AUFBEWAHRUNG
WARNUNG! Wenn der Mäher auf dem Kopf steht, muss sich der Hauptschalter stets in der
Position OFF befinden.
Bei allen Arbeiten am Untergestell des Mähers sowie beim Reinigen oder Austauschen der Messer
muss sich der Hauptschalter stets in der Position OFF befinden.
a) Den festen Sitz aller Schrauben, Muttern und Bolzen sicherstellen um zu gewährleisten, dass sich der Rasenmäher in
einem betriebssicheren Zustand befindet;
b) Den WORX Landroid®Meinmal pro Woche kontrollieren und eventuell beschädigte oder verschlissene Teile
austauschen.
c) Messer und Messerteller besonders sorgfältig auf Schäden untersuchen. Bei Bedarf alle Messer und Schrauben
gleichzeitig austauschen, um eine Unwucht der rotierendenTeile zu vermeiden.
d) Verwenden Sie beim Austausch nur Original WORX Messer.
e) Verwenden Sie zum Laden des Akkus nur das vom Hersteller empfohlene Ladegerät. Eine nicht den Hinweisen
entsprechende Verwendung kann zu einem Stromschlag, zur Überhitzung oder zum Auslaufen der Batterieflüssigkeit
führen.
f) Tritt Batterieflüssigkeit aus, beseitigen Sie sie mit Wasser und einem neutralen Reinigungsmittel. Kommt sie mit Augen
etc. in Kontakt, suchen Sie sofort einen Arzt auf.
g) Warten Sie den Roboter nach den Anweisungen des Herstellers.
Transport
Für längere Transporte legen Sie den WORX Landroid®Mam besten in die Originalverpackung.
Für einen sicheren Transport vom oder innerhalb des Arbeitsbereichs:
a) STOP -Taste drücken, um den Mäher anzuhalten. Ist der Diebstahlsalarm aktiviert, geben Sie die erste Ziffer des PIN-
Codes ein. Beim erstmaligen Start des Mähers wählen Sie einen vierstelligen PIN-Code.
b) Bringen Sie den Hauptschalter in die Stellung OFF, wenn der Mäher getragen werden soll.
c) Den Mäher an seinem Griff ganz hinten unten tragen. Halten Sie den Messerteller beim Tragen des Mähers vom Körper
weg.
