Wottan motor REBBE 125 User manual

Wottan Motor
USER MANUAL
REBBE 125cc

Welcome to Woan Motor
Dear owner: Congratulaons on your choice of a REBBE 125 model and thank you for your trust in us.
In order to operate your vehicle safely and to keep it in perfect condion at all mes, we recommend that
you carefully read the instrucons in this manual and follow the spulated maintenance procedures. We are
condent that WOTTAN MOTOR will repay the trust you have placed in us.
We would like to remind you that only WOTTAN service technicians are trained and have all the up-to-date
informaon and tools to provide you with excellent service according to the specic needs of your new vehicle.
The enre Woan motor team is constantly working to update and improve the product. Therefore, some of
the informaon in this manual may be altered and modied without prior noce.
The manufacturer declines responsibility for any damage to the unit because of accessories not approved by
the manufacturer.

Page / 3 Wottan Motor
Introducon ......................................................... 4
SECURITY INSTRUCTIONS
Security check...................................................... 6
Safe driving recommendaons ............................ 9
Running-in ......................................................... 14
VEHICLE IDENTIFICATION
Vehicle idencaon ......................................... 16
View from the right side .................................... 18
CONTACT LOCK
Operaon .......................................................... 20
DASHBOARD
Elements ............................................................ 22
GENERAL VIEW
Instrumentaon le handgrip ........................... 26
Instrumentaon right handgrip ......................... 26
Fuel tank cap ..................................................... 27
Gear lever .......................................................... 28
STANDS
Side stand .......................................................... 30
Exhaust system .................................................. 31
DRIVING INSTRUCTIONS
Braking............................................................... 32
Basic concepts for safe driving ......................... 34
MAINTENANCE INSTRUCTIONS
Maintenance and cleaning ................................ 40
Wheel rims and storage .................................... 42
Technical changes, accessories and spare parts 44
Engine oil .......................................................... 45
Air lter ............................................................. 48
Tyre condion .................................................... 49
Baery ............................................................... 50
TECHNICAL DATA
Engine ................................................................ 52
Transmission and chassis ................................... 53
Lubricants and operang uids ......................... 54
Electrical equipment ......................................... 54
Dimensions and weight ..................................... 55
BOOK MAINTENANCE
Warranty............................................................ 58
Wear parts list ................................................... 60
Exclusions .......................................................... 62
Inspecon plan ................................................. 68
Maintenance table ............................................ 70
Revision table ................................................... 72
TABLE OF CONTENTS

User Manual Woan Rebbe 2023 Page /4
INTRODUCTION
WOTTAN MOTOR has designed, tested and produced this motorbike using the most advanced technology in
order to oer you a safe and enjoyable ride to provide you with a pleasant and safe ride.
Your Woan will provide you great moments of fun while being a praccal, safe and economical means of
transport. However, before using it, especially for the rst me, please familiarise yourself with the informaon
on this manual. Also, all the care and maintenance your Woan requires is described in this manual. If you
follow all instrucons carefully, you will ensure a long service life for your motorbike. The Woan Authorised
Dealer and Service Network has experienced technicians capable of giving your motorbike the best possible
service with the necessary tools and knowledge.
All informaon, illustraons, photographs and specicaons contained in this manual are based on the
latest producon informaon. Due to Woan’s policy of connuous product improvement there may be
some dierences between this manual and your motorbike. Woan reserves the right to make changes to
its products at any me. Please also note that this Manual refers to all specicaons of a parcular motorbike
model for any given country. Some details may vary from one country to another. Therefore, your model may
dier from what is shown in this manual.
COPYRIGHT WOTTAN MOTOR, S.L.
January Edion 2023

Page / 5 Wottan Motor
This manual includes important instrucons for the safety and handling of your motorbike.
Safety symbols and notes
The following must be observed:
WARNING
Precauonary measures against the risk of accident, injury and/or death.
RISK OF FIRE
The vehicle is equipped with a catalyc converter that causes extremely high temperatures in the exhaust
system (re risk).
NOTICE
Important instrucons and precauons to avoid damage to the vehicle. Failure to observe these instrucons
may result in the voiding of the warranty.
NOTE
Special instrucons for beer handling during operaon, inspecon adjustments and service acvies.

User Manual Woan Rebbe 2023 Page /6
WARNING
This owner’s manual contains important instrucons for your safety and the operaon of your motorbike.
Please read it carefully, as careful driving in combinaon with regular care and maintenance helps to
maintain the value of the motorbike and is one of the prerequisites for claiming warranty care.
Please be advised, of course, that it is neither praccal nor possible to warn you of all the dangers associated
with the operaon, handling or maintenance of your vehicle. You must use your common sense.
SAFETY > SECURITY CHECK
Checklist
Before driving, perform a safety check using the enclosed checklist.
Take the safety check seriously. Perform proper maintenance before you start your journey. A technically fault
free motorbike is a basic requirement for your safety and that of other road users.
Before you start your journey, check the following:
- Handlebars (smooth and easy to handle).
- Engine oil level
- Fuel quanty

Page / 7 Wottan Motor
- Front brake
- Rear brake
- Tyres (contour and pressure)
- Front fork
- Load distribuon
- Lights
- Total weight
- Brake uid level.
In the event of problems or dicules, contact an authorised service point.
WARNING
Do not touch the starng system while the engine is running.
FIRE HAZARD
The vehicle is equipped with a catalyc converter, this causes extremely high temperatures in the exhaust
system (risk of burns). Make sure that you are not in contact with ammable materials while driving or when
staonary or parked!

User Manual Woan Rebbe 2023 Page /8
WARNING
For your safety, only use original accessories or products approved and cered by Woan Motor. WOTTAN
MOTOR is not responsible for any damage caused by non-approved accessories.
NOTE
Our approved products and accessories are available at all authorised points of sale and in our website www.
woanmotor.com.
WARNING
- Do not exceed the maximum permissible weight. 150kg
- Check tyre pressure.
- Check rims.
WARNING
Before any journey, check the operaon of all lighng components of the vehicle.
- Check that the headlights are clean.

Page / 9 Wottan Motor
SAFETY > SAVE DRIVING RECOMMENDATIONS
CAUTION
Safety is also largely determined by driving style.
Therefore:
- Put on an approved safety helmet and fasten it correctly.
- Wear appropriate protecve clothing.
- Use foot rests.
- Do not drive if your driving ability may be compromised (in ice, rain or strong wind).
Your reacons can be severely aected, not only by alcohol, but also by drugs and medicines, do not drive
under the inuence of either.
- Strictly observe all trac regulaons.
- Always adapt your driving speed to the trac and road condions.
On wet roads or in the presence of loose gravel, be aware that your stability and braking power are limited by
the grip of the wheels on the road surface and the distance may be greater.
Drive economically and be environmentally friendly

User Manual Woan Rebbe 2023 Page /10
Fuel consumpon, environmental polluon and wear and tear on the engine, brakes and tyres depend on a
number of factors.
At idle, the engine needs me to warm up to an opmal operang temperature. However, in the warm-up
phase, pollutant emissions and the level of wear and tear are very high. Therefore, it is best to start driving
immediately aer starng the engine gently and without forcing the engine unl it reaches opmum operang
temperature.
Avoid hard acceleraon
Moderang the use of the accelerator to what is strictly necessary reduces fuel consumpon as well as
polluon and wear levels.
Drive as smoothly as possible and ancipate manoeuvres as much as possible.
Hard acceleraon and braking cause high fuel consumpon and increased polluon levels.
Wet brakes
Washing the scooter or driving through water or rain can delay the braking eect due to wet or (in winter) icy
brake discs or pads.

Page / 11 Wottan Motor
WARNING
Cauon braking distances increase exponenally when the brake discs are wet.
CAUTION
On roads salted by de-icing.
When driving on roads on which salt has been deposited, full braking performance may be compromised.
Oil and grease
WARNING
Brake discs and pads must be free of oil and grease!
If the motorbike is not to be used for a while, a layer of rust may form on the brakes and thus increase
the braking eect. A thick layer of rust can cause the brakes to lock. When riding aer a period of non-use,
carefully apply the brakes several mes unl they funcon normally. Also, during the rst 500 km of the unit
as well as when changing discs or pads there is an adaptaon period during which the components adjust and
gradually increase their eciency.

User Manual Woan Rebbe 2023 Page /12
Dirty brakes
When driving in less than opmal road condions (mud, rain, oil, grease, etc.), the braking system’s capacity
may be reduced.
WARNING
In these circumstances use the brakes with cauon unl they are clean, the braking distance may be increased.
Pad wear increases with dirty brakes!
NOTE
Be sure to pracce braking for emergency situaons, but do so in a situaon that will not put yourself or others
at risk.
Turn o the engine if you are going to be stopped to save fuel.
Dierent driving condions aect fuel consumpon. The following are unfavourable for fuel consumpon:
- High trac density, especially in large cies with many stops and trac lights.
- Short, frequent journeys with constant starng and stopping of the engine.
- Driving in trac jams with slow and dense trac.
Plan journeys in advance to avoid heavy trac.

Page / 13 Wottan Motor

User Manual Woan Rebbe 2023 Page /14
SAFETY > RUNNING-IN
Running-in instrucons for engine and transmission
CAUTION
Excessive engine speed during the running-in period increases engine wear and reduces engine life by up to
50%.
Any engine faults during the running-in period must be reported immediately to an ocial service centre.
NOTE
During the running-in period, drive smoothly but vary the engine speed frequently. Select winding roads with
some hills. Constantly avoid driving at very low revs and also avoid accelerang the unit to the limit.
- For the rst 500 km: Use less than half the throle range.
- Aer 1.000 km: Use less than ¾ of the throle range.
CAUTION
The rst inspecon should be carried out immediately at 500 km or 4 months (whichever comes rst).
You can save delays by making an appointment with an authorised service agent in advance.

Page / 15 Wottan Motor
Running-in of new tyres
CAUTION
New tyres have a smooth surface. Therefore, they should be roughened by rolling them carefully and smoothly
in various inclined posions.
Only then will the surface get its full grip!
Running-in of new brake pads
WARNING
New brake pads must be used and will not have their full friconal power unl aer 500 km of use.
The eect of reduced braking power can be compensated by increased brake lever pressure.
During this period, avoid unnecessary heavy braking acons.

User Manual Woan Rebbe 2023 Page /16
VEHICLE IDENTIFICATION

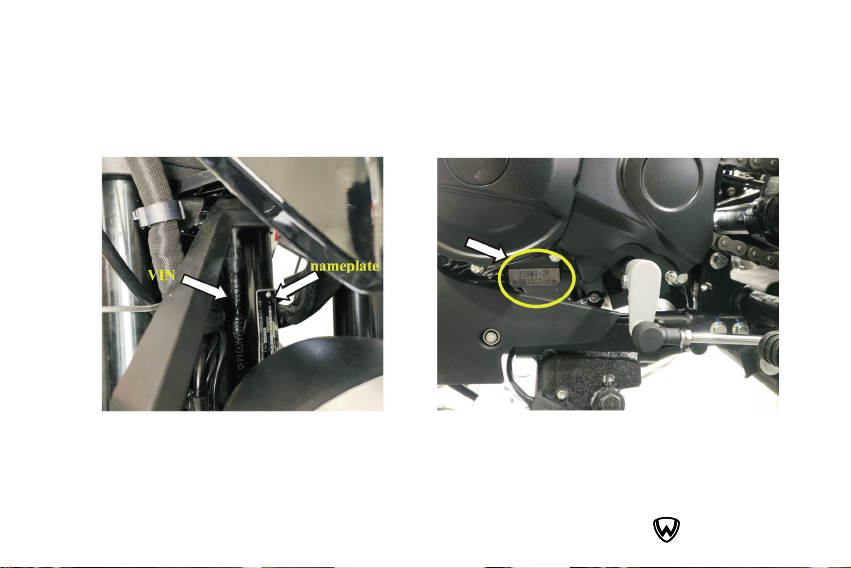

The vehicle has three forms of idencaon: nameplate, the chassis number and the engine number.
Nameplate
The metal nameplate is located on the right chassis tube and shows the main technical parameters, the
manufacturer and the producon date of the motorbike.
Chassis number
The chassis number (VIN) is located on the chassis up tube.
Engine number
The engine number (1) is located on the le side of the crankcase.

Page / 17 Wottan Motor
1

User Manual Woan Rebbe 2023 Page /18

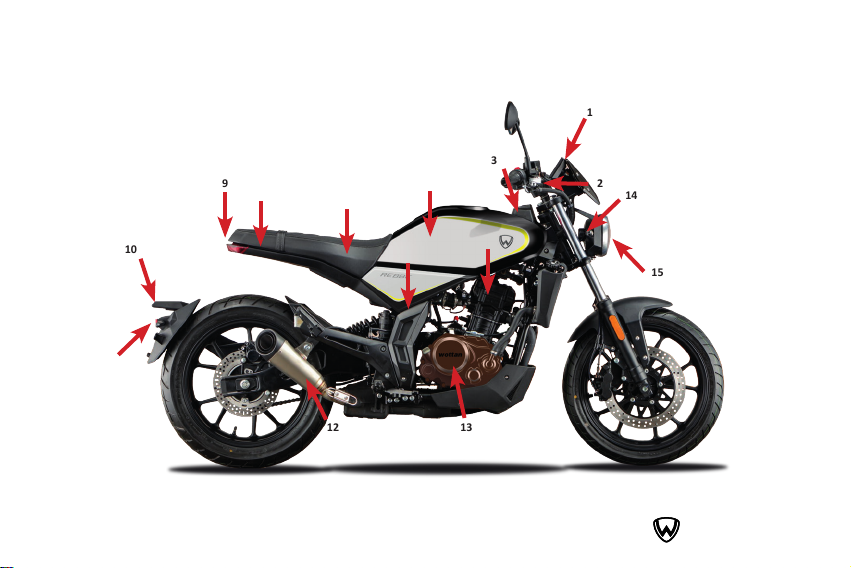

VEHICLE IDENTIFICATION > VIEW FROM THE RIGHT SIDE
1. Speedometer
2. Front brake lever
3. Ignion and steering column lock
4. Spark plug
5. Fuel tank
6. Air lter
7. Baery
8. ECU
9. Rear lights
10. Number plate light
11. Front right indicator lamp
12. Muer
13. Engine
14. Rear right indicator lamp
15. Headlamp

Page / 19 Wottan Motor
1
2
14
11
12 13
15
3
10
9
7
6
5
4
8

User Manual Woan Rebbe 2023 Page /20
LOCK > OPERATION
WARNING
Do not switch o the ignion while driving.
NOTES
Keys
With the motorbike you get two ignion keys indenitely. Keep the spare key in a safe place.
NOTES
Posion “ ” (OFF)
All circuits are switched o and the key can be removed.
Posion “ ” (ON)
All ignion circuits are switched on and the engine can be started. The key cannot be removed in this posion.
WARNING
Never turn the key to “OFF” when the vehicle is running. Otherwise, the electrical systems will switch o,
which may lead to loss of control or an accident.
