Wowitoys Wowitec LARK 2 User manual

LARK 2 H4817
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch

2
The product user guide contains product features, how to use, and the
operating procedure. Read the user manual carefully to get the best
experience and avoid unnecessary damage. Keep this manual for future
reference. If you have any questions or comments about the device, please
contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7,
www.alza.cz
Disclaimer & Warnings
Please read this Disclaimer & Warning and Safety Guidelines carefully
before using our product. This product is not recommended for people
under the age of 14. By using this product, you hereby agree to this
disclaimer and signify that you have read it fully. You agree that you are
responsible for your own conduct and any damages caused while using this
product, and its consequences. You agree to use this product only for
purposes that are proper and in accordance with local regulations, terms
and all applicable polices and guidelines WOWITOYS may make available.
When using this product, please be sure to strictly abide by the specification
requirements and safety guidelines stated in this document. Any personal
injury property damage, legal disputes and all other adverse events caused
by the violation of the safety instructions or due to any other factor, will not
be WOWITOYS's responsibility.
●The drone is designed for 14+

3
●Adult supervision is always advisable with any from of flying toy
Always ensure your flight area is free of all obstacles before taking off,
and ensure the drone is always flown in excess of 1.5 meters from
yourself and others
●Remove all batteries from the drone and controller when not in use
●Never overcharge
●Never leave to charge unattended
●Never touch the drones motors during or after as they can get hot
●Never touch the blades when they are in rotating
●If the drone becomes damaged, stop using it immediately
●Do not dispose of any parts of the drone or controller in the normal
rubbish,all parts should be taken to your local recycling centre
●The battery in the drone should never be exposed to any form of high
temperature or disposed of in a fire
Safety Guidelines
Check before Use
●This product is not a toy, but it is a high precision drone that integrates
various electronic stability and control mechanisms.
Please be sure to setup this drone carefully and correctly to ensure safe,
accident-free operation.
●Please be sure that the batteries of the drone and transmitter are clean,
undamaged and have enough power.
●Please be sure that all the propellers are undamaged and are installed in
the right orientation.
●Please do a thorough check of the product before each use.
Check for firmness of the parts, any signs of cracks and wear of the
propeller, battery power and effectiveness of the product until the issue
has been taken care for.

4
Safe flight Environment
●Make sure the surrounding area is free of all people, pets or other
obstacles before you start to fly your drone
●Your drone is designed for indoor or outdoor use. However, it is not
recommended to fly the drone inside if there is limited space, or outside
if there is any wind.
●Keep a safe playing distance between you and the drone at all times.
Use of Battery
●Please ensure batteries are fitted in the correct orientation as shown in
the instruction manual.
●Avoid short circuits by fiting the batteries incorrectly, and do not crush or
squeeze the batteries as this could carry the risk of an explosion.
●Do not mix new and old batteries as this can lead to a poor performance
of the product.
●Dispose used batteries carefully.
●Please keep dead batteries away from heat and fire.
●If the device is not going to be used for an extended period of time,
remove batteries to prevent potential damage from battery leakage.
●It is recommended to only use the USB charging cable that comes with
the drone to charge the battery.
●Don't connect the battery directly to wall outlets or car cigarette-lighter
sockets.
GPS signal
is good
Fly Below 393.6
feet (120 m)
Fly in Open Areas
Maintain Line
of Sight

5
●Don't attempt to disassemble or modify the battery in any way.
●Don't use the battery if it gives of an odor, generates heat, becomes
discolored or deformed, or appears abnormal in any way. If the battery is
in use or being charged, remove it from the device or charger
immediately and discontinue use.
Controller functions
●Always use alkaline batteries
●Never mix old and new batteries
throttle left
stick
right stick
camera up
LED
calibration
camera down
one key start
Video
power switch
one key stop
GPS mode/
Surround flight
normal mode
speed- select
button
auto return
Home
4xAAA batteries
(not included)

6
1. Unscrew the battery cover and insert 4xAAA batteries (not included),
making sure you insert them following the correct polarity as shown
2. Re-attach the battery cover
It is crucial that all the propellers are installed in the correct position
(Pay attention to the letter A or B printed underneath each propeller.)
Insert the batter into drone
Charging the drone battery
Take out the drone battery and connect it to the balance charger and
adapter.
While charging, the charger indicator on the balance charger will be solid
red and power indicator will be solid green. When charging is complete, the
charger indicator goes out and power indicator remain the same.
Propeller B
(CounterClockwise)
Propeller A
(Clockwise)
Propeller B
(CounterClockwise)
Propeller A
(Clockwise)
Camera
HEAD

7
WARNING
Do not leave the battery unattended while charging & only use the supplied
battery or plug charger.
Pairing your drone to the controller
Outdoor flight GPS mode
Don't fly the drone in rainy, foggy, snowy, windy (wind speed above 4
meters) days!
Wall Adapter
Balance Charger
Battery
power switch

8
Warning: Please select the GPS mode for outdoor flight !
1. Firstly, switch on the remote and then LED on the remote will become
red and start flashing. Secondly, switch on the drone and place the
drone standing on the floor, the code transmitted from the remote will be
successfully paired by the receiver from the drone once the remote
sounded "di,di" twice.)
2. Push the left joystick on the remote control to the top for two seconds,
then pull the left joystick to the bottom for two seconds. (At this time, the
remote-control indicator light turns to green color and
flashes slowly.) Release the left joystick, when the front and rear lights
of the drone flash quickly at the same time, the frequency pairing is
successful.
3. When both of the front and the back indicator leds stop flashing and stay
stable, then the drone is successfully matched GPS signal and
ready to fly.
4. When the end user firstly flies this drone, he or she will need to
recalibrate the geomagnetism before reflying if the drone cannot fly
stably after many crashes or changing engines.
5. How to Calibrate magnetic compass:
(1). Press and hold the normal mode button, the red lights on the rear of
the drone will be off, and the front green lights will flash quickly to enter
the calibration. The normal mode button can be released at this time.

9
2). Pick up the drone to keep it in the air horizontally, then slowly rotate
the drone clockwise, and wait for the green lights to flash slowly to
indicate that the horizontal alignment is complete.
3). Hold the drone in the air vertically (drone's head points at the ground),
then slowly rotate the drone clockwise, and wait for the red lights to flash
slowly to indicate that the vertical alignment is complete. (At this time,
the front and rear lights of the drone alternately flash slowly.)
4). Place the drone horizontally on the ground, and wait for the front and
rear lights on the drone to flash quickly, to indicate that the calibration is
complete.

10
6. GPS search satellites
The drone must have enough GPS signal to fly in outdoor GPS mode. The
normal outdoor satellites searching time is about 1-2 minutes. When the
front lights of the drone are green ON, that indicate there are at least 6
satellites searched in the GPS signal, then the drone can fly outdoor.
The longer the GPS signal searches, the better the GPS signal gets.
The drone's flying will be more stable and the auto return and landing
will be more accurate when the GPS signal is strong.
When the drone takes off, its flight altitude will be higher if the GPS
signal is stronger, it can fly at about 5 meters high when the drone
searched about 13 satellites.
7. How to take off
1) Press the one key start button for 2 to 3 seconds, and the drone will
fly up to 1 meter high automatically, the flight mode is defaulted as
normal flight mode. Press the GPS mode button, the drone will fly on GPS
mode. (When the drone takes off, its flight altitude will be higher if the
GPS signal is stronger, it can fly at about 5 meters high when the drone
searched about 13 satellites.)

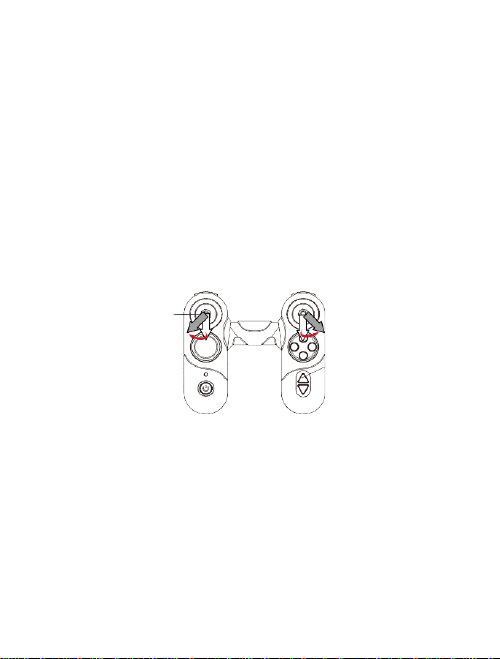

2) At the meanwhile, please pull the remote throttle to the bottom, pull
the left joystick on the remote to left direction at the angle of 15 degrees
Take off method 2
Take off method 1

11
and the right joystick on the remote to right direction at the angle of 15
degrees. The drone paddle rotates slowly and enters into standby speed
flight mode, then push the remote-control throttle, the drone starts fly
8. Landing
Method 1:
Press the “one key stop” button for 2-3 seconds, the drone will land by
itself.
Method 2:
Push the “throttle left stick” lever down until the drone lands.
Method 3:
Press auto return home button for 2 to 3 seconds, the drone will return
to the position where GPS mode started.
Landing method 1
Landing Method 2
Landing method 3

12
Altitude & rotate:
Indoor flight non-GPS mode
1.First turn on the power button of the remote control, the red light of the
remote control flashes quickly and makes two beeps; long press the
power switch of the drone, the lights on the drone will flash slowly.
2. Push the left joystick on the remote control to the top for two seconds,
then pull the left joystick to the bottom for two seconds; The remote
control indicator light turns to green color and flashes slowly.
3. Release the left joystick, when the front and rear lights of the drone
flash quickly at the same time, the drone is ready to fly.
4. Press and hold the One Key Start button for 2-3 seconds, the drone
will fly 1m high by itself. During the flight, the green lights on the drone
will flash slowly and the red lights will be bright.

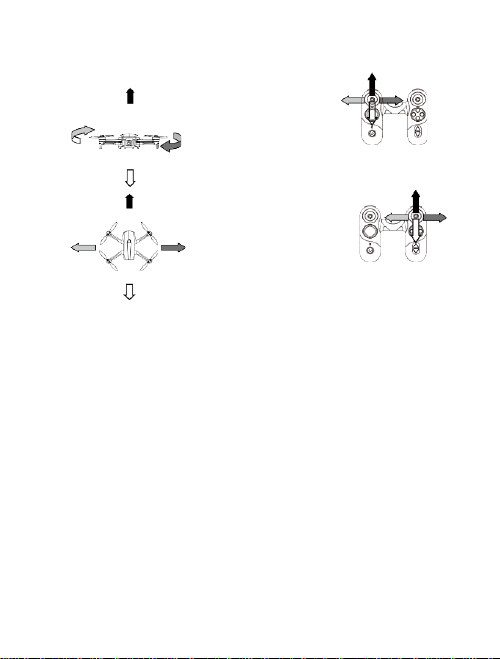

Use “throttle left stick”
to control the altitude &
rotation during flight.
Ascend
Descend
Forward
Left
Right
Backward
Use “ right stick” to
control forward,
backward, left & right
movement during flight.

13
5. Press and hold the One Key Stop button for 2-3 seconds, the drone
will land on its own. Or the drone will slowly descend after the throttle
stick is pushed down.
Because the indoor GPS signal is very poor and unstable, the drone
can only fly indoor in non-GPS mode. So, NO auto return/no waypoint/
no follow me function.
Features
1. LED:
Press LED button once, the 4 leds of the drone will light off. Press
LED button once again, all the leds will light on.
2. To take a photo:
Press once, take one picture.
3. To record a video:
Press once to start the video mode, press one time again to stop the
video mode.
(Remark: because the drone comes with a wifi camera, it can only
take pictures or video after connected with mobile phone. Since the
wifi board is built with a memory card slot, so the pictures and videos
can be stored in both mobile phone and memory card inserted in the
card slot.)
4. Pairing drone:
Press and hold the button, at the same time, turn on the remote

14
control power switch and then release the two buttons (the remote
control indicator light flashes quickly). Press and hold the drone power
switch for three seconds, wait for the front and rear lights of the drone
to flash slowly and then release the power switch button. Push the left
joystick on the remote control to the top for two seconds, then pull the
left joystick to the bottom for two seconds.
(At this time, the remote-control indicator light turns to green color and
flashes slowly.) Release the left joystick, when the front and rear lights
of the drone flash quickly at the same time, the frequency pairing is
successful.
5. Normal Mode Button
Press the Normal Mode Button, the drone will fly in the normal mode,
no GPS function
6. Speed-select button
Two speeds for the drone, fast and slow.
7. GPS mode
After the drone is paired successfully and started to fly, press the GPS
mode button, the drone will fly in the GPS mode.
8. Auto return home
When the drone is flying in the GPS mode, press the return button for
2 to 3 seconds, the drone will return to the position where GPS mode
started.
GPS mode /Surround flight:
During the flying, the end users can enjoy the surround flight mode by
pressing the GPS mode button for 2 to 3 seconds until the remote

15
beeps "di, di" twice. During surround flying, the drone will fly in the 15
meters radius semicircle range.
During the surround flight, the
consumer can adjust the flying
radius of the drone by pushing the
direction joystick up or down, and
the speed of the drone can be
adjusted by pushing the direction
joystick to the left or right.
Auto return home:
When the drone flies too far in GPS mode, consumers can't tell the
directions of the drone, then consumers can operate it in below 2 ways
to fly back the drone to the take off place:
1. Long press the auto return home button 2-3 seconds, the drone will
fly back to the take off place automatically;
2. Directly turn off the remote-control power switch, the drone will return
to the take-off place.
Remark: When the drone is out of range of controller, the drone will fly

16
back to the take off place automatically.
For outdoor flying, we strongly recommend the end user to choose an
open area, as the GPS signal will be strong enough. The GPS signal
will be too weak to have an enjoyful flying if the end user chooses to fly
the drone in residential area, as example, because there are too many
buildings, and the glass will refract.
Because the launch module of the drone is 2.4G, the 2.4G launch will
be different because of the different environmental conditions of the site.
The maximum flight distance in normal flight is 400 m, and it is normal
for the drone to return automatically during the flight while flying in GPS
mode.
Wifi antenna
Antenna

17
The direction of control when the drone is paired
Calibrate gyroscope
When the flight of the drone is unstable or deviated from the left and
right after take-off, the consumer can correct the gyroscope and the
flight will be more stable after the correction.
1. Place the drone on a flat ground, then pull the left joystick to the
bottom, while turn the right joystick left and right horizontally quickly and
without stop until the lights on the drone start flashing slowly. (The front
and rear lights on the drone flash slowly to indicate that calibration has
been entered, DO NOT move the drone at this time.)
2.Waiting for the front and rear lights of the drone to flash quickly which
indicates that the calibration was successful.
Don’t turn your direction

18
Left- and right-hand throttle switch
The remote-control throttle of the factory products defaults to the
left-handed joystick. Consumers can switch between left and right hand
mode according to the following operations. Consumers only need to
switch once, the remote control can save it automatically, no need to
switch it again in next flying.
Left hand mode to right hand mode:
Press and hold button 9, and turn on the power switch of the remote
control and then release the 2 buttons (the remote-control indicator light
flashes quickly), then push the right joystick to the top for two seconds,
when the remote-control indicator light turns RED and flashes slowly,
pull the right joystick to the bottom for two seconds. Waiting for the
remote control indicator light to turn to a green light, that indicates the
switch is successful.
Right hand mode to left hand mode:
Press and hold button 10, and turn on the power switch of the remote
control and then release the 2 buttons (the remote-control indicator light
flashes quickly), then push the left joystick to the top for two seconds,
when the remote-control indicator light turns RED and flashes slowly,
pull the left joystick to the bottom for two seconds. Waiting for the
remote control indicator light to turn to a green light, that indicates the
switch is successful.

19
Insert the SD card
Insert the Micro-SD card (not included) to the slot in right direction. If the
Micro-SD card was inserted upside down, it will get stuck, and the camera
will not work.
To download your photo and video files:
●Remove the SD card from the drone and plug it into the card
reader (not included).
●Plug this into your computer to access the files.
Adjust Camera
The camera can be rotated 90 degrees by controller.
video

20
Install phone holder
1. Insert the phone holder to the middle of remote controller.
2. Use the screws which behind the phone holder to adjust the tightness
between the holder and the remote.
Camera up
Camera down
3. Pull out the holder and place the phone on the holder.
