Wulian WL-ZSKWNPW-W3160-01 User manual

Smart Wall Socket-Outlet(UK Type)
User Manual
Certified by ISO9001:2008
Nanjing IoT Sensor Technology Co., Ltd (Wulian Co., Ltd)
Publication No. ：2015-0611.V01
Model: WL-ZSKWNPW-W3160-01

Thank you for using the user manual of Wulian Smart Wall Socket-Outlet(UK Type)
● is a registered trademark of Nanjing IoT Sensor Technology Co., Ltd. All the other products or service names
mentioned in this manual are trademarks or registered trademarks of their respective companies.
●Please read this product manual before using to ensure proper and safe use.
●Wulian smart wall socket-outlet (UK type, hereinafter referred to as “this product”) is one kind of smart home socket
device of Nanjing IoT Sensor Technology Co., Ltd. (Hereinafter referred to as “our company”). This product need to be used
with corresponding APP and accessories come with this product. If you fail to install and use this product, our company will
not assume any responsibility for the losses it caused.
●Our company may update the product information of this manual at any time, will not notice again. Please follow our
company information in time and download the latest version of APP.
●Without the written permission of our company, any individuals and businesses cannot copy in whole or in part of this
manual and cannot use the trademark of our company. We will punish any persons or corporates’ illegal use of our trademark
by law.
●Welcome to our official website www.wulian.cc/english to learn more information of smart home products.

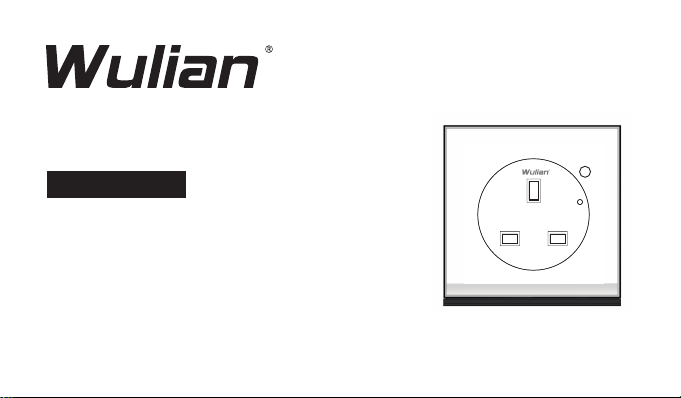

Product Display
Decorative Cover
Power Status
System Indicator Light
Multi-function Key
Power Status
Indicator Light
Main Body
Set
On/Off
Buckle Button
1

Basic Function
●Advanced global burden shut off power protection, make your life more secure.
●You can control the appliance turn on or off and use the energy save function of timing via smart mobile
terminal, thus realizing the smart home.
●Feedback the real-time status of the devices, support remote control with both local area network and
internet .
●You can DIY the scene mode, support added into the scene mode, reserve the timing function, count the
energy consumption, look the history function.
2

Technical Parameters
Communication Way
Wireless Type
Power Supply
Rated Max Electricity
PCB Antenna
230Vac， 50Hz
13A
86.8*87*40
Material Color
Prevent Burning Rank
Net Weight(g)
PC、White
UL94 V-0
200
Size
(length×width×height，mm)
Max Load Type 2500W（incandescent lamp , halogen lamp and so on）
Max Inductive Capacitive Load 1500W( Energy save lamp, daylight lamp , LED and so on)
IEEE 802.15.4
ZigBee/SmartRoom
3
Working Environ-
ment/Temperature and
Humidity
-10℃～+45℃
≤95%（Noncondensing)

● is a registered trademark of Nanjing IoT Sensor Technology Co., Ltd. All the other products or service names
mentioned in this manual are trademarks or registered trademarks of their respective companies.
●Please read this product manual before using to ensure proper and safe use.
●Wulian smart wall socket-outlet (UK type, hereinafter referred to as “this product”) is one kind of smart home socket
device of Nanjing IoT Sensor Technology Co., Ltd. (Hereinafter referred to as “our company”). This product need to be used
with corresponding APP and accessories come with this product. If you fail to install and use this product, our company will
not assume any responsibility for the losses it caused.
●Our company may update the product information of this manual at any time, will not notice again. Please follow our
company information in time and download the latest version of APP.
●Without the written permission of our company, any individuals and businesses cannot copy in whole or in part of this
manual and cannot use the trademark of our company. We will punish any persons or corporates’ illegal use of our trademark
by law.
●Welcome to our official website www.wulian.cc/english to learn more information of smart home products.
Software Download
First method：
Scan the QR code on the product package, download the newest vision APP.
The second method:
Our official website: http://wulian.cc/english/service.html
Note: Please read the user manual carefully at first use and follow our company news to upgrade the latest
software in time.
4

Installation Instruction
L
N
E
Live line
Null line
Earth line

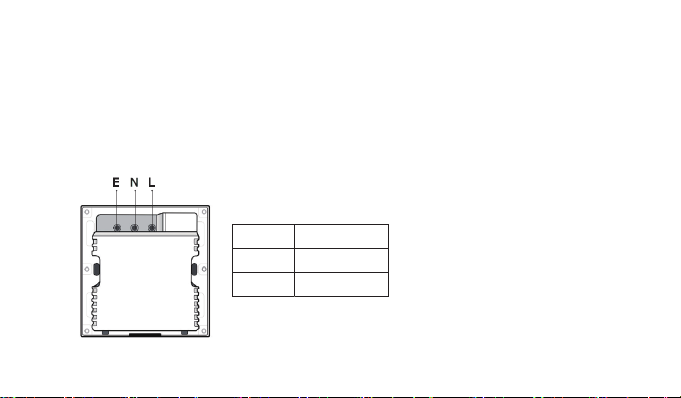

① Connect this product with the wire of the wall box according to picture.
Note: please make sure that the power has been turned off before installation. Electrical work is
dangerous, non-professionals are not allowed to operate!
5

②Take off decoration panel, fixed this product into the wall box with two screws. The installation
method is same with the traditional one.
③Attach the decorative cover ,installation is complete，please finish the networking setting before the
installation
6

Network Settings
①Setting—Join ZigBee network
Quickly click Multi-function Key 4 times for applying to join ZigBee network. Upon successful
connection, System Indicator Light will stay lit in green 2 seconds and then goes off.
Set
On/Off
System Indicator Light goes off after
staying lit in green 2 seconds
Quickly click Multi-function Key 4
7

Set
On/Off
System Indicator Light goes off
after flickering 4 times in green
Long press Multi-function
Key 10 seconds
② Setting--Binding
Press Multi-function Key, quickly click switch button 1 time at the same time. Then loosen the
Multi-function Key, the Indicator Light flash 1 time to transmit binding signal. Within 20 seconds, do the
same operation on another binding device. Upon successful binding, the System Indicator Light will
flicker 3 times in green and quick flicker 6 times if failed.
Note: remove the binding operation is the same with above.
③Setting—Quit ZigBee network
Long press Multi-function Key 10 seconds, the System Indicator Light will go off after flickering 4 times
in green, then this product restores to factory setting and quit ZigBee network.
8

Note:
●Please make sure the gateway (additional purchase) ZigBee network is working within effective
communication distance of gateway before setting. If need remote control, please connect the
gateway to the internet.
●When you want to add this product to another gateway, please quit current gateway and do the
Installation Precautions
●Please cut off the power before installation! Electrical work is dangerous, non-professionals are not
allowed to operate!
●This product should be installed in the plastic boxes. The metal box may weaken the communication
signals, reducing communication efficiency.
●This product should be installed in a clean and dry place to prevent the internal components from
moisture or other debris into, affecting the using.
●If this product is broken, non-professionals can not dismantle it, should be return for repairing or contact
with our customer service directly.
8

Order Information
Product Name
Model
Material and color
Num.
Wulian Smart Wall Socket-Outlet(UK Type)
WL-ZSKWNPW-W3160-01
PC,White
WLPN140522002
9

Wulian, is beside you
More information, please follow our official website

B11 Software Valley，No.15, Fengji Road, Yuhuatai District, Nanjing
Postcode: 210039
Service hotline：[phone]
http://www.wulian.cc/english
